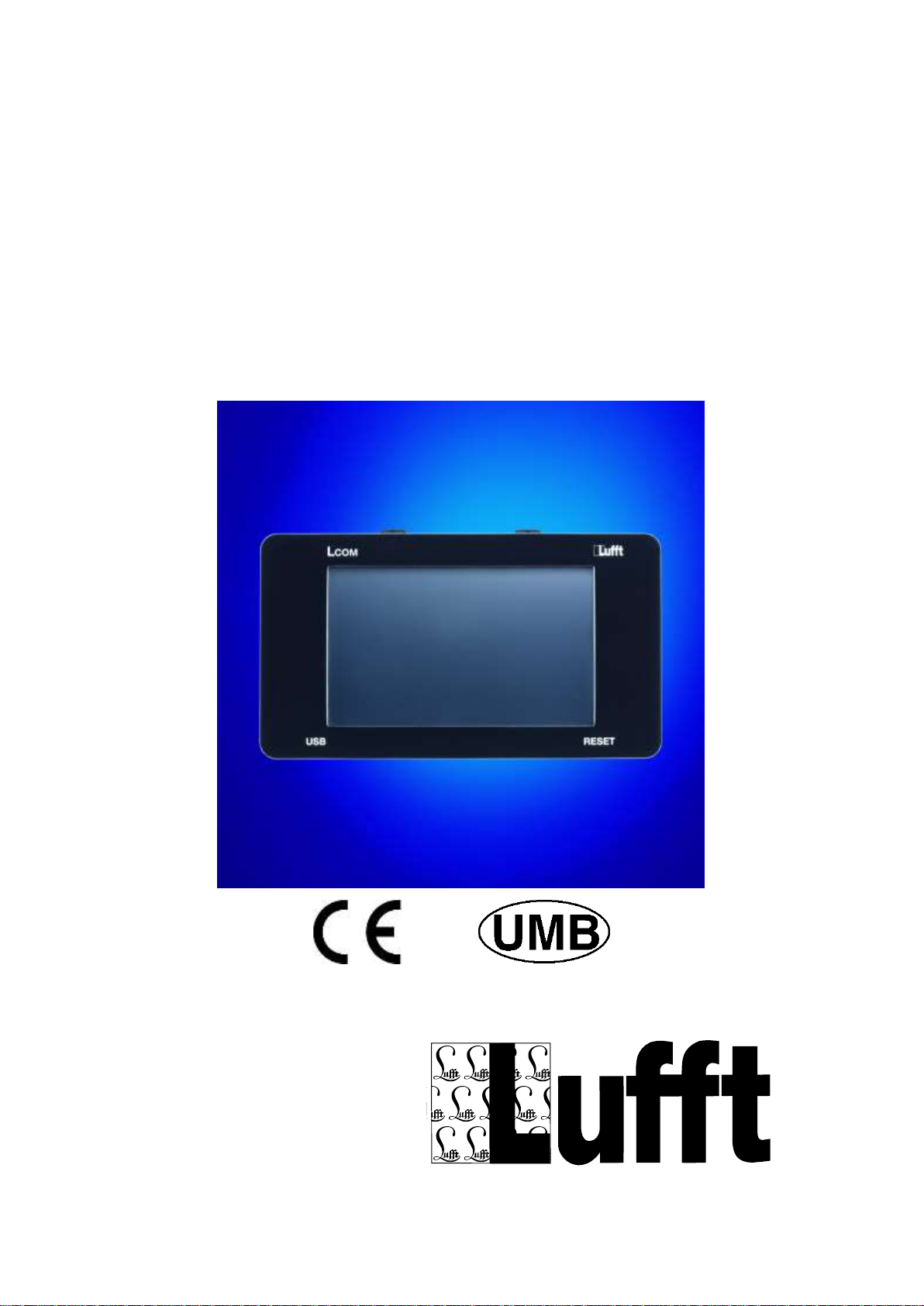

Lufft 8511.EAK User manual

Operating Manual LCom
Lufft Communicator
Order No.: 8511.EAK
Version V2.18.1 (11/2019)
www.lufft.com

Contents
1PLEASE READ BEFORE USE 5
1.1 SYMBOLS USED 5
1.2 SAFETY INSTRUCTIONS 5
1.3 DESIGNATED USE 5
1.4 GUARANTEE 5
1.5 INCORRECT USE 5
1.6 BRAND NAMES 6
2GENERAL 7
3HARDWARE DESCRIPTION 8
3.1 POWER SUPPLY 8
3.2 OPERATION 8
3.3 GPRS MODEM CONNECTION FOR WIRELESS TCP/IP CONNECTIONS,AND ANALOG MODEM
FOR PPP-DIAL IN CONNECTIONS. 9
3.4 PARTY-LINE MODEM CONNECTION 10
3.5 UMB CONNECTION 11
3.6 ETHERNET 11
3.7 USB 11
3.8 PIN ASSIGNMENT CON220-1 AND CON220-2 12
3.9 STORAGE CONDITIONS 13
3.10 OPERATING CONDITIONS 13
3.11 TECHNICAL DATA 13
4EC CERTIFICATE OF CONFORMITY 14
5SOFTWARE DESCRIPTION 15
5.1 INSTALLATION 15
5.2 GETTING STARTED 16
5.3 USER INTERFACE 17
5.4 STATUS DISPLAY 18
5.5 LOG FILE 19
5.6 SENSOR CONFIGURATION 20

5.6.1 VALUE MAPPING 24
5.7 UPLINK-TYPE AND COMMON TLS PARAMETER 25
5.7.1 TLS FG6 PARAMETER 26
5.7.2 TLS LOKALBUS/INSELBUS PARAMETER 27
5.7.3 TLSOIP PARAMETER 28
5.7.4 MICKS FTP /TLS DUMP OVER FTP PARAMETER 29
5.8 NTCIP 31
5.8.1 SUPPORTED NTCIP “OIDS”32
5.8.2 CONFIGURATION 34
5.8.3 NTCIP SNMP OIDS51
5.8.4 CAMERA SUPPORT 73
5.8.5 NTCIP 1209 TSS 74
5.8.6 NTCIP DATA STORE /HISTORY 75
5.9 MSSI 78
5.9.1 MSSI CONFIGURATION 80
5.9.2 MSSI SENSOR TYPES 83
5.9.3 MSSI CAMERAS 83
5.9.4 NTP SERVER 85
5.9.5 STATION STATUS 86
5.10 EXPORT 88
5.11 GPRS /ANALOG MODEM 92
5.11.1 GPRS MODEM 92
5.11.2 ANALOG-MODEM 93
5.11.3 DYNDNS 93
5.11.4 PORT FORWARDING 95
5.12 AUTOUPDATE 97
5.13 SYSTEM 99
5.13.1 DEVICE SETTINGS 102
5.13.2 ALARM PROCESSING 103
5.13.3 BOSCHUNG ALARM CODE 107
5.13.4 PROGNOSIS ROAD CONDITION 110
5.13.5 CHANGE SYSTEM USER 112
5.13.6 SIMULATION FOR SALINE CONCENTRATION 112
5.13.7 FRESH SNOW HEIGHT 114
5.13.8 SLIPPERY FROSTY 115
5.13.9 MICKS DE132 117
5.13.10 BRIDGE DECK ALARM 118

5.13.11 SMOOTHED/SIMULATED WATER FILM HEIGHT 120
5.13.12 WAVETRONIX CLICK 512 123
5.13.13 DGT RC ALARM CODE 125
5.13.14 SAND STORM DETECTION 126
5.13.15 WET SPOT DETECTION 128
5.13.16 DEWPOINT 129
5.14 TEST RS232 130
5.15 SOFTWARE UPDATE /REMOTE MAINTENANCE 131
5.16 FILE UPDATE.TXT 132
5.17 COMMAND FILE 134
5.18 EXAMPLES 138
5.18.1 FIRMWARE UPDATE VIA USB STICK 138
5.19 FIRMWARE UPDATE VIA FTP SERVER 140
5.20 SERVICE PROGRAM 141
6APPENDIX 142
6.1 SUPPORTED TLS DE DATA TYPES 142
6.1.1 EXTENDED ERROR MESSAGE DE-TYPE 14 142
6.1.2 FG3 142
6.1.3 FG6 148
6.2 CONNECTION EXAMPLE 153
6.3 CHANGE HISTORY 154

1 Please Read Before Use
Before using the equipment, please read the operating manual carefully and follow
the instructions in every detail.
1.1 Symbols Used
Important information about potential hazards to the user
Important information about correct equipment operation
1.2 Safety Instructions
•Installation and commissioning must only be carried out by suitably qualified
specialist personnel.
•Never take measurements on or touch live electrical parts.
•Pay attention to the technical data and storage and operating instructions.
1.3 Designated Use
•The equipment must only be operated within the range of the specified technical
data.
•The equipment must only be used under the conditions and for the purposes for
which it was designed.
•The safety and operation of the equipment can no longer be guaranteed if it is
modified or adapted.
1.4 Guarantee
The guarantee period is 12 months from the date of delivery. The guarantee is
forfeited if the designated use is violated.
1.5 Incorrect Use
If the equipment is installed incorrectly
•It may not function at all or its function may be limited


•It may be permanently damaged
•Danger of injury may exist if the equipment is allowed to fall
If the equipment is not connected correctly
•It may not function
•It may be permanently damaged
•The possibility of an electrical shock may exist
1.6 Brand Names
All brand names referred to are subject without limitation to the valid trademark and
ownership rights of the respective owner.

2 General
The introduction of UMB technology has enabled Lufft to offer low cost sensors for
road traffic technology. UMB sensors can be combined using ISOCON modules and
additional analog sensors can be integrated with the ANACON module.
The LCom - Lufft Communicator –was developed to provide the UMB sensor data
over various communication protocols.
LCom consists of an embedded computer with Windows CE operating system, a
touchscreen display (resolution 800x480 pixels and CFL backlighting), and interfaces
for a GPRS modem, Party-Line modem and UMB network as well as an Ethernet and
USB interface. In addition, LCom has a real-time clock with battery backup.
Currently following protocols are supported:
•TLS97
•TLS2002
•TLS2012
•TLS over IP (Asfinag)
•NTCIP (via SNMP)
•MSSI (SOAP) (Lufft/Asfinag)
In TLS mode, LCom operates as an “integrated control module with EAK”(Inselbus),
or as “EAK on external control module” (Lokalbus).
Additional protocols planned are:
•DGT (Spain)

3 Hardware Description
LCom Connector
3.1 Power Supply
LCom is powered via UB+/GND (CON220-1) on the UMB-EAK. The allowed voltage
range is 10VDC to 28VDC. The input is protected against reverse polarity, surge and
burst.
Power supply for the GPRS modem (GUB_2/GND) and Party-Line modem
(GUB_3/GND) are provided on connector CON220-1. Depending on the status of the
modem, LCom can switch these two voltages on and off to reset the respective
modem.
The power supply for the UMB network (GUB1/GND) is available on CON220-1. The
maximum output current is 4 amp. If higher currents are required, the sensor heater
tapes must be powered and protected separately.
All output voltages are short-cut proof.
3.2 Operation
The standard functions of the LCom can conveniently be used via the touch screen
display. For configuration purposes we recommend the connection of a PC keyboard
with USB connection, or connecting a PC/Laptop via LAN and using the service
program.
RESET
USB
Ethernet
CON220-1/Pin1
CON220-2/Pin1

3.3 GPRS Modem Connection for Wireless TCP/IP Connections,
and Analog Modem for PPP-Dial In Connections.
The supported modem for GPRS Connections is: Wavecom Fastrack GPRS Modem.
Serial port settings are 115200 baud, 8 data bits, no parity, 1 stop bit, RTS/CTS
hardware handshake enabled.
Alternative modems can be tested on request.
LCom
Connection
GPRS Modem
RXD1 (CON220-1/Pin 7)
RS232
RXD (Pin 6)
TXD1 (CON220-1/Pin 8)
RS232
TXD (Pin 2)
RTS1 (CON220-1/Pin 9)
RS232
RTS (Pin 12)
CTS1 (CON220-1/Pin 10)
RS232
CTS (Pin 11)
GND (CON220-2/Pin 2)
RS232 (if required)
GND
GUB_2 (CON220-2/Pin 1)
Power supply
UB+ - 1V
GND (CON220-2/Pin 2)
Power supply
GND
LCom/GPRS modem wiring
For the PPP Dial In Connection, any Hayes compatible modem may be used. Serial
port settings are 57600 baud (configurable, see modem dialog below), 8 data bits, no
parity, 1 stop bit, RTS/CTS hardware handshake enabled.

3.4 Party-Line Modem Connection
LOGEM1200 (Keymile) and TD-23 (Westermo) modems are supported.
Interface settings: 1200 baud, 8 data bits, even parity, 1 stop bit, RTS/CTS/DCD
hardware handshake enabled.
Alternative modems can be tested on request.
LCom
Connection
Party-Line Modem
RXD_MOD (CON220-2/Pin 5)
RS232
RXD (Pin 2)
TXD_MOD (CON220-2/Pin 6)
RS232
TXD (Pin 3)
RTS_MOD (CON220-2/Pin 7)
RS232
RTS (Pin 7)
DTR_MOD (CON220-2/Pin 8)
RS232
DTR (Pin 4)
CTS_MOD (CON220-2/Pin 9)
RS232
CTS (Pin 8)
DCD_MOD (CON220-2/Pin10)
RS232
DCD (Pin1)
GND (CON220-2/Pin 4)
RS232 (if required)
GND (Pin 5)
GUB_3 (CON220-2/Pin 3)
Power supply
UB+ - 1V
GND (CON220-2/Pin 4)
Power supply
GND
LCom/Party-Line modem wiring

3.5 UMB Connection
The data connection and power supply are provided over the UMB connection.
Please note that the maximum current on the LCom’s power supply output is 4 amp.
If higher currents are required, the sensor heater must be powered and protected
separately.
Interface settings: 19200 baud, 8 data bits, no parity, and 1 stop bit.
LCom
Connection
UMB Connection
(internal bus)
A (CON220-1/Pin 5)
--------------------------------
A1
B (CON220-1/Pin 6)
--------------------------------
B1
GUB_1 (CON220-1/Pin 3)
--------------------------------
UB+ - 1V
GND (CON220-1/Pin 4)
--------------------------------
GND
LCom/internal UMB bus wiring.
3.6 Ethernet
10/100 Mbit with TCP/IP stack
IP address: 192.168.0.50
Net mask: 255.255.255.0
Standard gateway: -
All settings can be changed in Windows CE control panel
3.7 USB
A USB hub, keyboard, mouse and memory stick can be connected to the USB
interface.

3.8 Pin Assignment CON220-1 and CON220-2
CON220-1
Pin
Name
Comment
1
UB+
Positive power supply of EAK, 10V... 28V
2
GND
Ground
3
GUB_1
Switched UMB power supply
4
GND
Ground
5
A
A-RS485 for UMB communication
6
B
B-RS485 for UMB communication
7
RXD1
GPRS or Analog modem connection, Receive line
8
TXD1
GPRS or Analog modem connection, Transmit line
9
RTS1
GPRS or Analog modem connection, Ready to send
10
CTS1
GPRS or Analog modem connection, Clear to send
CON220-2
Pin
Name
Comment
1
GUB_2
Switched power supply for GPRS or Analog modem
2
GND
Ground
3
GUB_3
Switched power supply for TLS/Party Line modem (or Camera,
see Camera configuration)
4
GND
Ground
5
RXD_MOD
Data modem connection (TLS/Party Line), or Opus200 Receive
Data, Input
6
TXD_MOD
Data modem connection (TLS/Party Line), or Opus200 Transmit
Data, Output
7
RTS_MOD
Data modem connection (TLS/Party Line), or Opus200 Ready to
send, Output
8
DTR_MOD
Data modem connection (TLS/Party Line), Data terminal ready,
Output
9
CTS_MOD
Data modem connection (TLS/Party Line), or Opus200 Clear to
send, Input

10
DCD_MOD
Data modem connection (TLS/Party Line), Data carrier detect,
Input
3.9 Storage Conditions
Allowable ambient temperature : -30°C... +70°C
Allowable relative humidity : 95%, non-condensing
3.10Operating Conditions
Allowable operating temperature : -25°C... +70°C
Allowable relative humidity : 95%, non-condensing
3.11Technical Data
Power supply : 10V...28V
Lithium battery for real-time clock : 3V, 250mAh
Power consumption, CFL switched off : approx. 3W
Power consumption, CFL switched on : approx. 10W

4 EC Certificate of Conformity
Product: LCom
Type: 8511.EAK
We herewith certify that the above mentioned equipment complies in design and
construction with the Directives of the European Union and specifically the EMC
Directive in accordance with 89/336/EC and the Low Voltage Directive in accordance
with 73/23/EC.
The above mentioned equipment conforms to the following specific EMC Standards:
EN 61000-6-2:2005 Part 6-2: Generic Standards - Immunity for Industrial
Environments
EN 61000-4-2 ESD
EN 61000-4-3 Radiated electromagnetic field
EN 61000-4-4 Burst
EN 61000-4-5 Surge
EN 61000-4-6 Conducted disturbances
EN 61000-4-8 Magnetic field 50Hz
EN 61000-6-3:2001 Part 6-3: Generic Standards - Emission Standard for Residential,
Commercial and Light Industrial Environments
EN 55022:1998 +A1:2000 +A2:2003 Line-conducted disturbances
prEN 50147-3:2000 Radiated emission
IEC / CISPR 22 Class B
Fellbach, 22.02.2008 Axel Schmitz-Hübsch

5 Software Description
5.1 Installation
The following files must be copied to the \FFSDISK directory:
LCom.exe –the LCom application
Text_de.uni –the text modules for the user interface in German
Text_en.uni –the text modules for the user interface in English
The following are also absolutely essential for NTCIP:
Snmpapi.dll –the library for all SNMP functions
Snmp.dll –the “master” SNMP agent (Microsoft)
Snmp_hostmib.dll –the SNMP agent for “host” functions (Microsoft)
Snmp_mibii.dll –the SNMP agent for “MIB-II” functions (Microsoft)
Ftpd.dll –the FTP server (Microsoft)
SnmpNtcipAgent_Vx.x.dll –the SNMP agent for NTCIP functions (Lufft)
The “Start.cmd” file must be copied to the \FFSDISK\Startup directory.
This command file copies the “LCom.exe” file from the \FFSDISK directory to “\” (i.e.
to the RAM drive) and starts the application from there. This allows the file
“\FFSDISK\LCom.exe” to be overwritten by an update when necessary while the
system is running.

5.2 Getting Started
The LCom can be operated using only the touch screen display and the virtual
keyboard, but for ease of use it is recommended to connect an USB keyboard to the
LCom, or use a PC and the service program.
We recommend that you attach a small USB hub with keyboard and mouse –so you
can also attach an USB stick to copy files to (e.g. configuration and program files)
and from (e.g. log files) the LCom.
When the LCom starts up, certain registry entries are checked and set if necessary.
The system restarts if any changes are required.
Note: A user name and password are required for access to the system via Telnet, or
for access to all configuration dialogs on the LCom:
User name: lufft
Password: lufft-lcom
Some settings via the Windows CE control panel also require this password.
After this, the application checks whether a UMB device configuration is available or
not. The UMB device configuration is stored in the “device_data.txt” and
“sensor_data.txt” files.
The UMB bus is scanned automatically if no device configuration is available.
The sensor configuration must then be customized to your needs.
The appropriate UMB channels must be activated, and the configuration values for
the uplink protocol (see below) must be set if applicable (e.g. for TLS the FG, Type
and Channel settings, for MSSI the type and channel settings).
The sensor configuration is maintained in the “Sensor Config” dialog. Like all other
configuration dialogs, this dialog is user name and password protected (see “User
Interface”).

Note: If you want to set up several LCOMs with an identical sensor configuration, you
can use the "device_data.txt” and “sensor_data.txt” files to transfer this configuration
to other devices. In this case it is best to install these files in the \FFSDISK directory
before starting LCom. The TLS and MSSI configuration data for the sensors is also
stored in the “sensor_data.txt” file.
5.3 User Interface
Only the first two dialogs, “Status Display” and “Log File”, are generally available. A
user name and password is required for all other dialogs.
User name: lufft
Password: lufft-lcom
The user is “logged out” if the screensaver is enabled.
Note: the screensaver function in LCom disables the LCD backlight after a
configurable amount of time without user interaction (see System Dialog). The
backlight is re-enabled (switched on) if the touch screen is touched, or a mouse
button is pressed.
As it may happen that the backlight does not start properly when it is re-enabled, the
backlight is reset (switched off and on again) if the touch screen (or the mouse
button) is continuously pressed for more than 5 seconds.

5.4 Status Display
This dialog is displayed as the default. The status of the active sensors, including the
most recent measurements, is displayed together with the general system status
(UMB and Uplink communication).
If a sensor value is converted by scaling or value mapping (see below), the
calculated value and the original value (in brackets) are shown.
If a range violation for a TLS data type is detected for a value, the value is highlighted
in red (the corresponding DE error status is then reported for the sensor).
If the UMB device reports an error value for a sensor channel, the UMB error code is
displayed in the “Value” column, highlighted in red. If an UMB device does not report
a value for a sensor channel at all (e.g. because the device does not respond) the
complete sensor data line is highlighted in red.

5.5 Log File

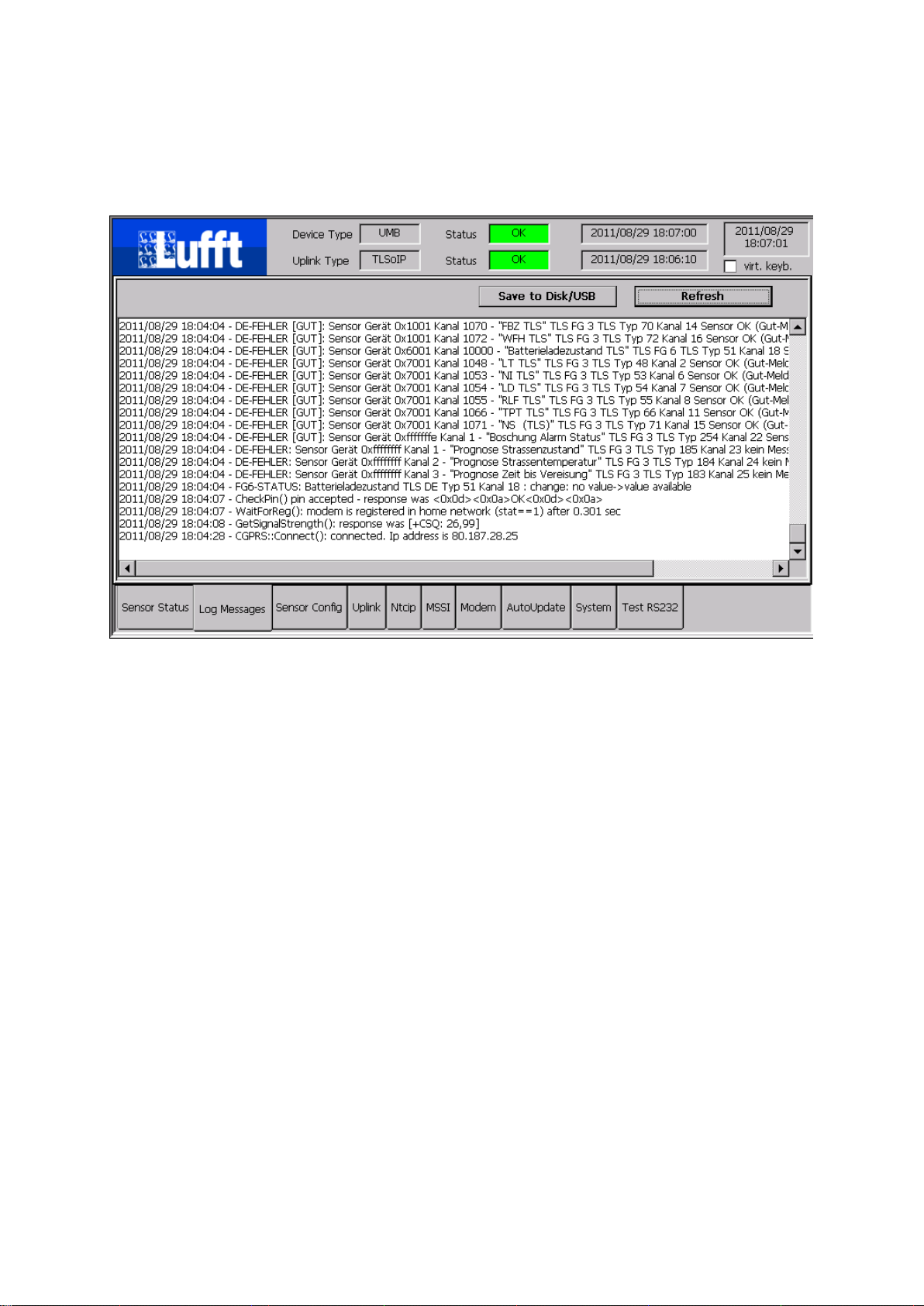

By clicking the “Refresh” button, the last 200 entries in the error log are displayed.
Save to Disk/USB: saves the error log file(s) to the internal “nonvolatile” memory (e.g.
for error analysis). If an USB stick is present, the file(s) can be saved to the USB stick
as well

5.6 Sensor Configuration
This dialog displays all channels of the attached UMB devices. Inactive channels are
shown in gray, active channels in black.
Active channels are displayed at the top of the list.
After starting the application for the first time it may take some time for the system to
read the configuration of all UMB devices. You can update the display by clicking
“Edit Sensor” if no sensor is displayed in this dialog.
To edit the configuration of a channel/sensor, highlight the corresponding entry on
the list and click “Edit Sensor”. Alternatively you can double-click on the entry.
