OPERATING INSTRUCTIONS FOR YOUR
LUG-ALL® RATCHET WINCH HOIST
650 Lincoln Road, Birdsboro, PA 19508
Phone: [phone] Fax: [phone] Web: Lug-All.com
Copyright 2018 © Lug-All Corporation. All rights reserved.
6000-15 Web Strap Cable
LAC-0408
Rev. 9/18

TABLE OF CONTENTS
WARNINGS ............................................................................................................................................................ INSIDE FRONT COVER-1
DAILY CABLE INSPECTIONS........................................................................................................................................................................ 1
DAILY WEB STRAP INSPECTIONS............................................................................................................................................................... 1
LUG-ALL RATCHET WINCH HOIST PRE-OPPERATIONAL INSPECTION CHECKLIST................................................................................... 2
RIGGING...................................................................................................................................................................................................... 3
OPERATING YOUR LUG-ALL.................................................................................................................................................................... 3-4
WINDING CABLE OR WEB STRAP .............................................................................................................................................................. 4
CARING FOR THE LUG-ALL RATCHET WINCH HOIST................................................................................................................................ 4
RAPID LOWERING LUG-ALL ....................................................................................................................................................................... 4
HANDLE INSTALLATION ............................................................................................................................................................................. 5
TELESCOPING HANDLE (MODEL 6000-15 ONLY)...................................................................................................................................... 5
REPLACING THE STRESS LINK OR OVERLOAD LINK................................................................................................................................. 6
SHEAR PIN INFORMATION (MODEL 6000-15 ONLY)................................................................................................................................. 6
REPLACING THE SHEAR PIN (MODEL 6000-15 ONLY)............................................................................................................................... 7
LOAD CHARTS ......................................................................................................................................................................................... 7-8
LUG-ALL WARRANTY ............................................................................................................................................................. BACK COVER

TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE:
1. Do not operate the ratchet winch hoist before you have carefully read the instructions and recommendations in this manual. The
ratchet winch hoist must be operated and maintained to avoid risk of property damage or bodily injury.
2. Do not exceed load rating.
3. Inspect your ratchet winch hoist before each use for damage, malfunction, or worn parts.
4. Do not operate if the ratchet winch hoist is damaged or malfunctioning.
5. Inspect hooks and latches for bends, enlarged openings, and other damage. Remove ratchet winch hoist from service until
damaged hooks and latches are replaced.
6. Operate only when hook-to-hook pull is in a straight line.
7. Do not operate if the cable or web strap has kinks, cuts, broken strands, frays, abrasions, or any other damage. The cable or web
strap must be replaced even if the damage to the cable or web strap appears minor.
8. The cable or web strap must be evenly wrapped around the drum for secure ratchet winch hoist operation.
9. Ensure that the cable or web strap is seated properly in the pulley wheel.
10. Do not use the ratchet winch hoist to lift people or animal cargo or lift loads over people.
11. Do not leave an unattended load suspended in the air.
12. Do not lengthen or make any substitution for the ratchet winch hoist handle.
13. Do not remove or obscure warning labels.
14. Do not use the ratchet winch hoist as a load binder or tow line.
15. Do not snag or pull the cable or web strap over edges because serious weakening may result.
16. Do not use the ratchet winch hoist without replacing the broken shear pin (model 6000-15 only).
17. Ensure the latches on the hook(s) are properly closed before using.
18. Use only genuine Lug-All replacement parts.
19. Only use the ratchet winch hoist in ambient operating temperature range (-10 to 50 degrees Celsius/14 to 122 degrees
Fahrenheit.)
20. Keep long hair, loose-fitting clothing, and jewelry away from working mechanisms on the ratchet winch hoist at all times.
21. Do not place fingers, hands, or any other body part near the pawl during ratchet winch hoist operation.
Entanglement and crushing warning.

1 Lug-All® Ratchet Winch Hoist Manual | 1-877-658-4255 | Lug-All.com

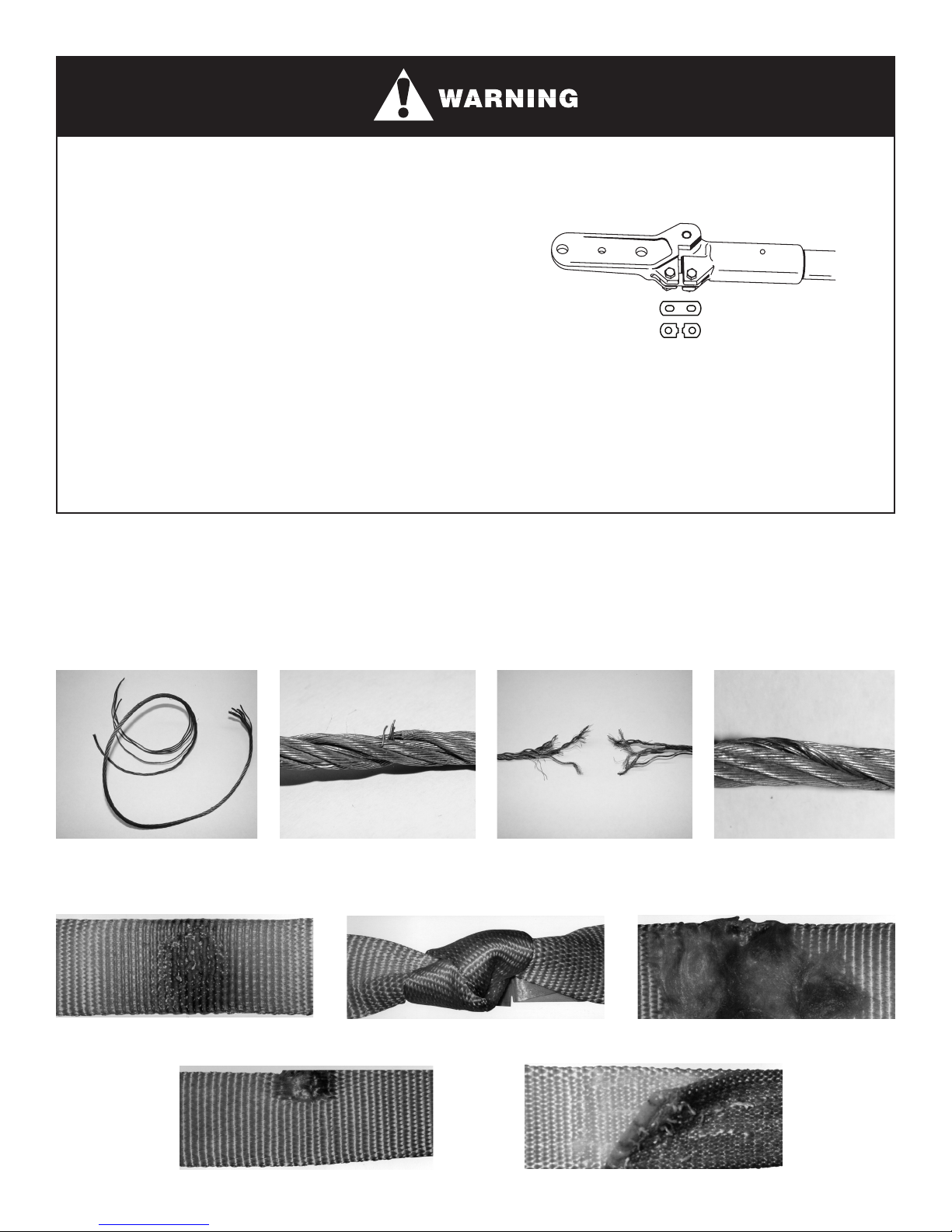

DAILY INSPECTIONS
Before each use, the ratchet winch hoist must be visually inspected. The hoist must be removed from service if any of the following is visible:
Drum Crushing Spiraling Broken Wires Cut Cable
DAILY CABLE INSPECTIONS
DAILY WEB STRAP INSPECTIONS
Melting, Charring, or Chemical Damage
Cuts, Holes, or Tears Anywhere on Webbing
Excessive, Abrasive Wear
Broken or Worn Threads in the Stitch Pattern
Knots in the Web Strap
Kinks
WEB STRAP WARNINGS
The use of the web strap ratchet winch hoist on or around
energized lines may result in serious injury or death.
If provided, use the optional hot-stick rings and/or operating
levers to eliminate direct contact with the ratchet winch hoist.
The web strap and fiberglass handle provide an extra measure
of safety when working around energized power lines.
However, Lug-All web strap ratchet winch hoists are not
live-line tools. When the web strap is clean and dry, it may
have dielectric properties typical of nylon or polyester fibers.
However, these dielectric properties are lost when the web strap
becomes wet and/or dirty.
LINK WARNINGS
Inspect assembly for broken or missing links before using hoist.
Replace broken links immediately.
Use one stress link and one overload link only. The use of two
overload links or two stress links will produce excessive overload
and eliminate the handle’s safety feature.
The stress link, located beside the overload link, snaps when
the hoist is overloaded to protect the operator and hoist before
injury or damage occurs.
The overload link has elongated holes, which allow the stress
link to snap while still holding the handle assembly together.
Overload Link
BrokenStress Link

Lug-All.com | 1-877-658-4255 | Lug-All® Ratchet Winch Hoist Manual 2
NOTE: The cable or web strap must be pulled from the drum during inspection. The ratchet winch hoist should be removed from service if
any inspection points fail.
LUG-ALL RATCHET WINCH HOIST PRE-OPERATIONAL INSPECTION
CHECKLIST
UNIT: MODEL: DATE:
Inspection Point Inspection Results (
3 )
Pass Fail
1.) Inspect hooks and latches for deformation, cracks, and wear. An elongated or
bent hook is an indication that the ratchet winch hoist was overloaded.
2.) Check operation of latches. Safety latches on the hooks should not be
removed or kept permanently open.
3.) Inspect cable or web strap for fraying, melting, charring, chemical damage,
abrasive wear, cuts on the face or edges of webbing or cable, holes, tears,
snags, and/or any other damage.
4.) Inspect web stitch patterns for broken or worn threads.
5.) Check ratchet teeth for gouges, burred edges, and/or other physical damage.
6.) Check for bent or broken metal parts, rounded edges, and elongated holes.
7.) Check metal parts for corrosion.
8.) Check pawls and levers for bends, cracks, and/or other damage.
9.) Check the integrity of the springs.
10.) Operate the U-frame and verify that the U-frame does not rub against the
main frame during operation.
11.) Test operating functions, such as lifting, lowering, and free release of the
ratchet winch hoist.
12.) Verify that the U-frame is not missing the main frame spring.
13.) Check the hoist for broken stress link.

3 Lug-All® Ratchet Winch Hoist Manual | 1-877-658-4255 | Lug-All.com
OPERATING YOUR LUG-ALL
Our standard ratchet winch hoists have three operation modes: lifting or tensioning, lowering or backing off, and free release. Lifting or
tensioning and lowering or backing off operations require the ratchet winch hoist to be under load (at least 15 pounds). The position of the
reverse lever (to either hold the U-frame pawl against or away from the ratchet teeth under spring tension) determines the operation mode.
Free release mode quickly unwinds the cable or web strap from the drum and will not operate under load.
LIFTING OR TENSIONING (MUST BE UNDER LOAD OF AT LEAST 15 POUNDS)
1. Per Figure 2, rotate the reverse lever toward the drum to engage the U-frame pawl against the ratchet teeth.
2. Operate the handle as required to lift the load or apply the required tension.
LOWERING OR BACKING OFF (MUST BE UNDER LOAD OF AT LEAST 15 POUNDS)
1. Per Figure 3, rotate the reverse lever away from the drum to move the U-frame pawl away from the ratchet teeth.
2. Per Figure 3, move the handle until the U-frame pawl enages the main frame pawl spring. Additional handle pressure in the same
direction will release the main frame pawl.
3. Per Figure 3, ease off the handle pressure and the load will lower one ratchet tooth.
FREE RELEASE (WILL NOT OPERATE UNDER LOAD)
1. Per Figure 3, rotate the reverse lever away from the drum to move the U-frame pawl away from the ratchet teeth.
2. Per Figure 3, press the trigger to hold the main frame pawl away from the ratchet teeth.
NOTE: The trigger is the end of the main frame pawl that does not engage the ratchet teeth.
3. Pull out the cable or web strap the required distance.
RIGGING
Before rigging, refer to the capacity plate on the outside of the main frame for single line and double-line rigging capacities. Lug-All ratchet
winch hoists operate in any position as a hoist and horizontally as a winch. The lifting and pulling power of the ratchet winch hoist depends
on whether it is single-line rigged or double-line rigged with the use of a pulley block.
Per Figure 1, rig the ratchet winch hoist with double line for full capacity. For twice the lifting distance and operating speed, rig the ratchet
winch hoist with single line for one-half capacity.
Always rig the ratchet winch hoist so that it will move freely from side-to-side, which allows even wrapping of the cable or web strap on the
drum. Restricting the frame’s side-to-side movement stresses the frame from uneven loading.
Hooks should be placed so that the point of contact is in line with the center of the shank or eye.
RAPID LOWERING MODELS ONLY
When rigging a Lug-All ratchet winch hoist that will be used in rapid lowering mode, you must rig it so that a full stroke of the handle is
possible. For example, if working from a ceiling with the ratchet winch hoist right side up, it would be necessary to use a choker or extension
to lower the ratchet winch hoist sufficient distance to allow the handle to travel its full arc, which carries it above the top hook. See Rapid
Lowering Lug-All section on page 4.
Figure 1
Single Rigged (1/2 Capacity) Double Rigged (Full Capacity) Alternate Rigged (1/2 Capacity)

Lug-All.com | 1-877-658-4255 | Lug-All® Ratchet Winch Hoist Manual 4

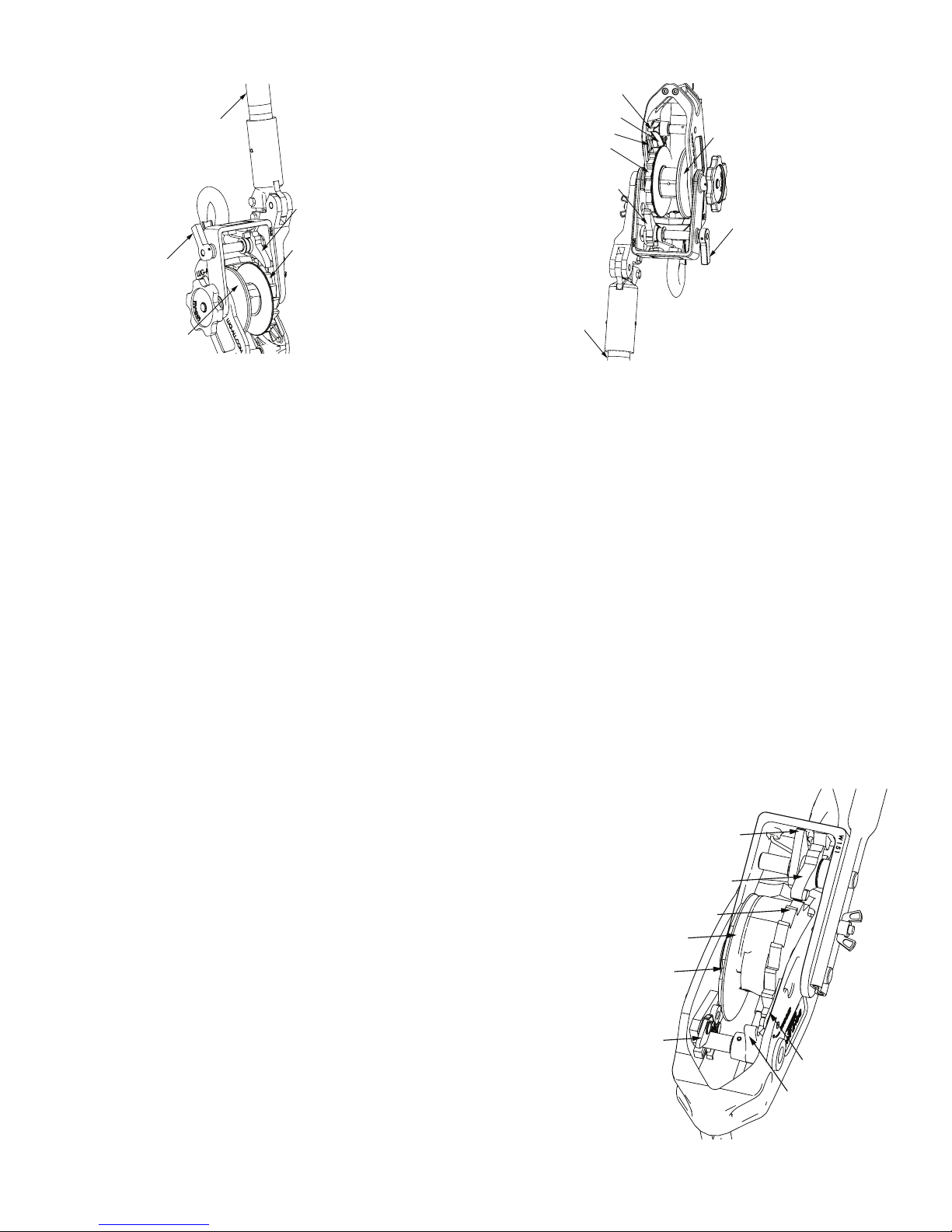

Handle
Reverse Lever
Drum
Ratchet Tooth
U-Frame Pawl
Figure 2
Trigger
Main Frame Pawl
Ratchet Tooth
U-Frame Pawl
Reverse Lever
Handle
Drum
Main Frame Pawl Spring
Figure 3
CARING FOR THE LUG-ALL RATCHET WINCH HOIST
•The web strap is made of synthetic fibers, and like all fibers, whether synthetic or natural, it may deteriorate from various causes,
including chemicals, weather, and sunlight.
•Most of the damage described above can cause catastrophic failure of the web strap. Not all of the damage will be obvious or
extreme, but it still requires removal from use.
•The web strap should be load tested periodically and replaced when the safety factor for its maximum possible load is considered to
be insufficient by the user. The testing time frame is based on usage, which is determined by the end user.
•The web strap should be replaced on a yearly basis once opened from its original packaging.
•Strip the cable or web strap completely from the drum to thoroughly inspect and clean all components..
WINDING CABLE OR WEB STRAP
When rewinding the cable or web strap on the drum, apply light tension (10 pounds). Light tension assures even wrapping and will prevent
the cable or web strap from “wedging” the next time it is used under heavy load.
•Stop pulling when the sleeve-type cable clamp or web end assembly reaches the cable guide or web strap guide. Continued pulling
will damage parts.
•Use a steady, straight pull to operate the ratchet winch hoist.
•When operating the ratchet winch hoist under load, do not allow the handle to “fly” because it can damage the U-frame.
RAPID LOWERING LUG-ALL
Rapid lowering ratchet winch hoists operate on the same basic principles
as the standard ratchet winch hoists with one additional action—rapid lowering,
meaning the hoist will lower four teeth at a time.
NOTE: Rapid lowering mode requires a minimum load of 15 pounds.
When using rapid lowering mode, operators must control the handle torque through the
full travel of the arc, which is four times longer than the arc of standard ratchet winch hoists.
When engaging rapid lowering mode, the first handle stroke may lower between one and
four ratchet teeth depending on the cam position. Following handle strokes will lower
four ratchet teeth.
Follow the steps below to use rapid lowering mode:
1. Per Figure 4, rotate the reverse lever away from the drum.
2. Per Figure 4, move the U-frame pawl away from the ratchet teeth.
NOTE: Do not operate the ratchet winch hoist in lifting/tensioning
mode with the rapid lowering switch in the “on” position.
3. Per Figure 4, place the rapid lowering switch up toward the drum
in the “on” position.
4. Per Figure 4, move the handle until the U-frame pawl engages the
main frame pawl spring. Additional handle pressure will release the
main frame pawl.
5. Ease off the handle pressure slowly, and the load will lower one to four teeth initially
depending on the cam position, then four teeth with each additional handle stroke.
Cam
Reverse Lever
U-Frame Pawl
Ratchet Tooth
Drum
Rapid
Lowering
Switch
Main Frame Pawl
Main Frame
Pawl Spring
Figure 4

5 Lug-All® Ratchet Winch Hoist Manual | 1-877-658-4255 | Lug-All.com

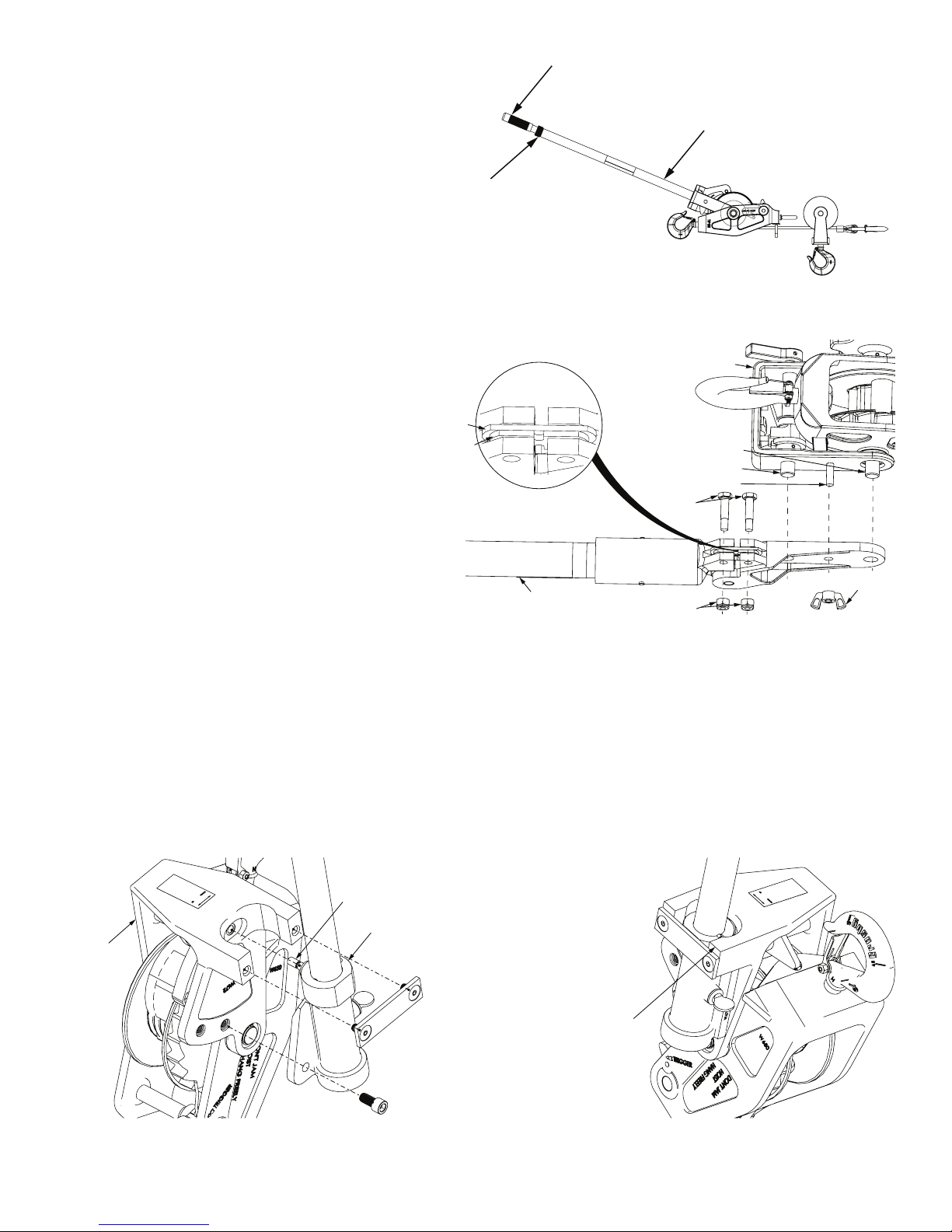

HANDLE INSTALLATION
1. Remove the handle from the cardboard shield inside the product box.
2. Per Figure 5, remove the wing nut from the side of the U-frame.
NOTE: A wing nut is not used on model 6000-15.
3. Per Figure 6, position the handle so that the three holes on the crimped end line up with the U-frame shafts and bolt.
NOTE: The handle may be inserted onto the U-frame and drum shafts in either direction to facilitate use in confined areas or to allow
the operator to pull against the load under unusual circumstances.
4. Per Figure 6, securely hand tighten the wing nut back onto the U-frame bolt. Do not use a wrench.
Figure 5
U-Frame Pawl Shaft
Handle Bolt
Drum Shaft Wing Nut
Crimped End
of Handle
Uncrimped End
of Handle
Figure 6
HANDLE INFORMATION (MODEL 6000-15 ONLY)
The handle can be moved to either of two positions: lifting or pulling. Many lowering or backing off operations can be easily accomplished
with the handle socket in the standard position, which is parallel to the edge of the U-frame. To lower or back off heavy loads, you may
want to have the handle socket in the secondary position. This secondary position provides better leverage and makes lowering or backing
off a load easier.
HANDLE INSTALLATION (MODEL 6000-15 ONLY)
1. Remove the handle from the cardboard shield inside the product box.
2. Per Figure 7, remove the thumb screw from the handle socket.
3. Per Figure 7, slide the larger tube of the handle into the handle socket.
4. Per Figure 7, align the hole in the inserted end of the handle with the hole in the handle socket.
5. Per Figure 7, the reversible telescoping handle is aligned in the handle socket by a pin 5-1/2 inches from its end and is fastened in
place by tightening the thumb screw on the socket.
NOTE: The handle socket may face in either direction to facilitate use in confined areas or to allow the operator to pull against the
load under unusual circumstances. To invert the handle socket, follow the steps below:
•Per Figure 7, remove the socket cap screw with a 5/16-inch hex key.
•Per Figure 7, slide the handle socket to the proper position.
•Per Figure 7, reinstall the socket cap screw with a 5/16-inch hex key.
Handle Socket
Socket Cap Screw
Larger Tube
Handle Smaller Tube
Thumb Screw
Figure 7

Lug-All.com | 1-877-658-4255 | Lug-All® Ratchet Winch Hoist Manual 6
TELESCOPING HANDLE
(MODEL 6000-15 ONLY)
To telescope the handle:
1. Per Figure 8, loosen the handle locking nut (right-hand thread).
2. Per Figure 8, slide the smaller tube to the desired position.
3. Per Figure 8, securely re-tighten the handle locking nut by
hand. Do not use a wrench.
Smaller Tube
Handle Locking Nut
Larger Tube
Figure 8
REPLACING THE STRESS LINK OR OVERLOAD LINK
1. Per Figure 9, remove the wing nut.
2. Per Figure 9, remove the handle from the U-frame.
3. Per Figure 9, remove the link pin nuts and threaded link pins.
4. Per Figure 9, remove and discard broken or
old stress link or overload link. You must use
one stress link and one overload link.
NOTE: A spare overload link is not supplied with
the ratchet winch hoist. However, a spare stress link
is provided.
5. Per Figure 9, insert the new stress link or overload link.
6. Reinstall threaded link pins and nuts.
7. Reinstall the handle by aligning the three holes in the
handle with the U-frame shafts and bolt.
8. Securely hand tighten the wing nut back onto the
U-frame bolt. Do not use a wrench.
NOTE: Use one stress link and one overload link only.
The use of two overload links or two stress links will produce
excessive overload and eliminate the handle’s safety feature.
U-Frame
Overload Link
Stress Link Drum Shaft
Handle Bolt
U-Frame Pawl Shaft
Link Pins
Wing
Nut
Link Pin Nuts
Handle
Figure 9
SHEAR PIN INFORMATION (MODEL 6000-15 ONLY)
Refer to Figure 10. The shear pin between the handle socket and the U-frame is designed to break if the ratchet winch hoist is severely
overloaded. You will know when the shear pin breaks because of the noise and loose handle socket. Although the ratchet winch hoist does
not become inoperative when the shear pin is broken, an overload condition exists, and the ratchet winch hoist should not be used
until the load is reduced and the shear pin is replaced. If it is not possible to reduce the load and the overload condition is minor, the
handle socket seating area will allow you to operate the ratchet winch hoist to reduce the load.
U-Frame
Shear Pin
Handle Socket
Handle Socket
Seating Area
Figure 10

7 Lug-All® Ratchet Winch Hoist Manual | 1-877-658-4255 | Lug-All.com
REPLACING THE SHEAR PIN (MODEL 6000-15 ONLY)
1. Per Figure 11, loosen the thumb screw.
2. Per Figure 11, remove the handle from the handle socket.
3. Per Figure 11, remove the two tie-bar screws and
tie bar holding the handle socket using a 3/16-inch
hex key.
4. Per Figure 11, remove the socket cap screw using
a 5/16-inch hex key from the handle socket.
5. Per Figure 11, remove the handle socket from t
he U-frame.
6. Per Figure 11, remove the broken shear pin from
the U-frame using a small shaft, such as a small
hex wrench or nail.
7. Push the O-ring side of the replacement shear pin
into the U-frame with your fingers. Ensure that the
shear pin is completely seated in the U-frame.
8. Align the holes in the handle socket with the holes
for the shear pin and socket cap screw.
9. Using a 5/16-inch hex key, securely tighten the socket cap screw to the handle socket.
10. Using a 3/16-inch hex key, securely tighten the tie-bar screws and tie bar to the handle socket.
11. Reinsert the handle into the handle socket.
12. Securely hand tighten the thumb screw. Do not use a wrench.
Handle
U-Frame
Shear Pin
Tie Bar
Tie-Bar Screw
Handle Socket
Thumb Screw
Socket Cap Screw
Tie-Bar Screw
Figure 11
LOAD CHARTS
The following load charts display single and double-line capacities for Lug-All ratchet winch hoists. Metric capacities shown are the exact
equivalents of the U.S. domestic ratings.
WIRE-ROPE RATCHET WINCH HOIST RATINGS
Model Single-Line Capacity
(Pounds/Kilograms)
Double-Line Capacity
(Pounds/Kilograms)
1000-15 1,000/454 N/A
115-R 1,000/454 N/A
1500-25 750/340 1,500/680
125-R 750/340 1,500/680
2250-15 1,125/510 2,250/1,021
215-R 1,125/510 2,250/1,021
2250-20 1,125/510 2,250/1,021
3000-10 1,500/680 3,000/1,361
310-R 1,500/680 3,000/1,361
2250-38 1,125/510 2,250/1,021
238-R 1,125/510 2,250/1,021
3000-30 1,500/680 3,000/1,361
330-R 1,500/680 3,000/1,361
4000-20 2,000/907 4,000/1,814
420-R 2,000/907 4,000/1,814
6000-15 3,000/1,361 6,000/2,722
EYE BOLT MAIN FRAME HOIST RATINGS
Model Single-Line Capacity
(Pounds/Kilograms)
Double-Line Capacity
(Pounds/Kilograms)
25-iA 1,500/680 3,000/1,361
25-iB 1,500/680 3,000/1,361
25-iU 1,500/680 3,000/1,361
25-iUB 1,500/680 3,000/1,361
25-iHB 1,500/680 3,000/1,361
3000-10i 1,500/680 3,000/1,361
NOTE: All 25-i models are web strap ratchet winch hoists. Model 3000-
10i is a cable ratchet winch hoist.
WEB AND CABLE EYE BOLT HOIST
LOADINGS
CABLE RATCHET WINCH HOIST
LOADINGS
