Luma EC111B User manual

PORTABLE EVAPORATIVE COOLER
EC111B
OWNER’SMANUAL

2
www.LumaComfort.com
BECAUSE YOU’RE NOT LIKE EVERYONE ELSE.
And neither are we. Always at the forefront of our industry, our goal is to offer
the best quality product and consumer value on the market. Our team is
constantly pushing the boundaries of innovation and design to create exceptional
products to help you achieve a more comfortable living or work space.
Our goal is to ensure that every Luma Comfort customer is 100% satisfied with
their product. If you have any questions or concerns regarding your product, or if
you would simply like to share an idea with us, please feel free to contact us. Our
friendly and knowledgeable customer support team is here for you. Call us today
at 866-737-6390 or email [e-mail].
For future reference, we recommend you attach a copy of your sales receipt here
and record the following information. You will need this information if it
becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase:
Serial Number:
Model Number:
Connect with us online.

3
Say Goodbye to Ugly Products
CONTENTS
Introduction............................................................................................................................. 4
Product Benefits...................................................................................................................... 4
Important Safety Information.................................................................................................. 5
Parts List.................................................................................................................................. 7
Operating Instructions............................................................................................................. 8
Filling the Water Tank.................................................................................................. 8
Using the Ice Pack ........................................................................................................ 8
Using the Remote Control............................................................................................ 9
The Control & Display Panels ....................................................................................... 9
Maintenance............................................................................................................................ 12
General Maintenance Instructions ............................................................................... 12
Cleaning the Dust Filter & Cooling Pad ........................................................................ 12
Cleaning the Water Tank.............................................................................................. 13
Troubleshooting ...................................................................................................................... 14
Technical Support.................................................................................................................... 16
Product Specifications............................................................................................................. 16
Warranty ................................................................................................................................. 17
SAVE THESE INSTRUCTIONS
Please carefully read this manual before attempting to install or use this evaporative cooler.
For your safety, comply with all safety instructions and warnings contained in this owner’s
manual to prevent personal injury or property damage.
To view the full line of Luma Comfort products, please visit www.lumacomfort.com

4
www.LumaComfort.com
INTRODUCTION
Thank you for purchasing this evaporative cooler from Luma Comfort, the world leader in
home appliances and home comfort products.
This owner’s manual provides specific operating instructions for your evaporative cooler. Use
the evaporative cooler only as instructed in this owner’s manual.
PRODUCT BENEFITS
Designed for cooling small to medium size bedrooms, living rooms, sunrooms, patios
and offices
Sleek, modern design makes it an attractive addition to your home
High-efficiency, rigid cooling pad holds more water
Removable water tank makes refilling and emptying easy
Powerful motor results in more powerful airflow, faster evaporation and cooler air
Consumes about as much electricity as your typical 100 watt light bulb
Eco-friendly evaporative cooling system cools the air by the natural process of
evaporating water with no refrigerant or harmful chemicals
Adds moisture to dry environments and eliminates airborne dust particles
Covers up to 250 square feet

5
Say Goodbye to Ugly Products
IMPORTANT SAFETY INFORMATION
These instructions are not meant to cover every possible condition and
situation that may occur. Please read all instructions before using this
evaporative cooler. Failure to carefully read all instructions may result in
possible electric shock or fire hazard, and will void the manufacturer’s
warranty.
1. Use this evaporative cooler only as instructed in this owner’s manual. Other uses may
cause electric shock, injury or fire.
2. Close supervision is required if this cooler is used near children or pets.
3. To protect against electric shock, do not immerse this cooler or its plug and cord in
water.
4. If the cooler is being transported or will not be in use, disconnect it from the power
supply by pulling on the evaporative cooler’s power cord.
5. Avoid contact with any of the evaporative cooler’s moving parts.
6. Place the evaporative cooler on a level surface.
7. This evaporative cooler is intended to fit into a matching receptacle.
Under no circumstances should the plug be altered in any way. An
improper connection can result in electric shock.
8. If possible, avoid using extension cords with this evaporative cooler. If an extension
cord is absolutely necessary, do not use more than one extension cord to operate more
than one cooler.
9. Do not insert objects or allow fingers to enter into the cooler’s grills, as this may cause
electric shock or bodily injury. Do not block or tamper with the evaporative cooler
while it is in operation.
10. Do not run the power cord under mats or carpeting, and do not cover the power cord
with runners. Arrange the power cord away from room traffic and where it can be
tripped over.
11. Do not operate this evaporative cooler in the presence of flammable substances or
explosives.
12. Do not place the cooler near an open flame or cooking/heating appliances.
13. If the evaporative cooler will not be in use, empty the tank of any remaining water.
14. Always fill the evaporative cooler’s tank with fresh water. Using air fresheners, scented
oils or cleaners is not recommended and can cause damage to the unit’s internal parts.
15. Drain the evaporative cooler’s tank and clean it at least once a week to prevent calcium
deposits and/or mold growth.

6
www.LumaComfort.com
16. When using this evaporative cooler in “Cool” mode, make sure the water tank is full or
at least above the minimum water level. Operating the air cooler in “Cool” mode
without sufficient water in the tank can cause damage to the water pump and will void
the manufacturer’s warranty.
17. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
18. This appliance has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plus is intended to fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electric. Do not attempt to defeat this safety feature.
19. If the cooler’s plug or power cord is damaged, do not attempt to repair
the components yourself. Please contact Luma Comfort’s customer
service hotline at 1-866-737-6390 or have the unit examined by an
authorized service provider.
SAVE THESE INSTRUCTIONS

7
Say Goodbye to Ugly Products
PARTS LIST
1. Fan head
9. Cooling pad slot
2. Display panel
10. Dustproof air filter
3. Water level indicator
11. Water tank
4. Caster
12. Power cord bracket
5. Control panel
13. Power cord
6. Remote control storage slot
14. Water tank knob
7. Carrying handles
15. Ice pack
8. Cooling pad knob
16. Remote control

8
www.LumaComfort.com
OPERATING INSTRUCTIONS
Carefully remove all packaging materials and retain for future storage/use. Make sure there is
no residual foam left in any of the components. No tools will be required to assembly this
evaporative cooler.
FILLING THE WATER TANK
1. Remove the water tank by turning the
water tank know counterclockwise 900.
2. Before using the evaporative cooler for
the first time, we recommend cleaning
the tank with a warm water and light
detergent solution.
3. Fill the tank with clean water. Pay
attention to the water level indicator
located on the front of the cooler to
avoid overfilling the evaporative cooler.
The approximate tank size of the EC111B
is 1.5 gallons (5.5 liters).
4. Replace the tank back onto the back of the unit. Turn the water tank knob clockwise 900.
This locks the water tank back into place.
USING THE ICE PACK
The EC111B evaporative cooler includes an optional ice pack for added cooling.
1. Place the ice pack in the freezer until frozen. Do not open the ice pack or ingest its
contents.
2. Put the ice pack into one of the water tank’s chambers.
3. The ice pack is not necessary for operation, but will help enhance the cooling effect in
higher temperatures.
4. The ice pack will last approximately four hours before melting.

9
Say Goodbye to Ugly Products

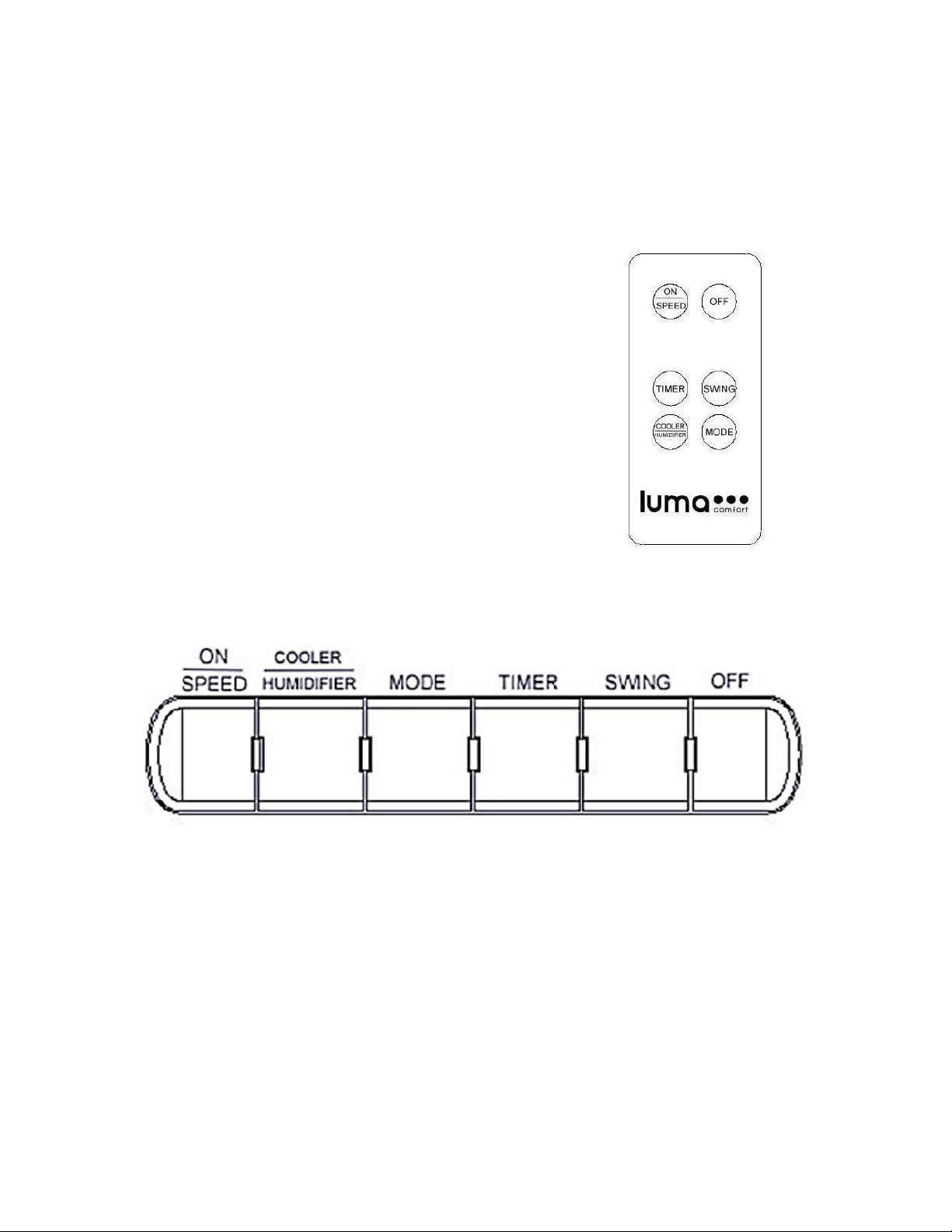

USING THE REMOTE CONTROL
The EC111B is equipped with a remote control. A CR2032 3V coin-type replacement battery is
included for your convenience.
1. To use the remote control, aim it at the unit and
select one of the functions on the remote
control. The effective distance is approximately
24”.
ON/SPEED = Power ON and adjusts
speed.
OFF = Power OFF
TIMER = Timer function of up to 7.5
hours
SWING = Swinging air louvers
COOLER/HUMIDIFIER = Controls
cooling/humidification function
MODE = Adjust the airflow mode
THE CONTROL &DISPLAY PANELS
After the tank is filled with water, connect the evaporative cooler to a power outlet. The unit
will beep twice, indicating that the power source is connected. The cooler will be in standby
mode at this time.

10
www.LumaComfort.com
ON/SPEED & OFF Buttons
1. Press the ON/SPEED button to turn on the evaporative cooler.
2. To adjust the fan speed, press the ON/SPEED button again until your desired speed has
been reached. The current fan speed will be indicated on the display panel. To turn the
unit off and revert back to standby mode, press the OFF button.
Fan Speed Indicators:
LOW
MEDIUM
HIGH
COOLER/HUMIDIFIER Button
Cooler/
Humidifier
Indicator
After the desired fan speed has been selected, press the COOLER/HUMIDIFIER
button to activate the cooling/humidifying function. This powers the water
pump and will cool and add moisture to the air at the same time. The blue
cooling icon will also be visible on the display panel.
Please note that if the initial fan speed is set to 3, the unit will revert back to the second speed
setting for five minutes. After five minutes, the unit will automatically switch to the third fan
speed. This is to allow the cooling pad to be thoroughly absorbed with water, which results in
optimized cooling. The cooler will not revert back to other speeds if the initial fan speed was
set to either 1 or 2.
MODE Button
The EC111B has two different automatic airflow modes. Setting the airflow mode is optional.
To set the airflow mode, press the MODE button.
Natural Mode
Natural Mode –Indicated by the palm tree icon on the display panel, this setting
will adjust the airflow speed between 1, 2 and 3.
Sleep Mode
Sleep Mode –Indicated by the moon icon on the display panel, this setting will
cycle through the fan speed settings, and gradually lower the speed at different
intervals, depending on the selected fan speed.

11
Say Goodbye to Ugly Products
TIMER Button
1. This evaporative cooler is equipped with a 7.5 hour programmable timer. To set the timer,
press the TIMER button. Each press of this button will add 0.5 hours to the set time.
2. The set time will be indicated in the middle of the display panel.
SWING Button
Swing
Indicator
To activate the oscillation feature, press the SWING button. The fan head will
automatically oscillate counterclockwise, which directs cool air into a cyclone for
a more focused cooling effect.
ADDITIONAL FEATURES
1. If the water level in the tank drops below the minimum level, the unit will produce an
audible alert that will last for ten seconds. After ten seconds, the evaporative cooler will
automatically turn off.
2. If the water tank is removed while the unit is on, it will automatically turn off.

12
www.LumaComfort.com
MAINTENANCE
Regular cleaning and maintenance is an essential step in maintaining the longevity of your
evaporative cooler and ensuring that it operates free of defects. Maintain your evaporative
cooler by following these steps:
GENERAL MAINTENANCE INSTRUCTIONS
1. Always unplug the evaporative cooler from the power supply before servicing or cleaning.
2. Use a soft cloth and a mild soap and warm water solution to clean the unit’s exterior. Do
not use harsh cleaners, gasoline, paint thinner, benzene, etc., as these substances can
damage the evaporative cooler.
3. Thoroughly dry all of the cooler’s parts with a soft cloth before reconnecting the unit to the
power supply.
4. Empty the water tank after the evaporative cooler has been in use. Regular, scheduled
cleaning of the water tank before each use is also recommended.
5. If the evaporative cooler will not be in use for an extended period of time, place the unit
back in its original carton and keep it stored in a clean, dry place.
6. The evaporative cooler’s filter, tank and cooling pad will need to be removed prior to
cleaning. Once all of the different components have been cleaned, place them back into
the unit in this order: water tank, cooling pad and dust filter.
CLEANING THE DUST FILTER &COOLING PAD
To prevent clogging of the dust filter, we recommend cleaning the filter at least once a month.
1. To clean the dust filter, remove it from the
back of the unit by pushing down on the
two tabs located above the filter and pull it
out. Gently scrub it with a soft brush and
rinse with water. Allow it to thoroughly air
dry before placing it back in the unit.
2. To clean the cooling pad, first remove the
dust filter to expose the pad. Turn the
knob on the pad clockwise and pull it out
from the back of the unit. Rinse it with
clean water and allow it to thoroughly air
dry before placing it back in the unit.

13
Say Goodbye to Ugly Products
CLEANING THE WATER TANK
1. Unplug the evaporative cooler from the power supply and empty the water tank after the
evaporative cooler has been in use. Regular, scheduled cleaning of the water tank before
each use is also recommended.
2. To clean the water tank, rinse it in a warm water and light detergent solution or a water and
vinegar solution. Rinse it with clean water and dry it thoroughly before placing it back into
the cooler.

14
www.LumaComfort.com
TROUBLESHOOTING
Problem
Possible Cause(s)
Possible Solution
There is no airflow.
The unit is not plugged in.
Check to make sure the plug
is plugged into an outlet. The
unit should beep twice once
the power supply is
connected.
The water tank is not locked
into the unit.
Make sure the water tank is
locked into the back of the
unit.
The unit does not cool.
There is insufficient water in
the tank.
Check the water level in the
tank and make sure there is
enough water.
The cooler/humidifier button
was not pressed.
Press the COOLER/
HUMIDIFER button.
The pump is defective.
Contact customer service if
there is an issue with the
water pump.
The unit does not cool on
high speed.
The cooling pad is not
sufficiently saturated with
water.
If speed 3 is selected when in
cooling mode, the unit will
automatically revert to speed
2 for 5 minutes to allow the
pad to be fully soaked. The
cooler will automatically turn
to speed 3 when the pad is
soaked.
Water is coming out of the
vents.
The cooling pad may be
clogged with debris.
Clean the cooling pad by
rinsing it in water and
allowing it to thoroughly dry.
You can also clean it with a
water and vinegar solution. If
the problem persists, contact
customer service.
The full tank indicator turns
on when there is still enough
water in the tank.
There is an issue with the
water pump’s sensor.
Clean the water pump by
wiping it down with a damp
cloth or try rinsing it with a
water and vinegar solution.

15
Say Goodbye to Ugly Products
Problem
Possible Cause(s)
Possible Solution
The water tank is leaking.
There is mineral buildup on
the cooling pads.
Mix together a water and
vinegar solution and pour it in
the tank. Turn the cooler on
and let the solution run
through the pads to break up
any buildup that may be
clogging the cooling pad.
The water tank is damaged.
Contact customer service if
there is an issue with the
water tank.
There is an odor coming out
of the evaporative cooler.
The unit is brand new and has
never been used before.
If the evaporative cooler has
never been used before, the
unit may emit a slight odor
upon initial use. This odor will
dissipate within a week.
There is algae buildup in the
tank or on the cooling pad.
If the evaporative cooler is
not new, there may be algae
buildup in the tank or on the
cooling pad. Clean the tank
out with a vinegar/water
solution and/or call customer
service for a new replacement
pad.

16
www.LumaComfort.com
TECHNICAL SUPPORT
Luma Comfort is committed to providing a premier service experience. If you are experiencing
any technical issues with your product related to either setup or operation, please contact our
product support team at 1-866-737-6390 or [email protected].
PRODUCT SPECIFICATIONS
Model:
EC111B
Product Dimensions:
12.75” x 11.25” x 34.5”
Product Weight:
17 pounds
Voltage:
120V
Wattage:
110W
Coverage Area:
Up to 250 square feet
Tank Size:
1.76 gallons
Fan Speeds:
3
Noise Level (dB):
66
Airflow:
500 CFM
Oscillation:
Yes
Warranty:
1 year manufacturer’s warranty

17
Say Goodbye to Ugly Products
WARRANTY
Luma Comfort products are warranted to be free from defects in workmanship or materials for one (1) year from
the date of purchase. If the product is found to be defective within this period, Luma Comfort, at its sole option,
will repair or replace any components that fail during normal operation. The repairs or replacement will be made
at no charge to the customer for parts and labor, assuming that the customer shall be responsible for all
transportation costs to and from Luma Comfort.
Luma Comfort retains the right to repair or replace (with a new or newly-refurbished replacement product) the
appliance at its sole discretion.
This warranty does NOT apply to the following:
Products without a proof of purchase
Products purchased from a source other than an authorized Luma Comfort dealer
Cosmetic damage, such as scratches or dents
Damage caused by service performed by anyone who is not an authorized service provider of Luma
Comfort
Damage in transit
Damage caused by accident, abuse, misuse, water, flood, fire, improper installation, maintenance
negligence, commercial use for a non-commercial unit, acts of God or any other acts of nature or external
causes
Damage to a product caused by modifications or alterations with the written permission of Luma
Comfort
Normal wear and tear of parts that are designed to be replaced, such as filters or batteries
Power failure and improper power supply, such as low voltage, defective wiring or inadequate fuses
Use of force or damage caused by external influences
Complete or partially dismantled appliances
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR
OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO
STATE.
IN NO EVENT SHALL LUMA COMFORT BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR
CONSQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILIYT TO USE THIS
PRODUCT, OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
If you believe your product is defective, contact Luma Comfort for warranty service at 1-866-737-6390 or
[e-mail]. In your correspondence with Luma Comfort, please describe the problem and
request a return material authorization (RMA) number. You will also need to provide the proof of purchase, return
shipping address and a daytime phone number.
After a Luma Comfort representative confirms that your product is defective and is still under warranty, you will
receive an RMA and return shipping instructions. Products set to our headquarters without an RMA will be
refused.
