Lumineux Carsington Plus User manual

Carsington Plus
600W Sports
Floodlight
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
• Light Fitting
• Instruction Manual
• Control Gear
• Inline Connector
600W
IP66
Warranty
5 YR
Carsington Plus
Sports Floodlight
IK09
TOOLS REQUIRED
BOX CONTENTS
INSTALLATION INSTRUCTIONS
• Turn off the mains power before
performing inspections, installation,
or removal
• Verify that the supply voltage is
correct by comparing it with the
luminaire label information
• It is the installers responsibility to
ensure installation is suitable for
the total load of the luminaire(s).
The supply cable, fuses/circuit
brakers must be correctly rated for
the electrical load and considering
for any transient inrush currents that
may occur
• Do not perform insulation strength
or resistance tests on installed
luminaire(s) connected
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
Risk of electric shock! Isolate the mains
power before proceeding.
WARNING
This lighting  xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
luminaire to con rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the  xture
or any of its components.
• 36mm Spanner
• Hex key
6mm & 8mm
• Screwdriver
• Cable
Installation must be conducted by a qualifi ed electrician.
We would recommend using an appropriate safety chain. (Not supplied). See reverse for product weight.
www.lumineux.co.uk
Technical Helpline:
[phone]
Manby Park, Manby, Louth, Lincolnshire, LN11 8UT
Lumineux Group is a trading name of B&T Associates Ltd.
BB
A
G
Carsington Plus
Sports Floodlight
Angle of fi tting can be
altered by loosening the
hex bolt and rotating the
lamp to desired angle.
DALI
REMOTE DRIVER BOX
NTC
No connection.
For DALI install using the allocated
terminal block with H05RN-F 2 core
1.0mm² to the desired length of your install.
For installing driver box remotely, use inline
connector supplied and H07RN-F 2 core
1.5mm² to the length of your desired install.
N+
L
NTC
+
DA
+
NTC DA
Loosen the 4 cover screws and remove cover.
Inline connector (supplied)
DC
AC
Live Phase 1
Neutral Phase 2
230V Install 415V Install
Earth Earth
L L
N N
Hours
>54,000
CRI
70
Dimmable*
LMCW
140

Carsington Plus 600W Sports Floodlight
Standard -30 to +50ºC
Technical Helpline: [phone]
DISPOSAL
PRODUCT TEMP SPECIFICATION

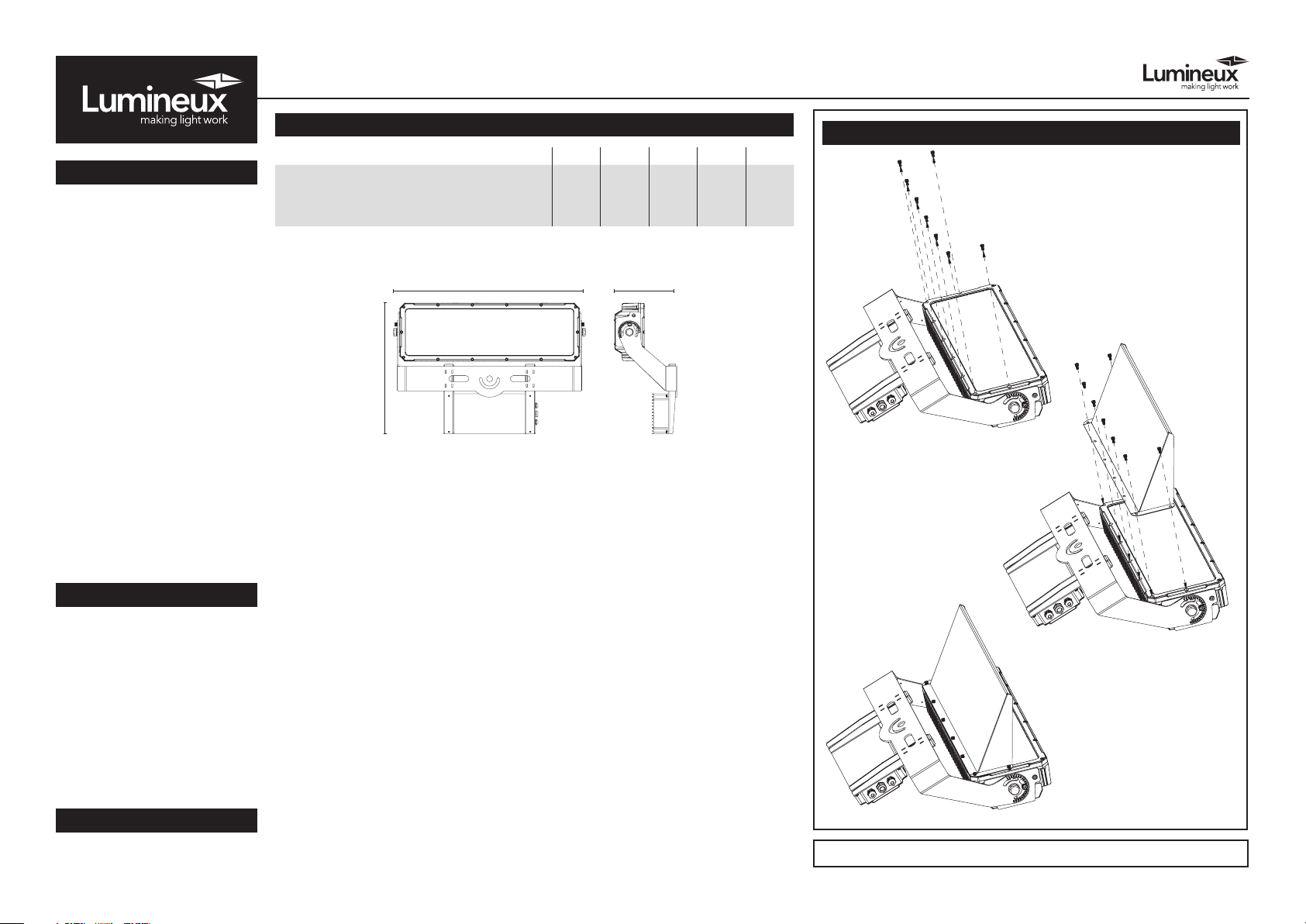

CARSINGTON PLUS SPORTS FLOODLIGHT DIMENSIONS
Revision L1.0 - JUNE 2023
This luminaire is warranted for a
period of 5 years from the date of
purchase**. The warranty could be
invalidated should the light tting
not be installed according to these
instructions, outside the scope of
the specication or the product
has been altered or tampered with
in any way. Please see website for
terms and conditions.
WARRANTY
** Please see our website for more detailed information on warranty.
CARSINGTON PLUS BACK SPILL INSTALLATION
Unscrew lens securing screws
using a 4mm Hex Key.
The light source of this unit is not
replaceable; when the light source
reaches its end of life the whole
luminaire shall be replaced.
Disassemble instructions for end of
life disposal available on website.
Disposal of Electronic Equipment
WEEE Directive 2002/96/EC This
product falls within the scope of
the Waste Electrical & Electronic
Equipment Directive (WEEE), which
means the product should not be
disposed of as normal household
waste. Please recycle where
facilities exist or check with your
Local Authority. RoHS – All
components and materials used in
this product are RoHS 2002/95/EC
compliant.
Specications may change from time
to time. The information contained
in this leaet is for guidance only
and should not be considered as
always accurate and should be
treated as not representative.
Part No. Description Watts L(mm) W(mm) H(mm) Weight
430510-25-415V Carsington Plus
with Control Gear 600W 469 689 224
17.3Kg
L (mm)
H (mm)W (mm)
Light Spill Guard
(Light Barrier)
Available to purchase separately
This product contains a light source of energy efciency Class B.
Align Light Spill Guard
with holes and secure
using same screws.
Finished result.
* Only dimmable via Dali control
