Lumiscope 6700 User manual

Portable Ultrasonic Nebulizer
Model 6700
User Manual
6700-INS-LAB-RevA08
Printing: 1)Impose two-up; 2)Print double-sided onto 60# or 70# offset paper or equivalent; 3)Saddle stitch; 4)Fold; 5)Trim to crop marks (8.2677 x 5.8465, or A4-half). 1/27/09 4:58 PM

2
Index
English..........................................Page3
Español........................................Page19
6700-INS-LAB-RevA08.indd 2 1/27/09 4:58 PM

3..
CONTENTS
6700 PARTS............................................................................................................................................................................................4
OPERATION & INDICATION .......................................................................................................................................................................4
INTRODUCTION........................................................................................................................................................................................5
INTENDED USE.................................................................................................................................................................................5
IMPORTANT SAFETY PRECAUTIONS..........................................................................................................................................................5
DANGER: TO REDUCE THE RISK OF ELECTROCUTION: ..................................................................................................................6
WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR PERSONAL INJURY: .........................................................6
WARNINGS FOR MEDICATION USE...............................................................................................................................................7
SETUP.....................................................................................................................................................................................................8
METHOD OF POWERING .........................................................................................................................................................................10
WITH THE AC/DC ADAPTER.............................................................................................................................................................10
WITH THE OPTIONAL CAR ADAPTER (CIGARETTE LIGHTER)..............................................................................................................10
WITH THE OPTIONAL RECHARGEABLE BATTERY ..............................................................................................................................11
OPERATION ...........................................................................................................................................................................................12
INHALATION THERAPY....................................................................................................................................................................12
AUTOMATIC VALVE SYSTEM............................................................................................................................................................13
MAINTENANCE ......................................................................................................................................................................................13
WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR PERSONAL INJURY: ......................................................13
CLEANING THE NEBULIZER AFTER EACH USE ..................................................................................................................................14
CLEANING THE NEBULIZER DAILY ...................................................................................................................................................14
REPLACING THE MEDICATION CUP..................................................................................................................................................14
REPLACING THE AIR FILTER............................................................................................................................................................15
STORAGE...............................................................................................................................................................................................15
SAFETY PROTECTIONS...........................................................................................................................................................................16
PROTECTION AGAINST INCORRECT POWER SUPPLY.........................................................................................................................16
PROTECTION AGAINST OVERHEATING..............................................................................................................................................16
6700 TECHNICAL SPECIFICATIONS.........................................................................................................................................................16
ACCESSORIES INCLUDED .......................................................................................................................................................................17
LIMITED WARRANTY..............................................................................................................................................................................17
6700-INS-LAB-RevA08.indd 3 1/27/09 4:58 PM

4

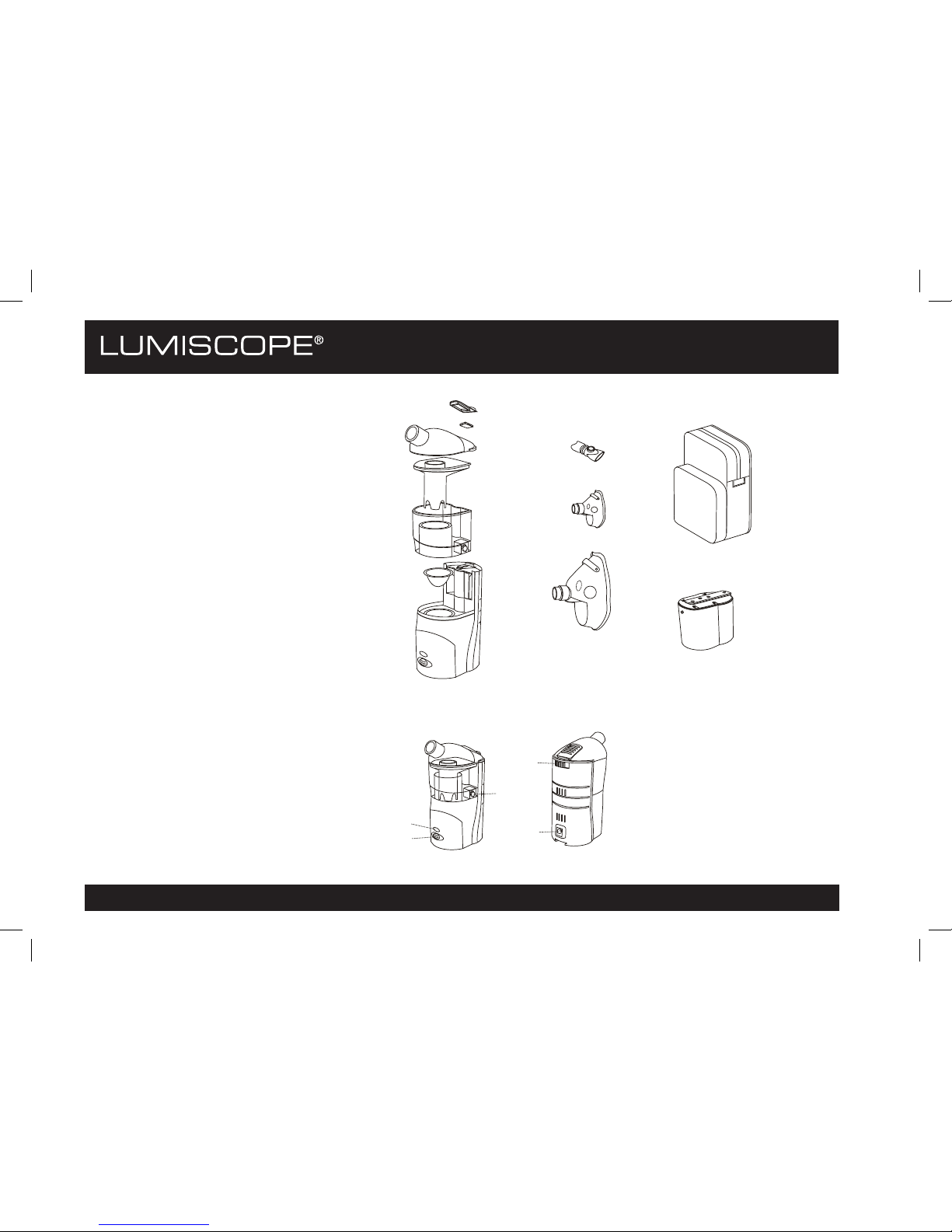

6700 PARTS
1) Air Filter Holder
2) Air Filter
3) Top Cover
4) Nebulization Chamber
5) Air Flow Chamber
6) Medication Cup
7) Main Device
8) Mouthpiece
9) Pediatric Mask
10) Adult Mask
11) AC/DC Adapter (not shown)
12) Carrying Bag
13) Optional: Rechargeable Battery
14) Optional: Car Adapter (Cigarette
Lighter) (not shown)
OPERATION & INDICATION
1) Power Indicator Light
2) On/Off Button
3) Air-Flow Chamber Locking Knob
4) Flow Rate Controller
5) AC/DC Power Socket
13
12
8
9
10
1
2
3
4
5
6
7
1
2
3
4
5
6700-INS-LAB-RevA08.indd 4 1/27/09 4:58 PM

5..
INTRODUCTION
Thank you for choosing the Lumiscope 6700 portable ultrasonic nebulizer for aerosol therapy. The 6700 is designed
and manufactured according to the most advanced technology. It is also characterized by a high operation speed (up
to .7ml/minute) and is extremely quiet (noise level below 40dB). The 6700 ultrasonic nebulizer is equipped with a
two-valve system which ensures maximum efficiency of inhalation, reducing any medication waste to the minimum.
Intended use
The 6700 is designed to be used by an adult or pediatric patient, under a physician's prescription, to produce medi-
cated aerosols for inhalation therapy. Indications for therapy include asthma, chronic bronchitis, infection of the
upper respiratory tract, chronic obstructive pulmonary disease, and other respiratory disorders in accordance with a
physician's prescription. Do not use this product for any other purpose than the preceding.
IMPORTANT: Before use, read the instructions carefully. Use this device only as indicated.
IMPORTANT SAFETY PRECAUTIONS
When using electrical products, especially when children are present, always follow basic safety precautions, includ-
ing the following:
DANGER: Indicates a potential hazard situation or unsafe practice that, if not avoided, will result in death or serious
personal injury.
WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious
personal injury.
Caution: Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor personal injury or product/property
damage.
Note: Provides application recommendations or other useful information to ensure that you get the most from your product.
6700-INS-LAB-RevA08.indd 5 1/27/09 4:58 PM

6
DANGER: To reduce the risk of electrocution:
1. Always unplug this product immediately after use.
2. Do not use this product while bathing, showering, washing dishes, or close to water sources of any kind.
3. Do not place or store device where it can fall or be pulled into a tub or sink.
4. Do not place device in or drop into water or other liquid.
5. Do not reach for a device that has fallen into water. Unplug it immediately.
WARNING: To reduce the risk of burns, electrocution, fire or personal injury:
1. Never leave this device unattended when plugged in.
2. This product contains small parts that may present a choking hazard to small children. Always use close supervision
when this device is used by or near children or those who require close supervision.
3. Children under the age of 3, or any patient who is unable to use a mouthpiece properly under supervision, should use a
mask.
4. Use this device only as intended and described in this manual. Do not use attachments or accessories not recommended
by GF Health Products, Inc.
5. Never operate this product if:
a. it has a damaged cord or plug,
b. it is not working properly or it has been dropped or damaged,
c. it has been dropped into water.
Return the product to your Graham-Field distributor for examination and repair.
6. Keep the cord away from heated surfaces.
7. Never block the air openings of this product or place it on a soft surface, such as a bed or couch, where the air openings
may be blocked. Keep the air openings free of lint, hair and the like.
6700-INS-LAB-RevA08.indd 6 1/27/09 4:58 PM

7..
8. Never drop or insert any object into any openings or hose.
9. Never use this device while drowsy or sleeping.
10. Do not use this device outdoors or operate where aerosol (spray) products are being used.
11. Do not use this device in the presence of flammable anesthesia or where oxygen or nitrous oxide is being administered.
This device has no AP or APG protection.
12. Connect this device to a properly grounded outlet only.
13. Unplug the device before filling or cleaning the nebulizer.
14. This device is oil-free. Do not lubricate.
15. Do not remove the nebulizer while the device is operating.
16. Do not leave medication in the nebulizer when it is not in use.
17. Use the nebulizer intermittently; the maximum operating period is 40 minutes. The nebulizer must stand unused for 45
minutes between uses.
18. The mouthpiece and mask are for use by one person only; in order to avoid infection, do not share them.
WARNINGS FOR MEDICATION USE
Always follow the prescribing physician's instructions regarding the type of medication to be used, the dosage,
the frequency, and duration of the inhalations. The 6700 has been designed for use with aqueous solutions
of medication; medication that is too dense or oily will not be nebulized correctly. If a medication has not
been nebulized correctly, dilute it with an equal quantity of physiological solution for inhalations (add 2 ml of
physiological solution to 2 ml of oily medication).
6700-INS-LAB-RevA08.indd 7 1/27/09 4:58 PM

8
SETUP
Before using the device, ensure that it has been cleaned as described in
MAINTENANCE/Cleaning the Nebulizer After Each Use.
1. Remove the top cover and nebulization chamber from the device.
2. Press the knobs of the air-flow chamber on two sides to remove the air-flow
chamber and medication cup from the device.
3. Fill the reservoir of the device with distilled water until it reaches exactly the
level marked in red (approximately 4 ml). This amount of water serves as a liq-
uid conductor, to conduct the ultrasound waves to the medication, and will never
be nebulized.
6700-INS-LAB-RevA08.indd 8 1/27/09 4:58 PM

9..

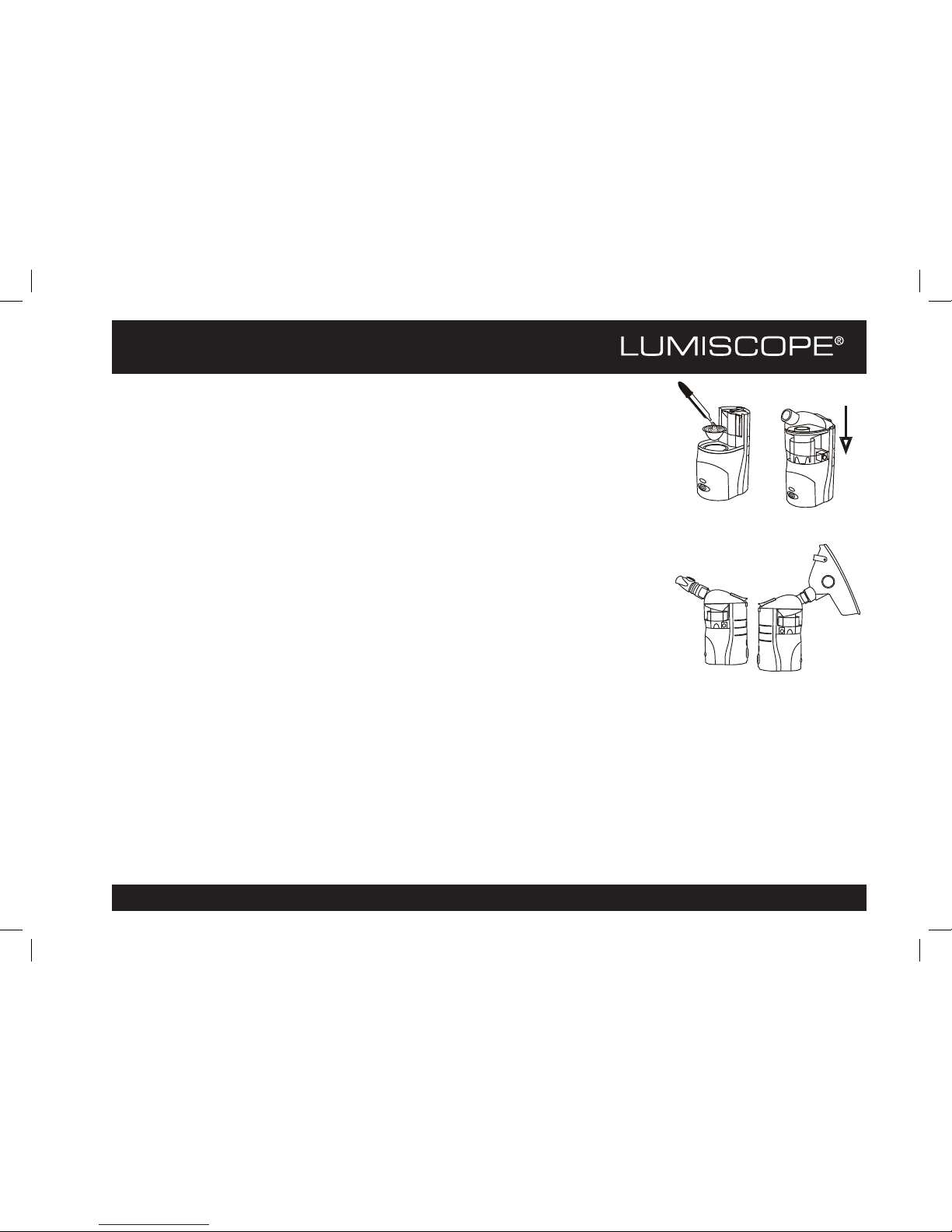

4. Carefully insert the medication cup as shown, taking care not to damage it.
5. Pour the physician-prescribed medication into the medication cup. If the dose to
be inhaled is larger than the maximum capacity of the medication cup, divide it
into several separate inhalations.
6. Re-install the air-flow chamber, nebulization chamber, and top cover on the de-
vice. Apply sufficient pressure when re-installing to ensure that they are securely
closed.
7. Insert the mouthpiece or one of the two provided masks into the front of the
device as shown.
6700-INS-LAB-RevA08.indd 9 1/27/09 4:58 PM

10
METHOD OF POWERING
After the preparation, connect the device to electrical power. The 6700 can be
powered in various ways:
With the AC/DC Adapter
This is designed for use in the home or wherever normal-voltage power supply is
available (different connections are available for different voltages).
1. Ensure that device power is OFF. Ensure that the voltage at the socket is the
same as that of the transformer, as indicated on the transformer specification
plate. Plug the power cord into a properly grounded electrical wall outlet.
2. Insert the transformer plug into the device's power socket.
With the Optional Car Adapter (Cigarette Lighter)
This method allows the patient to take the inhalations when traveling by car.
1. Ensure that the cigarette lighter socket in the car is designed for power of at
least 15 watts. Insert the car adapter plug into the cigarette lighter socket.
2. Insert the car adapter pin into the device's power socket.
WARNING: Never use the device while driving.
Cigarette
lighter
socket
6700-INS-LAB-RevA08.indd 10 1/27/09 4:58 PM
