Luple Olly Day User manual

Olly Day, Olly Night
USER MANUAL
Daily Sunlight to Sleep Well

Olly
Contents of the Package
Manual
Pouch
USB Type-c Cable

Charging Port (USB Type-c)
Magnetic
Areas Magnetic Switch
Charging LED
Light Source
Component Parts

1
2

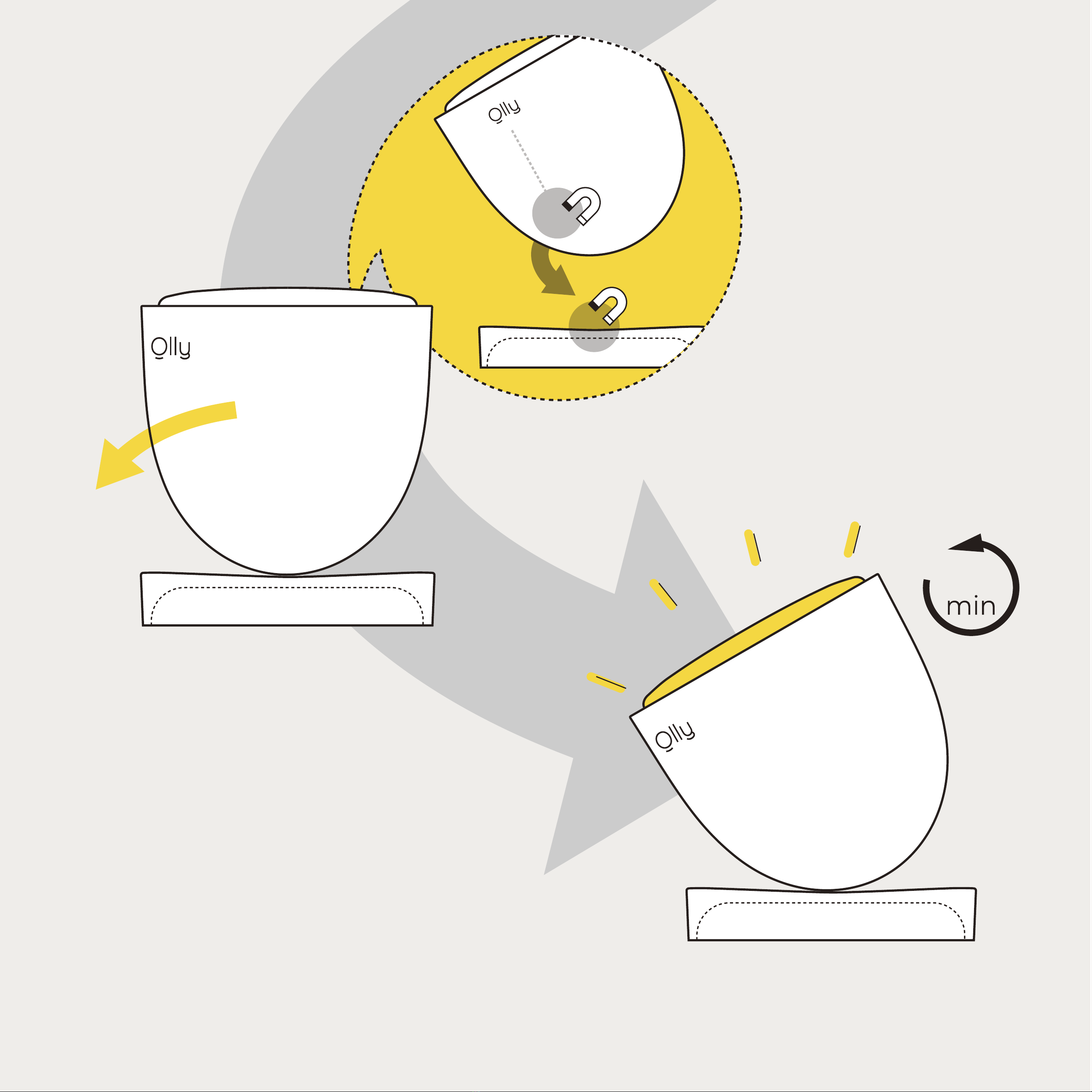

Getting Started
Open the cover and put it on the floor
with the top of the cover facing up
Stand Olly over on the cover so that
magnets of both components stick together.

25
4
3
It stays lit for 25 minutes
before turning off gradually.
Tilt Olly to the logo-marked side
and it lights up gradually.

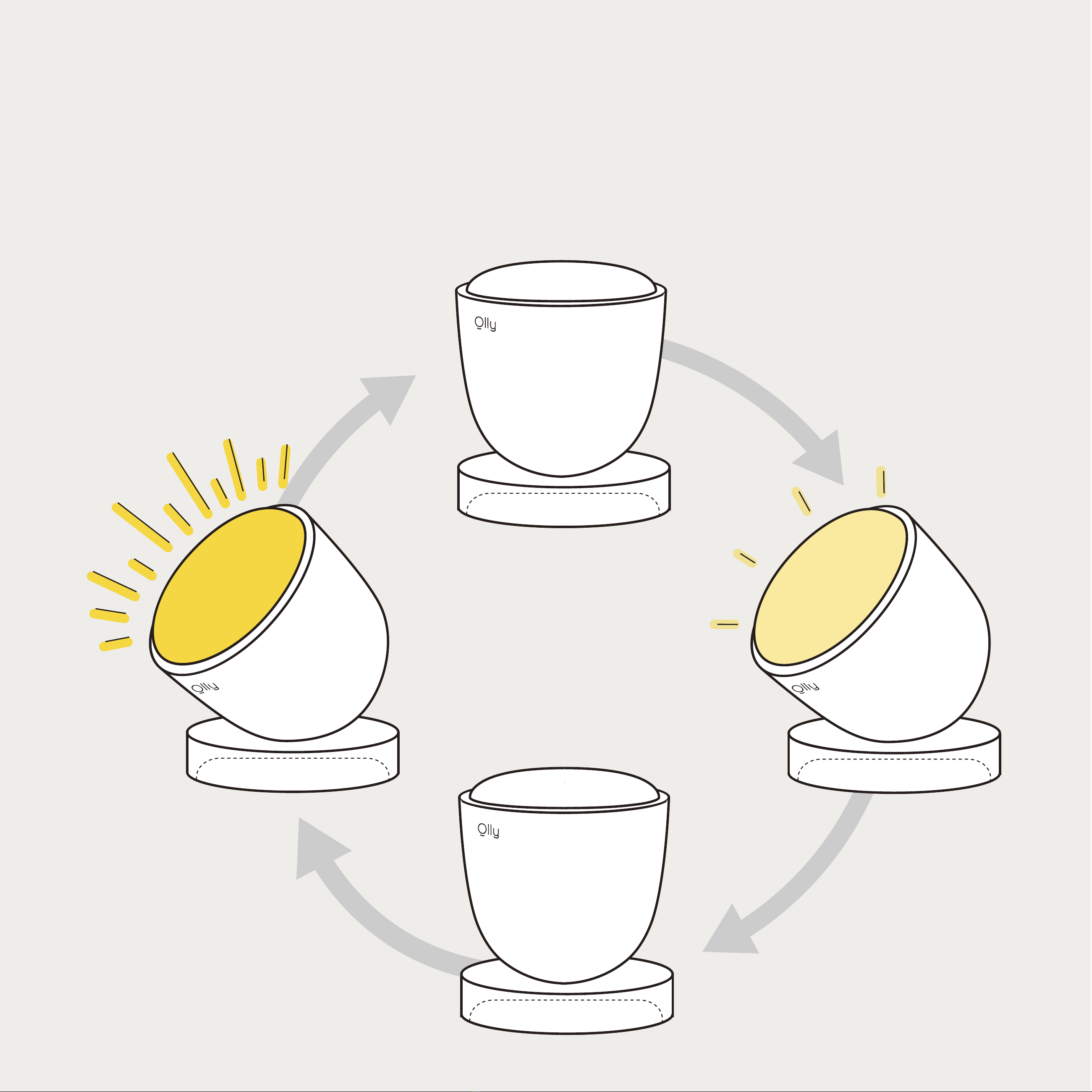

Olly supports two levels of brightness. Each time you turn on and off Olly,
the brightness switches the mode between the Comfort mode (Level 1)
and the Boost mode (Level 2).
Mode Switching

Charging
Connect the provided USB Type-c cable to Olly, and then connect the other
end to a charging adapter or the USB port. If properly connected, the product
will enter charging mode with the white LED lit. It takes 2 hours to fully charge
the product. Once fully charged, the LED turns off.
For the first-time use or when the product is not used for an extended period
of time, fully charge the product before use. To avoid the discharge from an
extended time of disuse, we recommend charging the product at least once
every 3 months.

480 nm 730 nm380 nm
Olly Day
Olly Night
Why Olly Key Benefits
The sunlight makes visual impacts on the human body. It also has physiological
effects that we don’t notice. The spectrum of the light has a 480 nm wavelength
range which contributes to controlling the secretion volume of melatonin inside
the human body
Olly Day This wavelength range of
light suppresses the secretion of
melatonin during the day to help
vitalize bio-rhythm. It also induces
faster wakefulness than coffee
when concentration matters.
(*verified by the inhouse inspection)
Olly Night This wavelength range
of light removes the wavelength
as much as possible that sup-
presses the secretion of melatonin
at night time, which helps secrete
melatonin and stabilize the
bio-rhythm to induce deep sleep.

Mild Insomnia from Indoor Life
When there is a lack of sunlight,
Whenever you need to a healthy awakening
Night Shift
Jet LagSeasonal Affective Disorder
When Olly Olly Day

In Bed
Baby Nursing For Mood
Night-time Workout
When you need light at night
without disturbing your circadian rhythm
When Olly Olly Night

Product Information
Olly Day, Olly Night
OD01, ON01
67 x 67 x 73.5 mm
140 g
5V, 1A
3.7V / 1,000 mAh (Li-poly)
OD01 : 6500K , ON01 : 1800K
2 Hours to fully charge
Level 1 : Up to 4.5 Hours / Level 2 : Up to 1.5 Hours
Pouch, USB Type-c cable (Adapter not included)
Made in Korea
LUPLE Inc.
Product Name
Model Name
Dimension
Weight
Input
Battery
Color Temperature
Charging Time
Usable Time
Option
Country of Manufacture
Manufacturer

Caution
Do not stare into the light source for extended periods of time. Staring directly into
the light source for an extended period of time may cause uncomfortable glare.
(Occasional glimpses of the light source lasting just a few seconds are not harmful.)
This product has built-in magnets that could affect medical devices such as cardiac
pacemakers and defibrillators. Maintain a safe distance between this product and
such medical devices. In addition, consult with your doctor before using this product.
!
Users who have a history of eye disease or are taking an antidepressant or a vision
sensitivity drug related to light are recommended to consult with their attending
physician or doctor before using this product
- Keep metallic objects, liquids, and foreign substances like dust away from the charger and
battery contacts.
- If the product is damaged, starts to smoke, and/or produces a burning smell, stop using it
immediately and contact the service center.
- Do not use the product while it's in a disassembled state. Do not disassemble or reuse the
battery.
- Keep the product away from the mouths of infants, small children, and pets.
- Do not soak the product in water or use it in a humid or wet environment.
- This product's rated operating temperature range is 0℃ to 35℃, and its rated storage
temperature range is -20℃ to 50℃. Using the product outside of these rated temperature
ranges could damage the product and/or reduce the battery's service life.
- Close supervision is recommended when the product is used by or near children or by
others who may not understand the need for these precautions.
- Do not use the product in a high-temperature environment and keep it away from heat sources.
- This product has been subjected to strict quality-control and testing processes.

- The warranty period of this product is one year from the purchase date.
- A defective consumable or component is not a legitimate reason for returning the
product.
- Depending on the nature of the malfunction, you could receive a replacement
unit instead of having your unit repaired.
- If you mail your product to the Luple Service Center while the warranty is still in effect,
the cost of shipping will be covered by us.
- If you require outcall repair services, you will be charged a service fee.
- Warranty terms and conditions vary depending on the country. No compensation is
offered for losses or damages incurred due to the product being rendered unusable
because of a malfunction.
Warranty
This product comes with a warranty as follows:
This warranty does not apply to wear from everyday use, damages that do not
impede functionality, or to damages caused by misuse, abusive use, and/or
ignorance. Also does not apply if the product has been modified or disassembled
without the permission of the manufacturer or modification and/or disassembly
of the product was attempted.

LUPLE Inc.
Manufacturer
https://olly.luple.co.kr/
[e-mail]
Address :
B306, 47, Maeheon-ro 8-gil, Seocho-gu,
Seoul, 06770, Rep. of KOREA
