Lutron Electronics DMW-LZC1 Product manual

R
Please Read
Contents
System Overview 2
Dimensions and Mounting 5
Wiring 9
Activating Loads in Bypass 16
Removing Bypass Jumpers 17
Addressing 18
Wiring the LZC Link 20
Installing Wall Controls 21
Mounting and Testing Wall Controls 23
Installing Occupant Sensors 24
Installing Daylight Sensors 25
Testing Wall Controls and Sensors 26
Scheduling System Commissioning 26
Appendix: Wiring Load Interfaces 27
Appendix: Emergency Mode 30
Appendix: Lamp Burn-In 35
Appendix: Voltage Map 36
Appendix: Troubleshooting 37
Warranty 39
Contact Information 40
Installation and Maintenance Guide
Lighting Zone Controller and
Lighting Zone Controller Panels
Models Available
Model # # LZCs Voltage Enclosure Feed Type Breakers
DMW-LZC1 1 100-277 V Self-enclosed N/A None
DMWP4-FT 4 100-277 V Small panel Feed-through None
DMWP12-FT 12 100-277 V Standard panel Feed-through None
DMWP18-FT 18 100-277 V Standard panel Feed-through None
DMWP24-FT 24 100-277 V Standard panel Feed-through None
DMW-LZC4 4 100-277 V Small panel Main lugs None
DMWP12-1204ML-20 12 120 V Standard panel Main lugs 120 V 20 A
DMWP18-1204ML-20 18 120 V Standard panel Main lugs 120 V 20 A
DMWP12-2774ML-20 12 277 V Standard panel Main lugs 277 V 20 A
All models are rated at 50/60 Hz and up to 16 A per LZC.
DMWP4-FT is rated at 16 A total.
LZC1
Large
panel
Small
panel
LZC LINK
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôleur de zone d'Éclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalación, consulte
la Guía del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, référer au
guide Contrôleur de zone
d‘Éclairage de l'installateur
(p/n 031-268).
P/N 500-9066 Rev.F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA 18036 USA
DMW-LZC1
ADDR
+24 V PS SIG PS COM WC COM WC SIG +24 V
CIR COM
+15 V OCC SIG OCC COM
MUX MUX
LNK COM EMERG SHLD
1-888-235-2910
12345678
ON
®
100-277 V 50/60 Hz
16 A Max.
LISTED
Energy Management
Equipment 5C81
R
®

R
2 Installation Guide for Lighting Zone Controllers
System Overview
LUTRONLUTRONLUTRON
LUTRON LUTRON
LUTRON
One occupant sensor can control a
maximum of 3 LZCs;
One LZC can wire to a maximum of
3 occupant sensors
One LZC link can contain
a maximum of 63 LZCs
One router panel can control a maximum of 3 LZC links
One GRAFIK 7000P processor panel can control a maximum of 6 LZC links2
A system
can contain a
maximum of
21 Digital
microWATT
router panels
OR
32 GRAFIK
7000P
processor
panels1
To Digital
microWATT
server or
other
GRAFIK
7000P
processor
panels1
One LZC can wire to a maximum
of 3 wall controls;
One wall control can control a
maximum of 3 LZCs
One LZC can wire to a maximum of
1 daylight sensor;
One daylight sensor can control a
maximum of 1 LZC
Lighting load
System Maximums
Component Digital microWATT Router Panel GRAFIK 7000P Processor Panel
on a Digital microWATT system on a GRAFIK 7000 System
Processors or router panels per system 21 32
RS485 lighting zone controller (LZC) links per panel 3 62
LZCs per system 3969 120962
LZCs per router or processor panel 189 3782
LZCs per RS485 LZC link 63 63
1GRAFIK 7000 processor panel interprocessor link shown; GRAFIK 7000P processor panel user interface link not
shown
2Actual maximum may be less depending on GRAFIK 7000P processor panel model used
This page applies to:
LZC1
Small
Panel
Std.
Panel
Digital
microWATTTM
router panel or
GRAFIKTM 7000P
processor
Typical One-Line Drawing
Small LZC panel
Individual LZC (DMW-LZC1)
Standard LZC panel
(not shown to scale)

R
Installation Guide for Lighting Zone Controllers 3
System Overview (continued)
LUTRON
Lighting
load
Wall control
Occupant
sensor
Daylight
sensor
LZC1
LZC
small
panel
LZC
standard
panel
Digital
microWATT
router
panel or
GRAFIK
7000P
processor
Up to 63 lighting zone controllers (LZCs) per link
To additional lighting zone
controllers or lighting
zone controller panels
To additional router panels and Digital microWATT servers
OR
to eLumen manager
21 Digital microWATT router panels per Digital microWATT server maximum
32 GRAFIK 7000P processors per eLumen manager maximum
See the Installation and Maintenance Guide for the GRAFIK 7000P processor
or the Digital microWATT router panel for complete system wiring details.
Component Descriptions
• Lighting Zone Controller (LZC)
- Supplies power and control signal to Lutron 3-wire fluorescent dimming ballasts and fixtures.
- Switches a maximum of 16 A of incandescent, electronic low-voltage, magnetic low-voltage, neon/cold cathode,
fluorescent, HID, and motor loads (1/3 HP @ 120 V , 1/2 HP @ 277 V ).
- Dims a maximum of 16 A of fluorescent light load using Lutron’s 3-wire phase control dimming ballasts, based
on information from the Digital microWATT server or eLumen manager, occupant and daylight sensors, and
wallstations or control station devices; other load types can be dimmed using an interface.
- See “Models Available” table on front cover for individual product ratings.
• Wall Control
- Allows occupants to manually turn on or off those lights controlled by the LZC, or to dim and brighten the lights.
• Occupant Sensor
- Allows the LZC to dim the lights to a predetermined level or turn off the lights when the occupant sensor detects
an unoccupied area.
- The LZC will automatically turn the lights back on when the occupant sensor detects that the area has become
occupied again.
• Daylight Sensor
- Allows the LZC to subtly and automatically change the light level as the daylight sensor detects changes in the
availability of sunlight in the area.
This page applies to:
LZC1
Small
Panel
Std.
Panel
Component Descriptions
Lighting Zone Controllers (LZCs) are one component of an energy management and
lighting control system. They can be used as part of a Digital microWATTTM (DMW) or
GRAFIKTM 7000 system.

R
4 Installation Guide for Lighting Zone Controllers
This page applies to:
LZC1
Small
Panel
Std.
Panel
System Overview (continued)
LUTRON
LUTRON
1CIR COM is used for connecting multiple LZCs
to one or more wall controls or occupant
sensors. See pages 21, 22, and 24 for more
details.
2Use either +24 V or +15 V , depending
on occupant sensor
PELV
(Class 2: USA)
wiring
Maximum
length 250 ft.
(76 m)
#22 AWG
(0.64 mm2)
LZC link
Maximum
length 2000 ft.
(610 m)
Ground Ground
Neutral
Dimmed hot
Switched hot
+24 V (red)
PS SIGNAL (yellow)
PS COM (black)
+15 V (red)2
+24 V (red/white)2
OCC SIG (blue)
OCC COM (black)
WC COM (white/black)
CIR COM (white/black)1
WC SIGNAL (yellow)
+24 V (red/white) Shield (bare): #24 AWG (0.5 mm2)
EMERG (red): #12 AWG (2.5 mm2)
MUX (purple): #22 AWG (0.64 mm2)
MUX (white): #22 AWG (0.64 mm2)
LINK COM (black): #12 AWG (2.5 mm2)
White
Orange
Black
White
Orange
Black
Neutral
Green
White
Hot Black
Orange
Red
Circuit
breaker
Line voltage
wiring
Load wiring
Maximum length 750 ft. (240 m)
Ground
Cap off orange wire for switched loads
Router
panel
or
GRAFIK
7000P
processor
panel
Lighting
zone
controller
Lighting
zone
controller
Daylight sensor
Occupant sensor
Nova T*®
wall control
100 - 277 V
distribution panel
Lutron 3-wire phase control
dimming ballasts
Fluorescent fixture
Additional ballast for
4-lamp fixture only
LZC
Ballast
Ballast
White
Black Switched load
To LZC link
Note: Colors indicated refer
to the typical equipment wire
colors
Note: LZC link wiring must be daisy-chained;
do not create T-taps longer than 6 inches
Lutron GRX-CBL-46L series cable or equivalent
6 in.
(150 mm)
maximum
This diagram shows all the connections that may be made to a lighting zone controller (LZC). Line voltage wiring
to an LZC panel may vary slightly. The remainder of this Guide will explain this wiring in more detail.
Wiring Detail
#18 AWG
(1.0 mm2)

This page applies to:
LZC1
Mounting the LZC1
• Mount the DMW-LZC1 onto a 4 x 4 in. (102 x 102 mm)
standard (1900) junction box (not included, but
available; Lutron part number 241-496).
• Mount the unit indoors with ambient temperature
between 32 °F and 104 °F (0 °C and 40 °C) and
humidity <90% (non-condensing).
• Mount on a vertical or horizontal surface (i.e., ceiling).
All power wire connections will be made in the junction
box. All PELV (Class 2: USA) wire connections must be
made within the front cover of the unit.
• Mount the unit where audible noise is acceptable
(internal relays click).
Note: Mounting the unit above the ceiling at the
entrance of the room will simplify locating the unit for
future maintenance or troubleshooting.
5.0 (130) 2.5
(64)
7.8
(200)
W
A
L
L
CEILING
Junction box
DMW-LZC1
Junction box
DMW-LZC1
Integrated Lighting Automation System
®
LISTED
Energy Management
Equipment 5C81
Questions? Call Lutron T echnical Support Center
1-800-523-9466
(24 hrs/7 days)
POWER INDICATOR
On: Caution unit has
power
Off: Unit is not powered or
is not functioning
properly
ADDRESS
SWITCH
Please see installer's
guide for addressing
information.
(p/n 031-198)
STATUS INDICATOR
Continuous double blink: Unit is
operating properly
Third blink: Unit is communicating
with command center
On or off continuously: Unit is
not operating properly
PS Common
PS Sign al
+ 24 V
Daylight
Sensor
+ 24 V
WC Si gn a l
WC Comm on
Wall
Control
OCC Co mmo n
OCC Si gn a l
+ 15 V
Occupant
Sensor
Link Common
MUX
MUX
Sh i el d
EMERG Sign al
Addressing
Ci r cu i t Com mo n
P/N 500-9066 Rev.C
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON
®
Coopersburg, PA 18036
CLASS 2 LOWVOLTAGE WIRING
+24V
PS Signal
PS Com
Circuit Com
WC Com
WC Signal
+24V
+15V
OCC Signal
OCC Com
MUX
MUX
Link Com
EMERG
Shield
Integrated Lighting Automation System
®
LISTED
Energy Management
Equipment 5C81
Questions? Call Lutron T echnical Support Center
1-800-523-9466
(24 hrs/7 days)
or visit our web site at www .lutron.com
POWER INDICA TOR
On: Caution unit has
power
Off: Unit is not powered or
is not functioning
properly
ADDRESS
SWITCH
Please see installer's
guide for addressing
information.
(p/n 031-198)
STATUS INDICA TOR
Continuous double blink: Unit is
operating properly
Third blink: Unit is communicating
with command center
On or off continuously: Unit is
not operating properly
Daylight
Sensor
Wall
Control
Occupant
Sensor
Addressing
P/N 500-9066Rev
.D
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON
®
Coopersburg, PA 18036
100–277 V
~
50/60 Hz
16 A Max.
PS Common
PS Sign al
+ 24 V
+ 24 V
WC Si gn a l
W
Circuit Common
C Com mo n
OCCCommon
OCC Si gn a l
+ 15 V
Li nk Com mon
MUX
MUX
Sh i el d
EMERG Sign al
LZC LINK
12345678 910111213 1415
Lighting Zone Controller
Controlador de zona de luz
Contr™leur de zone d'ƒclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalaci—n, consulte
la Gu’a del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, r f r er au
guide Contr™leur de zone
dÔƒclairage de l'installateur
(p/n 031-268).
P/N 500-9066 Rev.F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA18036 USA
DMW-LZC1
ADDR
+24 V
PS SIG
PS COM
WC COM
WC SIG
+24 V
CIR COM
+15 V
OCC SIG
OCC COM
MUX
MUX
LNK COM
EMERG
SHLD
1-888-235-2910
12345678
ON
®
100-277V 50/60Hz
16A Max.
LISTED
Energy Management
Equipment 5C81
R
®
Junction box
7/8 in. (22 mm)
knockout for PELV
(Class 2: USA)
wiring input (2)
Front cover
(shown open)
Address
switch
Dimensions are in inches (mm)
Caution! The lighting zone controller must
be properly addressed during installation.
Refer to pages 18-19 for address switch
settings.
Warning! Observe all local and national
electrical codes and safety standards.
Dimensions and Mounting
R
Installation Guide for Lighting Zone Controllers 5

Dimensions and Mounting (continued)
Top View
Left Side View Front View
Bottom View
Right Side View
PELV
(Class 2: USA)
wiring only
Knockout for LZC link wiring
PELV (Class 2: USA)
wiring only Knockout for main feed entry
(panel with main lugs only)
(4) conduit
knockouts for wall
control and sensor
wiring (4) conduit knockouts for
input feeds (feed-through
panel only), switch legs, and
dimmed legs to loads
4.1
(105)
15.1
(384)
2.0 (51)
24.0
(610)
21.0
(533)
11.5
(292)
9.1
(231) 0.31 (8)
diameter
0.63 (16)
diameter
(4) keyholes for
surface
mounting
Dimensions are in inches (mm)
Knockouts are 7/8 inch (22 mm) in diameter
This page applies to:
Small
Panel
Mounting the Small Panel
PELV (Class 2:
USA) wiring
Preferred feed wiring
(panel with main lugs only)
Input feeds
(feed-through
panel only),
switch legs, and
dimmed legs to
loads
Notes
• Surface mount indoors
• Panel weighs 23 lbs. (10.4 kg).
Reinforce wall structure for weight and
local codes
• Ambient temperature: 32 °F-104 °F
(0 °C-40 °C)
• Relative humidity:
< 90% non-condensing
• Mount panel where audible noise is
acceptable (internal relays click)
• Mount panel within 7° of vertical
• Lutron recommends 1/4 in. (6 mm)
mounting bolts
• Cover overhangs enclosure by 3/4 in.
(19 mm)
Side View Front View
R
6 Installation Guide for Lighting Zone Controllers

Dimensions and Mounting (continued)
Top View
Left Side View Front View
Bottom View
Right Side View
PELV
(Class 2: USA)
wiring only
(24) conduit
knockouts for wall
control and sensor
and LZC link wiring
(24) conduit
knockouts for input
feeds (feed-through
panel only), switch
legs, and dimmed
legs to loads
6.0 (152)
2.5 (635)
22.0
(560)
2.5 (63.5)
2.5 (63.5)
63.0
(1600)
52.4
(1330)
18.5
(470)
0.31 (8)
diameter
0.63 (16)
diameter
(4) keyholes for surface
mounting
Knockouts for
DMWP18 use
only
Punch hole for main feed entry
(panel with main lugs only)
Knockouts for
DMWP24 use
only
This page applies to:
Std.
Panel
Mounting the Standard Panel
Dimensions are in inches (mm)
Knockouts are 7/8 inch (22 mm) in diameter
R
Installation Guide for Lighting Zone Controllers 7

This page applies to:
Std.
Panel
Dimensions and Mounting (continued)
Mounting the Standard Panel
PELV (Class 2:
USA) wiring
Preferred feed wiring
(panel with main lugs
only)
Input feeds
(feed-through
panel only),
switch legs, and
dimmed legs to
loads
Notes
• Surface mount indoors
• See panel weights below. Reinforce wall
structure for weight and local codes
• Ambient temperature: 32 °F-104 °F
(0 °C-40 °C)
• Relative humidity:
< 90% non-condensing
• Mount panel where audible noise is
acceptable (internal relays click)
• Mount panel within 7° of vertical
• Lutron recommends 1/4 in. (6 mm)
mounting bolts
• Cover overhangs enclosure by 3/4 in.
(19 mm)
Side View Front View
Panel Weights
Model Approximate Weight
DMWP12-FT 113 lb. (51.3 kg)
DMWP18-FT 120 lb. (54.4 kg)
DMWP24-FT 127 lb. (57.6 kg)
DMWP12-1204ML-20 127 lb. (57.6 kg)
DMWP18-1204ML-20 135 lb. (61.2 kg)
DMWP12-2774ML-20 150 lb. (68.0 kg)
R
8 Installation Guide for Lighting Zone Controllers

This page applies to:
LZC1
Wiring
Wiring the LZC1 in Bypass
Bypass wiring is a TEMPORARY wiring scheme to test
the dimming ballast wiring without using the LZC
control. If there is a wiring problem or a short in the
circuit, this will prevent damage to the LZC.
• The lighting zone controller accepts any 100 to 277
V (50 or 60 Hz) line feed. The electronic fluorescent
ballasts, however, must be rated for the specific line
voltage that feeds the lighting zone controller.
• Make the appropriate wire connections for your ballast
type following the wiring diagram below.
Danger! Locate and lock the supply breaker
in the OFF position, or remove the supply
fuse before continuing.
Danger! Proper short-circuit and overload
protection must be provided at the
distribution panel. You can use a 20 A
maximum circuit breaker for your installation.
Testing the Circuit in Bypass
• Turn the input power ON after assuring that it is safe
to do so. Lights should go to full ON while in bypass.
If lights do not go to full ON, check ballast and lamp
wiring.
• Once the ballast and lamp wiring are tested, turn the
input power back OFF at the supply breaker.
Distribution
panel
Ground
Neutral
Hot
Green
White
Black
Green (ground)
White (neutral)
Red (switched hot)
Orange (dimmed hot)
Green
White
Black
Orange
Green
White
Black
Orange
To additional
dimming ballasts
Lutron 3-wire
phase control
dimming ballast
Fixture ground
Lutron 3-wire
phase control
dimming ballast
Fixture ground
Colors indicated
refer to the lighting
zone controller and
ballast wire colors
Note: Lamp wires not
shown, but must be in
place and correct for
bypass testing.
Danger! Check that all loads on the circuit
are safe to have power applied before turning
the input power ON.
Junction box
R
Installation Guide for Lighting Zone Controllers 9

This page applies to:
LZC1
Wiring (continued)
Wiring the LZC1 for Dimmable Loads
• Turn Power OFF.
• The lighting zone controller accepts any 100 to 277 V
(50 or 60 Hz) line feed. The electronic fluorescent
ballasts, however, must be rated for the specific line
voltage that feeds the lighting zone controller.
• Remove the bypass wiring connections previously made.
• Connect the input feed wires and the output load wires to
the lighting zone controller as indicated in the wiring
diagram below.
• Once the wiring is complete, mount the LZC on the
junction box.
CLASS2 LOW VOL TAGEWIRING
+24V
PS Signal
PS Com
Circuit Com
WC Com
WC Signal
+24V
+15V
OCC Signal
OCC Com
MUX
MUX
Link Com
EMERG
Shield
Integrated Lighting Automation System
®
LISTED
EnergyManagement
Equipment5C81
Questions?Call LutronTechnical Support Center
1-800-523-9466
(24hrs/7days)
orvisit our website at www.lutron.com
POWERINDICA TOR
On:C
aution unithas
power
Off: Unitis not powered or
isnot functioning
properly
ADDRESS
SWITCH
Pleaseseeinstaller's
guideforaddressing
information.
(p/n031-198)
STATUSINDICATOR
Continuousdoubleblink:Unit is
operatingproperly
Thirdblink: U nitis communicating
withcommand center
Onoroff continuously:Unit is
notoperatingproperly
Daylight
Sensor
Wa
ll
Control
Occupant
Sensor
Addressing
P/N500-9066Rev
.D
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON
®
Coopersburg,P
A18036
100–277V
~
50/60Hz
16A Max.
PSCommon
PSSig na l
+2 4 V
+2 4 V
WCSi g na l
W
Circuit Common
CCo mm on
OCC Com mon
OCCSignal
+1 5 V
Link Comm on
MUX
MUX
Shi el d
EMERG Signa l
LZCLINK
12345678 91011 12 131415
LightingZoneController
Controladordezonadeluz
Contr™leurdezoned'ƒclairage
Forinstallation,refer
totheLightingZone
ControllerInstaller'sGuide
(p/n031-268).
Paralainstalaci—n,consulte
laGu’adelInstaladorde
Controladordezonadeluz
(p/n031-268).
Pourinstallation,rfrerau
guideContr™leurdezone
dÔƒclairagedel'installateur
(p/n031-268).
P/N 500-9066 Rev.F
USA,Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA18036 USA
DMW-LZC1
ADDR
+24V
PSSIG
PSCOM
WCCOM
WCSIG
+24V
CIRCOM
+15V
OCCSIG
OCCCOM
MUX
MUX
LNKCOM
EMERG
SHLD
1-888-235-2910
12345678
ON
®
100-277V 50/60Hz
16 A Max.
LISTED
EnergyManagement
Equipment5C81
R
®
CLASS2 LOW VOL TAGEWIRING
+24V PS Signal PS Com Circuit Com WC Com WC Signal +24V +15V OCC Signal OCC Com MUX MUX Link Com EMERG Shield
Integrated Lighting Automation System
®
LISTED
Energy Management
Equipment 5C81
Questions? Call Lutron T echnical Support Center 1-800-523-9466 (24 hrs/7 days)
or visit our web site at www .lutron.com
POWER INDICA TOR
On: Caution unit has
power
Off: Unit is not powered or
is not functioning
properly
ADDRESS
SWITCH
Please see installer's
guide for addressing
information.
(p/n 031-198)
STATUS INDICA TOR
Continuous double blink: Unit is
operating properly
Third blink: Unit is communicating
with command center
On or off continuously: Unit is
not operating properly
Daylight
Sensor
Wall
Control
Occupant
Sensor
Addressing
P/N500-9066 Rev.D
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON ®Coopersburg,PA18036
100–277 V ~50/60 Hz
16 A Max.
Green
White
Black
Green (ground)
White (neutral)
Red (switched hot)
Orange (dimmed hot) White
Black
Orange
White
Black
Orange
Colors indicated refer to
the lighting zone controller
and ballast wire colors
LZC LINK
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôleur de zone d'Éclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalación, consulte
la Guía del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, référer au
guide Contrôleur de zone
d‘Éclairage de l'installateur
(p/n 031-268).
P/N500-9066 Rev. F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA 18036 USA
DMW-LZC1
ADDR
+24V PS SIG PS COM WC COM WC SIG +24V
CIR COM
+15V OCC SIG OCC COM
MUX MUX
LNK COM EMERG SHLD
1-888-235-2910
12345678
ON
®
100-277 V 50/60Hz
16 A Max.
LISTED
Energy Management
Equipment 5C81
R
®
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.
Note: Maximum wire length from DMW-LZC1
to last dimming ballast is 750 feet (240 m).
CLASS2 LOW VOL TAGEWIRING
+24V PS Signal PS Com Circuit Com WC Com WC Signal +24V +15V OCC Signal OCC Com MUX MUX Link Com EMERG Shield
Integrated Lighting Automation System
®
LISTED
Energy Management
Equipment 5C81
Questions? Call Lutron T echnical Support Center 1-800-523-9466 (24 hrs/7 days)
or visit our web site at www .lutron.com
POWER INDICA TOR
On: Caution unit has
power
Off: Unit is not powered or
is not functioning
properly
ADDRESS
SWITCH
Please see installer's
guide for addressing
information.
(p/n 031-198)
STATUS INDICA TOR
Continuous double blink: Unit is
operating properly
Third blink: Unit is communicating
with command center
On or off continuously: Unit is
not operating properly
Daylight
Sensor
Wall
Control
Occupant
Sensor
Addressing
P/N500-9066 Rev.D
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON ®Coopersburg,PA18036
100–277 V ~50/60 Hz
16 A Max.
Distribution
panel
Ground
Neutral
Hot
Green
White
Black
Green (ground)
White (neutral)
Red (switched hot)
Orange (cap off)
Colors indicated refer
to the lighting zone
controller wire colors Switched load
Switchable load types:
Dimmable load types:
Lutron Hi-Lume®or Eco-10TM ballasts
(other dimmable load types require an
interface)
Incandescent (16 A)
Fluorescent (16 A)
Motor loads (1/3 HP @ 120 V ;
1/2 HP @ 277 V )
Magnetic low-voltage (16 A)
Electronic low-voltage (16 A)
Neon/cold cathode (16 A)
HID (16 A)
Note: For switchable loads
(non-dimming), make sure
address switch 8 is in the
ON position.
LZC LINK
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôleur de zone d'Éclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalación, consulte
la Guía del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, référer au
guide Contrôleur de zone
d‘Éclairage de l'installateur
(p/n 031-268).
P/N500-9066 Rev. F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA 18036 USA
DMW-LZC1
ADDR
+24V PS SIG PS COM WC COM WC SIG +24V
CIR COM
+15V OCC SIG OCC COM
MUX MUX
LNK COM EMERG SHLD
1-888-235-2910
12345678
ON
®
100-277 V 50/60Hz
16 A Max.
LISTED
Energy Management
Equipment 5C81
R
®
Wiring the LZC1 for Switchable Loads
Distribution
panel
Lutron 3-wire
phase control
dimming ballast
Lutron 3-wire
phase control
dimming ballast
R
10 Installation Guide for Lighting Zone Controllers

This page applies to:
Small
Panel
Wiring (continued)
Small Panels: Conduit Entry
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.
Preferred feed wiring
entry
Ground/earth
connection
Feed wiring
from distribution
panel (typical
for all circuits)
Switch legs and
dimmed legs to
loads
Switch legs and
dimmed legs to
loads
PELV
(Class 2:
USA)
wiring only
PELV
(Class 2:
USA)
wiring only
Small Panel with Main Lugs Small Feed-Through Panel
Notes: Small Panel with Main Lugs
• Feed wiring (mains voltage wiring):
#10-#14 AWG (6.0-2.5 mm2)
• Small panels with main lugs accept one
15 or 20 A feed
- Total load is 16 A maximum
- Maximum rated load per circuit is 16 A
Notes: Small Feed-Through Panel
• Feed wiring (mains voltage wiring):
#10-#14 AWG (6.0-2.5 mm2)
• Small feed-through panels accept four separate
15 or 20 A feeds
- Total load is 64 A maximum
- Maximum rated load per circuit is 16 A
R
Installation Guide for Lighting Zone Controllers 11

R
12 Installation Guide for Lighting Zone Controllers
Wiring (continued)
This page applies to:
Standard Panels: Conduit Entry
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.
Preferred feed
wiring entry
Feed wiring
ground/earth
connection
Ground/earth
connection
Feed wiring
from distribution
panel (typical
for all circuits)
Switch legs and
dimmed legs to
loads Feed and load
wiring entry
PELV
(Class 2:
USA)
wiring only
PELV
(Class 2:
USA)
wiring only PELV
(Class 2:
USA)
wiring only
PELV
(Class 2:
USA)
wiring only
Standard Panel with Main Lugs Standard Feed-Through Panel
Notes: Standard Panel with Main Lugs
• Feed wiring (mains voltage wiring), main input lug
rating:
- (1) #4 AWG thru 250 MCM (25-120 mm2) per lug,
Cu/Al only
- Torque to 250 in-lb (30 N•m)
• Standard panels with main lugs accept the following
- DMWP12-1204ML-20: 200 A, 120/208 V
- DMWP18-1204ML-20: 200 A, 120/208 V
- DMWP12-2774ML-20: 250 A, 277/480 V
- 50/60 Hz, phase-to-neutral
• Maximum rated load per circuit is 16 A
Notes: Standard Feed-Through Panel
• Feed wiring (mains voltage wiring):
#10-#14 AWG (6.0-2.5 mm2)
• Standard feed-through panels accept the following:
- DMWP12-FT: 12 separate 15 or 20 A feeds
(16 A maximum per circuit)
- DMWP18-FT: 18 separate 15 or 20 A feeds
(16 A maximum per circuit)
- DMWP24-FT: 24 separate 15 or 20 A feeds
(16 A maximum per circuit)
- 50/60 Hz, single phase
• Maximum rated load per circuit is 16 A
Std.
Panel

Wiring (continued)
R
Installation Guide for Lighting Zone Controllers 13
This page applies to:
Std.
Panel
Panel Wiring: General Notes
See the following two pages for details on wiring loads
to the small and standard panels.
• The only dimmed loads that can be connected directly
to an LZC panel are fluorescent fixtures containing
Lutron Hi-lume®or Eco-10TM ballasts. Other dimmable
load types (120 V only) require the use of a load
interface available from Lutron. For wiring information
refer to the instructions supplied with the load interface.
• All line voltage connections to the loads must be made
using the load wiring terminal blocks located on the
right hand side of the panel. There are up to 24 sets of
terminal blocks, each containing an orange, red, black,
green/yellow, and two white terminal blocks. Each set
of terminal blocks is connected to a particular LZC. The
number of each LZC is listed on the terminal block
label.
Wiring dimmed loads:
• DIMMED HOT connects to the orange terminal block.
If there are no dimmed loads, DO NOT connect any wires
to the orange terminal block.
• SWITCHED HOT connects to the red terminal block
• GROUND connects to the green/yellow terminal block
• NEUTRAL connects to the white terminal block
Wiring switched loads (see page 10 for compatible loads):
• SWITCHED HOT connects to the red terminal block.
• GROUND connects to the green/yellow terminal block.
• NEUTRAL connects to the white terminal block
Small
Panel

R
14 Installation Guide for Lighting Zone Controllers
This page applies to:
Small
Panel
Wiring (continued)
Small Panels: Wiring
Connect the input feed wires and the output load wires
to the lighting zone controller as indicated in the wiring
diagrams below. Colors indicated refer to the lighting
zone controller panel terminal block and ballast wire
colors.
From
distribution
panel
Black
Green
Orange
Black
Green
Lutron 3-wire
dimming ballast
Fixture ground
(do not use)
Switched load
Fixture ground
Small Feed-Through Panel
Orange (DH1)
Red (SH1)
Black (H1)
Green/Yellow (G1)
White (N1)
White (N1)
Orange (DH2)
Red (SH2)
Black (H2)
Green/Yellow (G2)
White (N2)
White (N2)
Hot 1
Neutral 1
Hot 2
Neutral 2
Note: For switchable loads (non-dimming),
make sure address switch 8 on the LZC is in
the ON position.
Input feed and
output line voltage terminals
Black
Green
White
Orange
Black
Green
Lutron 3-wire
dimming ballast
Fixture ground
Switched load
Fixture ground
Orange (DH1)
Red (SH1)
Black (H1)
Green/Yellow (G1)
White (N1)
White (N1)
Orange (DH2)
Red (SH2)
Black (H2)
Green/Yellow (G2)
White (N2)
White (N2)
Output line voltage terminals
Small Panel with Main Lugs
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.
Note: For switchable loads (non-dimming),
make sure address switch 8 on the LZC is in
the ON position.
(do not use)
(do not use)
(do not use)
(do not use)
(do not use)
Note: Feed wiring is attached to terminal block
at upper right corner of panel.
White
White
White `
Bypass jumper (do not remove at this time)
Bypass jumper (do not remove at this time)
Note:
Maximum wire
length from
DMW-LZC1 to
last dimming
ballast is 750
feet (240 m).
Note:
Maximum wire
length from
DMW-LZC1 to
last dimming
ballast is 750
feet (240 m).

R
Installation Guide for Lighting Zone Controllers 15
This page applies to:
Std.
Panel
Wiring (continued)
From
distribution
panel
Black
Green
White
Orange
Black
Green
White
Lutron 3-wire
dimming ballast
Fixture ground
Switched load
Fixture ground
Output line voltage terminals
Standard Feed-Through Panel
Orange (DH1)
Red (SH1)
Black (H1)
Green/Yellow (G1)
White (N1)
White (N1)
Orange (DH2)
Red (SH2)
Black (H2)
Green/Yellow (G2)
White (N2)
White (N2)
Hot 1
Neutral 1
Hot 2
Neutral 2
Black
Green
White
Orange
Black
Green
Lutron 3-wire
dimming ballast
Fixture ground
Switched load
Fixture ground
Orange (DH1)
Red (SH1)
Black (H1)
Green/Yellow (G1)
White (N1)
White (N1)
Orange (DH2)
Red (SH2)
Black (H2)
Green/Yellow (G2)
White (N2)
White (N2)
Standard Panel with Main Lugs
Output line voltage terminals
Note: For switchable loads (non-dimming),
make sure address switch 8 on the LZC is in
the ON position.
Note: For switchable loads (non-dimming),
make sure address switch 8 on the LZC is in
the ON position.
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.

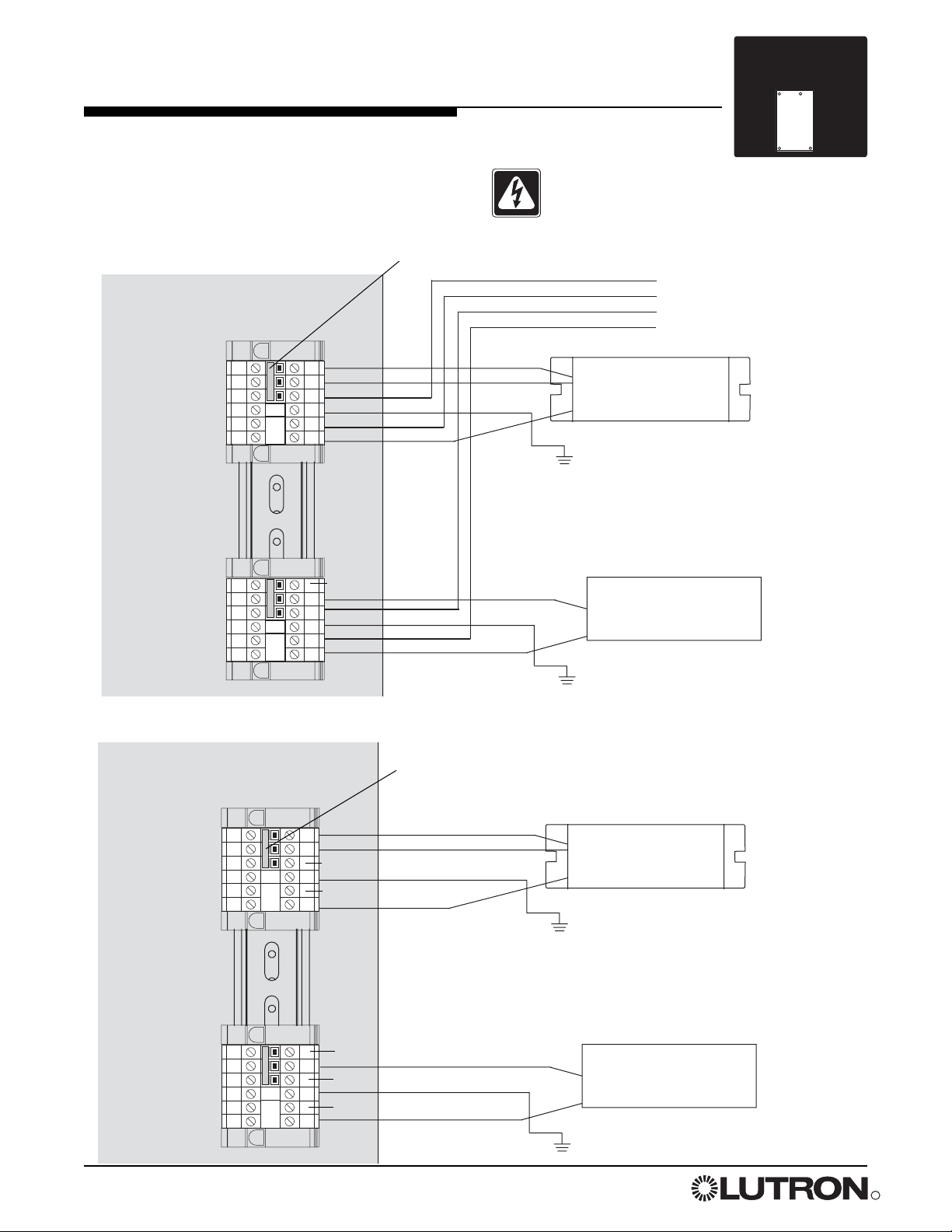

Standard Panels: Load Wiring
Connect the input feed wires and the output load wires
to the lighting zone controller as indicated in the wiring
diagrams below. Colors indicated refer to the lighting
zone controller panel terminal block and ballast wire
colors.
(do not use)
(prewired)
(prewired)
(do not use)
(prewired)
(prewired)
Note: Feed wiring is attached to main lugs at
bottom center of panel.
Bypass jumper (do not remove at this time)
Bypass jumper (do not remove at this time)
Note:
Maximum wire
length from
DMW-LZC1 to
last dimming
ballast is 750
feet (240 m).
Note:
Maximum wire
length from
DMW-LZC1 to
last dimming
ballast is 750
feet (240 m).
White

R
16 Installation Guide for Lighting Zone Controllers
Activating Loads in Bypass
A. Complete load and feed wiring.
See previous sections.
B. Check that the bypass jumpers are in place.
These jumpers protect from load faults and must
be used to check load wiring when it is installed
or modified.
Caution! Verify that the panel is fed from the
correct voltage. A feed miswire or loss of a
feed neutral can cause damage to the
equipment.
C. Turn circuit breaker 1 ON.
Large panels with main lugs have circuit
breakers integral to the panel; circuit breakers
for other panels are in distribution panels.
When power is turned on, the load(s) should
energize, the breaker should not trip, and total
load current must be within the circuit breaker's
limit and less than or equal to 16 A.
In a main lug panel, circuit breaker 1 powers
Circuit 1's LZC and load(s). Check that the
Power LED on the LZC is ON. If the Power LED
is OFF, turn OFF the control circuit breaker
(breaker 1) and check for loose wires or
miswires in the panel.
D. Turn next circuit breaker ON.
The corresponding load should energize, the
breaker should not trip, and total load current
must be within the circuit breaker's limit and less
than or equal to 16 A. The power LED on the
corresponding LZC should be on.
E. Repeat step ‘D’ for each circuit with
completed load wiring.
AC RMS current
Bypass
jumper
Load circuit
wiring
LZC 12
LZC 1
This page applies to:
Small
Panel
Std.
Panel
12-circuit standard
panel with main
lugs shown

R
Installation Guide for Lighting Zone Controllers 17
Removing Bypass Jumpers
A. After all load wiring has been checked, turn
circuit breakers OFF.
B. Use the tool provided to remove the bypass
jumpers and store them for possible future use.
(Removal is shown at right.)
C. Turn circuit breakers ON.
Note: Re-use the bypass jumpers whenever
work is being done on a load. Damage
caused by short-circuits and miswiring is not
covered by the product warranty.
Bypass jumper
Bypass jumper
removed
This page applies to:
Small
Panel
Std.
Panel
Hook bypass
jumper with tip of
removal tool
Rock tool to side to lift
out bypass jumper from
terminal block

R
18 Installation Guide for Lighting Zone Controllers
This page applies to:
LZC1
Small
Panel
Std.
Panel
Addressing
Locating the Address Switches
Every lighting zone controller (LZC) must be given a
unique address at the time of installation for the system to
work properly. Using the table on the next page, set
address switches to match addresses shown in Lutron-
supplied drawings. If your system drawings are not clear,
contact Lutron before installing.
CLASS 2 LOW VOL T AGE WIRING
+24V PS Signal PS Com Circuit Com WC Com WC Signal +24V +15V OCC Signal OCC Com MUX MUX Link Com EMERG Shield
Digital Link
Enlace Digital
Lien Digital
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôle ur de zone d'Éclairage
For installation, r efer to
the Digital microWATT
Hardware Installer's
Guide (p/n 031-268).
Para la inst alación,
consulte la Guía del
Instalador de Digita l
microWATT Hardware
(p/n 031-268).
Pour installation, référer au
guide pour quincaillerie
Digital microWATT
(p/n 031-268) de
l'installa teur.
P/N 500-9066 R ev. F
USA, Canada 1-800-523-9466 1-610-282-0298 www.lutron.com
Mexico 1-888-235-2910 1-610-282-1243 www.lutron.com
Coopersburg, PA 18036 USA
DMW-LZC1
R
TEL FAX
R
LUTRON
LUTRON
LZC1
Small Panel
Address switches
Address switches
(typical)
ON
+24 V
PS Signal
PS Common
Circuit Common
WC Common
WC Signal
+24 V
+15 V
OCC Signal
OCC Common
1 2 3 4 5 6 7 8 9 10
Standard Panel
Address switches
(typical)
Notes
• Address each lighting zone controller in the link as
detailed on the next page.
• For switching only (non-dimming) controllers, switch 8
must be in the ON position.
• All switches in the OFF position takes the LZC offline
and prevents it from communicating with the system.
• Lighting zone controllers are typically described in
system drawings and documentation using their
router panel or GRAFIK 7000P processor address,
followed by their unit address.
For example, 5A7 represents a lighting zone
controller on router panel or GRAFIK 7000P
processor 5, link A, unit address 7.
LZC LINK
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôleur de zone d'Éclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalación, consulte
la Guía del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, référer au
guide Contrôleur de zone
d‘Éclairage de l'installateur
(p/n 031-268).
P/N 500-9066 Rev. F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA 18036 USA
DMW-LZC1
ADDR
+24 V PS SIG PS COM WC COM WC SIG +24 V
CIR COM
+15 V OCC SIG OCC COM
MUX MUX
LNK COM EMERG SHLD
1-888-235-2910
12345678
ON
®
100-277 V 50/60 Hz
16 A Max.
LISTED
Energy Management
Equipment 5C81
R
®

R
Installation Guide for Lighting Zone Controllers 19
This page applies to:
LZC1
Small
Panel
Std.
Panel
Addressing (continued)
Address Switch Setting Chart
Router Panel or GRAFIKTM 7000P Processor Panel Address:
Link Number:
Area Name or Description:
ON ON
Switch is up (ON) Switch is down (OFF)
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
12345678
ON
Unit
Address
1 _____
2 _____
3 _____
4 _____
5 _____
6 _____
7 _____
8 _____
9 _____
10 ____
11 ____
12 ____
13 ____
14 ____
15 ____
16 ____
Unit
Address
17 ____
18 ____
19 ____
20 ____
21 ____
22 ____
23 ____
24 ____
25 ____
26 ____
27 ____
28 ____
29 ____
30 ____
31 ____
32 ____
Unit
Address
33 ____
34 ____
35 ____
36 ____
37 ____
38 ____
39 ____
40 ____
41 ____
42 ____
43 ____
44 ____
45 ____
46 ____
47 ____
48 ____
Unit
Address
49 ____
50 ____
51 ____
52 ____
53 ____
54 ____
55 ____
56 ____
57 ____
58 ____
59 ____
60 ____
61 ____
62 ____
63 ____
Switch Setting Switch Setting Switch Setting Switch Setting
Make a copy of this page for each LZC link in your system.
Place a check mark next to each unit address that is used on the link.

R
20 Installation Guide for Lighting Zone Controllers
This page applies to:
LZC1
Small
Panel
Std.
Panel
Wiring the LZC Link
CLASS 2 LOWVOL T AGE WIRING
+24V PS Signal PS Com Circuit Com WC Com WC Signal +24V +15V OCC Signal OCC Com MUX MUX Link Com EMERG Shield
Integrated Lighting Automation System
®
LISTED
Energy Management
Equipment 5C81
Questions? Call Lutron T echnical Support Center 1-800-523-9466 (24 hrs/7 days)
or visit our web site at www .lutron.com
POWER INDICA TOR
On: Caution unit has
power
Off: Unit is not powered or
is not functioning
properly
ADDRESS
SWITCH
Please see installer's
guide for addressing
information.
(p/n 031-198)
STATUS INDICA TOR
Continuous double blink: Unit is
operating properly
Third blink: Unit is communicating
with command center
On or off continuously: Unit is
not operating properly
Daylight
Sensor
Wall
Control
Occupant
Sensor
Addressing
P/N500-9066 Rev. D
Digital Link
DMW-LZC1 (Lighting Zone Controller)
LUTRON ®Coopersburg, PA 18036
100–277 V ~50/60 Hz
16 A Max.
Digital Link
Enlace Digital
Lien Digital
12345678 910 1112131415
Lighting ZoneController
Controlador de zona de luz
Contrôleur de z one d'Éclairage
For installation, refe r to
the Digital microWATT
Hardware Installer's
Guide (p/n 031-268).
Para la instal ación,
consulte la Guía del
Instalador de Digital
microWATT Hardware
(p/n 031-268).
Pour installation, référer au
guide pour quincaillerie
Digital microWATT
(p/n 031-268) de
l'installa teur.
P/N 500-9066 Re v. F
USA, Canada 1-800-523-9466 1-610-282-0298 www.lutron.com
Mexico
1-888-235-2910 1-610-282-1243 www.lutron.com
Coopersburg, PA 18036 USA
DMW-LZC1
R
TEL FAX
R
LUTRON
LUTRON
MUX MUX Link Com EMERG Shield
MUX MUX Link Com EMERG Shield
Lutron GRX-CBL-46L
series cable
or equivalent
MUX (white)
MUX (purple)
Link common (black)
Emergency (red)
Shield (bare)
#22 AWG (0.64 mm2)
#22 AWG (0.64 mm2)
#12 AWG (2.5 mm2)
#12 AWG (2.5 mm2)
#24 AWG (0.5 mm2)
LZC link from Digital
microWATT router panel,
GRAFIK 7000P
processor, or another
lighting zone controller
To additional LZCs
or LZC panels
(63 LZCs maximum per link)
Pigtail wiring configuration:
Pigtails must be less than 6
inches (150 mm) from wire
connector to terminal block
LZC link
terminals
Danger! Locate and lock the supply breaker in
the OFF position, or remove the supply fuse
before continuing.
Caution! Make sure power to all LZCs is OFF
during link wiring.
Notes
• LZC wiring is daisy-chained (from one panel or LZC1
to the next). Pigtails/T-taps must be a maximum
length of 6 inches (150 mm).
• The maximum number of LZCs per link is 63. Panels
contain more than one LZC; take into account the
number of LZCs per panel when calculating LZCs on
each link.
• Wire colors shown assume GRX-CBL-46L is used.
The orange wire is unused.
• The LZC link is considered PELV (Class 2: USA). Do
not run in the same conduit as line voltage.
LZC LINK
12345678 910 1112131415
Lighting Zone Controller
Controlador de zona de luz
Contrôleur de zone d'Éclairage
For installation, refer
to the Lighting Zone
Controller Installer's Guide
(p/n 031-268).
Para la instalación, consulte
la Guía del Instalador de
Controlador de zona de luz
(p/n 031-268).
Pour installation, référer au
guide Contrôleur de zone
d‘Éclairage de l'installateur
(p/n 031-268).
P/N 500-9066 Rev.F
USA, Canada
1-800-523-9466
www.lutron.com
Mexico
Coopersburg, PA 18036 USA
DMW-LZC1
ADDR
+24 V PS SIG PS COM WC COM WC SIG +24 V
CIR COM
+15 V OCC SIG OCC COM
MUX MUX
LNK COM EMERG SHLD
1-888-235-2910
12345678
ON
®
100-277 V 50/60 Hz
16 A Max.
LISTED
Energy Management
Equipment 5C81
R
®
