StanzaTM Wiring and Programming Guide
StanzaTM Wiring and Programming Guide
Stanza Drives are available for control of Draperies and Roller Shades. Stanza Shades and Drapes
can be controlled as part of a Stanza Integrated System, incorporating Stanza lighting controls, or
as a Stanza Standalone System, without lighting controls. This Stanza Wiring and Programming
Guide describes how to set up Stanza shades and drapes in both applications.
Both the Stanza Integrated System and Stanza Standalone System utilize the same Contact
Closure Drive to motorize the shade or drape. The Drives are powered from a 24 V--- power
supply and can be controlled via two contact closure inputs, one for open and one for close.
Drives that are part of the Stanza Integrated System receive these contact closures from a
Stanza Contact Closure Interface, SZ-IO. Drives that are part of a Stanza Standalone System
receive these contact closures from a Stanza Standalone keypad. Two types of keypads are
available: one for a single Shade or Drape application and one for a dual Shade or Drape
application.
The Shade or Drape can also be operated via an infrared Hand-Held Remote Control.
These can be used in either a Stanza Integrated System or Stanza Standalone System. Each
Drive that is being controlled, must have its own IR receiver. Two types of IR Remotes are
available: one for a single Group application and one for a Two Group application. The IR remotes
can move the Shade or Drape to the open and close limit. They also provide the additional
functions of storing and recalling a favorite preset, and setting open and close limits remotely.

Page 2
StanzaTM Wiring and Programming Guide
Table of Contents Page
Basic Operation
Keypad Functions
IR Remote Functions
Wiring
Infrared Receiver
Stanza Standalone System
Stanza Integrated System
Contact Closure
Contact Closure Specification
Setting Limits
From the Drive
From an Infrared Remote
Programming
Assigning Drive to Remote Control
Storing Favorite Preset
Programming Lock Out
Restoring Default Settings
Diagnostics
SZ-IO Diagnostics Mode
Troubleshooting
Troubleshooting Chart
3
4-5
6
7-8
9-10
11
12
13-16
17
18-19
20
21
22
23

1
1.1
StanzaTM Keypads Functions
Page 3
StanzaTM Wiring and Programming Guide
Close
Open

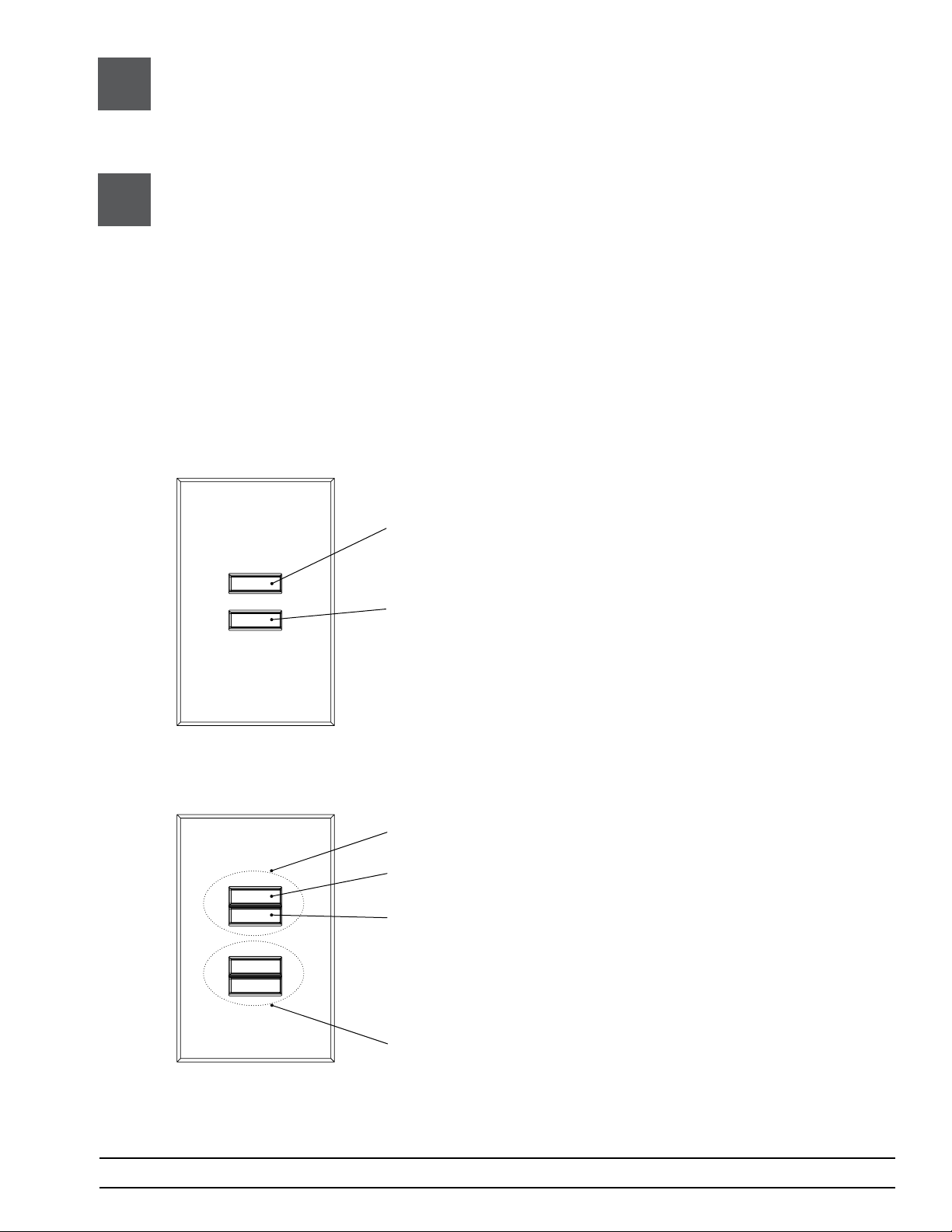

Single Group Keypad
Provides control of one group of Shades or Drapes
Dual Two Group Keypad
Provides control of two groups of Shades or Drapes
Close
Open
Close
Open
Tap Open Button
Shade or Drape goes to
open limit
Tap Close Button
Shade or Drape goes to
close limit
Tap Open Button
Shade or Drape goes to open limit
Tap Close Button
Shade or Drape goes to close limit
Group 1
Group 2
Same functions as above
•Stanza Standalone System Keypads are available in Single Group and Dual
Group styles.
•Each Shade or Drape in the system must be wired directly to the keypad to allow
it to be controlled via the keypad. No additional programming steps are required
to assign keypads to the Shade or Drape.
•A maximum of 4 Shades or Drapes can be wired to any keypad output:
daisy chained or homerun
•Stanza Standalone System Keypads provide contact closures to the Shade or Drape,
and require no input power.
Tapping any button while
Shade or Drape is moving
will cause it to stop.
Tapping any button while
Shade or Drape is moving
will cause it to stop.

Infrared Hand Held Remote Controls | Functions
2
2.1
Page 4
StanzaTM Wiring and Programming Guide
•The Single Shade or Drape Remote can only be used in applications to control one group
of Shades or Drapes
•Each Drive in the system requires its own IR Remote to allow it to be controlled via IR.
•Open and Close limits can be set via IR Remote
•Tapping any button while Shade or Drape is moving will cause it to stop
•All Shades or Drapes with an IR receiver will respond to the Single Group IR Remote as shipped,
without any additional programming

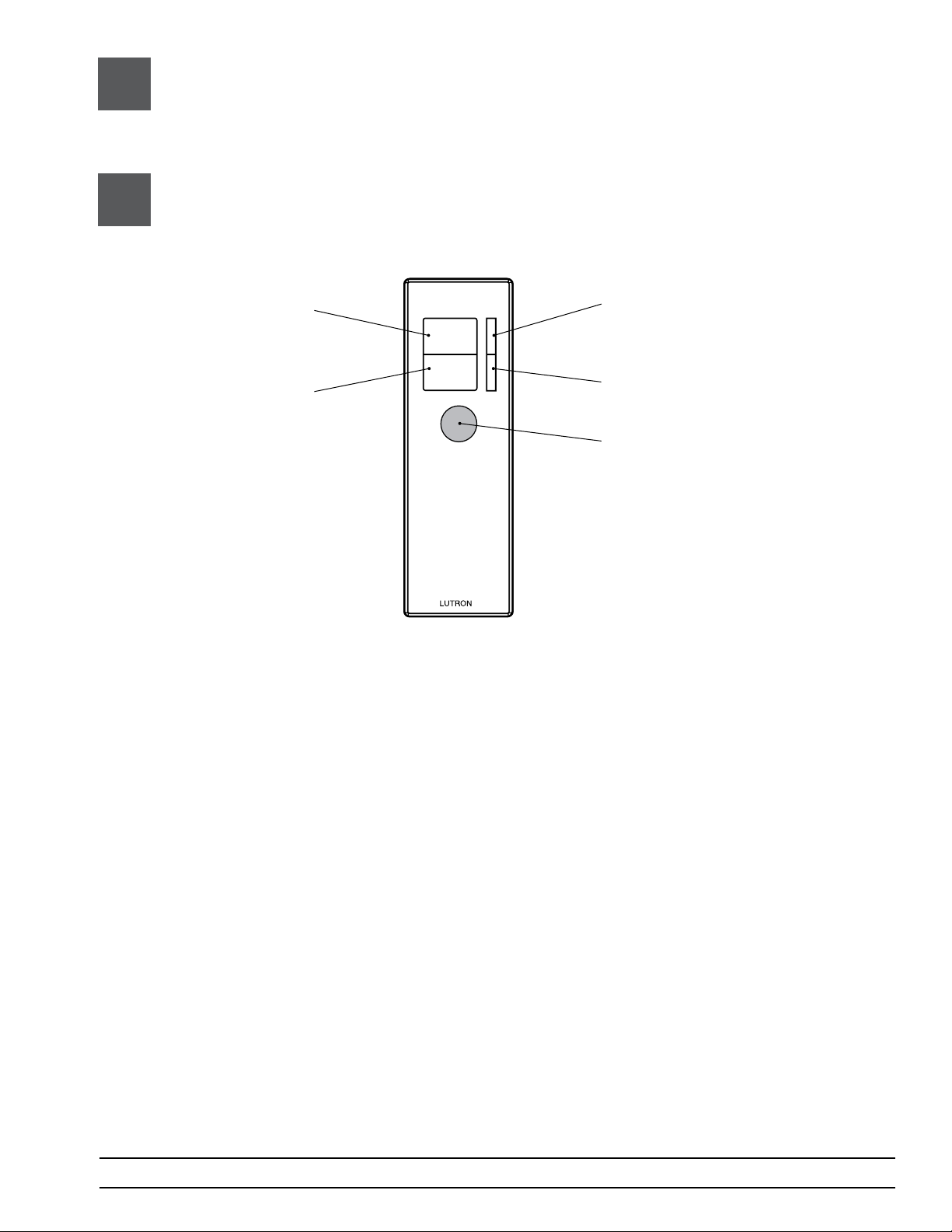

Single Group IR Remote
Provides control of one Group of Shades or Drapes
Close
Open
Press Raise Button
Shade or drape goes toward
open limit
Press Lower Button
Shade or drape goes toward
close limit
Tap Favorite Preset Button
Shade or drape goes to stored preset
Tap Open Button
Shade or drape goes
to open limit
Tap Close Button
Shade or drape goes
to close limit

Page 5
StanzaTM Wiring and Programming Guide
Infrared Hand Held Remote Controls | Functions
(continued)
2
•All Stanza Drives with an IR receiver will respond to the Top Group of buttons without any
programming
•Shade or Drape Group Assignment is required to allow the Bottom Group of buttons to
control Shades or Drapes. Refer to Section 11, Assigning Drive to IR Remote.
•The Dual Group Remote provides independent control of two Groups of shades or drapes
typically one Sheer Group and one Blackout Group.
•Each Drive in the system requires its own IR Receiver to allow it to be controlled via IR.
•Open and Close limits can be set via IR Remote
•Tapping any button while Shade or Drape is moving will cause it to stop
Dual Group IR Remote
Provides control of two Groups of Shades or Drapes
Close
Open
Sheer
Close
Open
Blackout
Press Raise Button
Shade or Drape goes toward
open limit
Press Lower Button
Shade or Drape goes toward
close limit
Tap Favorite Preset Button
Shade or Drape goes to stored preset
Tap Open Button
Shade or Drape goes
to open limit
Tap Close Button
Shade or Drape goes
to close limit
Top Group
Bottom Group
Same Functions as above
2.2

Remote IR Eye
Lutron®offers a remote infrared eye for Stanza. It is a small dome connected to the Drive by a
22 in (560 mm) cable.
The remote infrared eye plugs into a dedicated IR connector on the Drive. Ten foot extensions are
available if the layout requires the IR eye to be located further from the Drive. The IR eye may be
located up to 50 ft (15 m) away from the Drive. Unobtrusive mounting clips and adhesive tape are
also provided.
Note: Each Stanza Drives must have its own remote IR eye to be controlled via infrared remote.
StanzaTM | Infrared Receivers
3
3.1
StanzaTM Wiring and Programming Guide
SV-IR-EXT-10
Up to 5 can be connected end to end
for a 50 ft (15,250 mm) extension.
10 ft (3050 mm)
SV-IR Infrared remote eye, available in white
and royal plum. SV-IR connects to optional
extension cable (SV-IR-EXT-10) or directly
to the Drive
Page 6

Page 7
StanzaTM Wiring and Programming Guide
4StanzaTM Standalone System |Single Drive Wiring
3
1
2
8
9
5
7
6
3
4
1
Terminal block of
Drive controlling single
Shade or Drape
Com X 24 V---
Com
24 V---
Close
Open
SZ-PS-1-50
Power Supply
Single Group
Keypad
Wiring types Purpose Wire options
AContact Closure Input/Output 18-22 AWG (1.00-0.50 mm²)
per contact closure - 250 ft (75 m) max
BDrive power (power supply to Drive) 12 AWG (4 mm²) - 250 ft (75 m) max
16 AWG (1.5 mm²) - 100 ft (30 m) max
18 AWG (1 mm²) - 50 ft (17 m) max
Wire Type A
Wire Type B
Stanza Drapery or
Roller Shade Drive
Notes:
•Standalone shade or drapery drives can be controlled with a keypad, IR remote, or both.
•Pressing any button on any keypad or IR remote while the shade or drape is moving will
cause the shades or drapes in the group to stop.
•Secondary wiring must be of type CL2, CL2P, CL2R, CL2X or other cable with equivalent
or better electrical, mechanical, and flammability ratings in accordance with local and national
electric code.
Single group
IR Transmitter
IR Receiver

Page 8
StanzaTM Wiring and Programming Guide
5StanzaTM Standalone System |Dual Drive Wiring
3
1
2
8
2
1
9
5
7
6
3
4
1
Com
24 V
Close
Open
Com
24 V
Close
Open
Com
24 V---
Close
Open
Terminal block of
Drive controlled by
Group 1 buttons
Com X 24 V---
Com X 24 V---
Com
24 V---
Close
Open
Terminal block of
Drive controlled by
Group 2 buttons
Stanza Drapery or
Roller Shade Drive
SZ-PS-1-50
Power Supply
Dual Group Keypad
SZ-PS-1-50
Power Supply
Wiring types Purpose Wire options
AContact Closure Input/Output 18-22 AWG (1.00-0.50 mm²)
per contact closure - 250 ft (75 m) max
BDrive power (power supply to Drive) 12 AWG (4 mm²) - 250 ft (75 m) max
16 AWG (1.5 mm²) - 100 ft (30 m) max
18 AWG (1 mm²) - 50 ft (17 m) max
Wire Type B
Wire Type B
Wire Type A
Stanza Drapery or
Roller Shade Drive
Optional IR
Receiver
Optional IR
Receiver
Notes:
•Standalone shade or drapery drives can be controlled with a keypad, IR remote, or both.
•Pressing any button on any keypad or IR remote while the shade or drape is moving will
cause the shades or drapes in the group to stop.
•Secondary wiring must be of type CL2, CL2P, CL2R, CL2X or other cable with equivalent
or better electrical, mechanical, and flammability ratings in accordance with local and national
electric code.
Dual group
IR Transmitter

Page 9
StanzaTM Wiring and Programming Guide
CCO 1 NC CCO 1 NO 1-2 COM CCO 2 NC CCO 2 NO CCO 3 NC CCO 3 NO 3-4 COM CCO 4 NC CCO 4 NO CCO 5 NC CCO 5 NO 5 COM CCI 1 CCI 2 CCI 3 CCI 4 CCI 5 COM +PWR COM
Contact Closure Outputs (CCO)
Contact Closure Inputs (CCI)

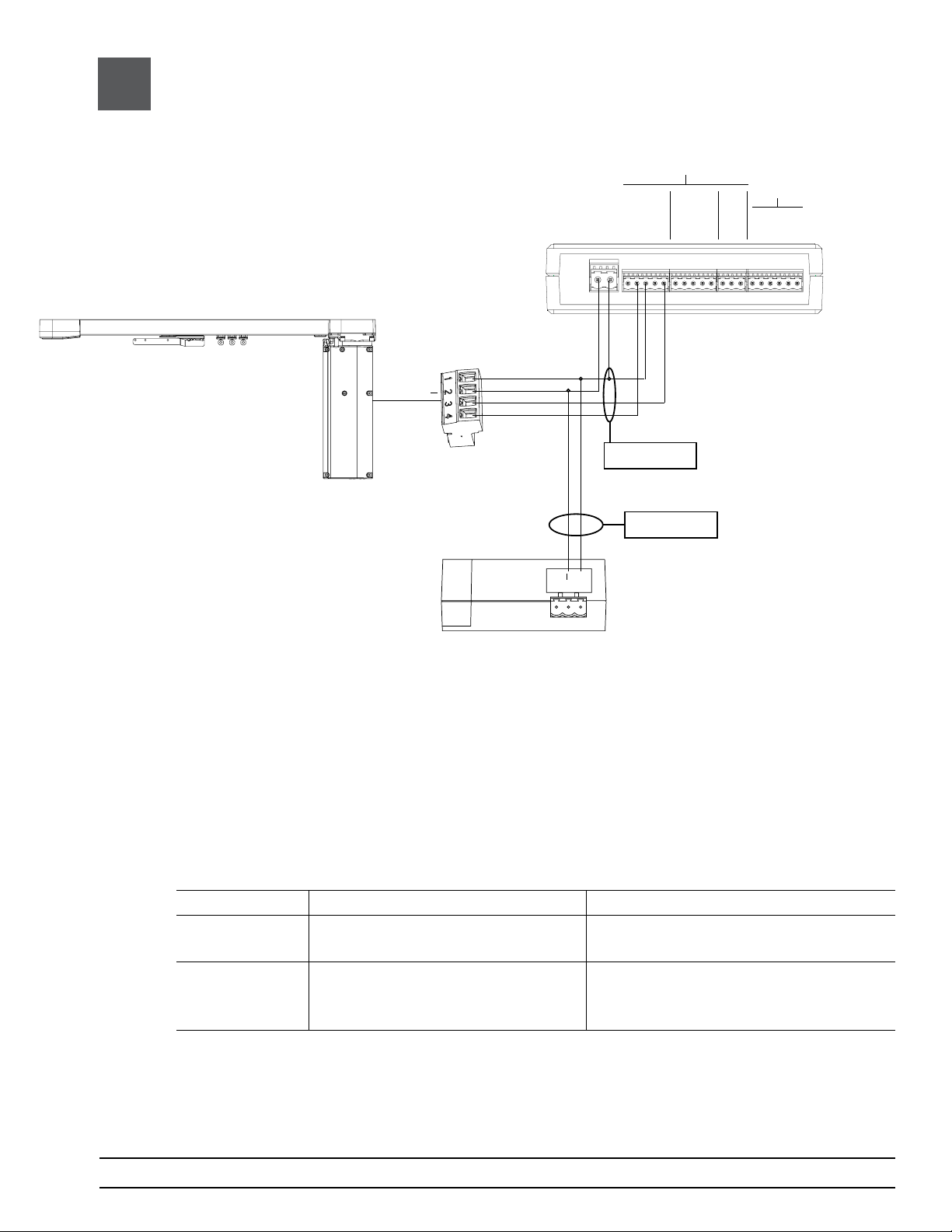

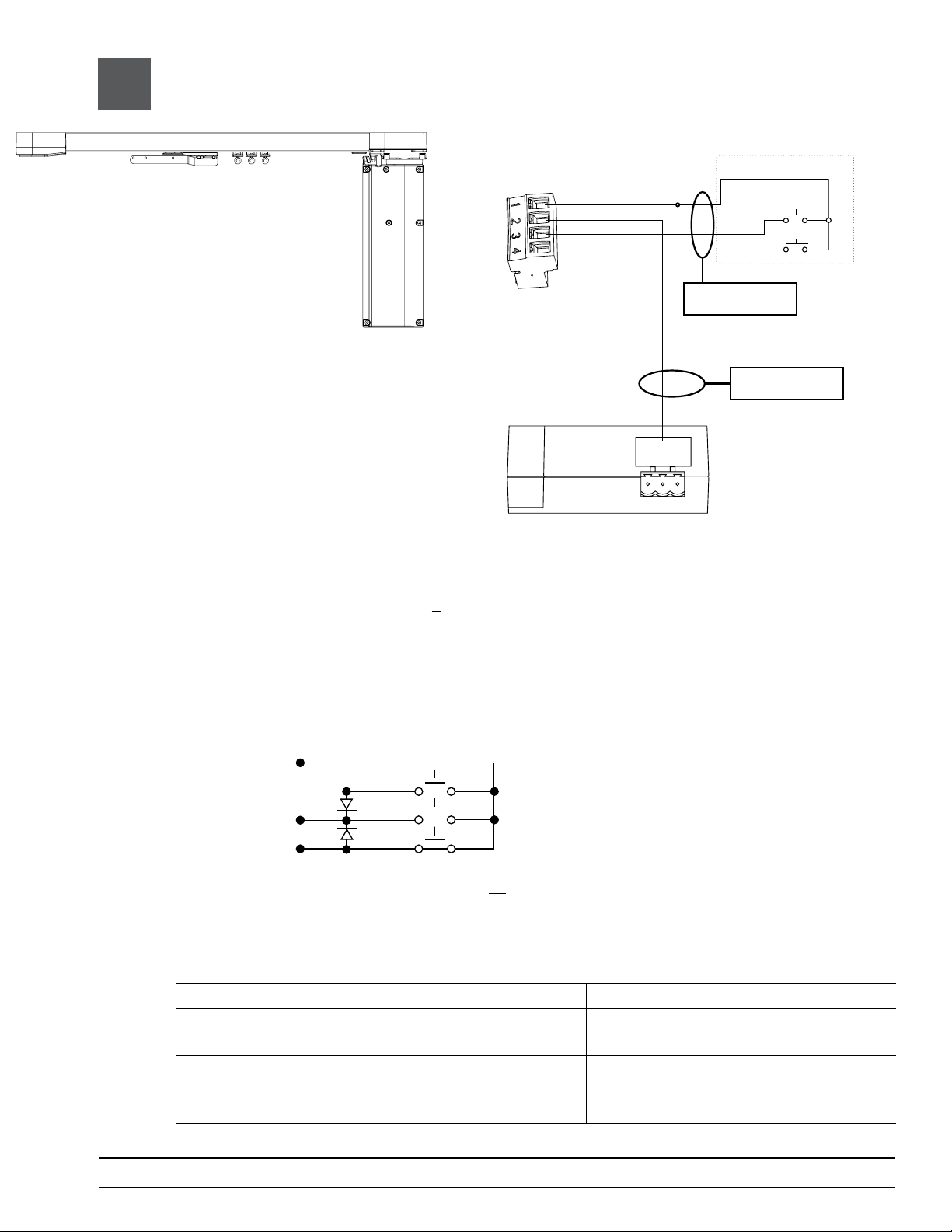

6StanzaTM Integrated System |Single Drive Wiring
Com
24 V---
Close
Open
Terminal block of
Drive controlling
single Shade or
Drape
Com X 24 V---
SZ-PS-1-50
Power Supply
SZ-IO
Contact Closure
Interface
Wiring types Purpose Wire options
AContact Closure Input/Output 18-22 AWG (1.00-0.50 mm²)
per contact closure - 250 ft (75 m) max
BDrive power (power supply to Drive) 12 AWG (4 mm²) - 250 ft (75 m) max
16 AWG (1.5 mm²) - 100 ft (30 m) max
18 AWG (1 mm²) - 50 ft (17 m) max
Wire Type A
Wire Type B
Notes:
•SZ-IO outputs programmed as a 0.25 second momentary contact closure output
•Activating Open or Close while the shade or drape is moving will cause it to stop
•If a Stop function is required, program the SZ-IO to activate both Open and Close contacts
simultaneously (within 50 ms of each other)
•Secondary wiring must be of type CL2, CL2P, CL2R, CL2X or other cable with equivalent
or better electrical, mechanical, and flammability ratings in accordance with local and national
electric code.
Stanza Drapery or
Roller Shade Drive

CCO 1 NC CCO 1 NO 1-2 COM CCO 2 NC CCO 2 NO CCO 3 NC CCO 3 NO 3-4 COM CCO 4 NC CCO 4 NO CCO 5 NC CCO 5 NO 5 COM CCI 1 CCI 2 CCI 3 CCI 4 CCI 5 COM
+PWR COM
Contact Closure Outputs (CCO)
Contact Closure Inputs (CCI)
Terminal block of
Drive controlling
sheer Shade or
Drape
Terminal block of
Drive controlling
blackout Shade
or Drape
Com X 24 V---
Com X 24 V---
Com
24 V---
Close
Open
7StanzaTM Integrated System | Dual Drive Wiring
SZ-PS-1-50
Power Supply SZ-IO
SZ-PS-1-50
Power Supply
Wire Type A
Wire Type B
Wire Type B
Wiring types Purpose Wire options
AContact Closure Input/Output 18-22 AWG (1.00-0.50 mm²)
per contact closure - 250 ft (75 m) max
BDrive power (power supply to Drive) 12 AWG (4 mm²) - 250 ft (75 m) max
16 AWG (1.5 mm²) - 100 ft (30 m) max
18 AWG (1 mm²) - 50 ft (17 m) max
Stanza Drapery or
Roller Shade Drive
Stanza Drapery
or Roller Shade
Drive
Page 10
StanzaTM Wiring and Programming Guide
Com
24 V---
Close
Open
Notes:
•SZ-IO outputs programmed as a 0.25 second momentary contact closure output
•Activating Open or Close while the shade or drape is moving will cause it to stop
•If a Stop function is required, program the SZ-IO to activate both Open and Close contacts
simultaneously (within 50 ms of each other)
•Secondary wiring must be of type CL2, CL2P, CL2R, CL2X or other cable with equivalent
or better electrical, mechanical, and flammability ratings in accordance with local and national
electric code.

Page 11
StanzaTM Wiring and Programming Guide
Notes:
• The Stanza Drive accepts Class 2, dry contact closure inputs. The contact closure device
must be capable of switching 12 V--- at 4 mA. Momentary dry contact closure inputs require
a minimum closure time of 0.25 seconds.
•Activating Open or Close while the shade or drape is moving will cause it to stop
•A dedicated Stop function can be actuated one of the following two ways:
1. Activate both Open and Close contacts simultaneously (within 50 ms of each other)
2. Providing a Stop contact closure with the following circuit:
Diodes D1 and D2 must be rated for 12 V ---, 4 mA
•Secondary wiring must be of type CL2, CL2P, CL2R, CL2X or other cable with equivalent
or better electrical, mechanical, and flammability ratings in accordance with local and national
electric code.
3
1
Close
Open
8StanzaTM | Contact Closure Input Wiring and Specification
Com
24 V---
Close
Open
Terminal block of
Drive controlling
single Shade or
Drape
Com X 24 V---
SZ-PS-1-50
Power Supply
Wiring types Purpose Wire options
AContact Closure Input/Output 18-22 AWG (1.00-0.50 mm²)
per contact closure - 250 ft (75 m) max
BDrive power (power supply to Drive) 12 AWG (4 mm²) - 250 ft (75 m) max
16 AWG (1.5 mm²) - 100 ft (30 m) max
18 AWG (1 mm²) - 50 ft (17 m) max
Wire Type A
Wire Type B
Stanza Drapery or
Roller Shade Drive
Com (Pin 1)
Close (Pin 3)
Open (Pin 4)
Close
Stop
Open
D1
D2

9Setting Limits From the Drive
The open and close limits define the travel range of the shade or drape. Limits can be set at
the Drive, or from an IR Remote previously assigned to that Drive. It is recommended that
limits be set initially at the Drive.
Setting Open Limit
Page 12
StanzaTM Wiring and Programming Guide

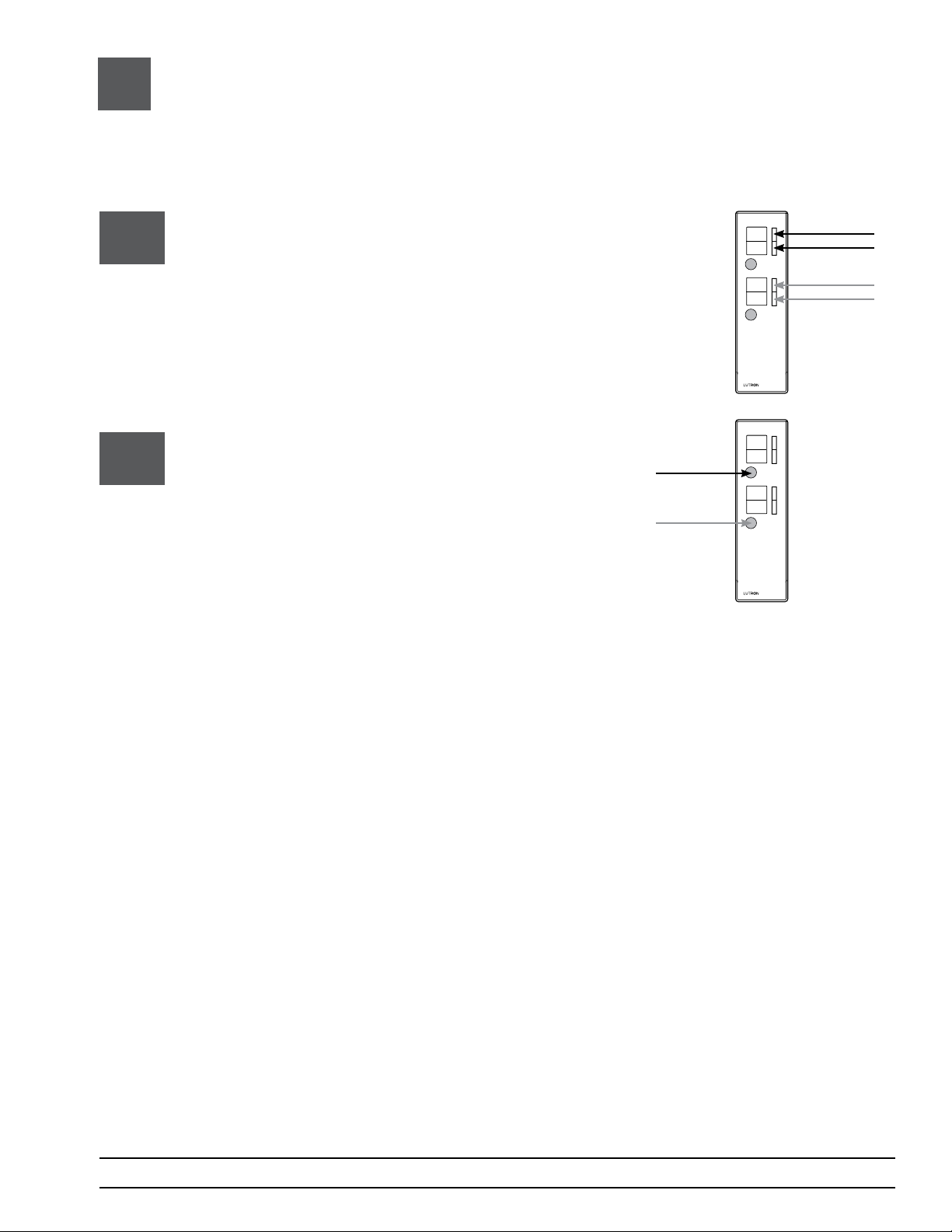

Tap Open Limit button. Green
LED will turn on.
Move the Shade or Drape to
desired Open Limit by pressing
arrow buttons.
Press and hold the Open Limit
button until the Green LED
flashes. Open Limit is stored.
9.1
9.2
9.3
Tap the Close Limit button. The
Green LED will turn on.
Move the Shade or Drape to
desired Close Limit by pressing
arrow buttons.
Press and hold the Close Limit
button until the Green LED
flashes. Close Limit is stored.
9.4
9.5
9.6
Setting Close Limit

10 Setting Limits From Infrared Remote
Page 13
StanzaTM Wiring and Programming Guide
•The Open and Close Limits can be set from either a Single Group or a Dual
Group IR Remote.
•The Dual Group Remote must be assigned to the top Group and
bottom Group prior to limit setting. Refer to Section 11
•By default the Single Group IR Remote is assigned to all Stanza Drives and cannot
be reassigned to specific drives. Limits can be set at the Drive, or from the IR Remote.
It is recommended that limits be set initially at the Drive.
Setting Open Limit — Single Group IR Remote

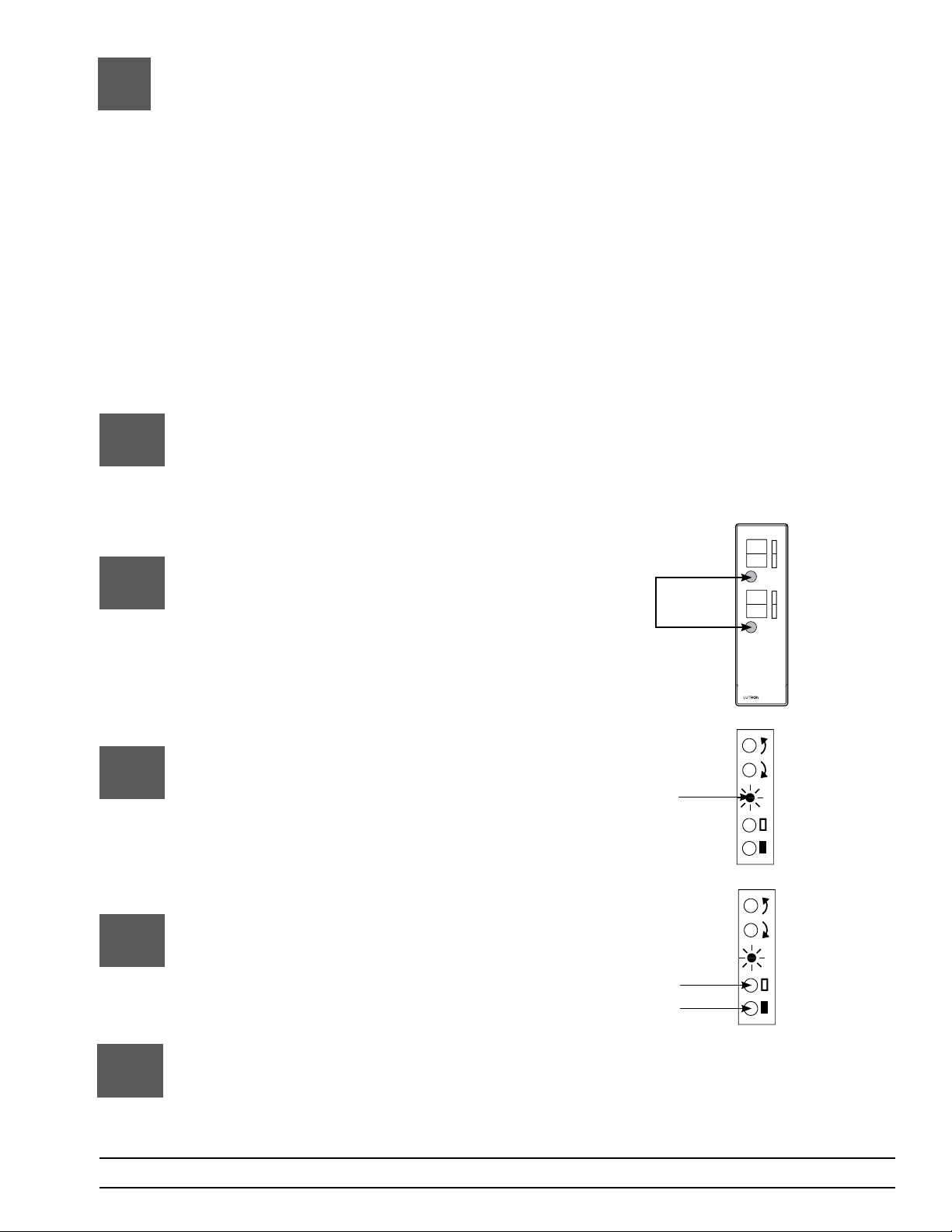

Tap the Open button. Green
LED of Drives will remain lit and
Shades or Drapes will begin to
move back and forth a short
distance.
Move Shade or Drape to desired
Open Limit by pressing the Raise
or Lower buttons.
10.1
10.2
10.3
Close
Open
Close
Open
Close
Open
Press and hold the Open Limit
button until the Green LED on
the Drive flashes. Open Limit is
stored.
10.4
Close
Open
Press and hold the Open and
Raise button until Green LED on
Drive turns on.

10 Setting Limits From Infrared Remote (continued)
Page 14
StanzaTM Wiring and Programming Guide
Setting Close Limit — Single Group IR Remote
Press and Hold the Close Limit
button until the Green LED
on the Drive flashes. Close Limit
is stored.
10.8
Close
Open
Press and hold the Open and
Raise button until Green LED on
Drive turns on.
Tap the Close button. Green
LED of Drives will remain lit and
Shades or Drapes will begin to
move back and forth a short
distance.
Move Shade or Drape to desired
Close Limit by pressing the Raise
or Lower buttons.
10.5
10.6
10.7
Close
Open
Close
Open
Close
Open

10 Setting Limits From Infrared Remote (continued)
Page 15
StanzaTM Wiring and Programming Guide

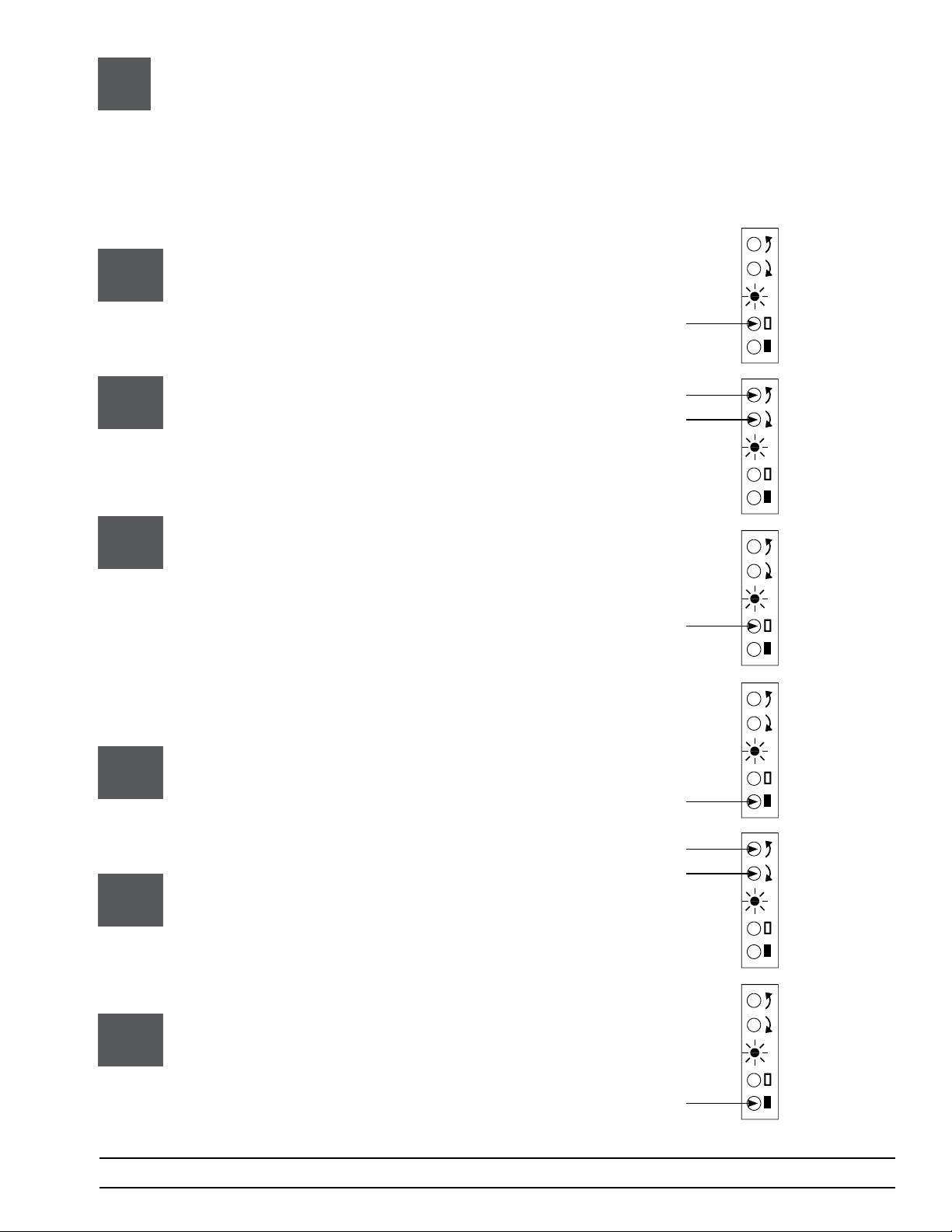

Press and Hold the Open Limit
button until the Green LED
on the Drive flashes. Open Limit
is stored.
10.12
Press and hold the Open and
Raise button until Green LED on
Drive turns on.
Tap Open button of the desired
group. Green LED of Drives
assigned to this group will remain
lit and Shades or Drapes will
begin to move back and forth a
short distance.
Move Shade or Drape to desired
Open Limit by pressing the Raise
or Lower buttons.
10.9
10.10
10.11
Close
Open
Close
Open
Close
Open
Close
Open
OR
Close
Open
Close
Open
OR
Close
Open
Close
Open
OR
Setting Open Limit — Dual Group IR Remote

10
Page 16
StanzaTM Wiring and Programming Guide
Press and Hold the Close Limit
button until the Green LED
on the Drive flashes. Close Limit
is stored.
Press and hold the Open and
Raise button until Green LED on
Drive turns on.
Tap the Close button of the
desired group. Green LED of
Drives assigned to this group will
remain lit and Shades or Drapes
will begin to move back and forth
a short distance.
Move Shade or Drape to desired
Close Limit by pressing the Raise
or Lower buttons.
10.13
Close
Open
Close
Open
Close
Open
Close
Open
OR
Close
Open
Close
Open
OR
Close
Open
Close
Open
OR
Setting Limits From Infrared Remote (continued)
Setting Close Limit — Dual Group IR Remote
10.16
10.14
10.15

11 Programming |Assigning Drive to Remote Control
Page 17
StanzaTM Wiring and Programming Guide
Tap button on the Drive to assign
to Top or Bottom Group.
Assigned drive will go to Close
Limit and Green LED will turn off.
11.4
Aim Remote Control at IR
Receiver of the Drive to be
assigned.
Press and hold both Favorite
Preset buttons for 5 seconds
Green LED on Drive will blink
slowly (once per second)
11.1
11.2
11.3
Close
Open
Close
Open
•Stanza Dual Group Remote Controls can be reassigned to different Shades or
Drapes via simple programming.
•As shipped, all Shades or Drapes will respond to the Single Group Remote
Control and to the top Group of the Dual Group Remote Control
•Each Shade or Drape in the system requires its own Infrared Receiver (SV-IR)
to allow it to be controlled via IR.
•By default the single Group IR Remote is assigned to all Stanza Drives and cannot
be reassigned to specific drives.
Tap to assign to Top Group
Tap to assign to Bottom Group
Dual Group Remote Control
Provides control of two Groups of Shades or Drapes
Repeat steps 11.1 - 11.4 to
assign additional drives.
11.5

12 Programming | Storing Favorite Preset
Page 18
StanzaTM Wiring and Programming Guide
Move Shade or Drape to desired
position for Favorite Preset by
pressing the Raise and Lower
buttons.
Press and hold the silver Favorite
Preset button for 5 seconds.
LED on Drive will flash Green then
go out to indicate favorite preset is
stored.
Note: If the LED on the Drive
flashes orange in step 12.2,
Programming lockout is enabled
and favorite preset is not stored.
Refer to Section 13 to disable
and repeat steps 12.1 and 12.2.
12.1
12.2
•Favorite presets are available with both the Single and Dual IR Remote Control. They are
stored and recalled using the remote. They allow the user to recall their favorite preset
with the touch of the silver favorite preset button.
•Programming lockout must be disabled to store presets. Refer to Section 13 to disable
this function.
Storing Favorite Preset from Single Group IR Remote
Close
Open
Close
Open

12 Programming | Storing Favorite Preset (continued)
Page 19
StanzaTM Wiring and Programming Guide
Move Shade or Drape to desired
position for Favorite Preset by
pressing the Raise and Lower
buttons.
Press and hold open the
silver Favorite Preset button
for 5 seconds. LED on the Drive
will flash Green then go out to
indicate favorite preset is stored.
Note: If the LED on the Drive
flashes orange in step 12.4,
Programming lockout is enabled
and favorite preset is not stored.
Refer to Section 13 to disable
and repeat steps 13.3 and 13.4.
12.3
12.4
Storing Favorite Preset from Dual Group IR Remote
Close
Open
Close
Open
Close
Open
Close
Open
OR
OR
