Cooker Hood

WARNINGS

EN/1

Safety

The appliance is not to be used by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction. This equipment can

be used by children aged 8 or more, people with physical, mental and sensory

disabilities or inexperienced users it if they were instructed under proper

supervision or trained on the safe use of the equipment and if they are fully

aware of the related risks. Children shall not play with the equipment. The

cleaning and maintenance are at user’s expense and shall not be performed

by unsupervised children.

As soon as the equipment is delivered, remove the package immediately.

Verify its overall aspect and, should any type of anomaly be found, notify

it immediately to the sales point or the installer.

Its equipment is intended for domestic use. It shall not be employed for

industrial or professional purposes nor for any other purpose than that

for which it has been designed.

The supplier will not provide any warranty for the consequences and

damages caused by an improper installation or a misuse of the

equipment.

Do not attempt to modify the characteristics of this equipment, that would

represent a hazard. Repairs shall be exclusively made by a specialized

and authorized technician. To avoid risks, the manipulation of the

equipment is strictly forbidden so is the replacement of the power cable.

When the range hood is located above a gas appliance, this distance

shall be at least 65 cm. If the instructions for installation for the gas

hob specify a greater distance, this has to be taken into account.

Once the equipment has been installed, the disconnection of the

equipment from the power supply shall be allowed. Disconnection can be

done by keeping the jack accessible or adding a switch to the electric

system in accordance with the installation rules.

WARNINGS

EN/2

If the power cord is damaged, it shall be replaced either by the producer,

its customer service or qualified personnel in order to avoid risks.

It is of vital importance to place particular attention as to where the wall

or ceiling will be perforated so as to verify the presence of hidden

electrical cables, pipes or iron beams, etc. This may cause serious

breakdowns, electrical derivations or the transmission of noises and

vibrations.

IMPORTANT: During the installation phase, before electrically

connecting the equipment, always disconnect the power panel that will

supply it (differential or thermal-magnetic of the general house

switchboard).

WARNINGS: Always disconnect the exhaust hood from the electrical

outlet before proceeding to cleaning and maintenance operations by

plugging off the electrical outlet, differential or thermal-magnetic of

the general home switchboard. To clean the exhaust hood, never use

steam or high-pressure devices (rules regarding electric safety).

It is forbidden to cook directly on the flame or operate the gas stoves with

no container to cook on the same flame (aspirated flames may damage

the equipment and the warranty will be cancelled accordingly). The use

of the equipment on a fuel stove is not authorized (wood, coal,…).

Frying under the equipment shall be constantly monitored since oils and

fats being subjected to high temperatures may ignite. Do not flame under

the exhaust hood.

CAUTION: accessible parts may become hot when used with cooking

appliances.

Follow the cleaning frequency and filter substitution. The accrual of fat

deposits may provoke fires. Never use the exhaust hood without the anti-

fat filter.

The equipment shall abide by the existing rules on the ventilation of closed

spaces. Technically, the air expelled shall not pass through the duct used

for the discharge of smokes from appliances using gas or any other fuel

(central heating systems, etc...).

Ventilate the environment appropriately in case of a simultaneous

operation of the exhaust hood and any other equipment supplied by an

WARNINGS

EN/3

energy source other than electricity so that the exhaust hood will not draw

gas compounds.

Attention! There shall be adequate ventilation of the room when the range

hood is used at the same time as appliances burning gas or other fuels

(not applicable to appliances that only discharge the air back into the

room.

It is necessary to maintain a depressurized environment of maximum

4 Pa (0.04 mbar). Such conditions allow an excellent working of the

exhaust hood. In order to achieve such environment a permanent air

intake is necessary in order to avoid air stagnation (it is advised to use

a ventilation grid for this purpose). Windows or doors shall not be used.

The electrical supply of the power network shall be stable and cope with

the indicated electrical standards, see rating label. Should it be not stable

and receive voltage variations in the supply, intensity or frequency such

as armonici, transistor, voltage dips, overloads, electrical storms, etc...,

the hood may show malfunctions or even breakdowns, and the repair

would not be covered by the warranty. In that case, the exhaust hood

shall be disconnected and the company must contact an electrician or

electrical company in order to solve the supply problem.

The hood is a household appliance act to extract smoke , it can not be

used as support element of objects or utensils.

In the constant effort to to improve our products, we reserve the right to

make changes following their enhancement to their technical, functional

and aesthetic characteristics.

Declaration of Conformity CE

This appliance is in compliance with the following European Directives:

Directive EMC 2014/30/EU

Directive LVD 2014/35/EU

Directive ROHS 2011/65/EU

Delegated Regulation ( UE ) nr. 65/2014

WARNINGS

EN/4

Electrical Connection

Before connecting the appliance to the electricity supply, check that the

voltage corresponds to that on the data plate and that the power supply

cable is suitable for the appliance load also stated on the data place.

If the appliance is connected directly to the mains, fit an all-pole

disconnect switch with minimum contact gap of 3 mm, adequate for the

appliance load and complying to regulations.

The plug used must support the power of work of the appliance.

- Do not use reducers, adapters or switches for connection to the mains,

since these could overheat and cause burns

- Earth connection is required by law

If the power cable must be replaced, use a cable having identical

characteristics to the original supplied by the manufacturer, suitable for the

load and temperature. This is available from After-sales service.

Important!

The entire installation process is exclusively reserved for qualified

workers, installers or authorized technical service.

Before proceeding with the installation, make sure that all components are in

perfect conditions. Otherwise, contact the vendor and do not proceed with

the installation.

Once installed, the likely imperfections of the equipment such as scratches,

impacts, etc..., will not be covered by under warranty.

Maintenace

Use only a damp doth with neutral liquid detergent.

Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid,

bleach, alcohol or abrasive substances.

Unplug the appliance or switch off the circuit breaker before carrying out

maintenance operations.

WARNINGS

EN/5

Scrapping

The symbol on the product or on the accompanying paperwork indicates that

the appliance should not be treated as domestic waste, but should be

delivered to a suitable electric and electronic appliance recycling collection

point.

Follow local guidelines when disposing of waste. For more information on the

treatment, re-use and recycling of this product, please contact your local

authority, domestic waste collection service or the shop where the appliance

was purchased.

PLEASE NOTE

DO NOT REMOVE THE PROTECTIVE PLASTIC SHEET FROM THE HOOD UNTIL

THE INSTALLATION IS NOT COMPLETELY FINALIZED

INSTALLATION

EN/1

Procedure for fixing

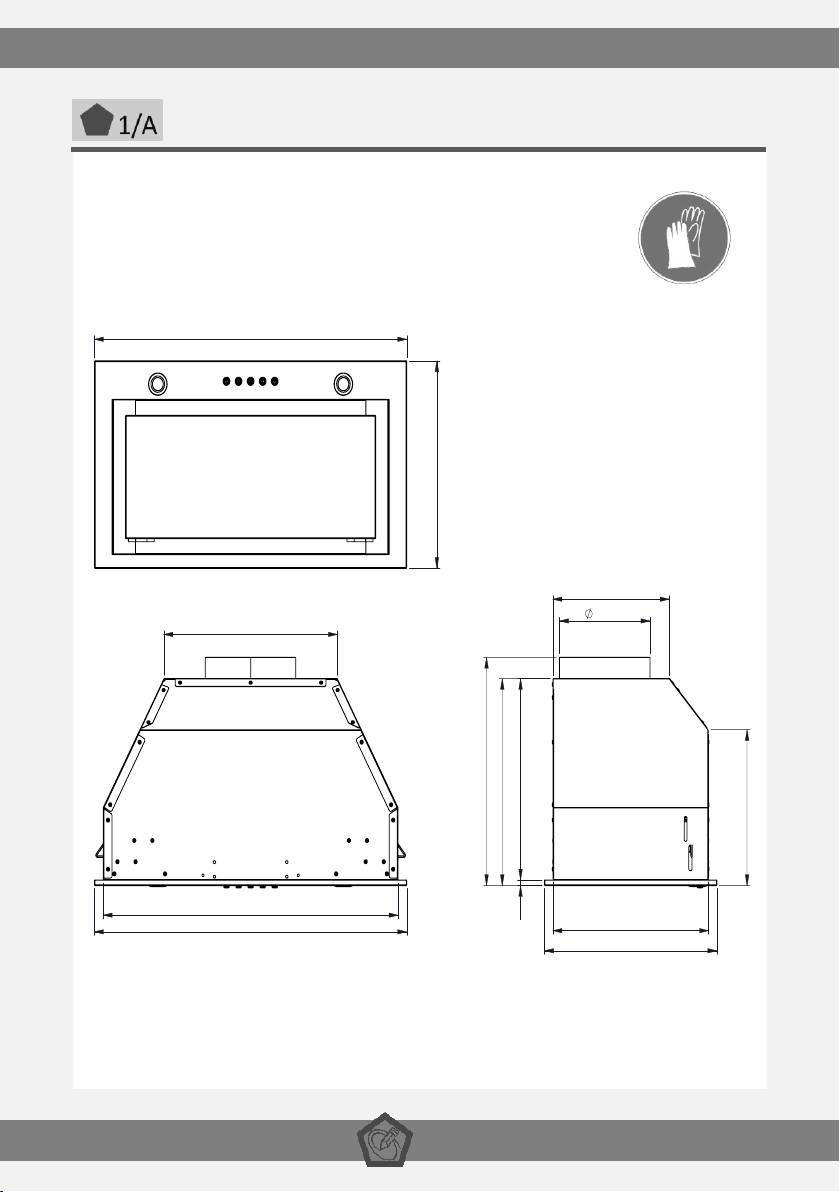

Dimensional Drawings

Follow the directions of the template for drilling

Fix the hood as shown in the scheme

Connecting and fitting

Before connecting the appliance, check the household installation.

Appliance with prefitted power cable: The power cable must only be replaced by a

trained after-sales engineer.

Installing: Do not trap the power cable and do not route it over sharp edges. If the

oven is a built-under type, route the cable on the rear corners of the oven to the

socket.

Electrical Connection

Connect the device to the mains and check the operation:

voltage, see the rating plate

INSTRUCTIONS

EN/1

Commands MR

Push this button and the motor starts on the 1° speed, push it again

to switch of the coke hood.

Push this button and the motor starts on the 2° speed, push it again

to switch off the coke hood.

Push this button and the motor starts on the 3° speed (the Booster)

that remains in use for 7 minutes before returning to the 2° speed.

Timer: Pushing this button, the motor will keep the currently speed

in use for 5 minutes. After this the cooker hood will be switched off

automatically (motor and lighting).

Push This button to switch on/off the light.

Maintenace

Use only a damp doth with neutral liquid detergent.

Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid,

bleach, alcohol or abrasive substances.

Unplug the appliance or switch off the circuit breaker before carrying out

maintenance operations.

LED Replacement

Disconnect the connector and replace the part

INSTRUCTIONS

EN/2

Filters Replacement

A. ACTIVATED CARBON FILTERS (Only filtering types):

-The filter assembly can not be regenerated and must be replaced at least every

two months.

B. METALLIC ANTI-GREASE FILTERS:

-The filters must be washed at least one a month with hot water and detergent.

-It can also be washed in the dishwasher.

-Open by means of the handle.

Tips for Energy Saving

•Always use the cover corresponding to each pot. When cooking without a lid, the

energy consumption is somewhat greater.

•Use a glass lid to see inside without having to lift it.

•Use containers flatbed. If the base is not flat, the energy consumption is greater.

•For small amounts, use small pans. A large bowl and filled just needs a lot of energy.

•For cooking, use a little water. Thus, it saves energy and preserves all the vitamins

and minerals in vegetables.

1

286

518 - 718 - 845

489 - 675 - 774

518 - 718 - 845

288 - 474 - 573

215

258,2

286

7,6 277,6

150

285,2

314,5

193

2

489 - 675 - 774

- 718 - 518 845

215

86

258.2

193

285.2

288 - 474 - 573

150

L

P

P= 260

L= 491-677-776

150

120

EN-Install the hood with

minimum 120mm flange!

IT-Installare la cappa con una

flangia da almeno120mm!

ES-¡Instale la cubierta con una

brida de al menos 120 mm!

FR-Installez la hotte avec une

bride d'au moins 120 mm!

DE-Montieren Sie die Haube mit

einem Flansch von mindestens

120 mm!

3

4
