Luxair STD Series Product guide

Page 1
©® copyright luxair UK Ltd 2014
To avoid the risk of accidents
or damage to this appliance It is
Essential to read these
Instructions before it is installed
and used for the first time.
Operating & Installation
Instructions: All Models

Page 2
Caring for the enviroment………………………………….03
Warning and Safety………………………………………04-06
Ducting Requirments………………………………………07
Recirculated Hoods………………………………………...08
Checking Your Goods……………………………………..09

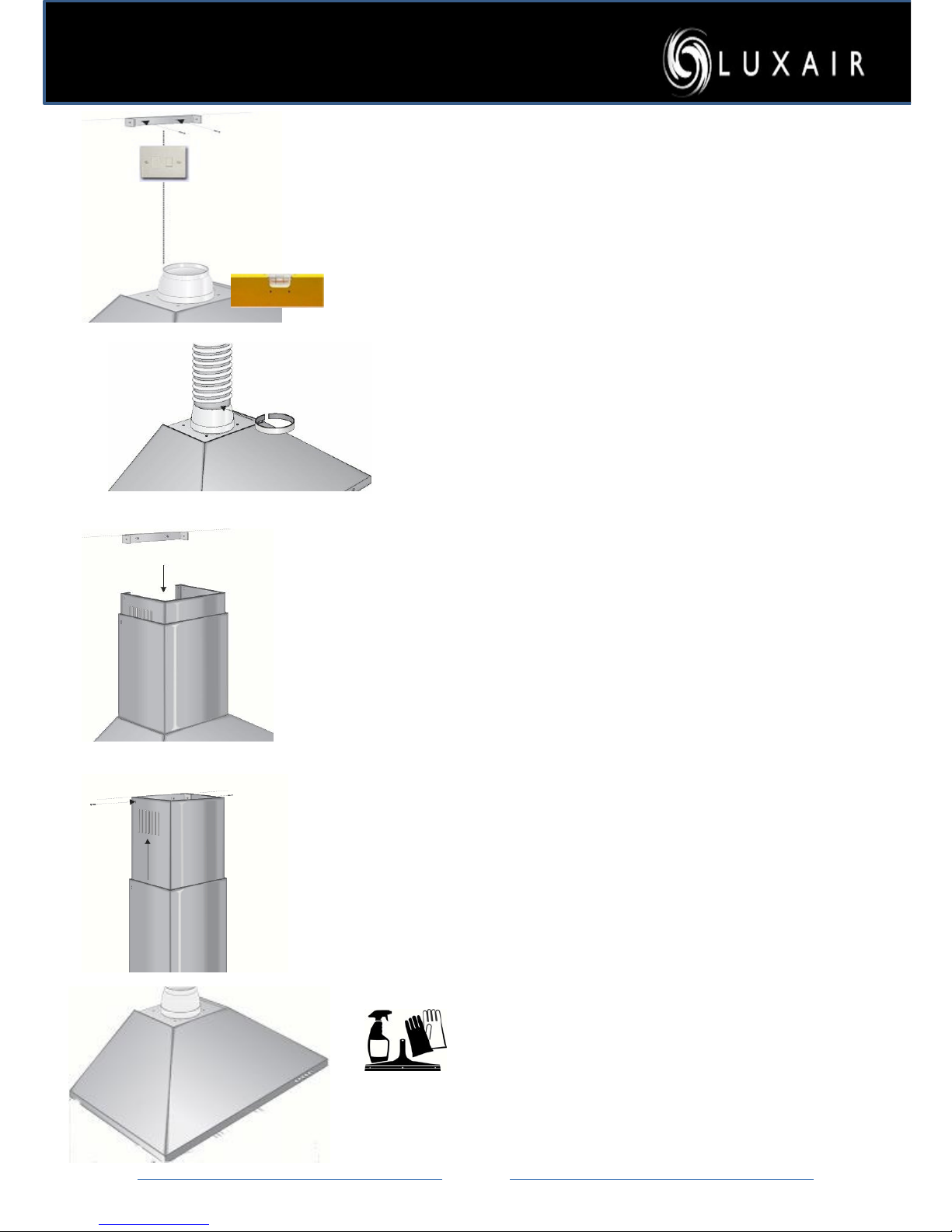

Installation of Wall Mounted Hoods STD Models………10-12

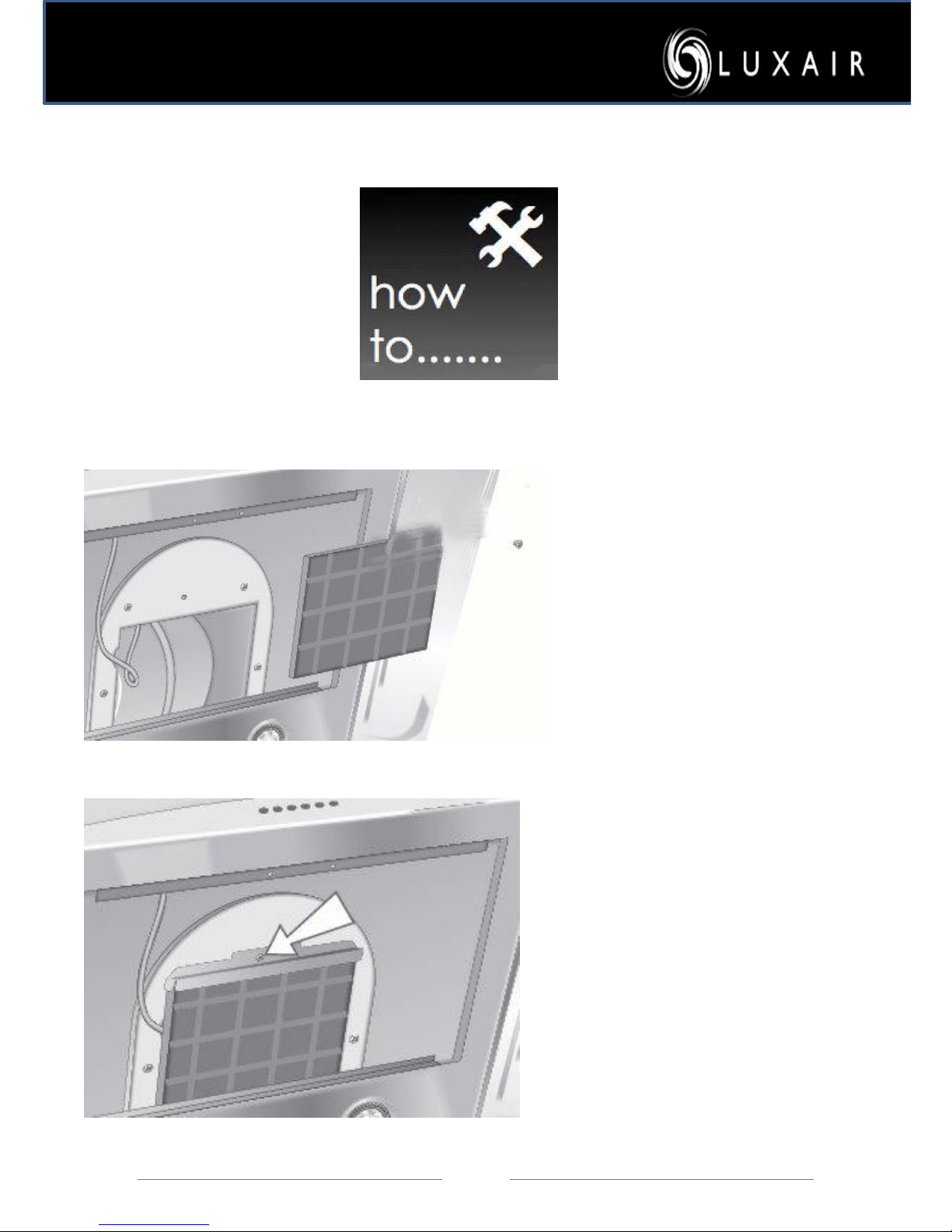

Fitting Charcoal Filters…………………………..............13-14
Installation of Wall Mounted Hoods CVD Models…….15-16
Operating Instructions……………………………………..17
Installation of all Island Hoods…………………………..18-20
Changing the Bulbs………………………………………21-22
Changing Your light Fittings……………………………....23
Problem Solving……………………………………………24
Cleaning and Care………………………………………..25-26
Technical Specifications…………………………………...27
Warranty Form…………………………………………….28
Terms And Conditions……………………………………29-31
Contact Us…………………………………………………32
Contents:

Page 3
Disposal Of the Packaging
Material
The transport and protective packing
has been selected from materials, which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Ensure that electrical current is
switched off to the appliance until
after maintenance or repair work
has been carried out by a suitably
qualified engineer or electrician.
Domestic repairs or attempted
repairs will void the
warranty.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials that, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
center and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. If connected by a
plug, the plug must be rendered
useless and the cable cut off directly
Behind the appliance to prevent
misuse. See the "Warning and Safety"
Caring for the environment

Page 4
This appliance complies with all
relevant legal safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance. Keep
these instructions in a safe
Keep these instructions in a safe
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct Usage:
This appliance is intended for
domestic use only.
Luxair cannot be held liable for
damage caused by improper
installation or
incorrect use of the
appliance.
We Reserve the right to invalidate any
warranty supplied with this product
following incorrect istallation or
misuse of the appliance, or if used in a
commercial enviroment.
Important:
Before connecting the appliance to the
mains supply, make sure
that the connection details given
on the data plate correspond with the
on-site electricity supply; otherwise
the appliance could get damaged. The
appliance could get damaged Consult a
qualified electrician if in any doubt.
The electrical safety of this appliance
can only be guaranteed when continuity
is complete between the appliance and
an effective earthing
the appliance and an effective earthing
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is in any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Installation, maintenance and
repair work may only be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorized work.
Warning & Safety Instructions

Page 5
Do not connect the appliance to the mains
electricity supply by an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g. danger
of overheating).
In countries where there are areas
which may be subject to
infestation by cockroaches or other vermin,
pay particular attention to keeping
the appliance and its surroundings in
a clean condition at all times. Any damage
which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Never use an open flame
beneath the cooker hood. To avoid the
danger of fire, do not flambé or grill over
an open flame under the cooker hood.
When switched on, the cooker hood could
draw flames into the filter. Fat particles
drawn into the cooker hood present a fire
hazard.
When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. The burner
should be switched off before taking a pan
off the hob, even for brief periods.
Regulate the flames so that they do not
extend beyond the base of the pan.
If flames are not covered by a pan
excessive heat can build up in the
cooker hood with the risk of damage to
the motor unit.
Always switch the cooker hood on when
a cooking zone is in use, otherwise
condensation may collect in the hood,
which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling,
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood without the
grease filters in place. This way you
will avoid the risk of grease and dirt
getting into the appliance and
hindering its smooth operation.
The grease filter should be
regularly cleaned. A saturated
filter is a fire hazard. See "Cleaning
and care”. For further information.
Do not use a steam-cleaner to
clean this appliance. Pressurised
steam could reach the electrical
components and cause a short circuit.
Never use spray cleaners directly
around the controls or buttons, this
could also cause damage to the
internal circuit board.
Safety with children:
This appliance is only intended for
use by adults who have read these
instructions it is not a toy! To avoid the
risk of injury, keep children well away,
and do not allow them to play with it or
use the controls.
Please be aware that on
appliances with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after
switching off.
Warning & Safety Instructions

Page 6
Warning & Safety Instructions
To safeguard against
burning, keep children well away from
the lamps at all times.
Packaging e.g. cling film,
polystyrene and plastic wrappings must
be kept out of the reach of babies and
young children. Danger of suffocation.
Dispose of or recycle all packaging
safely
as soon as possible.
Installation:
The distance between the top of
the cooker/hob and the bottom of the
cooker hood canopy must measure at
least
750mm
, unless a greater distance
is specified by Luxair.
If more than one appliance is fitted
beneath the cooker hood, and they have
different minimum safety distances
to the cooker hood, select the greater
distance.
Safety regulations prohibit the fitting of
a cooker hood over solid fuel stoves.
All ducting, pipe work and
fittings must be of non-flammable
material. These can be obtained from the
Luxair web site or from local builders'
merchants.
Note: All porducts MUST be fitted with
a 3amp fuse.
The appliance must not be
connected to a chimney or vent
flue, which is in use. Neither should it
be connected to ducting, which
ventilates rooms with fireplaces.
If exhaust air is to be extracted into a
chimney or ventilation duct no longer
used for other purposes, or using at the
same time as other heating appliances that
depend on the air from the room seek
advice.
.

Page 7
Ducting Requirements
Please Take Note Of The Following:
Ducting kits are used to vent you’ re kitchen odors to the outside of the house, and we recommend
that only Luxair ducting kits are used with our products, this will also assure you that the
product’s warranty is not affected
All Luxair cooker hoods must be fitted with 125mm-150mm ducting. This
must not be reduced in any way for the entire length of its run, it must also
not exceed 3.5mtrs in length from the top of the motor housing connection
to the outside vent plate unless the motor size exceed 980m3/hr (applies to all wall mounted and
island models).
Ducting must be fitted to
the out-side of the
reducer collar and
secured with a zip
fastener, also the d ucting
must b e aluminium and
conform to fire
regulations.
Kits can be purchased
form Luxair’s web site.
The minimum height
setting measuring from
the underside of the
extractor, to the top of the
gas hob is 750mm
And 650mm on electric
hobs, please note that
when using a hob larger
than 60cm please set the
minimum height to 750mm
Warning:
Luxair will not cover the warranty
if you have installed the cooker
hood on either,
100mm ducting, or an old or
existing ducting used by a previous
appliance.

Page 8
Recirculated Hoods
Please note that if the hood is
not to be vented to an outside
wall, the top section of the hood
with the vents must be used,
this allows the filtered air back
into the room. Failure to do so
will result in the hood been
noisy and will cause it to
vibrate; this will also void the
warranty if this section is not
used when installed in
recirculation mode.
Note that when the hood is not
vented to an outside wall,
charcoal filters ust be used in
Conjunction with the above
vent system.
For fitting instructions please
see pages …..

Page 9
1) Unpack the hood and inspect the goods carefully, please
check for any cosmetic damage before installation begins,
Luxair will not accept liability for cosmetic damage after the
hood has been installed, if damage is found then please contact
the retailer from where the goods were purchased.

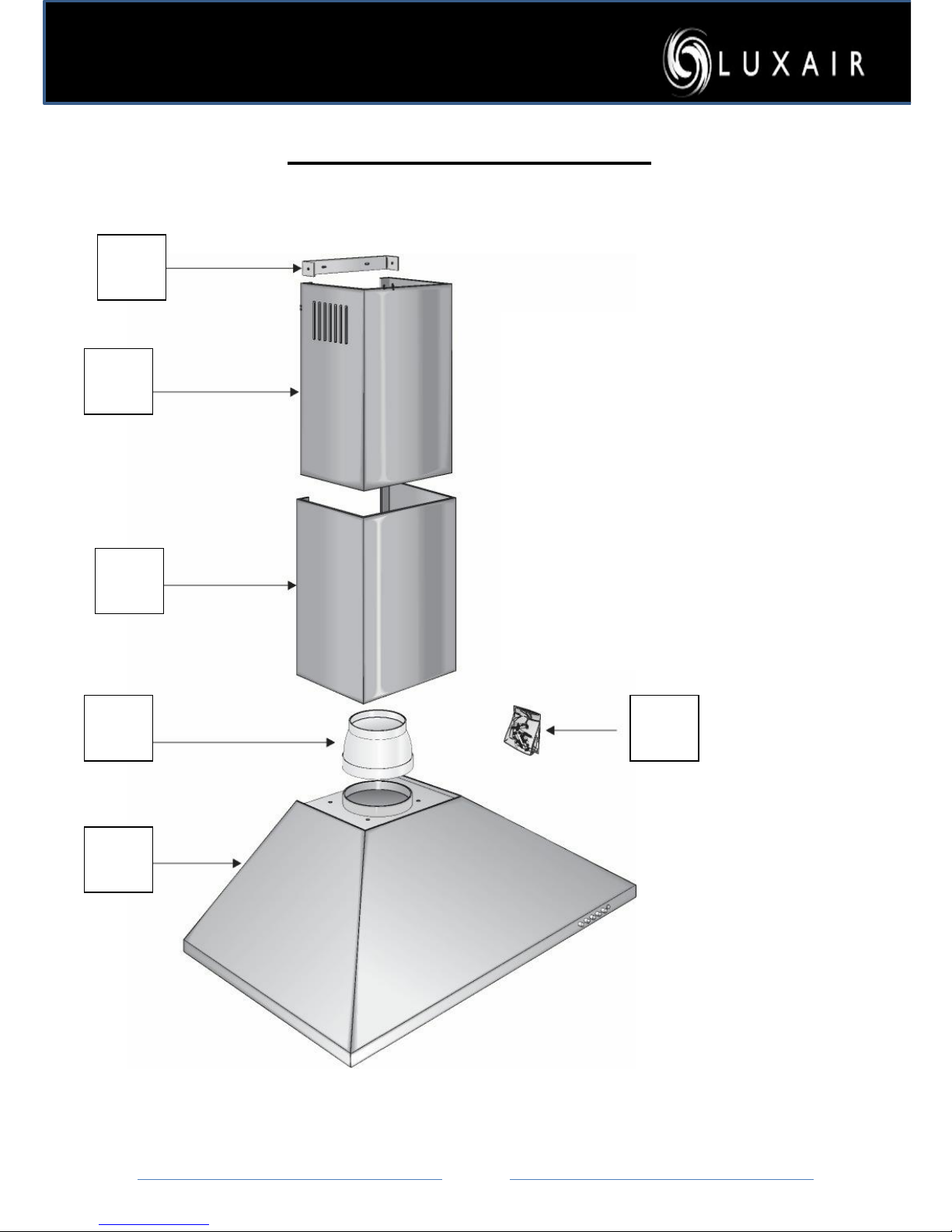

2) Check that all parts and fixings are packed in the box.
3) Do not remove any of the protective film until installation is
complete, this will
help reduce any accidental damage and help
prevent scratching.
4) Remove the metal Grease filters immediately after opening
packaging and storein a safe place, they will not be needed until
installation is complete, this will
also ensure against accidental
damage of the filters.
5) You must use either a ducting kit or charcoal filters with all
Luxair hoods.
6) All filters and ducting kits can be purchased from our website
www.luxairhoods.com
Before Installing Your Hood

Page
10
2
3
4
6
5
1 Wall Bracket
2 Top Chimney Section with Vents
3 Bottom Chimney Section
4 Reducer
5 Main Body
6 fixing screws
Hoods Check List - Standard
1
2
3
4
5
6

Page
11
Fitting Instructions –All Wall Mounted Hoods
1
Position the cooker hood body
directly above your hob, make
sure that you comply with the
minimum height regulations set
out on page 10 and 12
2
Secure the main b ody of the
hood to the wall. Make sure
that the fixings are adequate for
the type of surface you are
fixing to.
Luxair provide some screws but
they may need changing
depending on the type of wall
yo u have, if yo u are in an y
doubt then seek professio nal
advice.
3
Measure the desired height of
yo ur chimney sections.
Measure the center of the main
body section of the hood and
then draw a straight vertical
line, place the metal u shaped
bracket at desired height center
to your line and secure the
bracket to the wall.
4
Mark the height and position of your
ducting hole; this should be a
minimum distance from top o the
hood to the center of your hole
250mm.
Remove the hood of the wall before
drilling the ducting position; this will
stop any debris from falling into the
fan housing and avoid any damage.

Page
12
5
Mark the height and position of your fused spur
socket position this so it’s accessible, this should
also be fused with a 3amp fuse. Remove the
hood off the wall before drilling for the electrics
6
Move the bod y section to the wall
and proceed to make all electrical and
ducting co nnections, make sure you
have complied with all safety
instructions as outlned in the booklet.
7
Once all electrical and ducting has being
connected and tested proceed to assemble the
chimney sections, place the bottom part of the
chimney into the body of the hood , no fixings
are required as the
grooves secure this part, slide
the top section into the b ottom section
of the chimney, taking care not to scratch this as
you do so. The vented top section can be turned
upside down if the hood is ducted outside, this
will hide the vents that are unnecessary for
ducted out use. See page 12 for more details on
vented or recirculated options
8
Slide the top section into place over
the wall bracket, take care not to
scratch this as you do so, and secure
the top section to the bracket with
the two short screws provided.
Your new hood is no w read y for
use
Warning
Do not attempt to clean down your
new hood until you have read the
cleaning instructions
Careless cleaning could bur
and scratch your new hood

Page
13
How To Fit Square Charcoal Filters
1
Remove the metal grease filter
to reveal the inner flue section.
2
Make sure all wires are pushed
to one sid e preventing
snagging.
3
Offer the filter to the bottom
and back the flue section and
insert into back L-shaped
bracket.
Push the filter into place and
secure with the front screw as
opposite.
Please note that the filters are
only necessary for hood s that
are not vented to an outside
wall and must be replaced
every 50 hours or two- three
months.

Page
14
How To Fit Round Charcoal Filters
Offer the round filter to the side of the motor housing.
Twist Clockwise Slowly until you feel the filter sit.
Twist clockwise until you feel it lock
Reverse the process to remove
Please note that charcoal filters will need replacing every 2 months or every
50 hours of cooking. Failure to replace these filters will result in the warranty
being void..
For Replacement filters please visit our website at www.Luxairhoods.com

Page
15
Hoods Checklist –Curved Glass/Straight Glass
1
2
3
4
5
6
1. Wall Bracket
2. Top Chimney Section
3. Bottom Chimney Section
4. Reducer Collar
5. Body Section
6. 8mm Safety Glass
7. Fixing Screws

Page
16
Fitting Instructions –All Glass Hoods
Follow Fitting Instructions for all wall mounted hoods pages…..
Then Continue with this section.
1
After following instructions 1-9 on
pages 18-20 continue with this
section for the rest of the fitting of
this hood.
Once the hood is assembled and
checked, place your glass directly
on top of the main body section, line
up with the screw holes and secure
with screws and washers.
Warning: do not over tighten these
screws, they should be hand tight
only. Over tightening may cause the
glass to break
2
After fitting the glass, now fit the
two telescopic chimney section,
please ensure that you do this with
care, slide the top section up to the
fixing bracket, and secure with the
two small screws in the fixing kit.

Page
17
Operating Your Hood
2
1
3
*
T
1: Select speed one to activate your
fan, then
speed 2 and so on.
2: To turn on the lights press the light
switch.
*
3: The T button is a timer switch, when
pressing the T button it will start to
flash! This
means you have activated
the timer unit, your
hood will then
turn its self off after 20mins, to cancel
this simply press the T button again.
4: If the light button starts to flash,
simply
press and hold it for 3 seconds
to deactivate
5. If The 1 and * button is flashing this
needs resetting by turning the * on,
then turn the * off then hold * for 10
seconds
I
0
II
*
III
Electronic Switches
Push Button Switches
1: select speed I to activate your fan,
then
II and so on.
2: to turn on the lights press the light
switch.
*
3: To Turn off your hood press 0
button

Page
18
Installation- all Island hoods
Please note: All Luxair Islands are installed in ex actly the s ame manner and it is
only the shape and design that
differ, please use the following steps for all Island
unit models
Please note that the installation of all Island hoods should be
carried out by at least two people.
1
Position the inner top section of
the upper arm directly on the
ceiling and above your hob and
mark the center hole, also mark
fixing
positions. Make sure you are
center to your hob.
2
Make sure that your fixings will
hold at least 75kg in weight; this
must
also be flush with the ceiling.
Drill a 150mm hole in the ceiling
and
connect your ducting, run it to
the outside wall, this must not
exceed 4mtrs in length.
3
Pass the ducting hose and
electrical cable through the center
hole of the Ceiling top inner arm.
Proceed to secure the arm to your
ceiling using either coach screws
(provided) or coach bolts (not
provided). It is paramount
that these fixings are strong
enough to hold the weight of the
hood.
Warning:
All Island hood must be flush
mounted and under no
circumstances must the chimney be
inset into the ceiling void.

Page
19
4:
Before you go any further
assemble the glass (applicable
to glass units only) over the
main body of your hood and
secure with screws and
washers (provided).
Do not over tighten these
screws as you may cause the
glass to shatter.
5:
Insert the top stainless steel
chimney section into the bottom
stainless steel section; take care
not to force this as you may
cause damage.
6:
Lift the whole unit up onto the
main pre fixed upper inner arm,
slide it up or down to correct
height, make sure that you have
allowed the minimum height
above your hob unit.
.

Page
20
7:
When you have selected the
correct height above your hob
secure the inner bottom section
of the flue, to the inner top
section of the flue in the fixing
positions as opposite. Your
cooker hood should now be
secure.
8:
Make all final ducting and
electrical connections through
the specially cutout hole. Test
that all ducting and electrical
connections are working before
completing the final part.
9:
Finally, lift the bottom outside
stainless steel section upwards,
(take care not to scratch this
section), and secure to the two
top mounting brackets with
screws (provided).
See cleaning
instructions on
page
