EasyPulse POC
Instructions for use
Portable Oxygen Concentrator
1901-765 series

EasyPulse
Portable Oxygen Concentrator
Perfect for non-delivery oxygen model
The EasyPulse Portable Oxygen Concentrator (POC) is the perfect
product to allow patients ease of mobility and independence. We have
meshed the best of two products together, the most used oxygen
conserver on the market with an oxygen concentrator to produce the
EasyPulse POC.
Easy to use
The EasyPulse Portable Oxygen Concentrator has a simple user
interface, allowing patients at home to easily set the oxygen flow.
An easy-to-read battery level indicator and an alarm LED are also
included.
Compact and lightweight
The EasyPulse POC is the lightest 5-litre portable concentrator on
the market, weighing only 3kg in a package that is only 26cm high x
17cm wide x 11cm deep.
CMV technology
The patented Controlled Minute Volume (CMV) oxygen conserving
technology delivers a consistent amount of oxygen per minute to the
patient in the first half of inspiration, regardless of breath rate. The
delivered oxygen volume automatically adjusts to the patient’s breath
rate, maintaining minute volume.
Versatile
The EasyPulse POC can be used both in and out of the carry bag
provided with each unit as well as with the optional premium bag
that provides even more protection against possible damage while
allowing whisper-quiet operation.
Low maintenance
The EasyPulse POC uses only one filter that is easily cleaned by the
patient.
Excellent battery life
The EasyPulse Portable Oxygen Concentrator standard internal
battery lasts more than three hours at setting two. The unit can also
be used with the AC cord or with the DC car adapter.
Luxfer is ISO 13485 Certified

3 (en)
Contents
1 Receiving / inspection 4
2 Intended use 4
3 Read all instructions before using 4
4 Explanation of abbreviations 4
5 Safety information - warnings and cautions 4
6 Specifications 8
7 Component description 9
8 Operating instructions 10
9 Operating position 11
10 Using the carry bag 12
11 Power supply 13
12 Alarm / indicators / troubleshooting 16
13 Maintenance / cleaning 19
14 Disposal instructions 20
SAVE THESE INSTRUCTIONS

4 (en)
1 Receiving / inspection
The Luxfer EasyPulse POC (1901-765 series) is intended to provide
supplemental oxygen to persons requiring oxygen therapy. The POC
can be used in a home, institution or vehicle and for transportable use.
5 Safety information - warnings and cautions
Remove the Luxfer EasyPulse Portable Oxygen Concentrator (POC)
from the packaging and inspect for damage. If there is any damage,
DO NOT USE and contact your provider.
2 Intended use
3 Read all instructions before using
This manual is provided for your safety and to prevent damage to the
POC. If you do not understand this manual, DO NOT USE the POC
and contact your provider.
4 Explanation of abbreviations
ml/min = Millilitres Per Minute LED = Light Emitting Diode
POC = Portable Oxygen Concentrator
Indicator light colours and meaning
Red Warning - immediate response by the OPERATOR is required.
Amber Caution - prompt response by the OPERATOR is required.
Green Ready for use.
Indicates an imminently hazardous situation that, if not
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation that, if not
avoided, may result in minor or moderate injury.
Used without the yellow safety alert symbol (see below),
indicates a potentially hazardous situation that, if not
avoided, may result in property damage.

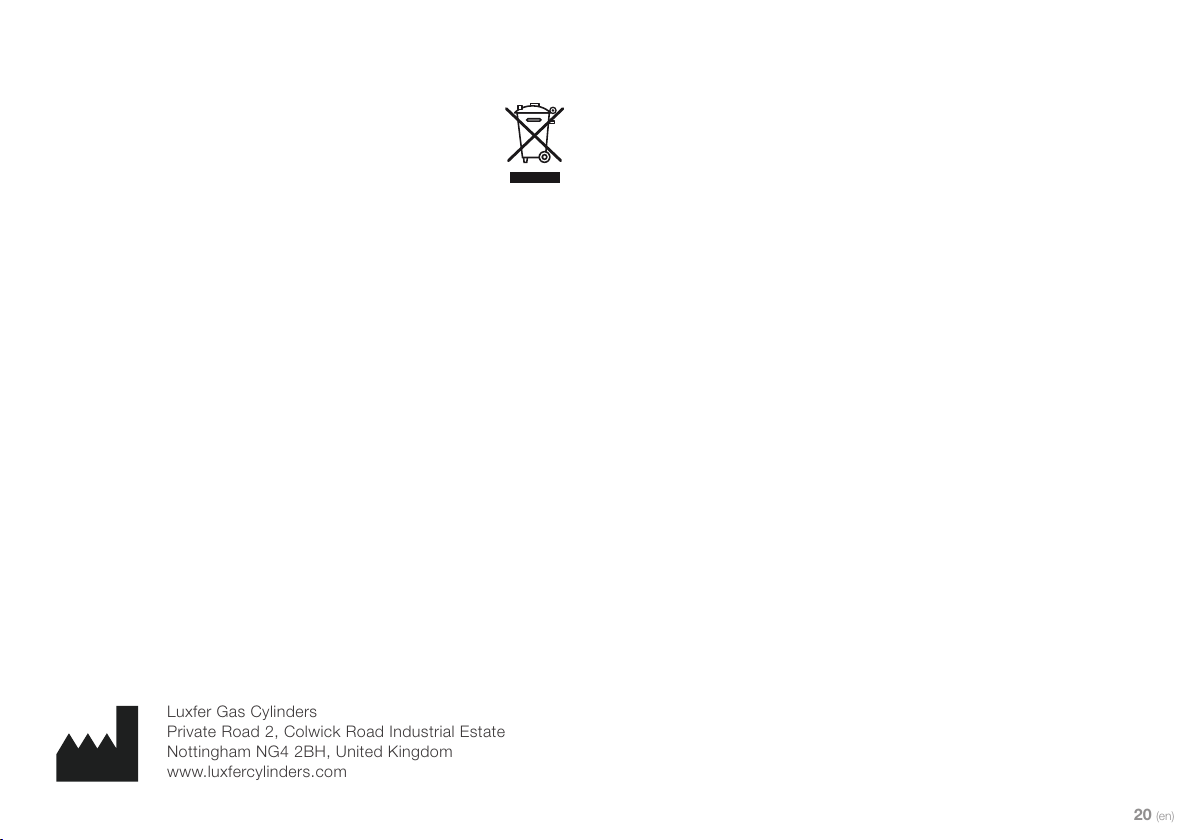

This device may contain electrical components that are
hazardous to the environment. DO NOT dispose of device
in general household waste. In accordance with the WEEE
directive, contact Valpak for disposal of Electronic Equipment.
Symbol indicates the device complies with the requirements
of Directive 93/42/EEC concerning medical devices and all
applicable International Standards.
The patient cannula is intended for single patient use only. Use
on more than one patient may cause cross contamination.
Safety alert symbol (general warning sign).
Follow instructions for use.
General mandatory action sign.
NO SMOKING.
0088

5 (en)
DO NOT disassemble.
NO oil or grease
The oxygen concentrator, gas pathways, components and
accessories do not contain any natural rubber latex.
Protected from touch by fingers and objects greater than
12mm (0.5in). Protected from condensation.
Class II equipment.
General alarm.
Power OFF.
Type BF equipment.
Direct current.
Excessive heat warning.
This product is not intended as a life-sustaining or life-supporting device.
• DO NOT smoke, allow others to smoke or have open flames near the
POC when in use.
• DO NOT use near any type of flame or flammable/explosive
substances.
• DO NOT allow the POC to exceed “operating or storage temperature
specifications”.
• Excessive heating of the carry bag can occur if intake vents are
blocked.
• Equipment not suitable for use in the presence of flammable
anaesthetic.
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
• DO NOT use while bathing.
• DO NOT reach for the POC that has fallen into water. Unplug
immediately.
• DO NOT attempt to repair the POC. Any attempt could result in
electrical shock.
• The POC is designed to be used in dry conditions; the POC is not to
be submerged, operated under water or used while swimming.
