Luxon Video D-MIPC1600 User manual

D-MIPC1600
User Manual
Ver1.3

1
Table of Contents
1. Introduction.................................................................................................................3
1.1 Features ........................................................................................................................3
1.2 Package Contents ......................................................................................................... 4
1.3 Camera Overview.......................................................................................................... 4
2. Preparations for IP Camera Setup ............................................................................6
2.1 System Requirements ................................................................................................... 6
2.2 Installation ..................................................................................................................... 6
3. Deleting the Existing DC Viewer ...............................................................................8
4. Accessing Camera ...................................................................................................11
5. Configuration & Operation.......................................................................................17
5.1 Browser-based Viewer Introduction ............................................................................ 17
5.2 Home Page ................................................................................................................. 19
5.3 System Related Settings ............................................................................................. 21
5.3.1 Host Name and System Time Setting.......................................................... 22
5.3.2 Security........................................................................................................ 23
5.3.3 Network........................................................................................................ 26
5.3.4 DDNS........................................................................................................... 31
5.3.5 Mail .............................................................................................................. 32
5.3.6 FTP.............................................................................................................. 33
5.3.7 Application (Excluding Compact IP Dome).................................................. 34
5.3.8 Motion Detection.......................................................................................... 39
5.3.9 Storage Management .................................................................................. 43
5.3.10 Recording .................................................................................................... 45
5.3.11 File Location ................................................................................................ 46
5.3.12 Iris Adjustment (Excluding Compact IP Dome)............................................ 47
5.3.13 View Log File ............................................................................................... 48
5.3.14 View User Information ................................................................................. 49
5.3.15 View Parameters ......................................................................................... 51
5.3.16 Factory Default ............................................................................................ 52
5.3.17 Software Version ......................................................................................... 53
5.3.18 Software Upgrade........................................................................................ 54
5.3.19 Maintenance ................................................................................................ 57
5.4 Video and Audio Streaming Settings........................................................................... 58
5.4.1 Video Resolution and Rotate Type.............................................................. 58
5.4.2 Video Compression ..................................................................................... 61
5.4.3 Video OCX Protocol..................................................................................... 63
5.4.4 Video Frame Skip ........................................................................................ 64
5.4.5 Video Mask.................................................................................................. 65

2
5.4.6 Audio Mode and Bit Rate Settings............................................................... 66
5.5 Camera Settings.......................................................................................................... 68
5.5.1 Exposure Setting ......................................................................................... 69
5.5.2 White Balance Setting ................................................................................. 70
5.5.3 Brightness Setting........................................................................................ 71
5.5.4 Sharpness Setting ....................................................................................... 71
5.5.5 Contrast Setting........................................................................................... 71
5.5.6 Saturation Setting ........................................................................................ 71
5.5.7 Hue Setting.................................................................................................. 72
5.5.8 IR Function .................................................................................................. 72
5.5.9 TV System Setup......................................................................................... 72
5.6 Logout ......................................................................................................................... 73
6. CMS Software Introduction......................................................................................74
Appendix A: Technical Specifications...........................................................................75
Appendix B: Internet Security Settings .........................................................................77
Appendix C: DC Viewer Download Procedure ..............................................................80
Appendix D: Back Focus Adjustment............................................................................82
Appendix E: Install UPnP Components.........................................................................83

3
1. Introduction
Following high standard of Megapixel IP Camera, the Full HD Real-time IP
Camera is capable of serving real-time streaming and makes image quality
more smoothly. Compare with our HD WDR IP Camera product line, Full HD
Real-time IP Camera offer a more economical solution to serve 2 Megapixel
resolution.
In addition to MJPEG real time streaming, Full HD Real-time IP Camera
develops superior H.264 to apply for high resolution digital broadcast.
Attributing to the IP Camera’s flexible platform, the camera can be applied in
various installation locations including shops, stores, banks, parking lots,
factories and building surveillance.
1.1 Features
•Progressive Scan CMOS Sensor
•Full HD 1080p / HD 720p real-time at dual streaming
•H.264 and MJPEG Compression
•Motion Detection
•Privacy Masks
•Day/Night (ICR) (optional)
•Auto Iris Lens support (optional)
•Micro SD support (optional)
•BNC Analog output (optional)

4
1.2 Package Contents
Please check the package contains the following items listed below.
Full HD Multi-Res IP Camera
Back focus adjuster
CD
(bundled software and
documentation)
Quick Guide
1.3 CameraOverview
Definition Remarks
LINE OUT & LINE IN / MIC IN Two-way audio transmission
Power LED Power connection indication (green light)
Reset button Reset to factory default
AUTO IRIS connector Auto iris lens connector
NETWORK (with PoE) RJ-45 connector
Network LEDs Network connection and activity indication
I/O Alarm connection
VIDEO (BNC connector) For video output
Micro SD Card slot For video and snapshots storage
DC 12V connector DC 12V power connection
Power LED
Reset Button
Network LEDs

5

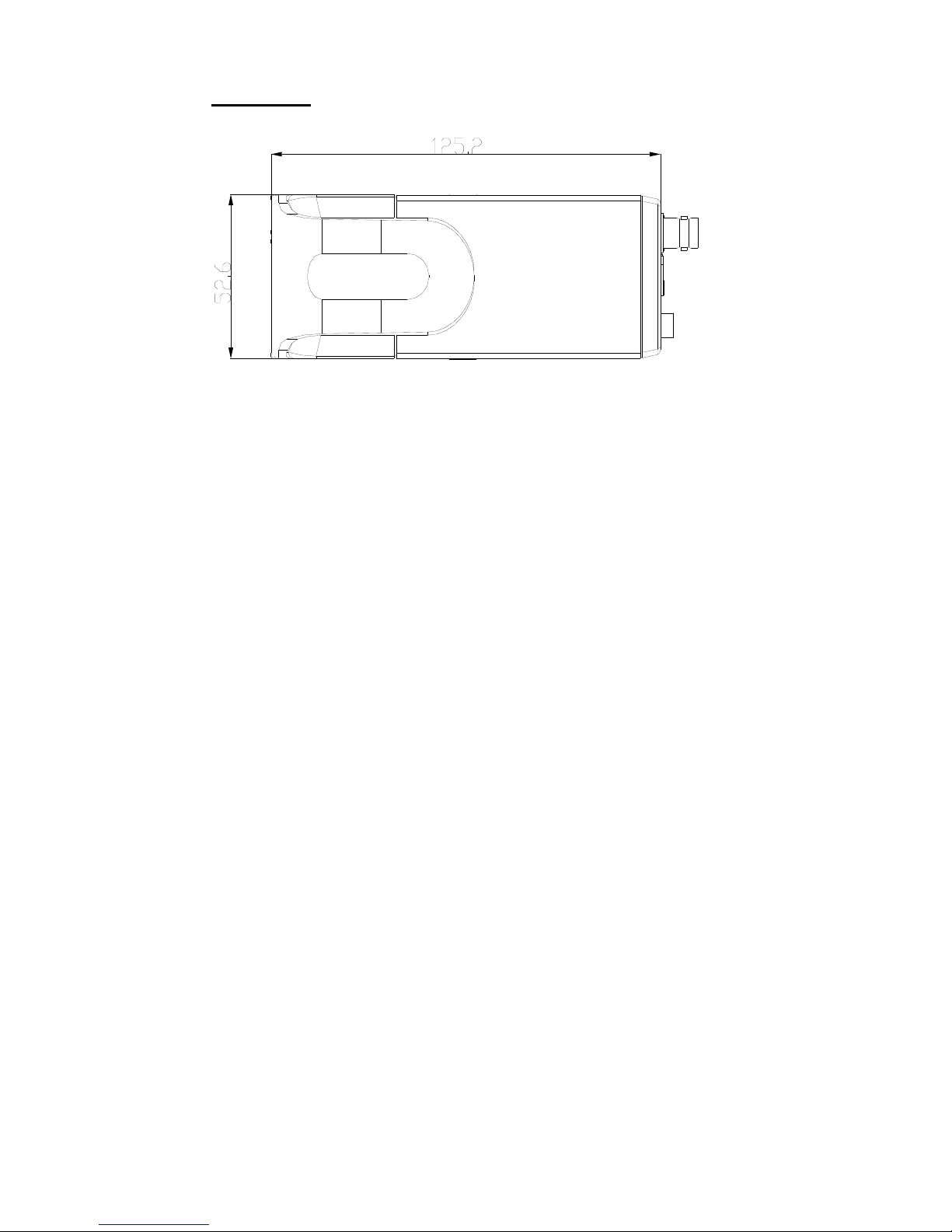

Dimensions

6
2. Preparations for IP Camera Setup
This chapter provides information about system requirements for IP Camera
operation, power connection, Ethernet connection and ways to access to the
camera.
2.1 System Requirements
To perform the IP Camera via web browser, please ensure your PC is in good
network connection, and meet system requirements as described below.
Items System Requirement
Personal Computer
1. Intel○
RPentium○ RM, 2.16 GHz or Intel○ RCoreTM2 Duo,
2.0 GHz
2. 2 GB RAM or more
Operating System Windows VISTA or Windows XP
Web Browser Microsoft Internet Explorer 6.0 or later
Network Card 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer ActiveX control plug-in for Microsoft IE
2.2 Installation
Please follow the instructions below to complete IP Camera installation.
Lens Mounting: C/CS Mount Lens Model
If use C-Mount lens, after removing the camera’s plastic cover, users need to
mount the C/CS mount adapter to the camera. Then attach the lens onto the
C/CS mount adapter, as the illustrations shown below.
C/CS Mount Adapter Completion
Power Connection
To power up the IP Camera, please plug the camera’s DC 12V cable into the
power outlet. Alternatively, connect the Ethernet cable to the camera’s PoE port
and plug the other end of the cable into a PoE switch.

7
NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in
use in the network.
Ethernet Cable Connection
Use of Category 5 Ethernet cable is recommended for network connection; to
have best transmission quality, cable length shall not exceed 100 meters.
Connect one end of the Ethernet cable to the RJ45 connector of the IP Camera,
and the other end of the cable to the network switch or PC.
NOTE: In some cases, you may need use an Ethernet crossover cable
when connecting the IP Camera directly to the PC.
Check the status of the link indicator and activity indicator LEDs; if the LEDs are
unlit, please check LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
Alarm Application
The camera equips one alarm input and one relay output for alarm application.
Refer to alarm pin definition below to connect alarm devices to the IP Camera if
needed.
1. Output+
2. Output-
3. Input+
4. Input-

8
3. Deleting the Existing DC Viewer
For users who have installed the DC Viewer in the PC previously, please first
delete the existing DC Viewer from the PC before accessing to this IP Camera.
Deleting the DC Viewer

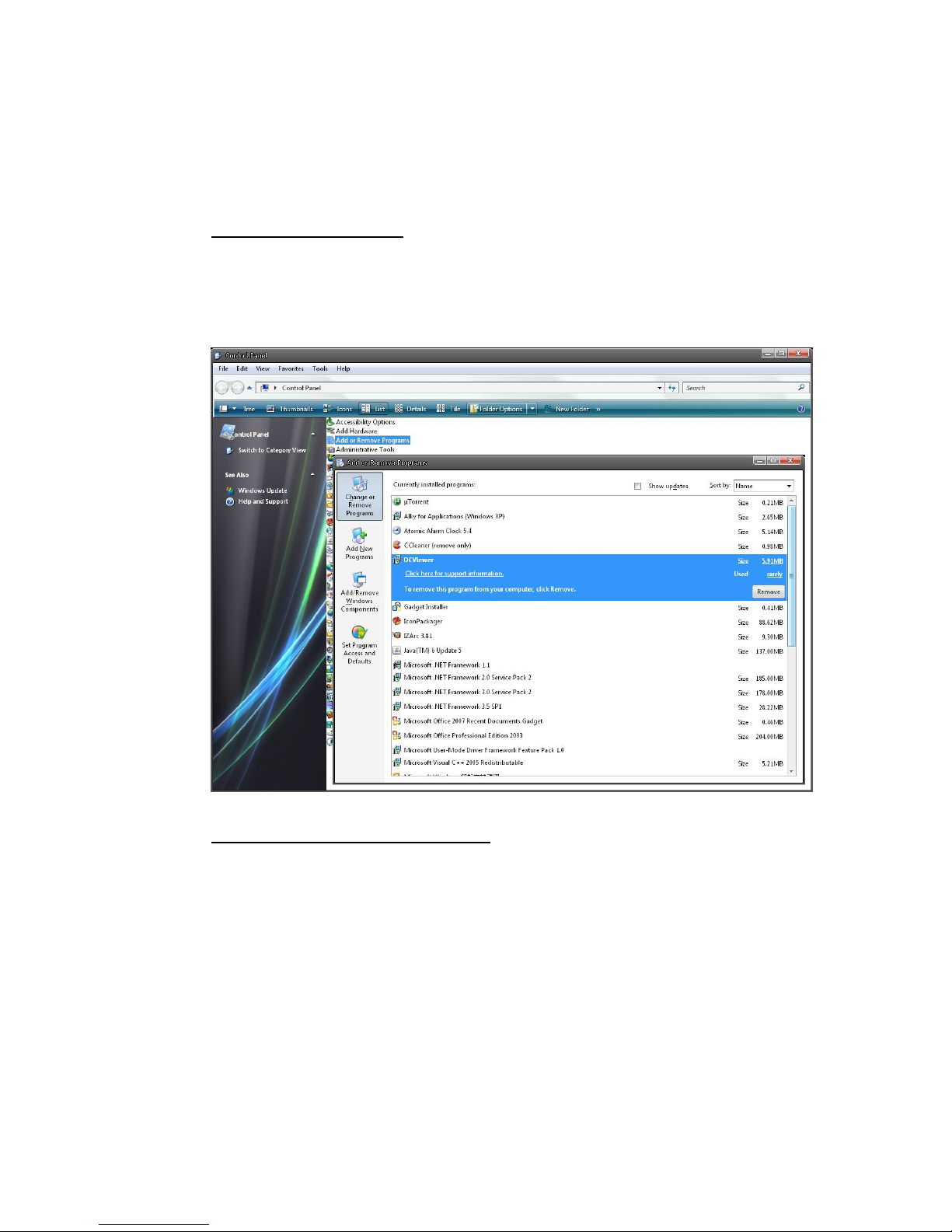

Click “Control Panel”, and then double click “Add or Remove Programs.” In the
“Currently installed programs” list, select “DCViewer” and click the button
“Remove” to uninstall the existing DC Viewer as shown in the figure below.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up the all the files in
the Temporary Internet Files. The procedure is as follows:

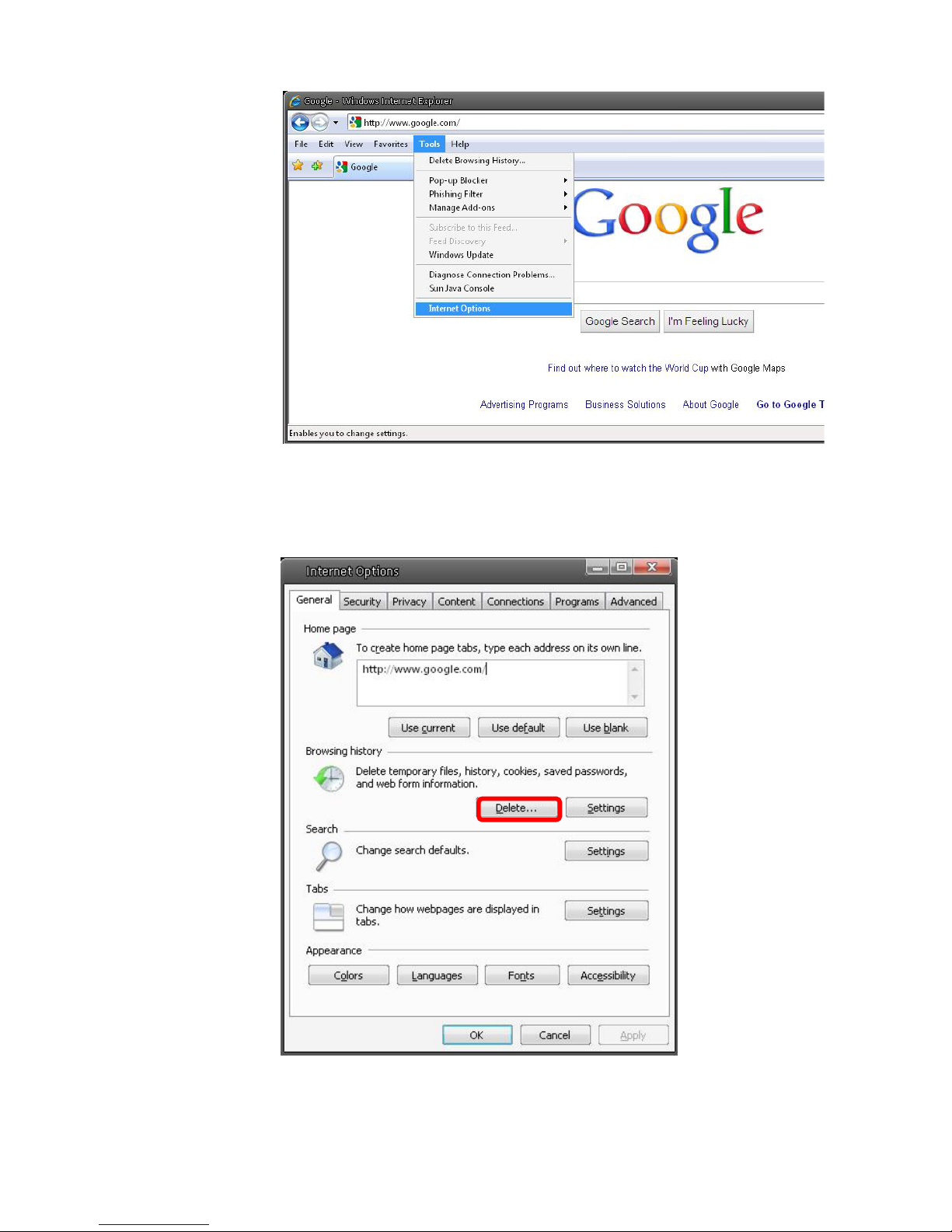

STEP 1: Click the “Tools” tab and select the option “Internet Options.”

9
STEP 2: Click on “Delete”, then tap the “Delete Files” in the “Temporary Internet
files” section.

10
The popup window for confirmation will come out as shown below. Click “OK” to
start deleting the files.

11
4. Accessing Camera
For initial access to the IP Camera, users can search the camera through the
installer program: DeviceSearch.exe, which can be found in “DeviceSearch”
folder in the supplied CD.
Device Search Software Setup

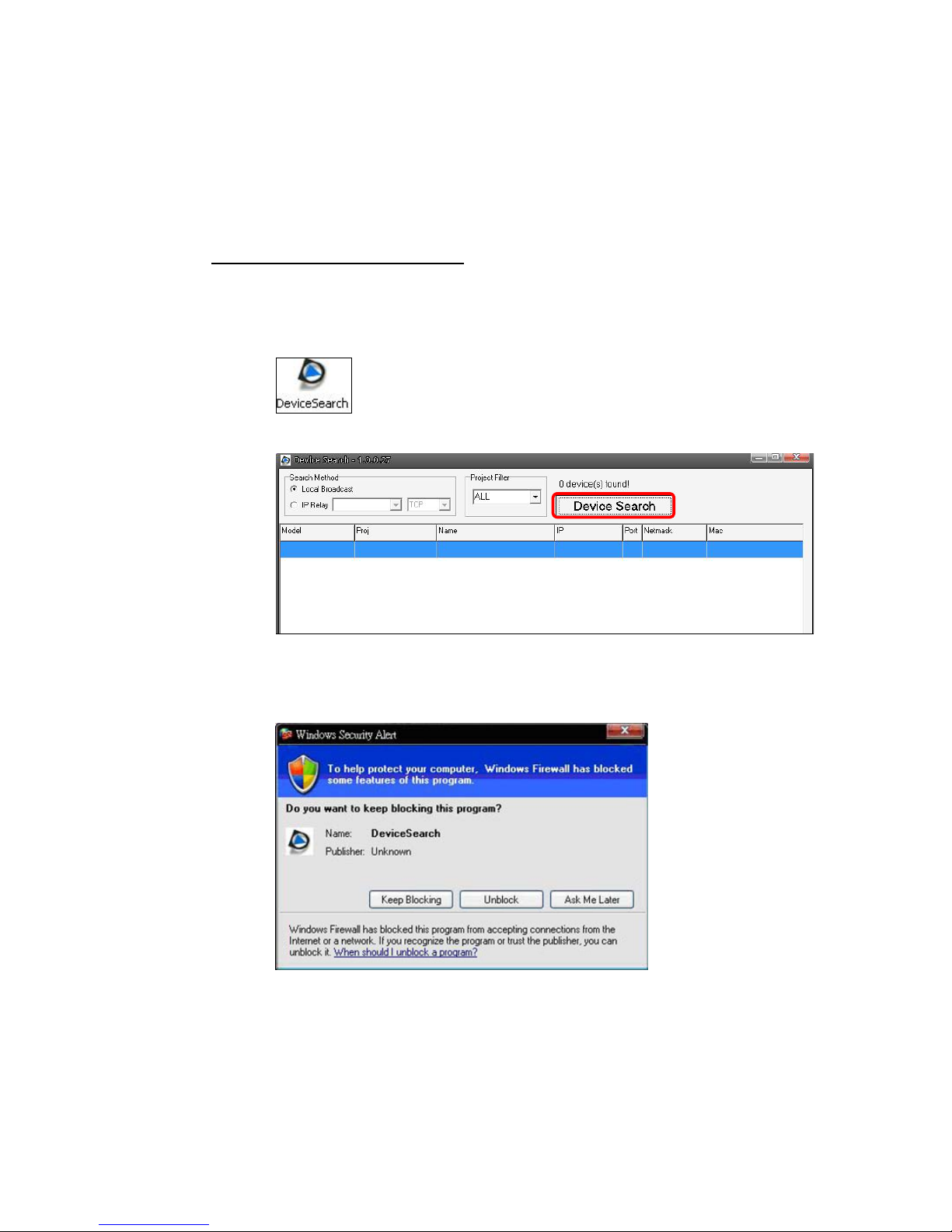

Step 1: Double click on the program Device Search.exe (see the icon below);
its window will appear as shown below. Then click the “Device Search”
button.
Step 2: The security alert window will pop up. Click “Unblock” to continue.

12
Device Search

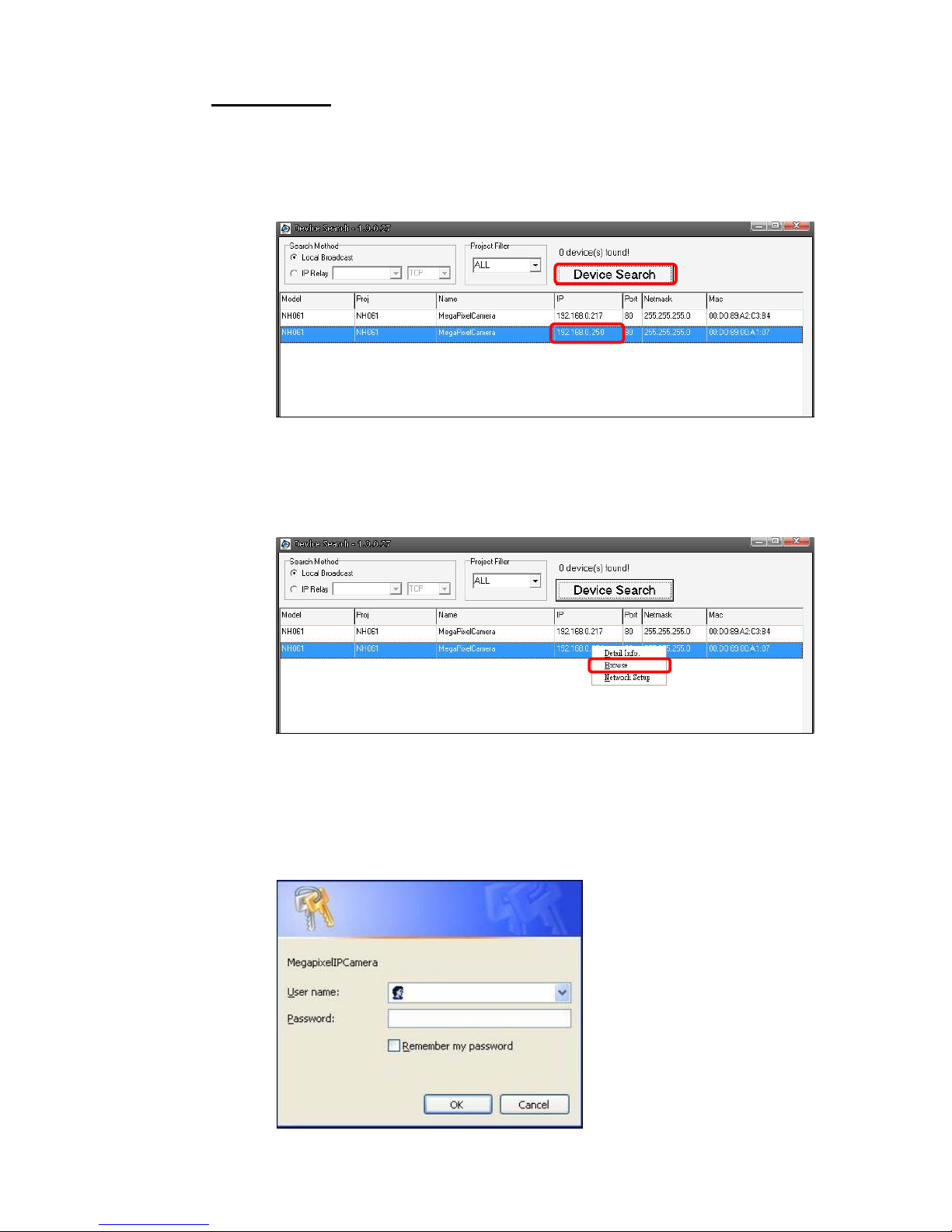

Step 3: Click “Device Search” again, and all the finding IP devices will be listed
in the page, as shown in the figure below. The IP Camera’s default
IP address is: 192.168.0.250.
Step 4: Double click or right click and select “Browse” to access the camera
directly via web browser.
Step 5: Then the prompt window of request for entering default username
and password (as shown below) will appear for logging in to the IP
Dome Camera.

13
The default login ID and password for the Administrator are:
Login ID Password
Admin 1234
NOTE: ID and password are case sensitive.
NOTE: It is strongly advised that administrator’s password be
altered for the security concerns. Refer to section 5.3.2 Security
for further details.
Additionally, users can change the IP Camera’s network property, either DHCP
or Static IP, directly in the device finding list. Refer to the following section for
changing the IP Camera’s network property.
Example of Changing IP Camera’s Network Property
Users can directly change an IP Camera’s network property, ex. from static IP
to DHCP, in the finding device list. The way to change the IP Camera’s network
property is specified below:
Step 1: In the finding device list, click on the IP Camera that you would like to
change its network property. On the selected item, right click and select
“Network Setup.” Meanwhile, record the IP Camera’s MAC address, for
future identification.

14
Step 2: The “Network Setup” page will come out. Select “DHCP,” and press
“Apply” button down the page.
Step 3: Click “OK” on the Note of setting change. Wait for one minute to
re-search the IP Camera.
Step 4: Click the “Device Search” button to search all the devices. Then select
the IP Camera with the correct MAC address. Double click on the IP
Camera, and the login window will come out.
Step 5: Enter User name and Password to access the IP Camera.

15
Installing DC Viewer Software Online
For the initial access to the IP Camera, a client program, DC Viewer, will be
automatically installed to your PC when connecting to the IP Camera.
If the Web browser doesn’t allow DC Viewer installation, please check the
Internet security settings or ActiveX controls and plug-ins settings (see
Appendix B: Internet Security Settings) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for
permission to install the ActiveX Control for displaying video in browser (see the
figure below). Right click on the Information Bar and select “Install ActiveX
Control…” to allow the installation.
Then the security warning window will pop up. Click “Install” to carry on software
installation.
Click “Finish” to close the DC Viewer window when download is finished. For
the detailed software download procedure, please refer to Appendix C: DC
Viewer Download Procedure.
Once login to the IP Camera, users will see the Home page as shown below:

16
NOTE: The “talk” button below the screen only displays in Box Camera
and Vandal Proof IP Dome.
Administrator/User Privileges
“Administrator” represents the person who can configure the IP Camera and
authorize users access to the camera; “User” refers to whoever has access to
the camera with limited authority, i.e. entering Home and Camera setting pages.
Image and Focus Adjustment
The image displays on the Home page when successfully accessing to the IP
Camera. Adjust zoom and focus as necessary to produce a clear image.

17
5. Configuration & Operation
The IP Camera is provided with a user-friendly browser-based configuration
interface, as well as a free bundled CMS (Central Management System) for
video playback and recording. In this chapter, information about main page
introduction, system related settings and camera settings will be described in
detail.
For further information about CMS software, please refer to 6. CMS Software
Introduction and CMS user’s manual.
5.1 Browser-based Viewer Introduction

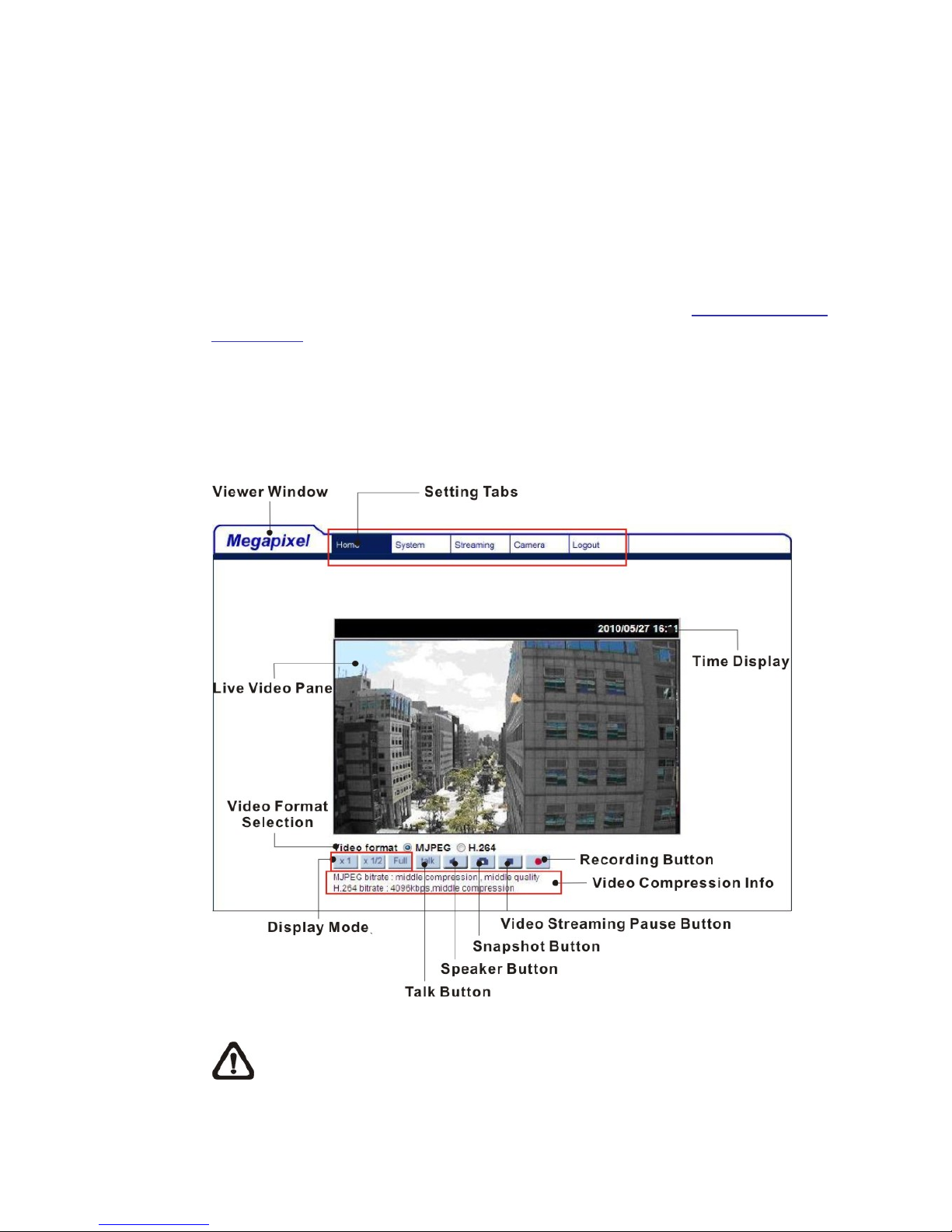

The figure below shows the Home page of the IP Camera’s viewer window.
NOTE: Only the Box Camera and Vandal Proof IP Dome support the
“Talk” function.

18
There are five tabs: Home, System, Streaming, Camera and Logout on the top
panel.
Home
Users can monitor live video of the targeted area.
System setting
The administrator can set host name, system time, root password, network
related settings, etc. Further details will be interpreted in section 5.3 System
Related Settings.
Streaming setting
The administrator can modify video resolution and rotate type and select audio
compression mode in this page.
Camera setting
Users can adjust various camera parameters, including <Exposure>, <White
Balance>, <Brightness>, <Sharpness>, <Contrast> and <Digital Zoom>.
Logout
Click on the tab to re-login the IP Camera with another username and
password.

19

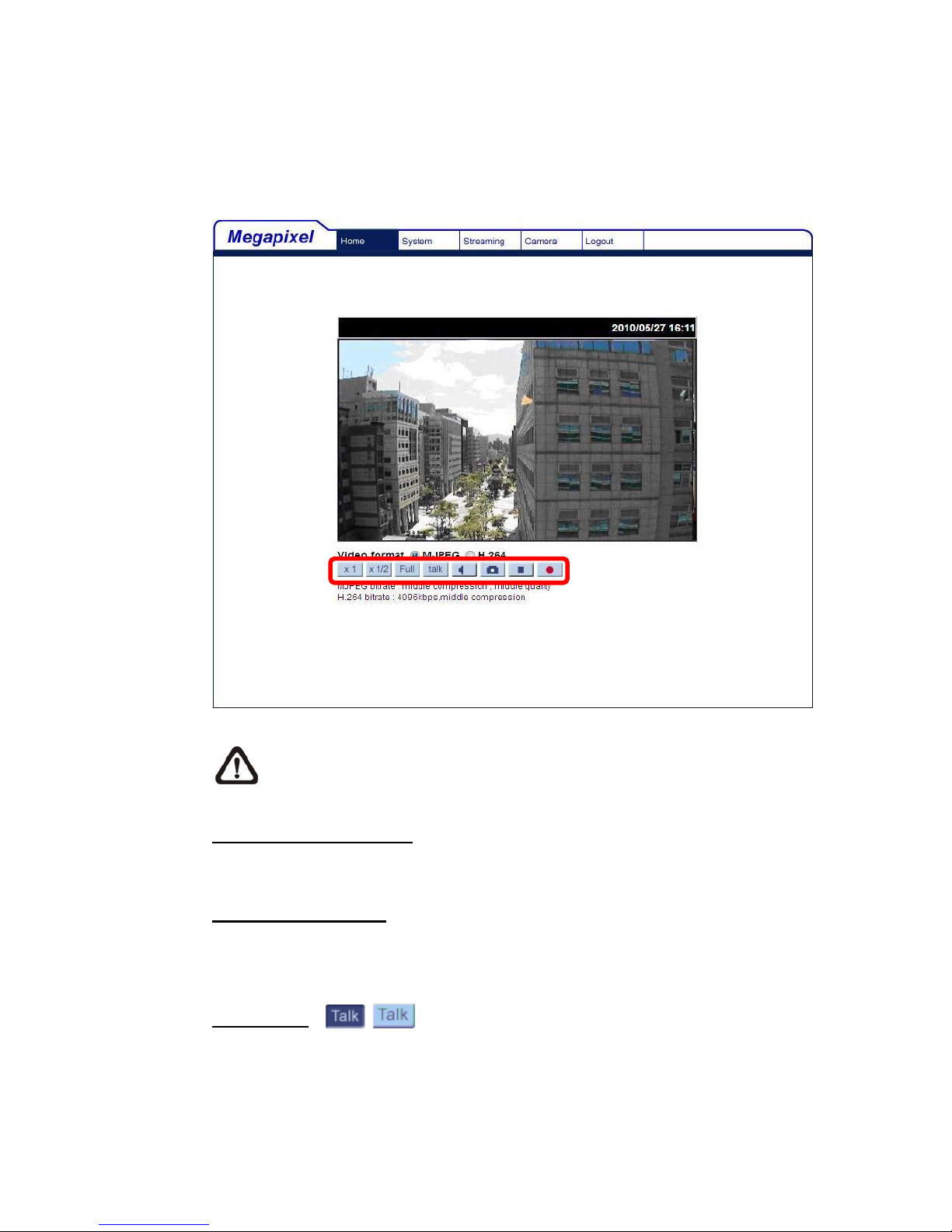

5.2 Home Page
In the Home page, there are several function buttons right down the displayed
image.
NOTE: Please note that the function buttons will vary depending on the
camera model.
Screen Size Adjustment
Image display size can be adjusted to x1/2 and full screen.
Digital Zoom Control
In the full screen mode, users can implement digital PTZ by rotating the mouse
wheel (for zoom in/out), and drag the mouse into any direction.
Talk button (on/off)
Talk function allows the local site to talk to the remote site. Click on the button to
