Luxul XAP-1010 User manual

luxul.com
Simply Connected
User Guide

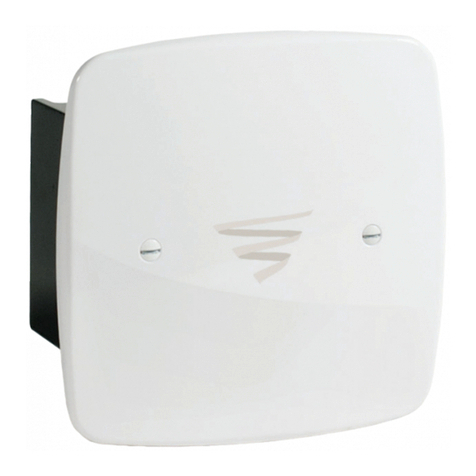

XAP-1010
Luxul Flush Mount
802.11b/g/n Wireless Access Point
Use the XAP-1010 to:
Provide an Unobtrusive Wireless Network that Eliminates
Unsightly Cables or Equipment
Deliver “Whole Home” or Offi ce 802.11n Wi-Fi Coverage With a
Single Access Point
Increase Mobile Client Device Network Sensitivity and
Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
AP

User Guide
2© Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
LUXUL FLUSH MOUNT
802.11b/g/n Wireless Access Point
Model Number: XAP-1010
FCC ID: W59XAP101020
IC: 8584A-XAP101020
USER GUIDE
© 2014 Luxul All rights reserved.
No part of this publication may be modifi ed or adapted in any way, for any
purposes without permission in writing from Luxul. The material in this manual
is subject to change without notice. Luxul reserves the right to make changes to
any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights.
An implied license only exists for equipment, circuits and subsystems contained in
this or any Luxul product.
This product is covered by one or more U.S. and foreign patents Patents: 7,379,717,
6,606,075, 6,373,448, other patents pending
DOCUMENT CONVENTIONS
The following graphical alerts are used in this document to indicate notable situations:
NOTE: Tips, hints, or special requirements that you should take note of.
CAUTION: Care is required. Disregarding a caution can result in data
loss or equipment malfunction.
WARNING!: Indicates a condition or procedure that could result in
personal injury or equipment damage.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
3
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
33
CONTENTS
1 INTRODUCTION 4
1.1 Warnings 5
1.2 Site Preparation 5
2 XAP-1010 SPECIFICATIONS 6
3 GETTING STARTED 7
3.1 System Requirements 7
3.2 Package Contents 7
3.3 Safety Information 8
4 HARDWARE FEATURES AND INSTALLATION 8
4.1 Front View 9
4.2 Rear View 10
4.3 Environmental Requirements 11
4.4 Hardware Installation 12
5 CONFIGURATION 15
5.1 Login 15
5.2 Quick Setup 16
5.3 Wireless 19
5.4 Bridge Setup 22
5.5 Administration 25
5.6 QoS 27
5.7 Status 28
6 REGULATORY COMPLIANCE 29
6.1 Health and Safety Recommendations 29
6.2 RF Exposure Guidelines 29
6.3 Radio Frequency Interference Requirements—FCC 30
6.4 Radio Transmitters (Part 15) 31
6.5 Industry Canada (RSS-Gen Issue 2) 31
APPENDIX 1: TECHNICAL SUPPORT 32

User Guide
4© Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
1 INTRODUCTION
Congratulations on your purchase of the Luxul High Performance Flush Mount
802.11n Wireless Access Point (XAP-1010). The XAP-1010 is designed for discreet
use in residential and commercial Wi-Fi installations—delivering optimal network
performance, while blending unobtrusively with the décor when installed inside
a wall or ceiling. Powered by Luxul’s Technology, the XAP-1010 enhances data
throughput and coverage by as much as 400% over traditional Wi-Fi gear, provid-
ing for whole home or small offi ce coverage with a single access point. With this
high performance wireless access point, computers and wireless devices that are
compatible with 802.11b/g and/or 802.11n can sustain maximum data rates and
improved overall performance at signifi cantly greater distances.
The XAP-1010 features Luxul web based management interface. It provides a power-
ful, yet simple method for setting up and optimizing the wireless network. The
XAP-1010 is also enabled for optimal performance and installation simplicity when
deployed together with Luxul Routers, Gigabit Switches, and other Luxul products.
XAP-1010 Features:
Implements Patented Technology for Enhanced Throughput and Coverage
Highest FCC Approved Performance (Effective EIRP 36dBm) for Farther Reaching
Signal and Maximum Data Rates
18dB of Receive Gain Increases Client Device Network Sensitivity and Performance
Complies with 2.4 GHz IEEE 802.11n Standard. Backward Compatible with IEEE
802.11g/b
Supports WMM QoS Functionality to Prioritize Multimedia Traffi c
Enhanced Multi-Level Security with WPA-PSK (TKIP, AES, TKIP & AES), WPA2-PSK
(AES), WPA-PSK/WPA2-PSK Personal (TKIP & AES) and 64-bit and 128-bit WEP
Supports up to 8 SSIDs with Individual Security Settings
Single Cable Installation with PoE (supports both IEEE 802.3af and Legacy)
Firmware Upgradeable
Easy 3 Step Setup through Web-based User Interface
Install inside Wall or Ceiling
Paintable Cover Plate Unobtrusively Blends Into the Room Décor
Enabled for Maximum Compatibility and Performance with Other Luxul Products

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
5
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
55
1.1 Warnings
Read all installation instructions and site survey reports, and verify correct equip-
ment installation before connecting the XAP-1010 to its power source.
Remove jewelry and watches before installing this equipment.
Verify that the unit is grounded before connecting it to the power source.
Verify that any device connected to this unit is properly wired and grounded.
Connect all power cords to a properly wired and grounded electrical circuit.
Verify that the electrical circuits have appropriate overload protection.
Attach only approved power cords to the device.
Verify that the power connector and socket are accessible at all times during the
operation of the equipment.
Do not work with power circuits in dimly lit spaces.
Do not install this equipment or work with its power circuits during thunder-
storms or other weather conditions that could cause a power surge.
Verify there is adequate ventilation around the device, and that ambient tem-
peratures meet equipment operation specifi cations.
Products outside the approved confi gurations may be in violation of Part 15 of
the FCC Rules.
1.2 Site Preparation
Consult your site survey and network analysis reports to determine specifi c
equipment placement, power drops, and so on.
Assign installation responsibility to the appropriate personnel.
Identify and document where all installed components are located.
Provide a suffi cient number of power drops for your equipment.
Ensure adequate, dust-free ventilation to all installed equipment.
Identify and prepare Ethernet and console port connections.
Verify that cable lengths are within the maximum allowable distances for optimal
and certifi ed signal transmission.

User Guide
6© Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
2 XAP-1010 SPECIFICATIONS
Standards IEEE 802.11n
IEEE 802.11b/g
IEEE 802.3af
Hardware LAN Port: 1 RJ45 10/100 Mbps data and power input
 7dBi Circular Polarized Directional Antenna
LEDs: All LEDs are internal and not visible when cover
plate is in place (Power, WLAN active, LAN link/
activity, Bridge mode active).
RF Information Frequency Band: 2.401 – 2.473GHz
Operating Channels: 11
Available Transmit Power 2.401 – 2.473GHz (IEEE802.11g/n):
Up to 36dBm EIRP
30dBm @ 6~9Mbps / MCS0
29dBm @ 12~18Mbps / MCS1-2
27dBm @ 24~36Mbps / MCS3-4
26dBm @ 48~54Mbps / MCS5-7
2.401 – 2.473GHz (IEEE802.11b):
Up to 36dBm EIRP
30dBm @ 1~11Mbps
Available Receive Gain  2.401 – 2.473GHz (IEEE802.11g/n):
Up to 18dBm
2.401 – 2.473GHz (IEEE802.11b):
Up to 18dBm
Receive Sensitivity (Typical) 2.401 – 2.473GHz (IEEE802.11n): Up to -91dBm
2.401 – 2.473GHz (IEEE802.11g): Up to -92dBm
2.401 – 2.473GHz (IEEE802.11b): Up to -93dBm
Wireless Operation Modes Access Point
Point-to Point Wireless Bridge
Point-to-Multipoint Wireless Bridge
Management and Security Remote Web-based Management
WEP (128 bit)
WPA-PSK (TKIP, AES, TKIP&AES)
WPA2-PSK (AES)
WPA-PSK/WPA2-PSK Auto (TKIP&AES)
Web Based Firmware Upgrade
QoS: Wireless Multi-Media (WMM) Extensions
Certifi cations FCC Part 15, Class B

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
7
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
77
Power Requirements Ethernet POE in: 48VDC/0.375A for IEEE 802.3af
Compliance
Power Consumption: 5W Nominal, 13W Max
Temperature Range Operating: 14°F to 132°F (-10°C to 50°C)
Storage: -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% (Non-condensing)
Mechanical Housing Dimensions: Fits within standard 2 gang
electrical box WxHxD: 3.7”(93.98mm) x 3.8”(96.52mm)
x 1.1”(27.94mm)
Cover Plate Dimensions WxHxD: 5.5”(139.7 mm) x
5.5”(139.7 mm) x .375”(9.525mm)
Weight Item: .7 lbs
With Packaging: 1.5 lbs
Warranty 1 year
Minimum System
Requirements
Devices Supporting 802.11b, 802.11g or 802.11n
Web Browser (Microsoft IE 8.0 and up, Mozilla Firefox
10 and up, Safari 2.0 and up, Google Chrome 4.0 and
up, Opera 10 and up)
CAT5 Ethernet Cable
Internet Connection to View Documentation Online
3 GETTING STARTED
3.1 System Requirements
Devices Supporting 802.11b, 802.11g or 802.11n
Web Browser (Microsoft IE 8.0 and up, Mozilla Firefox 10 and up, Safari 2.0 and
up, Google Chrome 4.0 and up, Opera 10 and up)
CAT5 Ethernet Cable
AC Power Socket (100 – 240 V, 50/60 Hz)
Internet Connection to View Documentation Online
3.2 Package Contents
XAP-1010 Wireless Access Point
Paintable Faceplate and Mounting Screws
2 Gang Remodel Electrical Box
POE Injector and Power Adapter
Quick Install Guide

User Guide
8© Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
NOTE: If any of the listed items are missing or damaged, please contact
the reseller from whom you purchased for return/replacement.
3.3 Safety Information
To maintain the safety of users and property, follow these safety instructions:
The XAP-1010 wireless access point is designed for indoor use only. DO NOT
place this access point outdoors. If you require an outdoor access point, please

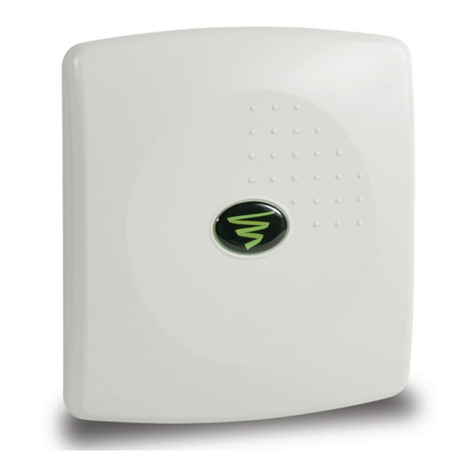

consider the Luxul XAP-1040.
DO NOT install this access point in or near hot or humid places, such as a kitchen
or bathroom. Take care to minimize exposure to excessive heat or moisture.
DO NOT pull any connected cable with force. When disconnecting cables, do so
by disconnecting fi rst from the access point. When reconnecting, connect the AP
fi rst and then the Power/data source.
When installing the access point, be sure it is fi rmly secured within an appropri-
ately shielded electrical box to protect the unit from dust, insulation, and other
external elements. If not using the electrical box included with the unit, ALWAYS
use a properly shielded and UL listed electrical box for installation.
Accessories of this access point, such as mounting screws, the POE injector and
power supply may be dangerous to small children under 3 years of age. KEEP All
ACCESSORIES OUT OF THE REACH OF CHILDREN!
The access point may become hot when in use for extended time periods. This is
normal and is not a malfunction. DO NOT install this access point where it will
be exposed to paper, cloth or other fl ammable materials. If not using the electri-
cal box included with the unit, ALWAYS use a properly shielded and UL listed
electrical box for installation.
The XAP-1010 contains no user-serviceable parts. If the access point is not work-
ing properly, contact your dealer and ask for help. DO NOT attempt to disas-
semble the access point.
4 HARDWARE FEATURES AND INSTALLATION
The XAP-1010 high powered access point is designed for optimal performance as
well as for simple and effi cient installation and setup. It implements Luxul’s circular
polarized directional antenna technology and is packaged for installation within a
wall or ceiling. Because the signal generated by the XAP-1010 is directional in nature,
the unit should be placed in a location that allows the antenna face to be “pointed”
towards the desired coverage area. Typically this would be in a top fl oor ceiling
pointed downwards in a multi-story installation; or for single level or two level

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
9
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
99
layouts, on a wall pointed towards the desired coverage.
4.1 Front View
The front of the XAP-1010 consists of the antenna element and 4 LEDs. LEDs
indicate 1) Power, 2) WLAN Status 3) LAN Link/Activity, and 4) Bridge Mode.
NOTE: LEDs are only visible when the cover plate is removed
4
3
2
1
XAP-1010 Front View
Status Indicators:
The XAP-1010 has four LEDs, positioned vertically on the right side of the front of
the access point. When viewed from top to bottom, LEDs are as follows: 1) Bridge
Mode (Green); 2) WLAN Status (Blue); 3) LAN Link/Activity (Amber); and 4) Power

User Guide
10 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
(Green).
The following table describes the LED functionality:
Indicator Name Description
Bridge Mode On Bridge is connected
Flashing Bridge Mode enabled but not connected
Off The AP is in default “Access Point” mode.
WLAN Status On The wireless radio is active and wireless
access is enabled
Off The wireless radio is not active and wireless
access is disabled
LAN Link/Activity On There is an active Ethernet connection
Flashing Indicates Ethernet activity
Off There is no active Ethernet connection
Power On The power is on
Off No power, check power connections
At startup, the Green Power LED will stay on while the amber LAN Link light
fl ashes. The blue LED will come on once the XAP-1010 wireless radio is active.
4.2 Rear View
The rear of the XAP-1010 provides one RJ-45 connection that is used to deliver both
power and data to the access point. It also provides a reset button for restoring the
access point to factory default settings.

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
11
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
1111
XAP-1010 Rear View
The Reset button is used to clear the current settings of the XAP-1010 and restore
factory default settings.
Reset
XAP-1010 Reset Button Location
Reset Button:
The Reset button is used to clear the current settings of the XAP-1010 and restore
factory default settings.
To Restore the Default Settings: With the XAP-1010 powered on, press and hold
the Reset button for 15 seconds. When all the LEDs except the power LED turn off,
release the reset button. The power LED will stay solid. The XAP-1010 will be set to
factory defaults.

User Guide
12 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
CAUTION: Pressing and holding the Reset button will remove any
custom confi gurations done to the XAP-1010.
4.3 Environmental Requirements
 Ethernet cable at the electrical box installation location to provide Power and
Data to the XAP-1010.
A computer supporting TCP/IP and equipped with a Web browser. Supported
Web browser versions include Microsoft IE 8+, Firefox 4+, Safari 5+, Google
Chrome 5+. The Web browser is used to confi gure the XAP-1010.
The XAP-1010 uses 36-57VDC power. The POE injector power supply requires AC
100V ~ 240V, 50Hz ~ 60Hz.
Temperature of the operating environment: 32F~131F (0C~55C). Be sure to place
the access point away from heat generating devices.
Humidity of the operating environment: 5%-95% non-condensing. Do not place
the access point in an extremely dirty or damp location.
Keep the access point away from strong electromagnetic fi elds (i.e. Air
Conditioner compressors, fl uorescent light ballasts, CRT monitors/televisions,
etc.), and free from vibration, dust and direct sun light.
4.4 Hardware Installation
4.4.1 Access Point Placement
This XAP-1010 implements Luxul’s Circular Polarized directional antenna technol-
ogy. For maximum effi ciency, it should be aimed towards the area to which you
would like to provide coverage. With this in mind, the ideal placement option is
usually on an outside wall pointed into the coverage area; or in a multi-level instal-
lation, on the top fl oor ceiling pointed downwards.

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
13
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
1313
XAP-1010 Suggested Mounting Location
4.4.2 Mounting the Access Point within a Wall or Ceiling
The XAP-1010 is designed to be installed within a standard 2 gang electrical box. A
remodel box is included with this kit. If you choose to use your own electrical box,
be sure it is UL listed and provides suffi cient shielding to minimize contamination
from dust, insulation and other external elements. Once the electrical box is in
place along with the appropriate Ethernet cable pulled inside the box, simply plug
the Ethernet cable into the RJ-45 connector and mount the access point directly to
the electrical box as shown in the diagram below:
XAP-1010 Assembly View
4.4.3 Connecting to the Power Source
The XAP-1010 is POE ready and supports Legacy (48v 1a), 802.3af, and 802.3at
POE injectors. A POE injector is included with the device. To apply power, simply

User Guide
14 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
connect the opposite end of the Ethernet cable to which the access point is
already connected to the provided POE injector or other POE switch or injector. An
Ethernet cable length of up to 300 feet can be used. DO NOT yet apply power to
the POE injector or switch.
NOTE: Category-5, super Category-5 or Category-6 unshielded twisted pair
(CAT5/CAT5e/CAT6 UTP) cables should be used. For best results, it
is recommended that CAT5e or CAT6 shielded twisted pair be used
to ensure stable data transmission at highest data rates.
4.4.4 Connecting to the Internet Source
The Luxul device is not a router and in most installations will be connected to a
Router or Switch in order to deliver Internet access. To do so, connect the POE
injector (or switch) to the desired Internet source using another Ethernet cable. Be
sure the source device is powered off.
POE
Injector
Power
Source
Power
In
Ferrite Noise
Suppresser
Data
Source
Poe
Device Data/Pwr Out
Data
In
The POE Injector Sends Power and Signal Over One Ethernet Cable
4.4.5 Applying Power
Once the Ethernet cables have been properly connected, connect the power sup-
ply to the POE injector and plug it in to a standard AC power outlet. Or, if plugging
into a POE switch, turn the switch (or appropriate port) on. The network source
device can also now be powered back on.
NOTE: If your Internet source (Router or Switch) is a POE enabled device
and connected via POE, it can be plugged directly into the access
point without the need to run a separate POE injector.
4.4.6 LED Visual Verifi cation
With power applied, you can now verify that the XAP-1010 is connected and
functioning properly. Prior to placing the access point cover plate, perform a visual

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
15
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
1515
inspection of the LEDs. The Green Power LED (bottom of the stack) should be
on while the amber LAN Link light fl ashes, indicating Ethernet activity. Once the
WLAN LED is solid blue the XAP-1010 is ready to receive connections from wireless
devices. The Green LED at the top of the stack will only be on if the access point is
set to function in bridge mode.
XAP-1010 LED Visual Verifi ction
4.4.7 Attaching the Cover Plate
Once it has been determined that the access point is functioning properly, attach
the cover plate using the screws provided. Be sure not to over-tighten the screws.
Note that the cover plate is paintable.
NOTE: If painting the cover plate, be sure to use only latex based paints.
CAUTION: Paint or wall covering with any metal content placed over the
front of the XAP-1010 will effect the performance of the unit.
5 CONFIGURATION
5.1 Login
The XAP-1010 is not equipped with internal DHCP server. If connected to the Luxul
XBR-2300 Enterprise Dual-WAN Router, IP address confi guration will be automatic.
Otherwise, the IP address of the computer for login and confi guration will need
to be manually confi gured. The table below lists the default parameters of the
XAP-1010.

User Guide
16 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
Parameter Default Value
Default IP address 192.168.0.10
Default user name admin
Default password admin
Login to the XAP-1010 Wireless Access Point with the following steps:
a. Be sure the XAP-1010 is properly installed and powered on
b. Open your Web Browser, and enter http://192.168.0.10.
The login window appears as shown below:
c. Enter the user name and password (default user name is ”admin” and default
password is “admin”), and then click OK to login to the Quick Setup window.
5.2 Quick Setup
Quick Setup: For most installations, it is expected that the Quick Setup page will
be suffi cient to optimally confi gure and deploy the XAP-1010 Wi-Fi network. The
Quick Setup page consists of the following:

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
17
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
1717
DHCP Client: Enabled or Disabled. DHCP (Dynamic Host Confi guration Protocol)
is used to automatically assign an IP Addresses to a device on the network. If
DHCP is enabled on the Access Point, it will no longer use the static address set
by Luxul at time of manufacturing and will request a dynamic IP Address from the
Router (sometimes referred to as the Gateway).
When DHCP is enabled on the Access Point, the new IP address will be needed
in order to access the web management interface. The Router web interface can
be used to look up the IP address assigned to the Access Point. To Enable DHCP,
click on the drop down menu and select Enable. Select Apply and then Reboot
for the change to take effect.
NOTE: DHCP is set as Disabled by default and is the recommended
setting in order to ensure optimal communications with all Luxul
devices on the network.
IP Address: An IP address is a numerical label assigned to each device on the
network. This fi eld shows the IP address that is assigned to the XAP-1010. To
ensure plug and play capability with other Luxul networking products, the IP
Address is automatically defaulted to 192.168.0.10. If desired, the user can set
this to a different static IP Address. To change the IP address of the Access
Point, simply type in the desired IP address (the text fi eld will be red if the
address is incomplete), click Apply and then Reboot for the changed to take
effect. When connecting to the Access Point through the web interface, the
NEW IP Address must be used.
NOTE: Each device on the same network must have a unique IP address.
If the Access Point is assigned an IP address already in use, it
will result in an IP address confl ict that will need to be resolved
manually. For optimal communications with all Luxul devices on
the network, it is recommended that IP addresses not be changed
unless absolutely necessary.
 Subnet Mask: To ensure plug and play capability with other Luxul networking
products, the Subnet Mask is automatically defaulted to 255.255.255.0. If desired,
the user can set this to a different static Subnet Mask.

User Guide
18 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
Default Gateway: A gateway is a router on the network that connects two or
more networks together. Typically the gateway (router) connects the local area
network (LAN) to the Internet. The Internet Service Provider (ISP) often provides
a physical device (usually a DSL modem or cable modem) that connects to the
gateway with an Ethernet cable, thus completing the link to the Internet. For
optimal connectivity and network functionality, this device could also be the
Luxul XBR-2300 Router.
Set the Default Gateway fi eld to the IP address of your network default gateway,
typically your router. The default gateway confi guration is set to the default IP
address of the Luxul XBR-2300 Router.
 Operating Mode: Sets the Operating Mode of the Access Point the available
options are;
Access Point: Allows client devices to connect (default mode)
Client: Allows the AP to connect to an existing network as a client device
Bridge Root: Sets the AP into Bridge Root mode allowing Bridge Clients to
connect (regular client devices cannot connect to this mode)
Bridge Client: Sets the AP into Bridge Client mode allowing it to connect to a
Bridge Root (regular client devices cannot connect to this mode)
 Network Name (SSID): Sets the name of the Wireless Network. Default name is
Luxul. It is recommended to change the SSID from the default name. The SSID is
case sensitive and can contain:
2 – 32 alphanumeric characters
Spaces
Special characters (i.e. @#$%&*)
To change the SSID of the wireless network, simply type the desired name, click
Save, and then Reboot for the change to take effect.
 Security Mode: Sets the wireless security encryption mode. It is HIGHLY
recommended to change the Security Mode and use the highest security level
supported by the client devices in the network. In most wireless networks, WPA/
WPA2 Personal is an excellent option that will support the largest cross section
of client devices. Security options include:
Open (default - no security)
WEP (128 bit shared key)
WPA Personal
WPA2 Personal
WPA/WPA2 Personal
To change the Security Mode, click the drop down menu and select the desired
mode. The available options for the selected mode will then appear. AFTER all
options are complete, click Save, and then Reboot for the change to take effect.

a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
User Guide
19
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450
1919
 Encryption: This fi eld sets the type of encryption to be used by the Security
Mode. The encryption options are dependent upon the Security Mode selected
and this fi eld only shows while in WPA mode. For WEP and WPA2, and WPA/
WPA2 Personal, encryption is automatically set to 128 bits, AES, and TKIP & AES
respectively. For WPA, there are three options: AES, TKIP, and TKIP & AES. When
set to WPA, it is recommended that TKIP & AES be used. To change the Encryption,
click the drop down menu and select the desired encryption type. Once all op-
tions are selected, click Save and then Reboot for the change to take effect.
 WEP Key: This fi eld only shows while in WEP mode and sets the WEP key to be
used in the network. WEP 128 bit keys require 26 characters. Allowed characters
are numbers 0-9 and letters a-f. There are WEP key generators online that can
automatically create a key. To change the WEP Key, simply enter the 26 character
key then click Save and then Reboot for the change to take effect.
 WPA Passphrase: This sets the passphrase used by client devices to connect to
the wireless network when using WPA Security Mode. For WPA the passphrase:
Must be a minimum of 8, maximum of 63 characters
Can contain spaces or special characters (i.e. @#$%&*)
To change the WPA Passphrase, simply type in the desired passphrase, click Save,
then Reboot for the change to take effect.
NOTE: It is recommended to use a strong password containing:
More than the minimum number of characters
One or more capital letters
Numbers and/or special characters
5.3 Wireless
5.3.1 Basic Wireless Settings

User Guide
20 © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
Basic Wireless Settings: This screen allows the modifi cation of the following basic
settings for the wireless network:
Wireless Radio: This fi eld is used to Enable and Disable the wireless network
and is set to Enabled by default. If the Radio is Disabled the Access Point will not
broadcast a wireless signal. To Disable the Wireless Radio, click the dropdown
menu, select Disabled, then click Save and then Reboot for the change to take
effect.
 Wireless Mode: Sets the type of 802.11 wireless network to be broadcast.
Available modes are:
802.11g
802.11gn
The default setting is 802.11gn, and is recommended for optimal performance of
all types of devices in the network. Use the 11g Mode ONLY if there are 802.11b/g
client devices in the network that will not connect in 802.11gn Mode.
Channel Width: Sets the width of the 802.11n channel. Available widths are:
20MHz (available for both modes)
20/40MHz (only available for 802.11gn mode)
The default (and recommended) setting is 20 MHz to provide maximum perfor-
mance to all client devices and to avoid any potential client issues.
