Cerio IW-100 A1 User manual

V1.0a
CERIO Corporation
IW-100 A1
eXtreme Wave 2 11n/ac 2.4/5Ghz 2x2 In Wall PoE Access
Point ( 100mW )
Quick Start Guide

V1.0a
1. Product Outward Appearance.................................................................................................. 3
2. Panel Function Descriptions.................................................................................................... 5
3. Installation the In wall Access Point ...................................................................................... 6
4. Software Configuration.............................................................................................................. 7
1. Login IW-100 A1 Web Page..................................................................................................... 10

V1.0a
1. Product Outward Appearance
EU Device

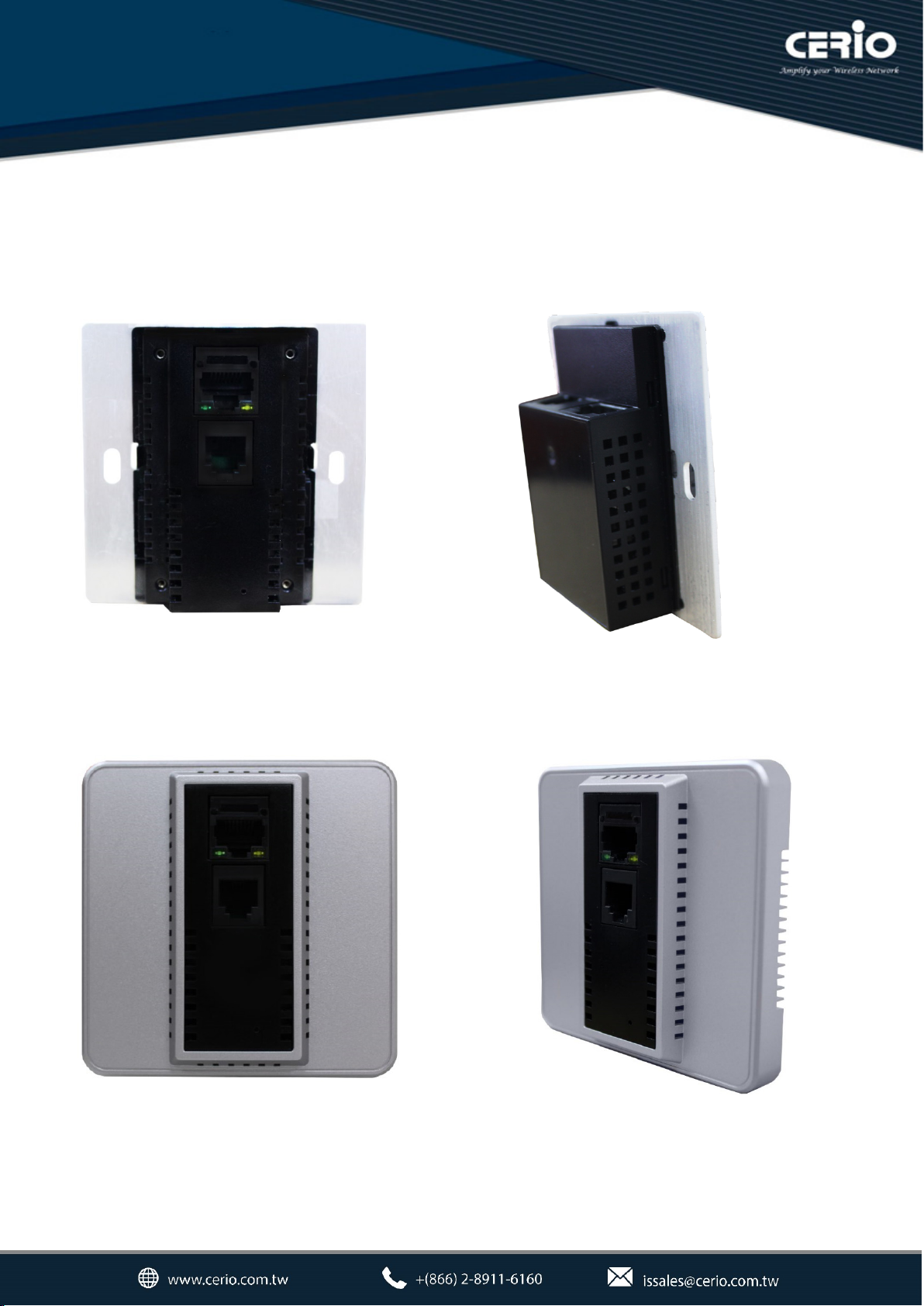

Product Front Product Reverse side
Product Front
+ Faceplate
Product Reverse side + Faceplate

V1.0a

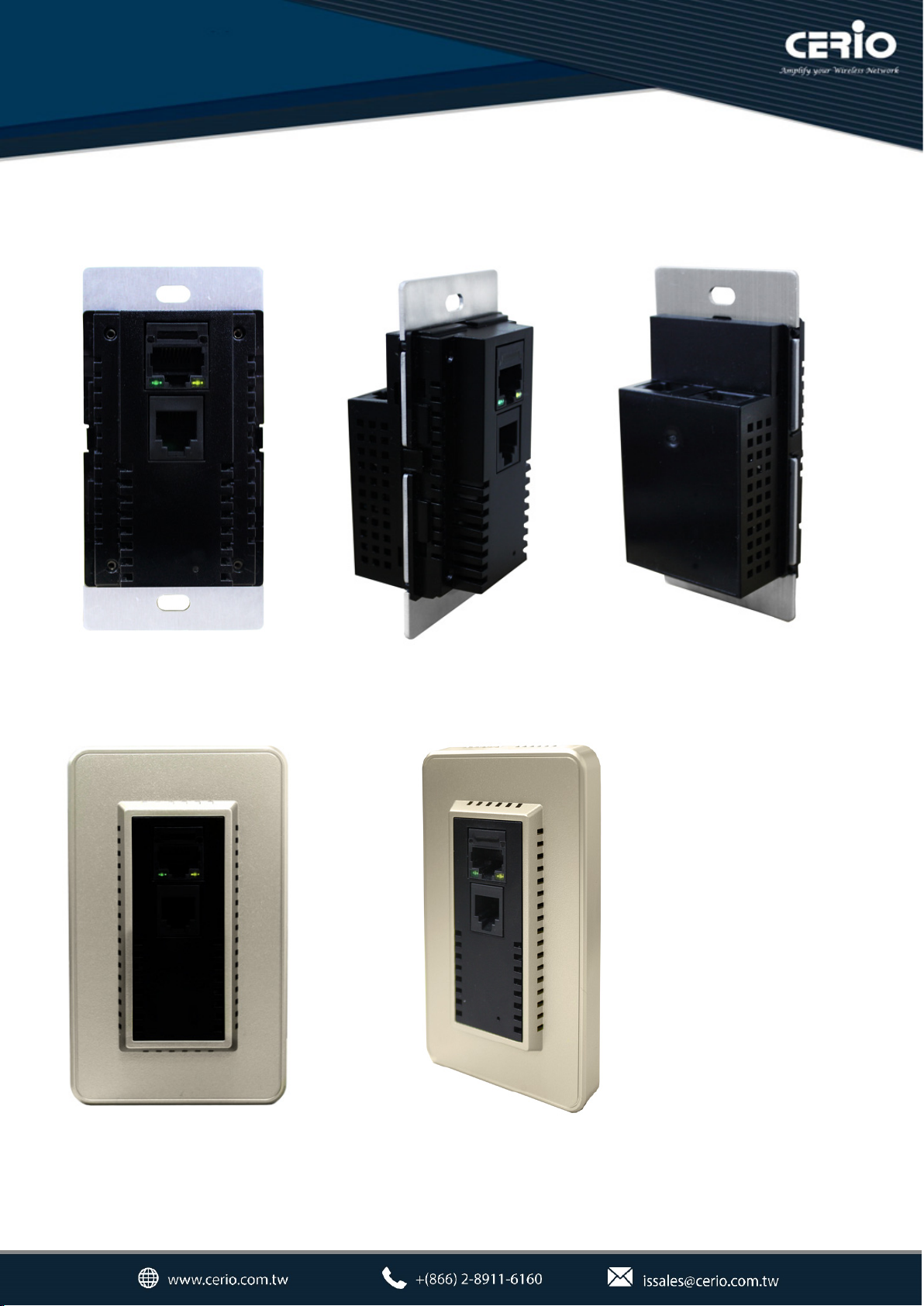

US Device
Product Front
Product Reverse side Product Side
Product Front
+ Faceplate
Product
Reverse side + Faceplate

V1.0a
2. Panel Function Descriptions
1
Product Front
2
3
4
Product Side

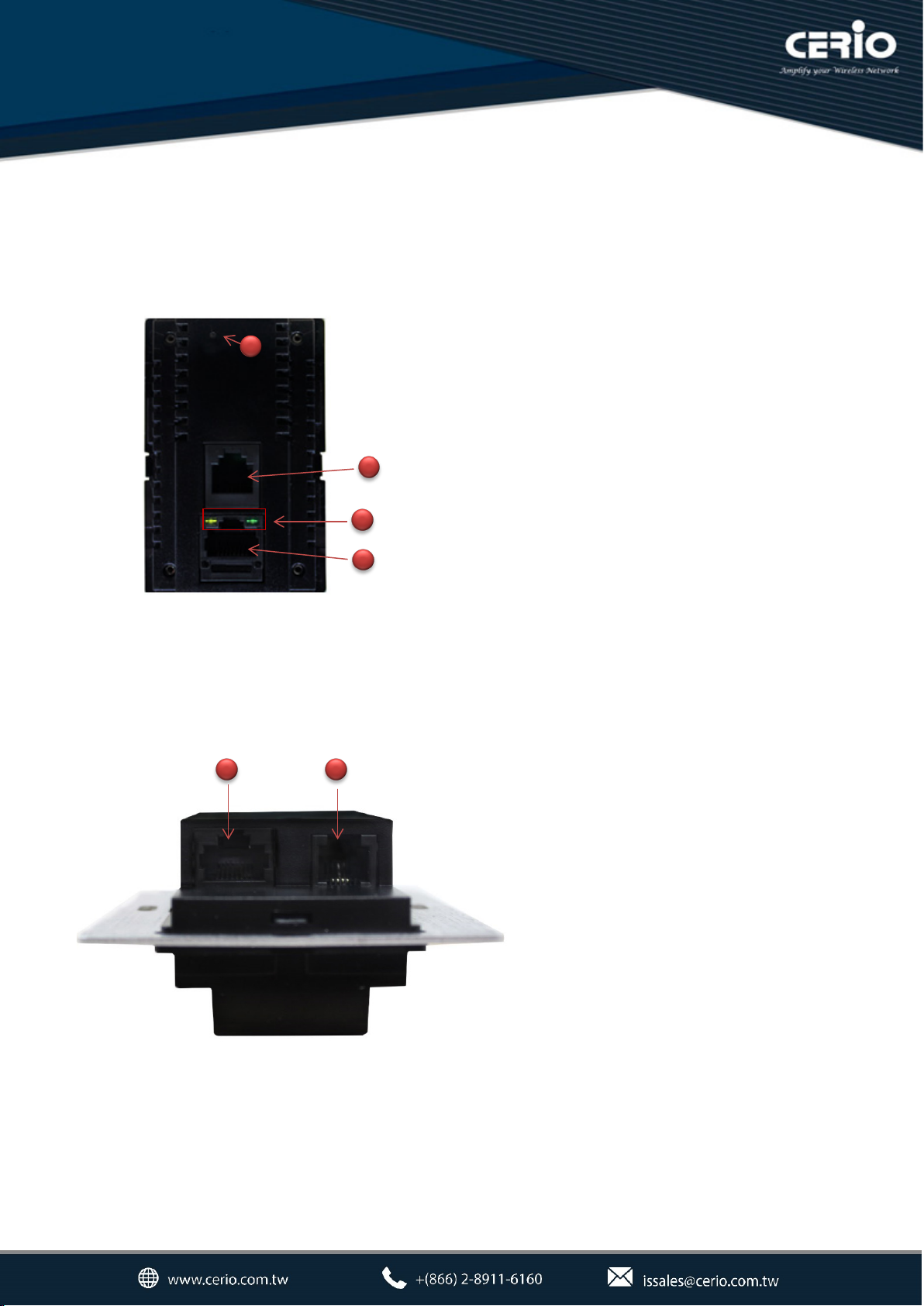

(1) RJ-45 Ethernet Port
(2) Ethernet LED
When right side orange light lit indicates starting
device, enter the software boot program LED will goes
out. When system is operating normally, client
connection Ethernet port and transfer data then LED is
green light flashing.
When left side green light lit indicates enter the
software booting program, after the software normally
working then LED will goes out. If hold down reset
button about 15 sec then LED flashing indicates system
reset to default.
(3) RJ-11 telephone connection port
(4) Reset button (hold down about 15 sec)
1 2
(1) Ethernet connection port( data + PoE in).
(2) RJ-11 telephone connection in.

V1.0a
3. Installation the In wall Access Point
Step 1: Pulled out on the wall for RJ45 Ethernet cable( With PoE Source ), Use the RJ45
Ethernet cable(connected to the IW-100 A1 in rear of the PoE port.
Step 2: Slide the Wall AP into the frame until it is flushed into the Wall.
Step 3: Insert screws into the frame fixed on the embedded box.
Step 4: The Faceplate cover into on the IW-100 A1.

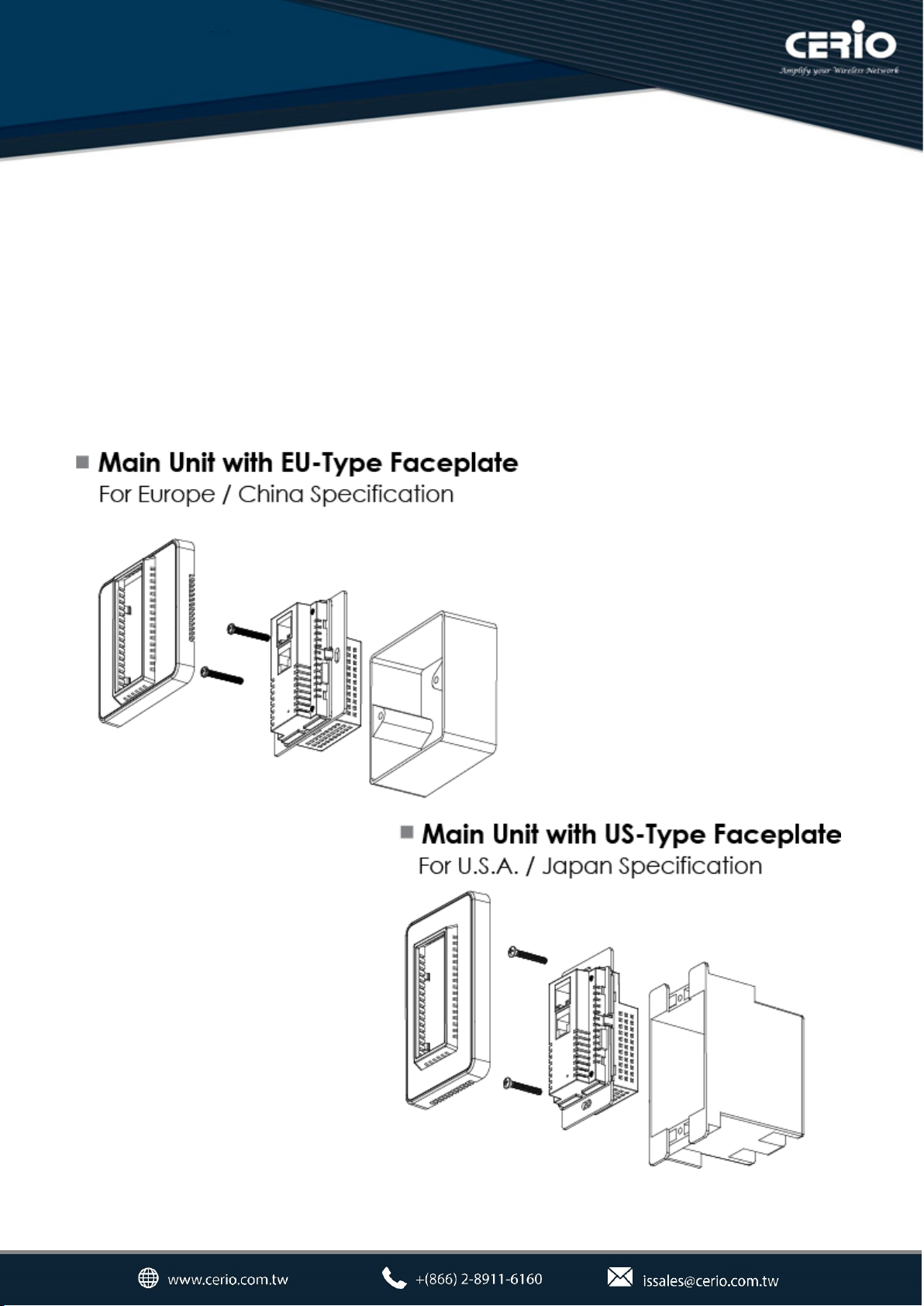

As indicated below
* Different areas of sales the accessories
Faceplate will use the US or European type

V1.0a
4. Software Configuration
PC to device setup by OS Windows7
Step 1 :

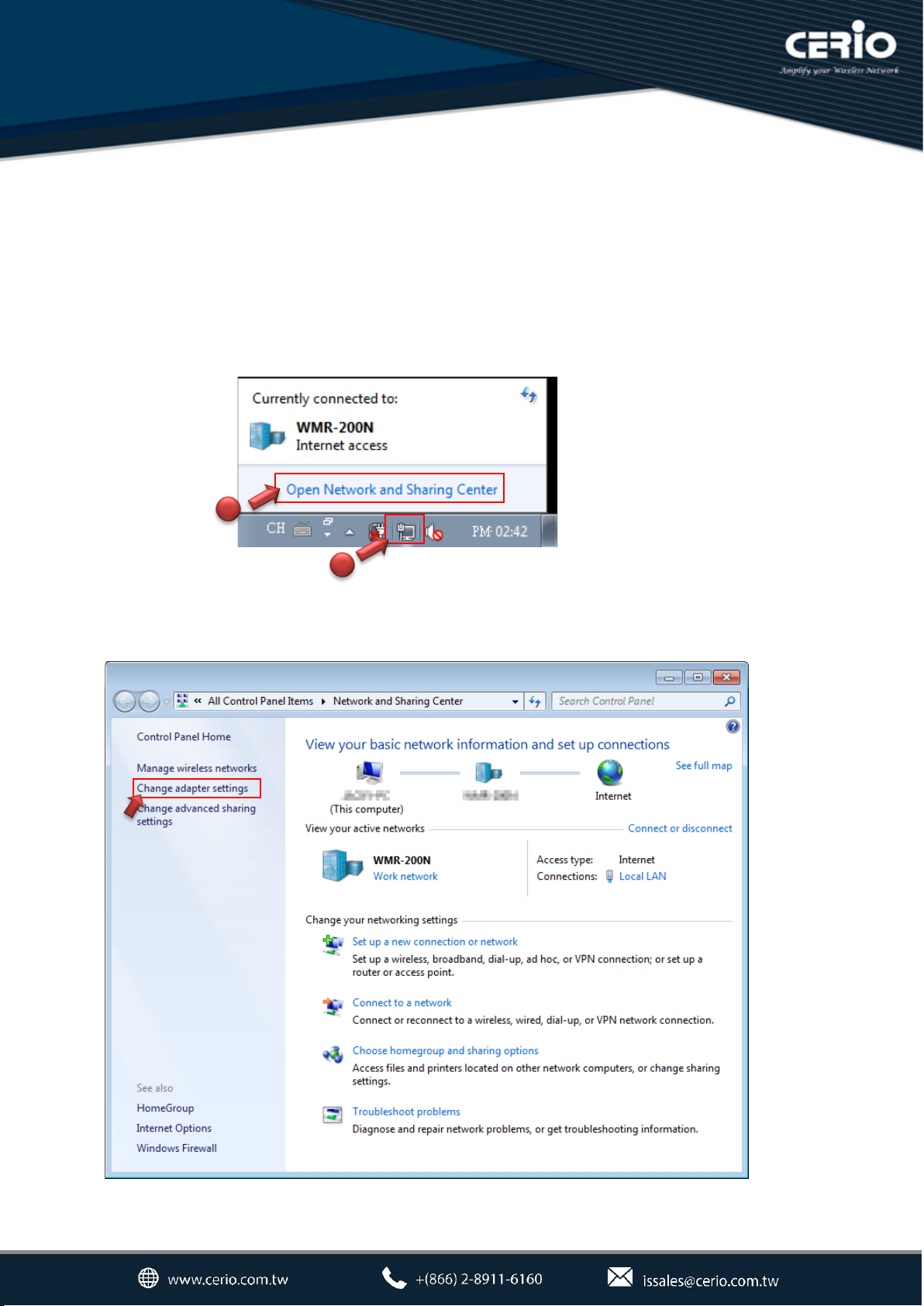

Please click on the computer icon in the bottom right window, and click “Open Network
and Sharing Center”
Step 2 :
In the Network and Sharing Center page, Please click on the left side of “Change adapter
setting” button
1
2

V1.0a
Step 3 :

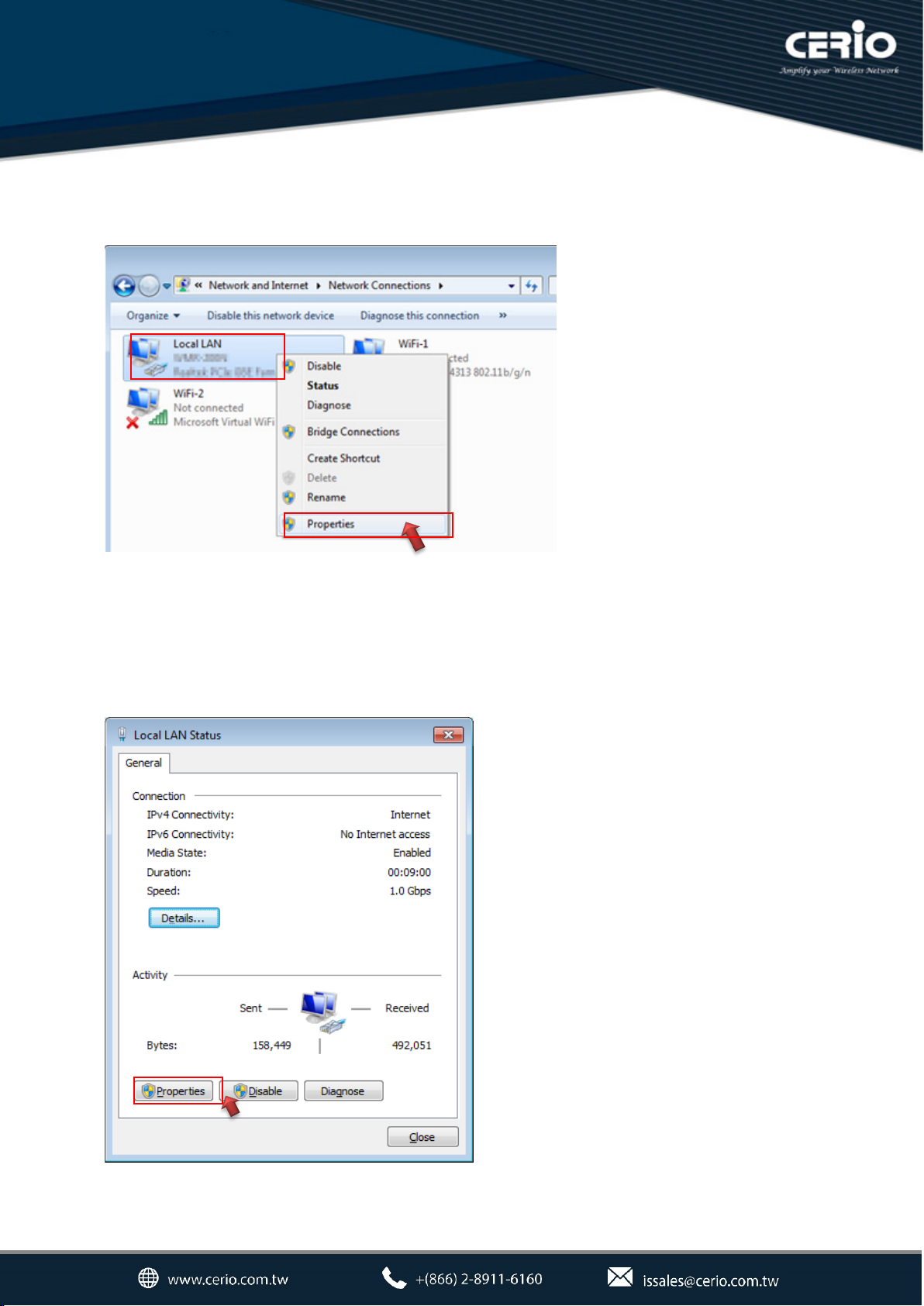

In “Change adapter setting” Page. Please find Local LAN and Click the right button on
the mouse and Click “Properties”
Step 4 :
In “Properties” page, please Click “Properties” button to TCP/IP setting

V1.0a
Step 5 :

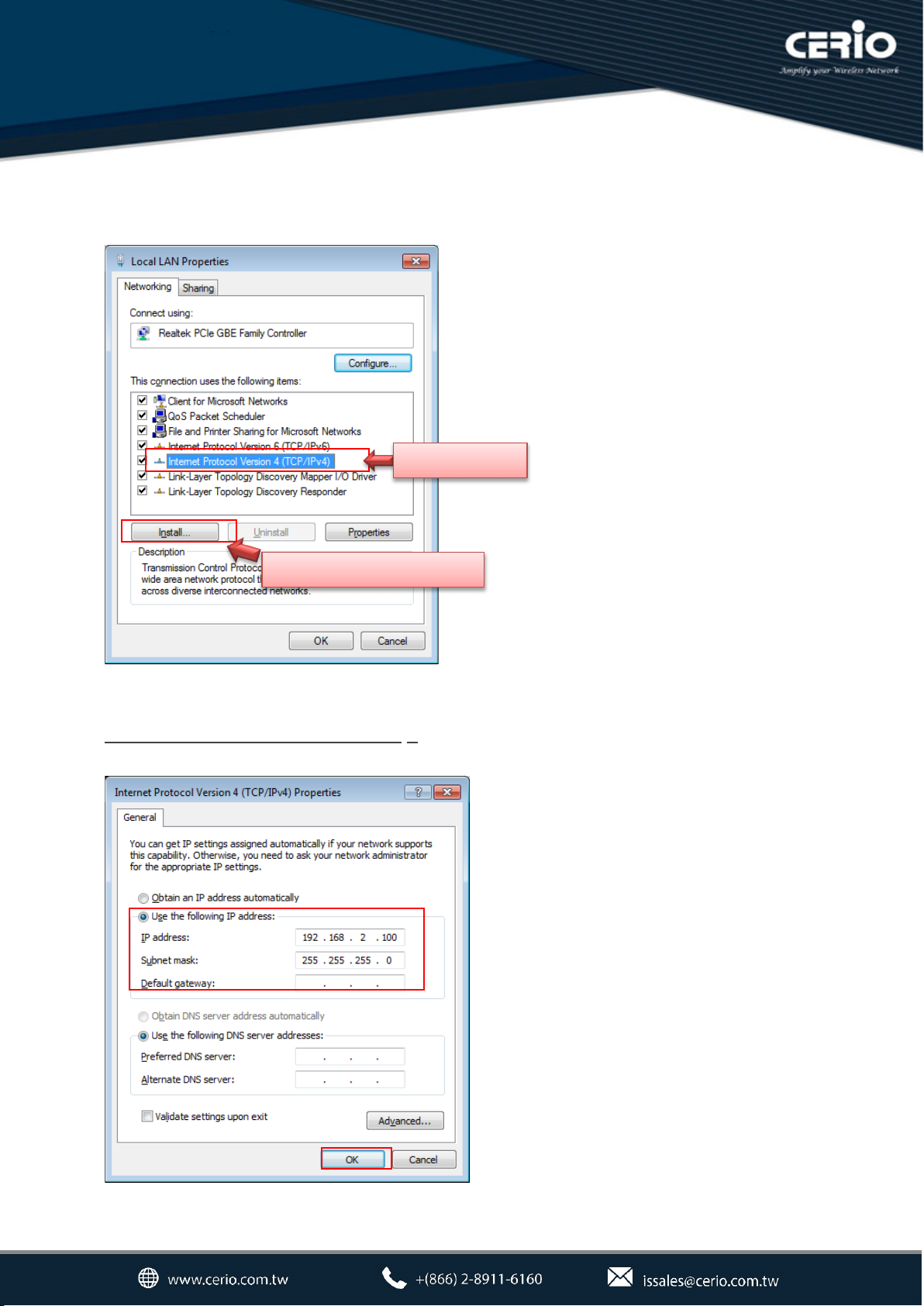

In Properties page to setting IP address, please find “Internet Protocol Version 4
(TCP/IPv4)” and double click or click “Install” button.
Step 6 :
Select “Use the following IP address”, and fix in IP Address : 192.168.2.#
ex. The # is any number by 1 to 253 / Subnet mask : 255.255.255.0
And Click "OK" to complete the fixed computer IP setting
Double click
Or click Install button

V1.0a
Please Open Web Browser
Without a valid certificate, users may encounter the following problem in IE7 when they try
to access system's WMI (https://192.168.2.254). There will be a “Certificate Error”,
because the browser treats system as an illegal website.
1. Login IW-100 A1 Web Page
Launch Web Browser

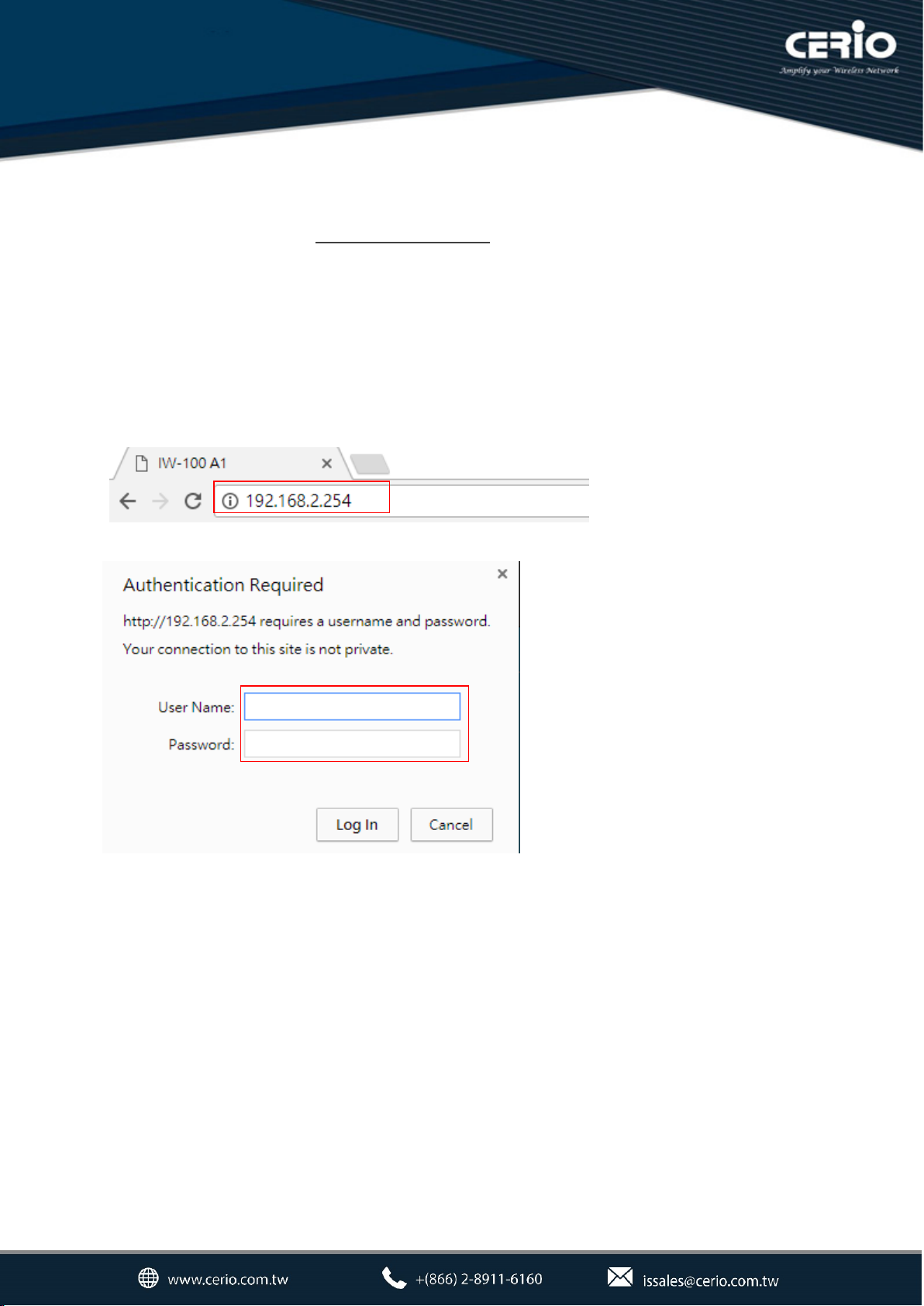

Launch as web browser to access the web management interface of system by entering the
default IP Address, http://192.168.2.254, in the URL field, and then press Enter.
System Login
Please use default Users name: “root” and default password “default” to login.
Please refer to the user manual for other details setting
