Lyman Pro 505 User instructions

43
SETTING UP YOUR LYMAN
PRECISION RELOADING SCALE
The Lyman Scale sets up quickly and easily. First remove the base casting from the carton.
Now grasp the scale beam and move the large poise (or balance weight) to the right to the
zero setting. Rotate the scale beam until the magnetic damper plate (copper colored) is in the
straight-up position. Align the beam bearings on the base casting and rotate the beam 90
degrees into position so that the knife edge is resting on the vee block bearing.
Next, remove the lower pan from the carton and hook it to the pan hook wire on the small
poise end of the beam. The pan arm’s “elbow” should face inward, towards the base casting.
The final step in assembly is placing the dump pan in the lower pan. The scale is now ready
to “zero”.
Zeroing (Calibrating)
Set the assembled scale on a secure level surface, free from drafts or vibration. Move both
poise (balance weights) to the “zero” position and adjust the leveling screw under the left end
of the base casting until the beam pointer rests on “zero”. Rezero the scale every time you use
or move it.
Weighing
To weigh a bullet, shot or powder charge, place the weight in the dump pan, making cer-
tain the moulding of the lower pan fits the dump pan properly. Move the large poise to the
left to the first notch which causes the beam pointer to drop below zero, then move the large
poise back one notch. Now move the small poise to the left until the beam pointer indicates
zero. This is your reading.
Weight Measurement Specifications
Pro 500, M-500 Scale
Both the Pro 500 and the M-500 Scale (formerly D-7) have a capacity of 505 grains, 500
from the large poise scale and five (5) from the small poise scale. They are accurate to plus or
minus 1/10 of a grain and have been carefully calibrated at the factory. Measurements on the
small poise run from 0-5 grains marked in 10th grain increments.
Pro 505 Scale Lyman M-500 Scale

44
Precision Reloading Scale (continued)
Lyman M-1000 and Pro 1000 Scales
M-1000 and Pro 1000 Scales
The M-1000 and Pro 1000 scale has a capacity of 1005 grains; 1000 from the large poise
scale, when the 500 counterweight is placed on a special pin located at the extreme left end of
the beam, and five grains from the small poise scale. Before using this feature, be certain the
scale has been properly zeroed (see Zeroing). With the 500 counterweight in place on the pin,
add 500 grains to the actual scale readings. Please note that the 500 counterweight does not
weigh 500 grains.
Model 500 Metric Scale
The Model 500 Metric scale has a capacity of 32.75 grams, 32.50 from the large poise scale
and .25 from the small poise scale. It is accurate to plus or minus .005 gram and has been
carefully calibrated at the factory. Measurements on the small poise scale represent grams
from 0- .25 marked in .005 gram increments. Measurements on the large poise scale run from
0-32.50 grams marked in .25 increments.
Reading the Measurements on the Pro 500, M-500 (D-7) or M-1000 and
Pro 1000 Scales
To read the measurement, first look at the large poise scale. If, for instance, the poise is
directly over the 100 mark, you will know that it is reading 100 grains. If it is one scribe mark
to the left, the reading will be 105 grains; two scribe marks to left, and the reading will be 110
grains, etc. To this measurement you must add the reading from the small poise scale. If, for
instance, the small poise is positioned over the one and the large poise is over 100, the read-
ing will be 101 (add the small poise scale reading to the large poise scale reading for your
total measurement). If the large poise scale reads 105 grains and the small poise scale reads
2.2 grains, you know the total measurement is 107.2 grains.
500 WEIGHT PIN
500 WEIGHT
BEARINGS
BEAM
LOWER PAN
DUMP PAN
LEVELING SCREW BASE CASTING
SMALL POISE
LARGE POISE

45
Precision Reloading Scale (continued)
An Example

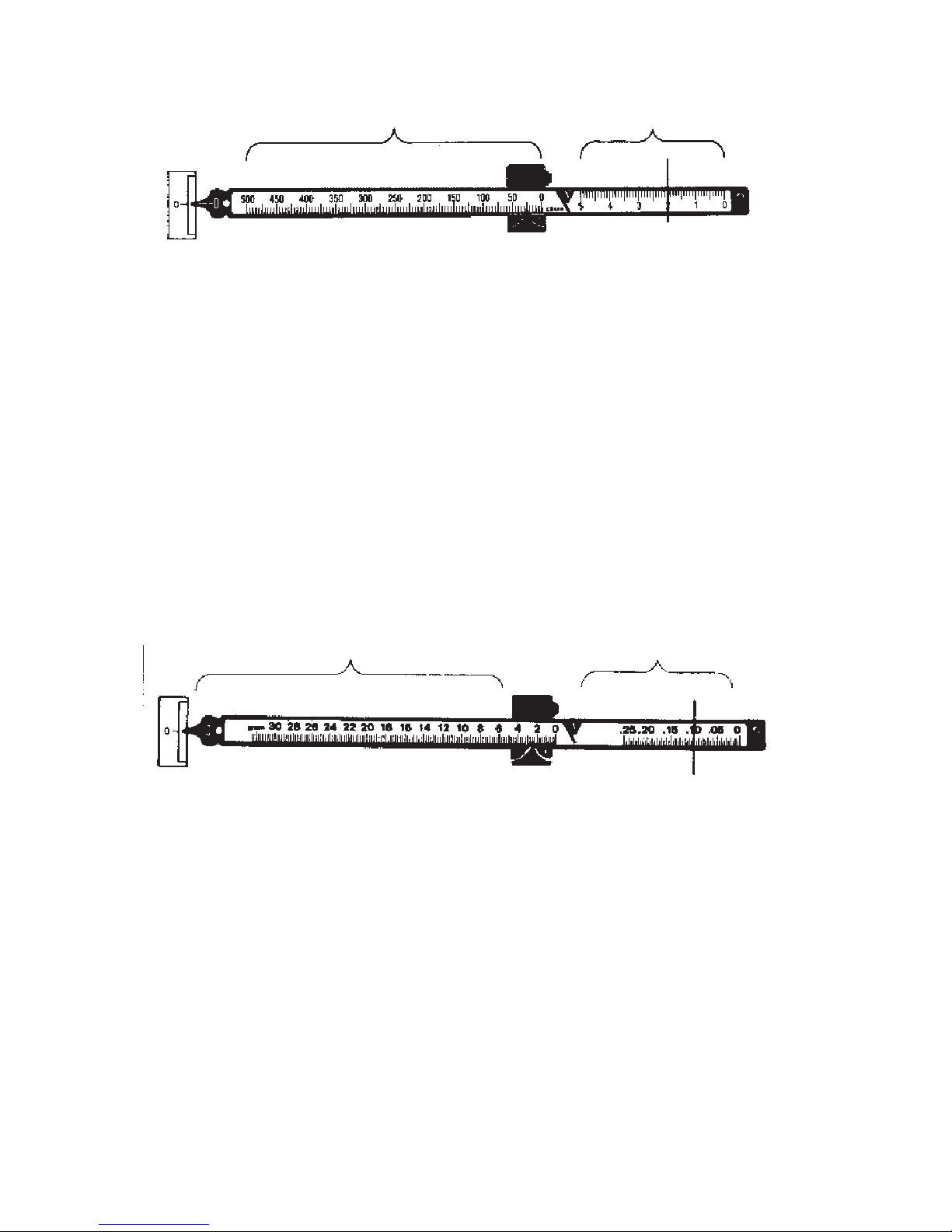

Figure 16 shows a setting of 27.0 grains. If you wanted to decrease this 1/10 grain, you
would simply move the small poise one notch to the right.
Reading the Measurements on the M-500 Metric scale
To read the measurement, first look at the large poise scale. If, for instance, the poise is
directly over the 6 mark, you will know that it is reading 6 grams. If it is one scribe mark to
the left, the reading will be 6.25 grams, two scribe marks to the left, and the reading will be
6.50 grams, etc. To this measurement, you must add the reading from the small poise scale.
If, for instance, the small poise is positioned over the .10 and the large poise is over 6, the
reading will be 6. 10 grams (add the small poise scale reading to the large poise scale reading
for your total measurement). If the large poise scale reads 6.25 grams and the small poise
scale reads .15 grains, you know the total measurement is 6.40 grams.
An Example
Figure 17 shows a setting of 2.6 grams. If you wanted to decrease this .005 grams, you
would simply move the small poise one notch to the right.
Useful Scale Information
For precise powder measurements, use the Lyman #55 Powder Measure and the Lyman
Powder Dribbler in conjunction with your Scale as follows:
Adjust the Lyman #55 Powder Measure to throw a slightly low charge of powder into the
dump pan of your Lyman Scale. Return the charged dump pan to your scale, then use the
Powder Dribbler to add the final granules of powder to meet your desired preset weight.
Lyman Archer’s Scale
Your Archer’s scale has a specially designed pan which will allow you to weigh your
arrow shaft when balanced properly in the pan. It should be noted that some heavier arrows
Each Graduation On This Side
is Equal to 5 FULL GRAINS Each Graduation On This Side
is Equal to 1/10 GRAIN
Each Graduation On This Side
is Equal to .005 Grams
Each Graduation On This Side
is Equal to .25 Grams
Figure 16
Figure 17

46
will have to be weighed independently from the broadhead or field point for a total weight.
Please note that an Archery Scale cannot be converted to a Powder Scale
For weighing instructions, please refer to the Zeroing (calibrating) and Weighing section.
Care of Your Lyman Scale
Move the large poise about halfway down the beam when transporting or storing the scale
to avoid possible damage to the bearings.
Cover the scale when not in use, to prevent accumulation of dust on the bearings. DO NOT
allow any oil to accumulate on the bearings as this will affect accuracy and sensitivity of the
scale.
CAUTION
Static electricity will affect the accuracy of reloading scales. DO NOT place Styrofoam
packing materials closer than 6" to the scale and periodically re-check Zero calibration during
use.
DO NOT remove, sell, or exchange any part of the “balance unit” as it is not safe to assume
that these parts are interchangeable with any other scale. These parts are balanced-in together.
If any are misplaced or broken, return to Lyman complete, and we will replace the part and
re-balance the scale with a minimal charge.
Conversion Table Ounces to Grains
OUNCES GRAINS OUNCES GRAINS OUNCES GRAINS
1⁄2 218.8 1-1⁄8492.2 1-3⁄4765.6
9⁄16 246.1 1-3⁄16 519.5 1-13⁄16 793.0
5⁄8273.4 1-1⁄4546.9 1-7⁄8820.3
11⁄16 300.8 1-5⁄16 574.2 1-15⁄16 847.7
3⁄4328.1 1-3⁄8601.6 2 875.0
13⁄16 355.5 1-7⁄16 628.9 2-1⁄16 902.3
7⁄8382.8 1-1⁄2656.3 2-1⁄8929.7
15⁄16 410.2 1-9⁄16 683.6 2-3⁄16 957.0
1 437.5 1-5⁄8710.9 2-1⁄4984.4
1-1⁄16 464.8 1-11⁄16 738.3
