LynTec RPC Sereis User manual

139-0716-00
CONTACT CLOSURE SETUP
QUICK START GUIDE
RPC
SERIES PANELS
THE INDUSTRY’S MOST COMPLETE SELF-CONTAINED
ELECTRICAL CONTROL PANEL
1
2
3
4
5
6
Left Bus
IN
24V
OUT
Digital I/O
NO
C
NC
+–
NO
C
NC
ON
OFF
EO
EL
Using a standard LynTec SS-2 Switch Set with illuminated ON switch.
(For other types of switches, consult chapter 4 of the instruction bulletin for
wiring diagrams.)
Confirm that RPC panel and any secondary panels are connected to the controller as indicated in
the “RPC Master/Secondary Quick Start Guide” bulletin.
Complete all steps in the “RPC Quick Start Guide”
1)
2)
3) Wire the ON switch to a digital I/O port on the left edge of the Controller board as follows:
A. Connect the 24VDC Common (center terminal of the I/O port) to the C pin of the ON switch.
B. Connect the Input terminal (arrow pointing towards header) to the NO pin of the ON switch.
C. Connect the Output terminal (arrow pointing away from header) to the – pin of the ON switch.
D. Connect a jumper between the C pin and the + pin of the ON switch.
Wire the OFF switch to the next consecutive digital I/O port on the left edge of the Controller
board as follows:
A. Connect the 24VDC Common terminal to the C pin of the OFF switch.
B. Connect the Input terminal to the NO pin of the OFF switch
4)
Note: Ports 1 & 6 are reserved
for emergency functions

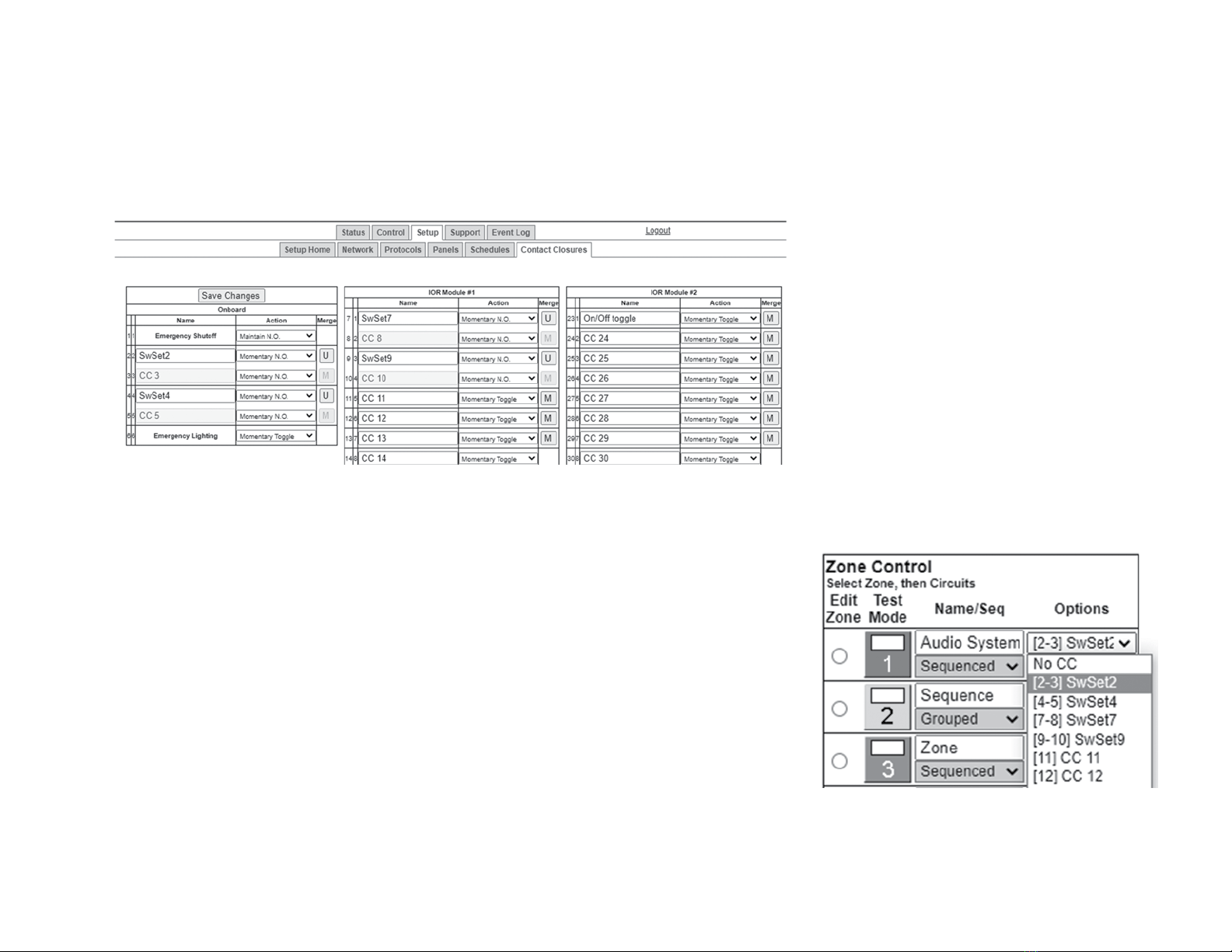

5) On the RPC web page, go to the contact closure page. (Setup Contact Closures)

6)
7)
Configure the digital I/O port:
A. Rename each contact closure as desired
B. Click the M (merge) button at the right side of the first of the two ports used. The name box and M button in the second port
should turn gray and the Action selections should default to Momentary NO (normally open).
C. Ensure that both of the Action selections for both ports are set to Momentary NO.
D. Click the “Save Changes” button at the top if the Onboard I/O box.
Assign the contact closure to a zone in the “Panel” (SETUP==>PANELS) screen:
A. In the ZONE CONTROL box under “CC/Schedule”, choose which contact closure to assign to any zone using the drop down box.
B. Enable the zone by selecting Sequenced or Grouped operation under “Name/Seq”.
C. Save changes.
Verify proper operation of your Switch Set:
A. Press the ON switch. Breakers in the selected zone should immediately begin actuating.
B. The ON indicator should flash steadily until all of the breakers are in the on state.
C. When the zone has completed, the ON indicator should remain constantly lit.
D. Press the OFF switch. Breakers in the selected zone should immediately begin
actuating.
E. The ON indicator should flash steadily until all of the breakers are in the off state.
F. When the zone has completed, the ON indicator should remain constantly dark.
Note: When using two illuminate pushbuttons the OFF indicator will remain constantly lit when the zone
has completed. (OFF indicator will extinguish immediately when ON is pressed again.)
