LZR FLATSCAN SW User manual

75.5947.04 LZR-FLATSCAN SW 20200612 Page 1 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 1 of 16
LZR ®-FLATSCANSW
EN
SAFETY SENSOR FOR FULL- AND LOW-ENERGY
AUTOMATIC SWING DOORS
Visit website for
available languages
of this document.

Page 2 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 2 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
x
1. cover
2. push button
3. DIP switch
4. primary-secondary connector
5. main connector
6. angle adjustment screw
7. plug
8. clamp
9. cap and screws
10. door loop
11. lock screw
12. laser head
13. laser window
14. laser window protector
15. positioning tabs
16. mounting base
17. primary-secondary cable
18. power cable
Relay 2 ErrorRelay 1
LED flashes LED flashes
slowly LED is off
LED flashes
x times
LED flashes
red/green
LED flashes
quickly
Learn in progress
Exit the zone and wait
DESCRIPTION
LED SIGNALS

75.5947.04 LZR-FLATSCAN SW 20200612 Page 3 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 3 of 16
LED is off

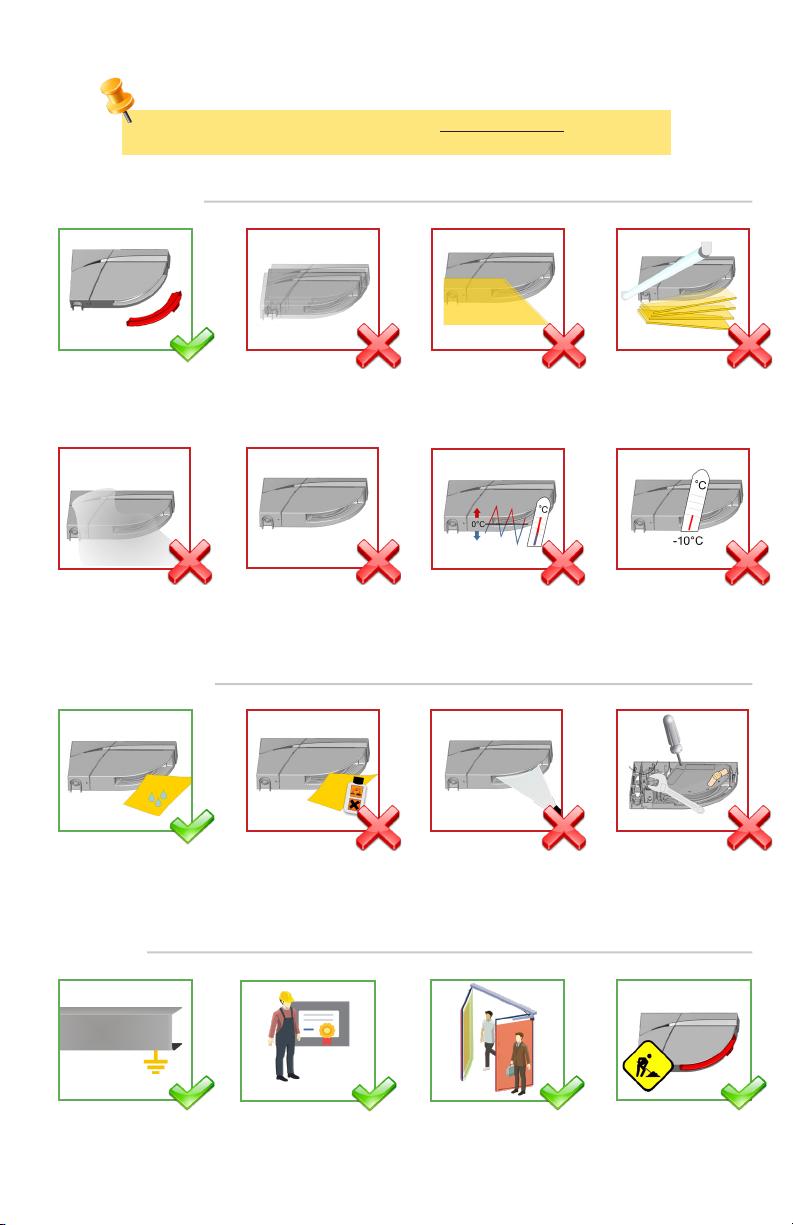

INSTALLATION TIPS
MAINTENANCE TIPS
SAFETY TIPS
When needed, wipe the
laser window only with
a soft, clean and damp
microfiber cloth.
Do not use dry or dirty
towels or aggressive
products to clean the
laser window.
Only trained and
qualified personnel are
recommended to install
and set up the sensor.
The warranty is invalid if
unauthorized repairs are
made or attempted by
unauthorized personnel.
Always test for proper
operation before leaving
the premises.
The door control unit
and the header cover
profile must be correctly
grounded.
Avoid moving objects
and light sources in the
detection field.
Do not cover the laser
window.
Avoid vibrations.
Avoid the presence of
smoke and fog in the
detection field.
Avoid condensation. Avoid exposure to
sudden and extreme
temperature changes.
Ensure power to the
sensor in areas where the
temperature can reach
below -10 °C.
Avoid direct exposure to
high-pressure cleaning.
Remove the laser window
protection before teach-in
and commissioning.
Do not remove the laser
window protection if
building works are still
in progress on site.
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SET-UP
THIS SENSOR IS POWERED BY DC VOLTAGE ONLY.
SEE PAGE 6 FOR INFORMATION REGARDING USE OF A RECTIFIER.

Page 4 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 4 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
1
1 2
3
5
4
6
Slide the mounting base off of the sensor. Position the mounting base on the door. Use the
positioning tabs to align the base correctly.
Mark the pilot holes on the door. You can also
use the inner surface of the mounting base to
fasten the screws.
Using a wire cutter, remove the positioning tabs
from the mounting base.
Fasten the 3 screws using a screwdriver.
Drill pilot holes 1⁄8" for sensor mounting.
For applications requiring a spacer, first mount spacer to door, and then mount mounting base to spacer.
When mounting the mounting base, ensure the sensor will not interfere with door movement.
If the sensor isn’t correctly positioned, it could be damaged during door opening/closing.
Full-energy applications require a sensor on each side of the door in order to comply with ANSI 156.10.
Low-energy applications may use only one sensor on the approach side.
MOUNTING

75.5947.04 LZR-FLATSCAN SW 20200612 Page 5 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 5 of 16
1
8
10
7
9
1211
«click»
1413
Drill a 5⁄16" pass-thru hole in the mounting base
and door. Sand down any rough edges.
Pass the primary/secondary cable through the
hole and then position the cable in the notch of
the mounting base and secure.
Remove the sensor cover by inserting your finger
and then pull firmly towards you.
Pass the cable through the hole on the back of
the sensor and secure the sensor to the mounting
base by sliding it downward.
Connect the black plug to the black connector. Ensure all wires are secured within the notch to
avoid damage from the cover.
Use a plug to close the secondary sensor. Secure the lock screw to avoid vibrations during
door movement.
If installing only one sensor (low-energy, approach side), skip steps 7, 8, 10, 11, 12, and 13.
MOUNTING (cont.)

Page 6 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 6 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
2
1
3
5
7
2
4
6

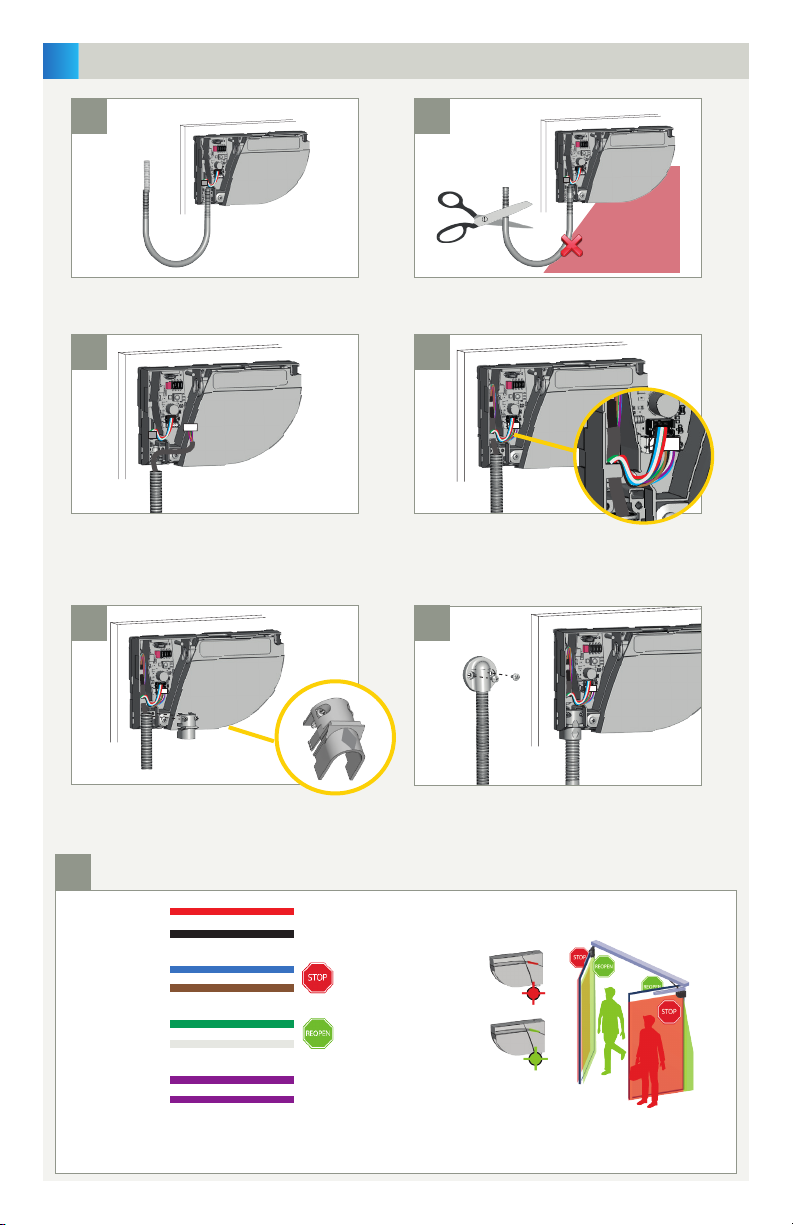

Cut the power cable to the correct length, strip the 8 wires, and connect all wires as
indicated above.
Determine the appropriate length for the door
loop.
Cut excess door loop to avoid obstructions.
Pass power cable through door loop and connect
white plug to white connector. Ensure that the
loop does not interfere with the sensor view.
Create a loop with the wires of the power cable
and pass them through the notch as indicated.
Use the other part of the cable to block the
wires.
Secure the door loop to the sensor, using the
clamp. Secure the 2 screws to avoid pulling out
the cable.
Tighten the other side of the door loop using the
cable cap and pass through the remaining length
of the power cable towards the door controller.
REMOVE WINDOW
PROTECTOR
WIRING
LZR-FLATSCAN SW
+
-
RED
BLACK
BLUE
BROWN
GREEN
WHITE
PURPLE
PURPLE
** Output status when sensor is operational (can be NO or NC)
* If only VAC power is available, a 12V transformer paired with a rectifier must be used.
Do not use a 24V transformer and rectifier as this will cause damage to the product.
POWER SUPPLY
TEST
STOP IMPULSE
Opening side of the door
REOPENING IMPULSE
Closing side of the door
RELAY 1
RELAY 2
**
**
12-24 VDC*
COM
NO/NC
COM
NO/NC

75.5947.04 LZR-FLATSCAN SW 20200612 Page 7 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 7 of 16
3
4
ON
1 2 3 4
ON
1 2 3 4 R1R1
R2
R2
R2 R2
R2
R2
< 1 sec.
1. 4.
After changing a DIP switch, the orange LED flashes.
A LONG push on the push button confirms the settings.
Afterwards, a number of green flashes (x) indicates the
number of connected sensors (x).

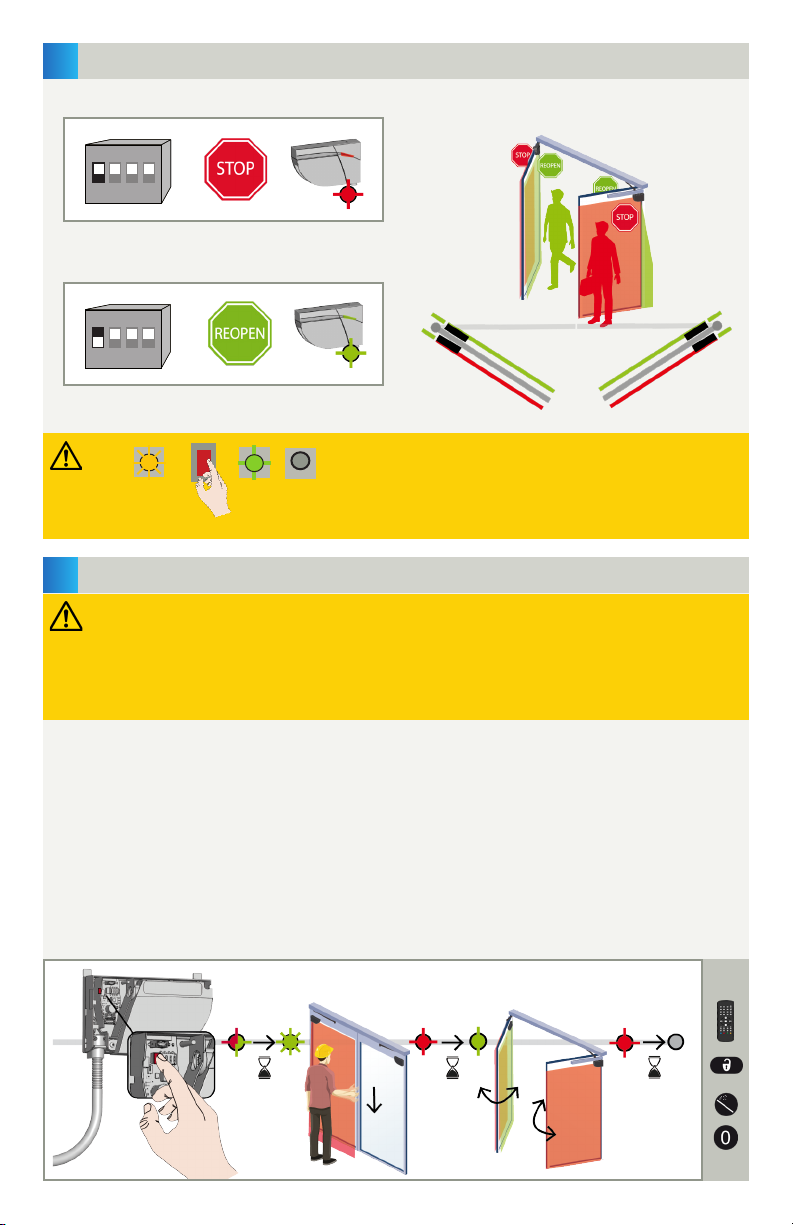

RELAY 1: STOP-impulse on swing side of door
RELAY 2: REOPENING-impulse on approach side of door
X
ORANGE OFF GREEN
> 3 sec.
1. Press the Primary sensor push-button briefly. The LED will begin quickly flashing red/green. When installing the
sensor on a pair of doors, repeat this on the second Primary sensor.
2. When both sensors flash green, position yourself in front of the door and stretch out your arm in front of you.
Make an up-and-down motion at the leading-edge to mark the limit of the detection zones. The LED will flash
red while calculating the width of the door leaves.
3. When the sensors flash green again, remove yourself from the detection field and cycle the door open to allow
the sensors to learn the environment. The sensors will flash red during the closing of the door.
4. Once the door is completely closed again and the LED is off, the teach-in is complete.
NOTE: A teach-in on the primary configures both the primary and the secondary. A teach-in on the secondary only
configures the secondary. In case the primary and secondary sensor are not aligned, first launch a teach-in on
the primary and then on the secondary.
Primary
DIP SWITCHES
TEACH-IN
ON (switch )
OFF (switch )
Before launching a teach-in, ensure the following:
• door is closed (use Service Mode if needed − see page 8)
• both relays are connected to door control and primary/secondary cable is connected between sensors
• detection field is free of environmental obstructions, objects, and people
• laser window protector is removed
• verify the relay output setting (see page 10)
2. FIELD WIDTH 3. LEARN

Page 8 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 8 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
B
A
B
A
«click»
«click»
!
5
6
Check the correct positioning of the
safety fields by walk-testing according
to ANSI 156.10 standards.
Apply the cover starting on the narrow
side. Do not hesitate to push.
To remove the cover, position a screwdriver
in the notch and pull upwards until the
cover loosens.
If necessary, adjust the tilt angle of the laser curtain by turning the tilt
angle adjustment screw (from 2° to 10°).
Service Mode deactivates all detection fields for 15 minutes and
can be useful during an installation, a mechanical learn of the door, or
maintenance work.
• To enter Service Mode, push and hold the button for at least 3
seconds. The LED will turn off.
• To exit Service Mode, push and hold again for at least 3 seconds.
Service Mode is deactivated automatically when a teach-in is launched.
SERVICE MODE
Watch our FLATSCAN SW tutorial online: bea-flatscan.com/tutorial
TESTING AND ADJUSTING
FINAL STEPS
Always launch a teach-in and test the correct positioning of the detection fields after making adjustments to
the angle, sensor position, or environment.
Verify that the sensor correctly detects based upon the ANSI 156.10 walk test. Make appropriate adjustments to the
sensor and/or door control, if necessary, to ensure that the system is ANSI-compliant.

75.5947.04 LZR-FLATSCAN SW 20200612 Page 9 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 9 of 16
ON
1 2 3 4
*
no field
no field
no field
= FACTORY VALUE
no field
A teach-in overwrites these values automatically.
A teach-in overwrites these values automatically.
* The actual dimensions depend on the
mounting height (40 in at 13 ft)
ADDITIONAL DIP SWITCH SETTINGS
ADDITIONAL REMOTE CONTROL SETTINGS
After changing a DIP switch, the orange LED flashes.
A LONG push on the push button confirms the settings.
Afterwards, a number of green flashes (x) indicates the
number of connected sensors (x).
X
ORANGE OFFGREEN
> 3 sec.
NOTES:

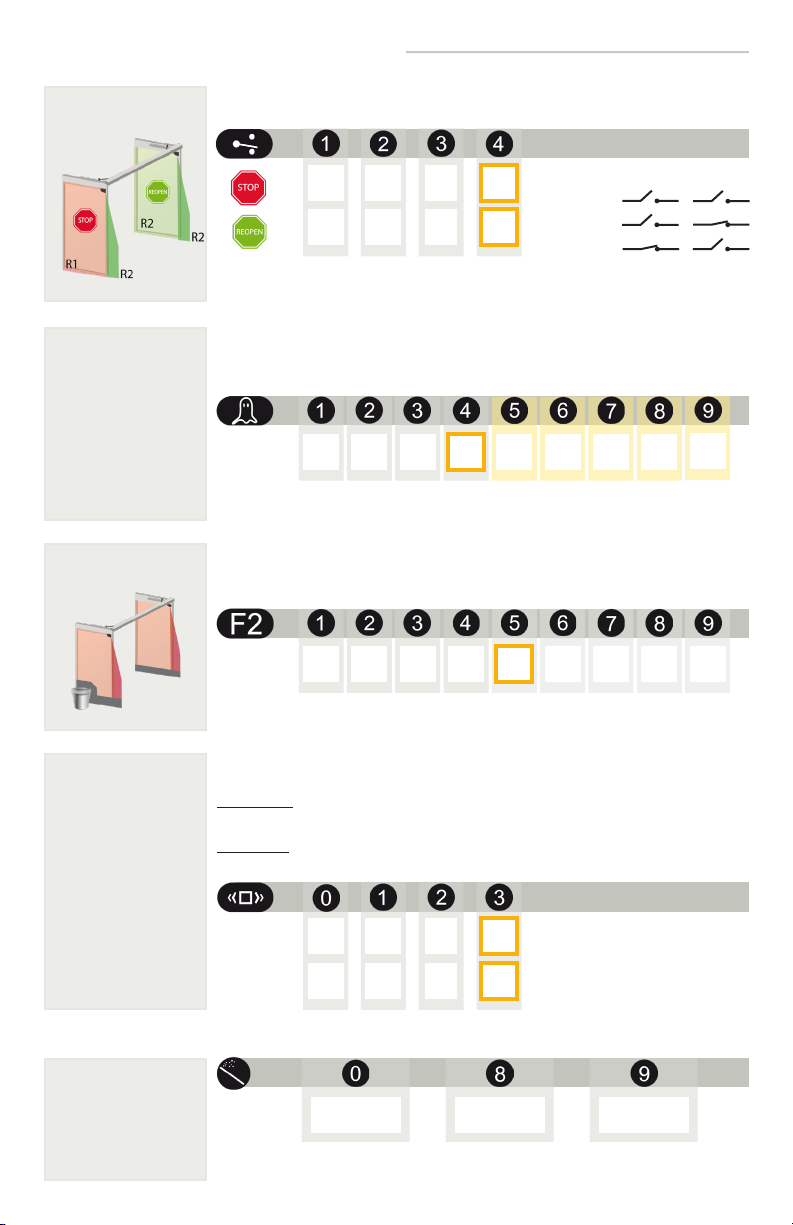

1. RELAY 1 / RELAY 2
ON OFF
DIP 2 ENVIRONMENT standard critical
Switch to CRITICAL when external disturbances are
likely to cause unwanted detections (min. obj size,
immunity and uncovered zone are increased).
DIP 3 OUTPUT
CONFIGURATION N.O./N.O.1N.C./N.C.1Settings for this DIP switch must be set on the primary sensor (i.e. the sensor connected to the door control).
DIP 4 PINCH ZONE on off Switch to OFF when the hinge area does not need to
be secured and objects can cause unwanted detections.
DIMENSIONS
DOOR LEAF SAFETY
D
C
DIMENSIONS
PINCH ZONE SAFETY
A
B
DIP 4 must be set to ON to modify settings using the remote control.
157 in
15 in
157 in
157 in

Page 10 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 10 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
R1
R2
0.75 1.5 2.25 3.0 4.0 4.75 5.5 6.25 7.0
OFF
OFF
OFF
ON
ON
OFF
ON
ON
>>>>>>>
NO = normally open
NC = normally closed
Antimasking: protective function which detects an unwanted object nearby the laser
window masking the vision field.
Background: reference point in the detection field of the sensor. If no background is
present, switch to off.
Increase to filter out external disturbances.
Increase in case of environmental obstructions.
The reaction time increases significantly
between value 5 and 9.
Measured in inches, in specific conditions and dependent on application and installation.
NO POWER
NO DETECTION
DETECTION
OUTPUT
CONFIGURATION
ADDITIONAL REMOTE CONTROL SETTINGS
DIP 2 must be set to ON to modify settings using the remote control.
DIP 2 must be set to ON to modify settings using the remote control.
DIP 3 must be set to ON to modify settings using the remote control.
low high
teach-in
see page 7 factory reset of
all values
factory reset of all values
except field dimensions
and output configurations
full reset partial reset
IMMUNITY FILTER
UNCOVERED ZONE
ANTIMASKING &
BACKGROUND
GENERAL
NO NC
NO
NC
NC
NO
NC
NC
NO
NO

75.5947.04 LZR-FLATSCAN SW 20200612 Page 11 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 11 of 16
2x 3x
1x
x
5x
1x
The access code is recommended for sensors installed close to each other.
After unlocking, the red LED
flashes and the sensor can be
adjusted by remote control.
If the red LED flashes quickly after unlocking, you need
to enter an access code from 1 to 4 digits.
If you do not know the access code, cycle the power.
During 1 minute, you can access the sensor without
introducing any access code.
= field width: 2.35 m
To end an adjustment
session, always lock the
sensor.
Enter the existing code
x = number of flashes = value of the parameter
full reset partial reset
It is recommended to use a different access code for each sensor in order to avoid changing settings on
both sensors at the same time.
HOW TO USE THE REMOTE CONTROL
SAVING AN ACCESS CODE
DELETING AN ACCESS CODE
CHECKING A VALUE
RESTORING TO FACTORY VALUES
ADJUSTING ONE OR MORE PARAMETERS

Page 12 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 12 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
16°
90°
16°
max. 13 ft
max. 13 ft
max. 13 ft
90° 16°
4 in
Determine if the problem is related to the sensor or the door controller by activating Service Mode (no
safety) and then launch a door cycle. If the door cycle is completed successfully, check the sensor. If not,
verify the door controller or wiring.
TROUBLESHOOTING
The RED or GREEN LED
is ON sporadically or
permanently and the door
does not react
as expected.
Bad teach-in Launch a new teach-in (closed door).
Unwanted detections
(due to environment or
external conditions)
Make sure the flexible cable does not
cause detections.
Verify if the laser window is dirty and
clean it carefully with a damp and
clean microfibre cloth if necessary
(attention: the surface of the laser
window is delicate)
Switch DIP 2 to off (critical
environment).
The sensor does not react
at power-on.
Inverted power supply Check wiring (red +, black -).
Faulty cable Replace cable
Faulty sensor Replace sensor
The sensor does not react
when powered.
Test error Check wiring between purple wires.
The service mode is
activated.
Press the push button for at least 3
seconds to exit the service mode.
It is not possible to adjust
a setting by remote
control.
Wrong DIP switch position. Adjust the required DIP switches
to ON.
PINCH ZONE SAFETY
Typ. object size: 3⁄4inch at 13 feet
DOOR LEAF SAFETY
Typ. object size: 4 inches at 13 feet
UNCOVERED ZONE
adjustable by remote control
factory value: 4 inches
See the chart in Appendix 1 for
door height/width combinations
that provide full coverage of the
face of the door.
DETECTION FIELDS

75.5947.04 LZR-FLATSCAN SW 20200612 Page 13 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 13 of 16
2
1
3
4
5
6
The RED LED flashes
quickly when unlocked.
The sensor is protected by a
password.
Enter the right password. If you forgot
the code, cut and restore the power
supply to access the sensor without
entering a password within 1 minute.
The ORANGE LED is on
permanently.
The sensor encounters a memory
problem.
Replace sensor.
The ORANGE LED flashes
quickly.
DIP switch setting awaiting
confirmation.
Corfirm the DIP switch setting: long
push on the push button.
The ORANGE LED flashes
1 x every 3 seconds.
The sensor signals an
internal fault.
Cut and restore power supply.
If orange LED flashes again, replace
sensor.
The ORANGE LED flashes
2 x every 3 seconds.
Power supply is out of limit. Check power supply (voltage).
Reduce the cable length or change
cable.
Internal temperature is too high. Protect the sensor from any heat source
(sun, hot air...)
The ORANGE LED flashes
3 x every 3 seconds.
Communication error between
sensors
Check wiring between primary and
secondary sensors.
Check wiring between interface card
and laser head.
The ORANGE LED flashes
4 x every 3 seconds.
The sensor does not see its
background.
Using the remote control, set the
background to 0 (off, deactivates
background).
Something close to the sensor is
masking
part of the detection field.
Make sure the laser window is not
scratched.
If it is, replace sensor.
Remove all masking elements (insects,
spider web, door loop, window
protection).
Verify if the laser window is dirty and
clean it carefully with a damp and clean
microfiber cloth if necessary (attention:
the surface of the laser window is
delicate)
Switch antimasking setting to off
(attention: no conformity to DIN 18650
or EN 16005).
The ORANGE LED flashes
5 x every 3 seconds.
Teach-in error Check whether all teach-in requirements
are fulfilled (see page 7) and launch a
new teach-in (closed door).
Adjust the tilt angle of the laser curtain
and launch a new teach-in (closed
door).
Permanent faulty measurements
of door position.
Launch a new teach-in (closed door).
If orange LED flashes again, contact
BEA.
The ORANGE LED flashes
6 x every 3 seconds.
Sporadic faulty measurements of
door position.
Clear field and wait until the door
closes.
If the door does not close, cut power
supply and restore it once the door is
fully closed.
Launch a new teach-in (closed door).
PINCH ZONE SAFETY
Typ. object size: 3⁄4inch at 13 feet
TROUBLESHOOTING (cont.)

Page 14 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 14 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
TECHNICAL SPECIFICATIONS
Technology: LASER scanner, time-of-flight measurement
Detection mode: Presence
Max. detection range: 13’ (diagonal) with reflectivity of 2%
(i.e. at W = 5’ max. H = 12’)
Opening angle: Door leaf safety: 90°
Pinch zone safety: 16°
Angular resolution: Door leaf safety: 1.3°
Pinch zone safety: 0.2°
Typ. min. object size
door leaf safety:
pinch zone safety:
4" @ 13’ (in proportion to object distance, DIP 2 = ON)
3⁄4" @ 13’ (in proportion to object distance, DIP 2 = ON)
Emission characteristics
IR LASER: Wavelength 905 nm; max. output pulse power 25 W; Class 1
Supply voltage: 12 − 24 VDC ±15%
Power consumption: ≤ 2 W
Response time: Door leaf safety: max. 50 ms / Pinch zone safety: max. 90 ms
Test input: 30 VDC (max. switching voltage)
low < 1 V high > 10 V (voltage threshold)
Output:
max. switching voltage:
max. switching current:
2 electronic relays (galvanic isolation - polarity free)
42 VAC/VDC
100 mA
LED signals: Red = swing side detection
Green = approach side detection
Yellow = error
Dimensions: 5 1⁄2" (L) × 3 1⁄3" (H) × 1" (D) ( mounting bracket + 1⁄4")
Material/Color: PC/ASA / Black - Aluminium - White
Tilt angles: 2° – 10° (without mounting bracket)
Protection degree: IP54 (EN 60529)
Temperature range: -22 − 140 °F (if powered)
Humidity: 0 − 95% non-condensing
Vibrations: < 2 G
Min. door leaf speed: 2°/sec
Norm conformity: ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; IEC 60950-1;
IEC 61000-6-2; IEC 61000-6-3; IEC 62061 SIL 2
Specifications are subject to change without prior notice.
All values measured in specific conditions.

75.5947.04 LZR-FLATSCAN SW 20200612 Page 15 of 1675.5947.04 LZR-FLATSCAN SW 20200612 Page 15 of 16
APPENDIX 1: DOOR HEIGHT/WIDTH COMBINATIONS
DOOR WIDTH (feet)
DOOR HEIGHT (feet)
1 1.5 2 2.5 33.5 44.5 55.5 66.5 77. 5 88.5 99.5 10 10.5 11 11.5 12 12.5 13
11.41 1.80 2.24 2.69 3.16 3.64 4.12 4.61 5.10 5.59 6.08 6.58 7. 07 7.57 8.06 8.56 9.06 9.55 10.05 10.55 11.05 11. 54 12.04 12.54 13.04
1.5 1.80 2.12 2.50 2.92 3.35 3.81 4.27 4.74 5.22 5.70 6.18 6.67 7.16 7. 65 8.14 8.63 9.12 9.62 10.11 10.61 11.10 11. 60 12.09 12.59 13.09
22.24 2.50 2.83 3.20 3.61 4.03 4.47 4.92 5.39 5.85 6.32 6.80 7. 28 7.76 8.25 8.73 9.22 9.71 10.20 10.69 11.18 11.67 12.17 12.66 13.15
2.5 2.69 2.92 3.20 3.54 3.91 4.30 4.72 5.15 5.59 6.04 6.50 6.96 7. 43 7.91 8.38 8.86 9.34 9.82 10.31 10.79 11.2 8 11.77 12.26 12.75 13.24
33.16 3.35 3.61 3.91 4.24 4.61 5.00 5.41 5.83 6.26 6.71 7.16 7.62 8.08 8.54 9.01 9.49 9.96 10.44 10.92 11.40 11. 88 12.37 12.85 13.34
3.5 3.64 3.81 4.03 4.30 4.61 4.95 5.32 5.70 6.10 6.52 6.95 7.38 7.83 8.28 8.73 9.19 9.66 10.12 10.59 11. 07 11.5 4 12.02 12.50 12.98 13.46
44.12 4.27 4.47 4.72 5.00 5.32 5.66 6.02 6.40 6.80 7.21 7.63 8.06 8.50 8.94 9.39 9.85 10.31 10.77 11. 24 11.70 12.18 12.65 13.12 13.60
4.5 4.61 4.74 4.92 5.15 5.41 5.70 6.02 6.36 6.73 7.11 7.5 0 7.91 8.32 8.75 9.18 9.62 10.06 10.51 10.97 11.42 11.8 8 12.35 12.82 13.29 13.76
55.10 5.22 5.39 5.59 5.83 6.10 6.40 6.73 7.07 7. 43 7.81 8.20 8.60 9.01 9.43 9.86 10.30 10.74 11.18 11.63 12.08 12.54 13.00 13.46 13.93
5.5 5.59 5.70 5.85 6.04 6.26 6.52 6.80 7.11 7.43 7.78 8.14 8.51 8.90 9.30 9.71 10.12 10.55 10.98 11.41 11.8 5 12.30 12.75 13.20 13.66 14.12
66.08 6.18 6.32 6.50 6.71 6.95 7.21 7.50 7.81 8 .14 8.49 8.85 9.22 9.60 10.00 10.40 10.82 11.24 11.6 6 12.09 12.53 12.97 13.42 13.87 14.32
6.5 6.58 6.67 6.80 6.96 7.16 7.3 8 7.63 7.91 8.20 8.51 8.85 9.19 9.55 9.92 10.31 10.70 11.10 11. 51 11.93 12.35 12.78 13.21 13.65 14.09 14.53
77.07 7.16 7. 28 7.43 7.62 7.83 8.06 8.32 8.60 8.90 9.22 9.55 9.90 10.26 10.63 11.01 11.4 0 11.8 0 12.21 12.62 13.04 13.46 13.89 14.33 14.76
7.5 7.57 7.65 7.76 7.91 8.08 8.28 8.50 8.75 9.01 9.30 9.60 9.92 10.26 10.61 10.97 11.3 4 11.7 2 12.10 12.50 12.90 13.31 13.73 14.15 14.58 15.01
88.06 8 .14 8.25 8.38 8.54 8.73 8.94 9.18 9.43 9.71 10.00 10.31 10.63 10.97 11. 31 11. 67 12.04 12.42 12.81 13.20 13.60 14.01 14.42 14.84 15.26
8.5 8.56 8.63 8.73 8.86 9.01 9.19 9.39 9.62 9.86 10.12 10.40 10.70 11.01 11.3 4 11.67 12.02 12.38 12.75 13.12 13.51 13.90 14.30 14.71 15.12 15.53
99.06 9.12 9.22 9.34 9.49 9.66 9.85 10.06 10.30 10.55 10.82 11.10 11.4 0 11.72 12.04 12.38 12.73 13.09 13.45 13.83 14.21 14.60 15.00 15.40 15.81
9.5 9.55 9.62 9.71 9.82 9.96 10.12 10.31 10.51 10.74 10.98 11. 24 11.51 11. 8 0 12.10 12.42 12.75 13.09 13.4 4 13.79 14.16 14.53 14.92 15.31 15.70 16.10
10 10.05 10.11 10.20 10.31 10.44 10.59 10.77 10.97 11.18 11.41 11.66 11.93 12.21 12.50 12.81 13.12 13.45 13.79 14.14 14.50 14.87 15.24 15.62 16.01 16.40
10.5 10.55 10.61 10.69 10.79 10.92 11.07 11.24 11.42 11.6 3 11.85 12.09 12.35 12.62 12.90 13.20 13.51 13.83 14.16 14.50 14.85 15.21 15.57 15.95 16.32 16.71
11 11. 05 11.10 11.18 11. 28 11.40 11. 54 11.70 11.8 8 12.08 12.30 12.53 12.78 13.04 13.31 13.60 13.90 14.21 14.53 14.87 15.21 15.56 15.91 16.28 16.65 17.03
11.5 11.5 4 11.6 0 11. 67 11.77 11.8 8 12.02 12.18 12.35 12.54 12.75 12.97 13.21 13.46 13.73 14.01 14.30 14.60 14.92 15.24 15.57 15.91 16.26 16.62 16.99 17. 36
12 12.04 12.09 12.17 12.26 12.37 12.50 12.65 12.82 13.00 13.20 13.42 13.65 13.89 14.15 14.42 14.71 15.00 15.31 15.62 15.95 16.28 16.62 16.97 17. 33 17.69
12.5 12.54 12.59 12.66 12.75 12.85 12.98 13.12 13.29 13.46 13.66 13.87 14.09 14.33 14.58 14.84 15.12 15.40 15.70 16.01 16.32 16.65 16.99 17.33 17.68 18.03
13 13.0 4 13.09 13.15 13.24 13.34 13.46 13.60 13.76 13.93 14.12 14.32 14.53 14.76 15.01 15.26 15.53 15.81 16.10 16.40 16.71 17.03 17.36 17.69 18.03 18.38
Any combination marked in red DOES NOT cover the full face of the door, and is, therefore, not recommended.

Page 16 of 16 75.5947.04 LZR-FLATSCAN SW 20200612Page 16 of 16 75.5947.04 LZR-FLATSCAN SW 20200612
©BEA | 75.5947.04 LZR-FLATSCAN SW 20200612
BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor/device; therefore,
BEA, Inc. does not guarantee any use of the sensor outside of its intended purpose.
BEA, Inc. strongly recommends that installation and service technicians be AAADM-certified for pedestrian doors, IDA-certified for doors/gates, and
factory-trained for the type of door/gate system.
Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring that the sensor
system installation is compliant with local, national, and international regulations, codes, and standards.
Once installation or service work is complete, a safety inspection of the door/gate shall be performed per the door/gate manufacturer recommendations
and/or per AAADM/ANSI/DASMA guidelines (where applicable) for best industry practices. Safety inspections must be performed during each service
call – examples of these safety inspections can be found on an AAADM safety information label (e.g. ANSI/DASMA 102, ANSI/DASMA 107).
Verify that all appropriate industry signage and warning labels are in place.
BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS
PLEASE KEEP FOR FURTHER USE – DESIGNED FOR COLOR PRINTING
Tech Support & Customer Service: 1-800-523-2462
General Tech Questions: [email protected] | Tech Docs: www.BEAsensors.com
| Original Instructions
