M-system M8BS7 User manual

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-5487 Rev.2 P. 1 / 2
INSTRUCTION MANUAL
SINGLE MOUNT BASE SOCKET MODEL M8BS7
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Base socket ..........................................................................(1)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC ±10%
■GENERAL PRECAUTIONS
• Before you remove the unit from the base socket or mount
it, turn off the power supply and input signal for safety.
■ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the installation base inside proper housing and
ventilate it.
• Do not install the base where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within 0 to 55°C (32
to 131°F) with relative humidity within 30 to 90% RH in
order to ensure adequate life span and operation.
■WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.

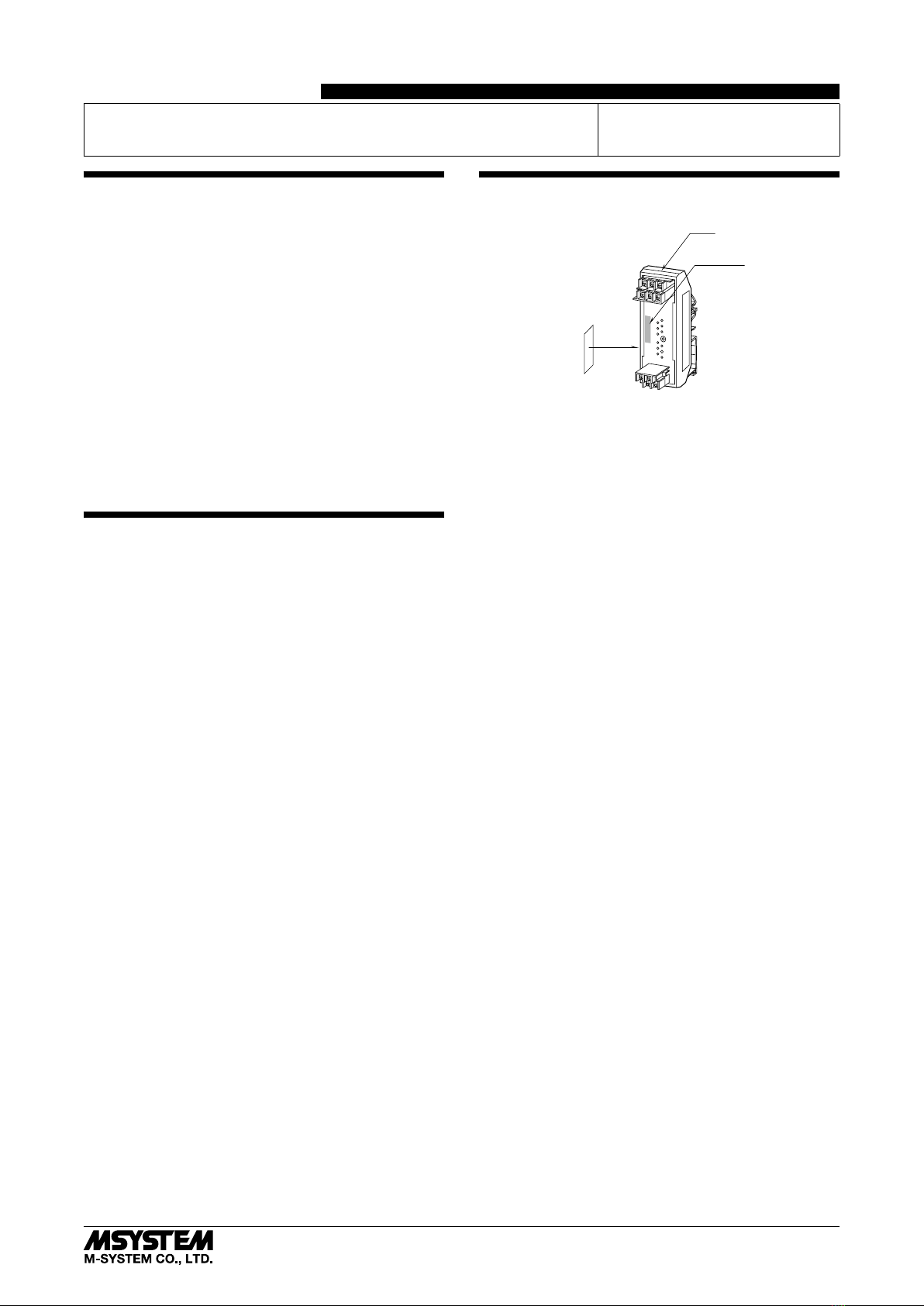

COMPONENT IDENTIFICATION
Body
Model No.
Specifications
(side)
M8BS7
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
EM-5487 Rev.2 P. 2 / 2
TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
■EXTERNAL DIMENSIONS unit: mm (inch)
A B
C D
–+
++ –
–
48 (1.89)
102 (4.02)
111 (4.37)
40 (1.57)
INPUT
• When mounting, no extra space is needed between units.
POWER INPUT 7.2 (.28)
OUTPUT 2
10–M3.5 SCREW TERMINALS
OUTPUT 1
A
B
17 (.67)
*1. Included with M8CTx.
• Adaptable DIN Rail Types
A : DIN/EN 50022 (35 x 7.5)
B : DIN/EN 50035 (G32)
CT PROTECTOR (CTR)
*1
■CONNECTION DIAGRAM
POWER
OUTPUT 1
–
+
A
B
C
D
+
–
OUTPUT 2 +
–
INPUT
TERMINALS
OUTPUT
TERMINALS
* The input and output terminals are reversed for model M8YSx, M8YCx.
Use either Output 1 or Output 2 terminal for the input.
*
*
WIRING INSTRUCTIONS
■SCREW TERMINAL
Torque: 0.8 N·m
CHECKING
1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Power input voltage: Check voltage across the power ter-
minals.
3) Installation & environment
LIGHTNING SURGE PROTECTION
M-System offers a series of lightning surge protector for
protection against induced lightning surges. Please contact
M-System to choose appropriate models.
