The RailKing Operating Car Wash is sure to add fun

and authenticity to any layout. With moving car and

figures, digital conversations, and even a smoke unit to

replicate the mist inside the car wash, this operating

building really comes alive.

As complex as the car wash seems, it is easy to run and

maintain when you follow the easy operating

instructions inside.

®

ELECTRIC TRAINS

Car Wash

Operating

2

The RailKing Car Wash is made up of three components: the car wash

building and base, the car, and the activation button. Before you place the

car wash on the layout, you must wire the car wash to the activation button

and power source. In order to connect power to each component, the six

(6) enclosed wires must be connected to the wiring posts located on the

underside of the car wash and the activation button. Wires from ports A-C

control the car operation. Wires from ports D-E control the lights. Follow

the diagram (Fig 1) shown to make the correct connections.

A

B

C

D

E

Connect Red wire to

transformer AC and

connect Black wire to

activation button

Connect Black wire to

transformer ground

Connect Black wire to

activation button

Connect Red wire to

transformer AC

Connect Black wire to

transformer ground

Smoke Unit ON/OFF Switch

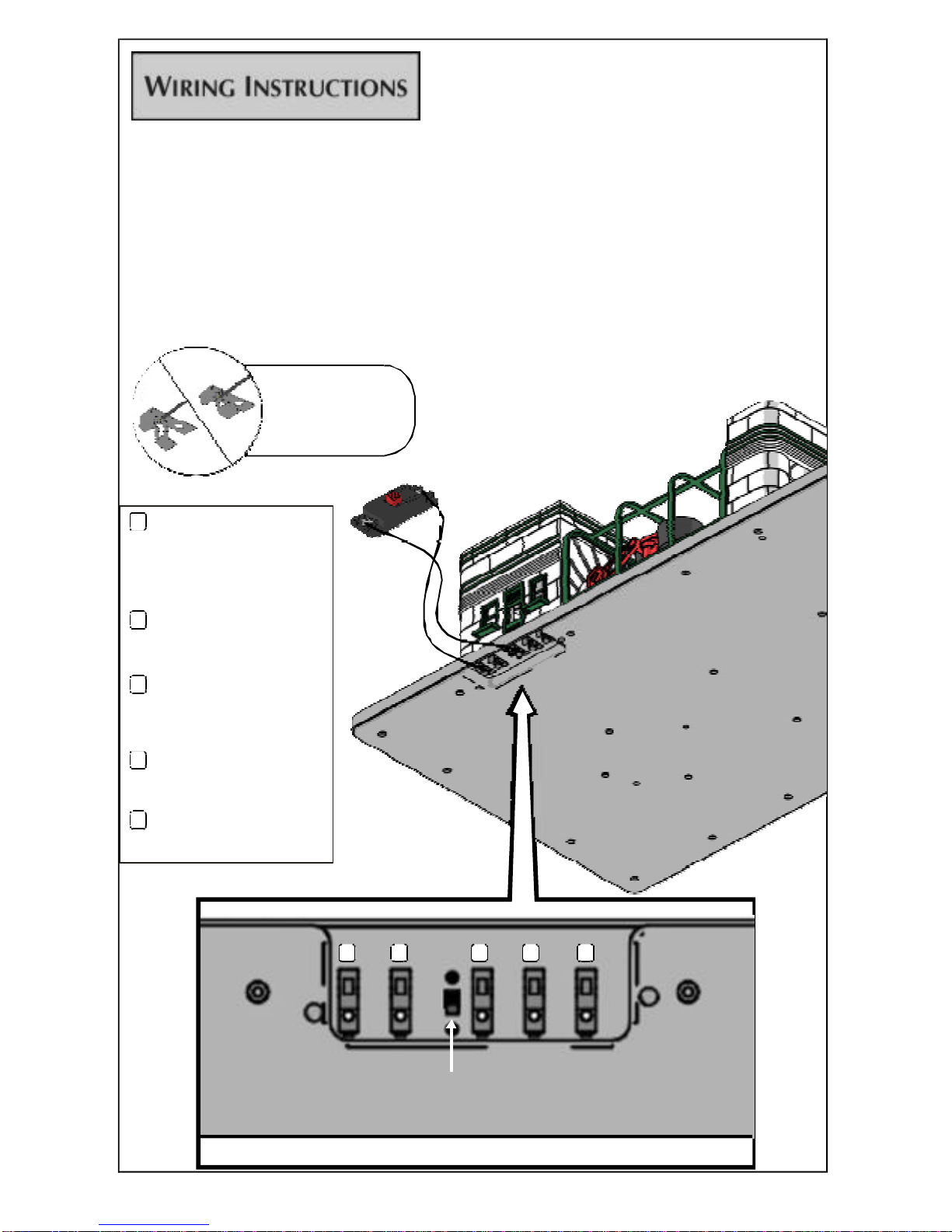

Fig 1. Wiring Diagram and Location of Smoke Unit ON/OFF Switch

ABCDE

Strip Z-wire cable harness

insulation to reveal 1/4” of

bare wire.

3

Priming the Smoke Unit:

It is essential that you either prime the smoke

unit or turn the smoke unit off before you operate the car wash. Failure to do so could

result in a charred wick and damaged mechanisms.

1. To prime the unit, remove the cap of the smoke stack on top of the car wash (Fig. 2)

and add 15-20 drops of ProtoSmoke (included is a small pipette of ProtoSmoke fluid),

Seuthe, LGB, or LVTS smoke fluid through the hole. Then gently blow into the hole to

eliminate bubbles. Do not overfill the unit, as that can cause the fluid to leak out and

coat other interior components. When smoke output begins to diminish, add another

10-15 drops of fluid.

2. If you choose not to prime the smoke unit, turn it off using the switch located on the

bottom of the car wash base, next to the wiring post (Fig 1).

The smoke unit is essentially a small heating element and

wick. The wick soaks up a mineral oil-based fluid, which is then "cooked" by the

heating element to emit a harmless smoke. It is forced into the car wash by a small

electric fan that runs at a constant speed.

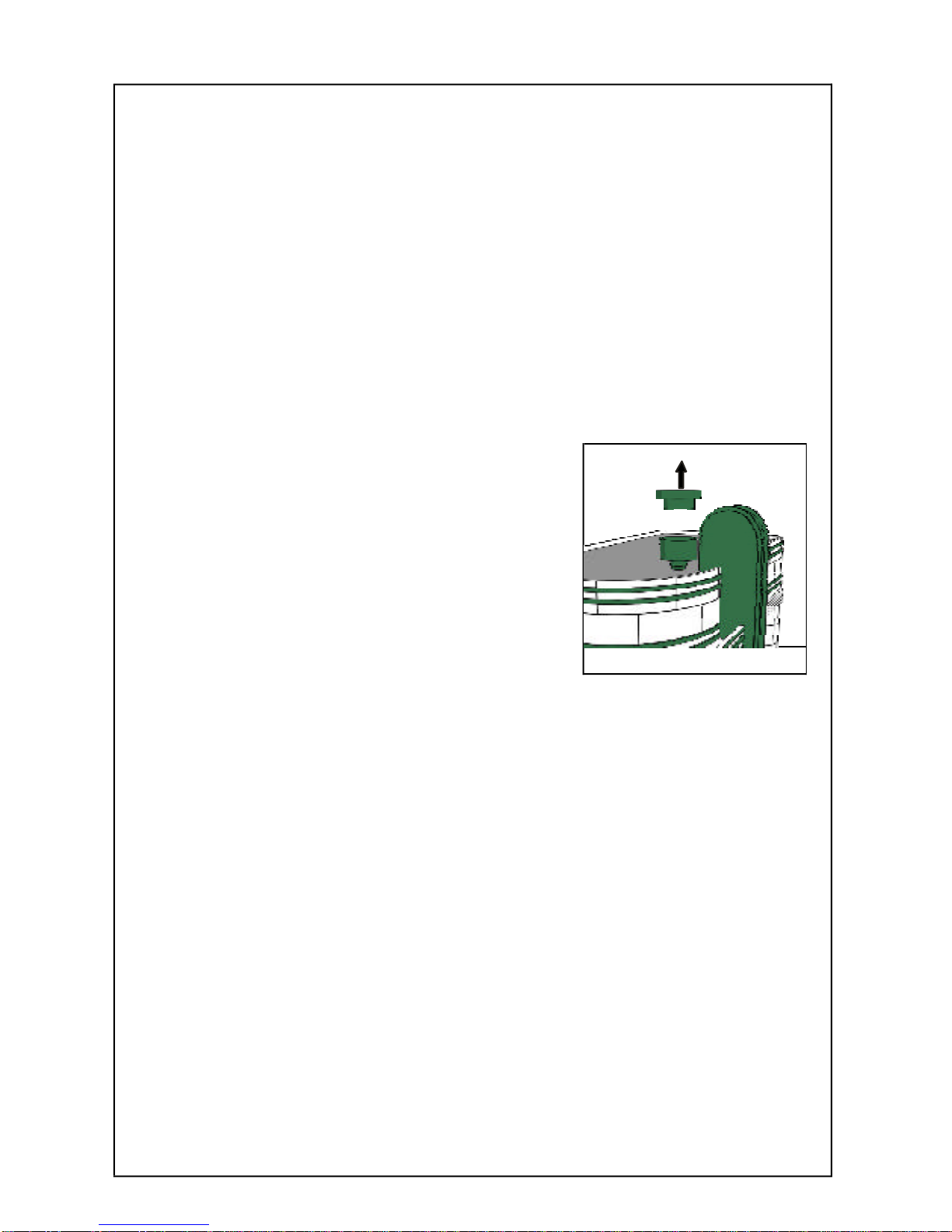

Fig 2. Smoke Stack Cap

Failure to keep enough oil on the wick while

operating the car wash can cause the wick to

become black, hard, and un-absorbent around

the heating element. See page 7 to check the

condition of the wick.

Priming the Smoke Unit

3. When storing the car wash for long periods of time,

you should add at least 15 drops of fluid to prevent the

wick from drying out. After removing it from storage,

add another 25 drops of fluid, letting the wick soak for

15 minutes prior to operation.

Operating Instructions: Before operating the car wash, you must first place

the two drying figures and the car on the base. Insert the tabs on the bottoms

of the drying figures into their slots in the following order: The man wearing

the white shirt goes in the slot nearest the car wash exit, and the man in the

gray shirt goes in the slot farther from the car wash exit. Place the car on the

tab in its track. See the diagram on page 5 for the figure and car placement.

Once the car wash is wired to receive at least a14-20 volt power supply from

the transformer and the transformer is turned on, simply press the activation

button to begin the car wash sequence.

The car starts, pulls forward to the window to talk to the attendant and pay for

the car wash, and pulls around to the car wash doors. The doors open to

allow the car to enter. The car spends about 15 seconds in the car wash,

during which time the smoke unit will supply car wash "mist" and the "Rinse"

light will activate. The car pulls out through the rollers and stops at the red

light for a dry. Finally it pulls around to the two figures who buff the car, then

pulls away. The car wash doors shut after the car has cleared the car wash.

The car wash completes all of these actions by itself, with just the initial press

of the activation button.

The motion and sound can be stopped at any time by turning the power off or

by pressing the transformer's "Direction" button. Once the power is returned,

the car will return to its starting position without sound effects.

Operating Instructions

4

5

Rinse and

DryLights

1

1Rinse and Dry Lights: Remove the clear shield over the rollers and gently

pop the green and red rinse and dry sign off the base of the car wash. Pull

the lights out and push the new ones in to replace them (like Christmas tree

lights).

Changing the Lights

Shield Over Rollers

You can obtain replacement bulbs directly from the M.T.H. parts department

(phone: 410-381-2580; e-mail: [email protected]; mail: 7020 Columbia

Gateway Drive, Columbia MD 21046-1532).

Man With

White Shirt

ManWith

Gray Shirt

6

Garage Door

Lights

Clear Shield

Over Rollers

Sign

Lights

Building

Lights

2

1

3

4

3

4

2

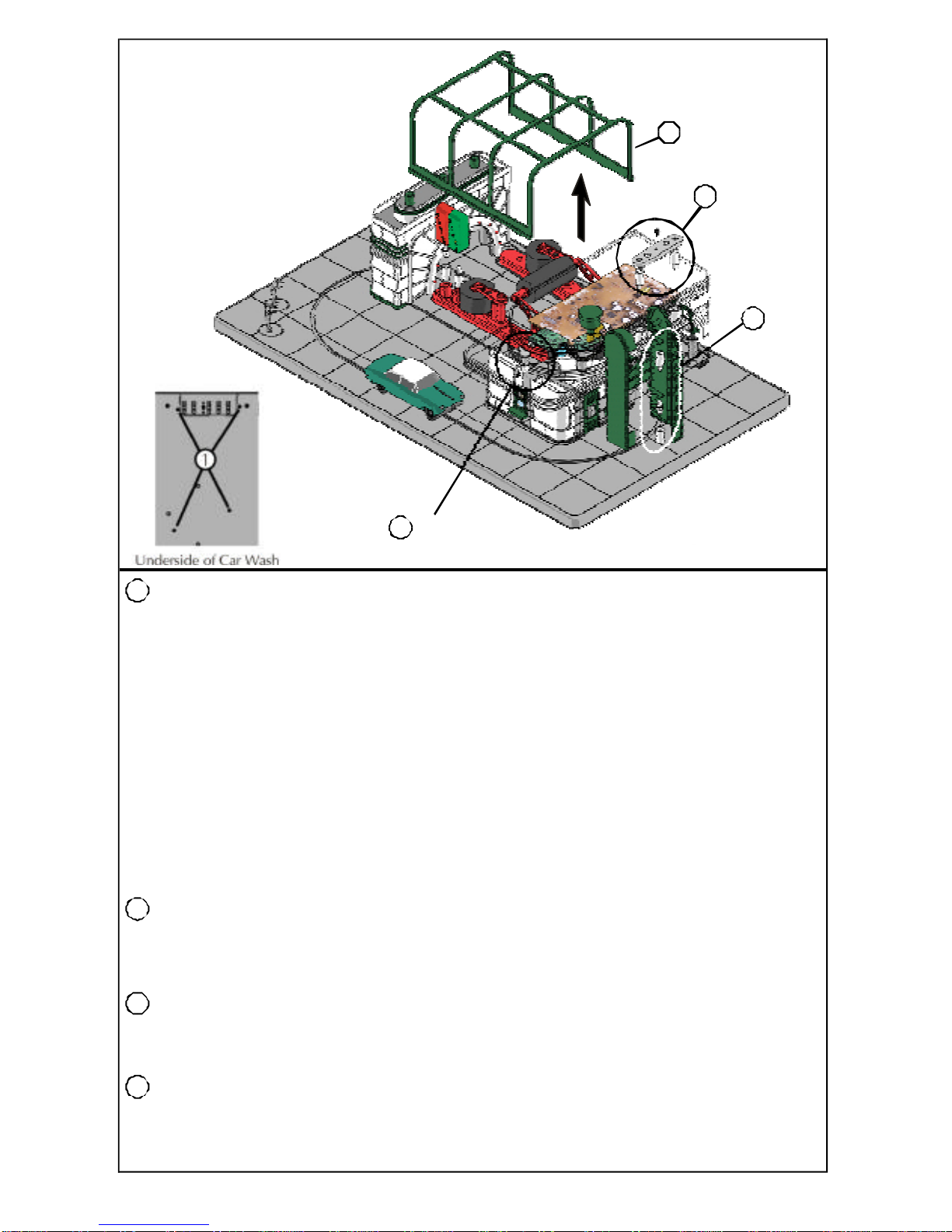

Building Light: Twist the light bulb counterclockwise to remove it. Push

the replacement bulb in and twist it clockwise.

To access and change the other lights: Remove the clear shield over the

rollers. Remove the four (4) recessed screws from the bottom of the car

wash, turn it back over, and tilt the car wash housing to reveal the lights.

You will also need to unplug some of the connections from the PCB to

remove the housing. Refer to the PCB Diagram on page 8.

L

1. Smoke Unit wiring is red and white and connects into port SD

2. Garage Door Light wiring is gray and white and connects into port SL

3. Building Light wiring is green and white and connects into port CL

4. "Speedee" Sign Light wiring is gray and white and connects into port AD

Garage Door Light: Gently pull out the light. To replace it, simply push

the new light in, just like the rinse and dry lights.

Sign Lights:Gently pull the sign down and out. Pull the side off the sign

to expose the lights. Pull the lights out and push the new ones in to

replace them, just like the garage door lights.

1

7

1

2

3

4

5

Disconnect the tube that connects the smoke unit to the pipe in the bay door

Remove the five mounting screws that hold the smoke unit to the under side

of the roof of the car wash housing

Remove the four screws from the top of the smoke unit to reveal the wick

Inspect the wick , if the wick is darkly discolored and hard, it should be

replaced.

Remove the clear shield over the rollers. Remove the four (4) recessed screws from

the bottom of the car wash, turn it back over, and tilt the car wash housing to reveal

the smoke unit. You will also need to unplug some of the connections from the PCB

to remove the housing. Refer to the PCB Diagram on page 8.

1. Smoke Unit wiring is red and white and connects into port SD

2. Garage Door Light wiring is gray and white and connects into port SL

3. Building Light wiring is green and white and connectsintoport CL

4. "Speedee" Sign Light wiring is gray and white and connects into port ADL

1

Inspecting the Smoke Unit

To check the condition of the wick, do as follows.

8

1 2 3 4 5

6

7

8

9

10

13

16

11

1417

12

15

18

19

20

PCB Board Diagram

1. Interior Light (DE)

2. Sign Light (ADL)

3. Cashier Light to PCB (CL)

4. Door Motor to PCB (DM)

5. Car Motor to PCB (CM)

6. Door Opening micro switch to PCB (DO)

7.

8. Rinse Light (RINSE)

9. Warming Light (WARN)

10. Garage Door Light (SL)

11. Smoke Unit to PCB (SD)

12. Smoke Activation micro switch to PCB

(SMOKE ON/OFF)

13. LED to PCB (9LED)

14. Speaker to PCB (SPK)

15. Micro Switch E

16.

17.

18.

19.

20. AC Power (AC POWER)

Door Closing micro switch to PCB (DC)

Micro Switch D

Micro Switch C

Micro Switch B

Micro Switch A

Wiring Diagram of the PCB (Printed Circuit Board)

9

Notes:______________________________________________

___________________________________________________

10

Notes:______________________________________________

___________________________________________________

11

Notes:______________________________________________

___________________________________________________

How to Get Service Under the Terms of the Limited One-Year Warranty

For warranty repair, do not return your product to the place of purchase. Instead, follow the

instructions below to obtain warranty service, as our dealer network is not prepared to service

the product under the terms of this warranty.

1. First, write, call or FAX M.T.H. Electric Trains, 7020 Columbia Gateway Drive, Columbia,

MD 21046, (Tel: 410-381-2580; FAX : 410-423-0009; e-mail: [email protected]),

stating when it was purchased and what seems to be the problem. You will be given a return

authorization number to assure that your merchandise will be properly handled upon its receipt.

2. CAUTION: Make sure the product is packed in its original factory packaging including its

foam and plastic wrapping material so as to prevent damage to the merchandise. The shipment

must be prepaid and we recommend that it be insured.

3. Please make sure you have followed the instructions carefully before returning any

merchandise for service.

See our website at or call 1-888-640-3700 to identify an Authorized

M.T.H. Train Merchant near you.

M.T.H. products are warrantied for one year from the date of purchase against defects in

material or workmanship, excluding light bulbs and traction tires. We will repair or replace (at

our option) the defective part without charge for the parts or labor, if the item is returned to

M.T.H. Electric Trains within one year of the original date of purchase. This warranty does not

cover damages caused by improper care, handling, or use. Transportation costs incurred by the

customer are not covered under this warranty.

Items sent for repair must be accompanied by a return authorization number, a description of the

problem, and the , which

gives the date of purchase. Call 410-381-2580, fax 410-423-0009, or e-mail the Service

Department at to obtain a return authorization number.

This warranty gives you specific legal rights, and you may have other rights that vary from state

to state.

Service Department

M.T.H. Electric Trains

7020 Columbia Gateway Drive

Columbia MD 21046-1532

A cover letter including your name,

address, daytime phone number, e-mail address (if available), Return Authorization number,

a copy of your sales receipt and a full description of the problem must be included to facilitate

the repairs. Please include the description regardless of whether you discussed the problem

with one of our service technicians when contacting M.T.H. for your Return Authorization

number.

Limited One-Year Warranty

All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered

by this warranty.

original sales receipt from an Authorized M.T.H. Train Merchant
