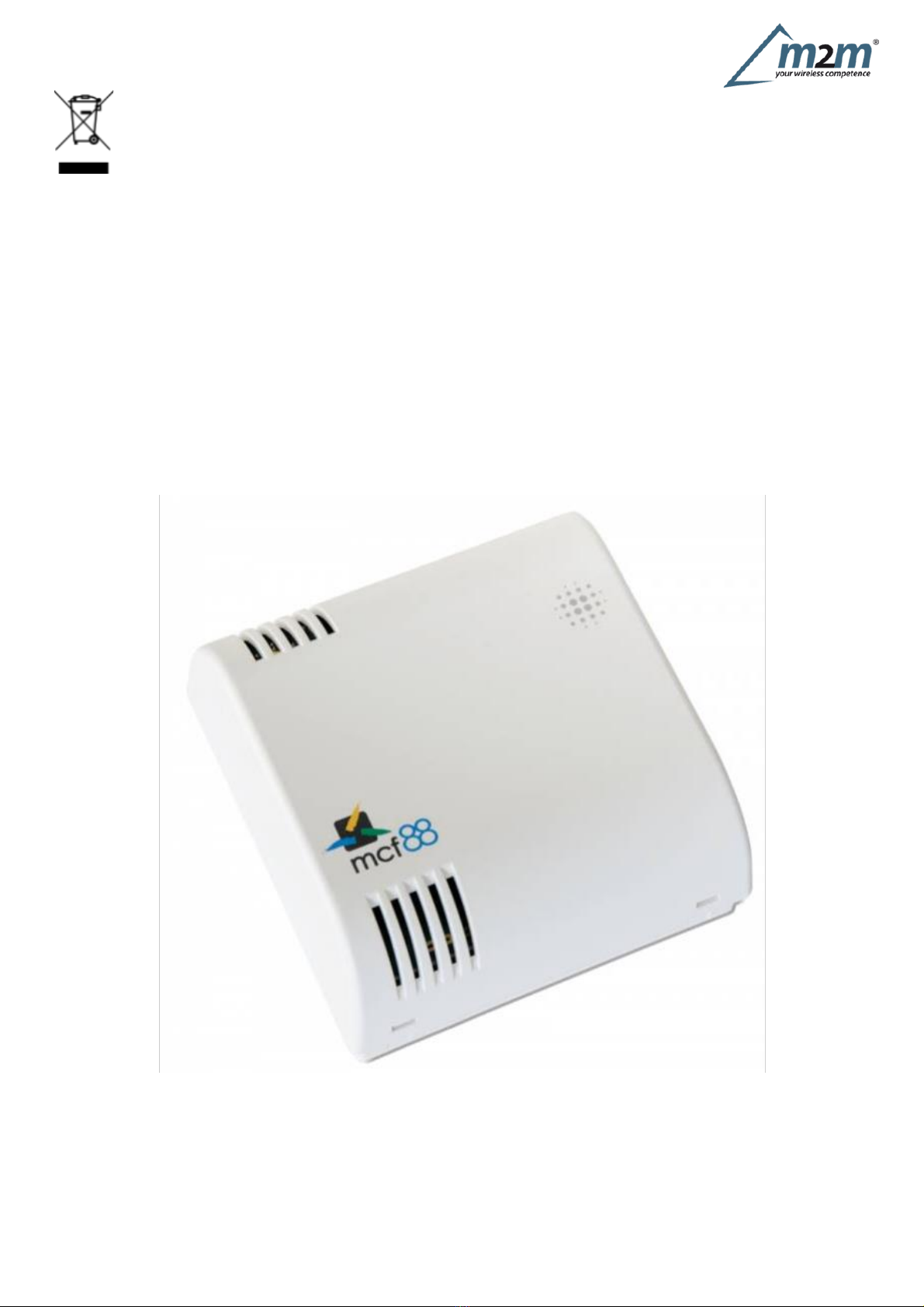

1.
Description
The
MCF-LW12TER
is
a
battery
powered
sensor
for
indoor
applications
that
reads
temperature,
relative
humidity
and
barometri
pressure.The
device
sends
collected
data
over
the
LoRaWAN®
network.
Ideally
suited
for
a
wide
range
of
applications
such
as
home
buildings,
air
quality
monitoring
and
energy
saving
applications.
2.
Overview
2.1
Technical
data
m2m Germany GmbH | Am Kappengraben 18-20 | 61273 Wehrheim | 06081 5873860
Cortex
M0
+
CPU
EEProm
32Kb
64k
flash
AES
128
bit
encryption
LoRaWAN®
stack
class
A
1.0.2
EU868,
AS923,
AU915
and
US915
Temperature
-10
÷
60°C
(±
1.0°C,
±
0.5°C
@
+25°C)
Humidity
0
÷
100%
(20
÷
80%
±
3%
@
25°C,
0
÷
20%
*
80
÷
100%
±
5%
@
25°C)
Pressure
300
÷
1100hPa
(±
1hPa)
Battery
powered
with
6
years
of
battery
life
(SF
=
12,
10
minutes
reading
period)
Battery
capacity
(included)
14400mAh
NFC
for
node
configuration,
FW
update
and
data
reading
Indoor
installation
Storage
temperature
-20
+
80°C
Operating
temperature
-10
+
60°C
Dimensions:
80x80x25mm
Weight
~
150g
2.2
Installation

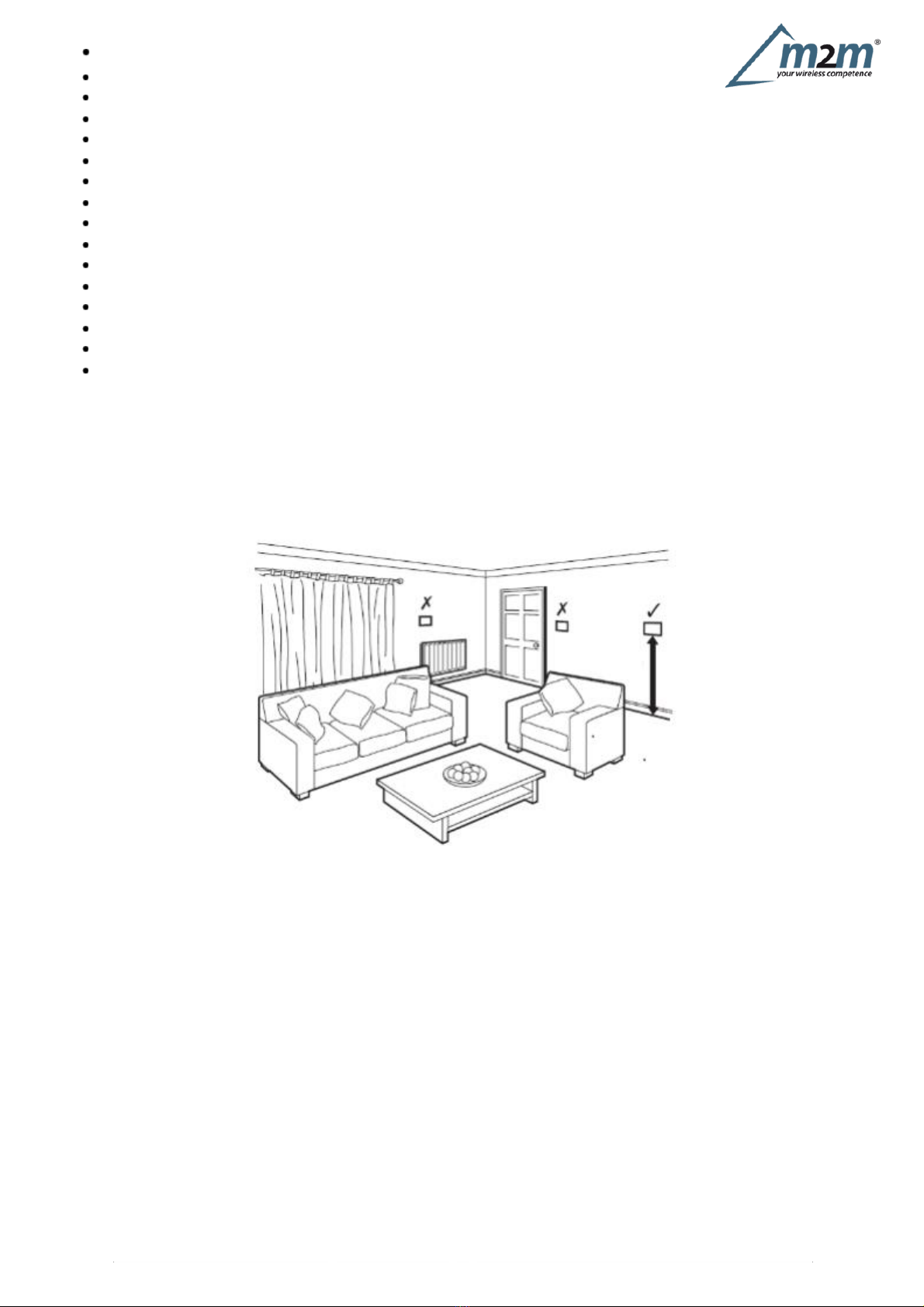

To
ensure
correct
operation
and
reliable
and
consistent
measurements,
install
the
MCF-LW12TER
sensor
away
from
direct
sunlight
and
heating
sources
like
radiators,
conveyors,
TV,
lights
etc.
and
far
away
from
doors
and
windows.
The
device
must
be
placed
where
the
LoRaWAN®
signal
coverage
is
good
(SF
=
7
optimal,
SF
=
12
weak).
The
sensor
must
be
installed
vertically
on
a
wall
at
about
1.5mt
height.
It
must
be
at
least
30cm
away
from
metal
objects,
and
1mt
away
from
electronic
devices.
m2m Germany GmbH | Am Kappengraben 18-20 | 61273 Wehrheim | 06081 5873860
2.2.1
LoRa
Tool

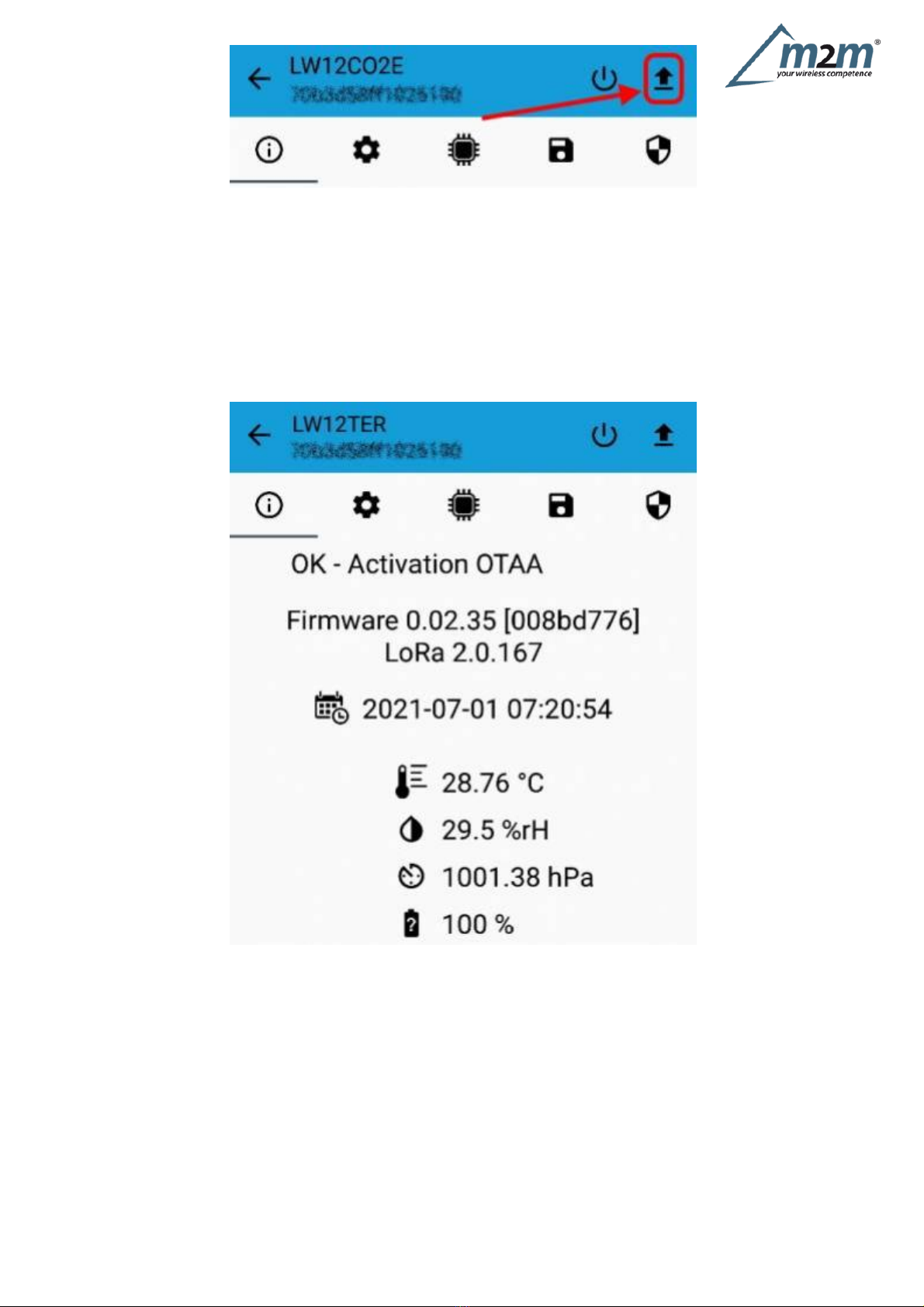

To
deploy
the
sensor,

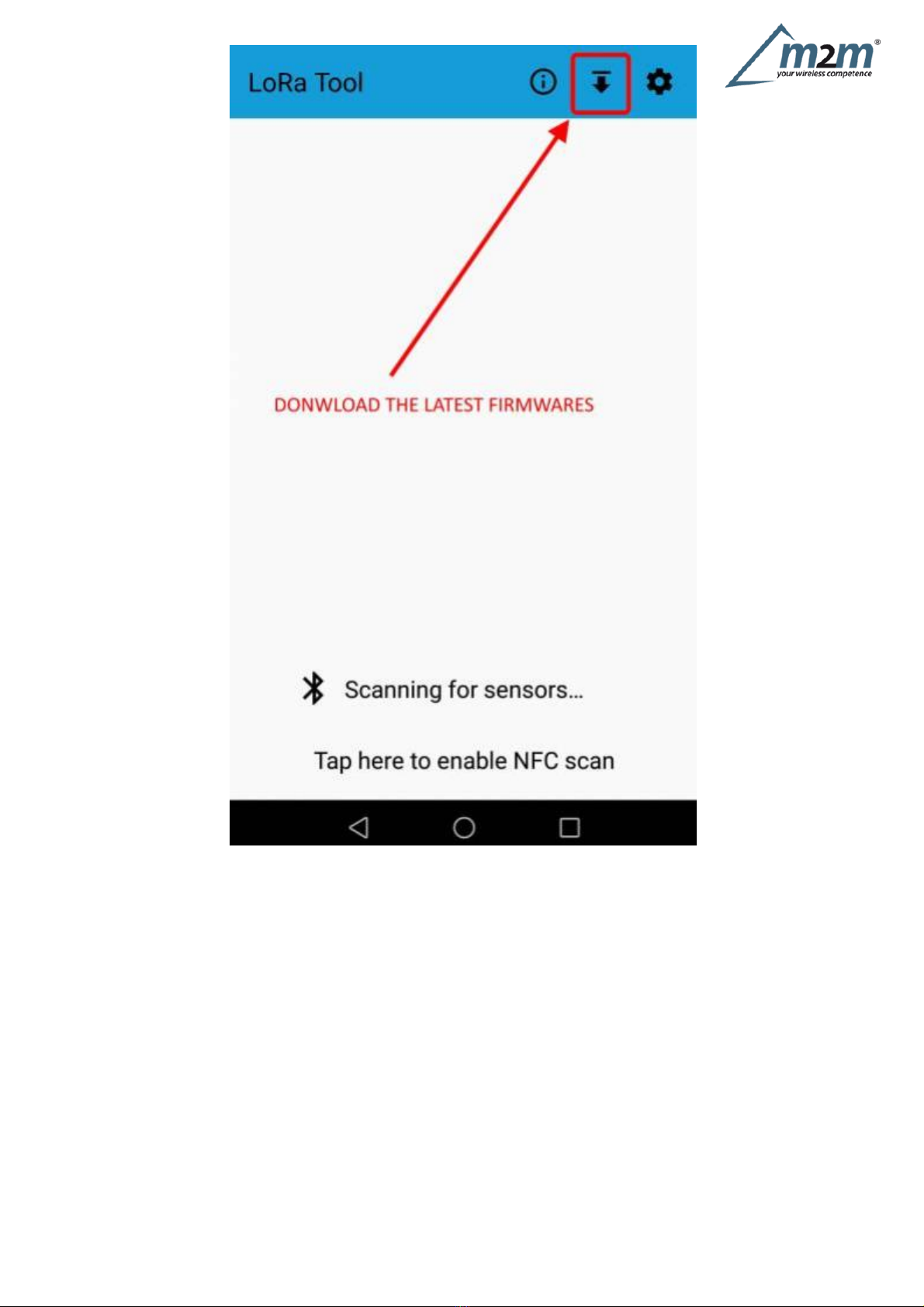

download
the
latestLoRa
ToolAndroid
App
to
setup
LoRaWAN
credentials
and
other
preferences
:
Always
validate
your
settings
by
reading
the
NFC
data
after
the
sensor
has
restarted.
2.3
Power
ON/OFF
The
sensor
is
shipped
completely
off
to
prevent
battery
consumption
during
storage.
It
is
therefore
necessary
to
carry
out
a
first
power-on
prior
to
commissioning.
There
are
two
ways
to
power
on
the
sensor:
With
NFC:
Move
the
NFC
antenna
of
the
mobile
(the
exact
position
varies
depending
on
the
model
of
m2m Germany GmbH | Am Kappengraben 18-20 | 61273 Wehrheim | 06081 5873860
2.3
Power
ON/OFF
The
sensor
is
shipped
completely
off
to
prevent
battery
consumption
during
storage.
It
is
therefore
necessary
to
carry
out
a
first
power-on
prior
to
commissioning.
There
are
two
ways
to
power
on
the
sensor:
With
NFC:
Move
the
NFC
antenna
of
the
mobile
(the
exact
position
varies
depending
on
the
model
of
the
smartphone)
to
the
sensor
antenna,
in
the
area
shown
in
the
figure:

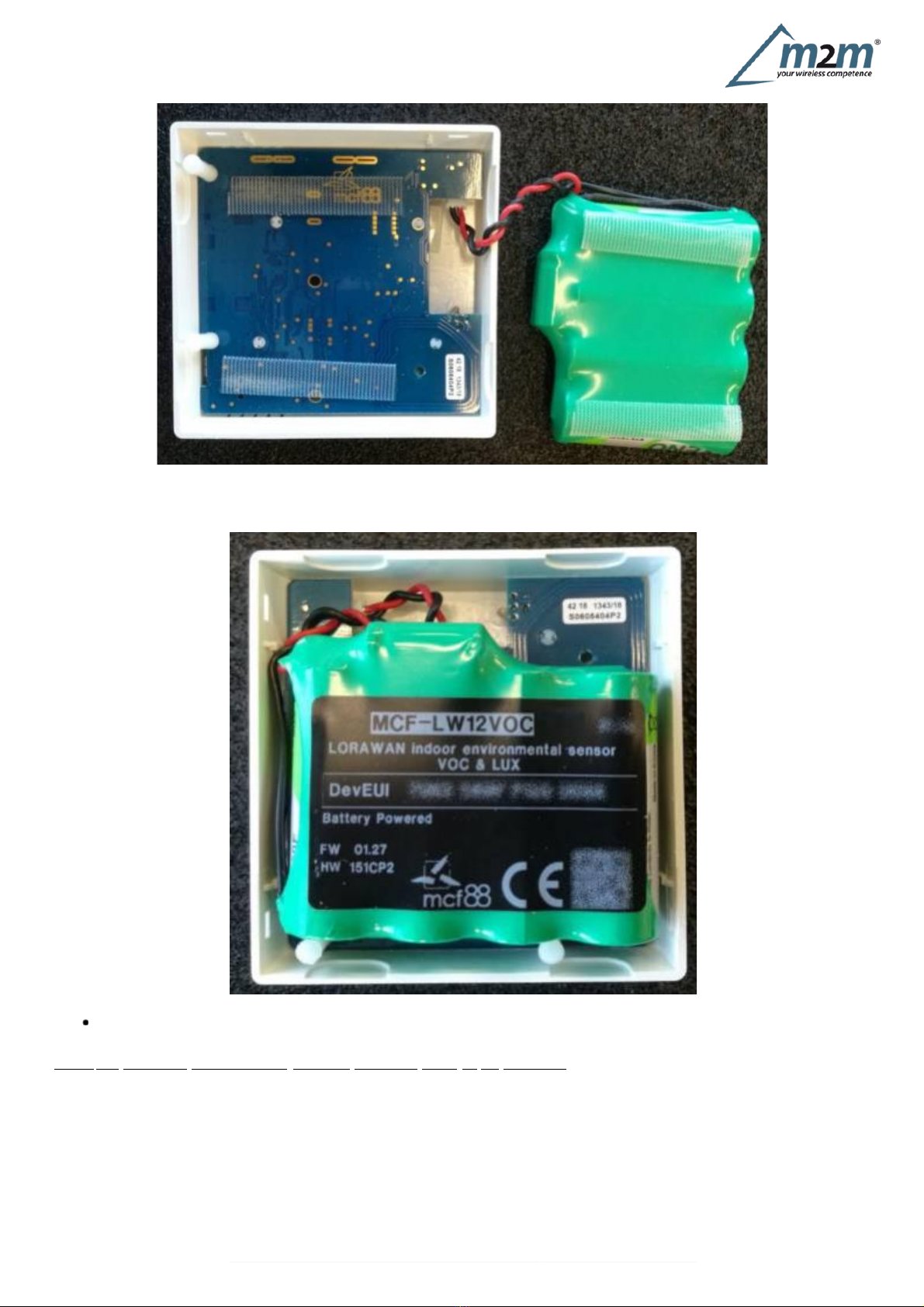

•Mechanical power on:
Open the case using a screw driver as follow:
By using a screw driver push button for 1s as follow, moving right:
