mabe CHM200PB1 User manual

Order No. REF1706S004V0
©2017 All rights reserved. Unauthorized copying and distribution is a violation of law.
Chest Freezer
SERVICE MANUAL
CHM200PB1
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING

SERVICE MANUAL
Model:CHM200PB1
2
Issue 2017-6-03
Rev. REF1706S004V0
1-1. General Guidelines ..................................................................................................................................3
1-2. Insurance Test .........................................................................................................................................3
1-3. How to read this Service Manual.............................................................................................................4
Chapter 2 Product Feature .............................................................................................................................6
2-1. SPECIFICATIONS ...................................................................................................................................6
2-2. External views..........................................................................................................................................7
Chapter 3 Installation, adjustments and maintenance....................................................................................8
3-1. Unpacking................................................................................................................................................8
3-2. Adjusting ..................................................................................................................................................8
3-3.Electrical Requirement..............................................................................................................................9
3-4.Defrost ......................................................................................................................................................9
3-5. Cleaning...................................................................................................................................................9
Chapter 4 Disassembly................................................................................................................................. 11
4-1. Door assembly (Door, hinge, hinge cover) ............................................................................................ 11
4-2. Compartment Grill assembly ................................................................................................................. 11
4-3. Control panel assembly (Panel, cover board, knob, indicator light) ......................................................12
4-4. Thermostat assembly ............................................................................................................................12
Chapter 5 Control and display system..........................................................................................................13
5-1. Control panel .........................................................................................................................................13
5-2. Starting the Freezer ...............................................................................................................................14
Chapter 6 System flow principle ...................................................................................................................15
6-1. Refrigeration flow chart..........................................................................................................................15

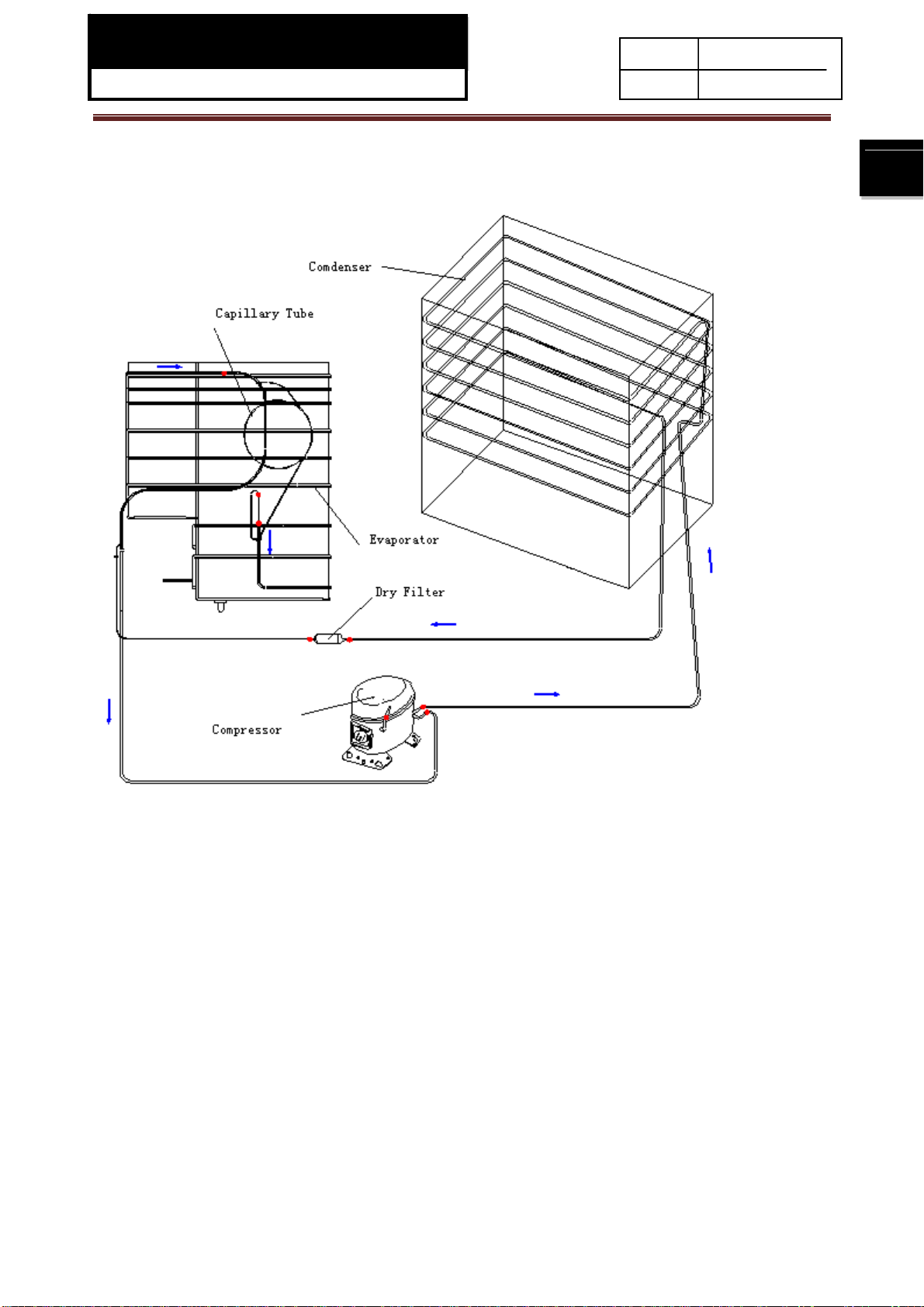

6-2. Refrigeration flow scenograph...............................................................................................................16
Chapter 7 Circuit diagram .............................................................................................................................17

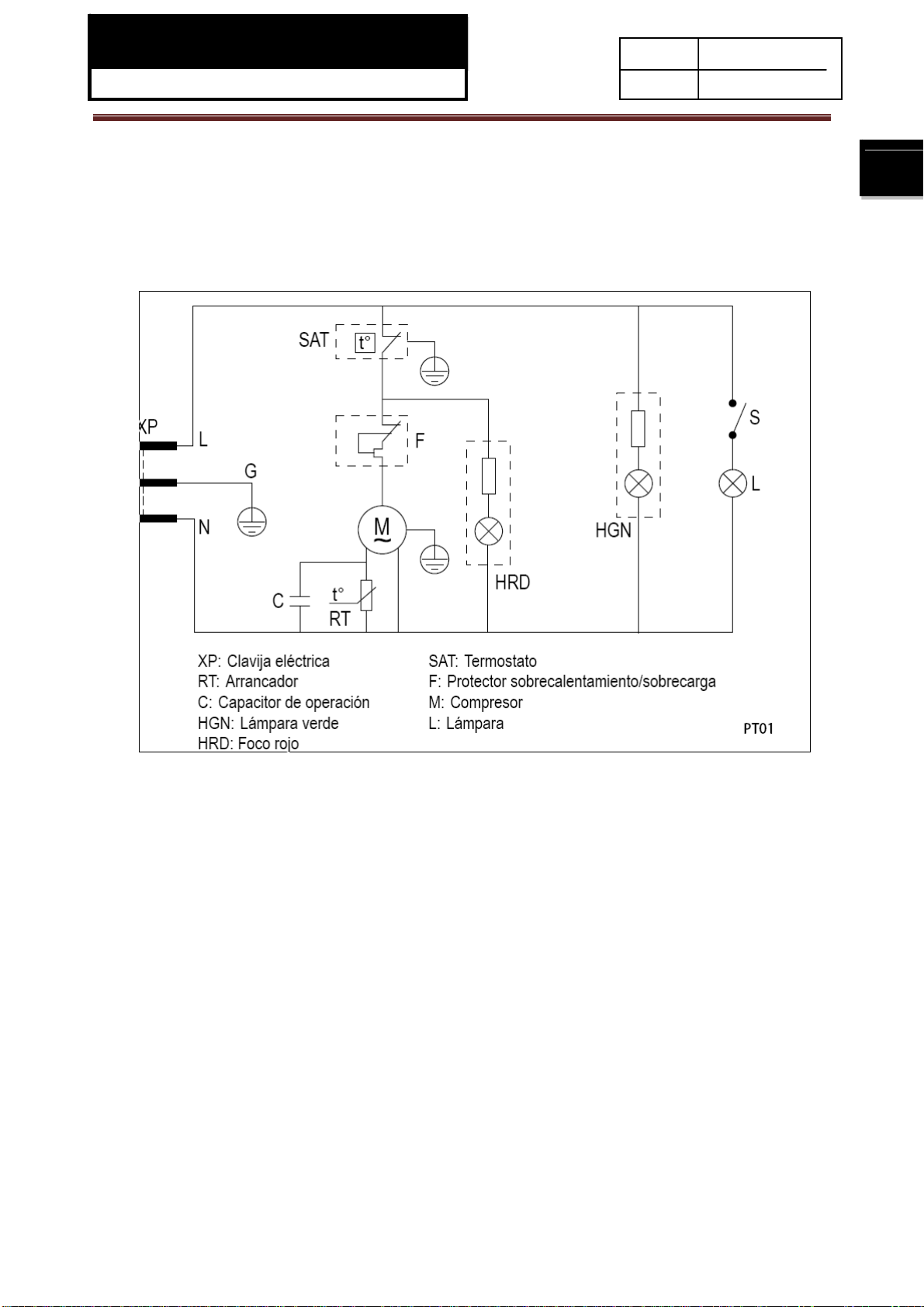

7-1. Brief principle diagram ...........................................................................................................................17

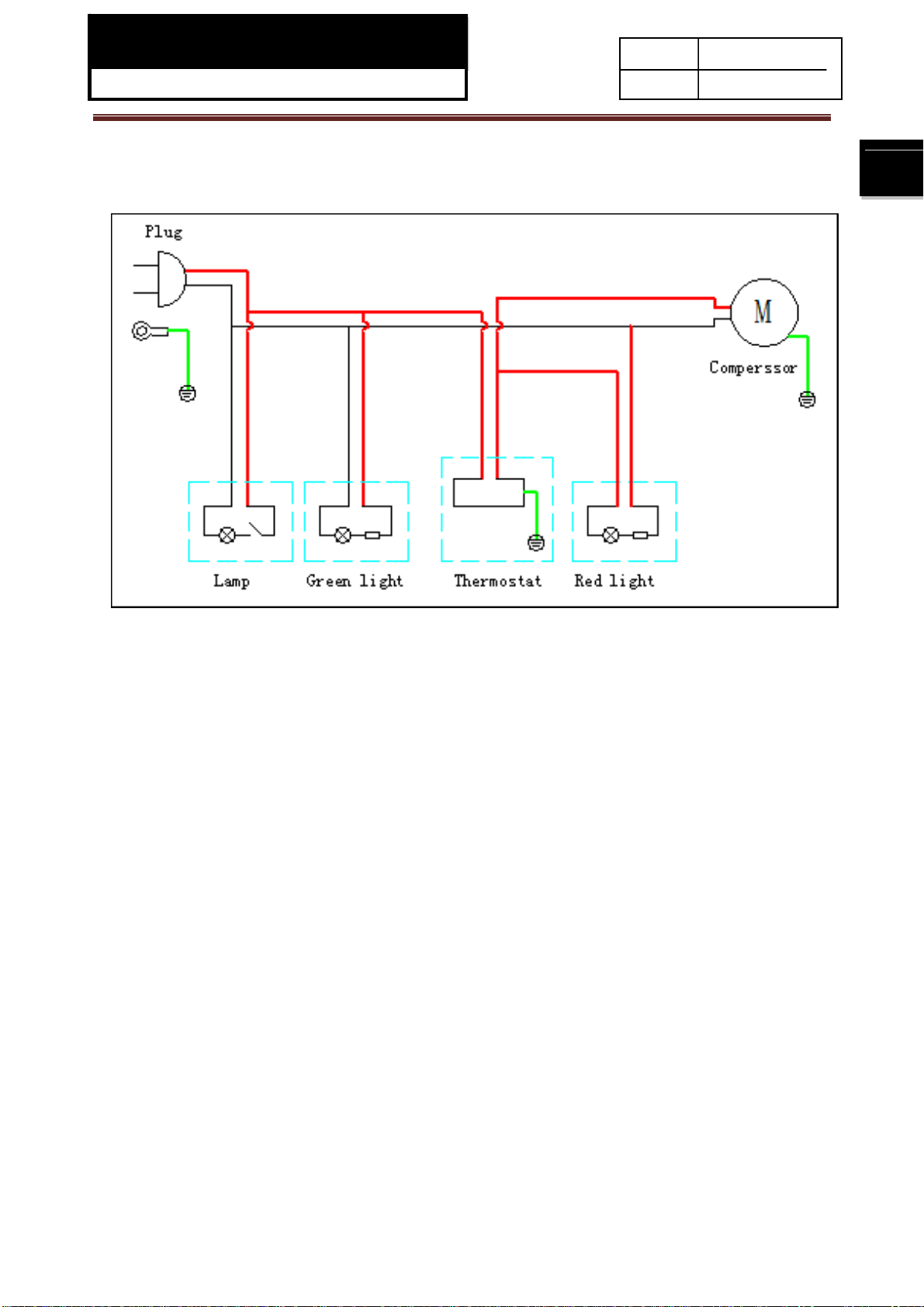

7-2. Wiring diagram.......................................................................................................................................18
8-1. Normal phenomena ...............................................................................................................................19
8-2. Abnormal phenomena............................................................................................................................21
Chapter 9 Attachment ...................................................................................................................................23
9-1. The main components’ datasheet..........................................................................................................23

SERVICE MANUAL
Model:CHM200PB1
3
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 1 General Information
1-1. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which
have been overheated or damaged by the short circuit. After servicing, see to it that all the protective
devices such as insulation barriers, insulation papers shields are properly installed. After servicing,
make the following leakage current checks to prevent the customer from being exposed to shock
hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatic Sensitive
1-2. Insurance Test
1. Check if there is any leak of current.
2. Cut out the power supply before the repair to avoid an electrical shock hazard.
3. In the case of a live-line test, insulating gloves should be worn to avoid potential electrical shock.
4. Confirm the rated current, voltage and capacity before testing with any kinds of instruments.
5. Watch if the upper door is open when you check something at a lower position.
6. Take out every part in the cabinet before moving the machine, especially things like panels (e.g. glass
shelf).
7. Please wear intact cotton gloves when repair any parts of the evaporator, so that scratches by the
sharp fins can be avoided.
8. If there is a breakdown with the refrigeration system, please surrender the machine to the service
center, else the leaked refrigerant may pollute the atmosphere.
9. The refrigerator use AC of 220V with a frequency of 60Hz.
10. A big fluctuation of voltage (exceed the range 187～242V) may cause a start failure of the refrigerator,
a burn-out of the control panel and compressor, or an abnormal sound from the compressor in

SERVICE MANUAL
Model:CHM200PB1
4
Issue 2017-6-03
Rev. REF1706S004V0
operation.
11. Take care not to damage the supply line. Don’t yank at the line; pull the plug out gently from the
receptacle. Don’t press the line under the cabinet or step on it. Take care not to roll on or damage the
supply line when moves the machine from the wall.
12. In the case of leakage of inflammable gases like carbon monoxide, open the door and windows. Don’t
pull out or insert the plugs of the appliance.
13. Don’t touch the refrigeration surface of the freezing compartment when the refrigerator is in operation,
especially when your hand is wet, else you may be glued to the surface.
14. Pull out the plug of power supply during clearance or power outage. Wait at least five minutes to
resume the power supply in order to prevent damage to the compressor caused by continuous restart.
Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of products, which
may differ from your products in some way.
1-3. How to read this Service Manual
1-3-1. Using Icons
The meaning of each icon is described in the table below:
Note:
A “note” provides information that is not indispensable.
Caution:
A “caution” is used when there is danger, that through incorrect manipulation, may damage
equipment, loose data, get an unexpected result or has to restart (part of) a procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:

SERVICE MANUAL
Model:CHM200PB1
5
Issue 2017-6-03
Rev. REF1706S004V0
A “reference” guides us to other places in this binder or in this manual, where we will find additional
information on a specific topic.

SERVICE MANUAL
Model:CHM200PB1
6
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 2 Product Feature
2-1. SPECIFICATIONS
1. Type Model / CHM200PB1
Commercial brand / MABE
Product description / Chest Freezer
Type of appliance (FS=free standing / BI= built-in) / FS
Climate class (N=16-32℃ST=16-38℃T=18-43℃) / T
2. Key features / /
Gross capacity l 203
Total net capacity l 193
Energy consumption/year kWh/year 1.05
Max storage time at breackdown h 35
Defrosting (Manual-Automatic) / Manual
Kind of coolant (R134a/R600a) / R600a(56g)
3. Technical data / /
Voltage / frequency V/Hz 220/ 60
Input power / currency W /A 100/1.5
Lenght of cable / incl. plug cm 160/165
Temperature range (from>to) °C -26~9
Energy consumption / year kWh/year 383
4. Equipment & accessories / /
Defrostdrain / ●
Onlight (green) / ●
Running light (red) / ●
Thermometer (Outside / In partition) / ●
5. Product net dimensions / /
Unitdimensions (H / W / D) cm 84.5/72/50
Height with open lid cm /
Net weight kg 42
6. Packing dimensions & loadability / /
Packingdimensions (H / W / D) cm 89/77.5/58.5
Gross weight kg 45
8. Service / /
User instruction (languages) / ENGLISH

SERVICE MANUAL
Model:CHM200PB1
7
Issue 2017-6-03
Rev. REF1706S004V0

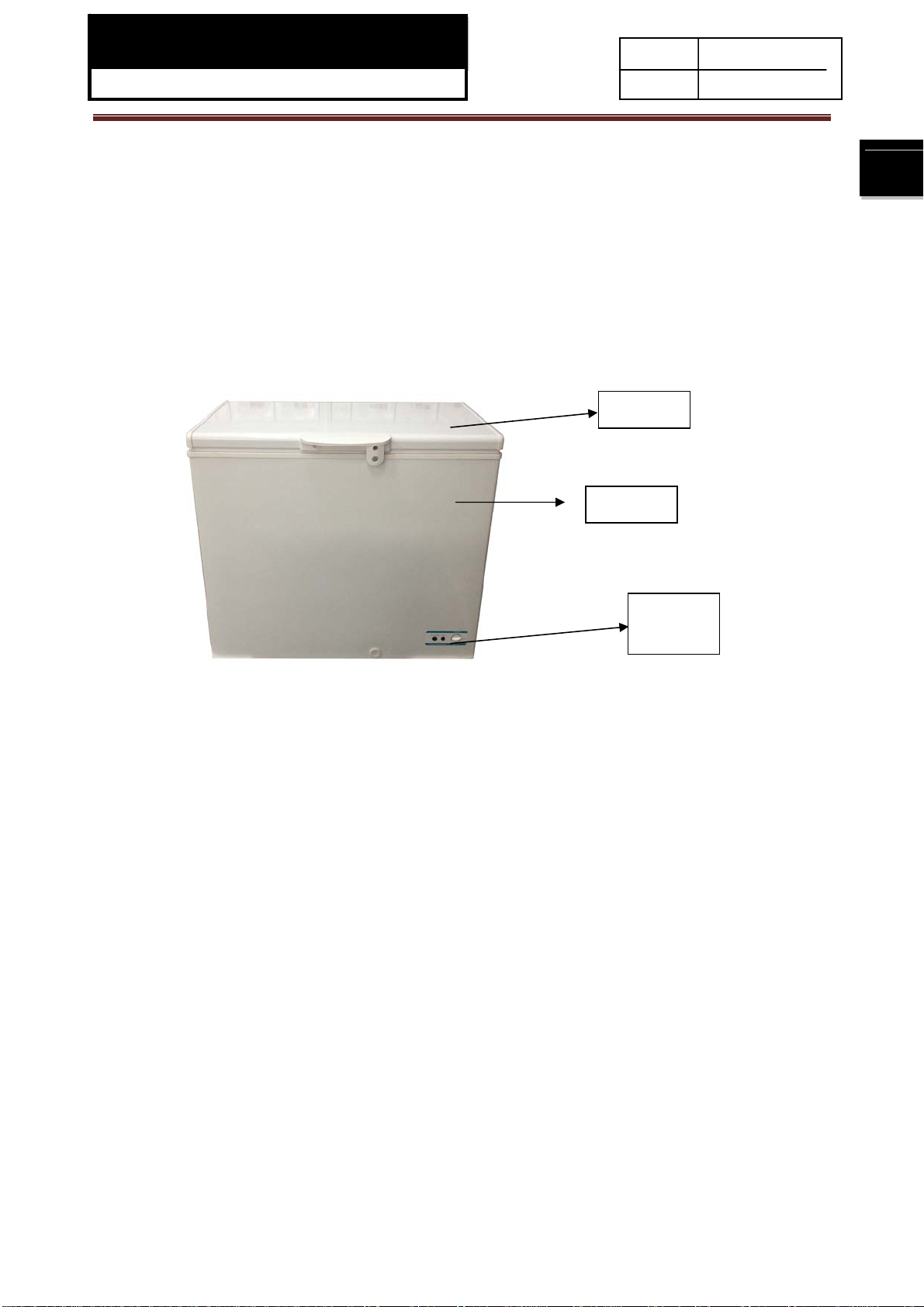

2-2. External views
Door
Cabinet
Control
penel

SERVICE MANUAL
Model:CHM200PB1
8
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 3 Installation, adjustments and maintenance
3-1. Unpacking
1. Remove all packaging material; this includes the foam base and all adhesive tape holding the
freezer accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the
freezer.
3-2. Adjusting
1. The freezer is designed for freestanding installation only. It should not be recessed or built-in.
2. Place the freezer on a floor strong enough to support it fully loaded.
3. When moving freezer, never tilt it more than a 45-degree angle. This could damage the compressor
and the sealed system.
4. If freezer is tilted let it stand in an upright position for at least 24 hours prior to plugging. This is to
allow the refrigerant to settle.
5.Proper Air Circulation
To assure the freezer works at the maximum efficiency it was designed for, you should install it in a
location where there is proper air circulation, Plumbing and electrical connections.
The following are recommended clearances around the freezer:
Sides…………..2”(50mm)
Top. ……………2”(50mm)
Back…………..2”(50mm)
Do not over fill freezer for proper internal air circulation.

SERVICE MANUAL
Model:CHM200PB1
9
Issue 2017-6-03
Rev. REF1706S004V0
3-3.Electrical Requirement
Make sure there is a suitable power Outlet with proper grounding to power the freezer.
Avoid the use of cutting off the third grounding, this is a dangerous practice since it provides no
effective grounding for the freezer and may result in shock hazard.
3-4.Defrost
Defrosting and Draining the Freezer
1. Defrost whenever the frost becomes 5MM thick. Never use a sharp or metallic instrument to remove
the frost as it may damage the cooling coils.(A punctured coil will void the warranty)
2. Unplug the unit. For draining, place a tray beneath the outer drain plug. Pull out the drain dial and
rotate it so that the arrow points down ward. This will let the water flow out into the tray.
3. Remove the drain plug from the inside of the freezer. Defrosting usually takes a few hours. To
defrost faster keep the freezer door open. When done, push the drain dial in and turn the arrow to
the up position. Re-plug the drain plug inside the freezer compartment. Note: monitor the container
under the drain to avoid overflow.
·Rest the temperature control to the desired setting.
3-5. Cleaning
Outside. Protect the paint finish. The finish on the outside of the freezer is a high quality
baked-on paint finish. With proper care, it will stay new-looking and rust-free for years. Apply a coat of
appliance polish wax when the freezer is new and then at least twice a year. Appliance polish wax also
works well to remove tape residue from freezer surfaces.
Keep the finish clean. Wipe with a clean cloth lightly dampened with appliance polish wax or
mild liquid dishwashing detergent. Dry and polish with a clean, soft cloth. Do not wipe the freezer with
a soiled dishwashing cloth or wet towel. Do not use scouring pads, powdered cleaners, bleach, or
cleaners containing bleach.

SERVICE MANUAL
Model:CHM200PB1
10
Issue 2017-6-03
Rev. REF1706S004V0
Inside. Clean the inside of the freezer at least once a year. We recommend that the freezer be
unplugged before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when
cleaning in the vicinity of switches, lights or controls.
An open box of baking soda in the freezer will absorb stale freezer odors. Change the box ever y
three months.
Care should be taken in moving the freezer away from the wall. All types of floor coverings
can be damaged particularly cushioned coverings and those with embossed surfaces.

SERVICE MANUAL
Model:CHM200PB1
11
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 4 Disassembly
4-1. Door assembly (Door, hinge, hinge cover)
1. Unscrew the hinge cover screw with screwdriver, take away the top and bottom cover by pull
it, and then unscrew the screws on the hinge, so the whole hinge could be moved.
4-2. Compartment Grill assembly
Unscrew the two screw of grill, we can take away the grill.
Top hinge cover
Bottom hinge cover

SERVICE MANUAL
Model:CHM200PB1
12
Issue 2017-6-03
Rev. REF1706S004V0
4-3. Control panel assembly (Panel, cover board, knob, indicator light)
Stretch your arm into the compartment, push the connector inside, when the clip falls off the
cabinet, and take off the control panel and the connective wire cord with an acutilingual plier.
4-4. Thermostat assembly
First take off the knob, Use turnbuckle spanner or acutilingual plier, unscrew the turnbuckle, then
thermostat can be moved from back of panel.
Note: When assembly thermostat you should placed thermostat in originally direction.

SERVICE MANUAL
Model:CHM200PB1
13
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 5 Control and display system

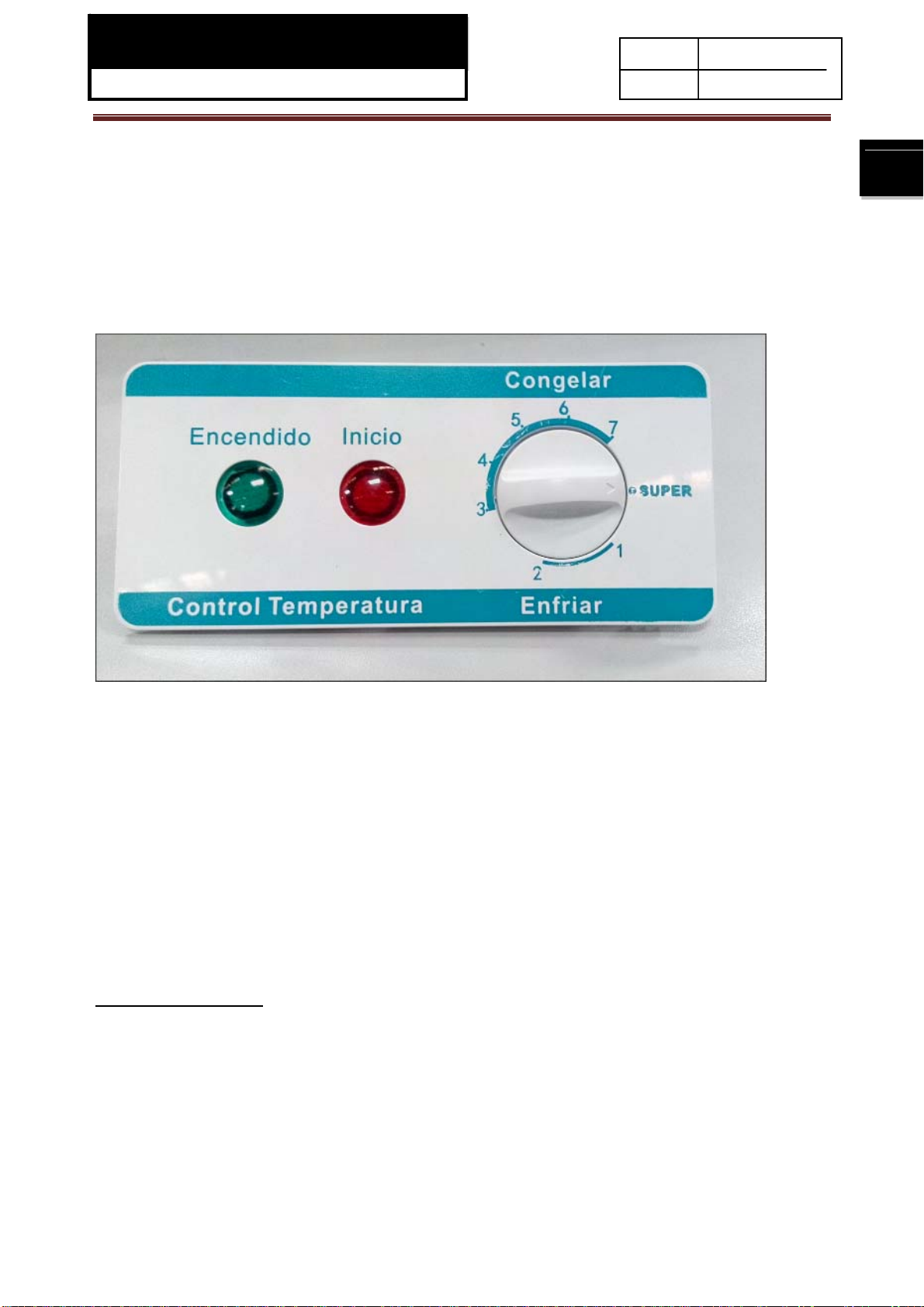

5-1. Control panel
To prevent temperature being accidentally modified, the control is
intentionally resistant to turning.
To switch on: Turn the control to the right adjust temperature to
1. the level you require, between:
Min(slight cooling) and max (Lowest temperature)
If the appliance is equipped with indicator-lights, the following
guide explains what is meant by each light up:
- Green = CONTROL
The appliance is under current and operating
The green control light must always be on when the appliance is
connected to the mains and switched on. It is very important to
pay attention to this, because in the event of a power failure,
the red and yellow lights stop operating and do no longer provide

SERVICE MANUAL
Model:CHM200PB1
14
Issue 2017-6-03
Rev. REF1706S004V0
a warning.
- Red = RUNNING
The red running light always be on when the compressor be running
And the red running light stop operating when the compressor stop
Operating also.
5-2. Starting the Freezer
1. Clean the inside of the freezer with a mild solution of baking soda and water
2. Connect cord to power outlet.
3. On models with a Temperature Monitor or High-Temp Alarm Switch, set the switch to the
OFF position.
4. Make sure the temperature control is set at 4.
5. Allow freezer to operate for at least four hours before placing food inside.
6. On models with a Temperature Monitor or High-Temp Alarm Switch, set the switch to the
ON position.

SERVICE MANUAL
Model:CHM200PB1
15
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 6 System flow principle
6-1. Refrigeration flow chart
The refrigeration system of direct cooling single-system cooler belongs to the category of a
single-temperature and single-control refrigerating system with one evaporators and is controlled by a
single temperature control.

SERVICE MANUAL
Model:CHM200PB1
16
Issue 2017-6-03
Rev. REF1706S004V0
6-2. Refrigeration flow scenograph

SERVICE MANUAL
Model:CHM200PB1
17
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 7 Circuit diagram
7-1. Brief principle diagram

SERVICE MANUAL
Model:CHM200PB1
18
Issue 2017-6-03
Rev. REF1706S004V0
7-2. Wiring diagram

SERVICE MANUAL
Model:CHM200PB1
19
Issue 2017-6-03
Rev. REF1706S004V0
Chapter 8 Trouble shooting
8-1. Normal phenomena
Freezer does not
operate or
Power-On Light is
not on
Temperature control in OFF or
Min or 0 position. Move the control to a temperature setting.
Freezer is unplugged. Push the plug completely into the outlet.
The fuse is blown/circuit
breaker is tripped. Replace fuse or reset the breaker
Freezer
starts/stops too
frequently
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long to
door/lid openings. Reduce the time of opening the door/lid
Temperature control set too
cold. See About the operation of the freezer
Freezer operates
too long
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings. Reduce the time of opening the door/lid
Temperature control set too
cold. See About the operation of the freezer
Inadequate air circulation
space around cabinet. See Preparing to install the freezer
Fast Freeze switch is in the
ON position (on some
models)
See About the operation of the freezer
Noisy operation or
cabinet vibrates
Floor may be weak, causing
freezer to vibrate when
compressor is on.
Placing 2 X 4s (51 mm X 102 mm) under the
length of the freezer will help support it and
may reduce vibration.
Cabinet is not positioned
solidly on floor
See Preparing to install the freezer Or use
shims for uneven floor
Freezer
temperature too
warm
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings. Reduce the time of opening the door/lid

SERVICE MANUAL
Model:CHM200PB1
20
Issue 2017-6-03
Rev. REF1706S004V0
Foods defrosting
Temperature control OFF or
Min or 0 positions. Move the control to a temperature setting.
Freezer is unplugged. Push the plug completely into the outlet.
The fuse is blown/circuit
breaker is tripped. Replace fuse or reset the breaker
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings. Reduce the time of opening the door/lid
Freezer
temperature too
cold
Temperature control set too
cold. See About the operation of the freezer
Fast Freeze switch is in the
ON position or has run for too
long (on some models)
About the operation of the freezer
Moisture forms on
outside of cabinet
Not unusual during periods of
high humidity Wipe surface
Interior light does
not work (on some
models)
No power at outlet. Replace fuse or reset the breaker
Freezer is unplugged. Push the plug completely into the outlet.
Light bulb burned out. Replace bulb.
Door/lid wont fully
close by itself
Package holding door/lid
open. Store only corrects quantity of food.
Slow starting time
after being off
Built-in overload product. Store only corrects quantity of food.
Excessive frost
build-up
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings. Reduce the time of opening the door/lid
Not unusual during periods of
high humidity Put the freezer to suitable place
