mabe HMM09DEBW0 User manual

1
owner's manual
microwave oven
models/
HMM09DEBW0
HMM09DEBY0
read this owner's manual before installing your new microwave oven
PM01

2

3
precautions to avoid possible exposure
to excessive microwave energy
Read these instructions carefully before installing and operating the
oven.
welcome
Everything you need to know for the proper operation of your
product can be found here and in our web sites. We invite you to
get to know your product, read this manual and get the most out of
it.
1. Do not attempt to operate this oven with the door-open since
open-door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety in-
terlocks.
2. Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing sur-
faces.
3. Do not operate the oven if it is damaged. It is particularly impor-
tant that the oven door close properly and that there is no dam-
age to the:
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.

4
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY ........................................................................... 4
Important safety instructions ............................................................... 5
Installation instructions ......................................................................... 8
Grounding instructions ......................................................................... 8
Utensils guide ...................................................................................... 10
Cooking techniques ............................................................................. 11
Before you call for service ................................................................... 12
Parts of your new microwave oven .................................................... 13

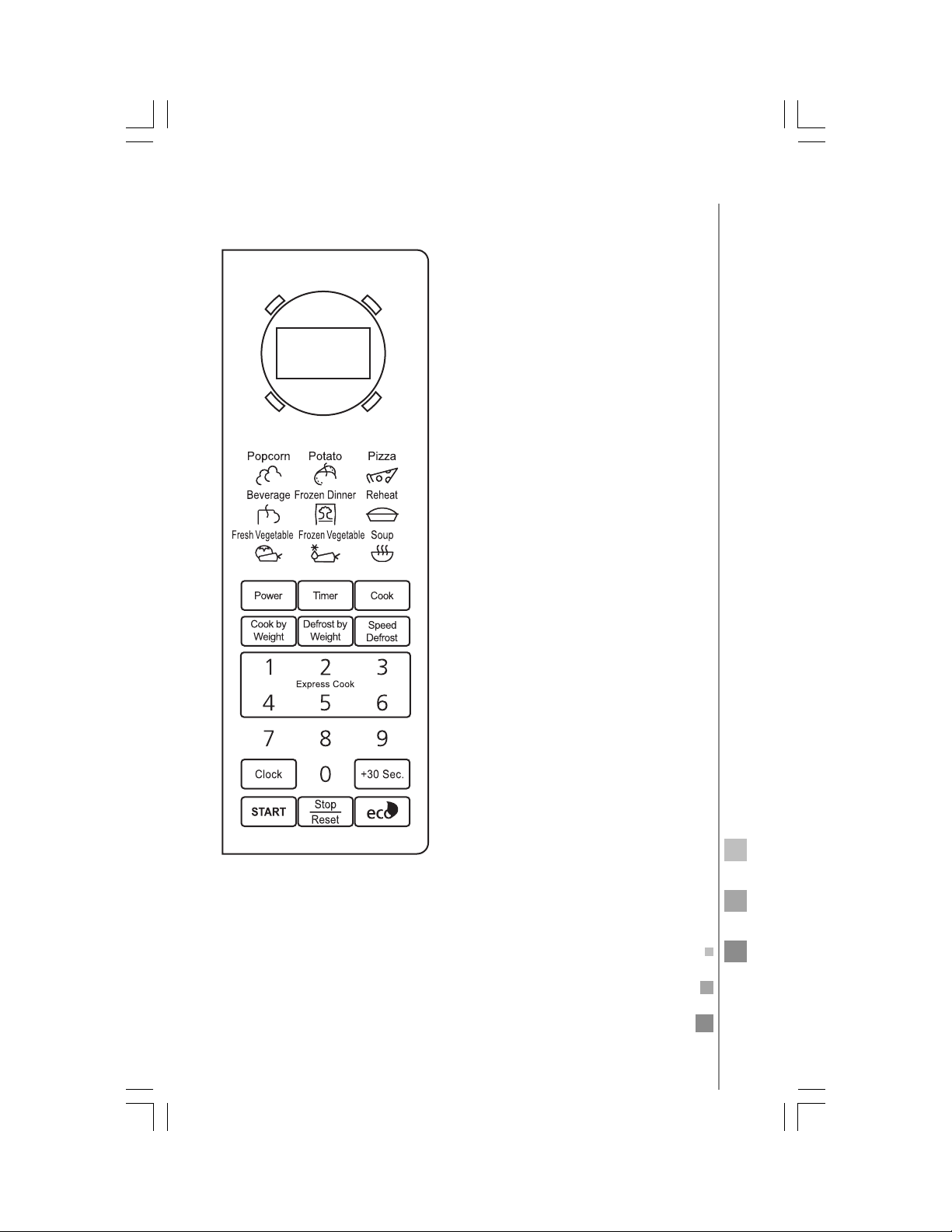

Control Panel ....................................................................................... 14
Operation Instructions ......................................................................... 15
Setting the clock .................................................................................. 15
Setting the timer ................................................................................. 15
Microwave cooking .............................................................................. 16
Speed defrost ....................................................................................... 16
Cook by weight .................................................................................... 17
Defrost by weight ................................................................................ 18
Express .................................................................................................. 18
+30 SEC ................................................................................................. 18
Child lock .............................................................................................. 18
ECO function ........................................................................................ 18
Quick Cook Settings ............................................................................. 19
Popcorn ............................................................................................... 19
Potato ................................................................................................. 19
Pizza .................................................................................................... 19
Beverage ............................................................................................. 20
Frozen Dinner ..................................................................................... 20
Fresh Vegetables ................................................................................ 20
Frozen vegetables .............................................................................. 20
Soup .................................................................................................... 20
Reheat ................................................................................................. 20
Care and Cleaning ................................................................................ 21
Rated electrical specifications ............................................................. 22
contents

5
important safety instructions
• Your own safety is important for us. Please read this information
before using your new product.
• Do not use extension cords.
• Do not plug other electric appliances to the same power outlet.
• Hold the connector by the power plug, not by the cord.
• This product is equipped with a "Y" type polarized plug having a
built-in grounding wire.
• Do not remove the grounding terminal or use outlet adapters.
• If the power cord is damaged, it must be replaced by the manufac-
turer, its authorized service agent or by qualified personnel in or-
der to avoid a hazard.
• If voltage variations are usual in your area, have a voltage regula-
tor installed.
• This appliance is not intended for use by persons (including chil-
dren) having reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given su-
pervision or instruction concerning the use of the appliance by a
person responsible for their safety.
• Children should be supervised to make sure they do not play with
the appliance.
• IMPORTANT: Failure to follow these warnings, will make you en-
tirely responsible for personal injuries or material damages that
may occur from using this equipment.
The following conditions are not considered as a normal use of the
appliance:
• If it has not been operated in accordance with the provided opera-
tion instructions.
• Damages caused by accidents, electrical overloads, voltage fluctua-
tions, using an energy other than the specified, or catastrophes.
• If it has been used with commercial or industrial purposes, or for
other than the indicated in the operation instructions.
• If the product has been repaired by unauthorized persons and/or
service workshops.

6
When using electrical appliances, basic safety precautions should be
followed, including the following:
WARNING: TO REDUCE THE RISK OF BURNS, ELEC-
TRIC SHOCK, FIRE, INJURY TO PERSONS OR EXPO-
SURE TO EXCESSIVE MICROWAVE ENERGY:
• Read all instructions before using the appliance.
• Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.
• This appliance must be grounded. Connect only to properly
grounded outlet. See the "Grounding Instructions" on page 6.
• Install or locate this appliance only in accordance with the pro-
vided installation instructions.
• Some products such as whole eggs and sealed containers -for ex-
ample, closed glass jars- are able to explode and should not be
heated in this oven.
• Use this appliance only for its intended use as described in this
manual. Do not use corrosive chemicals or vapors in this appliance.
This type of oven is specifically designed to heat, cook, or dry food.
It is not designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by
children.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance when paper,
plastic, or other combustible materials are placed inside the oven
to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags before placing
bag in oven.
- If materials inside the oven should ignite, keep oven door closed,
turn oven off, and disconnect the power cord or shut off power
at the fuse or circuit breaker panel.
- Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils or food in the cavity when not in use.
• Liquids, such as water, coffee, or tea are able to be overheated be-
yond their boiling point without appearing to be boiling due to
surface tension of the liquid. Visible bubbling or boiling when the
container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through heating it.
c. Do not use straight-sided containers with narrow necks.
d. After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
e. Use extreme care when inserting a spoon or other utensil into
the container.

7
• Do not heat oil or fat for deep-frying. It is difficult to control the
temperature of oil in microwave oven.
• Pierce foods with heavy skins such as potatoes, whole squash,
apples and chestnuts before cooking.
• The contents of feeding bottles and baby jars should be stirred or
shaken and the temperature should be checked before serving in
order to avoid burns.
• Cooking utensils may become hot because of heat transferred
from the heated food. Potholders may be needed to handle the
utensil.
• Do not cover or block any openings on the appliance.
• Do not store or use this appliance outdoors. Do not use this prod-
uct near water, for example, near a kitchen sink, in a wet base-
ment, near a swimming pool, or similar locations.
• Do not operate this appliance if it has a damaged cord or a plug, if
it is not working properly or if it has been damaged or dropped.
• Do not immerse cord or plug in water. Keep cord away from
heated surface. Do not let cord hang over edge of table or
counter.
• Use only thermometers which are specifically designed for use in
microwave ovens.
• Do not operate any heating or cooking appliance beneath this ap-
pliance.
• Be certain the glass tray and roller rings are in place when you op-
erate the oven.
• This appliance should be serviced only by qualified service person-
nel, contact nearest authorized service facility for examination, re-
pair, or adjustment.
• When cleaning surfaces of door and oven that comes together on
closing the door, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
• This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not oc-
cur in a particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the fol-
lowing measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
save these instructions

8
• Make sure that all the packing material is removed from the inside
of the appliance.
• Check the oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surface, broken or loose door
hinges and latches and dents inside the cavity or on the door. If
there is any damage, do not operate the oven but contact quali-
fied service personnel.
• This microwave oven must be placed on a flat, stable surface to
hold its weight and the heaviest food likely to be cooked in the
oven.
• Do not place the oven where heat, moisture, or high humidity are
generated, or near combustible materials.
• For correct operation, the oven must have sufficient airflow. Allow
20 cm of space above the oven, 10 cm at the back and 5 cm at
both sides. Do not cover or block any openings on the appliance.
Do not remove feet on which oven stands.
• The appliance shall be only used on a countertop over 3 feet (914
mm) above the floor.
• Do not operate the oven without glass tray, roller support, and
shaft in their proper positions.
• Make sure that the power supply cord is undamaged and does not
run under the oven or over any hot or sharp surface.
• The socket must be readily accessible so that it can be easily un-
plugged in an emergency.
installation instructions
grounding instructions
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing an es-
cape wire for the electric current.
WARNING: IMPROPER USE OF THE GROUNDING
PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or serviceman if the grounding in-
structions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded, and either:
1) If it is necessary to use an extension cord, use only a 3-wire exten-
sion cord that has a 3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the appliance. The marked rating of the
extension cord should be equal to or greater than the electrical rat-
ing of the appliance, or
2) Do not use an extension cord. If the power supply cord is too
short, have a qualified electrician or serviceman install an outlet
near the appliance.

9
electrical requirements
It is recommended that a separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong grounding plug. It
must be plugged into a wall receptacle that is properly installed and
grounded.
power supply cord
• A short power supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords are available and may be used
if care is exercised in their use.
• If a long cord or extension cord is used:
a) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appli-
ance.
b) The extension cord must be a grounding-type 3-wire cord, and
the longer cord should be arranged so that it will not drape over
the counter top or table top where it can be pulled on by chil-
dren or tripped over unintentionally.
Notes:
• If you have any questions about the grounding or electrical in-
structions, consult a qualified electrician or service person.
• Neither manufacturer nor the dealer can accept any liability for
damage to the oven or personal injury resulting from failure to
observe the electrical connection procedures.
radio or TV Interference
Should there be any interference caused by the microwave oven to
your radio or TV, check that the microwave oven is on a different cir-
cuit, relocate the radio or TV as far away from the oven as possible
or check position and signal of receiving antenna.

10
utensils guide
This section lists which utensils can be used in the microwave oven,
which ones have limited use for short periods, and which ones
should not be used in the microwave oven.
recommended use
Thermometers — Use only those labeled "Microwave Safe" and
follow all directions. Check the food in several places. Conventional
thermometers may be used on microwave food once the food has
been removed from the oven.
Wax paper — Use as a cover to prevent spattering.
Paper plates and cups — Use for short-term heating at low tem-
peratures. Do not use recycled paper, which may contain metal and
could ignite.
Glass and glass-ceramic bowls and dishes — Use for heating or
cooking.
Paper towels and napkins — Use for short-term heating and cov-
ering; these absorb excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain metal and could ig-
nite.
Microwaveable plastic wrap — Use to retain steam. Leave a small
opening for some steam to escape and avoid placing the plastic
wrap directly on the food.
Microwave browning dish — Use to brown the exterior of small
items such as steaks, chops, or pancakes. Follow the directions pro-
vided with your browning dish.
limited use
Aluminum foil — Use narrow strips of foil to prevent overcooking
of exposed areas. Using too much foil can damage your oven, so be
careful. You should keep distance of 1 inch (2.54 cm) between alu-
minum foil and cavity.
Plastic — Use only if labeled "Microwave Safe". Other plastics can
melt.
Ceramic, porcelain, and stoneware — Use these if they are la-
beled "Microwave Safe". If they are not labeled, test them to make
sure they can be used safely.

11
not recommended
cooking techniques
arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops,
with the thicker, meatier parts toward the outside of the turntable
where they receive more microwave energy. To prevent overcook-
ing, place delicate areas, such as asparagus tips, toward the center
of the turntable.
Your microwave makes cooking easier than conventional cooking,
provided you keep these considerations in mind:
stirring
Stir foods such as casseroles and vegetables while cooking to distrib-
ute heat evenly. Food at the outside of the dish absorbs more en-
ergy and heats more quickly, so stir from the outside to the center.
The oven will turn off when you open the door to stir your food.
turning
Turn foods over midway through cooking to expose all parts to mi-
crowave energy. This is especially important with large foods such as
roasts.
Glass jars and bottles — Regular glass is too thin to be used in a
microwave. It can shatter and cause damage and injury.
Paper bags — These are a fire hazard, except for popcorn bags that
are designed for microwave use.
Styrofoam plates and cups — These can melt and leave an un-
healthy residue on food.
Plastic storage and food containers — Containers such as marga-
rine tubs can melt in the microwave.
Metal utensils — These can damage your oven. Remove all metal
before cooking.
Note: Should you wish to check if a dish is safe for microwaving,
place the empty dish in the oven and microwave on HIGH for 30 sec-
onds. A dish which becomes very hot should not be used.
Shielding
Shield food with narrow strips of aluminum foil to prevent over-
cooking. Areas that need shielding include poultry wing tips, the
ends of poultry legs, and corners of square baking dishes. Use only
small amounts of aluminum foil. Larger amounts can damage your
oven.

4. Shaft
3. Roller Ring
12
7 6
2
3 4
1
5
adding moisture
Microwave energy is attracted to water molecules. Food that is un-
even in moisture content should be covered or allowed to stand so
that the heat disperses evenly. Add a small amount of water to dry
food to help it cook.
standing
Foods cooked in the microwave build up internal heat and continue
to cook for a few minutes after heating stops. Let foods stand to
complete cooking, especially foods such as cakes and whole veg-
etables. Roasts need this time to complete cooking in the center
without overcooking the outer areas. All liquids, such as soup or hot
chocolate, should be shaken or stirred when cooking is complete.
Let liquids stand a moment before serving. When heating baby
food, stir well at removal and test the temperature before serving.
parts of your new microwave oven
1. Door Safety Lock System
2. Oven Window
5. Control Panel
6. Wave Guide (Please do not re-
move the mica plate covering
the wave guide.)
7. Glass Tray

13
Timer
Timer functions independently,
even while a cooking program is
in process.
Power
Use to set power levels other
than high.
Display
Cooking time, power, indicators
and present time are displayed.
Quick Cook pads
Instant settings to cook popular
foods.
control panel
Cook
Use it for multistage cooking. It
enables cooking at multiple
power levels and time settings
automatically.
Cook by Weight
Programmed cooking based on
weight of foods.
Defrost by Weight
Programmed defrosting based
on the weight of the food.
Speed Defrost
Quick defrost function that alter-
nates defrost and stand times to
quickly and effectively defrost
foods.
Number pads 0-9
Touch to set time or food
weight. Touch to set Express
Cook.
Clock
Touch to set clock.
Stop/Reset
Press to clear all previous set-
tings.
Express
Press to set quick start cooking.
Start
Touch to start cooking program.
+30SEC.
Touch to set quick start cook.
ECO
Touch to set the power saving
mode.

14
During cooking setting mode, the oven will return to standby mode
if there is not any entry within 28 seconds.
During cooking program, press STOP/RESET once to pause it. Press
the START pad to resume. In pause mode, press STOP/RESET again to
cancel the program.
End will display with beeps to remind the program is over. The sys-
tem will beep every 2 minutes until you press any pad or open the
door.
In any state, if any pad on the control panel is closed for 1 minute,
the system will beep and the program will stop working immedi-
ately. The display shows FAIL. Press any other button to invalidate
until troubleshooting and press Reset to return standby.
operation instructions
setting the oven timer
1. Touch the TIMER pad.
2. Enter the amount of time by touching the number pads.
3. Touch the START pad.
NOTES:
• Time countdown can be seen in display before clock or cooking
time returns to display.
• Touch TIMER and then STOP/RESET to cancel the TIMER during the
time countdown.
• The longest cooking time you can set is 99 minutes and 99 sec-
onds.
setting the clock
1. In waiting mode, touch the CLOCK pad.
2. Use the number pads to enter the correct time.
3. Touch the CLOCK pad again.
NOTE: This is a 12-hour clock. When the oven is first plugged in or
when power resumes after a power interruption, the display will
show ENTER CLOCK TIME. During cooking, you can press CLOCK to
check the clock.

15
setting a cooking time
A. one-stage cooking
1. In waiting mode, place food into oven and close the oven door.
2. Touch the POWER pad repeatedly to enter the power level.
3. Use the number pads to set a cooking time. You can set a cook-
ing time from one second to 99 minutes and 99 seconds.
4. Touch the START pad to start cooking.
NOTE: During cooking, you can press the POWER pad to check the
cooking power.
B. Two-stage Cooking
Some recipes require different stages of cooking at different tem-
peratures.
1. SET STAGE 1: Follow steps 1 and 2 of the "One-stage Cooking"
section. DO NOT TOUCH the START pad.
2. SET STAGE 2: Touch the COOK pad then enter proper cooking
time and (lower) power level. (Most 2-stage recipes use lower
power for second stage.)
3. Touch the START pad.
NOTE: Speed defrost can only be set in first stage and Auto Menu,
Cook by Weight, Defrost by Weight cannot be set in this program.
speed defrost
1. In the standby mode, place food into oven and close the door.
2. Touch the SPEED DEFROST pad.
3. Enter desired defrosting time by touching number pads.
4. Touch the START pad.
NOTES:
• The longest defrosting time is 99 min, 99 seconds.
• During cooking, the oven will pause to remind you to turn food
over then close the door and press the START pad to resume.
cook by weight
1. In the standby mode, place food into the oven and close the
door.
2. Touch the COOK BY WEIGHT pad.
3. Enter the one digit code by touching the correct number pad
(1~3).
4. Enter weight by pressing number pads. Enter the pounds first,
and then ounces. Example, to enter 6 oz : press 0 and 6 in order,
to enter 1 lb 12 oz : press 1, 1 and 2 in order.
5. Touch the START pad.

6 lb (2 720 g)
6 lb (2 720 g)
16
Food
Beef
Lamb
Pork
Maximum Weight
5 lb 4 oz (1 743 g)
Code
1
2
3
NOTES:
• Meat should be defrosted at refrigerator temperature.
• Weight must be entered in pounds and ounces.
• Ounce weights less than 10 must be preceded by a 0. If label states
weight in pounds only, change the fraction of a pound to ounces
using the following chart.
Fractions of to pound
Less than 0,03
0,03 to 0,09
0,10 to 0,15
0,16 to 0,21
0,22 to 0,27
0,28 to 0,34
0,35 to 0,40
0,41 to 0,46
0,47 to 0,53
0,54 to 0,59
0,60 to 0,65
0,66 to 0,71
0,72 to 0,78
0,79 to 0,84
0,85 to 0,90
0,91 to 0,97
above 0,97
Converting fractions of a pound to ounces and grams
Ounces
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
go to next even
Grams
0
28
57
85
113
142
171
198
227
255
284
312
340
368
400
425
• During cooking, the system will pause automatically and beep to
remind user to turn food over, then touch the START pad to re-
sume cooking.
• Let meat stand a few minutes before carving.
cook by weight code description

17
express
1. In the standby mode, place food into oven and close the door.
2. Touch a number pad (from 1 to 6) once, the system will start
cooking (respectively corresponding cooking time 1 minute, 2
minutes, 3 minutes, 4 minutes, 5 minutes or 6 minutes).
NOTE: During cooking, you can add cooking time by pressing EX-
PRESS pad. The maximum is 99:99.
+ 30 SEC function
In standby mode, press the +30Sec pad once, display 0:30 and COOK,
the system automatically start cooking at 100% power.
In the cooking process you can also press the +30Sec pad overtime
(once plus 30s, up to 99:99).
child lock
The safety lock prevents unsupervised operation by children. The
CHILD LOCK indicator will show up on the display, and touch any
pad is invalid while the CHILD LOCK is set.
To set, in standby mode, touch and hold STOP/RESET for 3 seconds.
LOCK indicator shows on the display.
To cancel, touch and hold STOP/RESET for 3 seconds. LOCK indicator
disappears.
defrost by weight
1. In standby mode, place food into oven and close the door.
2. Touch the DEFROST BY WEIGHT pad.
3. Enter weight by touching number pads. Enter pounds first, and
then enter ounces. Example, to enter 6 oz : press 0 and 6 in or-
der, to enter 1 lb 12 oz : press 1, 1 and 2 in order.
4. Touch the START pad.
NOTES:
• Weight must be entered in pounds and ounces. Weights less than
10 ounces must be preceded by a 0. If label states weight in
pounds only, change the fraction of a pound to ounces using the
conversion chart. The maximum weight is 6 lb.
• Turn over food when oven pauses and beeps. Touch the START pad
to resume defrosting.

18
ECO function
In standby mode, press the ECO pad once. The oven enters the
power saving mode, the screen goes out;
Turn off the ECO function (two methods):
Method one: When the display is blank, press the ECO pad once. The
display turns on and the oven returns to the standby mode.
Method two: When the display is blank, press any pad other than
ECO, the display turns on and oven returns to the standby mode,
but one minute without the operating system will automatically en-
ter the province electricity, screen out. During the display light, press
the ECO button once, showed no change and no operation one
minute screen will not be out.
quick cook settings
The QUICK COOK settings allow you to cook or reheat food auto-
matically without entering power level or time.
For smaller portions, simply touch the applicable pad once and start.
For larger portions, touch the pad twice.
popcorn
1. Touch the POPCORN pad.
2. CODE and cooking time appears in the display. POPCORN auto-
matically sets the cooking time for a 3.5 oz. bag of microwave
popcorn.
3. Touch the START pad.
To change the preset POPCORN time:
1. Touch the POPCORN pad twice.
2. ENTER TIME appears in display.
3. Touch number pads to enter minutes and seconds.
4. Touch the START pad.
The longest cooking time is 99 min, 99 seconds. This new cooking
time will be set as the default one until you change it or next power
on.
potato
For 4 to 6 oz. potatoes:
1. Touch the POTATO pad once.
2. Enter number of potatoes by touching number pads 1 to 4.
3. Touch the START pad.
For large (8 to 10 oz.) potatoes:
1. Touch the POTATO pad twice.
2. Enter number of potatoes by touching number pads 1 to 4.
3. Touch the START pad.

19
pizza
Reheating 5 oz of pizza:
1. Touch the PIZZA pad once. CODE and cooking time appears in
the display.
2. Touch the START pad.
Heating 16 oz of pizza:
1. Touch the PIZZA pad twice. CODE and cooking time appears in
the display.
2. Touch the START pad.
reheat
1. Touch the REHEAT pad. CODE and cooking time appears in the
display.
2. Touch the START pad.
fresh vegetables
1. Touch the FRESH VEGETABLES pad.
2. Touch number pad (1~6) to enter food portions.
3. Touch the START pad.
frozen dinner
For one or two small (7~9 oz.) frozen dinners:
1. Touch the FROZEN DINNER pad once.
2. For 1 entree, touch the number pad "1". For 2 entrees, touch the
number pad "2".
3. Touch the START pad.
Microwaving one large (10~12 oz.) frozen dinner:
1. Touch the FROZEN DINNER pad twice.
2. For 1 entree, touch the number pad "1". For 2 entrees, touch the
number pad "2".
beverage
For 5 to 7 oz. cups:
1. Touch the BEVERAGE pad once.
2. Enter the number of cups by touching number pads 1 to 4.
3. Touch the START pad.
For larger 9 to 11 oz. cups:
1. Touch the BEVERAGE pad twice.
2. Enter the number of mugs by touching number pads 1 to 4.
3. Touch the START pad.
3. Touch the START pad.

20
soup
1. Touch the SOUP pad.
2. Touch number pad (1~4) to enter food portions.
3. Touch the START pad.
frozen vegetables
1. Touch the FROZEN VEGETABLES pad.
2. Touch number pad (1~6) to enter food portions.
3. Touch the START pad.
