mabe MEI2030DVSL User manual

1
owner's manual
microwave oven
models
MEI2030DVSL
MEI2340DVSL
read this manual before installing your new microwave oven
PM01

2

3
Welcome
Everything you need to know for the proper operation of your
product can be found here and in our web sites. We invite you to
get to know your product, read this manual and get the most out of
it.
Important Safety Instructions
The following conditions are not considered as a normal use of the
appliance:
• If it has not been operated in accordance with the provided opera-
tion instructions.
• Damages caused by accidents, electrical overloads, voltage fluctua-
tions, using an energy other than the specified, or catastrophes.
• If it has been used with commercial or industrial purposes, or for
other than the indicated in the operation instructions.
• If the product has been repaired by unauthorized persons and/or
service workshops.
• Do not use extension cords.
• Do not plug other electric appliances to the same power outlet.
• Hold the connector by the power plug, not by the cord.
• This product is equipped with a "Y" type polarized plug having a
built-in grounding wire.
• Do not remove the grounding terminal or use outlet adapters.
• If the power cord is damaged, it must be replaced by the manufac-
turer, its authorized service agent or by qualified personnel in or-
der to avoid a hazard.
• If voltage variations are usual in your area, have a voltage regula-
tor installed.
• This appliance is not intended for use by persons (including chil-
dren) having reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given su-
pervision or instruction concerning the use of the appliance by a
person responsible for their safety.
• Children should be supervised to make sure they do not use the
appliance as a toy.
• IMPORTANT: Failure to follow these warnings, will make you en-
tirely responsible for personal injuries or material damages that
may occur from using this equipment.
Read these instructions carefully before using your microwave oven,
and keep it carefully. If you follow the instructions, your oven will
provide you with many years of good service.
Save these instructions

4
Cautions to avoid possible exposure to
excessive microwave energy
(a) Do not attempt to operate this oven with the door open since
this can result in harmful exposure to microwave energy. It is im-
portant not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must
not be operated until it has been repaired by a competent per-
son.
Important safety instructions
To reduce the risk of fire, electric shock, injury to persons or expo-
sure to excessive microwave oven energy, when using your appli-
ance follow basic precautions, including the following:
• It is hazardous for anyone other than a competent person to carry
out any service or repair operation that involves the removal of a
cover which gives protection against exposure to microwave en-
ergy.
• Only allow children to use the oven without supervision when ad-
equate instructions have been given so that the child is able to use
the oven in a safe way and understand the hazards of an improper
use.
• When the appliance is operated in the combination mode, chil-
dren should only use the oven under adult supervision due to the
temperatures generated (only for grill models).
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food residues
should be removed.
• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on
the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep
the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store
items, such as bread, cookies, etc. inside the oven.
WARNING: LIQUIDS AND OTHER FOODS MUST NOT
BE HEATED IN SEALED CONTAINERS SINCE THEY
ARE LIABLE TO EXPLODE.

5
• Remove wire twist-ties and metal handles from paper or plastic
containers/bags before placing them in the oven.
• Install or locate this oven only in accordance with the installation
instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be heated
in microwave ovens since they may explode, even after microwave
heating has ended.
• Use this appliance only for its intended purpose as described in this
manual. Do not use corrosive chemicals or vapors in this appliance.
This oven is especially designed to heat. It is not designed for in-
dustrial or laboratory use.
• If the supply cord is damaged, it must be replaced by the manufac-
turer, its service agent or similarly qualified persons in order to
avoid a hazard.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a
swimming pool.
• The temperature of accessible surfaces may be high when the ap-
pliance is operating. The surfaces are liable to get hot during use.
Keep cord away from heated surfaces, and do not cover any vents
on the oven.
• Do not let cord hang over edge of table or counter.
• Failure to maintain the oven in a clean condition could lead to de-
terioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
• The contents of feeding bottles and baby food jars shall be stirred
or shaken and the temperature checked before consumption, in
order to avoid burns.
• Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the contain-
ers.
• The microwave oven shall not be placed in a cabinet unless it has
been tested in a cabinet.
• Appliances are not intended to be operated by means of an exter-
nal timer or separate remote-control system.
• The door or the outer surface may get hot when the appliance is
operating.
• The rear surface of appliance shall be placed against a wall.

6
To reduce the risk of injuries
WARNINGS:
• ELECTRIC SHOCK HAZARD. TOUCHING SOME OF
THE INTERNAL COMPONENTS CAN CAUSE SERI-
OUS PERSONAL INJURY OR DEATH. DO NOT DIS-
ASSEMBLE THIS APPLIANCE.
• ELECTRIC SHOCK HAZARD. IMPROPER GROUND-
ING CAN RESULT IN ELECTRIC SHOCK. DO NOT
PLUG INTO AN OUTLET UNTIL APPLIANCE IS PROP-
ERLY INSTALLED AND GROUNDED.
grounding
Cleaning
Before cleaning, unplug the appliance from the power sup-
ply.
• Clean the inside of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighboring parts must be cleaned
carefully with a damp cloth when they are dirty.
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with
a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding in-
structions are not completely understood or if doubt exists as to
whether the appliance is properly grounded. If it is necessary to use
an extension cord, use only a 3-wire extension cord.
• A short power-supply cord is provided to reduce the risks resulting
from becoming entangled or tripping over a longer cord.
• If a long cord set or extension cord is used, then:
1. The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appli-
ance.
2. The extension cord must be a grounding type 3-wire cord.
3. The long cord should be arranged so that it will not drape over
the counter top or tabletop where it can be pulled on by chil-
dren or tripped over unintentionally.

7
WARNING: PERSONAL INJURIES HAZARD. IT IS HAZ-
ARDOUS FOR ANYONE OTHER THAN A COMPETENT
PERSON TO CARRY OUT ANY SERVICE OR REPAIR
OPERATION THAT INVOLVES THE REMOVAL OF A
COVER WHICH PROVIDES PROTECTION AGAINST EX-
POSURE TO MICROWAVE ENERGY.
Utensils
See the sections "Materials you can use in microwave oven" and
"Materials to be avoided in microwave oven". There may be certain
nonmetallic utensils that are not safe to use for microwaving. If in
doubt, you can test the utensil in question following this procedure.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250 ml)
along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use
it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Aluminum foil
Shielding only. Small smooth pieces can be used to cover thin parts
of meat or poultry to prevent overcooking. Arcing can occur if foil is
too close to oven walls. The foil should be at least 2,5 cm away from
oven walls.
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish
must be at least 5 mm above the turntable. Incorrect usage may
cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass
jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic
trim. Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.

8
Paper plates and cups
Use for short–term cooking/warming only. Do not leave oven unat-
tended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervi-
sion for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should
be labeled "Microwave Safe". Some plastic containers soften as the
food inside gets hot. "Boiling bags" and tightly closed plastic bags
should be slit, pierced or vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Wax paper
Use as a cover to prevent splattering and retain moisture.
Thermometers
Microwave-safe only (meat and candy thermometers).
Materials to be avoided in microwave oven
Materials you can use in microwave oven (cont.)
Aluminum trays
May cause arcing. Transfer food into microwave-safe dish.
Carton boxes with metallic handles
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when ex-
posed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may split
or crack.

9
Setting up your oven
Parts and accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray (1 piece)
Turntable ring assembly (1 piece)
Instruction manual (1 piece)
A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock system
Turntable Installation
• Never place the glass tray upside down. The glass tray should
never be restricted.
• Both glass tray and turntable ring assembly must always be used
during cooking.
• All food and containers of food are always placed on the glass tray
for cooking.
• If glass tray or turntable ring as-
sembly cracks or breaks, contact
your nearest authorized service
center.
Hub (underside)
Glass
tray
Turntable
shaft
Turntable ring assembly

10
30 cm
Open
7,5 cm
Countertop installation
• Remove all packing material and accessories.
• Examine the oven for any damage such as dents or broken door.
Do not install if oven is damaged.
• Remove any protective film found on the microwave oven cabinet
surface. Do not remove the light brown mica cover that is attached
to the oven cavity to protect the magnetron.
Installation
1. Select a level surface that provides enough open space for the in-
take and/or outlet vents.
The rear surface of appliance shall be placed against a wall.
A minimum clearance of 3.0 inches (7.5 cm) is required between the
oven and any adjacent walls. One side must be open.
• Leave a minimum clearance of 12 inches (30 cm) above the oven.
• Do not remove the legs from the bottom of the oven.
• Blocking the intake and/or outlet openings can damage the
oven.
• Place the oven as far away from radios and TV as possible. Op-
eration of microwave oven may cause interference to your radio
or TV reception.
2. Plug your oven into a standard household outlet. Be sure the volt-
age and the frequency is the same as the voltage and the fre-
quency on the rating label.
WARNING: DO NOT INSTALL THE OVEN OVER A
RANGE COOKTOP OR OTHER HEAT-PRODUCING AP-
PLIANCE. IF INSTALLED NEAR OR OVER A HEAT
SOURCE, THE OVEN COULD BE DAMAGED AND THE
WARRANTY WOULD BE VOID.

11
Operation instructions for model
MEI2340DVSL

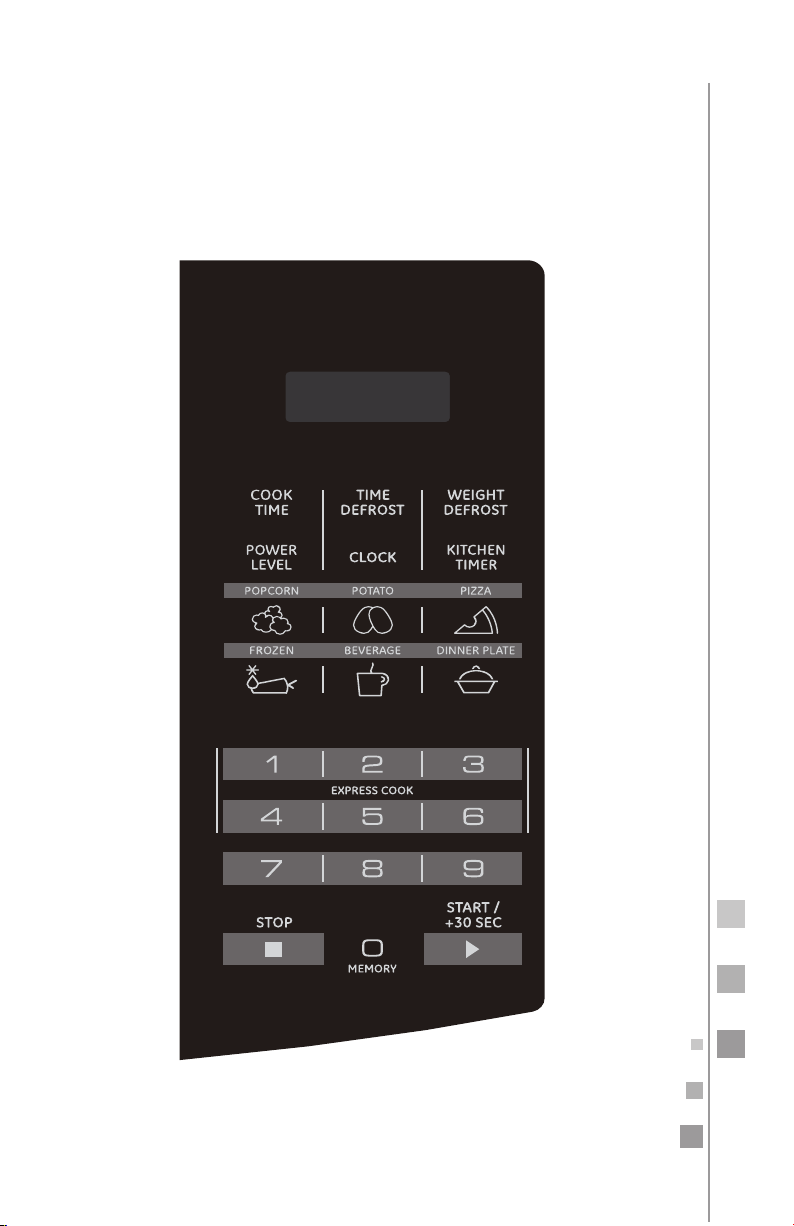

MEI2340DVSL control panel

12
Power Level
There are 11 power levels available.
10
100%
PL10
Level
Power
Display
9
90%
PL9
8
80%
PL8
7
70%
PL7
6
60%
PL6
5
50%
PL5
4
40%
PL4
3
30%
PL3
2
20%
PL2
1
10%
PL1
0
0%
PL0
Setting the clock
1. Press CLOCK, the display shows "00:00".
2. Press the number keys and enter the current
time. For example, time is 12:10 now, please
press "1, 2, 1, 0" in order.
3. Press CLOCK to finish clock setting. ":" will flash
and the clock will be lighted.
4. If the numbers input are not within the range of 1:00—12:59, the
setting will be invalid until valid numbers are input.
Notes:
• During clock setting, if the STOP button is pressed or if there is no
operation within 1 minute, the oven will go back to the former
setting automatically.
• If the clock needs to be reset, please repeat step 1 to step 3.
Kitchen timer
1. Press KITCHEN TIMER, the LED display will show
00:00, the first hour figure flash.
2. Press the number keys to enter the time for the
timer (the maximum time is 99 minutes and 99
seconds).
3. Press START/+30SEC. to confirm setting.
4. When the set time ends, the buzzer will ring 5 times. If the clock is
set (12-hour system), the LED will display the current time.
Notes:
• The kitchen time is different from 12-hour system, kitchen timer is
a timer.
• During the timer countdown, no program can be set.

13
Cook Time
1. Press COOK TIME once, LED will display "00:00".
2. Press number keys to input the cooking time; the
maximum cooking time is 99 minutes and 99 seconds.
3. Press POWER LEVEL once, LED will display "PL10". The default
power is 100% power. Now you can press number keys to adjust
the power level.
4. Press START/+30SEC. to start cooking.
Notes:
• In the process of cooking, if the STOP button is pressed or if there
is no operation within 1 minute, the oven will go back to the
former setting automatically.
• If the "PL0" power level is selected, the oven will work with fan
and no power. You can use this level to remove the odor of the
oven.
• During microwave cooking, POWER LEVEL can be pressed to
change the power level. After pressing POWER LEVEL, the current
power will flash for 3 seconds, now you can press number button
to change the power. The oven will work with the selected power
for the rest of the set time.
Example: To cook food at 50% microwave power
for 15 minutes:
1. Press COOK TIME once "00:00" is displayed.
2. Press 1, 5, 0, 0 in order.
3. Press POWER LEVEL once, then press "5" to select 50% microwave
power.
4. Press START/+30SEC. to start cooking.
Weight Defrost
1. Press WEIGHT DEFROST, LED will display "dEF1".
2. Press numerical buttons to input weight to be
defrosted. Input the weight ranged between 100 - 2000 g.
3. If the weight input is not within 100 - 2000, the input will be in-
valid. A beep will sound and the unit will not work until valid
numbers are input .
4. Press START/+30SEC. to start defrosting. The remaining cooking
time will be displayed.

14
Time Defrost
1. Press TIME DEFROST, LED will display "dEF2".
2. Press number pads to input defrosting time. The
effective time range is 00:01-99:99
3. The default microwave power level is 3. If you want to change the
power level, press POWER LEVEL once, the LED will display "PL 3",
then press the number pad of the power level you want.
4. Press START/+30SEC. to start defrosting. The remaining cooking
time will be displayed.
POPCORN
1. Press POPCORN repeatedly until the number you wish appears in
the display, "50" or "100" grams will be displayed in order.
For example, press POPCORN once, the display shows "50".
2. Press START/+30 SEC. to cook, buzzer will sound five times and
then turn back to standby state.
Important information about the POPCORN feature:
1. When selecting 100 grams of popcorn, it is suggested that you
fold down a triangle on each corner of the bag before cooking.
Refer to the illustration.
2. If/When the popcorn bag expands
and no longer rotates properly,
please press STOP button
once, open the oven door and adjust
the bag position to ensure even
cooking.
Express Cook
Option 1: In standby state, instant cooking at 100% power level can
be started by select a cooking time from 1 to 6 minutes by pressing
number pads 1 to 6. Press START/+30SEC. to increase the cooking
time; the maximum cooking time is 99 minutes and 99 seconds.
Option 2: In standby state, instant cooking at 100% power level
with 30 seconds cooking time can be started by pressing START/
+30SEC. Each press on the same button will increase cooking time by
30 seconds. The maximum cooking time is 99 minutes and 99 sec-
onds.
Note: During microwave cooking and time defrost, time can be
added by pressing START/+30SEC. button.

15
Potato
1. Press POTATO repeatedly until the number you
wish appears in the display. 1, 2, 3 will be dis-
played in order.
"1": 1 Potato (approximate 230 grams)
"2": 2 Potatoes (approximate 460 grams)
"3": 3 Potatoes (approximate 690 grams)
For example, press POTATO once, the LED display shows "1".
2. Press START/+30 SEC. to cook, buzzer sounds once. When cooking
finishes, buzzer sounds five times and then turns back to standby
state.
Frozen Vegetable
1. Press FROZEN repeatedly until the number you wish appears in
the display, 150, 350, 500 grams will display in order.
For example, press FROZEN once, 150 appears.
2. Press START/+30 SEC. to cook, buzzer sounds once. When cooking
finish, buzzer sounds five times and then turns back to standby
state.
Beverage
1. Press BEVERAGE repeatedly until the number you wish appears in
the display, 1, 2, 3 cup will display in order. One cup is about 120
ml.
For example, press BEVERAGE once, the display shows "1".
2. Press START/+30 SEC. to cook, buzzer sounds once. When cooking
finishes, buzzer sounds five times and then turns back to standby
state.
Dinner Plate
1. Press DINNER PLATE repeatedly until the number you wish ap-
pears in the display, "250", "350" or "500" grams will display in
order.
For example, press DINNER PLATE once, the display shows "250".
2. Press START/+30 SEC. to cook, buzzer sounds once. When cooking
finish, buzzer sounds five times and then turns back to standby
state.
Pizza
1. Press PIZZA repeatedly until the number you wish appears in the
display, 100, 200 or "400" grams will display in order.
For example, press PIZZA once, "100" appears.
2. Press START/+30 SEC. to cook, buzzer sounds once. When cooking
finishes, buzzer sounds five times and then turns back to standby
state.

16
Memory function
1. Press 0/MEMORY to choose memory 1, 2 or 3 procedure. The LED
display will show 1, 2 or 3.
2. If the procedure has been set, press START/ +30 SEC. to use it. If
not, continue to set the procedure. Only one or two stages can be
set.
3. After finishing setting, press START/ +30 SEC. once to save the pro-
cedure and turn back to the standby state. If you press START/ +30
SEC. again, the oven will start cooking.
Follow these steps:
1. In standby state, press 0/MEMORY twice, the display shows "2".
2. Press TIME COOK once, then press 3, 2, 0 in order.
3. Press POWER once, the display shows "PL10", then press "8" the
display shows "PL8".
4. Press START/ +30 SEC. to save the setting. Buzzer sounds once
then the oven turns back to the standby state. If you press START/
+30SEC. again, the procedure will be saved as memory 2 and op-
erated.
5. If the electricity is not cut off, the procedure remains in memory.
If it is, the procedure will need to reset.
6. If you want to run the saved procedure, while in standby state,
press 0/MEMORY twice, screen displays "2, then press START/
+30SEC. to run.
Example: To set the following procedure as the second memory, that
is memory 2. To cook the food at 80% microwave power for 3 min-
utes and 20 seconds.
Multistage cooking
At most 2 stages can be set for cooking. In multistage cooking if one
stage is defrosting, then defrosting must be entered at the first
stage.
Note: Auto cooking cannot work in the multistage cooking.
Example: if you want to cook at 80% microwave power for 5 min-
utes, then 60% microwave power for 10 minutes. The steps will be
the following:
1. Press TIME COOK once, then press 5, 0, 0 to set the cooking time.
2. Press POWER once, then press "8" to select 80% microwave
power.
3. Press TIME COOK once, then press 1, 0, 0, 0 to enter the cooking
time
4. Press POWER once, then press 6 to select 60% microwave power.
5. Press START/ +30 SEC. to start cooking.

17
Inquiring function
• In cooking state, press CLOCK, the LED will display clock for three
seconds.
• In the microwave cooking state, press POWER LEVEL to inquire micro-
wave power level. The current microwave power level will be dis-
played.
After three seconds, the oven will turn back to the previous state.
During multistage cooking, the inquiring function can be done the
same way as above.
Other specifications
• In standby state, if the set clock digital tube displays current time,
the icon ":" would flash; otherwise it shows "0:00".
• In setting function state, LED displays corresponding setting.
• In working or pause state, LED displays the remaining cooking
time.
End of cooking reminder
When the cooking is over, the buzzer will sound 5 beeps to alert
user the cooking is finished.
Lock function for children
To lock: In standby state, press STOP for 3 seconds, there
will be a long beep denoting the entering into the children-lock
state; meanwhile, the LED will display:
To unlock: In locked state, press STOP for 3 seconds, there
will be a long beep denoting that lock is released.

18
Operation instructions for model
MEI2030DVSL

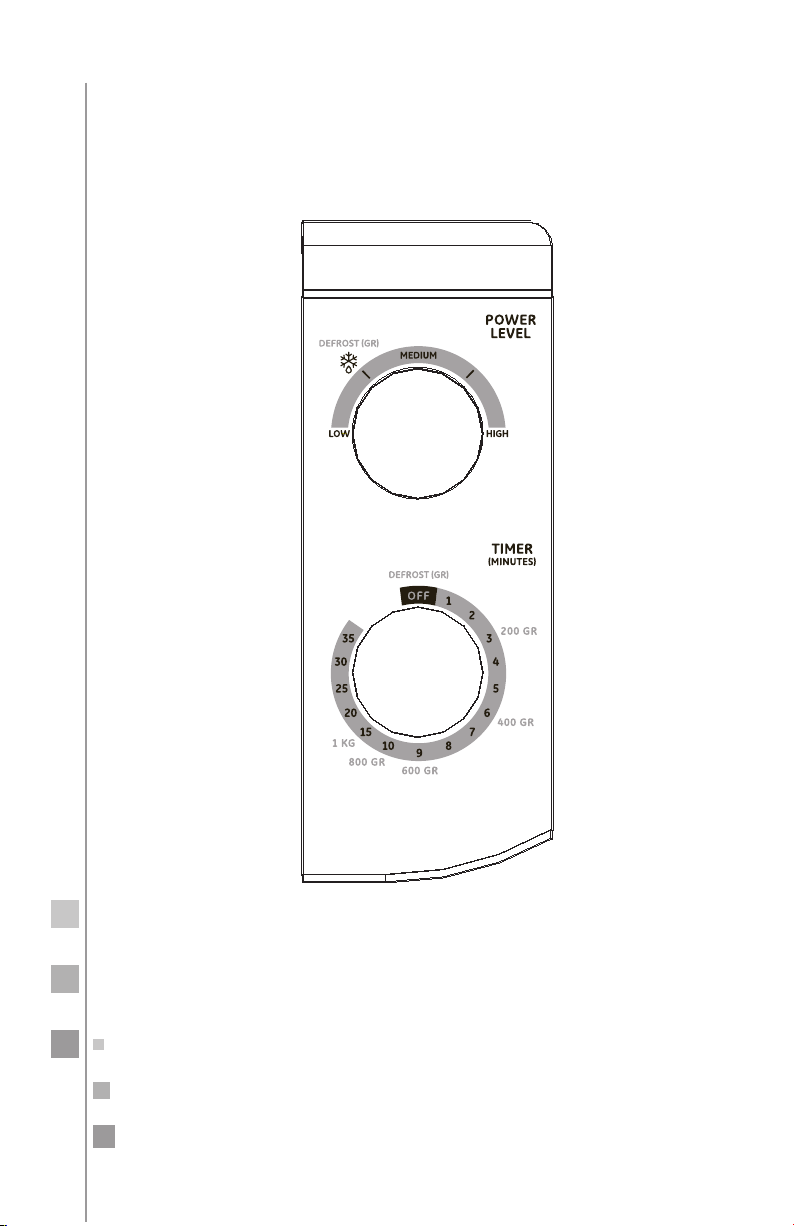

MEI2030DVSL control panel
1. Set the power level by turning the power level knob to the de-
sired position.
2. Set the cooking time by turning the timer knob to the desired po-
sition according to the cooking guide.
3. The microwave oven will automatically start cooking after power
level and time have been set.
4. After the cooking time is up, the unit will beep and stop.
IMPORTANT: If the unit is not in use, the timer knob should always
be placed at the "0" setting.

19
IMPORTANT: When removing food from the oven, please make sure
that the oven power is switched OFF by turning the timer knob to
the "0" (zero) setting. Failure to do so, as well as operating the mi-
crowave oven without food in it can result in overheating and dam-
age to the magnetron.
Power level
Low
Med. Low (Defrost)
Med.
Med. High
High
17% Micro
33% Micro
55% Micro
77% Micro
100% Micro
Soften ice cream.
Soup stew, soften butter or defrost.
Stew, fish.
Rice, fish, chicken, ground meat.
Reheat, milk, boil water, vegetables,
beverages
Output Applications

20
Rated Electrical Specifications
Model
Supply voltage
Rated input power
Rated output power
Frequency
Oven capacity
MEI2030DVSL
230 V ~
1 050 W
700 W
60 Hz
20 L
Troubleshooting Tips (all models)
According to Waste of Electrical and Electronic Equipment (WEEE) di-
rective, WEEE should be separately collected and treated. If at any
time in future you need to dispose of this product please do NOT dis-
pose of this product with household waste. Please send this product
to WEEE collecting points where available.
Problem RemedyPossible cause
Oven does not
start
Power cord not properly
plugged in.
Unplug; then plug in again after
10 seconds.
Oven does not
heat food
Broken fuse or tripped
circuit breaker.
Replace fuse or reset circuit
breaker (contact a qualified elec-
trician or call authorized service
center).
Power outlet. Test outlet with another electrical
appliances.
Door is not properly
closed.
Firmly close the door.
Glass turn-
table makes
nose when mi-
crowave oven
operates
Dirty roller seat and
oven floor.
Refer to "Maintenance of micro-
wave" section to clean dirty parts.
Normal
Microwave oven interferes
TV reception
Radio and TV reception may be interfered
when microwave oven operates. This is similar
to the interference caused by small electrical
appliances like mixers, vacuum cleaners and
electric fans. This is normal.
Dim oven light When cooking at low power levels, light may
become dim. This is normal.
Steam accumulation on
door, hot air coming out of
vents
When cooking, steam may come out of food.
Moist will get out from vents. Some may accu-
mulate on cold surfaces like the oven door.
This is normal.
Oven started accidentally
with no food in
DO NOT run the unit without any food inside.
It is dangerous.
MEI2340DVSL
230 V ~
1 250 W
800 W
60 Hz
23 L
