MAC3 PresSystem User manual

manual utilizare presostat electronic
pressystem
2
1ATENTIONARI..................................................................................Error! Bookmark not defined.
2INFORMATII GENERALE - GENERAL REMARKS.....................................................................5
2.1 Descrierea produsului- Product description.............................................................................5
2.2 Avantaje si beneficii - Advantages and Benefits......................................................................6
2.3 Mod de folosire - Operating Conditions...................................................................................8
2.4 Caracteristici tehnice - Technical features.............................................................................10
3INSTALARE - INSTALLATION..................................................................................................12
3.1 Legaturile hidraulice - Hydraulic connection..........................................................................12
3.2 Legaturile electrice - Electrical connection.............................................................................17
4Prima utilizare - FIRST STARTUP...........................................................................................21
4.1 Functionarea Automata - Automatic Operation......................................................................23
4.2 Functionarea mod presostat - Pressure switch Operation .....................................................24
4.3 Intrerupere curent - Break current.........................................................................................26
5MOD DE FOLOSIRE - OPERATION AND USE.........................................................................28
5.1 Butoanele - Keyboard ...........................................................................................................28
5.2 Administrarea Automata a parametrilor- Automatic Management of parameters ...................35
5.3 Administrarea Manuala a parametrilor - Manual Management of parameters........................37
6Restarea dispozitivului - RESET DEVICE ...............................................................................39
7Depanare si intretinere-TROUBLESHOOTING AND MAINTENANCE ....................................40
7.1 Inlocuire Placa electrionica / Senzor de presiune –Replacement Board / Pressure Sensor..45

manual utilizare presostat electronic
pressystem
3
1. Atentionari Warning
PERICOL
Risc de vatamare personala si a bunurilor
daca nu se respecta instructiunile
PERICOL DE CURENTARE
Risc de soc electric daca nu se respecta
instructiunile
DANGER
Risk of personal injury and property if
not complied with the requirements
ELECTRIC SHOCK
Risk of electrical shock if not complied
with the requirements
AVERTIZARE
Risc de distrugere a proprietatii sau a
mediului daca nu se respecta
instructiunile.
WARNING
Risk of damage to property or the
environment if not complied with the
requirements.
AVERTIZARE
Inainte de a instala si a folosi produsul,
cititi cu atentie manualul de utilizare.
Instalarea, mentenanta si depanarea
trebuie facuta de catre personal calificat,
in deplin acord cu legislatia.
Producatorul, MAC3 si importatorul,
Expert Instal Group SRL nu sunt
raspunzatori pentru nici o dauna
provocata de utilizare, instalare sau
depanare defectuoasa (gresita).
Folosirea de piese de schimb altele decat
cele originale, manipularea sau utilizarea
defectuoasa duc la pierderea garantiei.
WARNING
Before installing and using the product
read this book in all its parts. Installation
and maintenance must be performed by
qualified personnel in accordance with
current regulations.
MAC3 will not be held responsible for
any damage caused by improper or
prohibited use and is not responsible for
any damages caused by a not correct
installation or maintenance.
The use of non-original spare parts,
tempering or improper use, make the
product warranty null.
AVERTIZARE
PresSystem trebuie instalat conform
descrierii din paragraful “Instalare”
Instalatia hidraulica trebuie configurata si
dimensionata corect pentru a evita
socurile de presiune (lovitura de berbec).
Amortizorul de socuri, instalat pentru a
evita socurile de presiune trebuie sa
beneficieze de intretinere regulata.
Avand in vedere ca PresSystem este un
dispozitiv electric, in cazul in care este
deteriorat din cauza socurilor de presiune,
infiltrarea apei in aparat este periculoasa.
Contactul apei cu circuitele electrice pot
cauza distrugeri.
WARNING
PresSystem must be installed as
described in the paragraph “Installation”
You must project correctly the hydraulic
connection to avoid pressure shocks.
The shock absorber, installed to avoid
pressure shocks, must be keep under a
correct maintenance.
PresSystem is an electric device, if the
case will be damage by pressure shocks
a possible water infiltration could be
dangerous due to the contact between
electric components.
Pericol
PresSystem este etichetat CE (conform
normelor europene), dar in cazul instalarii
incorecte poate cauza interferente
elctromagnetice.
Verificati functionarea corecta a celorlalte
dispozitive electrice detinute in timp ce
DANGER
PresSystem is CE labelled but in the
case of wrong installation can cause
electromagnetic interference.
Verify the correct operation of other
electronic devices with PresSystem on

manual utilizare presostat electronic
pressystem
4
PresSystem este pornit. Functionarea
defectuoasa a echipamentelor electrice
poate fi daunatoare persoanelor si
proprietatii.
In cazul unor interferente
electromagnetice inchideti reteaua
electrica si contactati tehnicieni
specializati.
Inainte de orice interventie asupra
produsului, asigurati-va ca PresSystem
este deconectat de la reteaua electrica.
Nu incercati nici o interventie asupra
PresSystem in timp ce este pornit.
Conectarea PresSystem la panoul electric
trebuie facuta de catre personalizat
specializat conform normelor in vigoare.
PresSystem trebuie protejat cu un
comutator/siguranta termic(a).
PresSystem trebuie conectat la o
instalatie cu impamantare functionala si
eficienta.
and running. Malfunction of equipment
can be harmful to people and property.
In the case of electromagnetic
interference contact technical support
and stop the plant.
Before any intervention censure that the
PresSystem is disconnected from the
electricity supply.
Do not attempt operations with the
PresSystem open.
The connection of the PresSystem to the
electric panel must be carried out by
qualified personnel in accordance with
current norms .
PresSystem must be protected by a
thermal switch.
PresSystem must be connected to an
efficient ground system

manual utilizare presostat electronic
pressystem
5
2 INFORMATII GENERALE - GENERAL REMARKS
Prin acest manual incercam sa oferim informatii
esentiale pentru instalarea, folosirea si
intretinerea Epower.
Este important ca utilizatorul si/sau instalatorul
sa citeasca atent manualul inainte de instalarea
si folosirea produsului. Instalarea si folosirea
incorecta pot cauza pagube si pot duce la
anularea garantiei.
Intotdeauna specificati datele de identificare ale
modelului in momentul in care va adresati
tehnicienilor service sau cand comandati piese
de schimb.
In cazul in care aveti nevoie de instructiuni sau
sunteti intr-o situatie ce nu este acoperita de
acest manual, va rugam contactati
departamentul de suport tehnic.
This manual intends to provide essential
information for the installation, use and
maintenance of the product PresSystem.
It's important that the user and / or installer
reads this manual in all its parts before
installing and using the product.
Improper use can cause damage and result loss
of warranty.
Always cite the exact model number if they are
to be requested technical information or spare
parts to our sales and assistance service.
For instructions, situations and events not
covered by this manual, please contact the
customer service.
2.1 D
e
s
c
r
i
e
r
e
a
p
r
o
d
u
s
u
l
u
i
-
P

manual utilizare presostat electronic
pressystem
6
r
o
d
u
c
t
d
e
s
c
r
i
p
t
i
o
n
PresSystem este un produs nou de la Mac3,
realizat sa controleze pornirea si oprirea unei
pompe monofazate. Poate fi folosit in instalatii
rezidentiale pentru a inlocui presostatul mecanic
traditional. Folosirea unui microcontroler
protejeaza pompa de mersul fara apa si
supratensiune (numai vers. COSφ).
PresSystem este un dispozitiv:
- Auto-programabil sau programabil de
catre utilizator
- Se adapteaza oricarei pompe sau
oricarei inaltimi de pompare.
The PresSystem is a new electronic product by
MAC3, designed to control the start and stop of
single-phase pumps. It can be used in residential
pressurization systems, to replace the traditional
pressure switch. The use of a microcontroller
also allows to protect the pump from dry running
and overcurrent (vers. COSφ).
PresSystem is a device:
self-programmable or programmable by the
user
Adapts to any pump and at any height of the
system
2.2 A
v
a
n
t
a
j
e
s
i

manual utilizare presostat electronic
pressystem
7
b
e
n
e
f
i
c
i
i
-
A
d
v
a
n
t
a
g
e
s
a
n
d
B
e
n
e
f
i
t
s
PresSystem este montat pe o teava de otel
ce faciliteaza instalatia
Senzor de presiune intern ce permite reglarea
presiunii de pornire.
Fara supapa de sens pentru a preveni
pierderea de debit
Protectie Lipsa Apa cu resetari automate prin
sesizarea variatiei de presiune
PresSystem is mounted on a steel tube that
facilitates installation
Internal pressure sensor that allows
adjustment of restart pressure
No flow valve to prevent any loss load
Protection against dry running with automatic

manual utilizare presostat electronic
pressystem
8
Protectie Lipsa Apa cu resetari automate prin
sesizarea variatiei amperajului cosφ(numai la
vers. COSφ)
Protectie ajustabila la supratensiune amperaj
(numai vers. COSφ).
Intrare auxiliara programabila:
a. Pentru legarea unui flotor
b. Pentru pornirea pompei dintr-o
comanda externa
Protectie pentru resetari multiple din cauza
pierderilor sau lipsei unui vas de expansiune.
PresSystem poate functiona ca un presostat
mecanic traditional.
restarts through the control of the pressure
variation
Protection against dry running with automatic
restarts through the change of cosφ(vers.
COSφ)
Adjustable amperometric protection (vers.
COSφ).
Configurable auxiliary input:
a. for the connection of a float switch
b. to drive a pump as a function of an
external command
Protection for frequent restarts due to loss or
absence of an expansion tank
PresSystem can work as a pressure switch
2.3 C
o
n
d
i
t
i
i
d
e
u
t
i
l
i
z
a
r
e
-
O
p
e
r
a
t

manual utilizare presostat electronic
pressystem
9
i
n
g
C
o
n
d
i
t
i
o
n
s
Temperatura ambientala: intre +5°C si +40°C
Umiditate relativa maxima: 50% la +40°C
(fara condens)
Temperatura lichidului pompat: intre +1°C si
+40°C
Tipul lichidului pompat: Apa fara chimicale
adaugate (ph 5÷9) si fara materii solide sau
vascoase ce pot obstructiona teva de 1’’
PresSystem nu poate fi utilizat in instalatii cu
lichide abrazive, solide fibroase, lichide
inflamabile, explozive sau chimicale agresive.
PresSystem trebuie instalat in locuri ferite de
inghet si de intemperii.
Instalarea PresSystem trebuie facuta intr-un
sistem ce nu este expus loviturilor de berbec
(ex: cu vas de expansiune). Vasul de
expansiune trebuie intretinut corespunzator.
Ambient temperature between +5°C and
+40°C
Max humidity: 50% at +40°C (without
condensation)
Temperature of fluid between +1°C and
+40°C
Nature of liquid: water with no chemical add
(ph 5÷9) and with no solids acts to obstruct
the pipe 1''
PresSystem can not be used with abrasive
liquids, solids fibrous, flammable, explosive
and aggressive.
PresSystem must be installed in a place
protected from frost and bad weather.
The installation of PresSystem in a hydraulic
system must be designed to avoid
overpressure due to water hammer. The
expansion tanks must be properly
maintained.

manual utilizare presostat electronic
pressystem
10

manual utilizare presostat electronic
pressystem
11
2.4 C
a
r
a
c
t
e
r
i
s
t
i
c
i
t
e
h
n
i
c
e
-
T
e
c
h
n
i
c
a
l
f
e
a
t
u
r
e
s

manual utilizare presostat electronic
pressystem
12
Alimentare
1 x 230Vac / 1 x 117Vac
Power supply
1 x 230Vac / 1 x 117Vac
Tipul pompei
1 x 230Vac / 1 x 117Vac
Pump
1 x 230Vac / 1 x 117Vac
Amperaj max. pompa
8 Amperi
Pump current
8 Ampere
Putere max. pompa
Vers. 230Vac 1,5 kw (2hp)
Vers. 117Vac 0,75 kw (1hp)
Max pump power
Vers. 230Vac 1,5 kw (2hp)
Vers. 117Vac 0,75 kw (1hp)
Intrare Aux.
1
Aux In
1
Display
7 cifre/litere
Display
7 segments
Protectie Amperaj
(vers. cosφ)
2-12 Amperi
Amperometric
prot. (vers. cosφ)
2-12 Ampere
Montaj
Pe teava
Mounting
on pipe
Pozitie montaj
Oricare
Mounting
position
Any
Grad de protectie
IP50
Protection rating
IP50
Temp. ambientala
5°C ÷ 50°C
T. operating
5°C ÷ 50°C
Temperatura
lichidului
1°C ÷ 40°C
Liquid
temperature
1°C ÷ 40°C
Teava
AISI 304
Pipe
AISI 304
Filete
1" exterior potrivit si
pentru tevi de 1 ¼’’
Input/Output
1" male suitable for
pipes of 1 ¼ '' (see
Pressure drop)
Presiune de lucru
1,5 - 8 bar
Working
pressure
1,5 - 8 bar
Pressiune de Restart
(minima)
0,6 - 7 bar
Restart pressure
0,6 - 7 bar
Diferenta minima
programabila intre
minim si maxim
0,3 bar
Min. diff.
pressure
0,3 bar
Debit maxim
120 lt/min
Max flow
120 lt/min
Pierdere de presiune
<14mbar pentru debit de
150 lt/min
Pressure drop
<14mbar for flow of
150lt/min
Suprapresiune
maxima
20 bar
Max
Overpressure
20 bar
Lipsa apa
Protectie prin
sesizarea variatiei
presiunii
Protectie prin
sesizarea variatiei
amperajului cosφ
DryRunning
Protection with
pressure control
Protection with cosφ
control
Omologari
CE
Approval
CE
Material dispozitiv
PP
Body Material
PP
Dimensiuni
17x23x8,2 cm
Dimensions
17x23x8,2 cm
Greutate
0,6 kg
Weight
0,6 kg

manual utilizare presostat electronic
pressystem
13
3 INSTALARE - INSTALLATION 3.1 L
e
g
a
t
u
r
i
l
e
h
i
d
r
a
u
l
i
c
e
-
H
y
d
r
a
u
l
i
c
c
o
n
n
e
c
t

manual utilizare presostat electronic
pressystem
14
i
o
n
PresSystem poate fi instalat in orice pozitie.
Inainte de a instala dispozitivul, amorsati
corect pompa.Instalati PresSystem in
apropierea pompei (la pompele de suprafata).
Verificati ca nu exista vibratii daunatoare daca
PresSystem este instalat direct pe pompa.
Folositi pentru instalatie tevi de dimensiune
egala sau mai mare cea de pe PresSystem.
Evitati pozitionarea in locuri susceptibile la
formarea condensului.
Evitati plasarea dispozitivului in locuri unde
temperatura poate scadea sub zero grade
Celsius (0°C).
Instalati un vas de expansiune pentru a
evita pornirile repetate ale pompei. Folosirea
unui vas de expansiune protejeaza instalatia
de Loviturile de Berbec (suprapresiune), ce pot
defecta instalatia. Vasul de expansiune se va
monta numai dupa PresSystem.
Pentru dimensionarea corecta a vasului de
expansiune se recomanda instalarea unui vas
cu capacitatea de 10% din debitul maxim al
pompei:
EXEMPLU:
Pompa de 100lt/minvas de expansiune de
10lt
Valoarea presiunii de pre-incarcare cu aer a
vasului de expansiune trebuie sa fie aprox.
80% din presiunea instalatiei
Pentru intretinerea usoara a instalatiei
hidraulice:
PresSystem can be installed in any position.
Before installing the device, make the perfect
priming pump.
Install the PresSystem near the pump. Check
that there are no vibrations that can damage
the device when PresSystem is mounted
directly on the pump.
Use pipes with a diameter not less than the
pipe of PresSystem.
Avoid places where it is possible
condensation.
Avoid locations where the temperature can
drop below zero degrees Celsius (0°C).
Install an expansion tank to avoid continuous
restarts of the pump that could increase the
consumption of electrical energy regardless of
the used device.
The use of the expansion tank avoids
overpressures that could be damaging for the
system
For correct sizing of the expansion tank is
recommended to install an expansion tank
10% of the maximum capacity of the pump:
Example:
Pump 100lt/minexpansion tank 10lt
The value of expansion tank pre-charging must
be about 80% of the system pressure.
For easier maintenance of the hydraulic
system:

manual utilizare presostat electronic
pressystem
15
Este recomandata montarea unei supape de
sens la absorbtia (intrare) pompei (vezi Figura
1).
Este recomandata instalarea unui manometru
de citire a presiunii.
Este recomandata conectarea PresSystem cu
teava prin racord olandez.
Este recomandata instalarea unui robinet in
apropierea PresSystem in linie cu vasul de
expansiune.
Vasul de expansiune, robinetul sau orice alt
consumator nu trebuie montat inaintea
PresSystem.
It is recommended the insertion of a non-return
valve at the inlet (Figura 1).
It is recommended to install a pressure gauge
reference.
It is recommended to install the PresSystem
using a 3-piece union fittings.
It is recommended to install a tap near the
PresSystem and in series with the expansion
tank

manual utilizare presostat electronic
pressystem
16
Figura 1

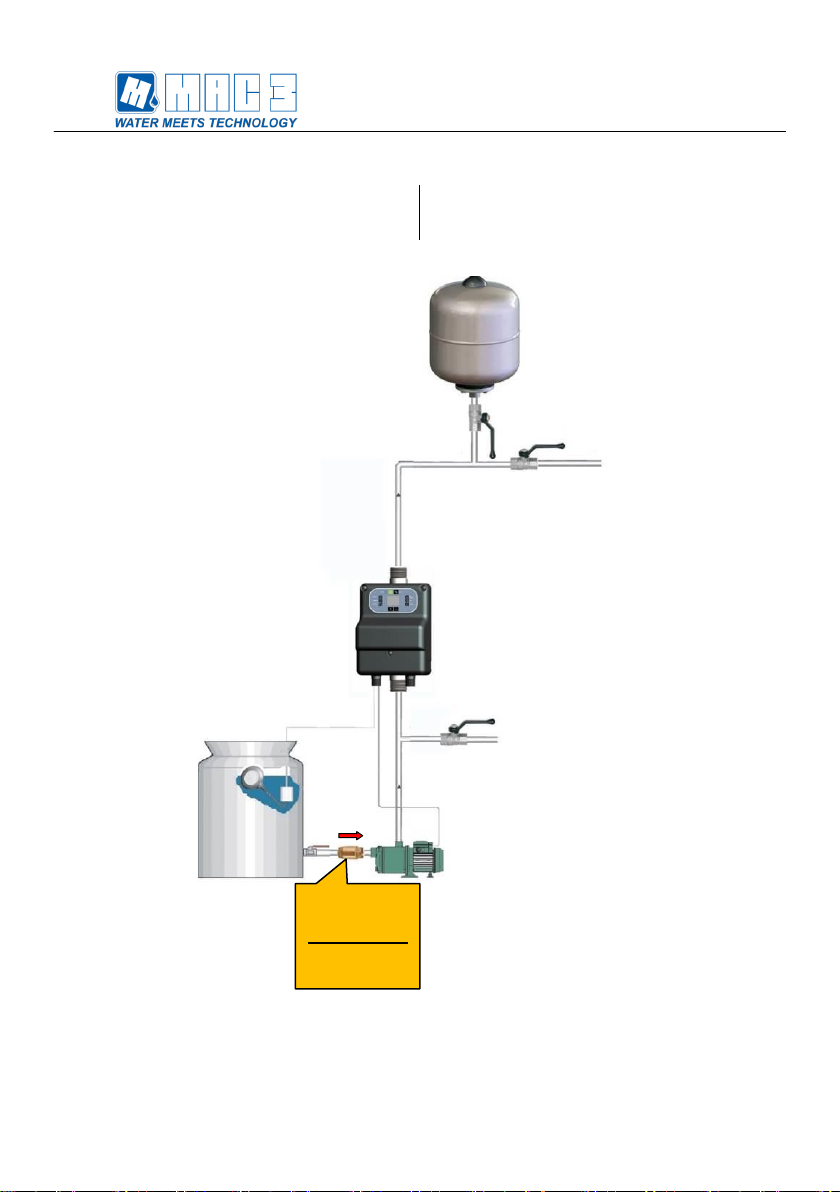

Di seguito schema d’esempio di un tipico
impianto con pompa di superficie:
Example of a typical system with surface
pump:
X
NO
Supapa de
sens
obligatorie
Check valve
required

manual utilizare presostat electronic
pressystem
17
3.2 L
e
g
a
t
u
r
i
l
e
e
l
e
c
t
r
i
c
e
-
E
l
e
c
t
r
i
c
a
l
c
o
n
n
e
c
t
i

manual utilizare presostat electronic
pressystem
18
o
n
PresSytem este echipat cu un terminal de
conexiuni accesibil prin capacul frontal al
dispozitivului. Aici se realizeaza conexiunile cu
firele de alimentare si de legatura cu pompa.
Pentru efectuarea legaturilor necesare:
Inlaturati capacul frontal
Introduceti cablurile in presetupa
Conectati cablul de alimentare (faza, nul,
impamantare) la instalatia electrica
monofazata printr-o siguranta dimensionata in
functie de puterea pompei.
Conectati cablul de legatura la pompa (faza,
nul, impamantare)
Cablul de legatura cu pompa trebuie sa fie
dimensionat in functie de lungimea traseului.
Exemplu:
Sectiune cablu
mm2
Lungimea
max mt
1.5
20
2.5
50
The device is provided with a terminal,
accessible through the front door to connect the
power cords of PresSystem and the cables for
the pump.
To make the necessary connections:
Remove the front door
Pass the cables in their cable glands
Connect the input cable (phase, neutral,
ground) to the single-phase line through a
circuit breaker sized according to the pump
rating
Connect the output cable (phase, neutral,
ground) to the pump
Connect the pump with a cable section
adapted according to its length
Example:
Section
mm2
Lenght
max mt
1.5
20
2.5
50
Atentionari:
Toate componentele interne ale
dispozitivului sunt sub tensiune electrica. In caz
de contact exista riscul de moarte.
Instalarea si intretinerea trebuie facuta
numai de catre personal calificat, folosind
echipament de protectie si unelte potrivite.
In cazul unei defectiuni, deconectati alimentarea
electrica.
Dispozitive de protectie:
Folositi Impamantare de siguranta
Alegeti echipamente de siguranta in
conformitate cu reglementarile locale
Folositi un intrerupator (siguranta) automat
de curent static.
WARNING:
All internal parts of the drive are under
power supply. In case of contact may sussit risk
of death.
All installation and maintenance work
,must be performed by qualified staff using
suitable instruments! Staff must use suitable
protective equipment.
In the event of a fault, disconnect or switch off
the power supply.
Safety devices
Safety earthing
Choose a suitable safety device according to
local regulations
Use an automatic residual-current device

manual utilizare presostat electronic
pressystem
19
Cateva exepmple de legaturi electrice:
Some examples of connection:
Conexiune standard pentru vers. 230Vac
Standard connection 230Vac version
Conexiune cu flotor electric pentru vers. 230Vac
Connection with float switch
230Vac version
L
N
GND
230 V~
50/60hz
L
N
GND
U
V
M
1~
J5

manual utilizare presostat electronic
pressystem
20
Conexiune standard pentru vers 117Vac
Standard connection 117Vac version
Conexiune cu flotor electric pentru vers. 117Vac
Connection with float switch
L
N
GND
117 V~
60hz
L
N
GND
U
V
M
1~
L
N
GND
230 V~
50/60hz
L
N
GND
U
V
M
1~
J5
J5
Other manuals for PresSystem
1
Table of contents
Other MAC3 Lawn And Garden Equipment manuals
