Machineart ADVance GUARD User manual

FITMENT KIT
KIT-2
KIT-3
T25 Torx Driver
T30 Torx Driver
T45 Torx Driver
T55 Torx Driver
6MM Hex Driver

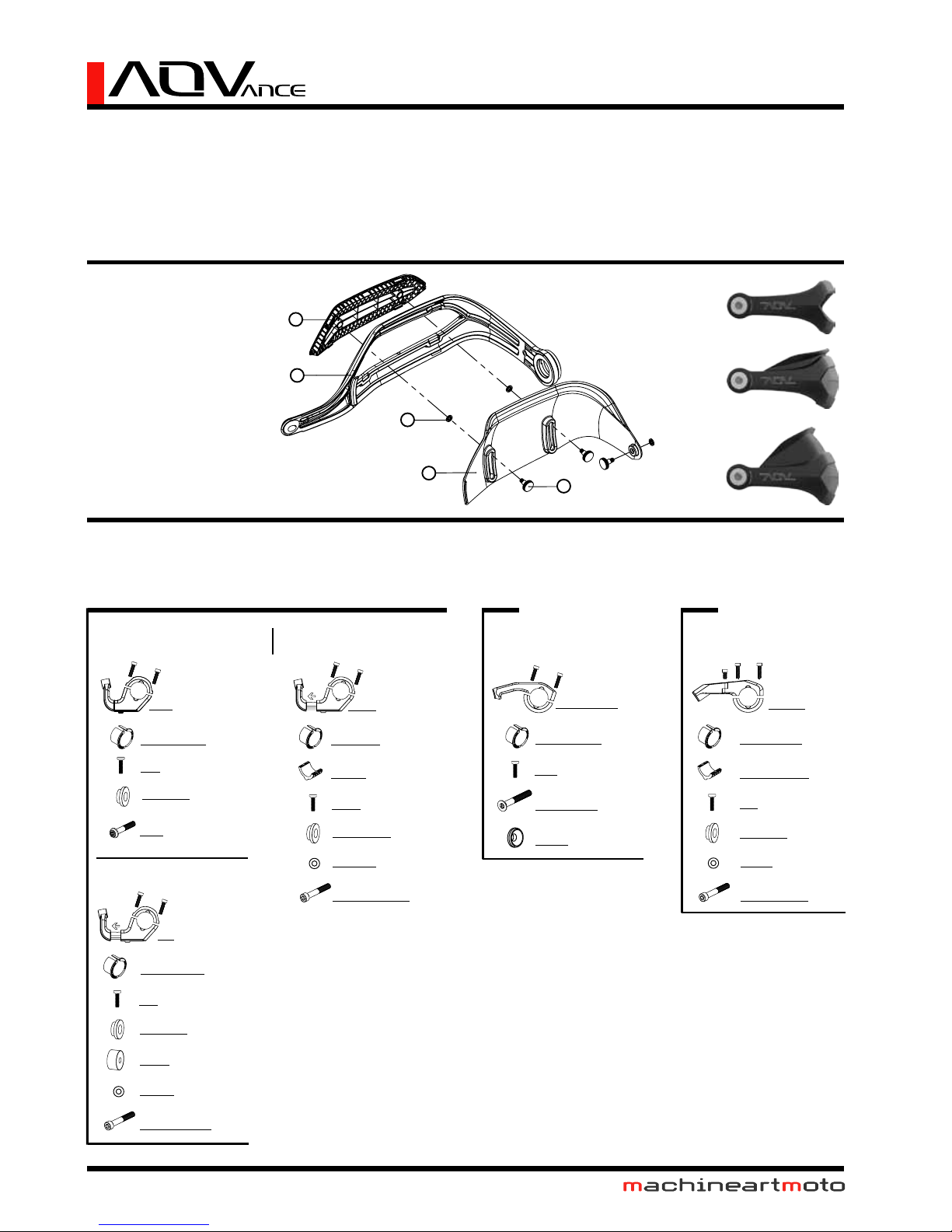

GUARD KIT
1_INSERT - x2
2_GUARD - x2
3_GUARD SHIELDS - x2
(1-LEFT / 1-RIGHT)
4_RETAINING WASHERS - x6
5_THUMBSCREWS - x6
Sets may come pre-assembled
TOOLS REQUIRED:
May vary according to model BEFORE BEGINNING WORK,
READTHESE INSTRUCTIONS
FROM STARTTO FINISH.
PLACE BIKE ON CENTER
STAND ON LEVEL GROUND.
GUARD Installation Guide
Contents are model specific.
Certain included parts may not
be needed for your application.
Contents may be revised periodically
reflecting changes made by Original
Equipment Manufacturers.
NOTES:
These instructions arewritten based upon our current
state of knowledge. Information is subject to modification.
Due to motorcycle manufacturing tolerance variations
from the factory, or due to owner made alterations, each
installation is subject to modification to ensure proper fit.
IMPORTANT:
Installation requires technical experience.
Machineart Moto products should be installed by
a qualified motorcycle technician. Improper installation
may cause injury or death.
We assume no liability for direct or consequential damage
to the vehicle or personal injury caused by a fall, accident,
or incorrect installation of our products.
2013+ BMW R1200 GS/A_LC
2015+ BMW S1000 XR
2005~2012 BMW R1200 GS
2013 BMW R1200 GSA
X1
3
2
4
5
1
Most ADV models: Honda, KTM,
Suzuki, Kawasaki,Yamaha
KIT-1
MOUNT x2
Adjustable-Short
BAR ADAPTER x2
Taper Bar
FITS: FITS: FITS:
FITS:
BAR CAP x2
BAR CAP x2
MOUNT x2
Fixed
MOUNT x2
Pivot Tip
BAR ADAPTER x2
Taper Bar
MOUNT SCREW x4
MOUNT SCREW x4
MOUNT SCREW x4
BAR CAP
Reuse Stock Cap
MOUNT x2
Adjustable-Long
BAR END SCREW x2
M8 x 45
BAR END SCREW x2
M12 x 90
M8 WASHER x2
all years BMW F800GS/A
all years BMW F650/700GS
BAR ADAPTER x2
F800 Taper Bar
BAR ADAPTER x4
F650/700 7/8” Bar
MOUNT SCREW x4
BAR END SCREW x2
M8 x 60
M8 WASHER x2
BAR ADAPTER x2
Taper Bar
BAR ADAPTER x4
7/8” Bar
BAR CAP x2
BAR END SCREW
Reuse Stock Screw
*
*
*
*
*
FITS:
MOUNT SCREW x4
MOUNT x2
Adjustable-Long
BAR END SCREW x2
M6 x 40
M6 WASHER x2
Triumph Tiger XC, XR
BAR ADAPTER x2
Taper Bar
BAR CAP x2
BAR SPACER x2
P1V1-C 2017
IMPORTANT:

GUARD

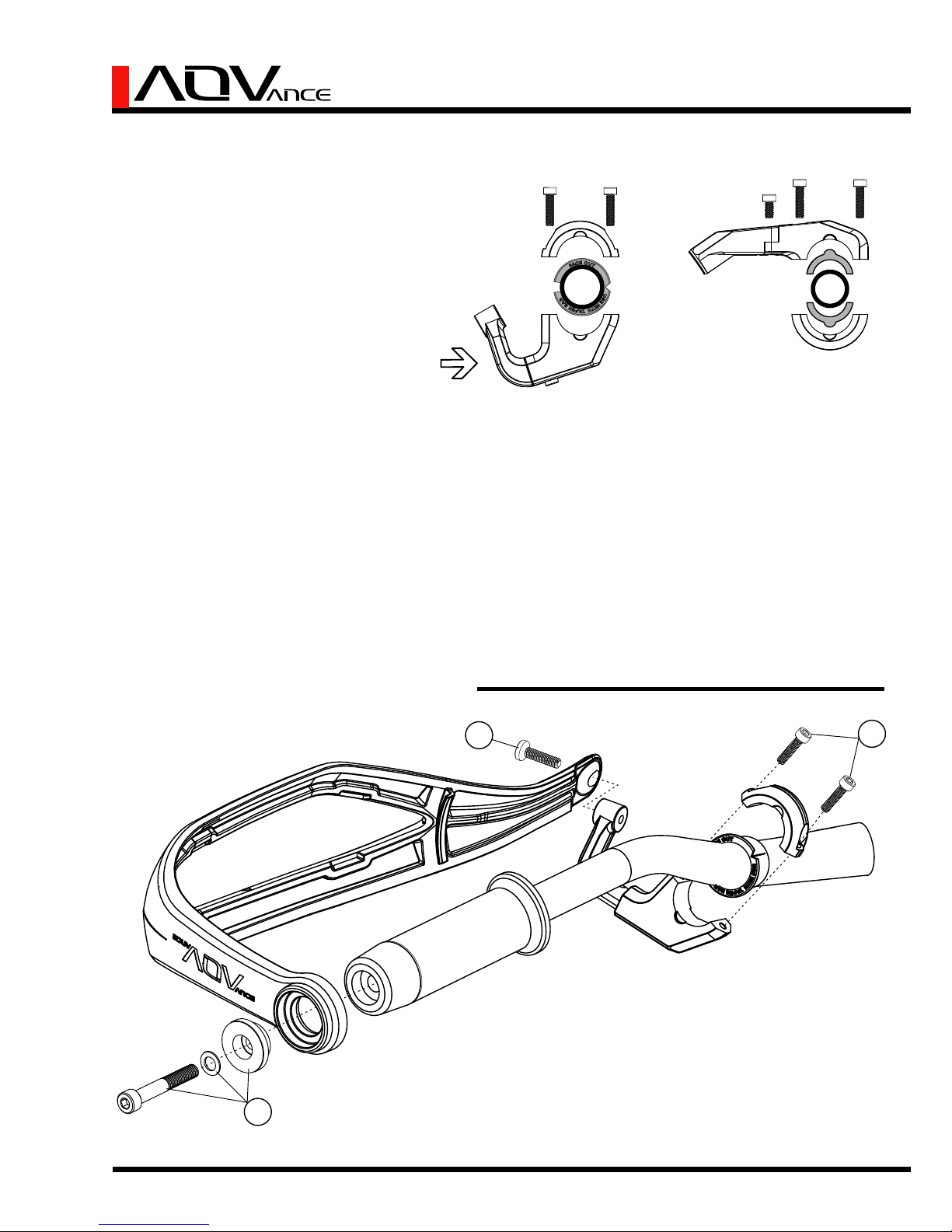

ADV GUARD ASSEMBLY
TAPER BAR ADAPTER:
1. Spread the TAPER BAR ADAPTER
over the handlebar with its flat
side facing the end of the BAR.
2. Place the MOUNT & CLAMP over
the TAPER BAR ADAPTER, hold parts
together & temporarily fasten with
two MOUNT SCREWS.
7/8” BAR ADAPTER:
1. Position the MOUNT & CLAMP on
the handlebar & loosely fasten
them with two MOUNT SCREWS.
2. Place two 7/8” BAR ADAPTERS
between the MOUNT& handlebar
as shown. Engage the semi-circular
tabs with the CLAMP & tighten the
MOUNT SCREWS some more. Do
not yet fully tighten to allow final
positioning with the GUARD.
Installation Guide
Before riding, sit on the machine and confirm that there is no
interference with your ability to operate and ride the motorcycle
safely. Check all controls and their cable paths to re-confirm
that they are operating normally. Adjust clearances as needed.
Check all bolted connections after intial ride.Tighten, if needed.
Follow assembly steps in order.
Place a soft cloth over your tank & fairing to protect them
in case something is dropped.
Remove any existing handguards, end weights & screws.
At first, install screws loosely and apply blue LOCTITE
248 or 242 medium strength to threads.Tighten screws
AFTER mounting parts & making clearance adjustments.
Attach MOUNTS to the handlebar with MOUNT SCREWS
& the correct BAR ADAPTERS for your model. Keep them
semi-loose.You WILL need to adjust their position later.
Position the GUARD against the handlebar END WEIGHT
or SPACER, according to your model. Fasten the GUARD
with the BAR END SCREW, WASHER, & BAR CAP. Use an
M8 WASHER with an M8 SCREW, or an M6 WASHER with an
M6 SCREW. Do not yet fully tighten.
Fasten the narrow end of the GUARD to the MOUNT with
the supplied MOUNT SCREW. Adjust the MOUNT position
& angle to align with the mounting hole on the GUARD.
Check for adequate clearance with cables & wires. Adjust
the GUARD angle so the clutch and brake lever ends align
within the width of the GUARD lower bar.
After both sides are installed, turn the handlebars full left
& right to check for adequate clearance with the fairing,
windscreen, & other area parts. Make adjustments &
tighten all screws.
MOUNT
CLAMP
BAR
ADAPTER
MOUNT
SCREWS
START HERE
*
*
*
*
*
*
1
2
3
Your FITMENT KIT may vary according to your bike model.
GUARD is shown with plastic INSERT and SHIELD removed.
2
31
KIT-1 SHOWN
IMPORTANT:
P2

908. 652. 6779
[e-mail]
NEVER attempt to ADJUST SHIELD
WHILE RIDING! It can cause loss
of control & result in serious
injury or death.
IMPORTANT:
NEVER RIDE with ONLY the INSERT
installed. INSERT and SHIELD
must be fastened together.
IMPORTANT:

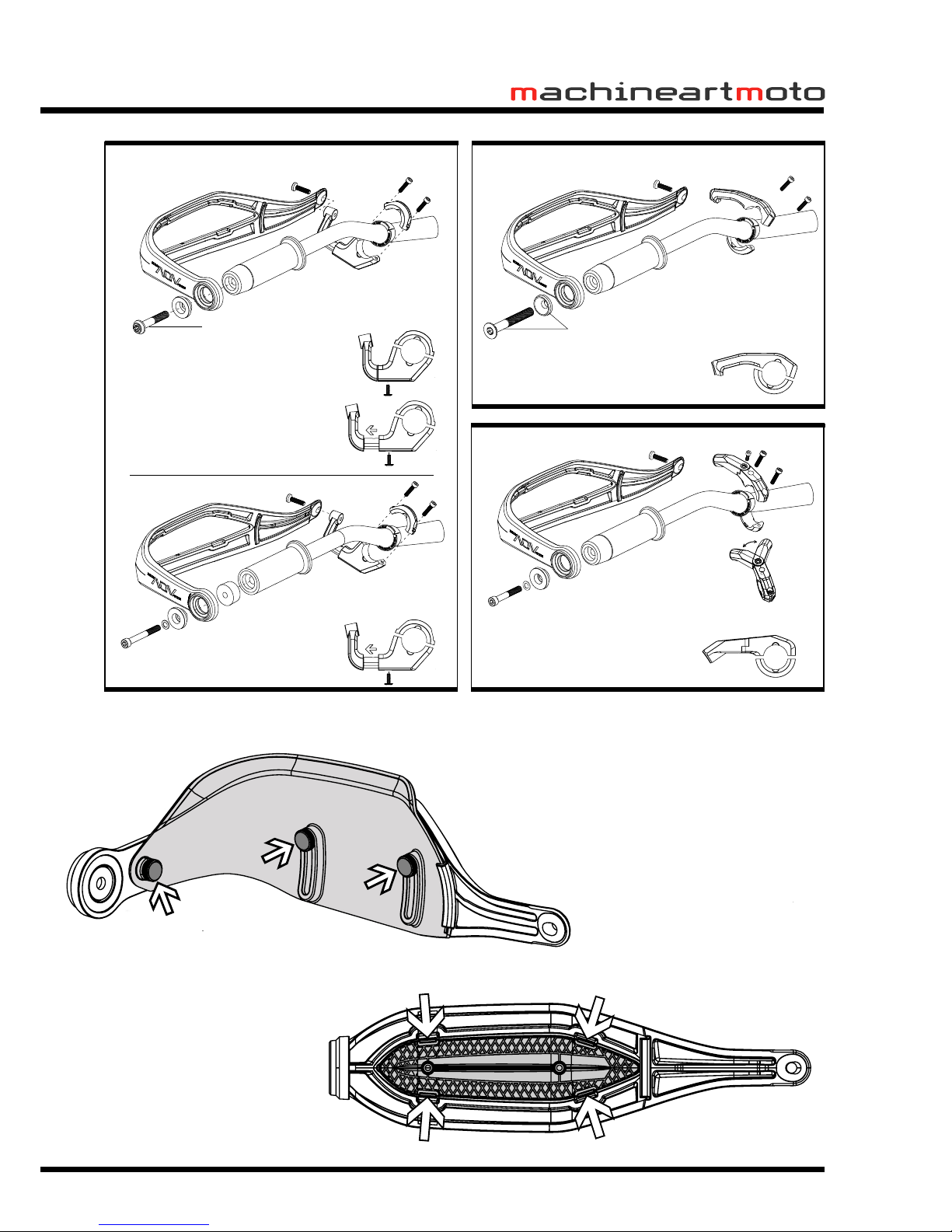

FIT KIT-1 Assembly FIT KIT-2 Assembly
FIT KIT-3 Assembly
BMW 2013+ R1200 GS/A_LC
2015+ S1000 XR
BMW 2005~2012 R1200 GS
2013 R1200 GSA
Fits Most ADV models
HONDA AfricaTwin
KTM
SUZUKI; KAWASAKI
BMW all years F800GS/A
all years F650/700GS
TRIUMPH all years Tiger XC, XR
*
*
TO ADJUST SHIELD BIKE MUST BE STATIONARY!
TO REMOVE SHIELD
1. Loosen all 3 Thumbscrews (do not remove from assembly).
2. Then, lift or lower Shield to the preferred position.
3. Tighten all Thumbscrews.
TO REMOVE INSERT
1. Press 4 flex tabs with your thumbs
& push the Insert out of the Guard.
2.To re-install, press Insert in from
the front and snap into place.
1. Loosen all 3 Thumbscrews & disengage from the threads.
2. Remove Shield.
(Thumbscrews are retained with the Shield).
P3
re-use stock parts
re-use stock bolt
