MachineryHouse TZ Series User manual

OPERATION MANUAL
TZSeries
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

CONTENTS
BriefIntroductionofOperationtheManual1
1. TechnicalData2
1.1Machinemark2
1.2Equipmentdata2
1.3Characteristicofnoiselevel4
1.4Dustemissionparameter4
1.5Operatingasperspecifiedrequirements4
2.Safety6
2.1Explanationofsymboland warning6
2.2Safetyprecautions6
2.3Safetymeasures7
2.4Risksstill exist12
2.5Safetyoperationofpanelsaw13
3.Transportation19
3.1Packing19
3.2Extentofsub-packing19
3.3Storageinintermediatelink 19
4.Assembly19
4.1Installationofpanelsaw19
4.2Installationofslidingtable20
4.3Electricalconnection20
4.4Electricaldiagram32-36
4.5Connectionofsuctionsystem21
5.InstallationofMachine21
6.AdjustmentofMachine23
6.1Adjustmentofsawblade24
6.2Replacementofsawblade24
6.3Listofsawbladeoptions25
6.4Settingofmainsawbladespeed26
6.5Lockofmovingtable26
6.6Mainswitch27
6.7Reactionofmotortooverload27
6.8Scoringsaw27
6.9Replacementofscoringsawblade28
7.Maintenance 29
8.Service31
9.Descriptionofservicesparepartsforcustomers31
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1
BriefIntroductionoftheOperationManual
Rightstocorrect
thetechnologies
anddatareserved!
Qualificationof
operator
Explanatorynotes
Rulesforaccident
prevention
Importantnotes
BriefIntroductionoftheOperationManual
Thedesignoftheproductsdeliveredtoyoumayvaryfromthis
OperationManualasaresultofretrofitbythemanufacturer;therefore
theseoperationinstructionscoveredbythisOperationManualarenot
necessarilyfitforacertainspecificmodel.
Takeoff thesafetydeviceandcheckplate,especiallythesawblade
coverandriving knifesafetycoverwill endangertheoperatorand
resultinaccident.
②Alloperatorsandrelevantpersonnelofthisbrandpanelsawmust
readcarefully, understandandcomplywiththisOperationManual.
③Werecommendreading thisOperationManualcarefullybeforeusing
themachine.Wewillnotberesponsibleforanydamageandadverse
effectduetonotcomplying withthisOperationManual.
Beforeusingthepanelsaw,theflowing pointsmustbecompliedwith:
onlytheoperatortrainedsubstantiallyandobtainedthequalificationcan
operatethepanelsaw.
ThisOperationManualcoverstheimportantinformationabouthowto
operatethepanelsawsafely,properlyandeconomically,complying with
thisOperationManualwillbehelpfultoavoiddanger,reduce repaircost
andidletimeandimprovethereliabilityandservicelifeofpanelsaw.
Usetheexistingregulationsforaccidentpreventionandenvironmental
protectionofthesatetosupplementthisOperationManual.Theplace
wherethisequipmentisoperatedmustbefurnishedwiththisOperation
Manual,everynewsubstituteofthisequipmentmustreadandcomply
withtherequirementsinthisOperationManual,forexample:
Operationincludessettingup,removing operating troubles,clearingoff
productionwaste,maintaining andclearingofftheoperatedandauxiliary
materials.
ThedetailsofthisOperationManualshallberead.
Attention:someparing sawdustmaybeleftwhenweconducttrialcut
beforedeliveryevenwithcleaning.
Allrightstocorrecttechnologiesreserved.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2
1.TechnicalData
Fig. 1.1 Nameplateofequipment
Testsymbol
Manufacturer
Equipment:
1.Technicaldata
1.1Machinemark
Thenameplateonthemachineframeplaysa
roleasthemachinemarkandoffersimportant
parametersofthemachine.
Meaningsofthenameplatecontents
Thisequipmentisalsofurnishedwiththefollowing
certificationmarksmeetingtherequirementsofCEsoasto
satisfythebasicsafetyandhealth-protectionrequirementsin
theappendixtotheOperationManualof98/37/EGWasa
substitutefor89/392/EWG.
1.2 Equipmentdata
TZSeries
Table1:All SawBlades&Cutheight
Sawbladedia. (mm) 250 300 315
Sawbladeheight(mm) 0-55 0-80 0-87
Sawbladeheightat45 (mm) 0-38 0-56 0-60
PrecisionPanelSaw
Model:
Powerofmainsaw
motor: kw
Powerofscoring
sawmotor: kw
Mainsawspeed: /min
Scoringsawspeed: /min
Mainsawdia.: ∮mm
Scoringsawdia.: ∮mm
Netweightof
machine: kg
Dateof
Manufacture:
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

3
Technicalparameters:
Mainsaw
Scoringsaw
Checkplate,
vert.&hor.
guiding rule,
sliding table
and
fixedtable
Suction
Environmental
requirement
Weight
Electric
equipment
Sawarbordia. (mm)
Angleofinclinationofsawblade( )
Numberofidling ofmainarbor(1/min)
Sawbladedia. (mm)
Sawarbordia. (mm)
Numberofidling ofmainarbor(1/min)
Fixedtable(mm)
Lengthofsliding table(mm)
Cutlength(mm)
Longitudinalcutlength(mm)
Cross cutwidth(mm)
Dia.ofconnectionsocketbelowtable
(mm)
Interfaceofsafetycover(mm)
Operatingtemperature(℃)
Maxrelativehumidity(%)
Donotplace theequipmentinexplosive
orerosiveenvironment.
Machineweight:
see nameplateofequipment
Voltage(V)+5%-10%,see nameplateof
equipment
Current(A), see nameplateofequipment
Frequency(HZ),see nameplateof
equipment
Motorpower,see nameplateof
equipment
30
0-45
4000-6000
120
20
8000
(3800/3700)(3200/3100)
(3000/2900)(2800/2700)
(2500/2400)(2200/2100)
(1600/1500)(1500/1400)
(1300/1200)
100
50
10-40
90, nofreezing
Itshallsavepoweraccordingto
thetechnicalparametersof
equipment.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4
1.3Characteristicofnoiselevel
ThenoiseemissionlevelrestswiththesoundintensitylevelEN3746 or
EN11202 (calculatedbythecorrectingfactorK3ofA2intheappendixof
EN11204)basedonthesumofoperatingconditionscoveredbyISO7904.
Table5:Characteristicofnoiselevel
Soundintensity
level(dB)
Soundpressureemissionlevel
atworkingplace (dB)
Tool
IdleLWA=85
RunLWA=90 IdleLPA=79.1 RunLPA=88.2 Circularsawblade300×3.2×72 W2 n=4,030rpm
Material
Tool
PermissiblemeasurementerrorforspecificemissionlevelK=4dB(A)
Thesespecificvaluesareemissionlevelvalues,soisnotnecessarilythe
safetyworkinglevel.Becauseemissionisrelatedtotheemissionlevel,
thoughtheprotectivemeasureshavebeentakenfortheoperator,thenoise
maynotbenecessarilyloweredthoroughly.Thefactorsinworkplace that
affectnoiseemissionalsoincludethedurationofbeing inthenoisy
environment,indoorfeaturesandothernoisesources,suchastheemission
fromnearbyequipmentandnumberofequipment,orotherprocessing.
Nevertheless,theseparametersarestillhelpfulfortheoperatortoidentify
thenoiseconditionintheenvironmentwheretheequipmentis.
1.4Dustemissionparameter
Aspertheappendix4ofBG1739 DustEmissionStandard,theoperating
environmentofwoodworkingpanelsawbelongstotheonewithlowdust.
1.5Operatingasperspecifiedrequirements
MJ6132TSeriespanelsawhasanoperatingguidedevice thatisspecialfor
thecasesasfollows:
Longitudinalcuttingandcross cuttingarerunningwithatleaseone
horizontalbearingsurface,maxthickness ofverticalcutting85mm(it
isonlyfitfortheequipmentwithoutscoringsaw,verticalcutting
thickness ofequipmentwithscoringsawis80mm).
Itcanalsocutsolidwood,densityfireboard, shavingboard, cardboard,
plasticboard,organicglass plateandgypsumboard, etc.
Forothermaterialstobecut,suchasnon-ferrousmetalorsynthetic
materialmadeofplastics,therelevantmaterialsandsawbladeused
mustbeapprovedbythemanufacturer.
OurmanufacturerfurnishestheFREUD circularsawblademadeinItaly,
withmindiameterof250mm,maxdiameterof315mmandscoringsaw
blade120mm.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5
Anyuseexceptthespecifiedcasesasabovementionedisnotcompliedwiththedesign
requirementandforanydamageasaresultofwhich,ourmanufacturerwillnotberesponsible
andanyriskofwhichisontheuser’sownaccount.
SawbladeHSS
Installationsite
Spareparts
Machineoperating
position
Whatdeservesspecialattentionisthatitisprohibitedtousehighalloy
&highspeedsteelsawblade(sawbladeHSS)andwide-mouthed
circularsaworwobblesaw.
Likewise,theequipmentisnotsuitabletobeinstalledintheopenor
workshopwithexplosivedanger,theoperationcompliedwithdesign
requirementsalsoincludefittingtheequipmentwithproperly-sized
suction&wastedischargesystem,complyingwiththeoperating
procedurespecifiedbythemanufacturer,aswellasabiding bythe
safetyregulationscoveredbytheOperationManualasforthe
maintenanceandrepairrequirements.
TZSeriespanelsawcanonlybeoperated,installedandmaintainedby
thepersonnelbeing familiarwiththeequipmentcharacteristicsand
understanding thedanger.Theresponsibilitiesforoperationand
maintenancemustbepinpointed.Themachinemustberepairedbyour
customerservice dept.
Abidebyrelevantregulationsonaccidentpreventionandgenerally-
recognizedsafetyregulations,aswell asindustrialhealth-protection
stipulation.
Ouroriginalsparepartistheonlyreplacementpartforthismachine;
themanufacturerwillnotguarantee anydamageasaresultof
non-originalpartandwillnotberesponsibleforanydamageasaresult
oftheuser’sownimprovementtotheequipmentwithoutauthorization.
Thepanelsawshallbeoperatedinthefollowingoperatingpositionwith
specifiedmethod:
Ontheleftofmoving tableinfrontofequipmentviewedfromfeed
direction(positionofmainoperator).
Whenthelongitudinalcuttingcheckplateisused,itisontherightof
thesliding tableonthecross cuttingendofequipment
Anypersontoremovetheworkpiece muststandontherightcross
cuttingendofequipmentandafterextensiontableandshallnotstand
inthepassing area ofmoving tableatanytime.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6
2. Safety
Warning
2. Safety
2.1Explanationofsymbolandwarning
Operationsafetysymbol
ThissymbolisoftenseeninallmaterialsaboutsafetyofthisOperation
Manual.Thereisthedangerofinjuryandtolifeatanytimeintheplace
wherethissymbolis.Thematerialsaboutoperationsafetyshall bepassed
tootheroperators.BesidestheregulationsonsafetyinthisOperation
Manual,othercommonstipulationsonsafetyandaccidentpreventionalso
shall beabidedby.
Thiswarning symbolappearsintheplacewherespecialattentionshallbe
paidtointhisOperationManualsoastoensurethatthecorrectoperating
procedurestipulatedintheManualcouldbecompliedwithandpreventing
dangerordamagetothemachine.
2.2Safetyprecautions
Allequipmenttools,especiallythewoodworkingmachineryfedmanually,
allwillcauseacertaindangerifnotoperatedproperly,therefore,itis
requiredtocomplywiththesafetyprecautionsand otherindustrialsafety
stipulationsandrequirementssummarizedinthischapterforever.
Regulationsonaccidentprevention:
Beforeoperation,ensurethesafetyandoperatingfacilitiesareinstalled
properlywithoutanydamage.
Beforereplacing sawblade,removing troubleandrepairing,ensurethe
powersupplyhasbeenswitchedoffanditisnecessarytolockthemain
powersupplywithlockforpreventingaccident.
Itisonlyallowedtousethesawbladeandgrooving sawbladesupplied
bythemanufacturer.
Wearclose-fittingworkclothes,anddonotwearring,braceletorwrist
watch.
Theworkplace shallbeclean, skidproofandhasgoodillumination.
Donotcutoverlargeortoosmallworkpiecethatexceedsthe
equipmentcharacteristics.
Standoutofthebounce area ofsawbladesideandworkpiece when
operatinganddonotstandinmiddleofsawblade.
Removetheloosemattersaroundsawbladebeforestartingthe
machine.
Cuttingshallnotbestarteduntilthesawbladeup tofullspeed.
Usesafetycoverforever!

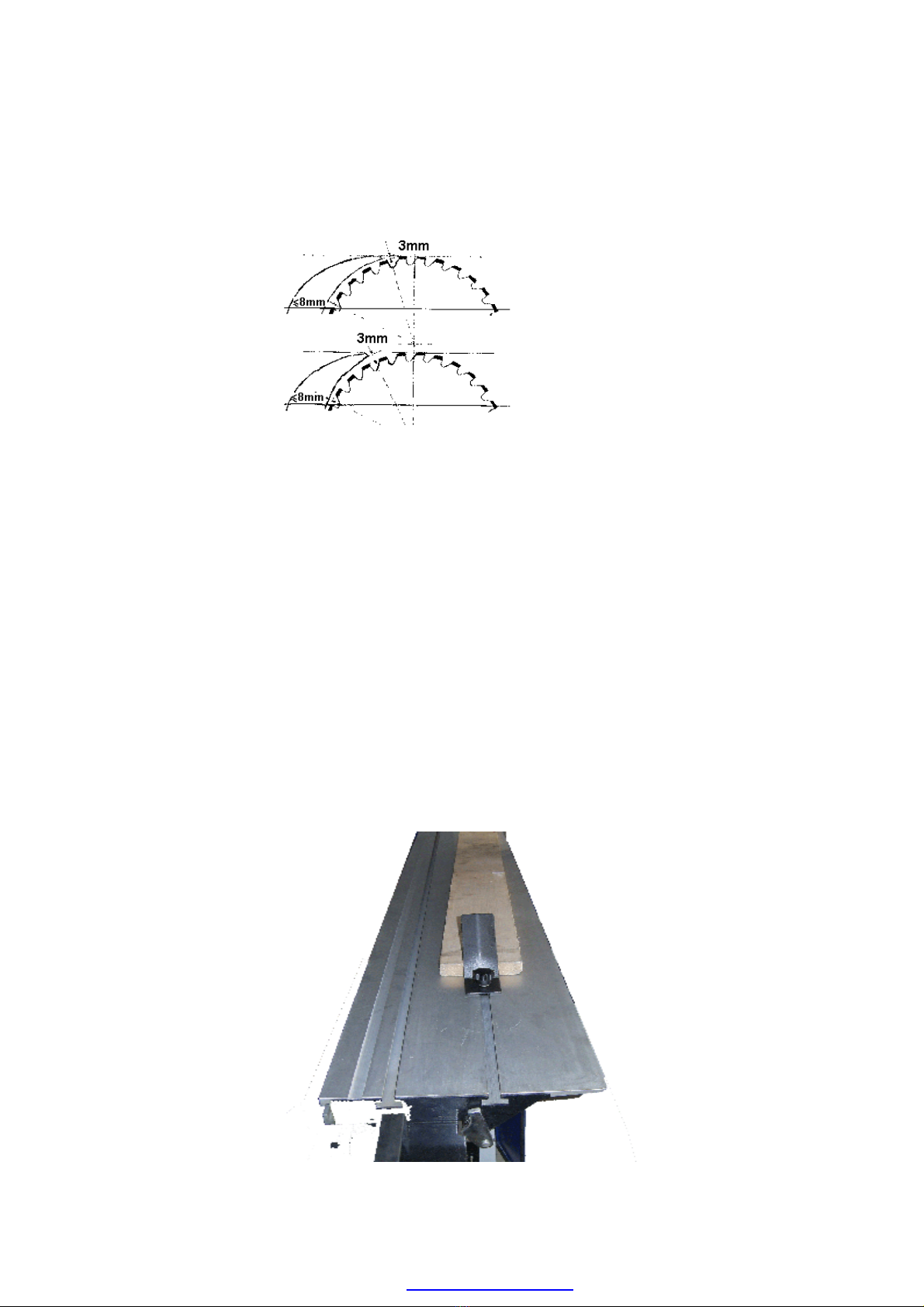

Exceptcross-cuttinglongandthinwoodintopieces,theriving knife
shall beusedforeverandtheriving knifeshallnotbethickerthanthe
cutwidthandthinnerthanthemainsawblade.
Whencross-cuttinglongandthinwoodintopiecescutting,usethe
anti-bounce device,suchasfixitinthesliding tablegroovewithstriker
plateagainstmoving.Aftercross-cuttinglongand thinwoodintopieces,
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

7
remounttheriving knifeandsafetycoverimmediately.
Whennarrowwoodiscutlongitudinally, theplanershallbeused.
Forthepurposeofavoiding thecutwoodfrombeingbroughtupward
andbouncedoutbytheuprising toothring,anoffsettingwedgemaybe
usedforinstance.
Donotcutroundlogwithsawusing standardfeedauxiliarydeviceor
checkplate.
Fixtheworkpieceonthesliding tablewithstrikerplatewhen
trimming.
Whenusing feeddevice,itatleaseneedstousethelongitudinalknife
astheanti-bouncedevice.
Wornandtornsliding tablestripshallbereplacedpromptly.
Donotusewobblesaworcuttingdevice.
Wearhearingprotectionwhenoperatingbecausethenoiseinwork
place ismorethan85dB(A).
Thesawdustproducedincuttingmayaffectthesightlineandbealso
harmfultohealth,sothetwodustcollectoropeningsofsawshallbe
connectedwiththesuctionsystem.Whenthesuctionforce isnot
enough,nooperationshall bedone,andpropermeasuresmustbetaken
toensurewhentheequipmentisstarted,thesuctionsystemalsois
started.
Onlyqualifiedelectriciancanoperatetheelectricalequipmentofthe
machine.
Cleantheequipmentperiodically,especiallythesawbench,sliding
tableandcheckplate,whichisanimportantsafetyfactory,andbefore
operationstart,itmustbeensuredthattheequipmentcannotbestarted
withoutcause.
2.3Safetymeasures
Ourpanelsawisdevelopedandmanufacturedaccordingtothenational
standardandEuropeanCEStandard “WoodworkingMachinerySafety,
CircularSawPartI,CircularSawMachinewithandwithoutSliding
Table”,inthestageofdesign,wepaidgreatattentiontocreatingideal
operatingconditions,coveringsafetyofvariousmachineryandelectrical
equipmenttoisolatingnoiseandloweringdustemission.
Themachineisequippedwithnecessaryprotectivedevicesoastoavoid
theriskswithrespecttodesignthataredifficulttoremoveinoperation,
including:
Theparallelsafetycoverontopisbothavailableat45 and90 soas to
covertheupperpartofsawbladesoundlyandpreventanydangerin
cutting.
Therearetworiving kniveswithdiameterbetween250mm and315mm
soastoavoidtheworkpiece frombouncing backwhencuttingis
jammed.
Thelongitudinalcuttingcheckplatehasanadjustablecheckplatethat
canbedrawnbacksoastolongworkpiece frombeing blocked
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

8
betweenthecheckplateanduprising toothring,ormaybereplaced
withalowguidecheckplatesothattherecouldbeappropriatespace to
lowertheuppersafetycovertotheworkpiece positionwhencutting
narrowandflatworkpiece.
Interlockthedoorsonmachinebodyelectricallysoastoreplace belt,
whenthedooropen,donotstartthemachine,whenthemachine
operating, switchoff themotorassoonas theplateguardopens.
Nomatterhowmanyisthesawbladediameterandspeed,once the
machineisswitchedoff,theautomaticbrakewillstopthesawblade
within10 seconds(equipmentofelectromagneticbrakewithCE
standard).
Withrespecttooptimizing environment,themachinehasreasonable
layout,themachinecanbeoperatedeasilyonbothsideofsliding table,
theoperatingpanelcanbeadjustedtothepositionofsightline,andall
emergency-stopbuttonsontheoperationpanelcanswitchoff all
motorspromptlyandsafely.
2.3.1Mountingsafetycoveronrivingknife
Forthepurposeofkeepingthesawbladeonthesawbench,we
recommendedseparatedadjustableprotectivedevice.
2.3.1.1Mountingsafetycover
Longitudinalcuttingknifeforhiddencut
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

9
2.3.1.2Mountingsafetycover
Whenthe45 sawisoperating,iftheequipmenthasonenarrowsafety
coverandonespecialsafetycoverfor45 ,thespecialsafetycoverfor
45 shallbemounted.
Ifonlyonesafetycoveravailablebothat90 and45 isfurnished,
thereisnonecessitytochange.
Note:donotreplace thesafetycoverwhenthesawbladeisrunning.
Bigsafetycover
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

10
2.3.1.3Screwingoff safetycover
Onlyinspecialcases,thesafetycovermaybescrewedoff withspecial
care.Suchaslarge-size workpiece.Afterwards,screwthesafetycover
backtotheoriginalpositionandlockitforcibly.
Screwthesafetycoveraccordingtothefollowing procedure:
Cutoff powersupplyandensurenottoswitchonitagain.
Loosenthelockingbar,thenscrewoff thesafetycover.
PositionofsafetycoverinnormaloperationRemovingsafetycover
Attention: Screwthesafetycoverbacktotheoriginalpositionaftercompletionand
fixitreliably.
2.3.1.4Cross-directionsettingbetweensafetycoverandsawblade
Thesafetyholderisfixedontheextensionarmsoastomakethemax
distance betweenouteredgeofsafetycoverandcenteredgeofsawarbor
be15mm.Thisdistance hasbeensetinthefactoryandmarkedwithred
arrowontheupperpartofextensionarm.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

11
2.3.3Settingofriving knife
Withrespecttosafety,theaccuratesettingofriving knifeplaysavery
importantrole.Thedistance betweenriving knifeandtoothedringincut
heightareashallbemorethan8mm,andthedistance inmostcommonuse
isabout5mm andthatofthelowerpartis3mm.
Whensettingriving knife,thepowersupplymustbecutoff,forsetting
rivingknife,movetheupperbrackettoterminalpositionofunlocking
device,foldtheorangecheckplatedownwards,subsequently,loosenthe
setscrewsontheholderofriving knifewithspecialspanner,thenmoveit
inthefixedgroovetoadjustitsheight,removethewholeriving knife
holderalongthetracktoadjustthedistance betweenriving knifeandsaw
blade,andobservethescaleontheriving knifeatthesametime,then
tightenup thesetscrewsandshuttotheguard.
2.3.3Extensionoftable
Theworktableattachedtothetablemaypreventworkpiece frominclining
backwardincuttingandimprovethesafety.Theattachedworktableisa
necessarypartofastandardmachine.
2.3.4Strikerplate
Thestrikerplateisusefortrimming ofthicknessandtofixtheworkpiece
onthesliding table.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

12
2.3.5Planer
Whenthewoodless than120mm tobecut,theplanershall beusedto
preventhandfromapproaching tothesawblade.
Planerknife
2.3.6Planerhandle
Whencuttingnarrowworkpiece,leantheworkpiece againstthecheck
platewithplanerthatmaybeself-madebytheoperator.
2.3.7Anti-bounce device
Donotusethecross checkplateandparallelcheckplatebecausethesaw
blademaybejammedwhenwoodcuttingasaresultofanti-bounce device.
2.4Risksstillexist
Althoughtheoperationismadeaccordingtotherequirementsand
complying withsafetysystem,themachineismadeforspecialpurposes
andhaslimitation, sotherearestillthefollowing risks:
Touchthemainsawbladeandgroovingsawbladeincuttingarea.
Whentheslidingtablegoforwardorall goback,touchthesawblade
belowsliding table.
Woodorpartialpartofwoodbounce.
Thehardalloyweldedsawbladeteetharethrownoff.
Breakageandsawbladeisthrownout.
Crushedmatters onthemanualormotor-drivenslidingtable.
Crushedmattersbetweentheslantmovementofmotor-drivensaw
bladeandriving knifecheckplateorworkpiece.
Whentheelectricalpartarea isdisconnected, thecasewithpoweronis
met.
Hearingisdamagedinlongtimeoperationasaresultofnotwearing
hearing protection.
Harmfuldustissuckedbecausenowasteisdischargeinoperation.
Whensettingtheoperationandmaintaining panelsaw,paycloseattention
topreventionagainsttheserisksthatstill existcausinginjury.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

13
Position1
Position2
Replacing
cross-cutting
checkplate
2.5Safetyoperationofpanelsaw
2.5.1Cross-pushshelf/cross-cuttingcheckplate
Size andbeveling
Thecross-pushshelfisputontheback-up keyononeendofradialarm
whosepositioncanbeadjustedaccordingtothematerialsize.The
cross-cuttingcheckplatemaybeplacedontwopositionsofthecross-push
shelf.
Application:whencuttingwood
Theoperatoronlyneedstopropthewoodagainstthecheckplateandpush
ittothesawcuttingdirection.
Cuttingdirection
Application:cuttingthesolidwoodandboardwithwidthlessthan600mm.
Theoperatoronlyneedstopropthewoodagainstthecheckplateandpush
ittothesawcuttingdirection.
Cuttingdirection
Unscrewthesetscrews
Putthecross-cuttingcheckplateonanewpositionandmakesurethe
setscrewsareputintoholesiteproperly.
Upliftthelockingbarandpushitoutwards.
Insertthesetscrewsintoarborslot.
Tightenup thesetscrews.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

14
Descriptionof
functions
Control
Replacing
cross-cutting
checkplate
Settingangle
Attention
Setting
Cross-cutting
2.5.2Cross-cutting/anglecheckplate
Cross-cuttingandbeveling checkplatemayturnby49 (withangle
markedonthescaleplate).Usethescaleplatetocompensateforlength
whenincreasing theangle.
Thefixedpositionaddedis90 .
C-materialmaymoveandlocktosupportoperation.
Setscrew1 Setscrew2
Unscrewthesetscrews
Pushthesetscrew1toleftoutofarborslot,
Movethecross-cuttingcheckplatetothesecondposition
Insertthesetscrew1intothearborslot,
Tightenup thesetscrews.
Unscrewthesetscrews,adjustehanglecheckplatetotherequiredangle
andthenslighttightenthescrews.
Whenuseadjustingrulertoadjustthesize,itmustmakesureeachlocking
clampspring cliptheextensionpartofcheckplate.
2.5.2Longitudinal-cuttingcheckplate
Whencuttingboard,thelongitudinal-cuttingcheckplatemaybepushed
forwardtotherequiredsize,fixedwiththecamleveratlowerpartand
adjustedwithinching control.Thesetsize maybereadfromthescaleplate
andmaybedisplayedbythedisplayunit,ifany.Screwoff thescrews
accordingtothesawbladethickness andthesize ofscaleplatemaybeset,
whenthecutwidthislessthan120mm,itmayfeedwithplanerandsetthe
checkplatelevel.Thelongitudinal-cuttingcheckplatemaybeadjustedin
cuttingdirectionandsection.Fixitwiththecamleveratupperpartonthe
requiredposition.
Whencuttingshortwood,usetheplaneofcheckplateuntil thespace for
woodbecomesverylarge,moveinthecheckplateonthesawbladeuntil
nottouchthesafetycover,especiallywhenthesawbladeinclines,such
attentionshallbefurtherpaid.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

15
Extensionlocked
Clamphandle
General
Sawblade
Suggestion
Positionofhand
Trimming
2.5.3Actualoperation
TZseriespanelsawiscommonly-usedequipmentandcanusedforvarious
sawcuttingaslongasbeing installedproperly.
Firstofall,thesawmachinecanonlybeusedingoodcondition.The
rivingknifeshallbemountedcorrectlyandthesafetycovershallbe
loweredtocoverthewood.Thewaterdischargebysuctionatupperpartis
alsoveryimportant.
Itmustsettherotaryspeedwell,do notpushtheworkpiece forwardjust
afterstart,andthecuttingcanbestartedonlywhenthesawbladeisup to
full speed.
Putfivefingerstogetherandonthewoodwithenoughsafetydistance
awayfromthesawblade.Forthepurposeofguaranteeing safety
operation, pleaserefertothedescriptionofspecificprocedureasfollows:
Tool:longitudinal-cuttingsawblade
Procedure:Mounttheholding padonthemovingtable,makethehollow
surface ofwooddownblowandpress ontheunderneathofincludedangle
andholddownthewoodwithhandtopushitforward.Thereshallbe
safetydistancebetweentwohandsandsawblade.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

16
Longitudinally
cuttingnarrowwood
Cuttingstrip
(woodwidthislessthan120mm)
Procedure:setthelongitudinal-cuttingcheckplateatthecutwidthand
lowerthesafetycoveraccordingtotheheightofwood.Pushthewoodand
thesliding tableforwardandthewoodisalongwiththecheckplate,use
planeraroundsawblade,pushthewoodcutoutbeyondthe
longitudinal-cuttingknife. Whencuttingshortwood, usetheplaner.
Procedure:mountthelongitudinal-cuttingaluminumguiding ruleonthe
lowguideface,putthewoodonthemoving table,andpress ittotheside
oflongitudinal-cuttingguiding rulewithhand.Pushthemoving tableand
pushthewoodstripcutoutbeyondthesawbladewithplaner.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

17
Cross-cutting
widewood
Hiddencut
Slotting
Procedure:putandpropthewoodonandagainstthelongitudinal-cutting
guiding rule.Propitagainsttherulecloselyandpushitforwardwithleft
hand,putitup todepartfromthesawbladeormoveitfromthesawteeth
running onthewoodbeforedrawingitbackaftercutting.
Procedure:whenundercutting,selectpropercuttingsequencesothatthe
woodblockscutoutcanbeleftattheothersideofsawbladeandcheck
plate,lowerthesafetycovertothewoodandmaketheoperationguiding
accurate.Prop andpress workpiece againstthesideofguiding rulewith
lefthand.
Procedure:closetheopeningontablewithtablestripmatching withthe
slot,setthesawbladeatthedepthofslotandfence therearpartwith
longitudinal-cuttingknife.Whenpushing thewoodforward,press the
workpiece onthetable, otherwise,itmayjumpinward, resultingindanger.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

18
Proppingagainstthe
longitudinal-cutting
guiding rule
Cross-cuttingshort
andnarrowwood
Proptheboardagainstthecross-cuttingguiding ruleofthecross-cutting
sliding table,setsize onthelongitudinal-cuttingscaleplate,tightenup the
setscrewsinfrontofsawblade,drawthemoving tablebackandguidethe
workpiece withsliding table,afterdrawingthecheckplateback,thewood
willnotbeblockedbetweenthesawbladeandcheckplate.
Procedure:mounttheoffsettingwedgesothatthemattercutoutcannot
touchtheupward-rotatingsawblade.Itcanonlyusethecross-cutting
checkplatetofeedwood.Itcannotusehandtoremovethemattercutout
aroundthesawblade.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
