Macro Machines Storage Strip User manual

macro machines storage strip manual
____________________________________________________

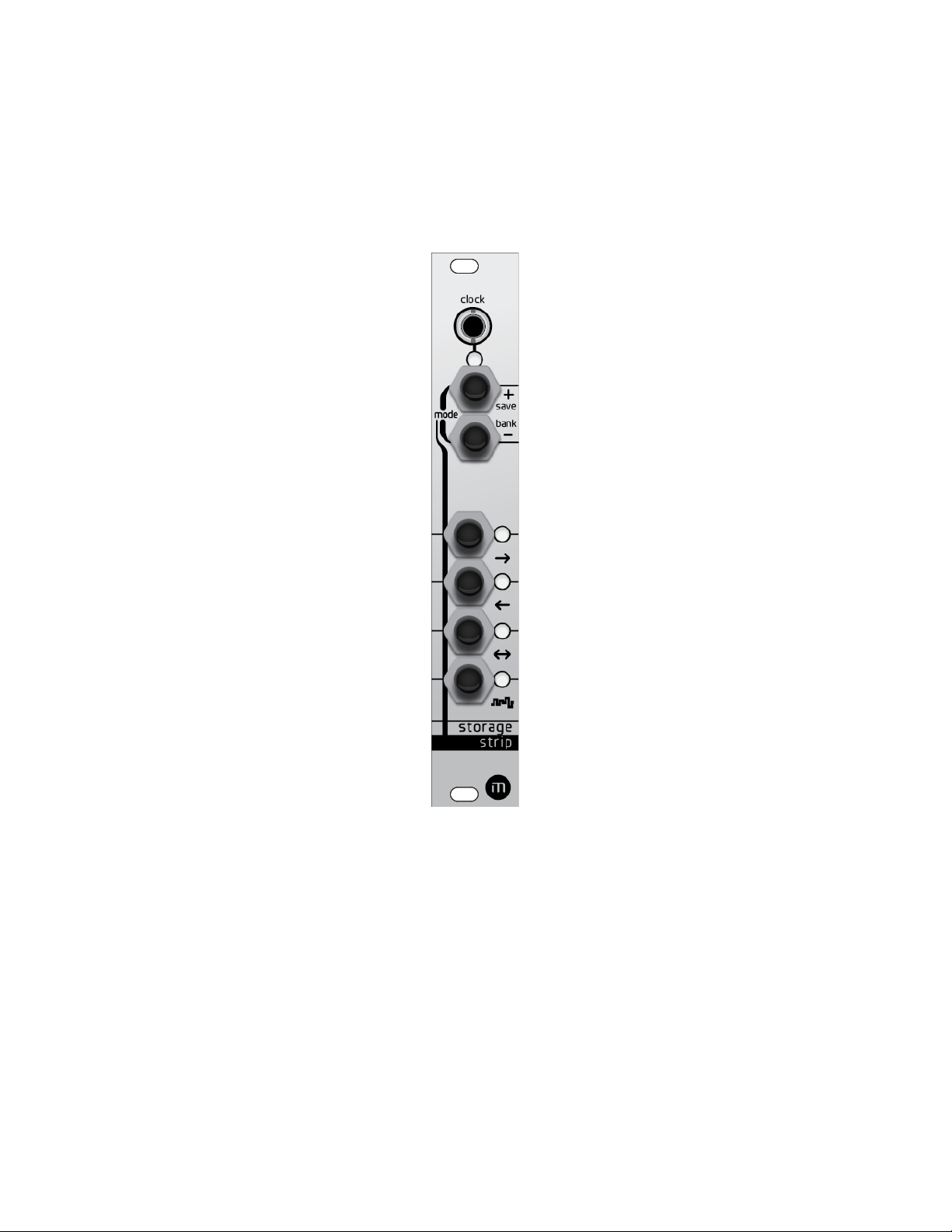

Storage and Recall Module_________________________________
The Storage Strip allows for saving and recalling settings in supported modules.
You can manually recall stored settings using the lower group of 4 buttons.
There are 4 banks of 4 stored settings, 4x4=16 total settings.
____________________________________________________
/// 2014 macromachines.net

macro machines storage strip manual
____________________________________________________
Sequencing Modes________________________________________
Any signal coming into the clock input will sequence through the settings in different
patterns according to the currently selected mode.
To select a sequencing mode press and hold (save / +) and (- / bank) buttons
simultaneously. Then press one of the bottom 4 mode/bank select buttons. These
correspond to Forward, Reverse, Pendulum, and Random modes.
By default the Storage Strip sequences through 4 steps within the selected bank. In
order to enter 16 step mode hold the following buttons simultaneously:
(bank / -, and .)
To return to 4 step mode press : (bank / -, and ).
note: the leds will only show active settings within the currently selected bank.
Zoom Buttons____________________________________________
Zoom In (+) also functions as a save button. Pressing (+ / save) along with one of the
bottom 4 storage location buttons saves to that location.
Zoom Out (-) also functions as a bank selection button. Pressing (- / bank) and then a
setting button will change to that bank (1-4).
Module Compatibility______________________________________
To view a list of current supported modules go to:
http://macromachines.net/products/storage-strip/compatibility/
Mungo specific features: The Storage Strip replaces the functionality of the Mungo
zoom switch with a 2 button system for Zoom In and Zoom Out.
____________________________________________________
/// 2014 macromachines.net

macro machines storage strip manual
____________________________________________________
Installation______________________________________________
Connect the 16-pin ribbon cable to the module with the orientation of the red
stripe matching the line marked -12. Control data from the Storage Strip is sent
along the CV rail of the busboard. Ensure all modules to be controlled by the
Storage Strip are on the same busboard. A 2HP bus access utility module allowing
chaining of the CV and Gate rails will be available soon.
Warning: Do not install the Storage Strip on the same row as any Doepfer modules
which are configured to send voltage to the CV/Gate bus.
There are 2 male header pins labeled zoom, to allow compatibility with Mungo
Enterprises 0 line of eurorack modules, use the provided female jumper cable to
connect up to 2 Mungo modules directly to the Storage Strip. To chain additional
Mungo 0 modules, connect a female jumper cable to the zoom chaining pin on the
back of any directly connected Mungo 0 module.
____________________________________________________
/// 2014 macromachines.net

macro machines storage strip manual
____________________________________________________
One Year Limited Warranty______________________________________________________
Macro Machines Engineering, inc. warrants that your new product, when purchased at an authorized dealer, shall be free of                  
defects in materials and workmanship for a period of one (1) year from the original date of purchase. Please contact Macro                    
Machines for information on warranty and service outside of the USA. During the warranty period, Macro Machines shall, at its                   
sole option, either repair or replace any product that proves to be defective upon inspection by a representative of Macro                   
Machines. Macro Machines reserves the right to update any unit returned for repair and to change or improve the design of the                     
productatanytimewithoutnotice.
Service and repairs of Macro Machines products are to be performed only by a licensed representative of Macro Machines..                  
Unauthorizedservice,repairormodificationwillvoidthiswarranty.
DISCLAIMER AND LIMITATION OF WARRANTY THE FOREGOING WARRANTY IS THE ONLY WARRANTY GIVEN BY MACRO              
MACHINES AND IS IN LIEU OF ALL OTHER WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF              
MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS            
WARRANTY ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. UPON EXPIRATION OF THE APPLICABLE             
EXPRESS WARRANTY PERIOD (1 YEAR), MACRO MACHINES SHALL HAVE NO FURTHER WARRANTY OBLIGATION OF ANY              
KIND, EXPRESS OR IMPLIED. MACRO MACHINES SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR                
CONSEQUENTIAL DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING WITHOUT LIMITATION,            
DAMAGES FOR LOSS OF PROFITS OR BUSINESS, OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE PRODUCT,                
WHETHER IN CONTRACT OR IN TORT. MACRO MACHINES SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS                 
ARISINGOUTOFTHEFOREGOING.
TheMacroMachinesWarrantyDOESNOTCover:
● Damage from physical abuse such as dropping the unit, impact from hard objects or damage to external                
componentsasaresultofnegligence.
● Damageduetoliquidcontamination.
● Damageresultingfromanyuseotherthanthatitwasintendedfor.
● Anyunitthathasbeenrepairedorhadanattemptedrepairmadetoitbyunauthorizedpersonnel.
● Damage due to incorrect connection, connection to faulty equipment or connection to faulty or incorrect power               
supplies.
● Damageintransitasaresultofinadequatepackagingorprotection.
1.MACROMACHINESRESERVESTHERIGHTTOWITHHOLDSERVICE.
2. NONWARRANTY SERVICE INCURS A $25 LABOR FEE FOR DOMESTIC REPAIRS. SLIGHTLY MORE FOR INTERNATIONAL              
SHIPPINGCHARGES.
If, after reading this warranty, you feel your Macro Machines product still qualifies as a warranty repair, contact Macro Machines                   
byemailat[email protected]toarrangearepair.
