MAG Audio Hornet Sub 18 User manual

1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
User Manual
Systems:
Hornet 12
Hornet Sub 18
HORNET LINE ARRAY

2
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
This page has been unintentionally left blank

3
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
Contents ....................................................................................................... 3
1. Safety instructions ...................................................................................... 4
2. System description ...................................................................................... 5
3.1. Specifications - Technical data ..................................................... 6
3.2. Specifications - Dimensions ................................................................... 7
4.1. System operation - Rigging ..................................................... 8
4.2. System operation - Passive connections .................................... 13
5. Standard contents ...................................................................................... 14
6. Accessories ....................................................................................................... 14
Contents

4
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
1. Safety instructions
1. Read these instructions carefully.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this system near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Failure to do so may cause fast overheating an force
system to switch itself o.
8. Do not use the system near heat sources such as stoves, radiatiors or other equipment that
produces massive heat.
9. Do not use the system near open fire sources.
10. Connect the system only to the electric network with grounding. 1
11. Protect the power cord from being walked on, pinched, or otherwise damaged. 1
12. Use only accessories specified by the manufacturer.
13. Use only the cart, stand, tripod or bracket specified by the manufacturer, or sold with the unit.
When a cart is used, use caution when moving the cart with unit to avoid injury from tip-over.
14. Unplug this system during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the system has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate
normally, or has been dropped.
16. To completely disconnect this system from AC mains, disconnect the power supply cord from the
AC receptacle. 1
17. WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
SYSTEM UNIT TO RAIN OR MOISTURE.
18. The main plug of the power supply cord shall remain readily operable. 1
19. This system is capable of delivering significant sound pressure levels. To avoid permanent or
temporary hearing damage, prolonged exposure to sound pressure levels exceeding 90 dB should
be limited
THIS SYSTEM CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR
HAZARD, DO NOT REMOVE AMPLIFIER MODULE OR ITS PARTS. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 1
MOUNTING AND SUSPENSION OF THIS SYSTEM MUST BE PERFORMED ONLY BY QUALIFIED
TRAINED PERSONNEL FOLLOWING APPLICABLE SAFETY RULES. DO NOT ALLOW MOUNTING
OR SUSPENSION OF THIS UNIT IF MOUNTING OR SUSPENSION HARDWARE IS BROKEN, BENT,
PARTS ARE MISSING OR ARE OTHERWISE DAMAGED.
1 - for powered systems only

5
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
2. System description

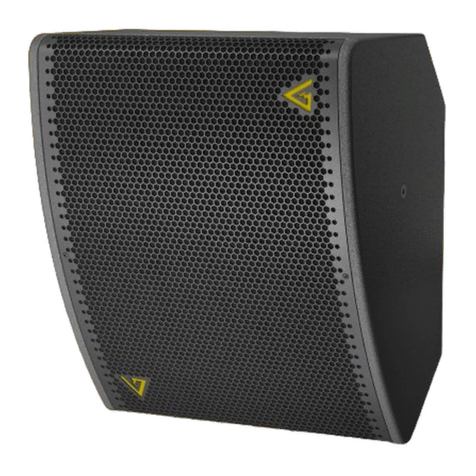

Hornet is the most powerful representative of the MAG Audio family of line arrays.
Extremely powerful 3-way all-neodymium Hornet 12 units deliver ultimate sound pressure
levels, while retaining control and steering of the sonic picture.
Based on own MAG Audio carefully developed high-ecient neodymium cone
transducers and HF drivers, Hornet 12 was created to be the most compact, lightweight
and powerful system for mid and large scale indoor and outdoor concerts, touring, sport
events, and clubs.
Fitted with proprietary design flying hardware, Hornet 12 stacking and flying is quick
and easy, with link action easily understood even by the child. Followed by numerous setup
options, including flying directly from ground carts, Hornet 12 is the choice for mobile
professionals, touring teams, and rental sound.
For even more impact, Hornet line array is completed with dual 18-inch hybrid horn
Hornet Sub 18 subwoofers, capable of delivering tremendous 147 dB peak sound pressure
level per single unit.
Hornet 12 Part No. 0022801179
Hornet Sub 18 Part No. 0022801211

6
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
3.1. Specifications - Technical data
System Hornet 12
Type Passive line array module
Frequency response (-10dB) 45 – 18000 Hz
Max SPL (peak) 142 dB (calculated)
Sensitivity (1W/1m) 99 dB LF / 107 dB MF / 112 dB HF
LF Transducer 2x12”
MF Transducer 4x6”
HF Transducer 2x1,4”
Nominal coverage HxV 110° x Depends on the number of cabinets
Impedance 8 Ohm LF / 8 Ohm MF / 8 Ohm HF
Nominal power (1) 2600 W (2000 W + 400 W + 200 W)
Program power 5200 W
Peak power 10400 W
Connectors 2x 8 pin Neutrik Speakon
Dimensions (WxHxD) 975x381x444 mm
Net weight 70 kg
Shipping weight 74 kg
Mounting Integrated flying hardware 0° - 10° Sply angle
Enclosure materials Plywood; wear-resistant paint
Grill Steel grill, polymer protective net
Color Black
System Hornet Sub 18
Type Passive line array subwoofer
Frequency response (-10dB) 35 – 120 Hz
Max SPL (peak) 147 dB (calculated)
Sensitivity (1W/1m) 106 dB
LF Transducer 2x18”
Impedance 4 Ohm
Nominal power (1) 3200 W
Program power 6400 W
Peak power 12800 W
Connectors 2x Neutrik Speakon
Dimensions (WxHxD) 980x744x938 mm
Net weight 105 kg
Shipping weight 110 kg
Mounting Integrated flying hardware
Enclosure materials Plywood; wear-resistant paint
Grill Steel grill
Color Black

7
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
3.2. Specifications - Dimensions
Hornet 12
Hornet Sub 18

8
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4.1. System operation - Rigging
Hornet Line Array systems are equipped with built-in rigging hardware allowing for quick
installation/dismantling times. Additional accessories include wheel carts for easy transportation.
Rigging must be performed only by trained personnel following the established safety rules.
MAXIMUM WEIGHT RESTRICTIONS MUST BE FOLLOWED AT ALL TIMES!
MAKE SURE THE SUPPORT STRUCTURE IS CAPABLE OF HOLDING THE APPLIED WEIGHT
WHILE SUSPENDING THE SYSTEM!
HORNET 12 rigging hardware operation guide
HORNET 12 rigging hardware
1
4
2
3
5
6
7
1. FRONT ROD HANDLE. Push the handle and rotate to move
the front rod into connecting position, or to retract it for
transportation.
2. DOLLY HANDLE. Push this handle backwards to release locks
to attach the dolly to cabinet, or push the handle frontwards to
secure dolly for transportation.
3. FRONT PIN SOCKET. Use VA-0018 pin to secure connection
to bottom cabinet’s front rod with this socket.
4. CONNECTION PIN STORAGE. Storage places for VA-0018
pin while transporting.
5. REAR ROD ANGLE SOCKETS. Use VA-0018 pin to secure
the read rod’s angle after being selected with [6]. DO NOT
SUSPEND CABINETS WITHOUT REAR ANGLE BEING
SECURED WITH VA-0018 PIN!
6. REAR ROD ANGLE SELECTOR. Push and slide this handle to
select the needed connection angle between cabinets. Secure
the angle with [5]. DO NOT SUSPEND CABINETS WITHOUT
REAR ANGLE BEING SECURED WITH VA-0018 PIN!
7. REAR PIN SOCKET. Use VA-0018 pin to secure connection to
bottom cabinet’s rear rod with this socket.

9
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
4.1. System operation - Rigging
Connecting two HORNET 12 modules
- Make sure six pieces of VA-0018 pins
are available to perform the connection
(included in each HORNET 12 module) (pic.
1).
- Pull out frontal links on the lower cabinet.
Pull out, set the approriate angle, and
secure with VA-0018 pins rear links on
the lower cabinet (pic. 2). For detailed
instructions on operating HORNET 12
rigging hardware, refer to “4.1. System
operation - Rigging / HORNET 12 rigging
hardware operation guide“ section, page 8.
- Attach two HORNET 12 modules
together, and secure the connection with
four VA-0018 pins. (pic.3).
No more than 16 pcs of HORNET 12 may
be assembled in a flown stack.
Connecting HORNET 12 module to HTF-01
flying frame
- Position elements as shown on pic.1.
HTF-01 flying frame’s side links should
point upwards. Pull out frontal links. Pull
out, set the approriate angle, and secure
with VA-0018 pins rear links on the lower
cabinet. HORNET 12 links should be
pointing upwards.
- Attach HORNET 12 cabinet to HTF-01
flying frame, and secure connection with
four VA-0018 pins (pic. 2). For detailed
instructions on operating HORNET 12
rigging hardware, refer to “4.1. System
operation - Rigging / HORNET 12 rigging
hardware operation guide“ section, page 8.
- HTF-01 allows to attach HORNET 12
cabinet with 0°, negative 2,5° and 5° angle.
(“0°“ socket of the HORNET 12 module).
(pic.3).
No more than 16 pcs of HORNET 12 may
be assembled in a flown stack.
1
1
3
3
2
2
0°
2,5°
5°

10
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4.1. System operation - Rigging
Connecting two HORNET SUB 18
subwoofers
Required accessories:
HSC-01 (part No. 0200150026) - 4 pcs
VA-0018 (part No. 0209000021) - 8 pcs
- Position two HORNET SUB 18 on top of
one another, use guides for cabinet feet for
correct positioning.
- Secure the stack with four HSC-01
subwoofer connectors, fixed with eight VA-
0018 pins (pic. 1.).
- Two HORNET SUB 18 can be connected
both facing same (pic. 2.) or opposite
directions (pic. 3.). This allows for creation
of subwoofer array of dierent directivities. 1
23

11
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
1
4.1. System operation - Rigging
Installing HORNET 12 onto HORNET SUB
18 for ground stack
Required accessories:
HTF-01 (part No. 0209000022) - 1 pcs
VA-0018 (part No. 0209000021) - 4 pcs
- Correct components’ positions are shown
on pic. 1. HTF-01 flying frame’s side links
should point downwards. Pull out, set the
approriate angle, and secure with VA-
0018 pins rear links on the lower cabinet.
HORNET 12 links should be pointing
downwards.
- Install the HTF-01 flying frame onto the
HORNET SUB 18 subwoofer and secure
with four VA-0018 pins (pic. 2).
- Install the HORNET 12 module onto the
HTF-01 flying frame and secure with four
VA-0018 pins. (pic. 3).
1
2
3

12
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Attaching transportation cart to HORNET
12 module
Suggested accessories:
HORNET12-TB (part No. 0203500091)
- Correct positions of HORNET 12 and
HORNET12-TC transportation cart (part.
No 0203000001) are shown on pic.
1. HORNET 12’s grill should be facing
downwards. HORNET 12’s dolly handle
should be in “RELEASE“ position.
- Place HORNET 12 on the HORNET12-TC.
Pull HORNET 12’s dolly handle into the
“FIX“ position (pic. 2.).
- HORNET12-TB transportation bag may
be used for additional protection while
transporting HORNET 12.
Attaching transportation cart to HORNET
SUB 18 subwoofer
Suggested accessories:
HORNETSUB18-TB (part No.
0203500092)
- Correct positions of HORNET SUB 18 and
HORNETSUB18-TC transportation cart
(part. No 0203000002) are shown on pic.
1. HORNET SUB 18’s grill should be facing
downwards.
- Place HORNET SUB 18 on the
HORNETSUB18-TC. Secure the connection
with four VA-0018 pins (pic. 2.).
- HORNETSUB18-TB transportation bag
may be used for additional protection while
transporting HORNET SUB 18.
4.1. System operation - Rigging
1
1
2
2

13
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
4.2. System operation - Passive connections
HORNET 12 passive connec-
tion plate
HORNET SUB 18 passive
connection plate
1
2
3
1. LABEL FIELD. Name of the system, along with its basic
parameters is noted here.
2. SERIAL NUMBER FIELD. Sticker with the systems serial
number is located here. NEVER REMOVE THE SERIAL FROM
THE SYSTEM, AS IT IS IMMEDIATE WARRANTY VOID.
3. 8-PIN PARALLEL INPUTS. The pair of parallel Neutrik®
Speakon NL8MPR connectors. Use these connectors to
connect power amplifier and to feed the signal to the parallel
system (optional).
4. CONNECTION INFORMATION. Consult this section for
correct Speakon connector pins wiring.
5. 8-PIN OUTPUT. Neutrik® Speakon NL8MPR used to
receive signal from linked-through +3 -3 +4 -4 Speakon pins
(HORNET SUB 18 only).
1
2
4
HORNET line array passive connections
Recommended HPF settings, suggested power
amplifier ratings, and connection pins are found in
table below:
Channel Amplifier power Amplifier impedance Connection pins Recommended HPF
HORNET 12 LO1 1000 - 2000 W 8 Ohm +1 -1 60 Hz or higher, 18 dB/oct min
HORNET 12 LO2 1000 - 2000 W 8 Ohm +2 -2 60 Hz or higher, 18 dB/oct min
HORNET 12 MID 400 - 800 W 8 Ohm +3 -3 250 Hz or higher, 18 dB/oct min
HORNET 12 HI 200 - 400 W 8 Ohm +4 -4 1200 Hz or higher, 18 dB/oct min
HORNET SUB 18
LF1 1600 - 3200 W 8 Ohm +1 -1 30 Hz or higher, 18 dB/oct min
HORNET SUB 18
LF2 1600 - 3200 W 8 Ohm +2 -2 30 Hz or higher, 18 dB/oct min
1+ 1- LO 1 8 Ohm
2+ 2-
LO 2 8 Ohm
3+ 3- MID 8 Ohm
4+ 4- HI 8 Ohm
HORNET 12
2800 Watt TRI-Amp Line Array Module
Made in Ukraine
1+ 1- LF1
2+ 2- LF2
3+ 3- THRU
4+ 4- THRU
3200 Watt
Passive
Subwoofer
OUTPUT
1+ 1- THRU
2+ 2- THRU
3+ 3- NC
4+ 4- NC
PARALLEL
INPUTS
Made in Ukraine www.mag-audio.com
INPUT OUTPUT
HORNET
SUB 18
4
3
5
HORNET SUB 18 low frequency array connection.
HORNET SUB 18’s parallel inputs are feeding signal
to transducers from pins +1 -1 and +2 -2. Signals
on pins +3 -3 and +4 -4 are linked through the
subwoofer, and can be received from pins +1 -1
and +2 -2 of the OUTPUT connector. This allows to
connect the HORNET SUB 18 cardiod arrays with
single 8-wire cable and interbetween 8-wire and
4-wire links only.
HORNET SUB 18
FRONTAL
HORNET SUB 18
INVERTED
HORNET SUB 18
FRONTAL
+1 -1 SIGNAL FRONTAL
+2 -2 SIGNAL FRONTAL
+3 -3 SIGNAL INVERTED
+4 -4 SIGNAL INVERTED
Link
+1 -1
+2 -2
+3 -3
+4 -4
INPUT
CONNECTOR
INPUT
CONNECTOR
Link
+1 -1
+2 -2
OUTPUT
CONNECTOR
INPUT
CONNECTOR
HORNET SUB 18 low frequency
array connection diagram.

14
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
6. Accessories
Various accessories are available for Hornet line array:
VA-0018 pin
Part No. 0209000021
5. Standard contents
Please check complete complement of your HORNET line array systems upon receiving the
package.
Standard contents of HORNET line array systems:
HORNET12-TB - Hornet 12 transportation bag Part No. 0203500091
HORNETSUB18-TB - Hornet Sub 18 transportation bag Part No. 0203500092
HTF-01 flying frame
Part No. 0209000022
HSC-01 Hornet Sub
18 connector
Part No. 0200150026
HORNET12-TC
transportation cart
Part No. 0209000019
HORNETSUB18-TC
transportation cart
Part No. 0203000002
System HORNET 12 HORNET SUB 18
1 pcs - Hornet 12 - passive line array module
6 pcs - VA-0018 quick lock pin
1 pcs - Hornet 12 technical manual
1 pcs - Polyethylene bag
1 pcs - Carton Box
1 pcs - Hornet Sub 18 - passive line array subwoofer
4 pcs - VA-0018 quick lock pin
1 pcs - Hornet Sub 18 technical manual
1 pcs - Polyethylene bag
1 pcs - Carton Box

15
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Hornet Line Array User Manual rev 0.1
This page has been unintentionally left blank

16
Hornet Line Array User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
[e-mail] Tel./Fax: [phone] www.mag-audio.com
MANUFACTURER’S WARRANTY
1. By this warranty MAG Audio grants that all equipment manufactured under the MAG Audio
trademark is free from defects in material, components and factory workmanship under the
normal use and maintenance for the time as specified below.
2. All warranty repairs and maintenance of MAG Audio products shall be carried out at MAG
Audio production sites or by MAG Audio authorized personnel at no cost for the product pur-
chaser.
3. Warranty period for all the MAG Audio products is 36 months from the date of purchase.
4. Warranty repairs or maintenance will be performed only if a) MAG Audio product was pur-
chased from an ocial MAG Audio distributor / dealer and b) warranty card with specified serial
number, production date, realization date, vendor’s signature and stamp is presented.
5. Warranty shall not cover following: damage caused by accident, misuse or failure to follow
exploitation rules stated in technical manual; repairs performed by non-authorized personnel;
mechanical damage caused by shipping accidents and normal tear and wear.
6. Warranty shall not be applicable to any product with defaced, removed, or modified serial
number.
7. If your MAG Audio product needs repairs or maintenance, contact your ocial MAG Audio
distributor / dealer. Please do not ship your MAG Audio product without prior authorization.
MANUFACTURER’S CONTACTS
2 Merezhna street, Bila Tserkva, Kiev region, 09112, Ukraine
Tel.\Fax: [phone]
e-mail: [e-mail]
www.mag-audio.com
YOUR MAG AUDIO DISTRIBUTOR / DEALER
Company
Contact
person
Coordinates
