Lakewood Lodge Tent
FSMGCT2009
Owner’s Instruction Manual
Customer Service: [phone]
7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: [e-mail]
----------------------OR--------------------
Customer Service: [phone]
Monday thru Friday
8:30am to 5:30pm, EST
(Made in China)
Please keep this instruction manual for future reference
1

• Warnings………………...........3
•Parts List……...…….…………4
• Assembly Instructions……..5-8
•Care and Maintenance……....9
2
Table of Contents
Note: Before beginning assembly of product, make sure
all parts are present. Compare parts with package content
list and hardware contents. If any part is missing or
damaged do not attempt to assemble the unit. Contact
customer service for replacement parts.

Warnings
IMPORTANT SAFETY AND TIP INFORMATION
TO MAXIMIZE THE ENJOYMENT OF YOUR PRODUCT PLEASE ASSEMBLE AND USE YOUR PRODUCT
AS SAFELY AS POSSIBLE. THE PURPOSE OF THE SAFETY ALERT.
SYMBOL IS TO CALL YOUR ATTENTION TO POSSIBLE HAZARDS RELATING TO THE
USE AND ASSEMBLY OF YOUR PRODUCT. THE PURPOSE OF THE TIP
SYMBOL IS TO CALL YOUR ATTENTION TO SUGGESTIONS THAT WILL ASSIST YOU IN THE
ASSEMBLY/DISASSEMBLY PROCESS AND ENHANCE YOUR CAMPING EXPERIENCE. WHEN YOU
SEE THESE SYMBOLS, PLEASE CLOSELY FOLLOW THE INFORMATION PROVIDED.
•KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This fabric is
not fireproof! It is made with flame resistant fabric which meets, CPAI-84 specifications. The
fabric may burn if left in continuous contact with any flame source. The application of any
foreign substance to the tent fabric may render the flame resistant properties ineffective.
•Do not erect this product near an open flame.
•Never use any fuel burning, oxygen consuming devices, or any device that produces fumes
(including, but not limited to cooking stoves, lanterns, candles, hibachis, or heaters) in or
around your product. Inhalation of fumes may result in carbon monoxide poisoning, injury
or death.
•Your product is water repellent, however, during heavy rain some leakage may occur. Keep
objects from touching the inside, as objects may cause leakage at the point of contact.
•To prevent seam leakage (floor seams in particular), a seam sealer compound must be applied
to the seams. Use recommended water repellent compounds on our product. Read the label
on any product before using. Questions? Call our Customer Service number.
•Your recreational product is made from synthetic fabric that has been treated and is highly
resistant to the Sun’s Ultraviolet (UV) light. No fabric can withstand prolonged exposure to
sunlight. UV damage is not covered by the limited warranty.
•Do not spray or apply insecticide or pesticide on your product. It may damage UV resistant
or water repellent properties of this product. Any damage caused by applying insecticide
or pesticide on this product is not covered by the limited warranty.
•Our recreational products are constructed to rigid specifications. However, they are not made
for extreme weather, climates, or environments. Modification, abuse and extreme weather are
some conditions that may adversely affect the structural integrity.
•Additional precautions may be necessary during inclement or unexpected weather conditions.
Here are some tips that may help during these times.
Use guy lines to help secure your structure during periods of heavy winds.
Storms or steady rains may collect in water pockets on the roof. This will add weight
which can weaken the overall structure causing the uprights to collapse. Maintain a
watchful eye and remove any water accumulation that may occur.
WARNING
3

A Tent Body w/ Attached Screen
House 1
B FRAME POLES
Entire frame pole listing on page 5 1
E Mesh Shelf 4
F Divider 1
G Rolling carry bag 1
H Stake bag 1
I Guy rope 12
J Steel stake 25
K Rain Fly 1
L Pole Bag 1
Parts List
4
IMPORTANT NOTES BEFORE YOU BEGIN:
•Assemble your tent before camping to become familiar with the assembly.
•Setup is possible for one person, however two or more people are recommended.
•Select a clean, level area for the campsite free of debris and sharp objects, away from a natural
watercourse.
•Use of a ground cloth is recommended to prolong the life of the tent floor and provide
additional insulation and moisture protection.
•To prevent damage to the zippers, unzip the doors and windows of the tent prior to
disassembly allowing air to move freely.
•Seam sealing the inside stitched seams of the tent is recommended.
(seam sealer not included)
This will improve weather resistance. Discoloration may occur if applied to outside seams.

Assembly Instructions
Step 1:
All hubs(Qty 12) are pre-assembled to
the Ridge and Roof Edge Poles
FOR QUICKER SETUP, USE TWO
PEOPLE
A Extend all poles and sort into groups by
the color of tape affixed to the poles. (ie:
Roof Poles –blue tape, Eave Poles –
yellow tape, Corner Leg Poles –white
tape, Middle Leg Poles –green tape, etc).
This will simplify the assembly process.
The white sticker on Roof Edge Poles
and Ridge Poles must go over screen
room.
5

B Slide the roof poles with blue tape into
the hubs of the center ridge pole and
the twist the pole until you hear a click,
indicating the pole is properly secured
to the hub. Then slide the opposite ends
of the roof poles into the hubs of the
roof edge poles.
C Slide the small eave poles with the
yellow tape into the hubs of the roof
edge poles and twist the pole until you
once again hear a click.
Step 2:
Assembly Instructions
OPTIONAL STEP D: If rainfly is wanted at time
of set-up, drape rainfly over roof frame
before attaching leg poles. Place rainfly
around the ends of the eave poles. If rainfly
is not needed at time of set-up, instructions
are available in step 4 for future reference
E On one side of tent ONLY slide the leg
poles into the corresponding hubs. The
colored tape on the pole should match the
colored taped side of the hub. For ease of
set up do not put leg poles in on other side
until after next step.
F Place the Tent Body underneath the tent
frame. Find “S” hooks on the center ridge
of the tent body and connect them to the
holes in the bottom of hub on the center
ridge pole.
G Starting in the corners raise the tent and
insert the remaining color coded leg poles
into the hubs of the roof edge poles.
Step 3:
6

Assembly Instructions
Step 4:

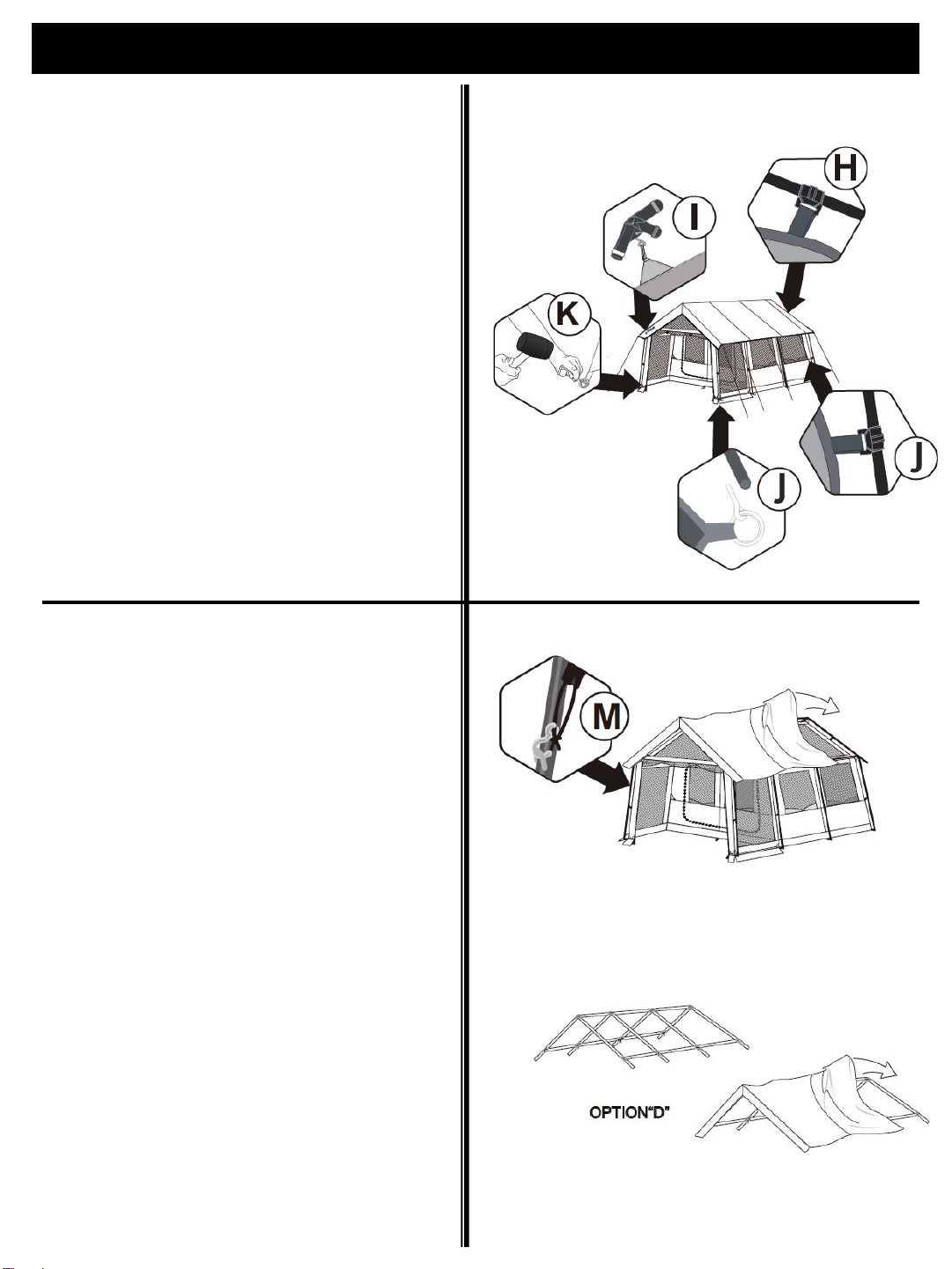

H From the peak of the tent work your way
down each pole and connect all quick clips
to the roof poles.
I Connect the remaining S-hooks on the tent
fabric to the corresponding hubs on the roof
edge poles.(Total of 12)
J Lift each leg pole and insert the pin-ring
attached to the tent flooring into the bottom
of the steel leg pole(Total of 8) and then
connect the remaining quick clips to the leg
poles.
K At the corner of the tents pull in opposing
directions to make sure tent floor fully
stretched out. Stake the corners of the tent
by driving tent pegs through the webbing
loops around the base of the tent.
L If Rainfly is not in place as described in
OPTIONAL STEP “D”, drape Rainfly
over tent.
M Connect J-Hooks on Rainfly to metal
loops on the Steel Leg Poles. Repeat
on each Leg Pole around entire tent.
Step 5:
7

Assembly Instructions
Step 6:

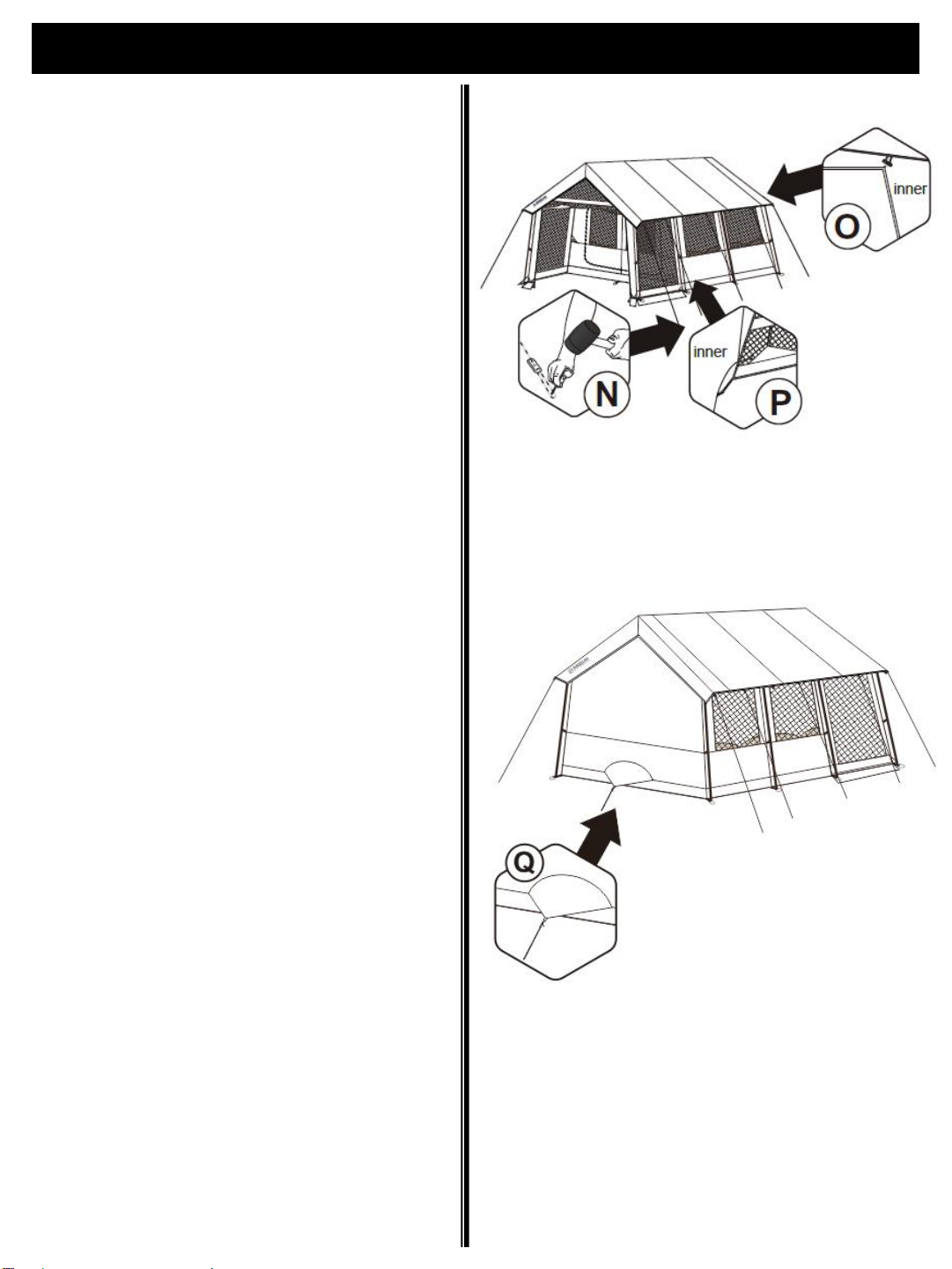

M Stake out guy lines away from the tent
with lines at roughly a 45°angle to the
ground.Adjust using the plastic sliders.
O Included Room divider can be hung by
using attached fabric loops on the
interior walls and floor of the front in
back of the tent.
P Attach mesh shelf by using the plastic
S-hooks to the fabric loops sewn on
the inside of the tent. (Total 4).
Q Back Vent Tips:
To prevent the vent laying on the
ground, stake out the attached guy line.
8

- Your product must be stored dry. One of the easiest ways to damage your product is storing it
while it is wet. Storing a wet tent as briefly as 24 hours in warm weather is likely to cause mildew
on the fabric coatings and are not covered by the limited warranty.
- If you must close camp in the rain, open your product and set it up to allow it to dry as soon as
possible. Allow dirt to dry on the fabric after a rainfall before lightly sweeping it off with a brush.
For tougher stains, spray the area with water and lightly wipe it off with a few strokes. Do not
use washer or dryer. DO NOT SCRUB THE FABRIC. ALWAYS MAKE SURE TENT IS COMPLETELY
DRY BEFORE REPACKING.
- Do not leave your tent set up for weeks at a time. Exposure to ultraviolet rays from the sun can
damage and /or discolor the material.
- Clean the poles with a cloth and lubricate them with a silicone spray to help prevent corrosion
and keep from being gritty. This is especially important after using the tent around salt water.
- Store the stakes in the separate storage bag that is included. Do not pack the stakes inside the
tent.
Care and Maintenance
