Magellan Maestro 4350 - Automotive GPS Receiver User manual

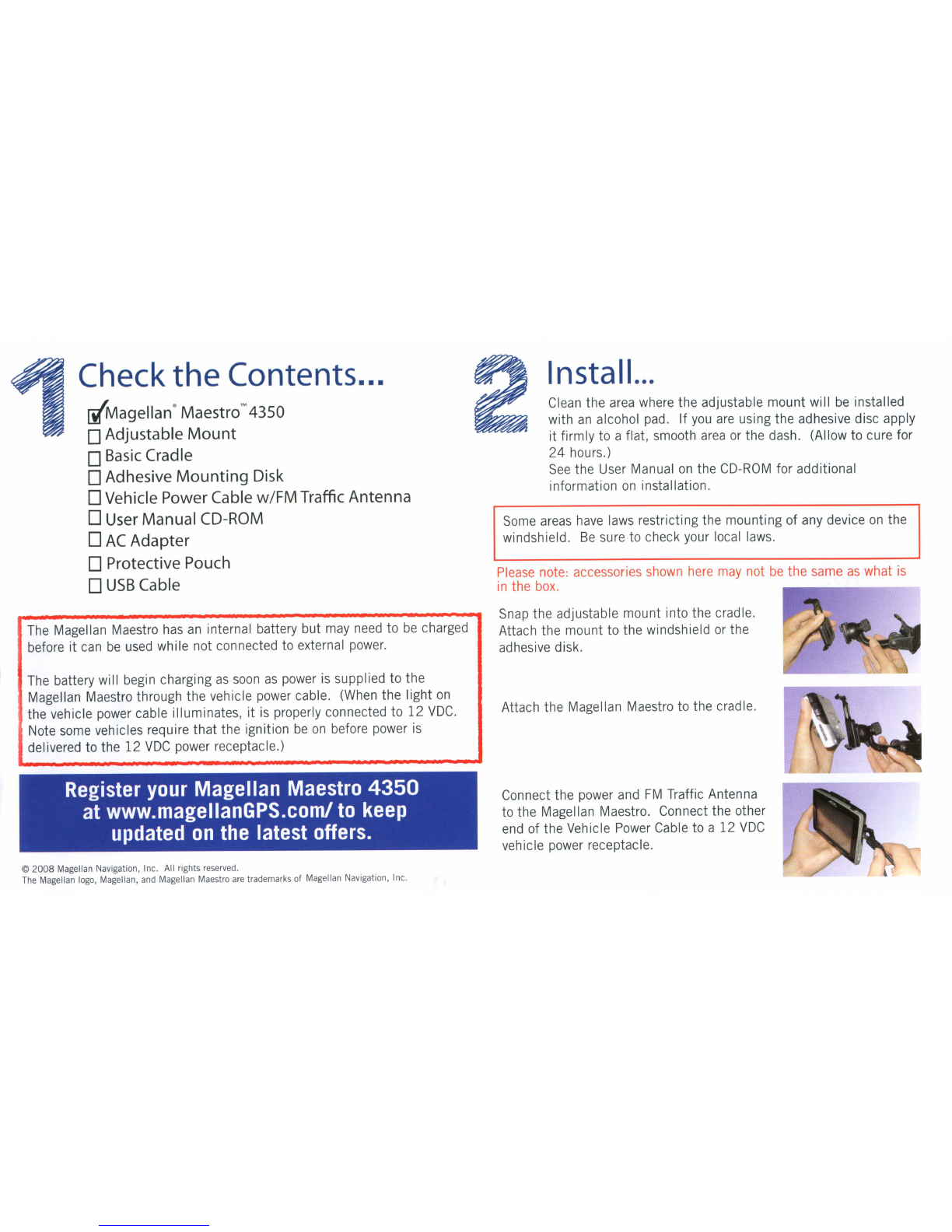

Check the Contents ...
[{Magellan· Maestro'" 4350
o Adjustable Mount
o Basic Cradle
o Adhesive Mounting Disk
o Vehicle Power Cable w/FM Traffic Antenna
o User Manual CD-ROM
o AC Adapter
o Protective Pouch
o USB Cable
The Magellan Maestro has an internal battery but may need to be charged
before
it can be used while not connected to external power.
The battery will begin charging
as soon as power is supplied to the
Magellan Maestro through the
veh icle power cable. (When the Iight on
the vehicle power cable illuminates, it is properly connected to 12 VDC.
Note some vehicles require that the ignition be on before power is
delivered to the 12 VDC power receptacle.)
Register your Magellan Maestro 4350
at www.magelianGPS.com/to keep
updated on the latest offers.
© 2008 Magellan Navigation, Inc. All rights reserved.
The Magellan
logo, Magellan, and Magellan Maestro are trademarks of Magellan Navigation, Inc.
Install. ..
Clean the area where the adjustable mount will be installed
with
an alcohol pad. If you are using the adhesive disc apply
it firmly to aflat, smooth area or the dash. (Allow to cure for
24 hours.)
See the User Manual on the CD-ROM for additional
information
on installation.
Some areas have laws restricting the mounting of any device
on the
windshield.
Be sure to check your local laws.
Please note: accessories shown here may not
be the same as what is
in the box.
Snap the adjustable mount into the cradle.
Attach the mount to the windshield or the
adhesive disk.
Attach the Magellan Maestro to the cradle.
Connect the power and
FM Traffic Antenna
to the Magellan Maestro. Connect the other
end of the Vehicle Power Cable to a
12 VDC
vehicle power receptacle.

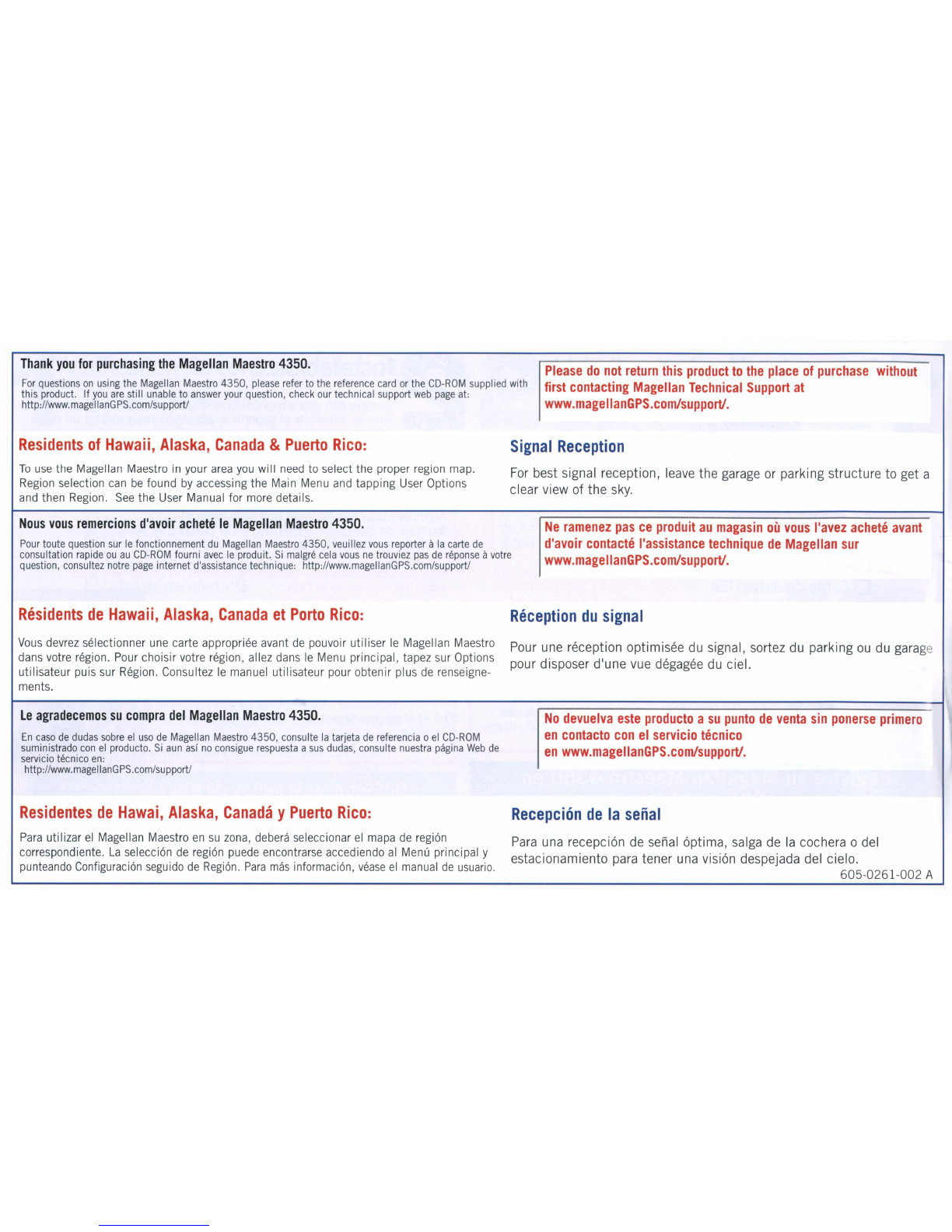

Thank you for purchasing the Magellan Maestro 4350.
For questions on using the Magellan Maestro 4350, please refer to the refere~ce card or the CD-ROM supplied with
this product. If you are still unable to answer your question, check our technical support web page at:
http://www.magellanGPS.com/supporti
Please do not return this product to the place of purchase without
first contacting Magellan Technical Support at
www.magellanGPS.comlsupporV.
Residents of Hawaii, Alaska, Canada & Puerto Rico:
To use the Magellan Maestro in your area you will need to select the proper region map.
Region selection can be found by accessing the Main Menu and tapping User Options
and then Region. See the User Manual for more details.
Signal Reception
For best signal reception, leave the garage or parking structure to get a
clear view of
the sky.
Nous vous remercions d'avoir achete Ie Magellan Maestro 4350.
Pour toute question sur Ie fonctionnement du Magellan Maestro 4350, veuillez vous reporter a la carte de
consultation rapide ou au CD-ROM fourni avec Ie produit.. Si malgre cela vous ne trouviez pas de reponse a votre
question, consultez notre page internet d'assistance technique: http://www.magellanGPS.com/supporti
Ne ramenez pas ce produit au magasin OU vous I'avez achete avant
d'avoir contacte I'assistance technique de Magellan sur
www.magellanGPS.comlsupporV.
Residents de Hawaii, Alaska, Canada et Porto Rico:
Reception du signal
Vous devrez selectionner une carte appropriee avant de pouvoir utiliser Ie Magellan Maestro
dans votre region. Pour choisir votre region, allez dans Ie Menu principal, tapez sur Options
utilisateur puis sur
Region. Consultez Ie manuel utilisateur pour obtenir plus de renseigne-
ments.
Pour une reception optimisee du signal, sortez du parking ou du garage
pour disposer d'une vue degagee du ciel.
,
I
No devuelva este producto a su punta de venta sin ponerse primero
en contacto con el servicio tecnico
en www.magellanGPS.comlsupporV.
Le agradecemos su compra del Magellan Maestro 4350.
En caso de dudas sobre el uso de Magellan Maestro 4350, consulte la tarjeta de referencia 0 el CD-ROM
suministrado con el producto. Si aun as! no consigue respuesta a sus dudas, consulte nuestra pagina Web de
servicio tecnico en:
http://www.magellanGPS.com/supporti
~------------------:::===========================-11\
Residentes de Hawai, Alaska, Canada y Puerto Rico:
Para utilizar el Magellan Maestro en su zona, debera seleccionar el mapa de region
correspondiente. La seleccion de region puede encontrarse accediendo al Menu principal y
punteando Configuracion seguido de Region. Para mas informacion, vease el manual de usuario.
Recepcion de la senal
Para una recepci6n de sefial 6ptima, salga de la cochera 0del
estacionamiento para tener una visi6n despejada del cielo.
605-0261-002 A

Magellan® Maestro™4350
iI!::::;;;;;... ........ e Manua;ll~~~~; ••• iiiiii
Keep this Reference Manual handy in your glove box for quick reference to the basic operation of the
Magellan Maestro.
/:
I
I
D1
-
-.
On / Off Button
Reset
FM Antenna Input -----'
USB port (External
____ --I
Power Connection)
SO / MMC Card Slot
©2008 Magellan Navigation Inc. All rights reserved.
The Magellan logo. Magellan. and Maestro are trademarks
of Magellan Navigation Inc.
605-0143-001

Main Menu
Route to an address, a POI, etc.
View Map Screen
Change Settings
Access One Touch Menu
OneTouch Menu
Route to home address
Save an address, a route or a POI
search for easy access
Search for nearby emergency services
Search for nearby road assistance services
Route to a recent destination
Access SMS messages
Edit the OneTouch buttons
Close OneTouch Menu
Map Screen
_..,. .... IIi-l!.
l!. ~ l!. l!!.
ATurn instructions for next maneuver. Tap to display maneuver list (available only
when routing).
BCurrent street (in normal mode) or next street and distance to next maneuver
(when routing). Tap this area
to repeat last maneuver instruction
CAccess OneTouch Menu.
DSpeed limit (appears while exceeding the speed limit if speed warning is turned on
in Settings).
Turn guidance arrow.
FCurrent position and heading.
GAccess volume and map controls.
HVehicle type used in route calculation.
ICurrent time (in normal mode) or distance to destination (when routing).
Tap
to change content to remaining time or arrival time.
JAccess Trip Options.
KAccess the list of nearest Freeway Exit POls (available only when driving on a
freeway). Tap
to display options to start anew trip or, when routing, to make
modifications
to an existing trip.
LAccess Traffic Events.
MAccess Phone.
NAccess Audio Player.

Keypad: type in the first few
characters of the street name
andlor slreet type.
The Map Screen will be displayed and you will
be provided routing instructions.
Press the GO button to begin navigation.
Keypad: type in the first few characters of
the city name
or Zip Code
Save the location to Address Book and
OneTouch Menu.
.............. --...:::!!!!!' ..... I:.....-==::::.-.-;~ Change vehicle type or route calculation method.
camino Los Rosado
c.r6co.~ Lorwo oo1S4
camino RMae Cot6n
~l..tf_~
"''''0>I6n ~L ..... OO7S1
Routing to an Address by City or Zip Code in the same state
Address search is explained starting from the Main Menu. To access the Main Menu from
the Map Screen, tap Options and then tap Menu.
Program Language: choose the language that will be used to display information.
Voice Language: choose the voice profile that will be used for voice prompts.
Voice profiles can either
be prerecorded with only maneuver information or computed
(Text-to-Speech,
TIS) with the ability to announce street names. TIS is available for
selected languages only.
Date &
Time Format: set the format that will be used to display date and time. Various
international formats are available.
Settings· System Settings
Time Zone: choose your local time zone or select Auto Time Zone that adjusts the time
zone to your current position.
Backlight: tap on the slider bar to change the display brightness for daytime and night
use. Select 'Smart Powersave' to conserve battery life while not connected to external
power.
Distance Units: select 'Miles/feet', 'Miles/yards' or 'Kilometers/meters' to assign the units
of measurement for distance and speed.
When selecting adestination
in adifferent state or in adifferent country, first tap the
button
in the top right corner and select the appropriate country and state from the list.
On keyboard screens you usually only need to enter the first few letters
of asignificant
word
in the city or street name to automatically receive the list of names that match the
string. If you are not able to retrieve the name
of the searched city or street, try to enter
its full name.

Routing to a POI Traffic Information
LSI
,
fI!l
There are Traffic events impacting the route that have not been
bypassed
There are no Traffic events impacting the recommended route
Traffic events that have
an impact on your route can be processed in route calculation. In
this case the route can be automatically recalculated during your journey when anew
traffic event is announced
on your route. Using traffic events can be enabled in Settings:
The color
of the Traffic icon on the Map screen shows the status of the Traffic system:
Traffic messages have not been received
Traffic subscription is required.
List of Traffic Events
The list of Traffic Events can be accessed from the Map Screen. Tap any of the events in
the list to display it on the map, and then tap Avoid to bypass that part of the route.
• AU. SUBCATEGORJES
•
0 __
0_
o Business
o CoIr Deafer/RepMr
• AU SUBCATEGORIES
o
oOther
POI search is explained starting from the Main Menu. To start it from the Map Screen, tap
Options and then tap POI.
APOI search can be assigned to abutton
in the OneTouch Menu. Before selecting the
desired POI from the list
of results, tap the Save button and select the OneTouch button
to be used.
Please refer to the User Manual available using the CD-ROM for more information
on
routing to addresses or pals and using Address Book.

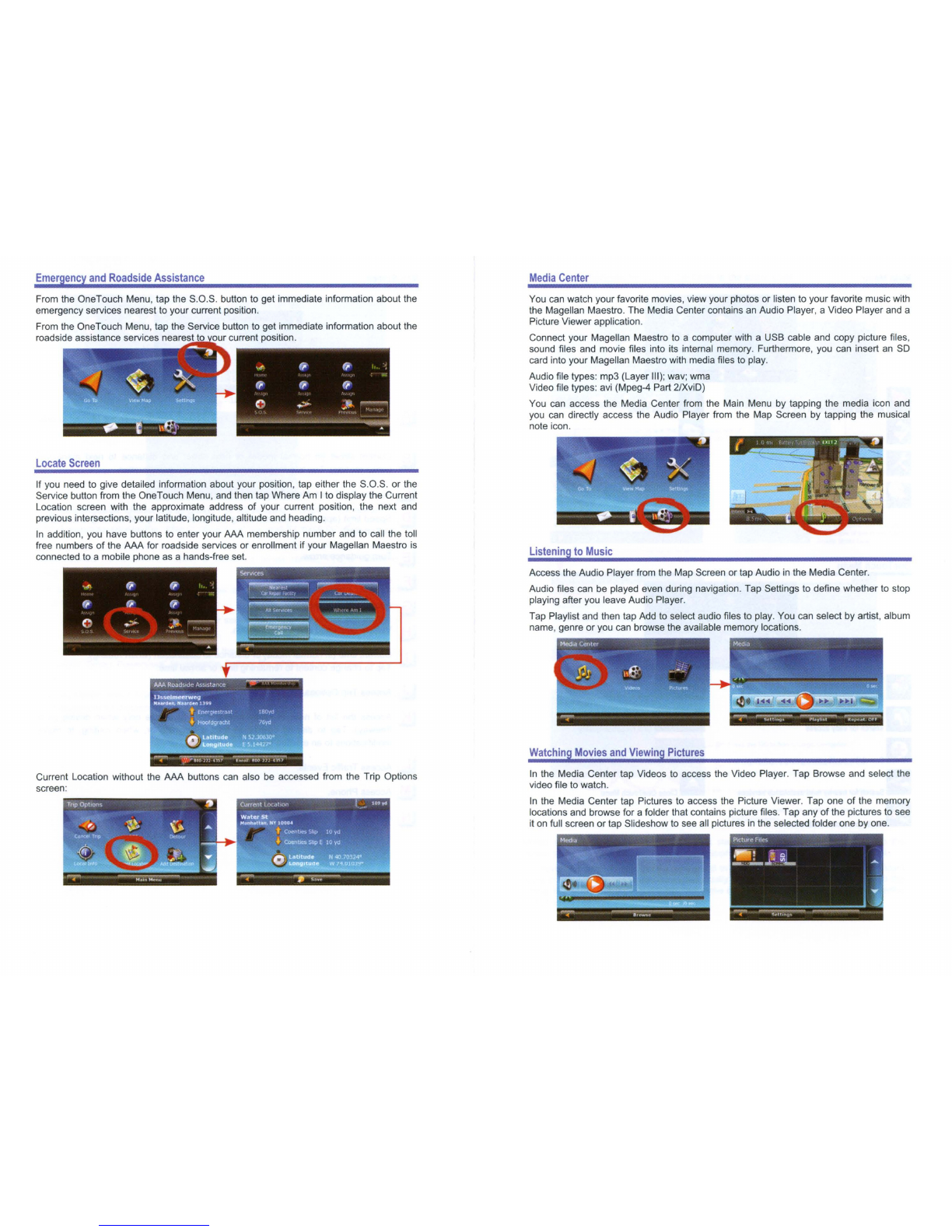

.. Eiiimiiie .. rg.e.niiic",y .. aiiin.d.R.o .. a.dsiiii.de ... A .. s.si .. Siiitaiiin .. ce ... ,_
From the OneTouch Menu, tap the S.O.S. button to get immediate information about the
emergency services nearest to your current position.
From the OneTouch Menu, tap the Service button
to get immediate information about the
roadside assistance services nearest to our current position.
Locate Screen
-------------------------,-
If you need to give detailed information about your position, tap either the S.O.S. or the
Service button from the OneTouch Menu,
and then tap Where Am Ito display the Current
Location screen with the approximate address of your current position, the next and
previous intersections, your latitude, longitude, altitude and heading.
In addition, you have buttons to enter your AAA membership number and to call the toll
free numbers
of the AAA for roadside services or enrollment if your Magellan Maestro is
connected to amobile phone as ahands-free set.
Current Location without the AAA buttons can also
be accessed from the Trip Options
screen:
Media Center
You can watch your favorite movies, view your photos or listen to your favorite music with
the Magellan Maestro. The Media Center contains
an Audio Player, aVideo Player and a
Picture Viewer application.
Connect your Magellan Maestro to acomputer with a
USB cable and copy picture files,
sound files and movie files into its internal memory. Furthermore, you can insert
an SO
card into your Magellan Maestro with media files to play.
Audio file types: mp3 (Layer III); wav; wma
Video file types: avi (Mpeg-4 Part 2/XviO)
You can access the Media Center from the Main Menu by tapping the media icon
and
you can directly access the Audio Player from the Map Screen by tapping the musical
note icon.
Listening to Music
Access the Audio Player from the Map Screen or tap Audio in the Media Center.
Audio files can
be played even during navigation. Tap Settings to define whether to stop
playing after
you leave Audio Player.
Tap Playlist and then tap
Add to select audio files to play. You can select by artist, album
name, genre or you can browse the available memory locations.
Watching Movies and Viewing Pictures
In the Media Center tap Videos to access the Video Player. Tap Browse and select the
video file to watch.
In the Media Center tap Pictures to access the Picture Viewer. Tap one of the memory
locations and browse for afolder that contains picture files. Tap any
of the pictures to see
it
on full screen or tap Slideshow to see all pictures in the selected folder one by one.

Phone Subsy .. stiiie.m ... _
Your Magellan Maestro can be connected to aBluetooth enabled mobile phone as a
hands-free set. You can initiate and receive phone calls, send and receive SMS
messages with the touch screen, microphone and speaker
of your Magellan Maestro.
Once connected to amobile phone, incoming calls will pop up amessage and you can
decide whether to accept or reject the call. Otherwise, you can access the phone
sUbsystem from the Main Menu or from the Map Screen by tapping the phone icon.
Connecting to a Mobile Phone
Access the phone subsystem as just described and then tap Settings to open the
Bluetooth Settings screen. Check Bluetooth Enabled to turn on the Bluetooth radio.
You can also rename your Magellan Maestro if you tap Device Name. The name given
here will appear
in the connected Bluetooth mobile phone.
Return to the Phone Features screen and tap Phone Profiles to access the list
of paired
Bluetooth devices. The list is now empty. Tap Add and the Magellan Maestro starts
searching for available Bluetooth devices. When finished, select amobile phone from the
list.
IFor more information, please, refer to the User Manual available using the CD-ROMI

my Magellan® Maestro™ 4350
PIN 703-0060-001 A
Adobe Acrobat Reader
required to view
documentation.
@ Internet connection ~.
~ required for registration and support. >::~
~ ~
% #
~%·4av~~o. <!1AGELLAN> ,,~.,f"~
'0.. ~~~
c: 41; ij \\~?:,'G~
'If!Jts ~\'G
ieserved 7i n w.ae"'\~\)
. he Magellan logo, Magellan, an

III ""111111
703-0060-001
Date Code: 838
