Magewell XI200DE-HDMI User manual

http://www.magewell.com
Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. i
XI200DE-HDMI Dual HD HDMI capture Card
User’s Guide
Rev 1.0
2013/04/08

http://www.magewell.com
ii Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
Content
1Preface....................................................................................................................................................... 3
2Minimum Hardware Configuration ........................................................................................................... 3
3Recommended Hardware Configuration................................................................................................... 3
4System Requirements................................................................................................................................ 3
5Hardware and Driver Installation .............................................................................................................. 4
6Connection of Video Input......................................................................................................................... 4
6.1 HDMI Signal...................................................................................................................................... 4
7Video Capture Device Instruction.............................................................................................................. 4
7.1 Display "Filter Properties Dialog Window" In Common Software................................................... 5
7.2 “Device” Instruction........................................................................................................................... 5
7.3 "Advanced Settings" Instruction ........................................................................................................ 7
7.3.1. Input Signal ...................................................................................................................................... 8
7.3.1.1. Input Interface............................................................................................................................. 8
7.3.2 Image Adjustment ...................................................................................................................... 8
7.3.3. Image Output ..................................................................................................................................... 9
7.4. "Color Adjustment" Instruction........................................................................................................ 10
8. Video Formats Setting ............................................................................................................................. 11
8.1. Display "Filter Output Pin" In Common Software........................................................................... 11
8.2. “Out Format” Instruction ................................................................................................................. 11
9. Audio Capture Device Instruction ........................................................................................................... 12
9.1. Windows XP, Windows 2003.......................................................................................................... 12
9.2. Windows Vista, Windows 7, Windows 2008, Windows 2008 R2................................................... 13
10. Compatible Software Instruction......................................................................................................... 14

http://www.magewell.com
Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 3
1Preface
Thank you for purchasing XI200DE-HDMI video capture adapter!
The XI200DE-HDMI capture adapter is featured with small and exquisite bulk, superior
performance and flexible characteristics. The XI200DE-HDMI capture adapter can capture 2 HDMI
signal.
The user’s guide will provide with necessary instruction for proper use of XI200DE-HDMI capture
adapter.
2Minimum Hardware Configuration
Intel Core Solo
1G of RAM
Available PCI-Express x4 expansion slot on mainboard
3Recommended Hardware Configuration
Intel Core i7
2G of RAM
Available PCI-Express x4 expansion slot on motherboard
4System Requirements
System should be one of the following systems (x 86 version or x64 version):
Microsoft Windows XP
Microsoft Windows Server 2003

http://www.magewell.com
4 / 14 Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd.
Microsoft Windows Vista
Microsoft Windows Server 2008
Microsoft Windows 7
Microsoft Windows Server 2008 R2
5Hardware and Driver Installation
Please refer to " XI200DE-HDMI Installation Guide" to install the hardware and the driver.
6Connection of Video Input
6.1HDMI Signal
Figure 1, HDMI signal connection sketch map
7Video Capture Device Instruction
XI200DE-HDMI is based on Microsoft DirectShow interface, one video capture adapter will be
increased in operating system after installation:

http://www.magewell.com
Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd. 5 / 14
HD Video 1 (XI200DE-HDMI Card 1)
HD Video 2 (XI200DE-HDMI Card 1)
XI200DE-HDMI not only offer basic options, such as image brightness, contrast, hue, saturation,
Gamma and so on, but also provide additional options for setting function. You can use "Filter
Properties dialog window" in DirectShow to set these options.
7.1Display "Filter Properties Dialog Window" In Common Software
AmCap.exe", choose HD video device "HD Video (XI200DE-HDMI
Card 1)" in "Devices" menu, then click "Video Capture Filter ..." in "Settings" menu, pop-up "
Filter Properties dialog window".
7.2 “Device” Instruction

http://www.magewell.com
6 / 14 Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd.
Figure 2, Device Properties tab
Device Number: display serial of card, the number should be accorded with the barcode on the card.
Version: display related version number, versions include hardware version, firmware version,
driver version, and device serial. You may request user to provide relevant version number when
you solve problems.
Firmware: if new features need to upgrade the firmware, we should first backup it and then
upgrade the firmware.
Notes: The different versions of the firmware and hardware cannot be mixed together, or else it will
get error when upgrade. Additionally, do not power outage in the process of firmware upgrade,
otherwise it will lead to upgrade firmware fail, then XI200DE-HDMI Card will not work. You have

http://www.magewell.com
Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd. 7 / 14
to return XI200DE-HDMI back to factory for being repaired.
7.3"Advanced Settings" Instruction
Figure 3, "Advanced Settings " page

http://www.magewell.com
8 / 14 Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd.
7.3.1. Input Signal
7.3.1.1. Input Interface
Supporting input interface includes: HDMI input, only one interface type, so cannot be selected
manually.
7.3.1.2 Signal State
The relevant parameters of signal are shown, such as total number of rows, frame rate (p is
progressive scan, i is interlaced), mode, audio frequency.
7.3.2 Image Adjustment
By default, image is auto, but auto cannot achieve desired effect, such as black border, unclear
image, picture which needs clipping, it must be adjusted manually. After adjustment, you can save
the preset. Then you can apply preset values without adjustment when the same signal accesses.
For example as VGA signal adjustment:
Black border adjustment: Through adjust left margin and top margin to eliminate black
border. Every time you can adjust 1 pixel.
Image clipping: Through adjust image width, height, left margin and top margin to achieve
desired requirement. Increasing/reducing width of image starts from right, increasing/reducing
height of image starts from below.
Skills of image clipping as follows:
1. Set scale full output image to confirm whether clipping adjustment is appropriate.
2. Cut off left margin of image: firstly increase left margin, then reduce image width.
3. Cut off right margin of image: reduce image width.
4. Cut off top margin of image: firstly reduce image height, and then increase top margin.
5. Cut off lower margin of image: reduce image height.
After image adjustment completes, click "Save Preset" to save current adjustment; click "Del
preset" to delete preset you saved; click "Apply Preset" to apply the saved preset to current
settings.

http://www.magewell.com
Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd. 9 / 14
7.3.3. Image Output
Display output format of current image, set image zoom scale, deinterlace and image flipping.
Format: display output image size, frame rate, color format.
Scale: provide three ways, full output image and keep aspect ratio, fill border to black and
keep aspect ratio, clip border.
Deinterlace: disabled, vertial blend, motion adaptive(high CPU Usage)
Image flip: offer two ways, vertial flip and mirror.

http://www.magewell.com
10 / 14 Copyright ©2008-2011 All rights reserved Nanjing Magewell Electronics Co., Ltd.
7.4. "Color Adjustment" Instruction

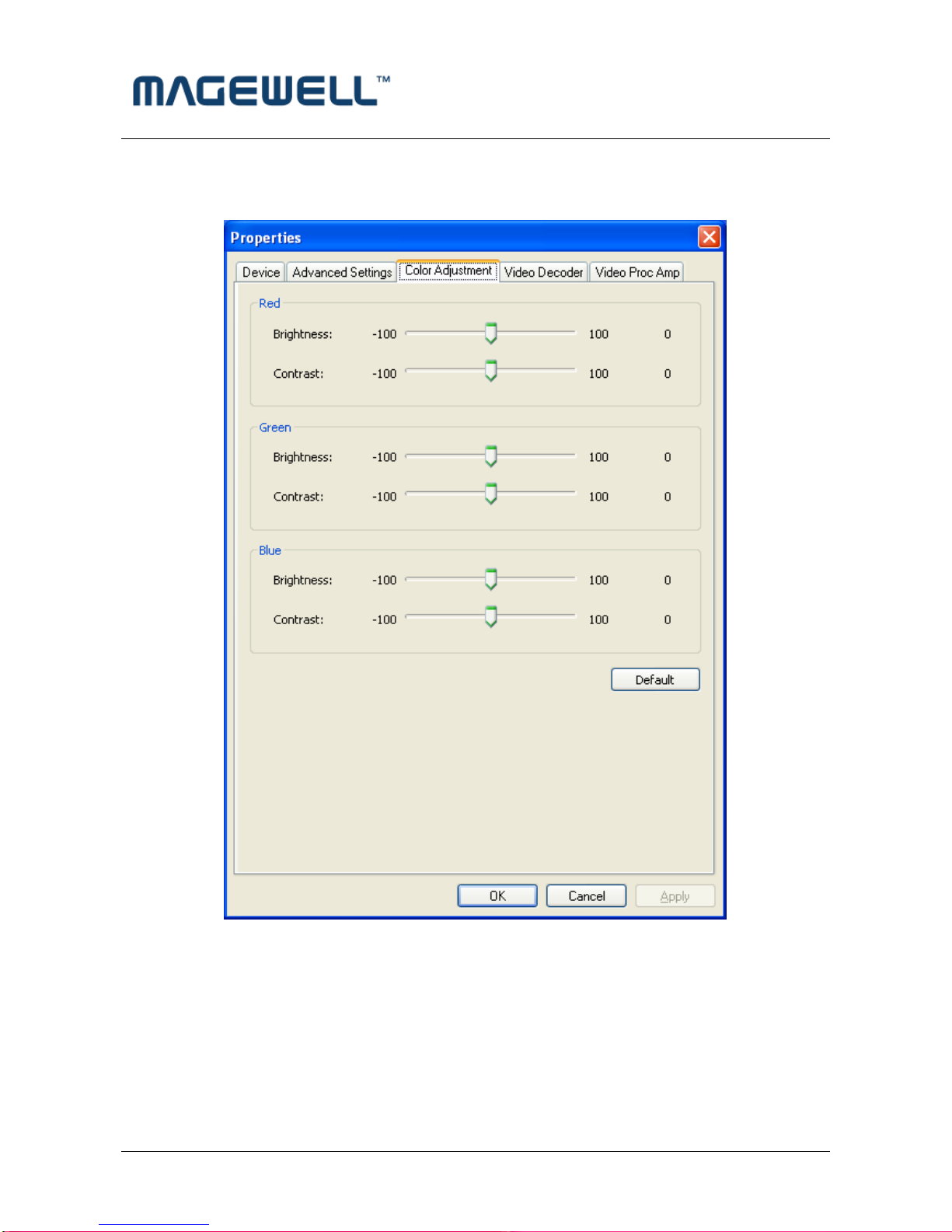

Figure 4 ， “Color Adjustment”properties page
Here can be adjusted R, G, B brightness and contrast separately, click "Default" to restore default
values.
