MAGLIN LEXICON User manual

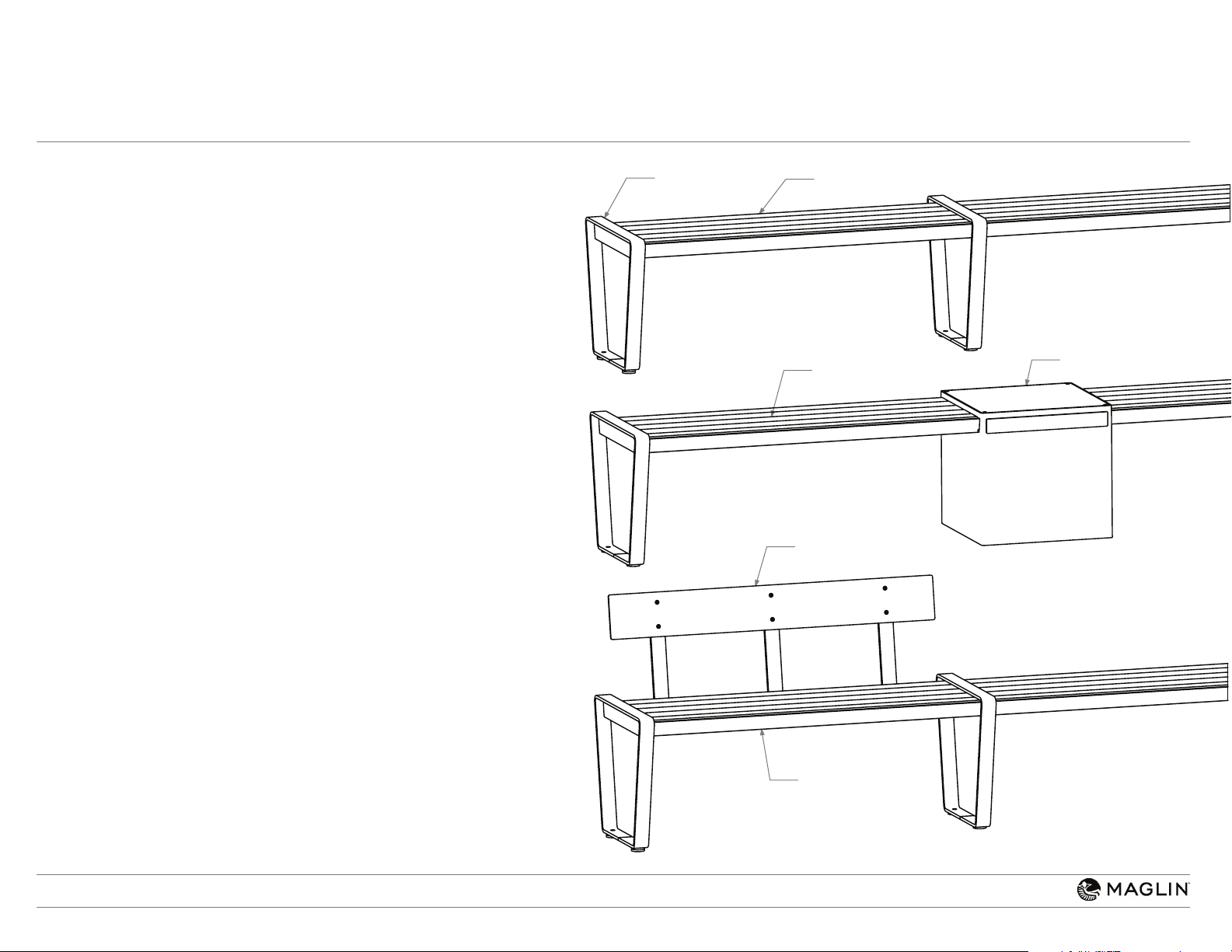

PATTE
SIÈGE
SIÈGE
MODULE
DOSSIER
SIÈGE
SIÈGE ET PATTE
(PG 3)
REMARQUE : LA PROCÉDURE D’ASSEMBLAGE DU SIÈGE AUX PATTES
S’APPLIQUE À TOUS LES STYLES DE PATTE, ET AUX SIÈGES DROITS OU COURBÉS.
SIÈGE ET MODULE
(PG 7)
REMARQUE : LA PROCÉDURE D’ASSEMBLAGE DU SIÈGE AU MODULE
S’APPLIQUE AUX MODULES CARRÉS OU TRIANGULAIRES, ET AUX SIÈGES
DOSSIER ET SIÈGE
(PG 11)
REMARQUE : LA PROCÉDURE D’ASSEMBLAGE DU DOSSIER AU
SIÈGE S’APPLIQUE POUR LES SECTIONS DROITES OU COURBÉES.
LEXICON - SIÈGES, PATTES, DOSSIERS ET MODULES
DWG: INST_LXM1500-SS
REV: M01
L’INFORMATION CONTENUE DANS LES PRÉSENTES ILLUSTRATIONS EST LA PROPRIÉTÉ EXCLUSIVE DE MAGLIN SITE FURNITURE INC. TOUTE REPRODUCTION COMPLÈTE OU PARTIELLE SANS L’AUTORISATION ÉCRITE
DE MAGLIN SITE FURNITURE INC. EST STRICTEMENT INTERDITE.
LEXICON
DIRECTIVES D’INSTALLATION:
WWW.MAGLIN.COM
DROITS OU COURBÉS.

HEX NUT
3/8"
FLAT WASHER
3/8"
HEX BOLT
3/8" - 1 1/4"
TOOLS:
ALLEN KEY
5/32"
(ONLY REQUIRED FOR MODULES)
RATCHET WRENCH
9/16" SOCKET
FASTENERS:
NOTES:
! ATTENTION ! LE NON-RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES; VEILLEZ À RESPECTER TOUTES LES ÉTAPES ET À UTILISER TOUTES LES FIXATIONS. AU MOINS DEUX PERSONNES SONT
REQUISES POUR UNE INSTALLATION SÉCURITAIRE.
! CAUTION ! NOTE THAT THE ASSEMBLY HOOKS ARE DESIGNED TO ONLY AID IN THE ASSEMBLY PROCESS. PARTS SHOULD NOT BE LEFT UNATTENDED AND SHOULD BE BOLTED TOGETHER IMMEDIATELY
AFTER PARTS ARE PLACED IN DESIRED LOCATION AS SEATING IS NOT SAFE FOR USE UNTILL FULLY FASTENED TOGETHER AND ANCHORED DOWN.
! CAUTION ! ALL ASSEMBLIES REQUIRE ADEQUATE ANCHORING TO AN APPROPRIATE SUBSTRATE. DO NOT LEAVE BENCH FREE STANDING. IT IS THE INSTALLERS RESPONSIBILITY TO USE APPROPRIATE
ANCHORS AND IDENTIFY AN APPROPRIATE SUBSTRATE
QUANTITIES VARY FOR EACH PART. NOTE PROPER QUANTITIES REQUIRED IN EACH STEP.
WRENCH
9/16"
LOCK WASHER
3/8"
*NOTE TOOLS ARE NOT SUPPLIED
2
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

SEAT
SEAT
END CAP, BENCH
LEG
LEG
LEG
DETAIL A
SEAT TO LEG
1
IDENTIFY A STARTING POINT OF THE BENCH
ASSEMBLY.
IF ASSEMBLY STARTS WITH A LEG, SLIDE THE
BENCH END CAP THRU THE LEG HOLES (DETAIL A)
IF ASSEMBLY STARTS WITH A MODULE SEE THE
SEAT TO MODULE INSTRUCTIONS
3
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

DETAIL B
D
DETAIL C
FLAT WASHER
LOCK WASHER
HEX NUT
2

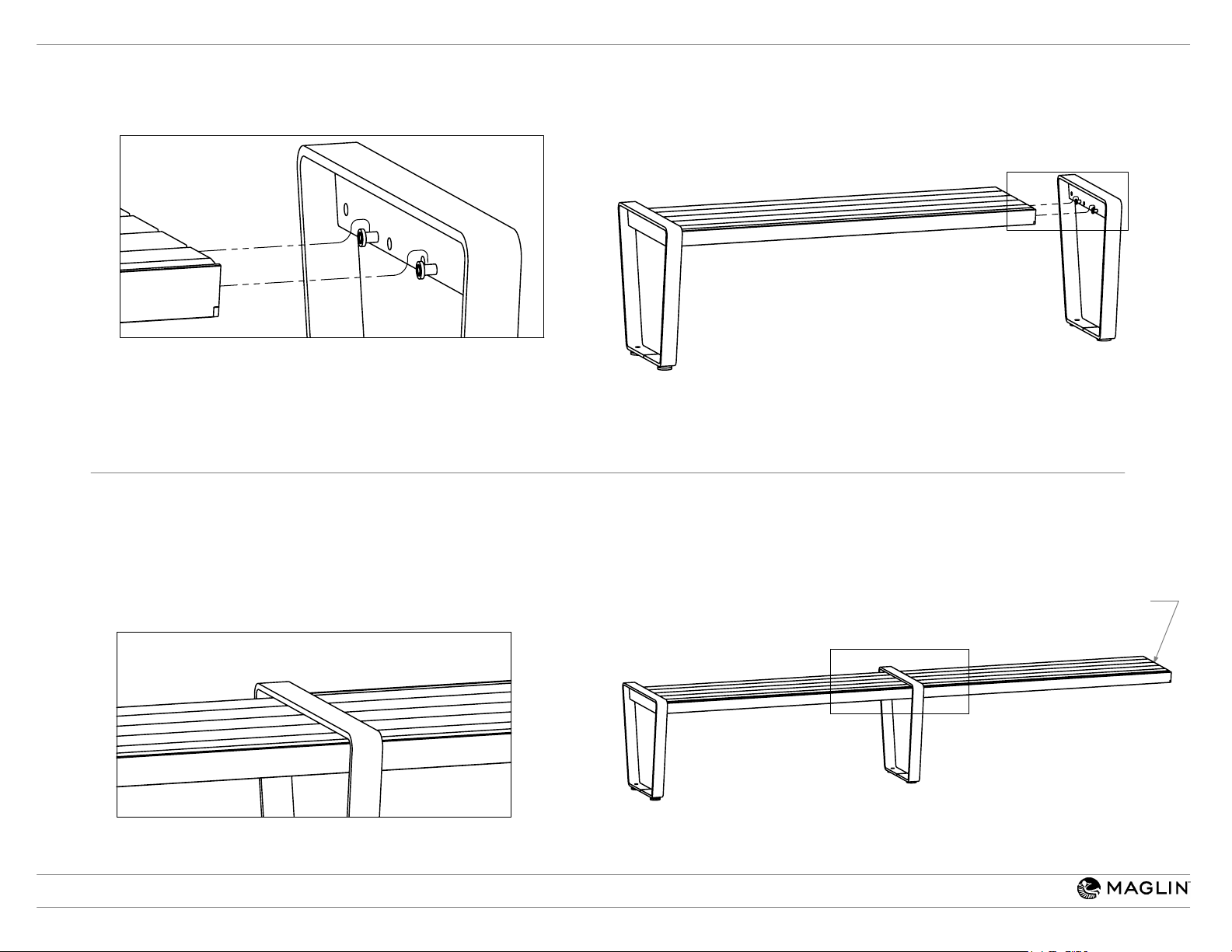

AS ONE PERSON HOLDS LEG AND END CAP IN PLACE
A SECOND PERSON CAN TAKE THE SEAT SECTION
AND ALIGN THE HOLES TO THE THREADED POSTS
(DETAIL B)
STEPS 2-3 CAN BE DONE WITH BENCH SECTION
UPSIDE-DOWN IF A PROTECTIVE SURFACE IS
AVAILABLE SUCH AS CARDBOARD OR A BLANKET
3
WITH THE END CAP THREADED POSTS FEEDING TRHOUGH THE
LEG AND SEAT SECTION, PLACE FLAT WASHER, LOCK WASHER
AND NUTS ON ALL 4 THREADED RODS (DETAIL C)
ENSURE ALL FASTENERS ARE FIRMLY FASTENED DOWN
ONCE TOGETHER, THE SUB-ASSEMBLY CAN BE HELD BY ONE
PERSON (POINT D) WHILE THE OTHER RETRIEVES ANOTHER LEG
4
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

E
DETAIL E
F
POINT G
DETAIL F
4

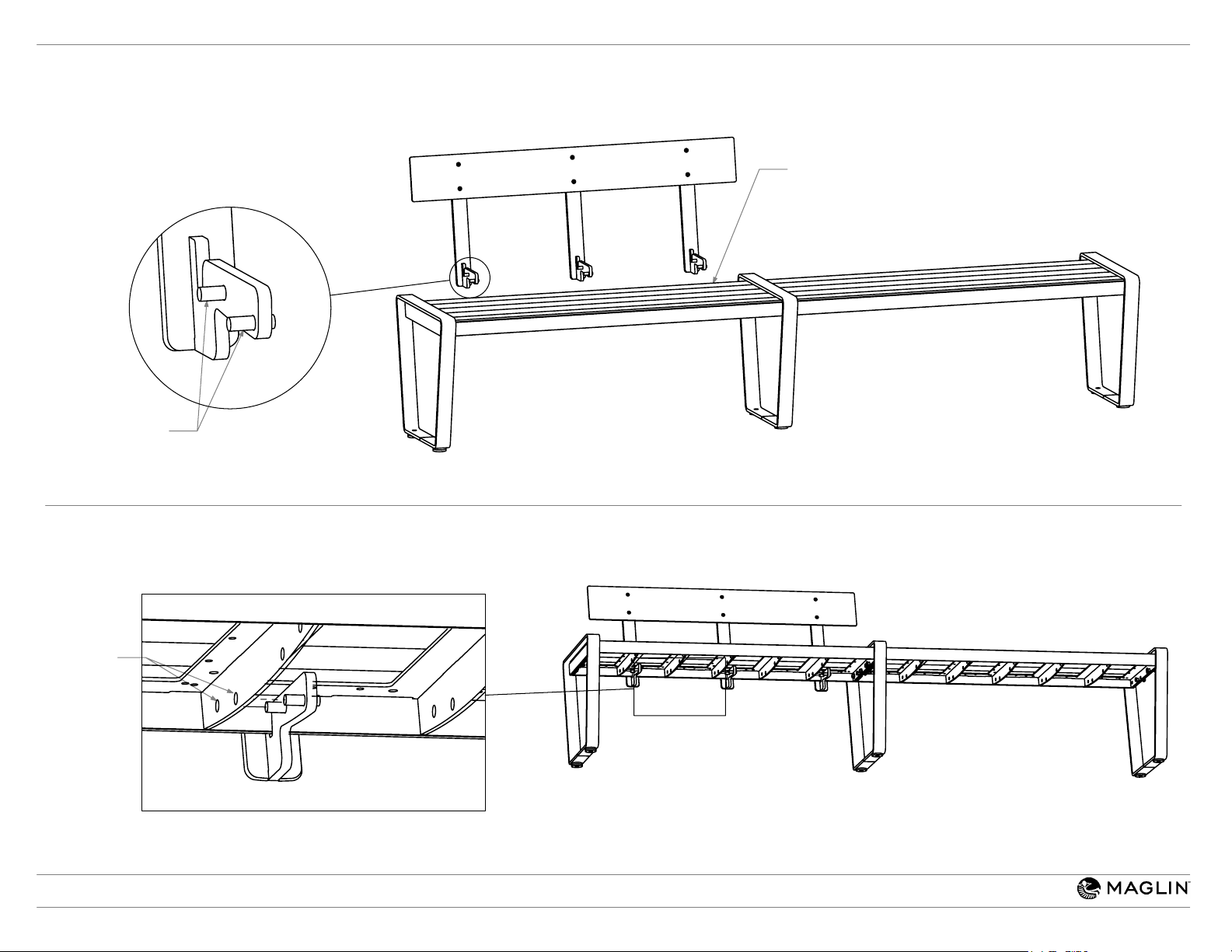

WITH OTHER LEG IN HAND USE HOOKS TO
TEMPORARILY HOLD SEAT IN PLACE
5
IF APPLICABLE, ATTACH NEXT SEAT SECTION WITH TWO
PEOPLE
USE HOOKS ON OPPOSITE SIDE TO TEMPORARILY
HOLD SEAT IN PLACE, AS ONE PERSON HOLDS
WEIGHT ON SIDE WITHOUT LEG (POINT G)
THE SECOND PERSON CAN NOW TEMPORARILY
PLACE THE OTHER LEG USING THE ASSEMBLY ASSIST
HOOKS AT (POINT G)
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.
5

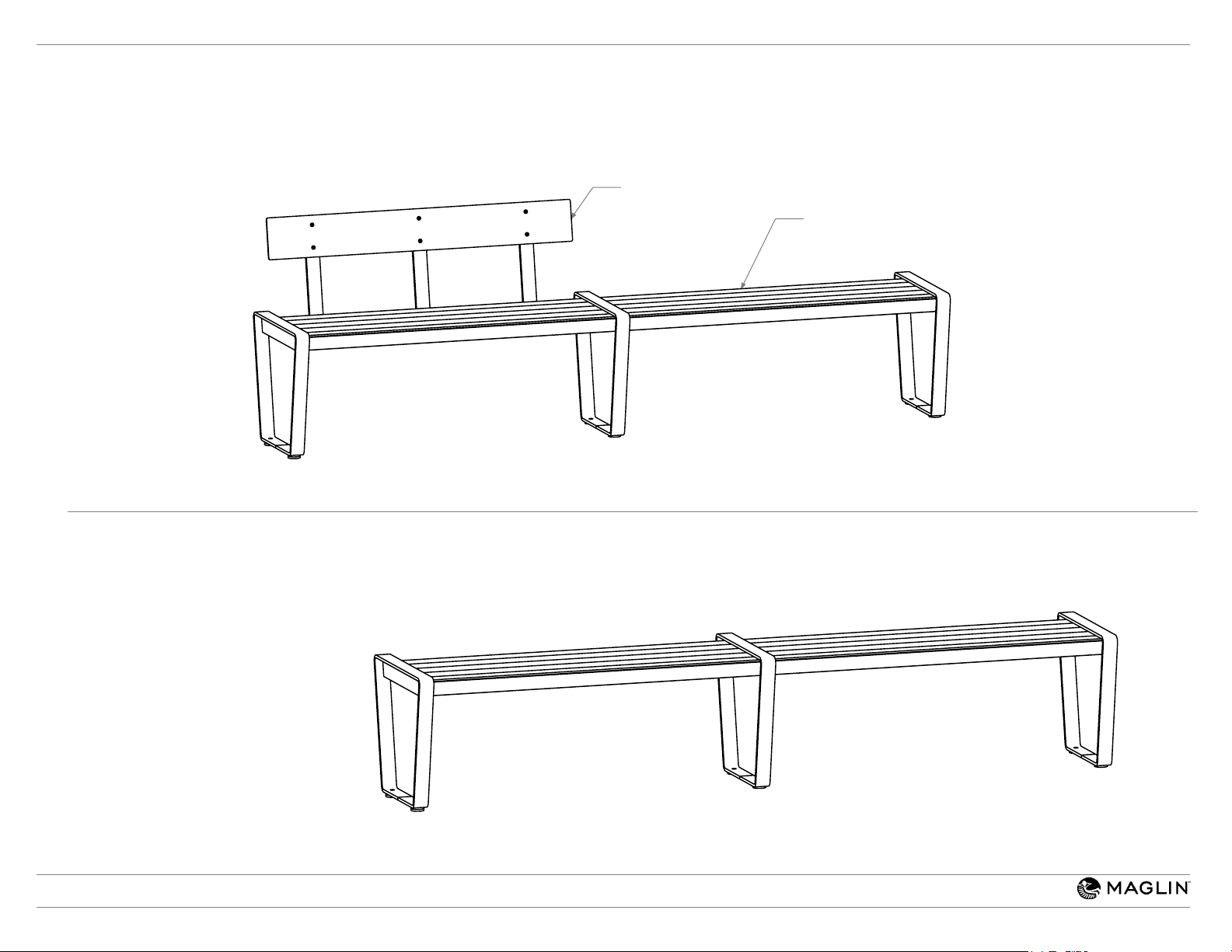

DEPENDING ON THE FINAL DESIGN LAYOUT CONTINUE
USING THE SAME STEPS 4-6 IF MORE SEAT SECTIONS
ARE TO BE ASSEMBLED
IF THIS IS THE END OF THE ASSEMBLY USE THE SAME
PRINCIPLES OUTLINED IN STEPS 1-3
ONCE FULLY ASSEMBLED ENSURE BENCH IS LEVEL.
SHIM IF NECESSARY (DETAIL I) AND ANCHOR BENCH
WITH APPROPRIATE ANCHORS (NOT SUPPLIED) TO
APPROPRIATE SUBSTRATE.
DETAIL H
BOLT
FLAT WASHER FLAT WASHER
LOCK WASHER
NUT
DETAIL I
SHIM
6
WITH THE SEAT TEMPORALLY IN PLACE THE TWO SEAT
SECTIONS CAN BE SECURELY FASTENED TOGETHER
USING A BOLT AND FLAT WASHER ON ONE SIDE AND
A FLAT WASHER LOCK WASHER AND NUT ON THE
OTHER SEE (DETAIL H)
ENSURE ALL 4 HOLES HAVE FASTENERS AND ARE
FIRMLY FASTENED TOGETHER
7
6
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

LEG
MODULE - TABLE MODULE - TABLE
END CAP - MODULE
END CAP - MODULE
SEAT SEAT
13/16"
DETAIL A
FLAT WASHER
LOCK WASHER
HEX NUT
END CAP
SEAT TO MODULE
END CAP - BENCH
1

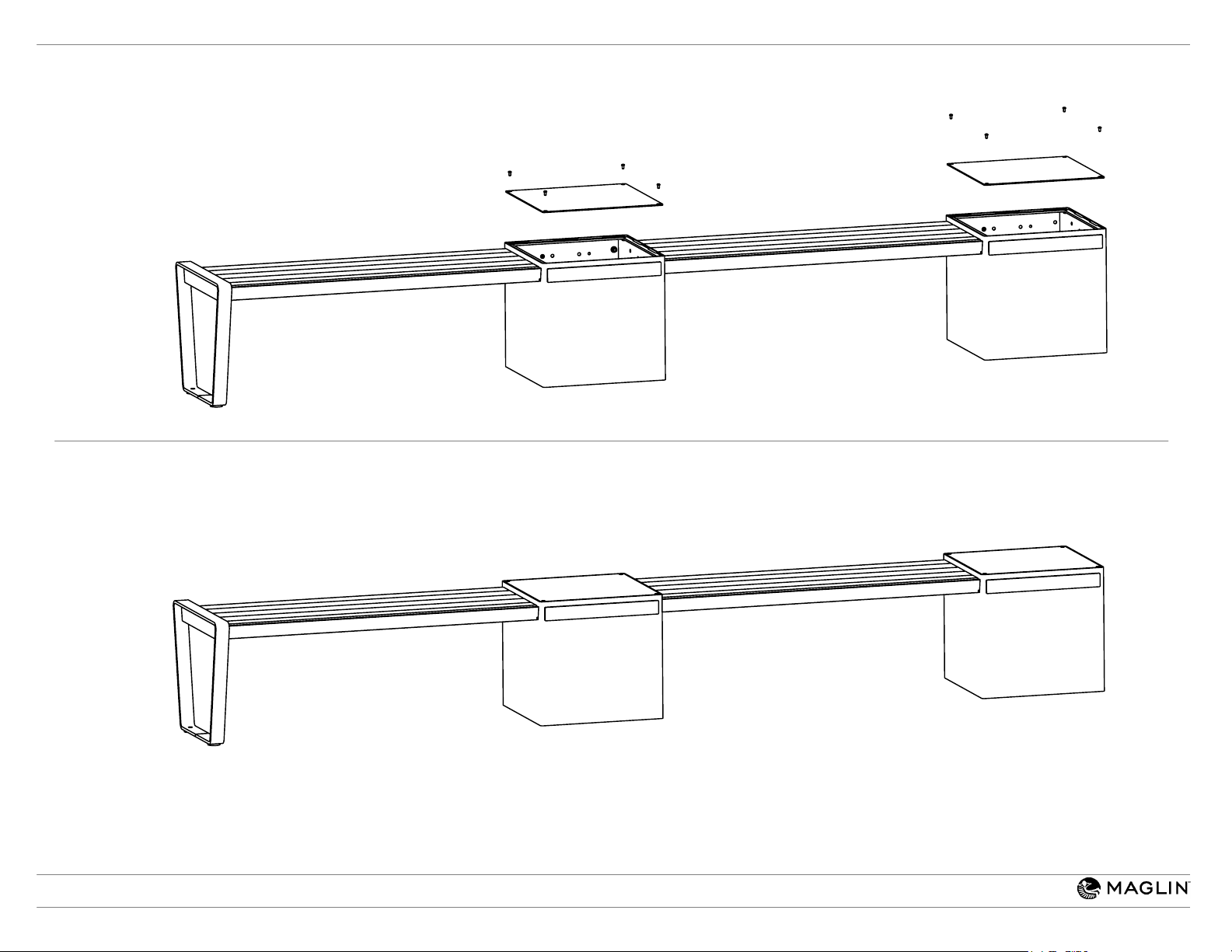

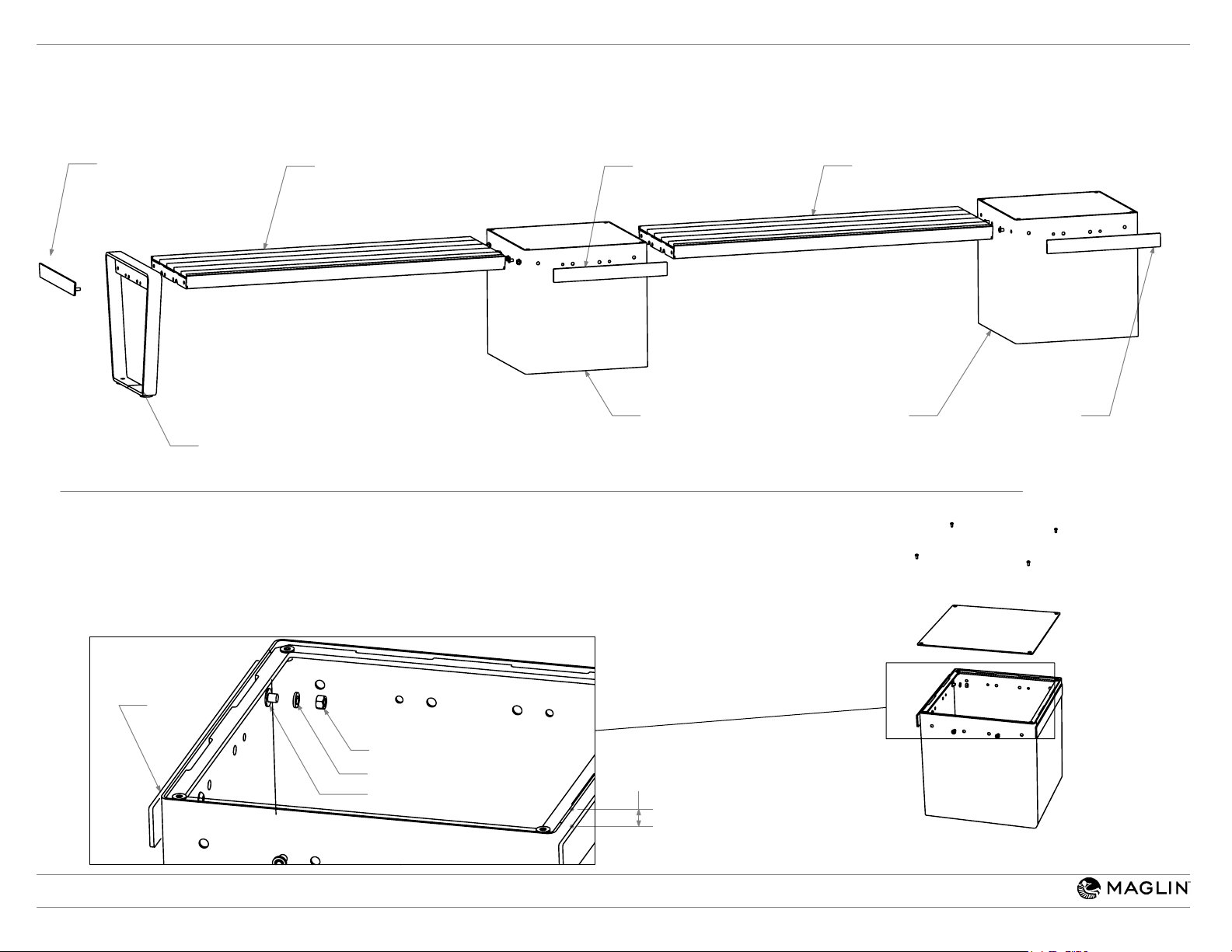

PLACE MODULE IN DESIRED LOCATION. REMOVE TOP
TO ACCESS ASSEMBLY HOLES USING 5/32 ALLEN KEY.
FOR PLANTERS ALSO REMOVE LINER TO ACCESS
ASSEMBLY AND ANCHORING HOLES
BOLT AN END CAP ON ALL SIDES THAT WILL NOT HAVE
A SEAT ATTACHED. USE 2 X FLAT WASHERS, 2 X LOCK
WASHERS, 2 X NUTS PER END CAP. NOTE END CAPS
DISTANCE FROM TOP EDGE (DETAIL A)
7
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

U
BOLT SEAT SECTION TO MODULE WITH 4 X BOLTS, 8 FLAT
WASHERS (USE ON BOTH SIDES OF MODULE), 4 X LOCK
WASHERS AND 4 X HEX NUTS (DETAIL B AND C)
REFERENCING THE SEAT TO LEG. USE HOOKS TO ADD
NEXT SECTION
DETAIL U
SCALE 1 : 4
DETAIL C
FLAT WASHER
LOCK WASHER
HEX NUT
DETAIL B
SCALE 1 : 3
HEX BOLT
FLAT WASHER
2

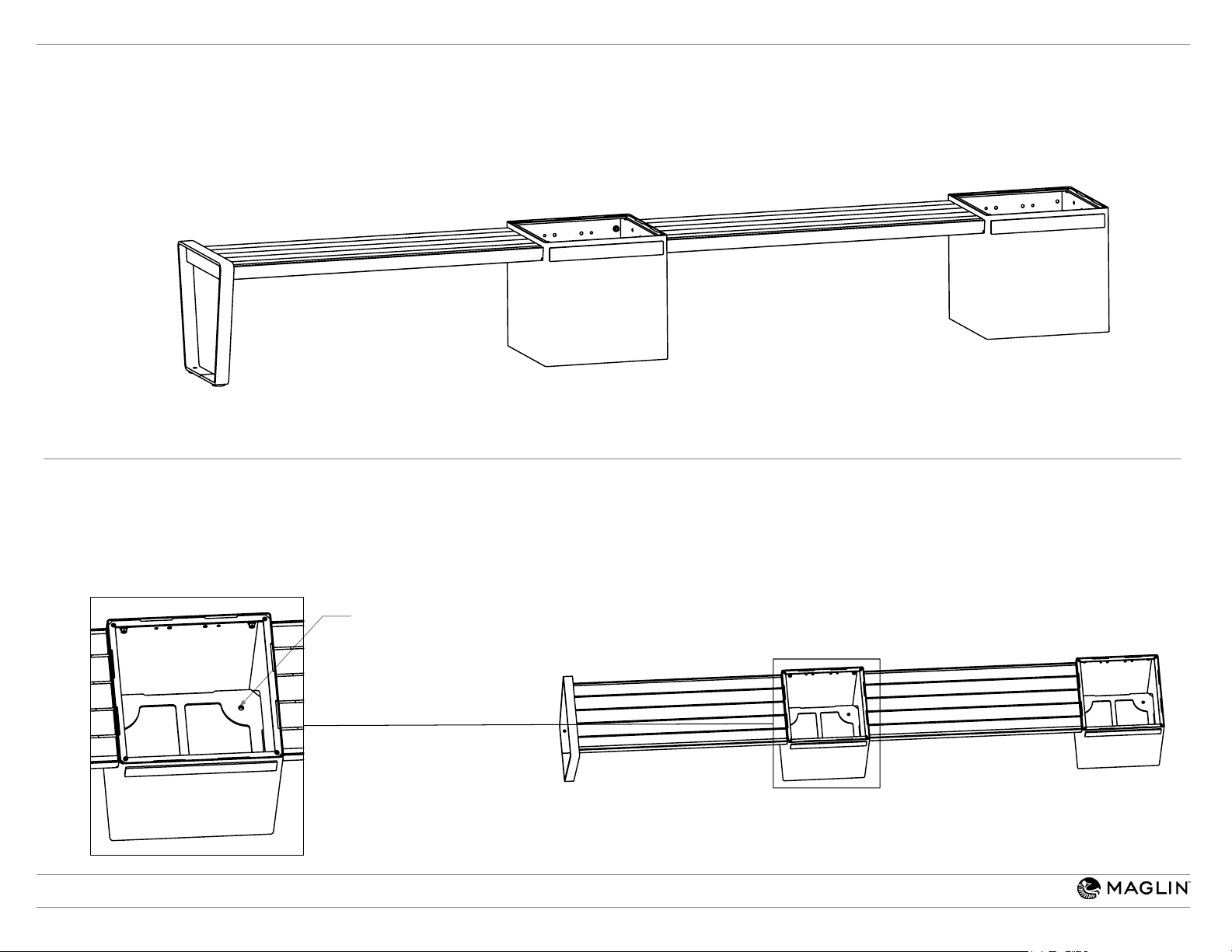

LEAVE COVER OFF UNTIL FULL ASSEMBLY IS COMPLETE
REFERENCING THE SEAT TO LEG ASSEMBLY
INSTRUCTIONS. USE HOOKS TO ADD NEXT SECTION
3
8
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

ANCHOR HERE
4X HOLES SQUARE MODULE
3 X HOLES TRIANGLE MODULE
4
IF AN ADDITIONAL PLANTER IS PART OF THE ASSEMBLY
PLACE IN DESIRED LOCATION AND PLACE BENCH
SECTION ON HOOKS.
BOLT TOGETHER FOLLOWING PROCEDURES IN STEPS 1-3
5
ONCE FULLY ASSEMBLY IS BOLTED TOGETHER AND IN FINAL
DESIRED LOCATION BOLT MODULES TO THE GROUND. USE
APPROPRIATE ANCHORS FOR FASTENING (NOT SUPPLIED).
BOLT ALL LEGS IN SAME MANNER IF APPLICABLE.
IF PARTS ARE NOT TOUCHING THE GROUND OF NEED
LEVELING SHIM AS NEEDED PRIOR TO BOLTING.
9
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.

7
ASSEMBLY IS NOW COMPLETE
6
RETURN COVERS TO MODULES USING 5/32" ALLEN KEY AND
1/4" PAN HEAD HEX FASTENERS
10
WWW.MAGLIN.COM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.
