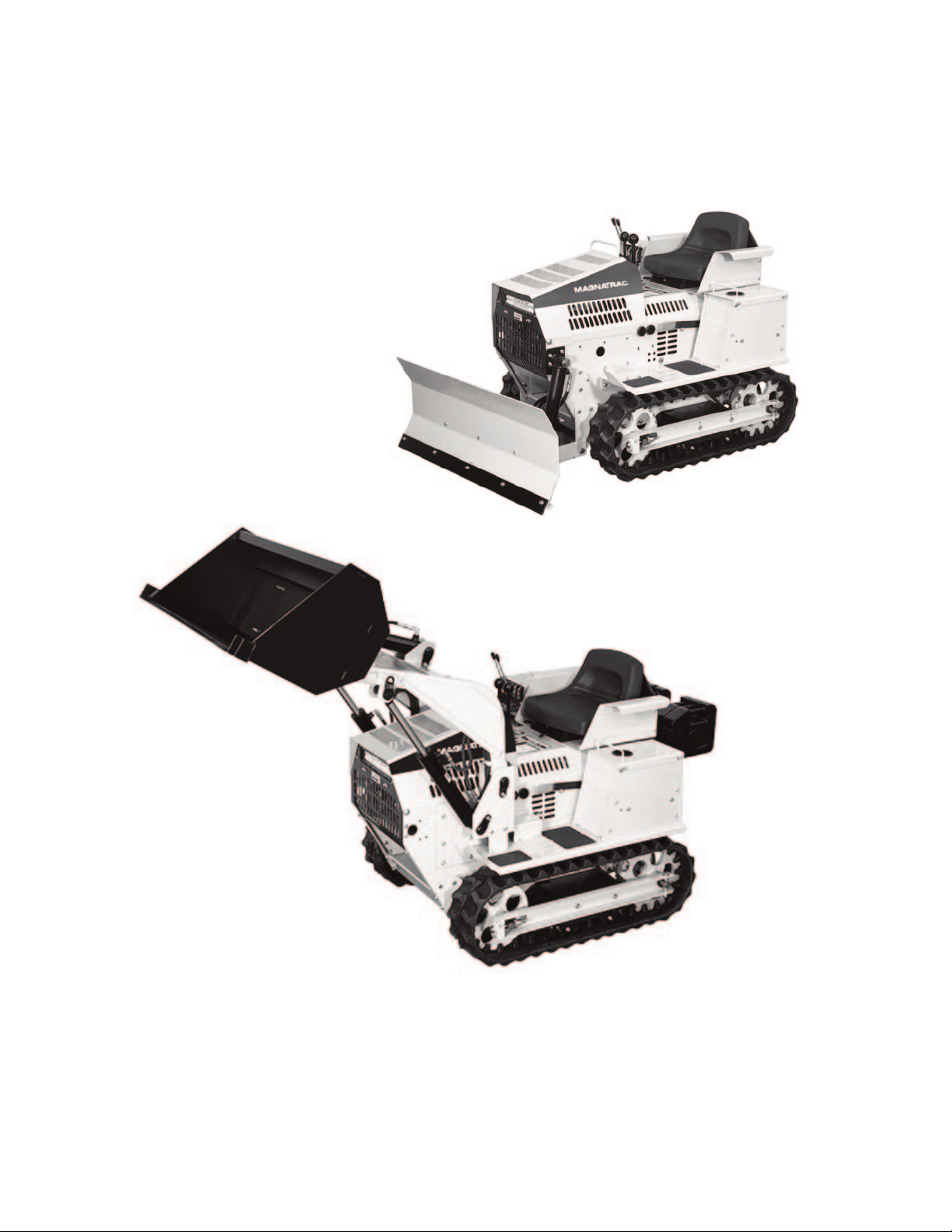

MAGNATRAC RT1150 User manual

MAGNATRAC®
RT1150
Operator / Technical Manual
Struck Corp. - Cedarburg, WI 53012
Copyright 2023 C. F. Struck Corp. All rights reserved. Version - 01.01.23

Important Facts &
Tips for
Top Performance
The following are facts that will be expanded on
within this Manual. They are brought to you “first”
to impress upon you their primary importance in
preventing damage to your RT1150, understand-
ing how to operate the unit, and also to protect
your safety and prevent costly and unnecessary
maintenance expenses.
SAFE BLOCKING AREA
When “blocking” your Crawler off the ground for
service, be aware that you should only apply a
hydraulic jack, in the “Black Shaded” areas
marked below.
POWER VS. SPEED
The greatest amount of “Power” (drawbar
torque) your RT1150 can deliver is by pushing
the track drive handles: 1/4 of the way forward
and/or rearward. The greatest amount of
“Speed” your RT1150 can deliver is by pushing
the track drive handles: fully forward and/or
rearward.
Doing your tough/heavy work at approx. 1/2
thottle & slower travel speeds accomplishes a
few things:
1. It keeps the engine cooler.
2. It gives your RT1150 maximum draw
bar torque.
3. It provides time to make “attachment
adjustments” on the go!
You’re encouraged to completely read this Man-
ual to get a firm over-view of: how your RT1150
operates, significant safety points, and also main-
tenance tips on how to increase your MAGNA-
TRAC’S life.
PARKING BRAKE
NEVER FORGET to take off your Parking Brake...
BEFORE you drive away. If you fail to disengage
the Parking Brake, it can cause damage to the
hydro-static transaxles!
DRIVE BELT
It is strongly advised that you thoroughly read the
Drive Belt Removal & Installation chapter in the
Service Section of this Manual to give you an
over-view of the mechanics of your hydro-static
drive system.
In factory tests of different driving techniques, we
found that Drive Belt life will range from 100 to 400
hours. This testing proved that the operator is the
greatest variable in determining Belt life. From
these tests, the following driving rules have
evolved. If followed, they will give you the best
Belt life consistent with the severity of work you
are doing.
1. If your MAGNATRAC cannot push a particular
load you have two options:
A. Immediately reduce the load (raise the
Bucket or Blade) or...
B. Backup and take a new angle at the
load.
Never hold your track controls in a fixed posi-
tion (forward or rearward) against an immov-
able object for a long period of time, you will
unnecessarily wear the drive belt.
2. Your MAGNATRAC has outstanding pushing
ability, but it’s up to you, the operator, to use its
ability in the most efficient and economical man-
ner.
2
Support Areas

TRACTION & TRACKS
The track system of your MAGNATRAC is the re-
sult of over 60 years of experience.
A few helpful hints are listed below, that if followed,
will give you maximum track performance.
1. Avoid Overloading Your Track System. The
track system is designed to absorb a great deal of
material, but the less you force it to “digest”, the
greater the track’s stability and overall life.
When working the machine, clear a “driving path”
with the front attachment (Blade, Bucket, etc.) you
are using. Avoid climbing in loose material and
counter-rotating your tracks. This action will “cork-
screw” the Tracks into the pile and force unnec-
essarily large amounts of material into the Tracks.
2. Keeping Up with Track Tensioning. Properly
tensioning your tracks will allow the most reliable
and stable track system. Loose tracks, and/or front
idler mis-alingment is the main cause of track de-
railment. Please see proper tensioning in the
Service section of this manual.
3. Work Smartly when Excavating. The RT1150
can do alot of tough homeowner work. However,
when excavating an area, we advise to use the
backhoe to dig, or to use our Hydro Rear Hitch &
Three Shank Ripper to loosen the soil first. Then
come through the area with a front bucket or
blade, for moving the loosened material. This al-
lows you to use the power of the RT1150 smartly
& efficiently.
LUBRICATION
The consistent greasing of all moving joints, where
grease zerks are present, will greatly extend the
life of your equipment. However, the rear drive
chains should NOT be lubricated with grease.
We advise to spray on, non-detergent aersol
Chain & Wire Rope Lubricant, approx. every 50
hours. We use CRC®brand, Grainger®Item
#2F139.
ROLL-OVER STRUCTURE
AND INCLINES
The MAGNATRACS low center of gravity and
ground gripping traction, are no substitute for this
safety struture. A must if using the MAGNATRAC
in a business.
CAUTION: For safe operation on in-
clines, or when driving out of a ditch or
excavation area when a Backhoe is
mounted, we advise to drive in reverse
when going up slopes.
HYDROSTATIC TRANSAXLES
Other than recommended transaxle oil and filter
changes, the transaxle normally will not require
servicing during the life of the vehicle in which it is
installed. Should servicing be required, the exte-
rior of the transaxle will need to be thoroughly
cleaned. Do NOT use a pressure washer to
clean the unit. A Transaxle Service & Repair
Manual is included with this manual.
HOUR & TACH METER
The hour meter is based on actual engine run
hours. Alerts begin flashing a warning 4 hours be-
fore service is due, and will automatically reset 1
hour after the service interval. The meter displays
RPM while engine is running, and hours while en-
gine is off.
1. It will flash “LUBE” at 25 hour service inter-
vals. Please see the 25 hour service section of this
manual.
2. It will flash “CHG OIL” at 100 hour service in-
tervals. Please see the 100 hour service section of
this manual.
FREE TECHNICAL SUPPORT
As always, the Struck Corporation through the
customer service department, stands ready to
help you with any technical or work related ques-
tions you may have either now or in the future!
Phone: 1-877-828-8323
Text: 1-262-278-9298
3

LIMITED WARRANTY
NEW STRUCK CRAWLERS and/or ATTACHMENTS
(Effective with shipments made after January 1st, 2023)
A. GENERAL PROVISIONS
C.F. Struck Corp. will repair or replace, at its option, for the original purchaser of a new Struck Crawler and/or Attachment, any
covered part or parts found upon examination at our factory in Cedarburg, Wisconsin, to be defective in material or workmanship
or both; this is the exclusive remedy. Warranty service must be performed by the C. F. Struck Corp. at their factory in Cedarburg,
Wisconsin 53012. Warranty service will be performed without charge for parts or labor. The purchaser will be responsible, how-
ever, for transportation charges to and from the factory.
B. WHAT IS WARRANTED
All parts of any new Struck Crawler and/or Attachment are warranted for two (2) years, with the following exceptions: Belts, which
are warranted for 90 days (excludes normal wear and tear); Rubber Tracks, which are warrantied for 6 months or 500 hours; En-
gines, which are warranted by their manufacturer; and Batteries, which are provided on a complimentary basis and carry no war-
ranty whatsoever. C. F. Struck Corp. reserves the right to make product design and specification changes without notice and without
obligation on their part to present product owners. The Warranty term begins on the date the product is shipped to the purchaser.
C. WHAT IS NOT WARRANTED
(1) Used Products; (2) Any product that has been altered or modified in ways not approved by C. F. Struck Corp.; (3) Depreciation
or damage caused by normal wear, lack of reasonable and proper maintenance, failure to follow the product’s Operator’s/Tech-
nical Manual instructions, failure to upgrade crawler with parts furnished at no charge, misuse, lack of proper protection during
storage, or accident (4) Normal maintenance parts and service; (5) Use of Struck Crawler and/or Attachments in certain industrial-
type applications may affect Warranty coverage.
D. RETURNS AND REFUNDS
In the event of defective materials or workmanship the purchaser agrees to allow C.F. Struck Corp the opportunity to correct the de-
fect in a timely manner at the expense of C.F. Struck Corp. It is at the discretion of C.F. Struck Corp to either correct the defect or
refund the purchaser.
To return a Struck Crawler and/or attachment for reasons other than defect the purchaser will be financially responsible for an 8%
restocking fee, and for shipping the Struck Crawler and/or Attachment to the C.F Struck Corp. factory in Cedarburg, Wisconsin
53012. No Returns after 90 days.
E. SECURING WARRANTY SERVICE
To secure Warranty service, the purchaser must:
(1) Report the product defect to the factory in Cedarburg, Wisconsin 1-262-377-3300 or 1-877-828-8323.
(2) Make the part available to the factory in a reasonable period of time.
F. LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES
To the extent permitted by law, neither C. F. Struck Corp. nor any company affiliated with it makes any Warranties, representations
or promises as to the quality, performance or freedom from defect of the products covered by this Warranty. IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT APPLICABLE, SHALL BE LIMITED IN DU-
RATION TO THE APPLICABLE PERIOD OF WARRANTY SET FORTH ON THIS PAGE. THE PURCHASER’S ONLY REMEDIES IN CON-
NECTION WITH BREACH OR PERFORMANCE OF ANY WARRANTY ON C. F. STRUCK CORP. PRODUCTS ARE THOSE SET FORTH
ON THIS PAGE. IN NO EVENT WILL C. F. STRUCK CORP. OR ANY COMPANY AFFILIATED WITH IT BE LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES.
(Note: Some states do not allow limitations on how long an implied Warranty lasts or the exclusion or limitation of incidental or con-
sequential damages so the above limitations and exclusions may not apply to you.) This Warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
G. ASSEMBLY RESPONSIBILITY
Though the MAGNATRAC RT1150, MH4900 and MH8500 are offered completely assembled, it’s still the customer’s responsibility
to provide competent service ability! The servicing can be provided either by the mechanically customer, or by a local mechanic.
All Attachments and accessories are shipped in easy-to-assemble “semi-kit” form for lowest cost shipping. We provide Manuals and
Illustrations for complete service and repair so that anyone with reasonable mechanical skill can preform all required service work.
Check the MAGNATRAC Specifications & Ratings (in Spec Book or Buyer’s Guide) for a list of all standard features.
I hereby accept the terms and conditions of Warranty described above:
RT1150
MH4900
MH8500
Warranty 01.01.23
signature
print name
date
4

TABLE OF CONTENTS
VERY IMPORTANT FACTS & TIPS FOR PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1- TO THE OPERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Recognize Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Understand Signal Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Service Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2- SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety Before Starting or Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Service Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fire Prevention Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Protection From Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Start Engine From Operator Seat Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3- CONTROLS AND INSTRUMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Left & Right Track Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Dashboard Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4- OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Pre-Starting Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Prepare For Engine Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Warm-up Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Parking & Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5- DRIVE BELT, FUELS AND LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6- LUBRICATION AND SERVICE INTERVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7- SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Engine & Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Safe Starting Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Seat & Rear Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Engine: Filters & Oil Drain Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Drive Belt Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Hydrostatic Transaxles: Fluid, Filters and ByPass Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Hydraulics: Attachment Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Rear Drive Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Rubber Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Center Idler System (If equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
8- TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
9- SAFETY & WORK PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Loader Operation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Bulldozing Operation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Backhoe Operation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Misc. Operation Tips (Snowplowing, logging, etc.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
10- PARTS LISTING & DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Index of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Hydraulic Attachment System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
IMPORTANT: Though the MAGNATRAC is offered completely assembled, it’s still the customer’s responsibility
to provide competent service ability! The servicing can be provided either by the mechanically-inclined cus-
tomer, or by a local mechanic. We provide manuals & drawings for complete service and repair so that anyone
with reasonable mechanical skill can perform all required service work.
5

Congratulations…
on your purchase of a quality-built, Struck®Com-
pact Crawler Tractor. We are confident that the
dependability and economical performance of
your MAGNATRAC®will prove that you made a
wise choice.
The purpose of this Manual is to acquaint you with
the MAGNATRAC®RT1150. This Manual ex-
plains how to operate and service your Crawler,
and how to maintain its high operating efficiency.
Instructions are given clearly, with the intention of
making these operations as easy as possible.
Keep this Manual in a convenient place for quick
and easy reference. Use it as a guide whenever
questions arise. You have purchased a depend-
able, sturdy Crawler, but only by operating and
caring for it properly can you expect to receive the
service and long life for which it was designed.
If in the future you need new parts to replace
those that may be worn, insist on genuine Struck®
parts. They are exact duplicates of the originals,
made from the same patterns and of the same
high-quality materials.
When ordering parts, always be sure to give the
following information for your Crawler:
MAGNATRAC Records
MAGNATRAC Model: _______________________
MAGNATRAC Serial # ______________________
Engine Model: ______________________________
Engine Serial # _____________________________
Ship Date: __________________________________
Mail: STRUCK CORPORATION
W51N545 STRUCK LANE
CEDARBURG, WI 53012
Phone: (262) 377-3300 local
(877) 828-8323 toll-free
Text: (262) 278-9298
Web: struckcorp.com
*For immediate service always call the factory
and ask for a technician.
1- TO THE OPERATOR
RECOGNIZE
SAFETY
INFORMATION
This is the safety-alert symbol. When
you see this symbol on your Crawler or
in this Manual, be alert to the potential
for personal injury.
UNDERSTAND SIGNAL WORDS
A signal word — DANGER, WARNING, or CAU-
TION — is used with the safety-alert symbol.
DANGER identifies the most serious hazards.
Safety labels with the signal word DANGER or
WARNING are typically near specific hazards.
General precautions are listed on CAUTION
safety labels. CAUTION also calls attention to
safety messages in this Manual.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this Manual
and on your Crawler and Attachment safety labels.
Follow recommended precautions and safe oper-
ating practices.
Keep safety labels in good condition. Replace
missing or damaged safety labels.
To keep your Crawler running efficiently, read the
instructions in this Manual.
Left side, right side, front, and rear are viewed by
facing in the direction of the Crawler’s forward
travel.
Record your Crawler serial numbers in the space
provided. You need this information when you
order parts.
6

Date Service Work
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
Date Service Work
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
_______ ________________________________________
SERVICE & MAINTENANCE RECORDS
Proper service and maintenance work is critical to trouble free operation of your equipment. It is
also critical to diagnosing problems should they arise. Use the space provided on the following -
page to record maintenance and service work performed.
7

2- SAFETY RULES
Reports on accidents show that care-
less use of machinery causes a high
percentage of accidents. You can avoid
many accidents by following the safety
rules on these pages. Study these rules carefully
and enforce them on the job
.
SAFETY BEFORE STARTING OR
OPERATION
The Crawler should be operated only by persons
18 years old or older.
Clothing worn by the operator should be fairly tight
and NOT baggy.
Fasten a first aid kit to the Crawler.
Fasten a fire extinguisher to the Crawler. Keep
the extinguisher fully charged. Learn to use it cor-
rectly.
If the Crawler has an unsafe condition, do not op-
erate. Put a tag on the Track Drive Controls.
Do not start or operate the Crawler unless you are
in the operator’s seat.
Before you start the Engine, be sure there is
plenty of ventilation.
Keep hands, feet, and clothing away from power-
driven parts.
Fasten a slow-moving vehicle sign to the rear of
the Crawler.
Guards, shields, and other protective devices
must be in place and in good condition.
Before you start or operate the Crawler, clear the
area of all persons and obstacles.
OPERATION SAFETY
When you operate the Crawler, do not allow any-
one to ride on the Crawler or its equipment.
Drive at safe speeds at all times, especially on
rough ground and hillsides.
Carry the Bucket or Blade as low as possible at
all times, especially when you work on a hillside
or back up a steep hill.
Do not drive too close to the edge of a ditch or ex-
cavation.
Watch for overhead wires. Do not touch wires
with any part of the Crawler or its Attachments.
Do not leave your Crawler unattended with the En-
gine running.
Keep work areas as level as possible.
When loading logs with the Log Forks, make sure
the logs are balanced.
When you drive out of a ditch or excavation, or up
a steep hillside, or when Crawler is hitched to a
heavy load, engage Track Drive Controls slowly. If
the front of the Crawler comes off the ground, re-
lease Track Controls immediately.
Do not use the Crawler as a battering ram.
Do not guide cable onto Winch Drum with your
hands.
When you drive the Crawler on a road, use the
correct lights to warn operators of other vehicles.
Before you move any equipment, be sure all per-
sons are away from the Crawler.
When the Crawler is operating, only the operator
should be on it.
If it is necessary to make checks with the Engine
running, always use two people...the operator at
the controls should be able to see the person
doing the checking
KEEP HANDS AWAY FROM MOVING PARTS!
BEFORE YOU GET OFF THE UNIT:
Move Track Drive Controls to neutral.
Engage Parking Brake Lever.
Lower all equipment to the ground.
Move throttle to idle for 1 minute.
Stop Engine and remove the key.
8

SERVICE SAFETY
Be sure you understand a service procedure be-
fore you work on the Crawler.
Unauthorized modifications to the Crawler may
impair the function and/or safety and affect
Crawler life.
Do not work under Crawler or raised equipment
unless it is correctly supported...contact factory for
recommended procedures.
Before you work on the Engine or electrical sys-
tem, disconnect the battery’s “ground” ( - ) termi-
nal first! When work is finished, connect battery’s
“ground” terminal ( - ) last.
When driving connecting pins (Spring Pins), wear
goggles or safety glasses.
Do not run Engine while working on the Crawler.
Be careful when handling any type of fuel. Do not
smoke while filling the fuel tank or working on the
fuel system.
Check for faulty wiring or loose connections.
Do not lubricate or work on the Crawler while it is
moving.
When you work near the Tracks, use extreme
care. Do not disassemble parts unless you know
the correct procedure and have correct tools.
FIRE PREVENTION MAINTENANCE
Be prepared if an accident or fire should occur.
Know where the first aid kit and the fire extin-
guisher are located...know how to use them.
Check fire extinguisher for correct charge.
Do not smoke while refueling or handling highly
flammable material.
Shut off the Engine when refueling.
Use care in refueling if the Engine is hot.
Do not use open pans of gasoline or diesel fuel for
cleaning parts. Use good commercial, nonflam-
mable solvents.
Provide adequate ventilation when charging bat-
tery.
Do not check battery charge by placing metal ob-
jects across the posts.
Do not allow sparks or an open flame near battery.
Do not smoke near battery.
Never check fuel, battery electrolyte, or coolant
levels with an open flame.
Never use an open flame to look for leaks any-
where on the equipment.
Never use an open flame as light anywhere on or
around the equipment.
Keep containers tightly closed when not in use.
Inspect electrical wiring for worn or frayed insula-
tion. Install new wiring if wires are damaged.
Temperature in Engine compartment may go up
immediately after you stop the Engine. Be on
guard for fires.
Before you clean trash from the Engine compart-
ment, wait until the Engine has cooled. Open
Hood to cool the Engine faster. While the Engine
cools, clean trash from other areas.
Check for leaking fuel lines or fittings with a piece
of cardboard or wood. Do not use your hands.
Tighten loose fittings. If hoses are kinked, install
new parts.
NOISE PROTECTION
Prolonged exposure to loud noise can cause im-
pairment or loss of hearing. Wear a suitable hear-
ing protective device such as earplugs to protect
against objectionable or uncomfortably loud noise.
9

START ENGINE ONLY FROM THE
OPERATOR’S SEAT!
Avoid possible injury or death from Crawler run-
away.
Do not start Engine by shorting across starter so-
lenoid terminals. Crawler may start and move if
normal circuitry is bypassed.
CAUTION: Never start Engine while
standing on ground. Start Engine only
from operator’s seat, with Brake en-
gaged.
Inspect your Crawler carefully each day before
you start it. See “Pre-Start Inspection”.
Clean your Crawler regularly.
10

3- CONTROLS
& INSTRUMENTS
Learn the location and purpose of all Controls,
Instruments and Warning labels. Thoroughly
study the Operator’s Manual furnished by the en-
gine manufacture and included with your Crawler
instructions.
A - LEFT TRACK CONTROL
B - RIGHT TRACK CONTROL
C - THROTTLE/CHOKE
CONTROL (ITC)
D - HEADLIGHT
(if equipped)
E - KEY IGNITION SWITCH
F - HOUR METER/TACH
(if equipped)
G - FUEL VALVE LEVER
(not shown)
H - PARKING BRAKE
(not shown)
11
C
B
A
D
FE

A & B - LEFT & RIGHT
TRACK CONTROLS
INTRODUCTION: The turn
demonstrated (above) is the key to
your Crawler’s superior maneuver-
ability. It is accomplished with only
two controls, the A& B Left & Right
Track Controls. The illustrations
(below) show how to maneuver
your crawler in other turns.
MOVING FORWARD:
To move straight ahead, simulta-
neously push forward on both Left
and Right Track Controls.
MOVING REARWARD:
To move straight rearward, simultaneously pull
rearward on both Left and Right Track Controls.
TURNING RIGHT:
To turn sharply right, push forward on Left Track
Control while holding Right Track Control in neu-
tral.
TURNING LEFT:
To turn sharply left, push forward on Right Track
Control while holding Left Track Control in neutral.
COUNTER-ROTATING TRACKS
To counter-rotate Tracks (tightest turn possible),
push one Track Control forward while simultane-
ously pulling rearward on the other Track Control.
NOTE: When either Track Control is “slowly” re-
leased, it will automatically return to neutral.
NEVER allow Track Controls to “snap-back” to
neutral. See OPERATION section of this manual
for further instructions.
12
A - Left
B - Right
Safety Recomendations
TRACK
DRIVE
CONTROLS
FORWARD
NEUTRAL
REVERSE
SPEED
SPEED
POWER
POWER
PARKING BRAKE

DASHBOARD CONTROLS
C - THROTTLE/CHOKE CONTROL (ITC)
The throttle and choke are combined into one
sturdy handle.
For COLD ENGINE STARTS, pull handle upward
to the “Choke” position, as far upward as pos-
sible. As soon as the engine starts, move handle
into the “Throttle” range.
For WARM ENGINE STARTS, (when you have
been using the unit and the engine is warm), move
the handle to the “High Throttle” position. As
soon as the engine starts, move handle into the
“Throttle” range.
Adjust handle as needed in the Throttle position
of choice. Fuel comsumption is better at lower
ranges. Adjusting your Power vs. Speed is
done mostly in the Left & Right Track Drive
Controls. Push the track drive controls “slightly”
forward or rearward to achieve “maximum
power”. Push the track drive controls “fully” for-
ward or rearward to achieve “maximum speed”.
Though all crawlers by their design are somewhat
“rough riding”, you can minimize the “roughness”
by traveling at the lowest speeds when going over
hard surfaces.
Before turning off tractor, move Throttle/Choke
Control handle to the ON SHUT- OFF position.
D - HEADLIGHT SWITCH (If equipped)
The Headlight Switch is a basic “Pull ON”, “Push
OFF” switch. Behind the dash, in the wiring har-
ness, is a replaceable Safety Fuse. When replac
ing, use a new fuse of the same amps as the one
being replaced.
E - KEY IGNITION SWITCH
Switch is activated by rotating key clockwise.
Turning it fully clockwise will engage engine starter
...release key and it will return automatically to the
RUN “ON” position. Turn fully counter-clockwise
to OFF position to stop engine. Remove key.
F - HOUR METER /TACH (If equipped)
The Hour Meter/Tach dis-
plays the hours run and the
RPM of the engine. Keeping
up with your maintenance of
your MAGNATRAC keeps it
running in top condition!
Flashes “CHG OIL” at 100 hour service intervals
and “LUBE” at 25 hour service intervals, the
service interval is based on actual run hours.
OPERATION & SERVICE RESET:
Alerts begin flashing a warning 4 hours before
service is due, and clear automatically 1 hour af-
terward. Meter displays RPM while engine is run-
ning, hours while engine is off. Service alarms will
automatically reset 1 hour after service interval.
13
AA
D
F
C
E

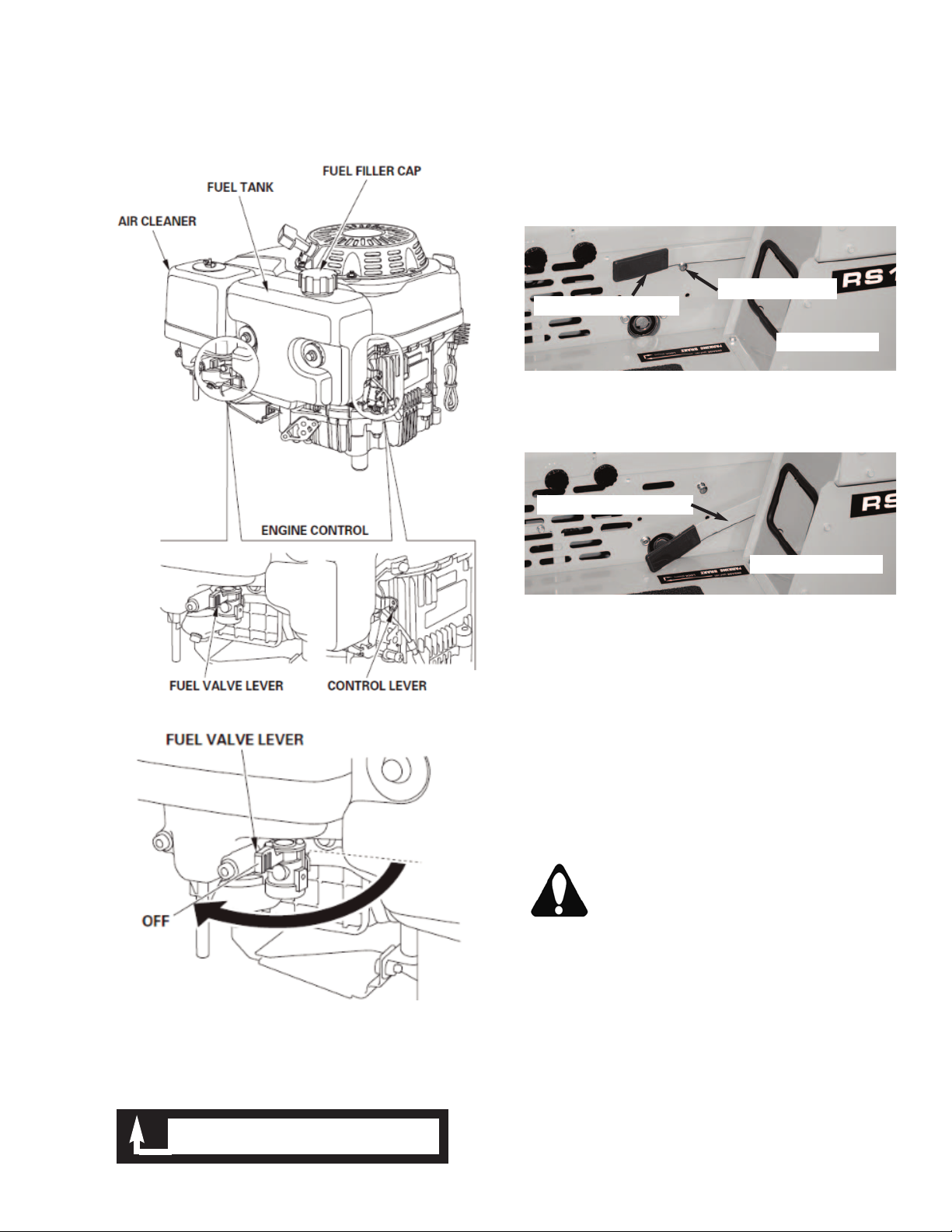

G - FUEL VALVE LEVER
The Fuel Shut Off Valve Lever controls the fuel to
the carburetor. Turn it OFF for transport or when
cleaning carburetor. (Consult Engine Manual for
more information).
The fuel valve lever can be accessed by reaching
your arm under the grill. The decal shown below
will point to the area.
H - PARKING BRAKE
The Parking Brake acts both as a parking brake
and as an emergency brake.
To “engage” Parking Brake, pull Brake Handle up
firmly and loop it “up and over”the Carriage Bolt
provided...make sure handle edge is on top of Bolt
and behind “inside face” of Carriage Bolt.
To “disengage” Parking Brake, reverse the above
procedure and allow Brake Handle to rest down-
ward.
As the Parking Brake is also your emergency
brake, it’s extremely important to maintain its per-
formance with daily inspection. See Service sec-
tion of this manual for proper procedures.
EXTREMELY IMPORTANT:
As it’s mandatory to engage the Parking Brake be-
fore starting your crawler, always remember to
disengage it before driving away.
If you fail to disengage the Parking
Brake it can damage your transaxles
and be of no value in an emer-
gency!!!
14
DISENGAGED
H - Brake Handle
H - Brake Handle
ENGAGED
Carriage Bolt
Safety Recomendations
PARKING BRAKE
FUEL TANK SHUT OFF VALVE
Accessed by reaching under the grill.

4- OPERATION
PRE-STARTING INSPECTION
Before you start your Crawler for the first time
each day, perform the following checks:
ENGINE & TRANSAXLE COMPARTMENT
Check engine oil level.
Check engine air intake system.
Remove trash and oil/dirt deposits.
Inspect drive belt & pulley conditions.
Inspect oil level of transaxles.
Inspect control linkage of transaxles.
Inspect bypass mechanism of transaxles.
TRACKS & ATTACHMENTS
Check for bent, broken, or missing parts.
Check Track Springs.
HARDWARE
Check for loose or missing parts.
ELECTRICAL SYSTEM
Check for worn or frayed wires or loose
connections.
LUBRICATION
Check lubrication points shown in Periodic
Service section of this Manual.
GUARDS AND SHIELDS
Check for tightness and condition.
BATTERY COMPARTMENT
Remove trash.
Check cables for tightness and corrosion.
FUEL TANK
Check fuel level.
OPERATOR’S STATION
Check control levers for free movement.
Clean fenders and instrument panel.
Adjust Seat location to fit operator.
CAUTION - Before you start the engine:
Clear the work area of people and obsta
cles.
Check the condition of the Crawler.
(Prestart inspection).
Be sure there is enough ventilation.
Be sure to know the correct starting and
stopping procedure.
Sit in the Operator’s Seat.
PREPARE FOR ENGINE STARTING
1. Allow Left (A) and Right (B) Track Controls to
assume their natural “spring-loaded” center neu-
tral positions.
2. Engage Parking Brake (H). (Make sure Brake
lever is pulled “up and over” round head of Car-
riage Bolt provided...make sure handle “edge” is
on top of this Bolt and behind its inside face).
3. Check that all Attachments are in the fully low-
ered position.
4. Make sure you are properly seated so Seat
Safety Switch will engage
STARTING THE ENGINE
The throttle and choke are combined into one
sturdy handle.
1a. For COLD ENGINE STARTS, pull handle up-
ward to the “Choke” position, as far upward as
possible. As soon as the engine starts, move
handle into the “Throttle” range.
NOTE: After starting a “cold” Engine, it may be
necessary to leave the handle in the “choke” po-
sition for a minute, before moving it to the “Throt-
tle” position.
1b. For WARM ENGINE STARTS, (when you
have been using the unit and the engine is warm),
move the handle to the “High Throttle” position.
As soon as the engine starts, move handle into
the “Throttle” range.
CAUTION: Do not crank the Engine
continuously for more than 10 seconds
at a time. If the Engine does not start,
allow a 60-second cool-down period be-
tween starting attempts. Failure to follow these
guidelines can burn out the starter motor.
15

CAUTION: If the Engine develops suffi-
cient speed to disengage the starter but
does not keep running (a “false start”),
the Engine rotation must be allowed to
come to a complete stop before attempting to
restart the Engine.
If the starter is engaged while the flywheel is ro-
tating, the starter pinion and flywheel ring gear
may clash, resulting in damage to the starter.
If the starter does not turn the Engine over, shut off
starter immediately. Do not make further attempts
to start the Engine until the condition is corrected.
If the battery charge is not sufficient to turn over
the Engine, recharge the battery.
CAUTION: Do not attempt to jump start
the Engine with another battery. Start-
ing with batteries larger than those rec-
ommended can burn out starter motor.
WARM-UP PERIOD
Run Engine at half throttle for 5 minutes.
Do not run Engine at fast, or slow idle.
Operate Crawler at less-than-normal loads and
speeds for the first 15 minutes.
WARNING: Lethal Exhaust Gases!
Engine exhaust gases contain poison-
ous carbon monoxide. Avoid inhaling
fumes, and never run the Engine in a
closed building or confined area.
NOTE: Assembled Crawlers are “run in”
under no load at the factory to properly
break-in their transaxles.
TRAVELING
Disengage Parking Brake (H); Fully raise all At-
tachments to recommended traveling heights.
To move straight ahead, simultaneously push
both Left Track Control (A) and Right Track Con-
trol (B) forward.
To move straight to the rear, simultaneously pull
both Right and Left Track Controls rearward.
To turn sharply to the right, push Left Track
Control fully forward...leave Right Track Control in
neutral.
To turn slowly to the right, push Left Track Con-
trol fully forward while simultaneously pushing
“partially” forward on Right Track Control...the far-
ther you push the Right Track Control forward, the
slower you will turn right.
To turn sharply to the left, push Right Track
Control fully forward...leave Left Track Control in
neutral.
To turn slowly to the left, push Right Track Con-
trol fully forward while simultaneously pushing
“partially” forward on the Left Track Control...the
farther you push the Left Track Control forward,
the slower you will turn to the left.
16
DISENGAGED
H - Brake Handle
Reverse
Forward Forward
Neutral
Control AControl B
Reverse
Neutral

To counter-rotate Tracks, (shortest turn possi-
ble), push one Track Control forward while simul-
taneously pulling rearward on the other Track
Control. You may counter-rotate “clockwise” or
“counter-clockwise”; move in which ever direction
satisfies the job at hand.
Stopping the Crawler: The Right and Left Track
Controls are of the self-centering (neutral) type.
This allows you to simply release pressure on both
Track Controls to disconnect active power to the
Tracks and come to a complete stop. Never
“snap” Track Controls back into neutral! Dam-
age to the hydrostatic transaxles may occur.
PARKING THE CRAWLER
1. Lower all Attachments to the ground.
2. Allow Right and Left Track Controls
to go “slowly” to neutral.
3. Engage Parking Brake.
4. Run Engine at half speed 2 minutes
without load.
5. Move Throttle/Choke Control to low,
“ON SHUT-OFF”.
6. Turn Ignition Switch to Off.
IMPORTANT: If Engine stops under load, remove
load. Start Engine immediately. Run 30 seconds
at half speed before adding load.
CAUTION: When you park your
Crawler on a slope, put blocks against
tracks. Do not park Crawler with tracks
pointed downhill, always park “cross-
ways” to the hill!
STORAGE
Always store your MAGNATRAC in a garage,
shed or barn. If the only option is to park outside,
make sure to securely tarp the unit and park on a
flat surface with the parking brake engaged.
If Tracks are frozen to the ground, be careful to
avoid damage to the Tracks and transaxles when
you try to move the Crawler.
We advise to turn off the fuel shut off valve and
run until the unit stops if going to store for a long
period of time. This is to ensure easy starting dur-
ing the next season. Remember to turn ON the
fuel when ready for work the next time!
17
Reverse
Forward Forward
Neutral
Control AControl B
Reverse
Neutral

5- DRIVE BELT, FUELS
& LUBRICANTS
BELT
DRIVE BELT
Your RT1150 is equipped with a #004520 Oil &
Heat Resistant, Hi-Power II Double V Drive
Belt. This drive belt powers your left & right hy-
drostatic transaxles, as well as your hydraulic at-
tachment pump.
FUELS
FUEL SPECIFICATIONS
Add fuel to fuel tank per engine manual specs.
Unleaded 86 octane or higher is recc-
ommended per HONDA. Verify fuel shut-
off valve is in the open position.
FILLING FUEL TANK
The Fuel Tank is located underneath the hood, on
the engine.
Fuel Tank capacity is 0.61 US gallons.
Use unleaded gasoline per Engine Owner’s Man-
ual.
CAUTION: Handle fuel carefully. Do
not fill fuel tank when the Engine is run-
ning. Do not smoke while you fill fuel
tank or work on fuel system.
STORING FUELS
Keep fuel in a container in a protected area.
Water and sediment must be removed before fuel
gets to the Engine. Do not depend on fuel filters
to remove water.
IMPORTANT: Keep all dirt, scale, water, or other
foreign matter out of fuel.
LUBRICANTS
ENGINE OIL
Check enclosed Engine Owner’s Manual and
closely follow their recommendations. 10W30 is
recommended for general use.
TRANSAXLE OIL
Check enclosed Transaxle Manual and closely fol-
low their recommendations. Typically, an engine
oil with a minimum rating of 9.0cSt (55 SUS) at
230º F (110º C) and an API classification of SL is
recomended. A 20W50 engine oil has been se-
lected for use by the transaxle factory and is
recomended for normal operating conditions.
HYDRAULIC ATTACHMENT OIL
Use a premium quality hydraulic oil with maximum
anti-wear properties, rust and oxidation treatment.
We use an AW46 Hydraulic Oil. (ISO 46). If op-
erated at exteme hot or cold temperatures, please
consult a local oil shop for an oil viscosity best
suited for your conditions.
GREASE
Use premium quality SAE Multi-Purpose Grease
in a grease gun, with a flexible “nose” to lubricate
grease zerks throughout the MAGNATRACS pivot
points. Recommended grease: Multipurpose
NLGI 2 Grade Lithium Complex, ISO VG 220.
REAR DRIVE CHAIN LUBRICATION
At a minimum...brush on SAE 30 weight oil (non-
detergent) on rear drive chains. A more expen-
sive, but cleaner option is to use a spray lubricant,
such as: non detergent aerosol Chain & Wire
Rope Lubricant. We use CRC® brand,
Grainger® Item #2F139. Both of these methods
are acceptable lubrication options.
STORING LUBRICANTS
Store lubricants in clean containers in an area pro-
tected from dust, moisture, etc.
18

6- LUBRICATION
&
SERVICE INTERVALS
LUBRICATION AND SERVICE
INTERVALS
Recommended service intervals are for normal
conditions. Service more often if Crawler is oper-
ated under more difficult conditions such as high
temperature, dust, etc. Use only quality lubricants
at intervals specified in this manual.
PERIODIC SERVICE CHART
Air Filter - Service per instructions in Engine
Owner’s Manual.
Engine Oil - Service per instructions in Engine
Owner’s Manual. First oil change for a
NEW engine is at 20 hours.
Rubber Tracks - Tension per instructions in
Service section of this manual. Initial
break in tension check is at 20 hours.
Transaxle Oil - To ensure fluid quality levels and
longer life, an initial transaxle oil & filter
change at 100 hours is advised.
Battery - Charge & change as needed. New bat-
tery is advised approx. every 3-4 years.
Engine Fuel Tube - Check engine fuel tube. Fol-
low engine manual. Approx. every 2 years.
1ST USAGE
1ST USAGE
Hydraulic Oil - Attach any additional attach-
ments first (Backhoe, rear hitch, etc.)
Check level on a flat & level surface;
level should be showing in the oil sight
glass on the hydraulic tank. Add addi-
tional fluid if needed.
Engine Oil - Check engine oil level before use to
make sure oil level is at acceptable level
on the dipstick. Add additional if needed.
Fuel - Add fuel to fuel tank per engine manual
specs. Unleaded 86 octane or higher is
reccommended per HONDA. Verify fuel
shut-off valve is in the open position.
25 HOURS (LUBE)
25 HOURS (LUBE)
Grease Fittings - Lubricate all grease fittings
per location instructions in manual of
each attachment you have mounted on
your MAGNATRAC.
Clean area around each grease fitting on Front
Idler and Rear Drive Assemblies. Grease each
grease fitting until you feel “back pressure”.
A small breakdown of how many grease fit-
tings are on the RT1150 and various Attach-
ments is as follows:
As a standard guide, there will be a grease
fitting for each “Pivot Point”, or ”pin/axle”
that you see on a particular attachment.
(See below).
Front Idlers: 2
Rear Drive Sprockets: 2
Center Idlers: 4
HFH15 Hydro Front Hitch: 2
HL300 Hydro Loader: 10
D1060UG Backhoe: 18
HRH35 Hydro Rear Hitch: 2
50 HOURS
50 HOURS
Air Filter - Clean Engine Air Filter by following En
gine Owner’s Manual. Clean more fre-
quently if using in dusty conditions.
Tracks, Idlers & Sprockets - Pressure wash
track system, including: Front Idler and
Rear Drive Sprockets. Tension tracks.
Check Service section of this Manual for
complete explanation and Track Tension
ing procedures.
19

Rear Drive Chain - Lubricate & maintain proper
chain tension in Crawler’s Rear Drive.
Check Service section of this manual for
complete rear drive chain tensioning.
Drive Belt - Check drive belt tension & condition.
Check Service section of this Manual for
complete Drive Belt tensioning & removal
procedures.
Transaxles - Inspect control linkages for any
loose or damaged parts. Check for any
partially engaged bypass valves.
General Once-Over - Check for loose nuts and
bolts and any signs of premature wear.
Correct any problems immediately. Con
tact factory with any questions or requests
for help.
100 HOURS (CHG OIL)
100 HOURS (CHG OIL)
Drive Belt - Check drive belt tension & condition.
Check Service section of this Manual for
complete Drive Belt tensioning & removal
procedures.
Engine Oil - Drain and refill per recommendations
in Engine Owner‘s Manual.
Spark Plug - Check-adjust spark plug. Follow en
gine manual.
Spark Arrestor - Clean spark arrestor, if applica-
ble. Follow engine manual.
Transaxles - Inspect control linkages for any
loose or damaged parts. Check for any
partially engaged bypass valves. If first
100 hour service, an initial transaxle oil
& filter change at 100 hours is advised.
See service section of this manual, &
transaxle Service & Repair Manual.
300 HOURS
300 HOURS
Drive Belt - Check drive belt tension & condition.
Check Service section of this Manual for
complete Drive Belt tensioning & removal
procedures.
Spark Plug - Replace spark plug. Follow engine
manual.
Air Filter - Replace Air Filter at this time. Filters
can be purchased through the Struck Cor-
poration or through local engine dealers.
Follow engine manual.
Spark Arrestor - Clean spark arrestor, if applica-
bale. Follow engine manual.
Other Engine Adjustments - Follow engine man-
ual.
Transaxles - Inspect control linkages for any
loose or damaged parts. Check for any
partially engaged bypass valves.
400 HOURS
400 HOURS
Drive Belt - Check drive belt tension & condition.
Check Service section of this Manual for
complete Drive Belt tensioning & removal
procedures.
Hydraulic Oil - Completly drain and fill hydraulic
oil tank. See service section of this man-
ual.
Transaxle Oil - Drain tranaxle oil, change filters
and add new. See service section of this
manual, & transaxle Service & Repair
Manual.
Transaxles - Inspect control linkages for any
loose or damaged parts. Check for any
partially engaged bypass valves.
20
Table of contents
Other MAGNATRAC Construction Equipment manuals
