Magnetic HWS-1 User manual

magnetic
Drinking water lter
Operation manual
magnetic ...einfach besser
Backwash filter TWF-1
Domestic water station HWS-1

magnetic GmbH & Co. KG
Am Richtbach 5
D-74547 Untermünkheim
Tel. [phone]
Fax [phone]
[email protected]
www.magnetic-online.de
Managing partner:
Michael Bader
VAT ID No.: DE 255 018 730
Commercial register: HRA 571362
Reg. Ger. Stuttgart
Version: TWF_ENG_03.2021

magnetic ...einfach besser
magnetic
Drinking water lter
Inhalt
General information.........................................................................................4
Scope of delivery.............................................................................................4
Intended Use ...................................................................................................5
Requirement for the installation site...............................................................5
Installation .......................................................................................................6
Start-up............................................................................................................7
Pressure reducer ............................................................................................7
Maintenance ....................................................................................................8
Backwash ........................................................................................................8
Technical specifications..................................................................................9
Dimensions .............................................................................................. 10-11

4
General information
The magnetic drinking water filter must be installed by an approved specialist
in the plumbing and heating industry. Inspect the device for transport damage
immediately upon receipt. The drinking water filter must be protected against
frost and must not to be installed in the immediate vicinity of heat sources
with high radiation temperature.
Scope of delivery
magnetic backwash lter TWF-1 consisting of:
• Backwash lter
• Connection ange including seal
• Screw connection including screws and nuts
• 1”/ 1 1/4” screw connection
magnetic domestic water station HWS-1 consisting of:
• Domestic water station
• Connection ange including pressure reducer and seal
• Flange screw connection including screws and nuts
• 1”/ 1 1/4” screw connection
• 2x manometer

magnetic ...einfach besser
5
Intended use
The magnetic drinking water lter is intended for the ltration of drinking wa-
ter. It protects water pipes from malfunctions and corrosion damage from
foreign objects such as rust, sand or chips.
The lter cannot be used with chemical-treated circulating water. It is not suit-
able for oils, greases, solvents, soaps and other lubricants, or for removing
water-soluble substances.
Requirement for the installation site
Local installation regulations, general guidelines (e.g., WVU, DIN, DVGW or
ÖVGW or SVGW) and technical data must be observed. The installation site
must ensure that the filter is protected from chemicals, dyes, solvents, va-
pours and direct sunlight. Observe flow direction (marking on the flange) and
install free of stress. The installation site must be frost-proof. The filter must
be installed in pipelines of the same size according to its nominal size. A sew-
er connection according to DVGW or a corresponding collecting vessel (e.g, a
bucket) must be available for the drainage of the rinsing water.
The discharge takes place in accordance with DIN 1988 Part 4, e.g., freely
into the floor drain, into the sewer connection or the collecting vessel. Ensure
that the flushing water is drained without backflow.

6
Installation
Please note the installation diagram for installation. Firmly connect the fil-
ter with the connection to the threaded socket on the water supply network.
Use the enclosed nuts and screw connections for this. The arrow stamped
on the rotary connection (Fig. 1 + 2) must point in the direction of the water
flow. Thanks to the brass connection that can be rotated 360°, the filter can
be mounted on both vertical and horizontal lines. The filter must always be
installed in the hanging position. Ensure that the seal between the flange and
filter unit is properly seated.
Note: Tighten the nuts crosswise!
Fig. 2 Domestic water
station
Fig. 1 backwash filter
Water flow direction
Input InputOutput Output

magnetic ...einfach besser
7
Start-up
After the magnetic drinking water filter has been installed, you can put the
backwash filter into operation by slowly opening the shut-off valves. The pipe-
line must then be vented via the nearest connection. The magnetic drinking
water filter must be checked for leaks after installation and after every main-
tenance. To do this, use the highest possible operating pressure and visually
check the filter for leaks.
Pressure reducer
The pressure reducer is set to 4 bar at the factory. After starting the magnet-
ic drinking water filter (domestic water station HWS-1), the pressure reducer
component can be set individually (4 bar is the factory setting). The pressure
can be continuously adjusted between 1 and 6 bar by turning the setting ring.
The set pressure can be read in steps of 0.5 bar on the manometer.

8
Maintenance
Maintenance includes periodic backwashing to remove floating dirt particles,
silt, sand, etc. from the filter cartridge.
It is recommended to backwash at least once a month. The arrow in the
month bar signals the next backwash period and must be adjusted to the next
date after backwashing.
Backwash
A backwash must be carried out if the water pressure in the pipe network
decreases due to increasing contamination of the filter element. Place a buck-
et under the filter (only for installation without duct connection). Then turn the
flushing handle in the direction of the arrow up to the stop (Fig. 3 + 4). The
flushing handle should be held in this position for approx. 5-10 seconds.
Fig. 4 Turn the flushing
handle of the domes-
tic water station to the
Fig. 3 Turn the flushing
handle of the back-
wash filter to the right
Backwash
instructions

magnetic ...einfach besser
9
Technical specifications
Backwash filter Domestic water station with
Pressure reducer
Item number 888 700 888 702 888 710 888 712
Connection 1” / DN 25 1 1/4” / DN 32 1” / DN 25 1 1/4” / DN 32
Flow rate at Dp 0.2 bar m³
/ h 4.8 5.4
Flow rate at Dp 0.5 bar m³
/ h 3 3
Nominal pressure PN 16 16 16 16
Pressure area - - 1-6 1-6
Connection nominal size
DN 25 32 25 32
Water/ambient
temperature, max °C 40 40 40 40
Weight in kg 2.77 3.02 3.94 3.97
Mesh size in µm 89 89 89 89
DVGW registration number DVGW requested

10

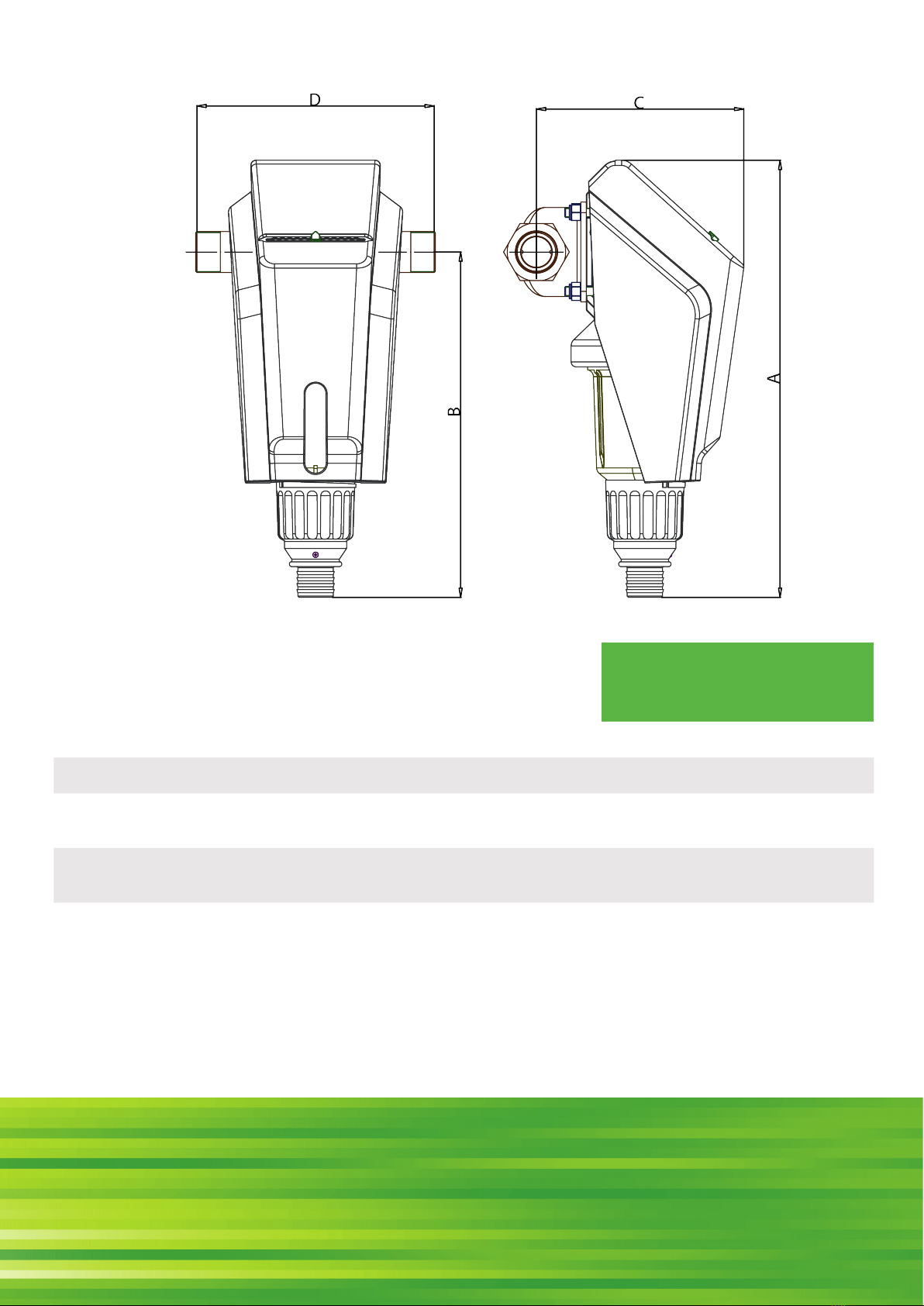

Dimensions
Backwash filter
(TWF-1)
1“ 1 1/4“
ATotal height [mm] 355 355
BInstallation height up to the middle of the connection [mm] 281 281
CInstallation depth up to the middle of the connection [mm] 167 167
DInstallation length with/without screw connection [mm] 183 / 110 188 / 110

magnetic ...einfach besser
11
Domestic water sta-
tion (HWS-1)
1“ 1 1/4“
ATotal height [mm] 355 355
BInstallation height up to the middle of the connection [mm] 281 281
CInstallation depth up to the middle of the connection [mm] 167 167
DInstallation length with/without screw connection [mm] 215 / 112 223 / 112
