Magnum Industrial MI-12910 User manual

MODEL NO.: MI-12910
OPERATING MANUAL
CAUTION
MFG. NO.:
SERIAL NO.:
H.P. :
VOLT:
H.Z. :
PHASE
:
:
DATE :
R.P.M.
TR./ MN.
CSA :
AMP.
:
MODEL NO.:
MADE IN TAIWAN/ FABRIQUÉ EN TAIWAN

1
CONTENTS:
IMPORTANT SAFETY RULES-------------------------------------------------------------- 2
IMPORTANT SAFETY RULES FOR DUST COLLECTORS--------------------------- 3
GROUNDING INSTRUCTIONS------------------------------------------------------------- 4
SPECIFICATIONS------------------------------------------------------------------------------ 5
UNPACKING CONTENTS-------------------------------------------------------------------- 6
HARDWARE PACKAGE---------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTION----------------------------------------------------------------- 8
EXPLODED DIAGRAM---------------------------------------------------------------------- 10
PARTS LIST-------------------------------------------------------------------------------------- 11
 WARNING!
Please read this manual carefully before assembly, testing
and operating.
 WARNING!
Do not operate this unit until hose or pipe is installed onto
the dust inlet port.

2
IMPORTANT SAFETY RULES
Wood working can be dangerous if safe and proper operating procedures are not followed.As with all
machinery, there are certain hazards involved with the operation of the product. Using the machine with respect
and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are
overlooked or ignored, personal injury to the operator may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust masks and hearing
protection can reduce your potential for injury. But even the best guard won’t make up for poor judgment,
carelessness or inattention. Always use common sense and exercise caution in the workshop. If a procedure
feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal
safety is your responsibility.
Operations
Press the green button to start machine and press the red button to start machine.
User-maintenance
WARNING: Always disconnect power to the machine before performing maintenance. Failure to do this
may result in serious personal injury.
Keep dust collection stand clean. Brush away chips and debris after use.
Periodically empty collection drawer and clean out interior of dust collector stand.
Replace filter after maximum 800 hours of use.
Inspect power cord; have damaged or worn cord replaced before operating dust collector.
Any other servicing should be performed by an authorized service representative.

3
IMPORTANT SAFETY RULES FOR DUST COLLECTORS
WARNING:Basic precautions should always be
followed when using your dust collector. To reduce the risk
of injury, electrical shock or fire, comply with the safety
rules listed below:
1. READ and understand the instruction manual before
operating the dust collector.
2. DO NOT leave the dust collector plugged into the
electrical outlet. Unplug dust collector from outlet when
not in use and before servicing, changing bags,
unclogging and cleaning.
3. ALWAYS turn the power switch “OFF” before
unplugging the dust collector.
4. WARNING: TO REDUCE THE RISK OF
ELECTRICAL SHOCK do not use outdoors or on wet
surfaces. Use for dry pickup only!
5. FOLLOW all electrical and safety codes, including the
National Electric Code (NEC) and the Occupational
Safety and Health Regulations (OSHA). All electrical
connections and wiring should be made by qualified
personnel only.
6. DO NOT use the dust collector to pick up flammable or
combustible liquids, such as gasoline. NEVER use the
dust collector near any flammable or combustible
liquids.
7. USE the dust collector to pick up wood materials only.
DO NOT use the dust collector to pick up metal
shavings, dust, water, or parts.
8. NEVER use the dust collector to dissipate fumes or
smoke. NEVER pick-up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
9. USE only as described in this manual.
10. DO NOT pull the dust collector by the power cord.
NEVER allow the power cord to come in contact with
sharp edges, hot surfaces, oil or grease.
11. DO NOT unplug the dust collector by pulling on the
power cord. ALWAYS grasp the plug, not the cord.
12. DO NOT handle the plug or dust collector with wet
hands.
13. REPLACE a damaged cord immediately. DO NOT use
a damaged cord or plug. If the dust collector is not
operating properly, or has been damaged, left outdoors
or has been in contact with water, return it to an
Authorized Service Center for service.
14. DO NOT use the dust collector as a toy. DO NOT use
near or around children.
15. DO NOT insert fingers or foreign objects into the dust
intake ports. Keep hair, loose clothing, fingers, and all
body parts away from openings and moving parts of
the dust collector.
16. DO NOT use the dust collector without a filter bag and
dust collection bag in place and properly secured.
17. DO NOT operate the dust collector with unused dust
intake ports uncapped. ALWAYS cover exposed dust
intake ports.
18. PERIODICALLY INSPECT dust and filter bags for
any cuts, rips or tears. NEVER operate the dust
collector with a damaged bag or vacuum hose.
19. The dust collector is designed for home use or light
commercial duty ONLY!
20. CONNECT dust collector to a properly grounded
outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS

4
GROUNDING INSTRUCTIONS
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having
equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WARNING –Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance –if it will not fit the outlet; have a
proper outlet installed by a qualified electrician.
For grounded, cord-connected appliances:
MOUNTING YOUR TOOL : this stand will service a variety of tools that produce metal or wood dust .
If the mounting holes provided do not match your tool pattern it will require that you drill and bolt the
machine securely.
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-equipped with a
specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the appliance is
connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.
If the appliance must be reconnected for use on a different type of electric circuit, qualified service personnel
should make the reconnection.

5
Specifications:
Motor---------------------------------------------------------------------------------------------------------------------- 1/2HP
AMP------------------------------------------------------------------------------------------------------------------------- 2.8A
Motor Speed-------------------------------------------------------------------------------------------------------- 3450RPM
Suction Capacity----------------------------------------------------------------------------------------------------- 472CFM
Static Pressure----------------------------------------------------------------------------------------------------- 2.44 inH2O
Impeller Size---------------------------------------------------------------------------------------------------------------- 6.7”
Inlet Size------------------------------------------------------------------------------------------------------- 5”x3”(1)x2”(1)
Switch-------------------------------------------------------------------------------------------------------- Magnetic Switch
Packing Size of Base------------------------------------------------------------------------------------- 910x480x525MM
N.W.-------------------------------------------------------------------------------------------------------------------- 42.6KGS
G.W.-------------------------------------------------------------------------------------------------------------------- 49.5KGS
Cuft.--------------------------------------------------------------------------------------------------------------------------- 8.1’

6
UNPACKING & CHECKING CONTENTS:
A: Main Body B: Inlet Adaptor C: Tray
D: Fixing Pad

7
Hardware package:
NO. Description Specification Q’TY Part List No.
A Foot Pad 5/16”4 NO. 27
B Nut with cap 5/16”8 NO. 28
C Hex Flange Screw 1/4”x1/2”8 NO. 10
D Hex Flange Screw 1/4”x3/4”4 NO. 18
E Open-end Wrench 10x12 1 NO. 44

8

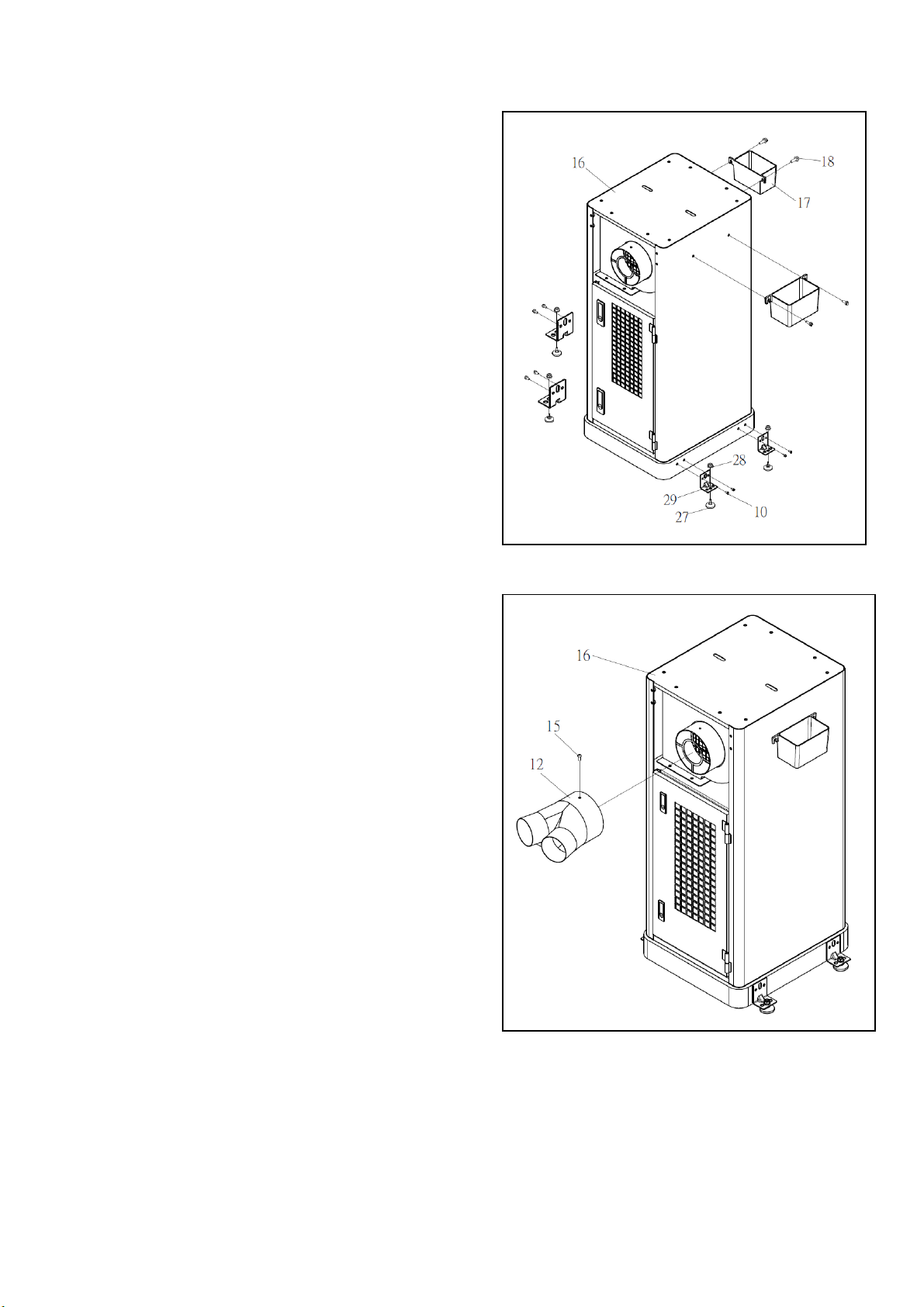

ASSEMBLY INSTRUCTION:
STEP 1-1.
Assemble the fixing pad (NO. 29) on the main body
(NO. 16) with hex flange screw (NO. 10).
STEP 1-2.
Tight the foot pad (NO. 27) with the fixing pad
(NO. 29) by using nut with cap (NO. 28).
STEP 1-3.
Tight the tray (NO. 17) on the main body (NO. 16)
with hex flange screw (NO. 18).
See Fig. 1
(Fig.1)
STEP 2-1
Assemble the inlet adaptor (NO. 12) on the main body
(NO. 16) with phillips head screw (NO. 15).
See Fig. 2
(Fig.2)

9
PARTS LIST FOR MI-12910

NO. PART NO. DESCRIPTION Q'TY
MI-12910-1 Motor 1/2HP 1
MI-12910-2 Phillips Head Screw 1/4”x1/2” 6
MI-12910-3 Motor Cord 1
MI-12910-4 Motor Plate 1
MI-12910-5 Lock Nut M4 4
MI-12910-6 Impeller 1
MI-12910-7 Lock Nut M10 1
MI-12910-8 Key 4x4x20 1
MI-12910-9 Impeller Housing 1
MI-12910-10 Hex Flange Screw 1/4”x1/2” 12
MI-12910-11 Foam Strip 1
MI-12910-12 Inlet Adaptor 5”x3”(1)x2”(1) 1
MI-12910-14 Cap 3” 1
MI-12910-14-1 Cap 2” 1
MI-12910-15 Phillips Head Screw 3/16”x3/8” 1
MI-12910-16 Main Body 1
MI-12910-17 Tray 2
MI-12910-18 Hex Flange Screw 1/4”x3/4” 4
MI-12910-19 Plate 1
MI-12910-20 Phillips Flange Head Screw M4x8 4
MI-12910-21 Strain Relief 8R-1 1
MI-12910-22 Thermal Control Relay 1
MI-12910-23 Phillips Head Screw 3/16” x 1” 1
MI-12910-24 Lock Washer External Tooth 3/16” 3
MI-12910-25 Nut 3/16” 3
MI-12910-26 Magnetic Switch 1
MI-12910-27 Foot Pad 5/16” 4
MI-12910-28 Nut with cap 5/16” 8
MI-12910-29 Fixing Pad 4
MI-12910-30 Foam Strip 1
MI-12910-31 Foam Strip 1
MI-12910-32 Filter 1
MI-12910-33 Foam Strip 1
MI-12910-34 Door Latch 2
MI-12910-35 Bolt 2
MI-12910-36 Hinge 4
MI-12910-37 Flat Head Screws 3/16”x3/8” 8
MI-12910-38 Door 1
MI-12910-39 Foam Strip 1
MI-12910-40 Drawer 1
MI-12910-41 Handle 1
MI-12910-42 Hex Flange Screw 5/16”x1/2” 2
MI-12910-43 Power Cord 1
MI-12910-44 Open-end Wrench 10x12 1
PARTS LIST FOR MI-12910
