Magnum PEAK User manual

MAGNUM   PEAK
USER GUIDE
             
Please read before use!
www.magnumbikes.com

Foreword
These operating instructions must be carefully read in order to quickly familiarize yourself with your bicycle. The knowledgeable treatment,
regular maintenance, and care of the bicycle is essential for its preservation and safety.
For reasons of safety, please also pay attention to the information on chargers, accessories and spare parts.
Please provide the operating instructions for the new owner when selling your bicycle.
The factory is constantly working on the further development of all models. Please understand that changes to the scope of delivery in form,
equipment and technology are possible at all times. Information, illustrations and no claims can be derived from these operating instructions.
All texts, illustrations and instructions in this manual are based on information at the time of printing. The information contained in this
manual is valid at the time of issue. Errors and omissions are exceptions to this.
Reproduction, duplication or translation is prohibited without permission. All rights under the copyright law remain expressly reserved.
Changes Reserved.
Symbols used
Important notes for your safety are specially marked. Be sure to follow these instructions to avoid injury and damage to the unit:
WARNING
Warns of dangers to your health and indicates possible risk of injury.
DANGER
Indicates a potential hazard to the unit or other objects.
NOTE
Highlights tips and information for you.
2

Table of Contents
Service
Function and operation of
handlebar components  4
Mounting instructions for handlebars  5
Pedal installation  7
Seating position  8
Adjust the seat height  9
Adjust the saddle  9
Suspension fork lock out  9
Safety instructions for charger 10

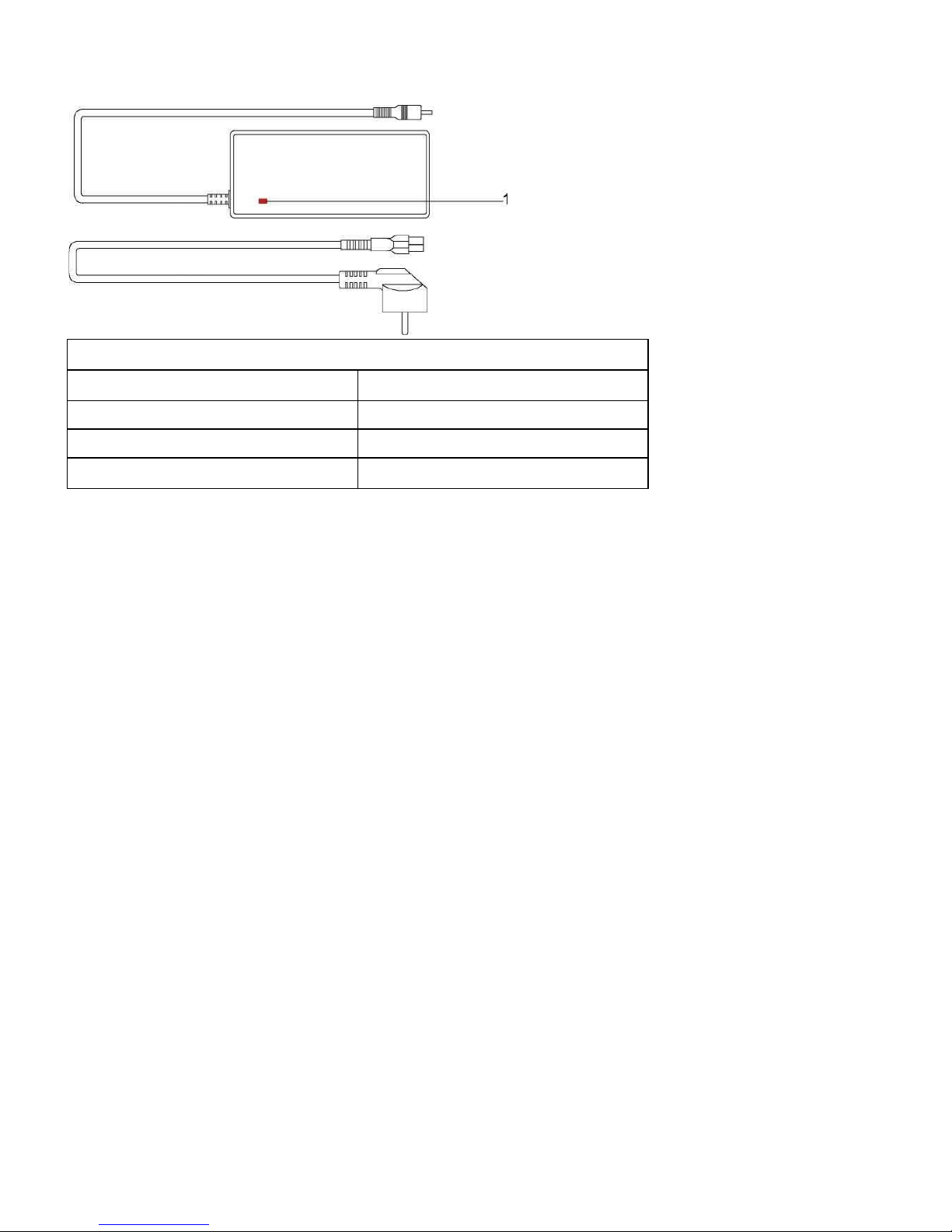

Charger functions 11
Safety precautions for battery 11
Handling of the battery and charger   13
Charging the battery 14
Tire pressure 15
Support level 16
Range 16
Brakes 17
Leaving the bike 17
Display instructions 18
Riding
Safety instructions 19
Remove front wheel for transport 21
Transport 21
Carrying loads 21
Antitheft 21
Care
Device care 22
Winter operation and corrosion protection 23
Disposal 23
Tire care 24
Technical changes,
accessories, spare parts 24
Maintenance
Maintenance and care 25
Cranks 26
Pedals 26
Headset bearings 26
Spoke 28
Technical specifications 29
Warranty service
Wear parts list 30
Warranty terms 31
 3

USE
Right side view
 1. Quick release lever seat height
7. Hydraulic disc brake front
2. Controller
8. Pedals

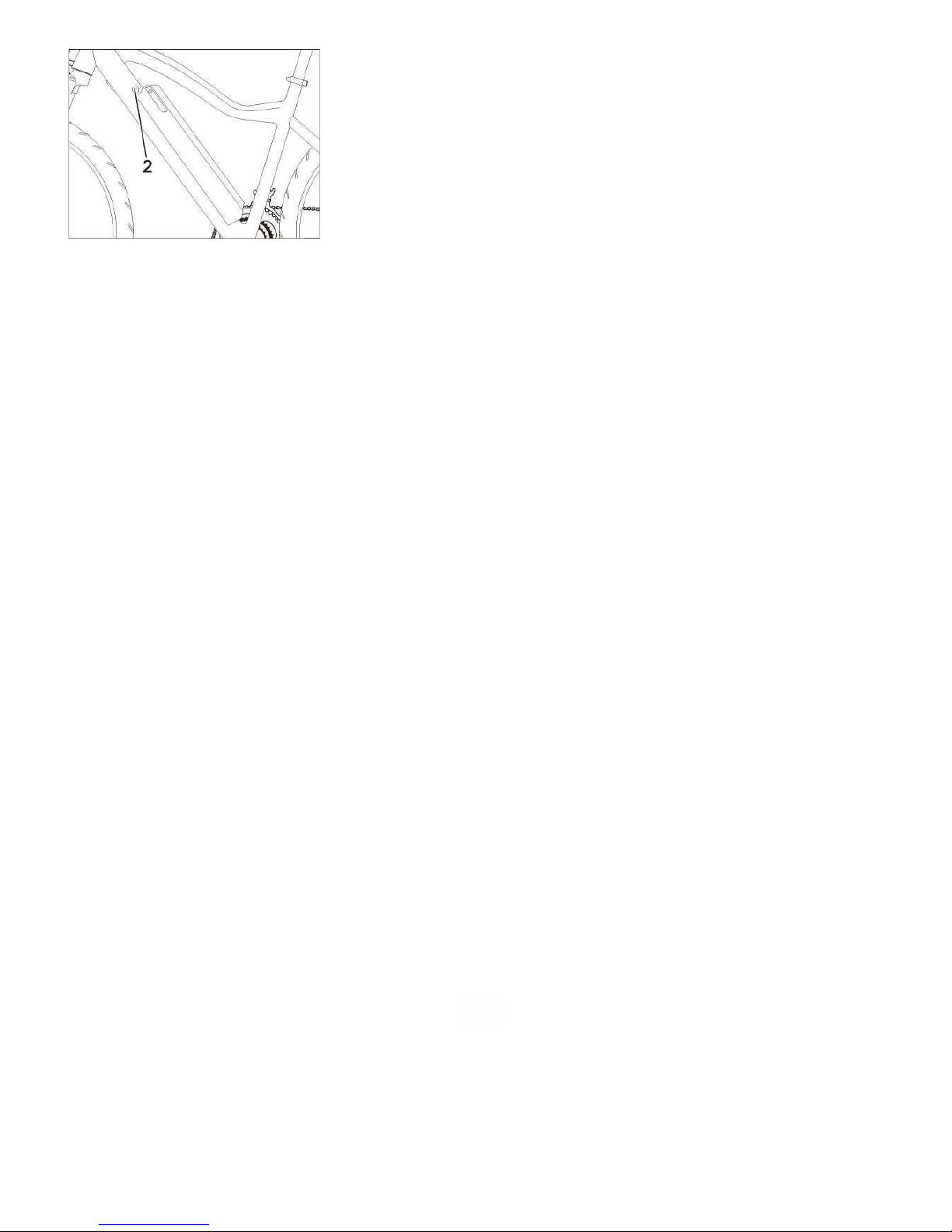

3. Battery (lockable)
9. Derailleur
4. Display
10. Electric motor
5. Handlebar shifters and brake levers
11. Hydraulic disc brake rear
6. Frame number
Function and Operation of Handlebar Components
     
Handlebar components left
1Shifter
2Grip, left
3Brake lever - front wheel
Handlebar components right
4Grip, right
5Shifter
6Brake lever - rear wheel
4

USE
Mounting instructions for handlebars
Threadless headset assembly
1. Loosen the top screw and plastic part.
2. Take off the NECO spacer
5

3. Install the handlebars as shown, and secure with the top cap. Do not overtighten bolt on top cap; fork should rotate freely but there should
be no extra play.
4. Adjust the handlebar to the position of the tire and tighten the screws on both sides.
6

USE
Pedal installation
WARNING
Do not tighten the pedals by hand, use a suitable wrench.
- Identify your pedal: Check the letter on the pedal: "L" or "R".
- The pedal marked "R" is for the right. Turn the wrench handle clockwise.
- The pedal marked "L" is for the left. To tighten the pedal, turn it counterclockwise.
7

USE
Seat position
To ensure comfortable, fatigue-free and safe riding, the saddle and handlebar height must be adjusted to the body size. The saddle height is
correct when the foot is resting on the pedal at the lowest position while the leg is not fully extended. The tips of the toes must still touch the
ground.
Too low
Too high
Ideal!
8

USE
Adjust the seat height
WARNING
A not fully closed quick release lever can open again. This allows the saddle to move down during the ride. This can lead to
severe falls. The turning of the quick release lever must be so difficult that the handlebars are needed. Only then is the tension
strong enough.
Ensure that the saddle can be pulled out at most up to the mark (3).
- Loosen the quick release lever (1), measure the saddle height and tension the clamp.
- By adjusting the nut (2) on the quick release lever, the clamping force can be adjusted.
- The quick release lever (1) must be able to close with a noticeable back pressure.
Adjusting the saddle
The saddle can also be tilted and adjusted in the longitudinal direction.
- Loosen the screw (4).
- Place the saddle in the desired horizontal position, move it forward or back and tighten the screw (4).
NOTE
In order to avoid seat discomfort, the saddle should be adjusted as close to horizontal as possible.
Lock out suspension fork
WARNING
Do not make any further changes to the suspension fork.
- Use the lever (1) to lock the suspension.
- Rotate the lever (1) in the LOCK direction.
9

USE

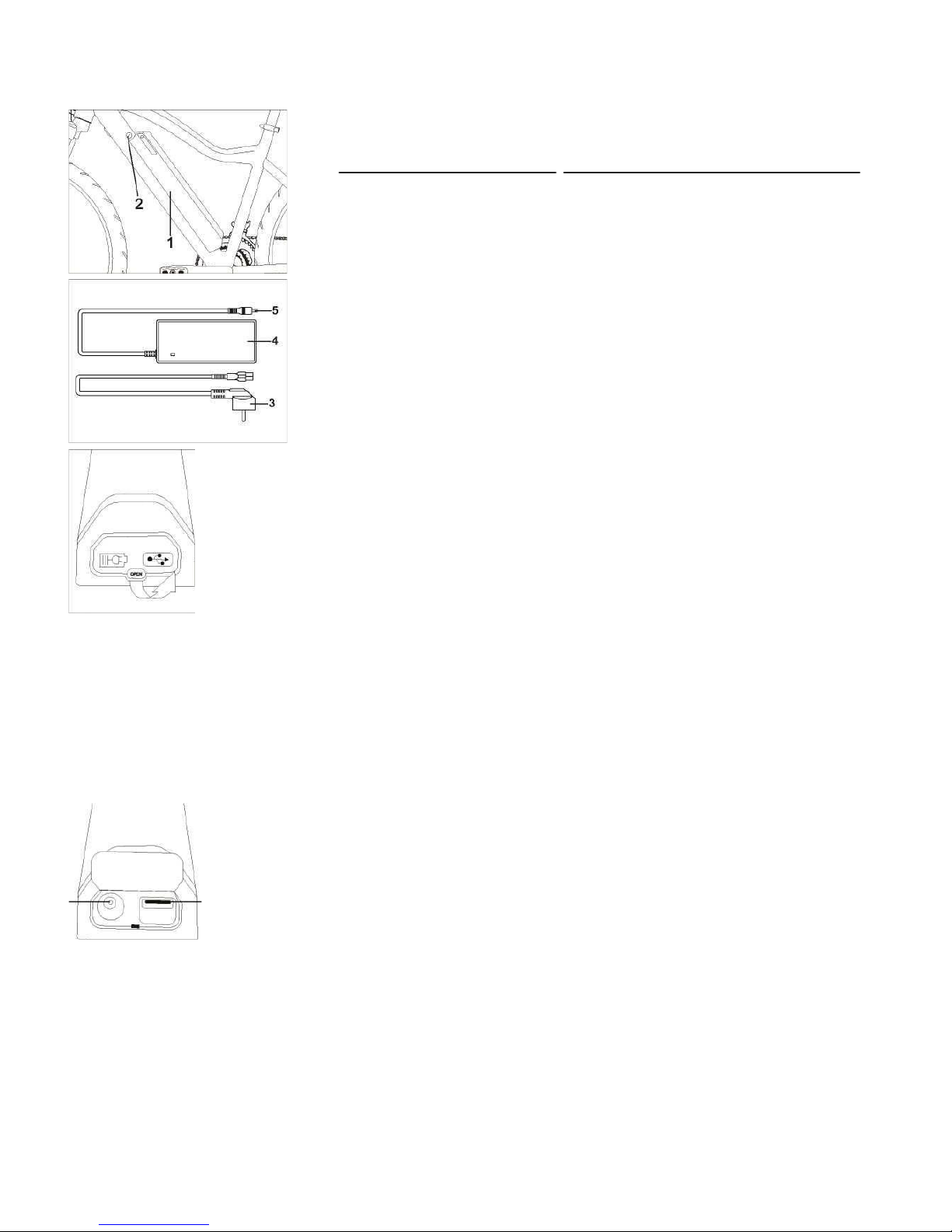

Important safety precautions for the charger
Before using the charger, please read these safety instructions.
WARNING
Protect your charger from children. To prevent injury, recharge only lithium-ion batteries. Other battery types can explode when charged. This can
lead to personal injury and material damage.
The use of accessories or batteries which are not sold or recommended by us can lead to fire, electrical shock, or injuries.
Avoid operating the unit in a damp or wet environment.
Avoid water penetration into the appliance. If liquid has entered, unplug the charger from the outlet and take it to your dealer for inspection.
Make sure you have a flat surface on which the unit is secure.
Disconnect the device from the power supply when not in use.
Do not pull the cable to avoid damage to the cable and the risk of electric shock.
Make sure the power cord is unrolled or unwound after use.
Do not operate the charger with a damaged cable or plug. Ensure immediate replacement by a specialist.
Do not operate the charger after it has received a strong blow, dropped or otherwise damaged.
Do not disassemble the charger yourself. Faulty repair may result in electric shock or fire. To prevent electrical shock, disconnect the charger from
the outlet before cleaning it.
The cleaning should only be done with a dry cloth or cloth. Do not use oil, water or solvents.
An extension cable should only be used when absolutely necessary. The use of extension cables that are not in order can result in fire or electric
shock. If an extension cable needs to be used, make sure that:
- the pins of the plug in number, size and shape exactly correspond to those.
- the extension cable is correctly wired and in good electrical condition.
- the cable cross section is large enough for the alternating current design of the charger.
- the extension cord has no visible damage.
- when using cable drums, the drum is fully unwound.
10
