Maguire Products Vacuum Batch Dryer VBD-150 Owner's manual

MAGUIRE PRODUCTS INC.
VBD-150
®
Vacuum Dryer
VBD-150
®
Maguire Vacuum Dryer
®
INSTALLATION •OPERATION •MAINTENANCE
Rev. August 31, 2016 Copyright ©Maguire Products, Inc. 2016

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
2
V
BD®- Vacuum Dryer®

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
3
V
BD®- Vacuum Dryer®
VBD-150
®
- Vacuum Dryer
®
Copyright © 2016 Maguire Products Inc.
The information contained within this manual including any translations thereof, is the property of
Maguire Products Inc. and may not be reproduced, or transmitted in any form or by any means
without the express written consent of Maguire Products Inc.
To every person concerned with use and maintenance of the Maguire VBD-150
®
it is
recommended to read thoroughly these operating instructions. Maguire Products Inc. accepts no
responsibility or liability for damage or malfunction of the equipment arising from non-observance
of these operating instructions.
To avoid errors and to ensure trouble-free operation, it is essential that these operating
instructions are read and understood by all personnel who are to use the equipment.
Should you have problems or difficulties with the equipment, please contact Maguire Products
Inc. or your local Maguire distributor.
These operating instructions only apply to the equipment described within this manual.
Manufacturer’s Contact Information
Maguire Products Inc.
11 Crozerville Road
Aston, PA. 19014
Phone: [phone]
Fax: [phone]
Website: http://www.maguire.com
Email: [e-mail]

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
4
V
BD®- Vacuum Dryer®
Accuracy of this Manual
We make every effort to keep this manual as correct and current as possible.
However, technology and product changes may occur more rapidly then the
reprinting of this manual. Generally, modifications made to the dryer design or to
the operation of the software are may not reflected in the manual for several
months. The date at the footer of this manual will indicate approximately how
current this manual is. Likewise, your Dryer may have been produced at an
earlier time and the information in this manual may not accurately describe your
Dryer since this manual is written for the current line of Dryers in production (as of
the date in the footer). We always reserve the right to make these changes
without notice, and we do not guarantee the manual to be entirely accurate. If you
question any information in this manual, or find errors, please let us know so that
we may make the required corrections or provide you with accurate information.
Additionally we will gladly provide you with an updated copy of any manuals you
need at any time. We welcome comments and suggestions on ways we can
improve this manual.
For additional information, or to download the latest copy of this manual or any
other Maguire manual, please visit our website or contact us directly.
On the Web at: www.maguire.com
Maguire Products Inc.
Main Headquarters
11 Crozerville Road
Aston, PA 19014
Tel: [phone]
Fax: [phone]
Email:
[email protected]
Maguire Europe
Tame Park
Tamworth
Staffordshire
B775DY
UK
Tel: + 44 1827 265 850
Fax: + 44 1827 265 855
Email:
[email protected]
Maguire Products Asia PTE LTD
15 Changi North Street 1
#01-15, I-Lofts
Singapore 498765
Tel: [phone]
Fax: [phone]
[e-mail]
Maguire Italy
Via Zancanaro 40
35020 Vigorovea (PD)
Tel: [phone]
Fax: [phone]
Email:
[e-mail]
Please e-mail comments and suggestions to: [e-mail]

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
5
V
BD®- Vacuum Dryer®
Table of Contents
INSTALLATION 8
VBD-150 Dryer Assembly 10
Dryer Connections 14
Compressed Air Connection 14
Electrical Connection 14
Dryer Overview 17
Operating Station Overview 18
Controller Overview 18
Description of Menu Options 25
Setup Menu Options Explained 27
Parameters Explained 32
Changing Parameters
40
Batch Mode 41
Communication Setup 42
Operation 19
Startup and Operation 19
Recommended Drying Temperatures 24
Maintenance 43
Drain and purge Air Filter / Regulator 43
Air Pressure Adjustments 43
Loadcell Calibration 44
Cleanout Procedure 47
Vacuum Chamber Removal 49
Replacing the Vacuum Chamber Flange Seal 52
Replacing the Vacuum Chamber Fill Valve Seal 55
Logs and Print Outputs 60
Alarms - Cause and Solution 64
Dryer Firmware Updates 69
General Information 70
Technical Specifications 70
Theory of Operation / Performance 71
Warranty 72
Diagrams 73
Recommended Spare Parts List Error!
Bookmark not defined.
Technical Support / Contact Information 84

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
6
V
BD®- Vacuum Dryer®
Warranty – Exclusive 5-Year
MAGUIRE PRODUCTS offers THE MOST
COMPREHENSIVE WARRANTY in the plastics
auxiliary equipment industry. We warrant each
MAGUIRE VBD – Vacuum Dryer manufactured by us to
be free from defects in material and workmanship under
normal use and service; excluding only those items
listed below as 'excluded items'; our obligation under
this warranty being limited to making good at our
factory any Dryer which shall, within FIVE (5) YEARS
after delivery to the original purchaser, be RETURNED
intact to us, transportation charges PREPAID, and
which our examination shall disclose to our satisfaction
to have been thus defective; this warranty being expressly in lieu of all other warranties
expressed or implied and of all other obligations or liabilities on our part, and MAGUIRE
PRODUCTS neither assumes nor authorizes any other persons to assume for it any
other liability in connection with the sale of its Dryers.
This warranty shall not apply to equipment repaired or altered outside MAGUIRE
PRODUCTS INC. factory, unless such repair or alteration was, in our judgment, not
responsible for the failure; nor which has been subject to misuse, negligence or
accident, incorrect wiring by others,
or installation or use not in accord with instructions furnished by
Maguire Products, Inc.
Our liability under this warranty will extend only to equipment that is returned to our
factory in Aston, Pennsylvania, PREPAID.
Please note that we always strive to satisfy our customers in whatever manner is
deemed most expedient to overcome any problems they may have in connection with
our equipment.
GETTING STARTED:
PROCEED TO: SAFETY WARNINGS NEXT PAGE

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
7
V
BD®- Vacuum Dryer®

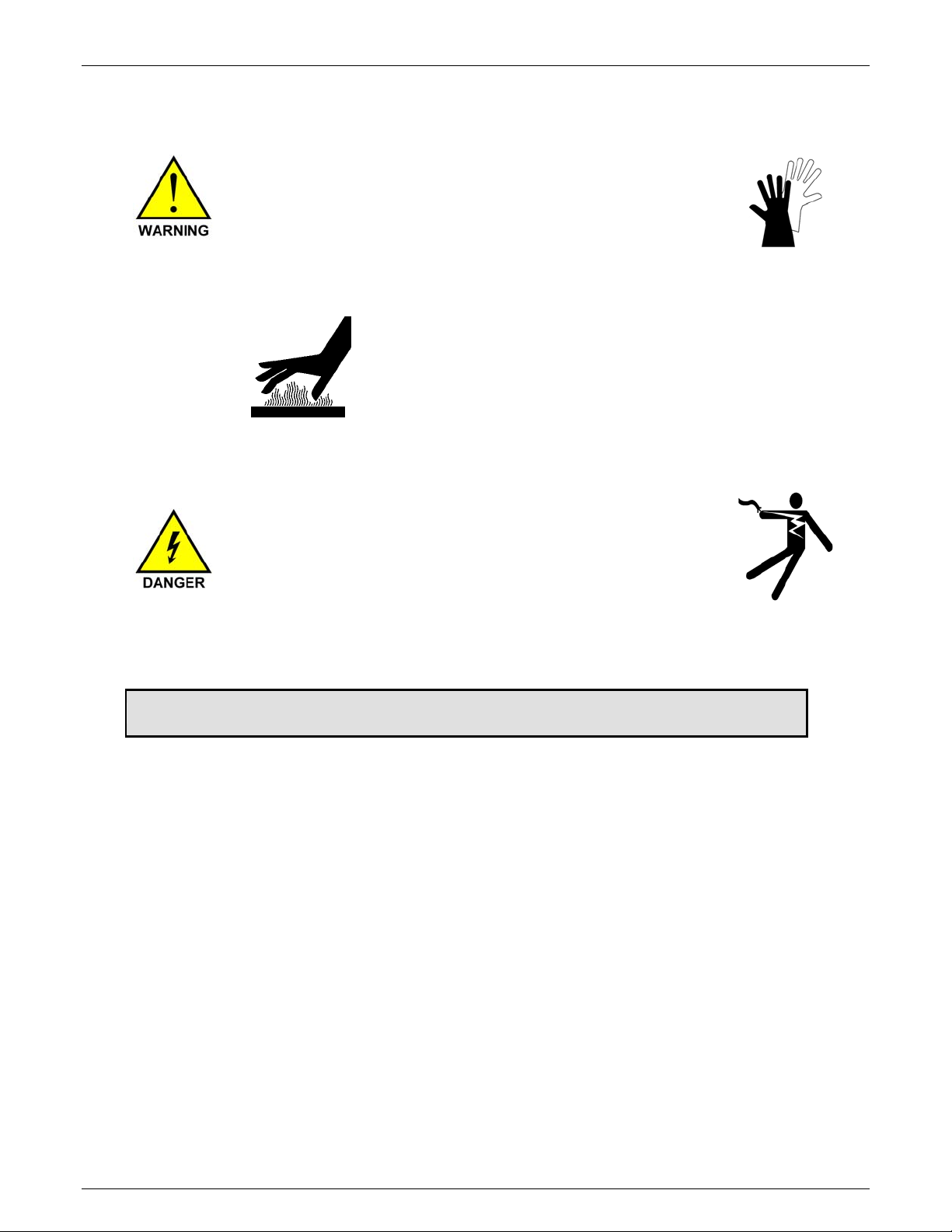

SAFETY WARNINGS
HOT SURFACES:
As with all dryers, there are HOT SURFACES to avoid. Temperatures
can reach 350F, (180C).
Typically these surfaces are not at dangerous temperatures, however
all hot surfaces should be avoided.
Warning Label indicate HOT SURFACES
USE CAUTION when removing and installing canisters.
USE GLOVES.
DO NOT REACH into the dryer enclosure.
RISK OF SHOCK:
Disconnect power supply before servicing the Dryer.
GETTING STARTED: PROCEED TO: INSTALLATION - NEXT PAGE

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
8
V
BD®- Vacuum Dryer®
Installation
Transport and Setup
Shipment
The VBD-150 Dryer is shipped on two skids with 4 main sections.
(A) Heating Hopper Assembly
(B) Vacuum Chamber Assembly
(C) Retention Hopper Assembly
(D) Control Panel
Lifting and Moving components of the Dryer
Ensure your lifting equipment is rated to lifting the weight
of the individual sections of the VBD-150.

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
9
V
BD®- Vacuum Dryer®
Overall layout and Dimensions

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
10
V
BD®- Vacuum Dryer®
VBD-150 Assembly
Shipment Inventory
The VBD-150 is shipped on two pallets. One pallet holds the main body of the
VBD-150 and two cardboard boxes containing the Vacuum Chamber, the
Retention Hopper, and hardware for assembly. The second pallet holds the
heating Hopper.
Hardware includes: 1 - 2" Hose Clamp, Two RTD Assemblies (RTD Sensor, wire, plug), 4 - ½"
x13x1¼" Button Head bolts, 4 - ½" Lock Nuts, 8 - ½" Star Washers.
Unpacking the VBD-150 Main Body
Remove the two boxes containing the Vacuum Chamber and Retention Hopper from the pallet.
With the VBD-150 pallet on the floor, secure the wheels so
that it will not roll once it is unbolted from the pallet. Two
wheels can be locked. With the wheels secured, locate
the two shipping bolts that attach the VBD-150 to the
pallet. Unbolt the upper visible nuts from the frame and
allow the bolt to drop out of the VBD-150 frame. Remove
the Wood blocks. The VBD-150 is now detached from the
shipping pallet. Use caution.
Do not wheel the VBD-150 directly off of the pallet.
Damage to the VTA can occur. The VBD-150 can be
gently wheeled off of the pallet using stacked 2x4 pieces of
wood. Use two or more people to guide the Dryer off of
the pallet. Make sure enough clearance is given to the
VTA.
Under the Dryer there is a
VTA. Use enough ramp
clearance to prevent contact
with the VTA below Dryer.
Remove all packing material from Dryer
main body.
When cutting the zip-tie
located at the top rear of
the dryer, hold the
Vacuum tray and lower it
slowly onto load cell. →

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
11
V
BD®- Vacuum Dryer®
Heating Hopper Installation
The Heating Hopper is shipped on a separate pallet. The weight of the
Heating Hopper is 115 lbs (52 kg).
It is secured to the pallet with four bolts.
While holding the heating hopper securely remove
these four bolts.
Attaching the Heating Hopper
A forklift can be used to raise the heating hopper onto the VBD-
150 main body. Lifting points are located below on the lower
black steel ring as shown in photo on right.
Install the Heating Hopper so that the
Heating Hopper Access Door is facing
the front of the Dryer, the same side as
the Control Panel.
To assist with lining up the bolt holes, the
four ½" socket head bolts (13x1¼) can
be installed prior to lowering the Heating
Hopper onto the VBD-150.
Install the four ½" socket head bolts as follows:
Socket head bolt will receive a ½ star washer below the head.

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
12
V
BD®- Vacuum Dryer®
Install Connections
Attach the Heating Hopper
butterfly valve air lines.
The two air lines that connect the
Heating Hopper Air cylinder to the
VBD-150 are different sizes to
prevent an incorrect connection.
Attach the Heating Hopper Hose
Using the 2" Hose Clamp, attached the red Heating Hose
to the Heating Hopper.
Attach the RTD Plugs
The RTD plugs are different sizes and will only install on the
correct outlet.
Installing the Retention Hopper
Unbox the Retention Hopper. The Retention Hopper is
identified by the red handles located on the top of the hopper
(the Vacuum Chamber has red handles on the upper sides).
Close the slide-gate to allow the Retention Hopper to seat
down onto the base of the VBD-150. Once seated open the
slide-gate to allow material to flow.
Install the Retention Hopper so that the Retention Hopper
manual slide-gate is located at the forward right corner of the
Dryer.

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
13
V
BD®- Vacuum Dryer®
At the base of the Retention Hopper are two slots that must
be aligned with the locator bolts.
Once the locator bolts are aligned, close the press in the
slide-gate to lock the Retention Hopper in place and open the
base for material flow.
Installing the Vacuum Chamber
Unbox the Vacuum Chamber.
Lift the Slider Lock located on the right side of the VBD-150
cabinet. While holding the Slider Lock up, pull the Vacuum
Chamber slider out. Release the Slider Lock, which will rest on
top of the opened slider.
Rest the Vacuum Chamber onto the fully extended Sliders. The
Vacuum Chamber has three resting pins. Orient the side with two
resting pins on the left Slider rail.
Push the Slider rails and Vacuum Chamber
back into the Dryer until the Slider Lock falls
into place.
Connect the air lines. Rotate the locking ring fully clockwise to
secure the air connection.
Slide the Retention Hopper sealing collar up so that the magnets
engage onto the bottom of the Vacuum Chamber.

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
14
V
BD®- Vacuum Dryer®
Dryer External Connections
Once assembled, installation requires connection of: pneumatic air line, electrical, intake and
output material lines.
Compressed Air Connection
Connect an air supply to the air regulator’s IN port using a female
1/4” NPT pipe fitting.
An operating air pressure of 80 psi (5.5 bar) while the
vacuum generator is running is required for proper operation
of the Dryer. Setting the air pressure to 85 psi while the
machine is idle will usually attain the desired 80 psi while the
vacuum generator is running.
If your air supply has oil in it, add an oil separator (coalescing
filter). Oil in the air will combine with dust drawn from the
Vacuum Chamber forming a paste inside the vacuum generator.
It will stop working and require cleaning.
Observe the air pressure gauge to be sure the pressure
maintains 80 psi (5.5 bar) while the vacuum generator is running
as you check and adjust the regulator. If pressure drops below
80 psi, adjust the regulator. If the pressure cannot be maintained
at 80 psi (5.5 bar) while the vacuum generator is running, then
the air supply line is not adequate.
Do not supply Dryer with a lubricated air supply.
Damage to Dryer may result. Use only a clean,
dry, oil-free air supply.
Pinch Hazard - Keep fingers clear of seal
deck, the mating surface above the Vacuum
Chamber seal.
When air pressure is turned on and the
Vacuum Chamber Lift Switch is flipped up, air
cylinders lift the Vacuum Chamber off of the
slider rails and up to the seal deck closing the
gap between the top of the Vacuum Chamber
and the seal deck.
KEEP FINGERS CLEAR

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
15
V
BD®- Vacuum Dryer®

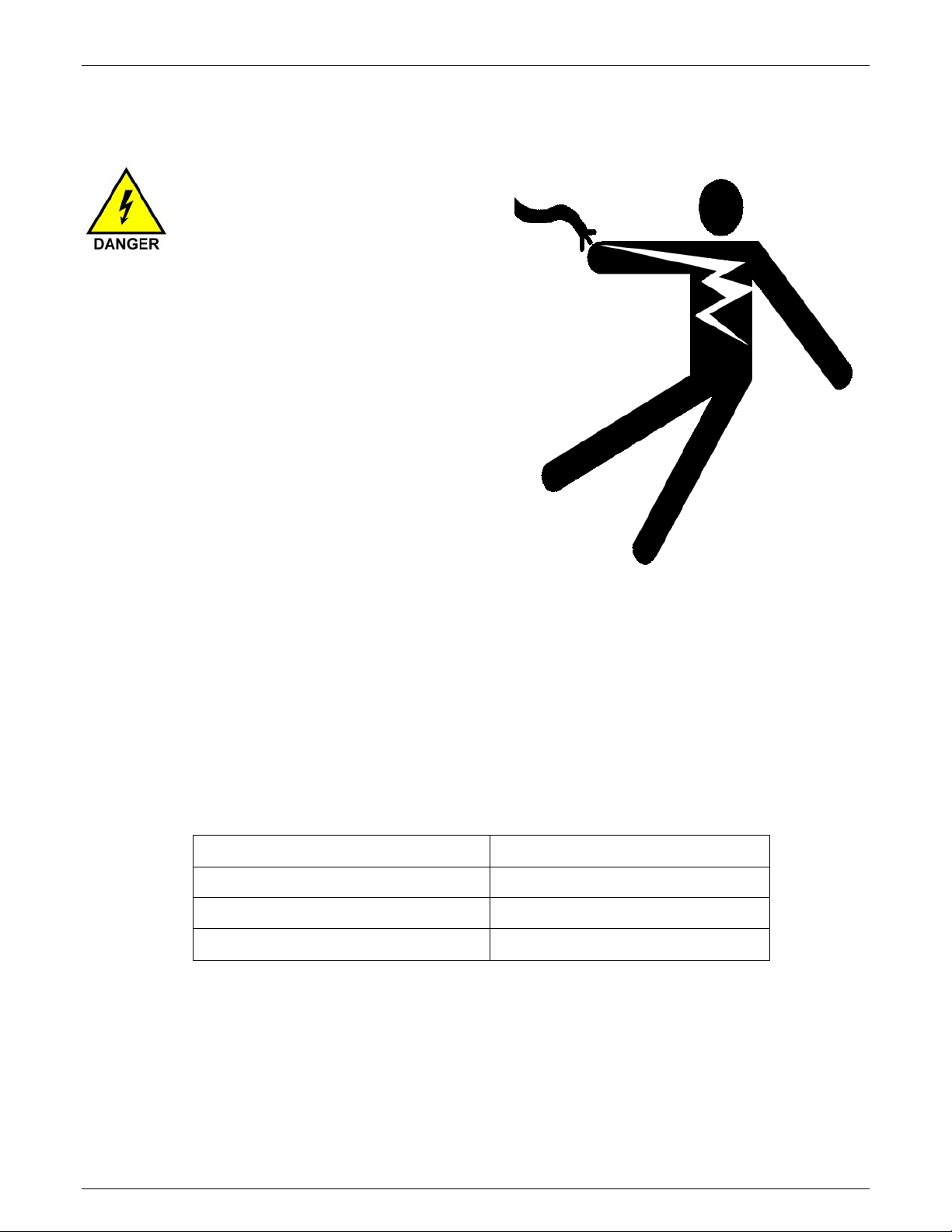

Electrical Connection
RISK OF INJURY!
Only qualified
technicians should
make electrical
connections.
Connect Main Power
The electrical cable
located on the left side of
the Dryer on the power
box supplies the power to
the Dryer. Within the
cable is four wires. Three
of the wires are black and labeled with a number: 1, 2, and 3.
The fourth wire is a green/yellow wire and is the ground wire.
Connect power to a properly fused disconnect.
VBD-150 Fuse / Circuit Breaker Rating Table
Protect the unit with fuses or circuit breakers at the amp ratings shown below:
voltage amps
240 25
400 15
480 15
575 15
See page 73 for the High Voltage Wiring Diagram

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
16
V
BD®- Vacuum Dryer®
Confirm Correct 3-Phase Electrical Connection
THREE PHASE Unit - CONFIRM proper 3-Phase power connection prior to
loading material. Failure to confirm proper 3-phase connection can result in
reversed blower rotation and damage to blower if the blower sucks in material
from heating hopper rather than blow heated air into heating hopper.
To confirm proper 3-phase connection following these instructions:
Turn power on using main power switch.
There are two methods to confirm proper
3-phase connection:
Incorrect 3-phase connection will result in
reversed blower rotation. Both methods
for checking correct 3-phase connection
involve testing the blower rotation.
Method one requires the disconnecting the
2-inch hot air hose from the heating hopper
and manually turning on the blower. The
air from the blower should blow out of the
2-inch hose. Air should not suck into the
hose. If air does not blow out and sucks in,
the 3-phase connection is NOT correct.
Method two requires the removal of the left
side panel to view the blower and confirm
blower rotation on power up. Rotation
must be clockwise as indicated by the red
arrow.
1. From the Main Screen press
to highlight Manual Operations.
Press ENTER.
2. Press to select Operate
Outputs. Press ENTER.
3. Press to select Blower. Press
ENTER to start blower. Press
ENTER again to stop blower.

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
17
V
BD®- Vacuum Dryer®
Dryer Overview
T1 – Heating Hopper Inlet Temperature
T1s – Heating Hopper Air Inlet Temperature Setting
T1a – Heating Hopper Air Inlet Temperature Actual
T2 – Heating Hopper Outlet Temperature
T4 – Material Outlet Temperature (optional)
(T1s,T1a)

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
18
V
BD®- Vacuum Dryer®
Control Panel Overview
Display Screens – The VBD control panel has two screens. The upper, red display shows Actual
Temperature or Throughput. The lower, blue display shows various running mode information or setup
and configuration information.
Control Panel Power Powers on
the control panel (main power
must be ON.) Also used to exit or
cancel out of any menu option
and return to the top level screen.
Top Level Menu:
• Run Dryer - See page 19
• Run Dryer (Batch) – See page 41
• Clean Out – See page 49
• Manual Operations - See page 25
Enter selects the highlighted
menu option.
Select toggles between 4
different screen sets:
Status Screen
The Status Screen
Displays:
T1a - Actual Air Temperature into the heating
hopper
T1s - Air Temperature Set-point
VTa – Vacuum Time Actual
VTs – Vacuum Time Set-point
ADV - Access to Advance Mode (page 23)
Print Center
For printing reports, logs, and
parameters to a USB flash drive.
See page 60.
Setup Mode
Access to advanced set up information.
See Page 27
Alarm Log
Displays a buffer of 50 of the
most recent alarm logs. Note: A
printed alarm log will print the
history of alarms since the last
clear of alarm logs.
Arrow Buttons – Navigate menus, make adjustments. is also used to silence the
alarm.
Navigating to BACK and pressing ENTER exits the current menu and back one level.
Operating Station Overview

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
19
V
BD®- Vacuum Dryer®
Startup and Operation
This section will help you understand what the dryer is doing during operation from a cold start.
There are 3 concurrent operations. Heating, Vacuum and, Retention. Cold startup begins with
Preheat. Preheat only occurs before the first cycle of the dryer’s initial startup, otherwise each
cycle begins with material heating. The vacuum operation pulls and holds a vacuum on the
material for at least the Vacuum Time Set-point (or longer if material remains in the Retention
Hopper). The Retention operation holds the dried material in the Retention Hopper, blanketing
the material with hot, dry air, until the material is conveyed away.
Important: Inspect the VBD, verify that machine is clear of all material from heating hopper,
Vacuum Chamber and Retention Hopper. To facilitate a Clean Out, use the Clean Out
function accessible from the home screen.
Startup and Operation Instructions
1. ENSURE HATCH IS CLOSED. There is a hatch located on the upper
Heating Hopper. Ensure all 3 latches are closed. Also be sure the
removable Lower Retention Hopper is in place.
2. Load material into the Upper Heating Hopper. Wait for the Heating
Hopper to fill with material before starting the Dryer.
3. Turn on Main Power by rotating the 25 AMP Main Disconnect Handle
to the Red ON position. This powers up the VBD-150 Dryer.
On initial power up of the VBD, the Control Panel powers ON
automatically. If the main power is ON but the Control Panel is OFF,
press and hold the Red Power Button located on the Control Panel for
2 seconds. (Note: The VBD’s Control Panel can be powered OFF
without powering down the Main Power by pressing and holding the
Red Power button for 4 seconds).
4. After material has been loaded into the Heating Hopper,
select Run Dryer and press the ENTER button.
=== SELECT MODE ====
►Run Dryer
Clean Out
Manual Operations

Maguire Products, Inc.
Rev. August 31, 2016 – VBD-150
20
V
BD®- Vacuum Dryer®
5. The display will show the Pre-Start screen. On this screen is:
Setpoint Temp – This is heat hopper inlet temperature. By the end of
the preheat cycle time, all material in the Heating Hopper will be
heated to this temperature. By default, the Setpoint temperature is set
to 150 °F. See Recommended Heat Temperatures on page 19 for
general temperature recommendations or contact the material
manufacturer.
Preheat Time – This is the duration of heating from a cold start.
Vacuum Time – This is the minimum duration of a vacuum cycle.
Actual vacuum cycle times will vary according to the throughput. The
default vacuum time is 20 minutes. In the vast majority of drying
operations, this time is adequate and does not need to be adjusted.
Special circumstances may require different vacuum times. Please
consult a Maguire Dryer Technical for additional information.
By default, START is selected (location of cursor). If the settings you
desire have been entered previously, simply pressing ENTER once
more will start the machine. Otherwise use the arrow buttons
to navigate to the desired settings for adjustment, then press ENTER.
The display will highlight the adjustable digit.
Use the arrow buttons to adjust the setting. Press ENTER to
advance through the digits and to complete the setting adjustment.
Setpoint Temp.: 150°F
Preheat Time: 35m
►Vacuum Time: 20m
================ START
6. When the display is no longer in the Edit Mode (highlighted setting),
press to toggle the selection to START. With START selected,
press the ENTER button to start the dryer.
Setpoint Temp.: 150°F
Preheat Time: 35m
Vacuum Time: 18m
================►START
7. The display will show that the dryer is running in PREHEAT
mode and display the following:
T1a - Actual heating hopper inlet temperature
T1s - Heating Hopper inlet temperature setpoint.
VTa - Elapsed vacuum time.
VTs - Vacuum Time sepoint.
VAC - Actual vacuum chamber pressure.
======= PREHEAT: 35:00
T1a:130°F VTa: 00:00
►T1s:150°F VTs: 18:00
ADV ==== VAC: 760mm
==== AUTO CYCLE ====
T1a:130°F VTa: 00:00
►T1s:150°F VTs: 18:00
ADV ==== VAC: 760mm
