Mahlkonig X54 User manual


ORIGINAL INSTRUCTIONS
www.mahlkoenig.de

3
X54
Figures.........................................................................................
Part designations.......................................................................9
General Information................................................................ 11
Reading and retaining the operating manual..................................... 11
Explanation of symbols used................................................................. 12
Safety.........................................................................................
Intended useof the grinder ................................................................... 14
Safety information.................................................................................... 14
A brief explanation of the basics of the grinder
and its function........................................................................ 20
Basic settings............................................................................................. 21
Initial operation .......................................................................22
Check the grinder and scope of delivery ............................................. 22
Before using for the first time................................................................ 22
Selecting the installation location.......................................................... 23
Setting up the grinder.............................................................................. 23
Basic handling ..........................................................................
Using the bean hopper ........................................................................... 24
Positions of the sliding valve................................................... 24
Inserting the bean hopper ...................................................... 25
Removing the bean hopper .................................................... 26
Selecting the collecting receptacle (portafilter vs. container) .......... 27
Using the portafilter module.................................................................. 27
Inserting the portafilter module............................................. 27
Removing the portafilter module........................................... 28
Using the container module................................................................... 28
Inserting the container module.............................................. 28
Removing the container module............................................ 29
Adjusting the portafilter module........................................................... 29
Filling with espresso/coffee beans........................................................ 30
Changing the type of espresso/coffee bean....................................... 31

X54
4
Operation..................................................................................32
Operating steps at a glance.................................................................... 32
Switching on the grinder......................................................................... 33
Selecting Recipe / Manual Grinding...................................................... 34
Starting grinding ....................................................................................... 34
Grinding with the portafilter module .................................... 34
Grinding with the container module ..................................... 34
Stopping or interrupting grinding manually ....................................... 35
Stopping grinding manually with the portafilter module.... 35
Stopping grinding manually with the container module..... 36
After use..................................................................................................... 36
Switching off the grinder......................................................... 36
Using the sleep timer............................................................... 36
Setting the grinder to Sleep mode manually........................ 37
Changing settings .................................................................... 38
Adjusting the grinding degree ............................................................... 38
Defining recipes........................................................................................ 39
Setting the time for the sleep timer...................................................... 40
Maintenance and service........................................................ 
Activating/deactivating the WiFi signal................................................. 42
Optional accessories ...............................................................
Cleaning ....................................................................................
Cleaning the grinder installation surface............................................. 45
Cleaning the casing .................................................................................. 46
Cleaning the bean hopper...................................................................... 47
Cleaning the grinder mechanism.......................................................... 48
Troubleshooting.......................................................................
Technical data ..........................................................................
EU Declaration of Conformity ................................................
Disposal.....................................................................................
Disposing of the packaging .................................................................... 58
Disposing of the grinder ......................................................................... 58

5
X54



1
2
3
8
11

12




13
10
9
A

X54
6
19
21
22
18
20
B
3
1
C
3
1
D
3
1
E

7
X54

21
I

18
H
F

23
G

X54
8


28

L
11
12 12
18
J
11
12 22
21
22
K

9
X54

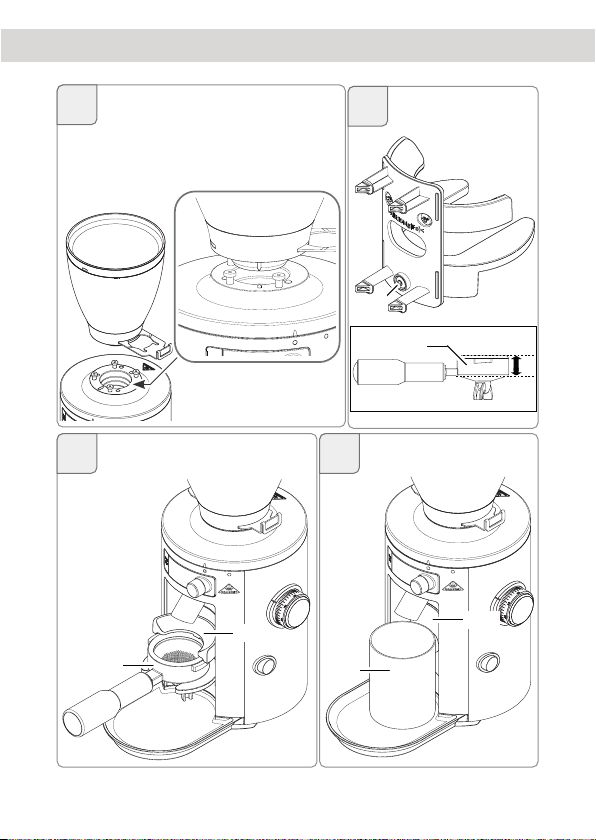

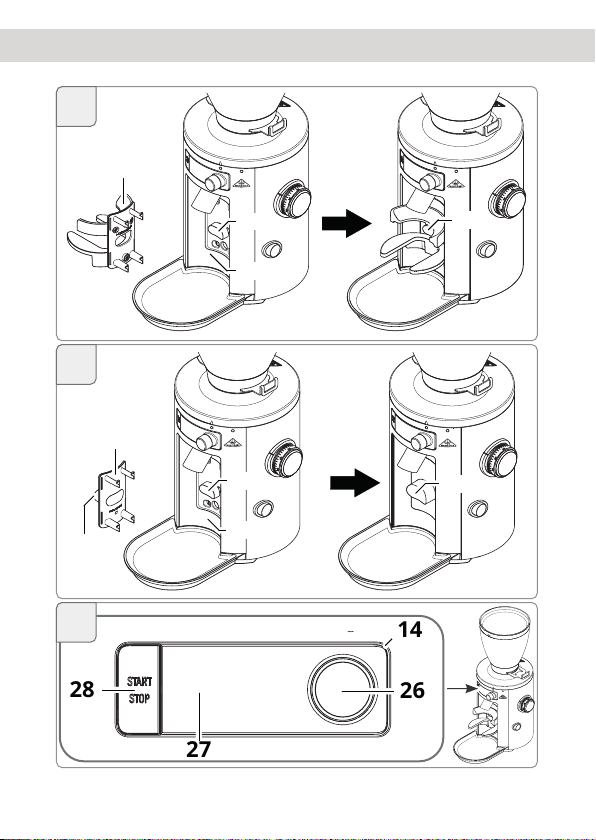

Part designations
No. Designation
1 Bean hopper
2 Lid
3 Sliding valve
4 Bean hopper intake
5 Adjusting wheel (adjustment of the grinding degree)
6 Grinding degree scale
7 Pushbutton (module lock)
8 Grinder body
9 Feet
10 Drip tray
11 Module area
12 Portafilter switch
13 Spout
14 Control panel
15 On/Off switch
16 Release button (Thermal overcurrent circuit-breaker)
17 Power cable

X54
10
No. Designation
18 Portafilter module
19 Portafilter intake
20 Portafilter support
21 Container module
22 Switch cover
23 Screw (height adjustment of portafilter support)
24 Portafilter*
25 Container
26 Controller (Jogdial)
27 Display
28 START/STOP button
* not supplied

11
X54
General Information
Reading and retaining the operating manual
This document is the operating manual for the
Home Grinder*.
Carefully read through this operating manual, especially the
safety information, before you start using the grinder. Only
in this way can you operate the grinder safely and use all
functions optimally and as intended.
Furthermore, always keep this operating manual handy
for future reference and pass it on with the grinder to any
subsequent owners or other users.
This operating manual is based on the standards and regu-
lations in force in the European Union. Please also note the
guidelines and laws of your specific country if abroad.
* The following abbreviations are used below to ensure better readability:
Home GrinderX54Grinder; Original instructionsOperating manual.

X54
12
Explanation of symbols used
You will find various symbols and signal words in this oper-
ating manual, on the grinder and on the packaging. Please
refer to the following overview for their meaning.

The warning triangle in combination with the signal word
WARNING indicates a hazard with a medium degree of
risk, which can lead to death or serious injury. Following
the instructions reduces the risk associated with the
hazard.

The warning triangle in combination with the signal word
CAUTION indicates a hazard with a low degree of risk,
which can lead to minor or moderate injury. Following the
instructions reduces the risk associated with the hazard.

The exclamation mark in conjunction with the word NOTE
indicates a situation which may result in material damage.
Following the instructions reduces the risk associated with
the situation.

13
X54
This symbol indicates important information
concerning the operation or handling of the
grinder.
Declaration of Conformity: Products marked
with this symbol fulfil all applicable community
provisions of the European Economic Area.
ETL Listed seal of approval: Products marked
with this symbol meet the requirements of
electrical product safety in the United States of
America.
Products marked with this symbol meet the
criteria required by the NSF (National Sanitation
Foundation) regarding cleanliness and hygiene
in the food industry.
Products marked with this symbol are only
permitted for use indoors.
This symbol (General warning sign) indicates
various types of hazards.
This symbol (Warning of electrical voltage) indi-
cates an electrical shock hazard.
This symbol indicates that the grinder conforms
to protection class I.

X54
14
Safety

The intended use of the grinder is for grinding whole roasted
espresso or coffee beans, and it may only be used for this
purpose. Do not use the grinder for grinding other products
or objects and do not make any (technical) changes to the
grinder.
The grinder is specified for use in private households and in
a domestic environment. The maximum filling quantity for
the bean hopper is 500 g, and this may not be exceeded.
The grinder is expressly not designed for use for commercial
purposes (hospitality sector). However, you can use the grinder
in a domestic environment in commercial establishments. This
refers to e.g. shops, offices or similar working environments as
well as farms, in which employees use the grinder, and hotels,
motels and other typical residential environments or bed and
breakfasts, in which guests use the grinder.
Any other use as well as any manipulation of the grinder is
not considered to comply with the intended use and can
result in material damage or even personal injury.
The manufacturer or supplier cannot be held liable for any
injury or damage resulting from improper use and/or the
failure to comply with the safety instructions.
Safety information
The following general safety information must always be
complied with for safe use of the grinder: This will enable
you to avoid hazardous situations and/or reduce any
resulting risks.

15
X54

Danger of electric shock!
Improper use, incorrect electrical installation
or an excessively high voltage can all lead to
electric shock.
→Connect the grinder only if the mains voltage
of the socket complies with the information
indicated on the type plate.
→Connect the grinder only to a socket
with good accessibility, so that you can
disconnect it quickly from the power supply
in the event of a fault.
→Do not use the grinder if you notice any
visible damage or if the power cable or plug
is faulty.
→If the grinder power cable is damaged, it
must be replaced by the manufacturer or
by qualified personnel, in order to avoid
hazards.
→Keep liquids away from the grinder, power
cable and power plug. Also ensure that e.g.
the grinder is not exposed to any splash
water at the installation location.

X54
16
→Never touch the power plug with wet hands.
→Never unplug the power plug from the wall
socket by pulling on the power cable; always
grip the plug itself.
→Never use the power cable as a handle to
carry the grinder.
→Keep the grinder and power cable/power
plug away from open flames and hot
surfaces.
→Do not bend the power cable and do not
place it over sharp edges.
→Use the grinder in indoor areas only. Never
operate the grinder in damp rooms or in
the rain.
→If you are not currently using the grinder, if
you are cleaning it or if a fault occurs, switch
the grinder off and remove the power plug
from the socket.

17
X54

Danger for children and persons with
reduced physical, sensory or mental
capacities (e.g. some disabled persons,
older persons with limited physical and
mental abilities) or a lack of experience
and knowledge (e.g. older children).
→The grinder is not intended for use by
children or people with limited physical,
sensory or mental abilities or a lack of
experience and knowledge.
→Keep the grinder away from children at all
times. Children may not use the grinder or
play with the grinder.
→Above all, ensure that small children cannot
reach the power cable. If small children pull
the power cable, they could be seriously
injured by the grinder falling on them.
→Do not leave the grinder unsupervised when
in operation.
→Do not let children play with the packaging
film. Children can become entangled in it
while playing and may suffocate.

X54
18
→Do not let children play with the small parts.
The small parts can be life-threatening if
swallowed.

Risk of injury!
Incorrect handling of the grinder can result in
injury.
→Place the grinder on a level and stable
surface to prevent it from falling off.
→Position the power cable so that nobody
can become entangled in it and cause the
grinder to fall.

19
X54

Risk of damage!
The grinder could be damaged by improper
handling.
→Do not lift the grinder by the bean hopper;
lift only by the casing and always with both
hands.
→Ensure that children do not insert any
objects into the grinder.
→Do not open the grinder casing; leave repairs
to the experts. If repairs are required, please
contact a specialist workshop. In the event
of unauthorised repairs, faulty connection
or incorrect operation, all liability and
guarantee claims are excluded. Only parts
that comply with the original appliance
specifications may be used for repairs.
This grinder contains electrical and
mechanical parts that are essential for
protection against potential hazards.

X54
20
A brief explanation of the basics
of the grinder and its function
You can use the grinder to grind both espresso beans
and coffee beans with different grinding degrees (fine –
coarse) [see „Adjusting the grinding degree“]. Use the adjusting
wheel on the side (5) to set the grinding degree.
You can either insert a portafilter (24)*or a
container(25)** as a collecting receptacle to collect the
ground material*** from the grinder, depending on how
you wish to prepare the espresso or coffee [see „Selecting the
collecting receptacle (portafilter vs. container)“].
You can use the grinder either in Recipe mode or in
Manual Grinding mode.
The quantity of ground coffee dispensed per shot, i.e.
the dosage quantity, is determined by the grinding time.
You can define up to four different recipes (grinding times)
for this purpose [see „Defining recipes“]. The grinding process
ends automatically after the specified grinding time has
been reached. Use the controller (Jogdial(26) to select the
desired recipe.
You manually control the grinding time by pressing the
START/STOP button (28) in the Manual Grinding mode.
The maximum grinding time is 90 seconds.
* For the preparation of espresso with a portafilter machine.
** For the preparation of coffee or espresso without a portafilter machine.
*** Ground material
