Ventilation of pantries and cellars
For regular ventilation of rarely used rooms, we would recommend the ECA ... I or ECA ... KI with interval control.
The time interval can be set individually, the operating period is 10 minutes.
1AP 100 shutter
2WH 100 wall sleeve
3ECA 100 I small room fan
4MLK door ventilation grille
Ventilation using FE 100 window installation kit
Air extraction from cloakrooms and cellars can also be easily ensured by combining small room fan ECA 100 ... with window
installation kit FE 100 .. . Supply air flows in through MLK door ventilation grille.

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 2
1FE 100 AP window installation kit
2ECA 100 KI small room fan
3MLK Door ventilation grille
Barrier-free ventilation of bathrooms
The small room fans ECA piano H, ECA ... F and ECA ... KF switch on and off automatically depending on air humidity and/or
brightness levels. Switches do not have to be operated.

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 3

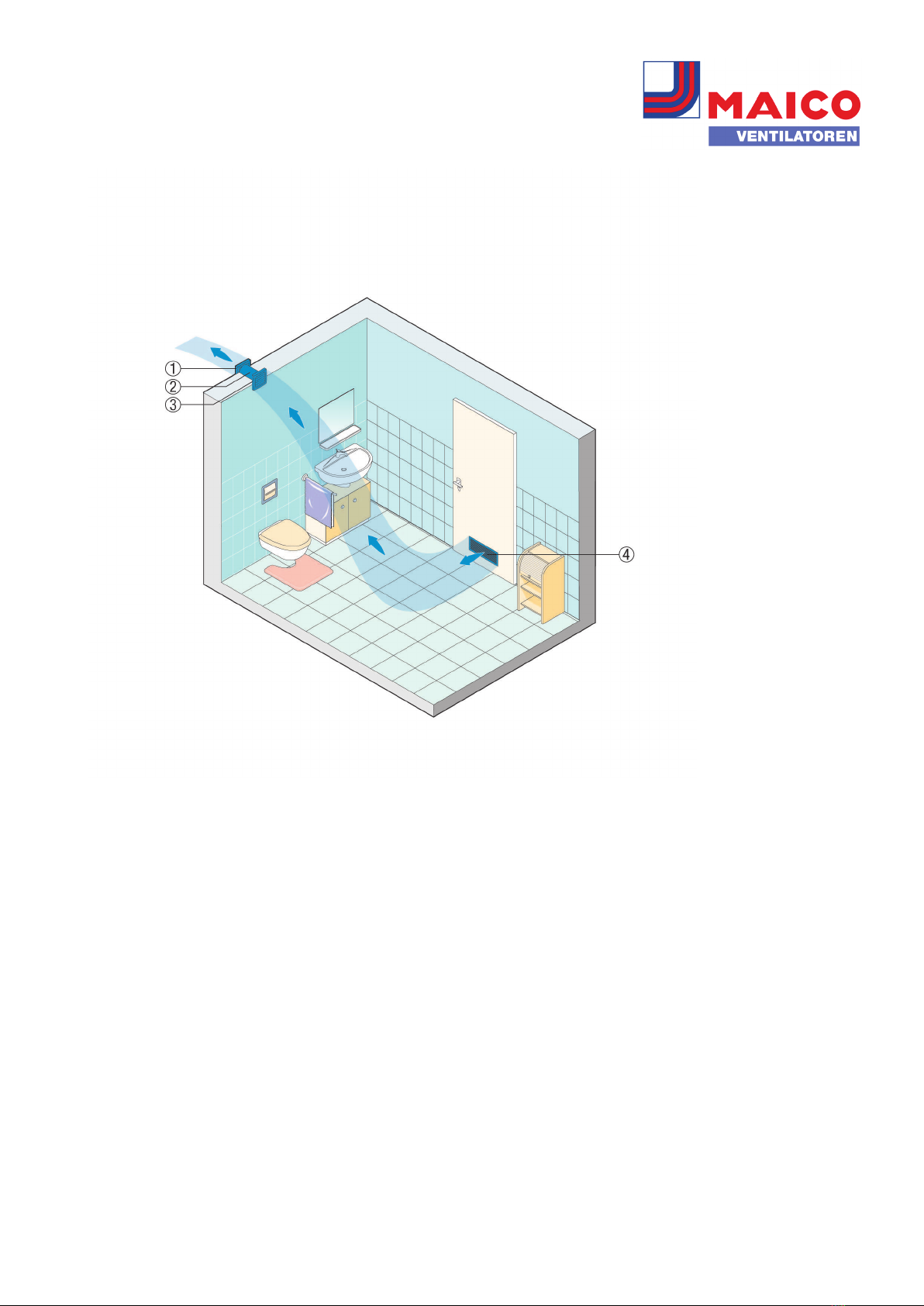

1Roof cowl
2AFR 100 flexible aluminium duct
3Condensate collector
4ECA ... small room fan
5MLK 45 door ventilation grille
Ventilation of toilets
The diagram shows a typical installation situation for ECA small room fans for wall and ceiling installation. They remove
odours where the odours are produced. Supply air flows in through MLK door ventilation grille. This greatly reduces the risk
of excess moisture and the formation of mould.
Numerous different models, e.g. for light or humidity control, provide the right unit for every application.

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 4
1AP shutter for air extraction.
2WH wall sleeve
3ECA small room fan
4MLK 45 door ventilation grille
Ventilation of cellars
ECA small room fans for wall and ceiling installation, together with their accessories, ensure air exchanging in rooms that are
not often used..

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 5
1FE 100 AP window installation kit
2ECA 100 ... small room fan
3MLK 45 door ventilation grille
Fitness / Wellness rooms
ECA small room fans for wall and ceiling installation, together with their accessories, ensure a supply of fresh air and pro-
mote a sense of well-being.

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 6

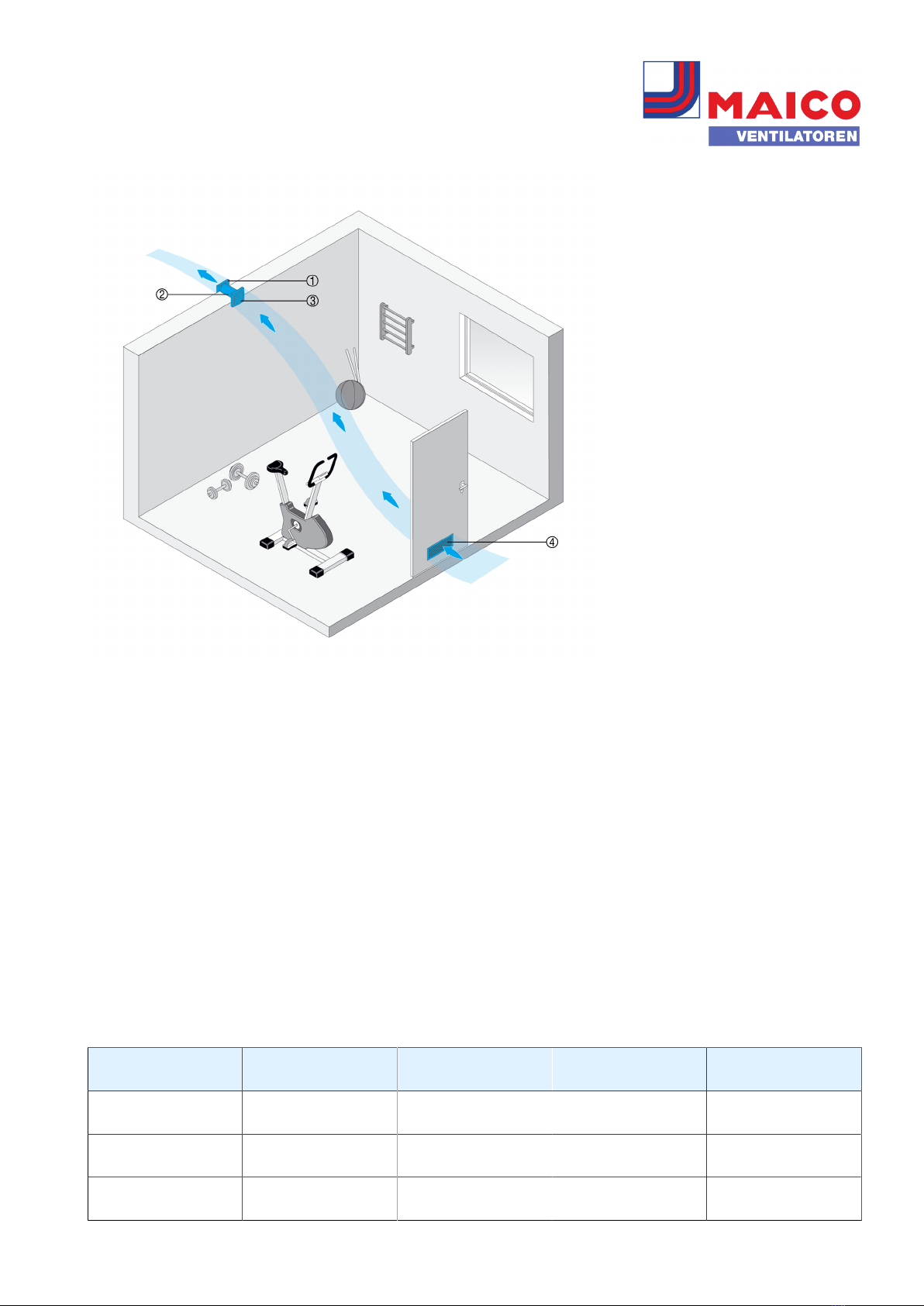

1Shutter for air extraction, AP 100
2WH wall sleeve
3ECA small room fan
4MLK 45 door ventilation grille
Wall mounting of ECA small room fans
Please note the following points when fitting ECA 100 ipro, ECA piano, ECA 100, ECA 120 and ECA 150 series model fans
in a wall:
■A minimum distance between the wall and the ceiling must be observed when preparing the wall breakthrough, see dia-
gram.
■Fit a wall sleeve.
■Feed in the connecting cable for surface or recessed mounting.
■ECA 100 ipro and ECA piano only available as recessed-mounted fans.
■Secure the fan using screws during installation.
■The AP shutter prevents cold air from entering when the fan is switched off. Not required with ECA piano and all versions
with electrically-operated internal shutter.
Article A B C D
ECA 100 ipro 105 85 129 22
ECA piano 90 80 129 24
ECA 100 105 80 129 24

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 7
Article A B C D
ECA 120 115 95 152 24
ECA 150 140 140 178 22.5
1ECA fan
2WH wall sleeve
3AP outside shutter
4Masonry
5Plaster
6Cable entry
Ceiling installation with roof cowl
Please note the following points when fitting ECA 100 ipro, ECA piano, ECA 100, ECA 120 and ECA 150 series model fans
in a ceiling in ventilation systems with a roof cowl:
The minimum distance from the wall must be observed (see wall mounting as well).
Install the wall sleeve or duct.
Surface- or recessed-mounted connecting cable guide.
ECA 100 ipro and ECA piano only available as recessed-mounted fans.
Drain off any condensation present in the duct using a siphon. Fit a T-piece with siphon in the duct (odour seal) for this pur-
pose.
Proper duct insulation reduces the build-up of condensation considerably.
Use a roof cowl with the condensation drain pointing outwards (see recommended accessories).

INSTALLATION INSTRUCTIONS
ECA 100 KF
Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 8

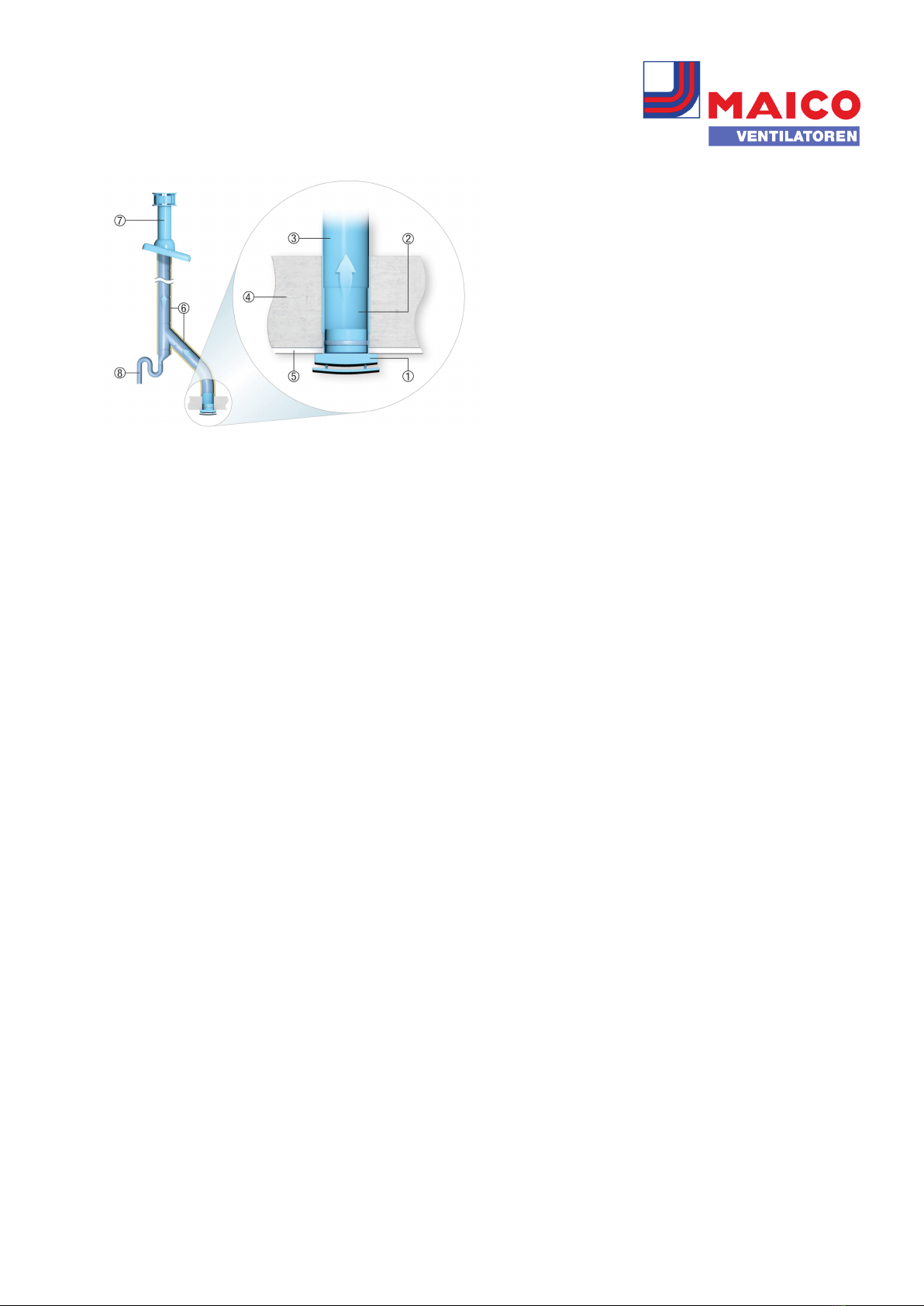

1ECA fan
2Sleeve
3Duct DN 100, DN 125 or DN 150
4Masonry
5Plaster
6Insulation
7DF/DP roof cowl
8Condensation drainage (siphon)
