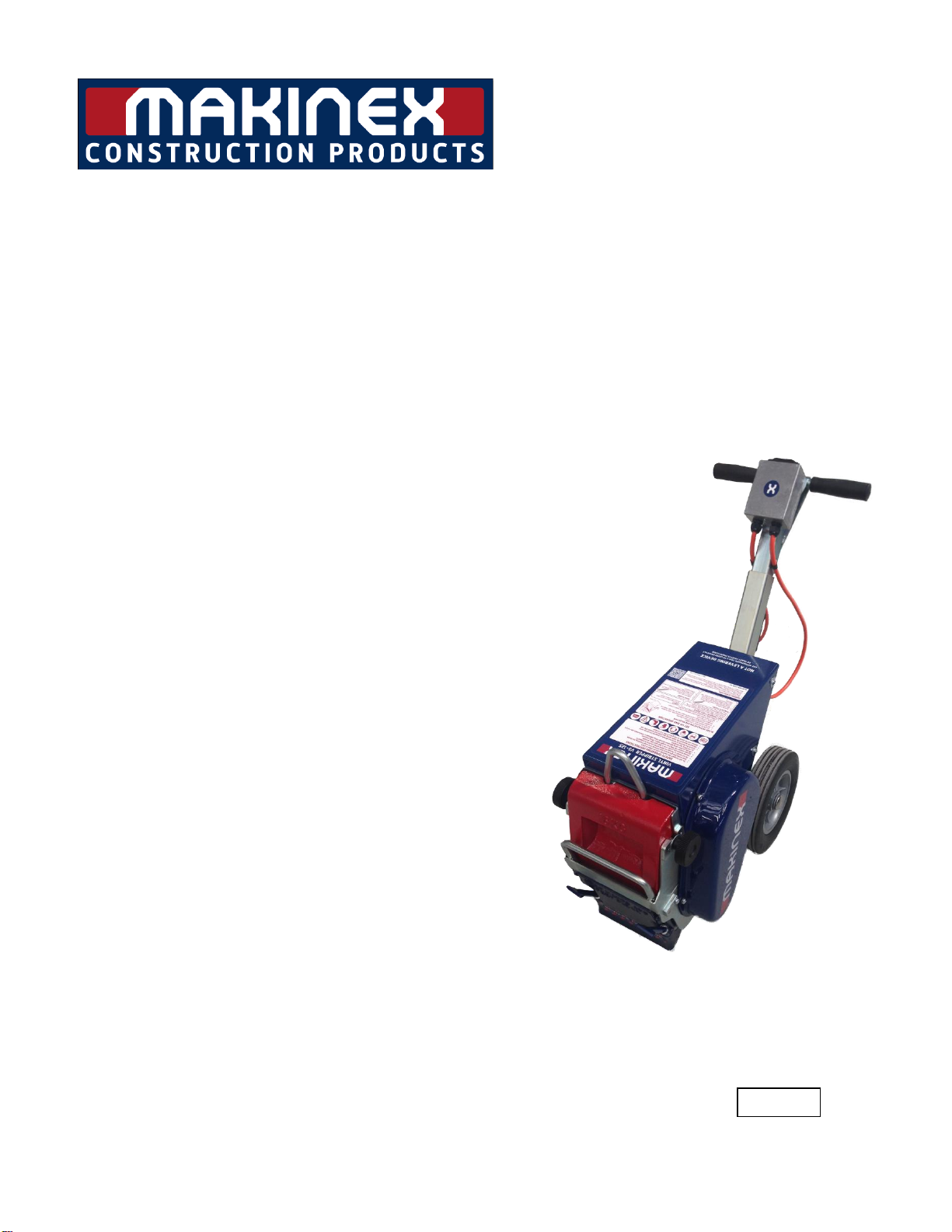

MAKINEX VS-125-US User manual

Vinyl Stripper
VS-125/ VS-125-US
OPERATOR’S MANUAL
Rev0919

TABLE OF CONTENTS
INTRODUCTION .....................................................................................................................1
DISCLAIMER .........................................................................................................................................................1
ABOUT THIS MANUAL .........................................................................................................................................2
SAFETY INFORMATION ........................................................................................................3
GENERAL SAFETY INSTRUCTIONS...................................................................................................................3
SAFETY DECALS..................................................................................................................................................4
PRODUCT DESCRIPTION AND SPECIFICATIONS..............................................................5
INSTRUCTIONS FOR USE.....................................................................................................7
SETTING UP THE MAKINEX VS-125 VINYL STRIPPER ....................................................................................7
OPERATING THE MAKINEX VS-125 VINYL STRIPPER...................................................................................11
VINYL STRIPPER DOES NOT START...............................................................................................................12
TRANSPORTING AND STORING ......................................................................................................................12
MAINTENANCE ....................................................................................................................13
GENERAL SERVICING.......................................................................................................................................13
LIMITED ONE YEAR WARRANTY.......................................................................................14
WARRANTY EXCLUSIONS ................................................................................................................................15
OWNER’S RESPONSIBILITY UNDER LIMITED WARRANTY: .........................................................................16
CONTACT INFORMATION...................................................................................................17

Floor Stripper –User Manual (Rev0919) Page 1 of 17
INTRODUCTION
Thank you for purchasing a MAKINEX product.
This manual provides information and procedures to safely operate and maintain the VS-
125/ VS-125-US Vinyl Stripper. For your own safety and protection from injury, carefully
read, understand, and observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an
additional copy, please contact MAKINEX. This machine is designed and built with user
safety in mind; however, it can present hazards if improperly operated and serviced.
Please follow the operating instructions carefully. If there are any questions regarding
operating or servicing of this machine, please contact MAKINEX.
All rights, especially copying and distribution rights are reserved.
Copyright 2019 by MAKINEX.
No part of this publication may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without express written permission from MAKINEX.
Any type of reproduction or distribution not authorised MAKINEX represents an
infringement of valid copyrights and will be prosecuted. We expressly reserve the right to
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.
DISCLAIMER
MAKINEX and its affiliates, takes no responsibility for any damage, injury or death
resulting from the incorrect or unsafe use of this product. Use of this product should be
undertaken by competent persons only. It is the operators’ responsibility to ensure that
the following safety procedures are followed. If you are unsure, do not operate this
product.
Record the model and serial numbers as well as date and place of purchase for future
reference. Have this information available when ordering parts and when making technical
or warranty inquiries.
MAKINEX SUPPORT
Refer to contact details on pg. 17
MODEL NO.
VS-125/ VS-125-US
SERIAL NO.
DATE OF PURCHASE
PURCHASE LOCATION

Floor Stripper –User Manual (Rev0919) Page 2 of 17
ABOUT THIS MANUAL
This manual is designed to provide the user with the information required to operate and
maintain the ‘VS-125/ VS-125-US’ Vinyl Stripper correctly and safely. The following safety
symbols are used with a key word to alert you to potential hazards in operating and owning
power equipment. Follow all safety messages to avoid or reduce the risk of serious injury
or death.
Key Terms
READ
CAREFULLY
READ CAREFULLY –refers to important information that should be
paid careful attention.
CAUTION
CAUTION - indicates a situation that may cause injury or damage to
the machine if the user does not follow the instructions.
WARNING
WARNING –indicates a situation that may cause injury or death if the
user does not follow the instructions correctly.
DANGER
DANGER –indicates a situation that will cause injury or death if the
user does not follow the instructions as written.
PROHIBITED
PROHIBITED –identifies actions that should never be carried out by
any one interacting with the machine.

Floor Stripper –User Manual (Rev0919) Page 3 of 17
SAFETY INFORMATION
GENERAL SAFETY INSTRUCTIONS
Throughout this document there are several safety warnings. The user should read
through this complete document before using the MAKINEX VS-125/ VS-125-US.
READ
CAREFULLY
Ensure you read all information contained in this manual before using
the MAKINEX VS-125/ VS-125-US.
PROHIBITED
Do not operate this machine in a wet environment.
DANGER
Always wear the recommended personal protective equipment.
WARNING
Keep hands away from stripping blade when not installing or
removing the blade.
WARNING
Keep leads away from the front of the stripping blade.
WARNING
Keep children away from the vinyl stripper at all time,
CAUTION
Stop the unit whenever you leave the machine.
CAUTION
Do not install or remove a stripper blade with the power cord plugged
in.
CAUTION
Do not use extension leads over 15m/50ft.

Floor Stripper –User Manual (Rev0919) Page 4 of 17

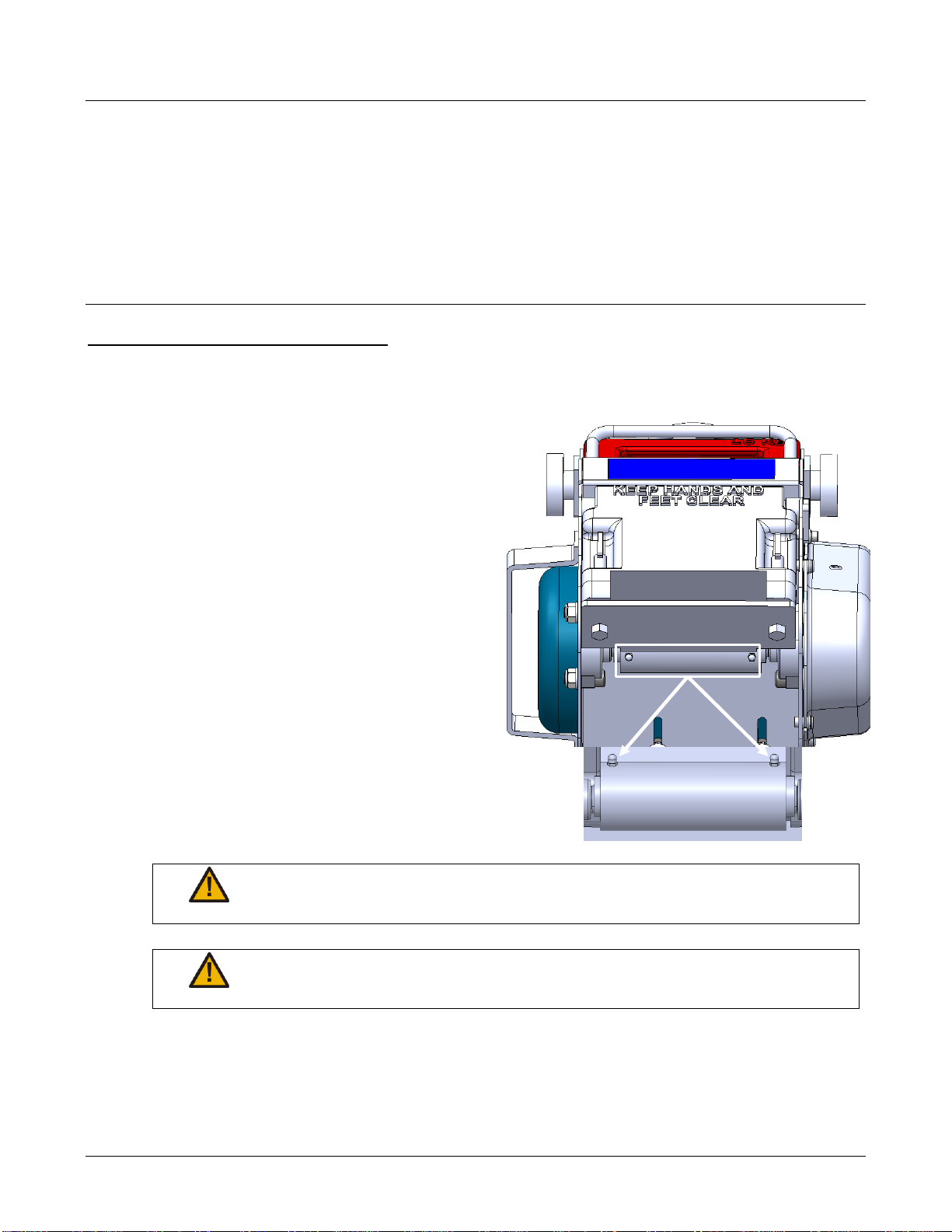

SAFETY DECALS

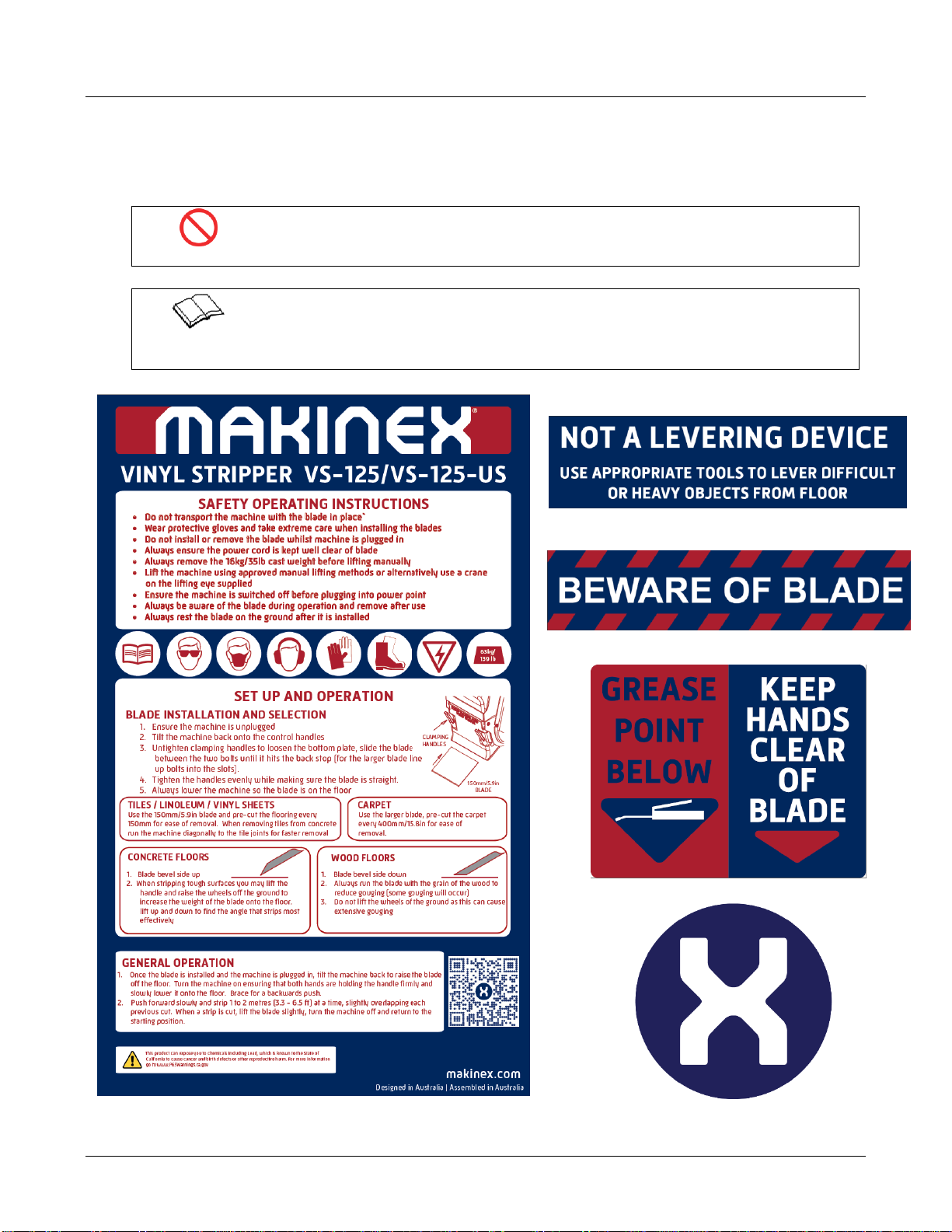

There are several stickers on the MAKINEX VS-125/ VS-125-US machine that have been
provided to alert the user of potential safety risks/hazards. Please read and adhere to all
instructions on the Unit.
PROHIBITED
It is forbidden to remove any safety or instructional stickers or panels
from the MAKINEX VS-125/ VS-125-US.
READ
CAREFULLY
Read all safety and instructional stickers displayed on each
component of the MAKINEX VS-125/ VS-125-US Vinyl Stripper.

Floor Stripper –User Manual (Rev0919) Page 5 of 17
PRODUCT DESCRIPTION AND SPECIFICATIONS
The MAKINEX VS-125 is a world-class electric floor-stripping machine used extensively
in the construction and hire industry to remove coverings such as vinyl, cork and tiles from
floor surfaces.
MAKINEX VS-125/ VS-125-US is solid and reliable, featuring tool-free set-up, quiet
operation, and minimum ongoing maintenance.
MAKINEX VS-125/ VS-125-US Specifications
MODEL
VS-125-US
VS-125
MOTOR
TECO SINGLE PHASE –¾ HP, 0.55kW
INPUT
110/220V 60Hz
SINGLE PHASE 10 AMP
240V 50Hz
SINGLE PHASE 4 AMP
OVERALL WEIGHT
63kg (139lb)
REMOVABLE WEIGHT
16kg (35lb)
DIMENSIONS
920 x 365 x 880 mm
(36.2 x 14.4 x 34.65in)
LENGTH x WIDTH x HEIGHT APPROX
MAXIMUM BLADE SIZE
255x125mm
(10 x 4.92in)
RPM OF MOTOR
1735rpm
1500rpm
BLADE OSCILLATION
1851 rpm
1600rpm
FEATURES
Heavy duty needle roller bearings
Fully adjustable neck and handle
Removable blade
Convenient lifting handle & lifting eye
Rigid steel construction and stainless-steel fittings
•

Floor Stripper –User Manual (Rev0919) Page 6 of 17

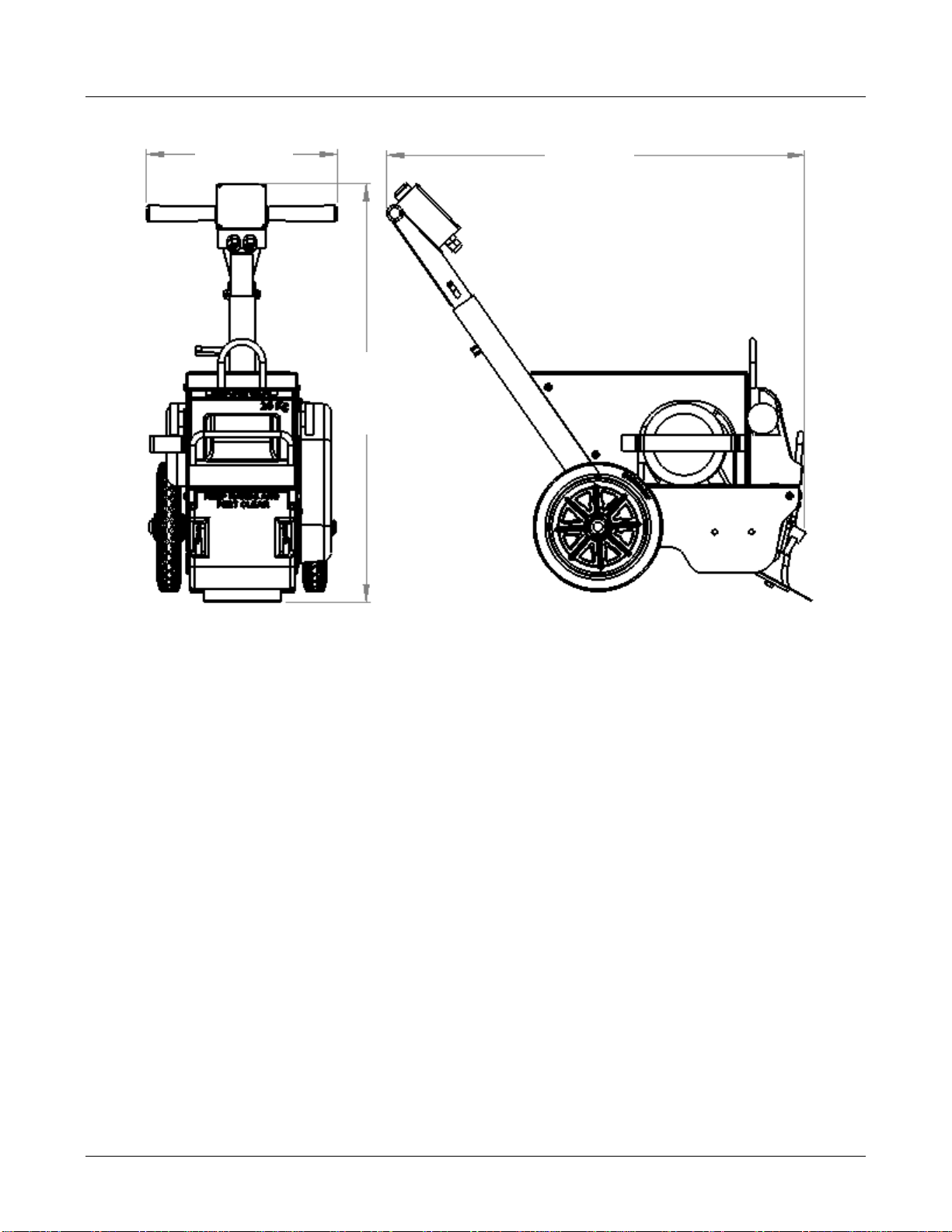

OVERALL MACHINE DIMENSIONS
812mm
31.97”
370mm
14.57”
812mm 31.97”

Floor Stripper –User Manual (Rev0919) Page 7 of 17
INSTRUCTIONS FOR USE
WARNING
Do not operate the MAKINEX VS-125/ VS-125-US without wearing
the appropriate personal protective equipment and assessing the
surrounding area for hazards.
WARNING
Read and adhere to all safety and operation instructions.
SETTING UP THE MAKINEX VS-125/ VS-125-US VINYL STRIPPER
WARNING
When setting up, ensure the Vinyl Stripper is OFF and the power cord
is unplugged.
Handle Installation and Adjustment
Follow the instructions below, referring to the images.
1. Insert the metal plate in the stem of the unistrut
handle, with the hole closest to the bottom.
2. Push the metal plate flat along the lip
(towards you).
3. Insert the handle into the Vinyl Stripper with the
electronic box on top.

Floor Stripper –User Manual (Rev0919) Page 8 of 17

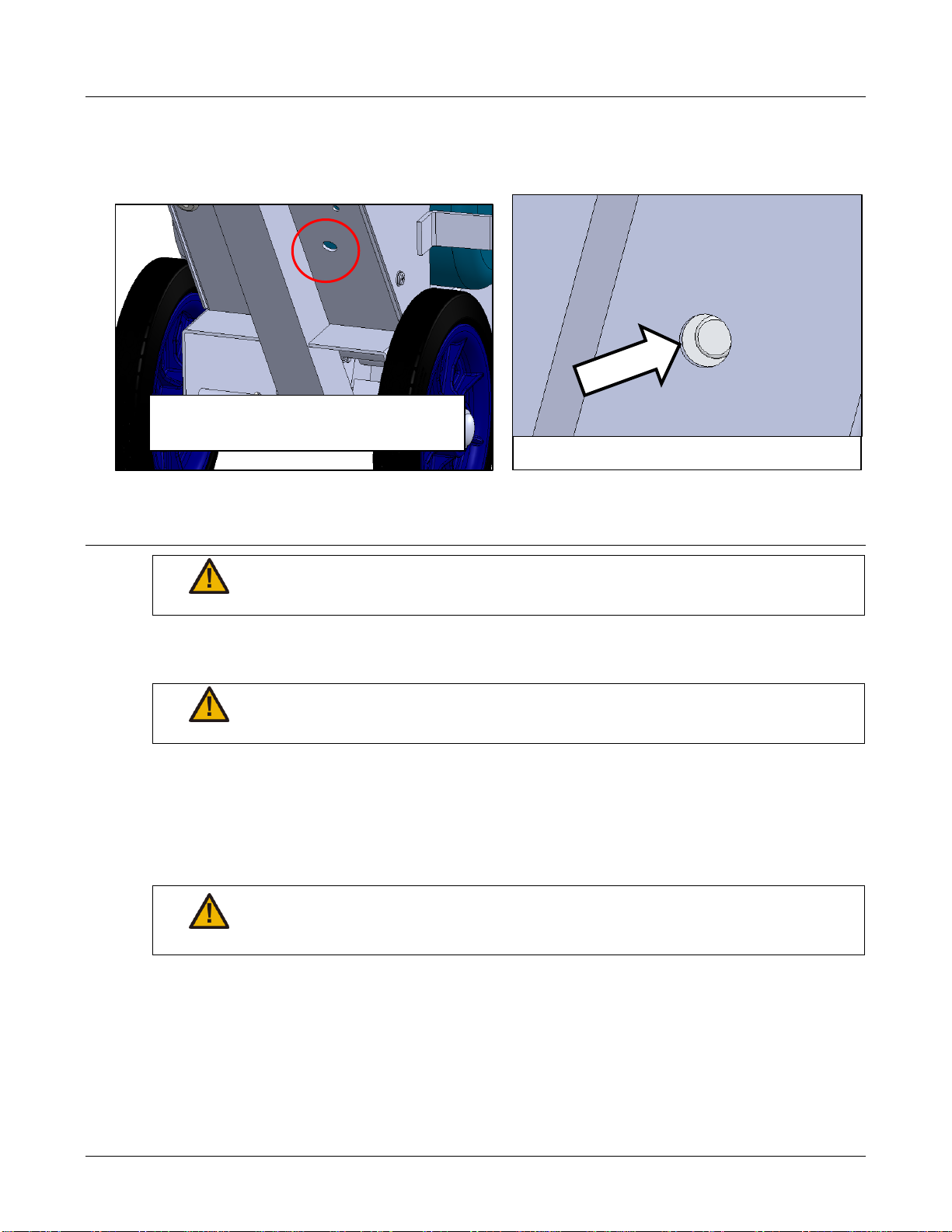

4. Align the hole of the metal plate with the hole
of the Vinyl Stripper, on the underside of the
square tube.
5. Twist in the threaded handle slowly and softly to
ensure it goes into the threads of the metal plate.
6. If there are difficulties inserting the hands screw,
re-align the holes.
7. To adjust, loosen the hand screw enough until the handle can move
up and down.
8. Tighten the hand screw securely when in required position.

Floor Stripper –User Manual (Rev0919) Page 9 of 17
Blade Orientation, Preparation and Installation
WARNING
Do not insert or remove the blade with the electrical cord plugged in.
READ
CAREFULLY

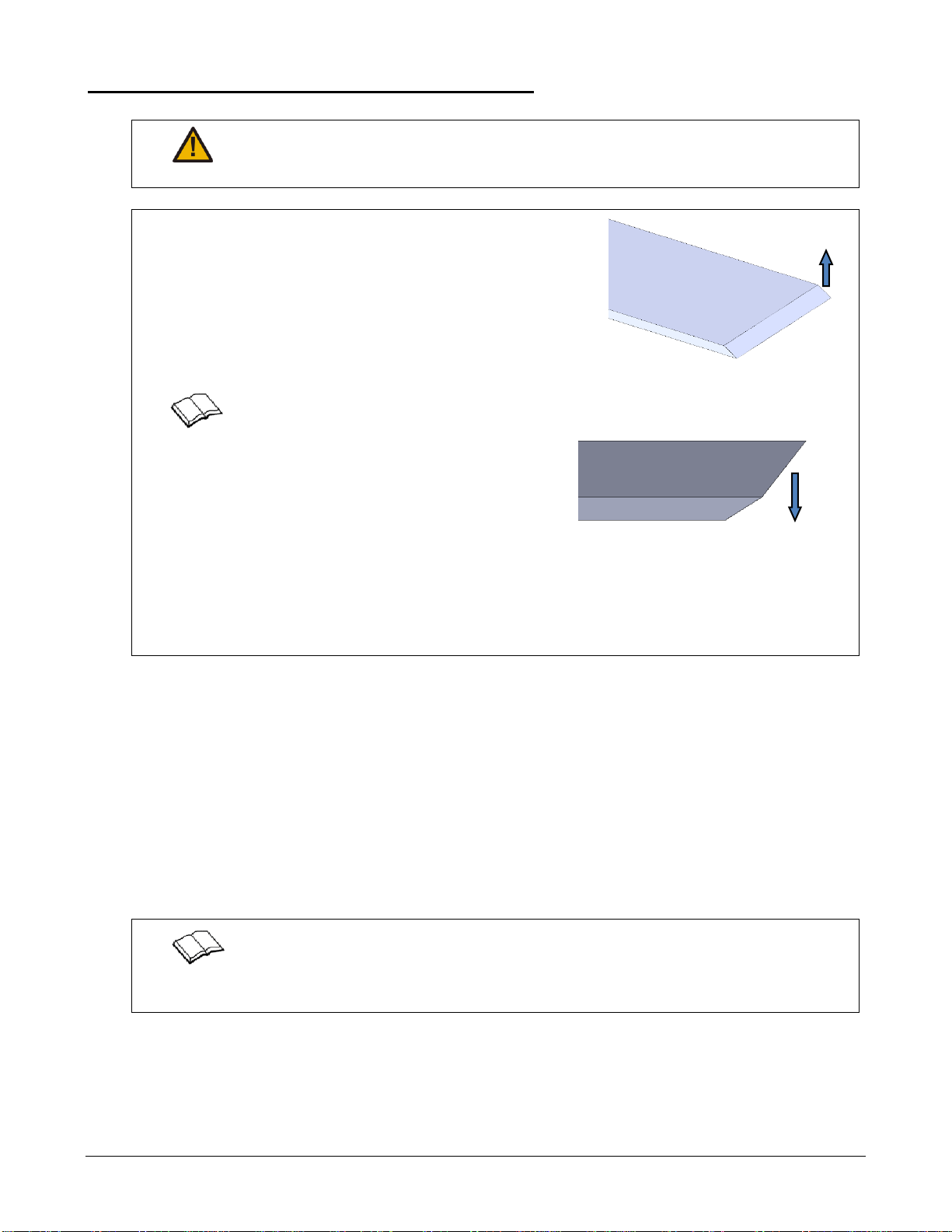

FOR CONCRETE FLOORS: Extend
the blade approximately 20mm (4/5in)
with the bevel facing up.
FOR TIMBER FLOORS:
Extend the blade approximately
50mm (2in) with the bevel facing the
floor.
If the blade has a tendency of
digging into the timber floor, extend
the blade further out.
Always run the blade with the grain of the wood to reduce gouging.
(However, some gouging will occur)
1. Preparation before using the Vinyl Stripper:
i. LINOLEUM / VINYL SHEET GOODS/ TILES –5” Blade. Pre-cut the flooring into
6” strips for ease of removal. Run the machine diagonally to the tile joints as it is
faster and easier.
ii. CARPET –5” Blade. Pre-cut the flooring into 6” strips for ease of removal. Cut
carpet every 16” for ease of removal. It is generally faster and easier to use two
people, one running the machine and the other removing the materials away from
the machine.
READ
CAREFULLY
If the blades have a tendency of riding over the material you are
removing, the blade may have become dull and require
replacing.

Floor Stripper –User Manual (Rev0919) Page 10 of 17
2. Installation of the blade: 5” Blade
WARNING
Ensure the machine is unplugged and tilt back onto the control
handles.
CAUTION
Ensure blade is securely placed in position and clamped tightly
3. Extend the blade to the required length.
4. Tighten the handles evenly while ensuring
the blade is straight.
1. Turn the handles to loosen the bottom
plate.
2. Slide the blade through the gap and in
between the two bolts until it hits the back
stop.

Floor Stripper –User Manual (Rev0919) Page 11 of 17
OPERATING THE MAKINEX VS-125/ VS-125-US VINYL STRIPPER
DANGER
Do not cut the power cord.
WARNING
Before turning the machine on, make sure it is clear from the walls,
humans, pets and other objects and obstructions.
1. Tilt the Vinyl Stripper is slightly upright where the stripping blade is off the floor surface.
2. Ensure the Vinyl Stripper is OFF then plugging the machine into a power outlet.
3. Maneuver the Vinyl Stripper to the starting position.
4. Switch ON the Vinyl Stripper.
5. Firmly grip both rubber handles during operation.
6. Lower the stripping blade to the target floor and push firmly to strip the flooring.
CAUTION
BRACE YOURSELF FOR A BACKWARD PUSH
7. Push the Vinyl Stripper a short distance at a time (1 to 2m/ 3 to 6ft) whilst only using 2/3
of the blade’s width.
8. Then take a step forward. It is much easier to push then step rather than push and walk
at the same time. The wheels are capable for backward actions and for increased mobility.
9. After an entire strip is cut, lift it off the floor.
10. Turn the machine off.
11. Walk back to the starting position and start again.
12. When approaching a wall, strip only up to the baseboard.
13. Once task is complete, tilt the Stripper back and turn off the Stripper.
CAUTION
Never lift the wheels off the ground while in operation as this can
cause serious gouging.

Floor Stripper –User Manual (Rev0919) Page 12 of 17
VINYL STRIPPER DOES NOT START
During operation, if the unit suddenly shuts down and does not start when it is ON, the
motor overloaded and the circuit breaker was tripped. To reset the circuit breaker, do the
following.
TRANSPORTING AND STORING
CAUTION
Follow all the steps below to ensure safety.
It is important to ensure the wheels are on the ground at all time during use, storage and
transportation via the wheels.
WARNING
Never transport the Vinyl Stripper with the blade installed as it can
damage the product and the blade
1. Remove blade before transporting and storing.
2. Remove/ lower the handle for storage and transportation.
3. Lay protective sheet on surface of the Vinyl Stripper during storage.
4. If lifting and lowering is required, take off the removable weight from the Vinyl Stripper.
CAUTION
Always lift the machine with two people or alternatively use a crane on
the lifting eye supplied.
Identify the Push Circuit Breaker
location, underneath the unit.
Push the red button in the hole.

Floor Stripper –User Manual (Rev0919) Page 13 of 17
MAINTENANCE
Each MAKINEX VS-125/ VS-125-US machine has been individually checked after
manufacture to the highest standard. However, it is important to follow the service
procedures before each use, in order to prolong the life of this product and protect the
warranty conditions that apply.
Refer to Appendix for further Service Procedures.
GENERAL SERVICING
Bearing Grease Replenishment
Before use, ensure there is enough grease on the bearing to avoid bearing failure. The
method to replenish the grease is as followed:
Equipment:
•Grease gun for zerk fittings
•Rag or towel
1. Lay the Vinyl Stripper on its back.
2. Locate the zerk fittings underneath the
Vinyl Stripper. (See image to the right)
3. Connect the grease gun to the fitting.
4. Pump the grease until it is squeezing out
of the edge of the fitting.
5. Clean off the squeezed-out grease from
the fitting.
WARNING
Use the recommended grease or grease with the same specification:
Castrol Premium Heavy Duty Grease
CAUTION
Try not to mix different grease as it can cause bearing failure

Floor Stripper –User Manual (Rev0919) Page 14 of 17
LIMITED ONE YEAR WARRANTY
A Limited One Year Warranty applies to MAKINEX VS-125/ VS-125-US only (excluding
attachments and consumables). In order to take advantage of the MAKINEX limited
warranty, you must have maintenance performed according to the schedule (contained in
relevant owner’s manual supplied with this product), by an authorised MAKINEX dealer
or MAKINEX service technician. You are free to have your MAKINEX product serviced by
any suitably qualified mechanic or electrician (depending on the mechanical or electrical
requirement) and this will not affect your statutory warranties, however, failure by the
owner to have the recommended servicing carried out by an authorised MAKINEX
dealer/service technician means that you cannot take advantage of the MAKINEX limited
warranty.
MAKINEX warrants each new Vinyl Stripper to be free from defects in material and
workmanship under normal domestic and industrial use and service for the period
specified below, conditional to the limitations and exclusions printed on this page. This
warranty applies only to new MAKINEX Vinyl Stripper distributed by us and by our
authorised MAKINEX dealers.
Under the limited warranty and at MAKINEX’s discretion, upon evaluation, inspection and
testing by a MAKINEX dealer or a MAKINEX service technician, MAKINEX will repair and
replace of defective part(s).
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Part
Warranty Provider
Time
MAKINEX VS-125
MAKINEX
1 year
MAKINEX VS-125-US
MAKINEX
1 year

Floor Stripper –User Manual (Rev0919) Page 15 of 17
WARRANTY EXCLUSIONS
This warranty does not cover the following repairs and equipment:
NORMAL WEAR
The Vinyl Stripper needs periodic service and genuine parts to perform well. This warranty
does not cover repair when normal use has exhausted the life of a consumable part for
example the oil filter and fuel filter.
INSTALLATION AND USE
This warranty will not apply to parts and/or labour if this unit is deemed to have been
misused, neglected, involved in an accident, abused, loaded beyond the generator’s limits,
modified and installed improperly.
OTHER EXCLUSIONS
This warranty excludes:
•Maintenance services cost.
•Expedited freight costs.
•Cosmetic damage such as paint, decals, etc.
•Problems caused by accidents, improper storage, handling and shipping.
•Accessory parts such as Vinyl Stripper blades.
•Failures due to acts of God and other force majeure events beyond the manufacturer’s
control.
•Problems caused by parts that are not from the original manufacturer.

Floor Stripper –User Manual (Rev0919) Page 16 of 17
OWNER’S RESPONSIBILITY UNDER LIMITED WARRANTY:
Strict adherence to the maintenance checks and with proof of scheduled maintenance
history is required by an authorised agent or qualified mechanic. It is the consumer’s
responsibility to deliver the machine in question to our service premises or to the premises
of our appointed agent at the consumer’s expense for replacement or repair as applicable.
Maintenance services are not covered under warranty.
Claim Procedure
•Contact MAKINEX by phone or email informing us of your machines problem or defect.
•Once the extent of the claim has been assessed, we retain the right to compensate the
consumer for such defect, or repair (parts & labour), or replace the machine under
warranty.
•All warranties will be carried out by MAKINEX authorised staff or appointed agents at a
premises to be determined by the Manufacturer.
•It is the responsibility (and cost) of MAKINEX or our appointed agent to return the
machine to be repaired or replaced under warranty to the consumer- this is valid for
domestic territories only (e.g. Australian units will be delivered within Australian territory,
USA units will be delivered within USA territory and European units will be delivered
within its designated country’s territories).
•Warranty calls will only be carried out by our representatives and not via client’s choice
of repairer. We will not accept back charges for any work not carried out by our
representatives, or accept any charges due to equipment being un-operational for any
reason even during its warranty period.

Floor Stripper –User Manual (Rev0919) Page 17 of 17
CONTACT INFORMATION
For sales, service, warranty and parts for all MAKINEX products; please refer below.
SALES, SERVICE, SPARE PARTS & WARRANTY
AUSTRALIA
SALES
TEL [phone] or
[phone]
WEB www.makinex.com.au
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
USA
SALES
TEL [phone]
WEB www.makinex.com
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
UK
WEB www.makinex.co.uk
EUROPE
TEL [phone] or
[phone]
EMAIL [email protected]
CHINA
TEL [phone]
EMAIL [email protected]
Or your nearest MAKINEX distributor
We have very knowledgeable, experienced staff to assist you with help and advice.
