INSTRUCTION MANUAL
Cordless Blower
XBU03
IMPORTANT:Read Before Using.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: XBU03
Capacities Air volume 0 - 13.0 m3/min (0 - 459 cu.ft./min)
Air speed (average) 0 - 43.2 m/s (0 - 96 MPH)
Air speed (max.) 0 - 52.1 m/s (0 - 116 MPH)
Overall length (with front nozzle) 825 mm (32-1/2″)
Rated voltage D.C. 18 V
Net weight 2.5 - 3.0 kg (5.4 - 6.7 lbs)
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may differ from country to country.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge, battery adapter and charger
Battery cartridge BL1815N / BL1820B / BL1830 / BL1830B / BL1840B / BL1850B / BL1860B
Battery adapter PDC01
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF
• Some of the battery cartridges, battery adapters and chargers listed above may not be available depending on
your region of residence.
• Before using battery adapter, read instruction and cautionary markings on the battery adapter.
WARNING: Only use the battery cartridges, battery adapters and chargers listed above. Use of any
other battery cartridges,battery adapters and chargers may cause injury and/or re.
SAFETY WARNINGS
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL
INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
WARNING - To reduce the
risk of re, electric shock,
or injury:
1. Do not leave appliance when battery tted.
Remove battery from appliance when not in
use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
4. Use only as described in this manual. Use only
manufacturer's recommended attachments.
5. Do not use with damaged battery. If appliance
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water,
return it to a service center.
6.
Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air ow.
7. Keep hair, loose clothing, ngers, and all parts
of body away from openings and moving parts.
8. Use extra care when cleaning on stairs.
9. Use only the charger supplied by the manufac-
turer to recharge.
SAVE THESE INSTRUCTIONS.
This appliance is intended for household use.
Cordless Blower Safety
Instructions
Preparation
1. Always wear substantial footwear and long
trousers while operating the blower.
2. Do not wear loose clothing or jewellery that
can be drawn into the air inlet. Keep long hair
away from the air inlets.

3ENGLISH
3. Always use protective goggles, a cap and
mask when using the blower. Ordinary eye or
sun glasses are NOT safety glasses.
4. To prevent dust irritation the wearing of a face
mask is recommended.
5. While operating the machine, always wear
non-slip and protective footwear. Non-skid,
closed-toed safety boots and shoes will reduce the
risk of injury.
Operation
1. Never operate the blower while people, espe-
cially children, or pets are nearby.
2. Switch off the blower and remove the battery
cartridge and make sure that all moving parts
have come to a complete stop
•whenever you leave the blower.
•before clearing blockages.
•before checking, cleaning or working on
the blower.
•if the blower starts to vibrate abnormally.
3. Operate the blower only in daylight or in good
articial light.
4. Do not overreach and keep proper balance and
footing at all times.
5. Never blow debris in the direction of
bystanders.
6. Operate the blower in a recommended position
and on a rm surface.
7. Do not operate the blower at high places.
8. Never point the nozzle at anyone in the vicinity
when using the blower.
9. Never block suction inlet and/or blower outlet.
•Be careful not to block suction inlet or
blower outlet with dust or dirt when oper-
ating in dusty area.
•Do not use nozzles other than the nozzles
provided by Makita.
•Do not use the blower to inate balls,
rubber boat or the similar.
10.
Do not operate the blower near open window, etc.
11. Operating the blower only at reasonable hours
is recommended - not early in the morning or
late at night when people might be disturbed.
12. Using rakes and brooms to loosen debris
before blowing is recommended.
13. If the blower strikes any foreign objects or
should start making any unusual noise or
vibration, immediately switch off the blower
to stop it. Remove the battery cartridge from
the blower and inspect the blower for damage
before restarting and operating the blower. If
the blower is damaged, ask Makita Authorized
Service Centers for repair.
14. Do not insert ngers or other objects into
suction inlet or blower outlet.
15. Prevent unintentional starting. Ensure the
switch is in the off-position before inserting
battery cartridge, picking up or carrying the
blower. Carrying the blower with your nger
on the switch or energizing the blower that has
the switch on invites accidents.
16. Never blow dangerous materials, such as
nails, fragments of glass, or blades.
17.
Do not operate the blower near ammable materials.
18. Avoid operating the blower for a long time in
low temperature environment.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure
the blower is in safe working condition.
2. If the parts are worn or damaged, replace them
with parts provided by Makita.
3. Store the blower in a dry place out of the reach
of children.
4. When you stop the blower for inspection, ser-
vicing, storage, or changing accessory, switch
off the blower and make sure that all moving
parts come to a complete stop, and remove the
battery cartridge. Cool down the blower before
making any work on the blower. Maintain the
blower with care and keep it clean.
5. Always cool down the blower before storing.
6. When you lift the blower, be sure to bend your
knees and be careful not to hurt your back.
Battery tool use and care
1. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
machine. Carrying the machine with your nger
on the switch or energizing machine that have the
switch on invites accidents.
2. Disconnect the battery pack from the machine
before making any adjustments, changing
accessories, or storing machine. Such preven-
tive safety measures reduce the risk of starting the
machine accidentally.
3. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
4. Use machines only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
6.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid con-
tacts eyes, seek medical help. Liquid ejected from
the battery may cause irritation or burns.
7. Do not use a battery pack or machine that is
damaged or modied. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
8. Do not expose a battery pack or machine to
re or excessive temperature. Exposure to re
or temperature above 130°C (265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or machine outside of
the temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside of the specied range may damage the
battery and increase the risk of re.

4ENGLISH
10. Have servicing performed by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the machine
or the battery pack except as indicated in the
instructions for use and care.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet
locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE
INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
WARNING: Use of this product can create
dust containing chemicals which may cause
respiratory or other illnesses. Some examples of
these chemicals are compounds found in pesti-
cides, insecticides, fertilizers and herbicides.
Your risk from these exposures varies, depend-
ing on how often you do this type of work. To
reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved
safety equipment, such as those dust masks that
are specially designed to lter out microscopic
particles.
Symbols
The followings show the symbols used for tool.
volts
direct current
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.

5ENGLISH
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
CAUTION: Always be sure that the machine is
switched off and the battery cartridge is removed
before carrying out any work on the machine.
Installing the front nozzle
1. Loosen 2 screws with the hex wrench, and then
pull the screws all the way.
1
1
► 1. Screw
2. Make sure that the Makita logo on the front nozzle
is facing the direction shown in the gure, and then
attach the front nozzle to the machine.
1
► 1. Front nozzle
3. Tighten the screws with the hex wrench.
1
1
► 1. Screw
Installing the at nozzle or
extension nozzle
Optional accessory
1. Attach the adapter pipe to the front nozzle, and
then turn it clockwise to lock it into place.
1
2
► 1. Adapter pipe 2. Front nozzle

6ENGLISH

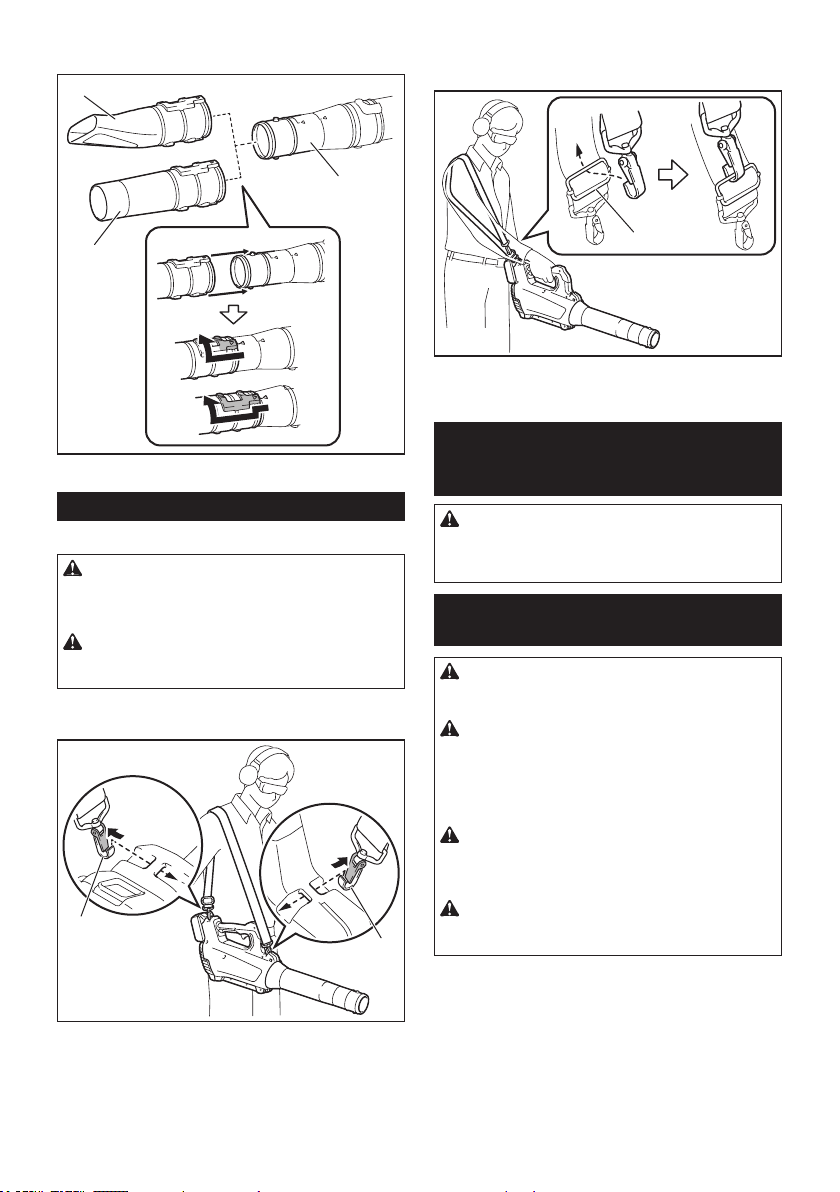

2. Attach the at nozzle or extension nozzle to the
adapter pipe, and then turn it to lock it into place.
3
1
2
► 1. Flat nozzle 2. Extension nozzle 3. Adapter pipe
Attaching the shoulder strap
Optional accessory
CAUTION: Be sure to attach the hooks of
the shoulder strap to the machine securely. If the
hooks are attached incompletely, they may come off
and cause an injury.
CAUTION: Be sure to use the shoulder strap
dedicated to this machine. Using other shoulder
strap may cause an injury.
Attach the hooks of the shoulder strap to the machine
as shown in the gure.
1
1
► 1. Hook
You can also attach the shoulder strap to the machine
as shown in the gure by attaching one end of the
shoulder strap to the buckle of the shoulder strap.
1
► 1. Buckle
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the machine is
switched off and the battery cartridge is removed
before adjusting or checking function on the
machine.
Installing or removing battery
cartridge
CAUTION: Always switch off the machine
before installing or removing of the battery
cartridge.
CAUTION: Hold the machine and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the machine and the
battery cartridge rmly may cause them to slip off
your hands and result in damage to the machine and
battery cartridge and a personal injury.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the machine, causing
injury to you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.

7ENGLISH
1
2
3
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the machine
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the battery car-
tridge with the groove in the housing and slip it into place. Insert it all
the way until it locks in place with a little click. If you can see the red
indicator on the upper side of the button, it is not locked completely.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indicate the remain-
ing battery capacity. The indicator lamps light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Machine/battery protection system
The machine is equipped with a machine/battery
protection system. This system automatically cuts off
power to the motor to extend machine and battery life.
The machine will automatically stop during operation if
the machine or battery is placed under one of the fol-
lowing conditions:
Overload protection
When the machine or battery is operated in a manner
that causes it to draw an abnormally high current, the
machine automatically stops without any indication. In
this situation, turn the machine off and stop the appli-
cation that caused the machine to become overloaded.
Then turn the machine on to restart.
Overheat protection
When the machine or battery is overheated, the
machine stops automatically. In this case, let the
machine and battery cool before turning the machine
on again.
Overdischarge protection
When the battery capacity is not enough, the machine
stops automatically. In this case, remove the battery
from the machine and charge the battery.
Switch action
WARNING: Before installing the battery car-
tridge into the machine, always check to see that
the switch trigger actuates properly and returns
to the "OFF" position when released.
1
► 1. Switch trigger
To start the machine, simply pull the switch trigger. The
speed increases by increasing pressure on the switch
trigger. Release the switch trigger to stop.

8ENGLISH

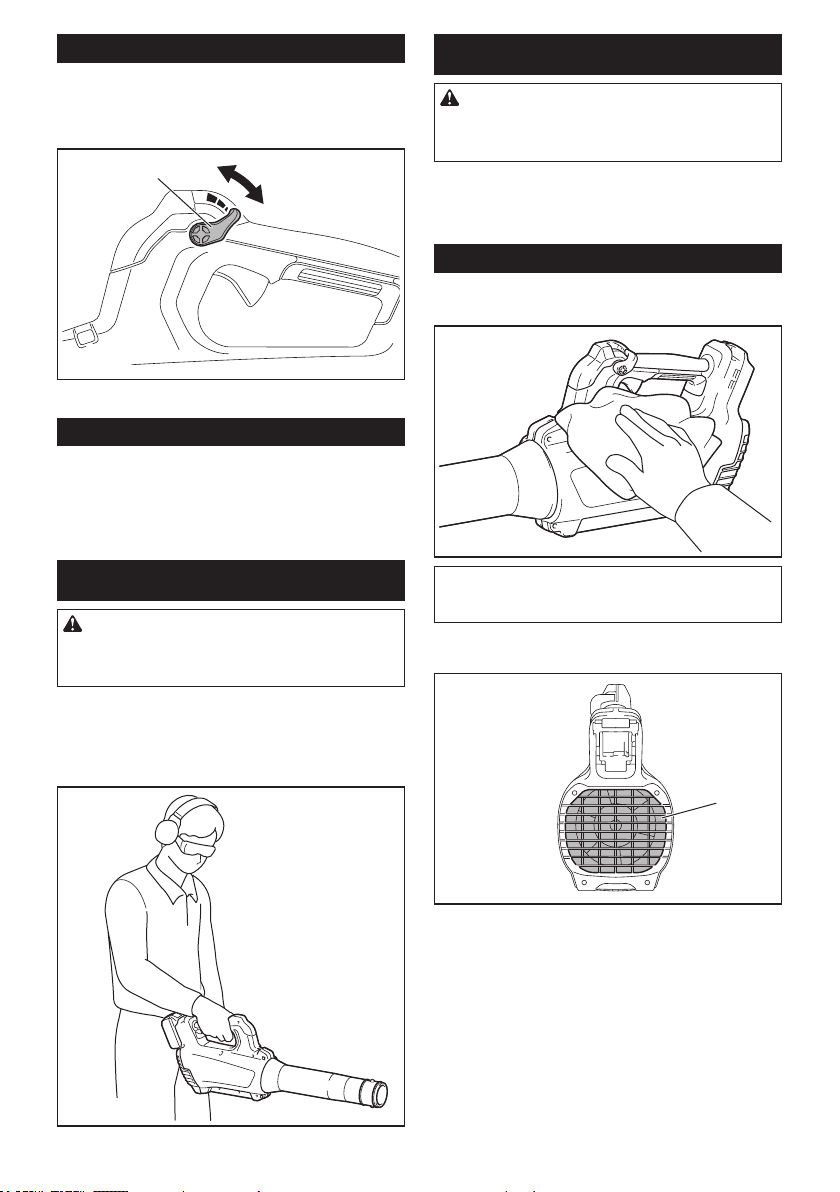

Cruise control function
The cruise control function allows the operator to main-
tain a constant speed without pulling the trigger. To
increase the speed, turn the control lever forward. To
decrease the speed, turn the control lever backward.
1
► 1. Control lever
Accidental re-start preventive function
Even if you install the battery cartridge while pulling the
switch trigger, the machine does not start. To start the
machine, rst release the switch trigger or return the
control lever fully, and then pull the switch trigger.
OPERATION
CAUTION: Do not place the machine on the
ground while it is switched on. Sand or dust may
enter from suction inlet and cause a malfunction or
personal injury.
Hold the machine rmly with a hand and perform the
blowing operation by moving it around slowly. When blow-
ing around building, big stone or vehicle, direct the nozzle
away from them. When performing an operation in a
corner, start from the corner and then move to wide area.
MAINTENANCE
CAUTION: Always be sure that the machine is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Cleaning the machine
Clean the machine by wiping off dust with a dry cloth or
one dipped in soapy water and wrung out.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Remove dust or dirt from the suction inlet at the rear of
the machine.
1
► 1. Suction inlet

9ENGLISH
Storage
The hook hole on the bottom of the machine is conve-
nient for hanging the machine from a nail or screw on
the wall. Store the machine in a place out of the reach
of children and not exposed to moisture or rain.
1
► 1. Hole
TROUBLESHOOTING
Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the man-
ual, do not attempt to dismantle the machine. Instead, ask Makita Authorized Service Centers, always using Makita
replacement parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
Motor does not run. Battery cartridge is not installed. Install the battery cartridge.
Battery problem (under voltage) Recharge the battery. If recharging is not effective,
replace battery.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Motor stops running after a little use. Battery's charge level is low. Recharge the battery. If recharging is not effective,
replace battery.
Overheating. Stop using the machine to allow it to cool down.
The machine does not reach the
maximum speed.
Battery is installed improperly. Install the battery cartridge as described in this
manual.
Battery power is dropping. Recharge the battery. If recharging is not effective,
replace battery.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Abnormal vibration:
stop the machine immediately!
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Motor cannot stop:
Remove the battery immediately!
Electric or electronic malfunction. Remove the battery and ask your local authorized
service center for repair.

OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita prod-
uct specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Adapter pipe
• Extension nozzle
• Flat nozzle
• Shoulder strap
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
product package as standard accessories. They may
differ from country to country.
Learn more about outdoor tools and equipment we have.
