INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Cordless Driver Drill
MODEL 6017D
MODEL 6018D
MODEL 6019D
002030

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
Symbols END001-1
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
..................Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use
The tool is intended for drilling and screw driving in
wood, metal and plastic.
For European countries only
Noise and Vibration
The typical A-weighted sound pressure level is not more
than 70 dB (A).
The noise level under working may exceed 85 dB (A).
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
These values have been obtained according to
EN60745.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents, EN60745, EN55014 in accordance
with Council Directives, 89/336/EEC, 98/37/EC.
Yasuhiko Kanzaki CE 2005
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Responsible manufacturer:
Makita Corporation Anjo Aichi Japan
Model 6017D 6018D 6019D
Capacities
Steel 10 mm
Wood 15 mm
Wood screw 5.1 mm x 35 mm
Machine screw --- --- 6 mm
No load speed (min-1)
High 600 0 - 600 0 - 600
Low 200 0 - 200 0 - 200
Overall length 251 mm 251 mm
Net weight 1.0 kg 1.1 kg 1.1 kg
Rated voltage D.C. 7.2 V

3
GENERAL SAFETY RULES GEA002-3
WARNING:
Read all instructions. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term “power tool” in all of the
warnings listed below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Work area safety
1. Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
2. Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
9. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
10. Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal inju-
ries.
11. Avoid accidental starting. Ensure the switch is
in the off-position before plugging in. Carrying
power tools with your finger on the switch or plug-
ging in power tools that have the switch on invites
accidents.
12. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
13. Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
14. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
15. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Power tool use and care
16. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
17. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
18. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
19. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.

4
20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
21. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
22. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working con-
ditions and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Battery tool use and care
23. Ensure the switch is in the off position before
inserting battery pack. Inserting the battery pack
into power tools that have the switch on invites acci-
dents.
24. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
25. Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
26. When battery pack is not in use, keep it away
from other metal objects like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a fire.
27. Under abusive conditions, liquid may be ejected
from the battery, avoid contact. If contact acci-
dentally occurs, flush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
Service
28. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
29. Follow instruction for lubricating and changing
accessories.
30. Keep handles dry, clean and free from oil and
grease.
SPECIFIC SAFETY RULES GEB002-2
DO NOT let comfort or familiarity with product (gained from repeated use)
replace strict adherence to drill safety rules. If you use this power tool
unsafely or incorrectly, you can suffer serious personal injury.
1. Hold power tools by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed metal
parts of the tool “live” and shock the operator.
2. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not leave the tool running. Operate the tool
only when hand-held.
6. Do not touch the drill bit or the workpiece imme-
diately after operation; they may be extremely
hot and could burn your skin.
7. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhalation
and skin contact. Follow material supplier safety
data.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this instruction manual
may cause serious personal injury.

5
IMPORTANT SAFETY INSTRUCTIONS FOR
BATTERY CARTRIDGE ENC004-1
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using bat-
tery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Always cover the battery terminals with the bat-
tery cover when the battery cartridge is not
used.
6. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water or
rain.
A battery short can cause a large current flow,
overheating, possible burns and even a break-
down.
7. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50°C (122°F).
8. Do not incinerate the battery cartridge even if it
is severely damaged or is completely worn out.
The battery cartridge can explode in a fire.
9. Be careful not to drop or strike battery.
SAVE THESE INSTRUCTIONS
Tips for maintaining maximum battery life
1. Charge the battery cartridge before completely
discharged.
Always stop tool operation and charge the bat-
tery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tempera-
ture at 10°C - 40°C (50°F - 104°F). Let a hot bat-
tery cartridge cool down before charging it.
4. Charge the Nickel Metal Hydride battery car-
tridge when you do not use it for more than six
months.

6
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and the battery cartridge is
removed before adjusting or checking function on the tool.
Installing or removing battery cartridge
• Always switch off the tool before insertion or removal of the battery
cartridge.
• To remove the battery cartridge, pull out the set plate on the tool and
grasp both sides of the cartridge while withdrawing it from the tool.
• To insert the battery cartridge, align the tongue on the battery cartridge
with the groove in the housing and slip it into place. Snap the set plate
back into place. Be sure to close the set plate fully before using the tool
to prevent the battery cartridge from accidentally falling out of the tool.
• Do not use force when inserting the battery cartridge. If the cartridge
does not slide in easily, it is not being inserted correctly.
Switch action
CAUTION:
• Before inserting the battery cartridge into the tool, always check to see
that the switch trigger actuates properly and returns to the “OFF” position
when released.
To start the tool, simply pull the switch trigger. Tool speed is increased by
increasing pressure on the switch trigger. Release the switch trigger to stop.
Reversing switch action
This tool has a reversing switch to change the direction of rotation. Move the
reversing switch lever to the A side for clockwise rotation or the B side for
counterclockwise rotation.
When the reversing switch lever is in the neutral position, the switch trigger
cannot be pulled.
CAUTION:
• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop.
Changing the direction of rotation before the tool stops may damage the
tool.
• When not operating the tool, always set the reversing switch lever to the
neutral position.
1. Set plate
2. Battery cartridge
1
2
002045
1. Switch trigger
1
002863
1. Reversing switch lever
2. Switch trigger
1
2
BA
002071

7
Speed change
To change the speed, first switch off the tool and then slide the speed change
lever to the “II”side for high speed or “I”side for low speed. Be sure that the
speed change lever is set to the correct position before operation. Use the
right speed for your job.
CAUTION:
•Always set the speed change lever fully to the correct position. If you
operate the tool with the speed change lever positioned halfway between
the “I”side and “II”side, the tool may be damaged.
•Always make sure that the gear is engaged properly by running the tool
under no load after sliding the speed change lever to the desired speed
position. If you operate the tool with the gear engaged improperly, the
tool may be damaged.
•Do not use the speed change lever while the tool is running. The tool
may be damaged.
Adjusting the fastening torque
For model 6019D only
The fastening torque can be adjusted in 6 steps by turning the adjusting ring
so that its graduations are aligned with the pointer on the tool body. The fas-
tening torque is minimum when the number 1 is aligned with the pointer, and
maximum when the marking is aligned with the pointer.
The clutch will slip at various torque levels when set at the number 1 to 5. The
clutch is designed not to slip at the marking.
Before actual operation, drive a trial screw into your material or a piece of
duplicate material to determine which torque level is required for a particular
application.
NOTE:
•The adjusting ring does not lock when the pointer is positioned only
halfway between the graduations.
•Do not operate the tool with the adjusting ring set between the number 5
and the marking. The tool may be damaged.
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and the battery cartridge is
removed before carrying out any work on the tool.
Installing or removing driver bit or drill bit
Hold the ring and turn the sleeve counterclockwise to open the chuck jaws.
Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the
sleeve clockwise to tighten the chuck.
To remove the bit, hold the ring and turn the sleeve counterclockwise.
When not using the driver bit, keep it in the bit holders. Bits 45 mm long can be
kept there.
1. Low speed
2. High speed
3. Speed change lever
12
3
002092
1. Pointer
2. Weak
3. Strong
4. Torque adjusting ring
1
2
34
002099
1. Tighten
2. Sleeve
3. Ring
12
3
002111

8
OPERATION Screwdriving operation
For model 6017D/6018D
Place the point of the driver bit in the screw head and apply pressure to the
tool. Start the tool. Release the trigger just as the screw bottoms out. If the trig-
ger is not released, the screw may strip out the hole or the screw and/or bit
may be damaged.
For model 6019D
Place the point of the driver bit in the screw head and apply pressure to the
tool. Start the tool slowly and then increase the speed gradually. Release the
switch trigger as soon as the clutch cuts in.
CAUTION:
•Make sure that the driver bit is inserted straight in the screw head, or the
screw and/or bit may be damaged.
NOTE:
•When driving wood screws, predrill pilot holes to make driving easier and
to prevent splitting of the workpiece. See the chart.
Drilling operation
First, turn the adjusting ring so that the pointer points to the marking
(6019D). Then proceed as follows.
Drilling in wood
When drilling in wood, the best results are obtained with wood drills equipped
with a guide screw. The guide screw makes drilling easier by pulling the bit into
the workpiece.
Drilling in metal
To prevent the bit from slipping when starting a hole, make an indentation with
a center-punch and hammer at the point to be drilled. Place the point of the bit
in the indentation and start drilling.
Use a cutting lubricant when drilling metals. The exceptions are iron and brass
which should be drilled dry.
CAUTION:
•Pressing excessively on the tool will not speed up the drilling. In fact, this
excessive pressure will only serve to damage the tip of your bit, decrease
the tool performance and shorten the service life of the tool.
•There is a tremendous force exerted on the tool/bit at the time of hole
break through. Hold the tool firmly and exert care when the bit begins to
break through the workpiece.
•A stuck bit can be removed simply by setting the reversing switch to
reverse rotation in order to back out. However, the tool may back out
abruptly if you do not hold it firmly.
•Always secure small workpieces in a vise or similar hold-down device.
Nominal diameter of wood screw
(mm)
Recommended size of pilot hole
(mm)
3.1 2.0 - 2.2
3.5 2.2 - 2.5
3.8 2.5 - 2.8
4.5 2.9 - 3.2
4.8 3.1 - 3.4
5.1 3.3 - 3.6
006419
002137

9
•If the tool is operated continuously until the battery cartridge has
discharged, allow the tool to rest for 15 minutes before proceeding with a
fresh battery.
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and the battery cartridge is
removed before attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.
•Drill bits
•Screw bits
•Various type of Makita genuine batteries and
chargers
•Set plate

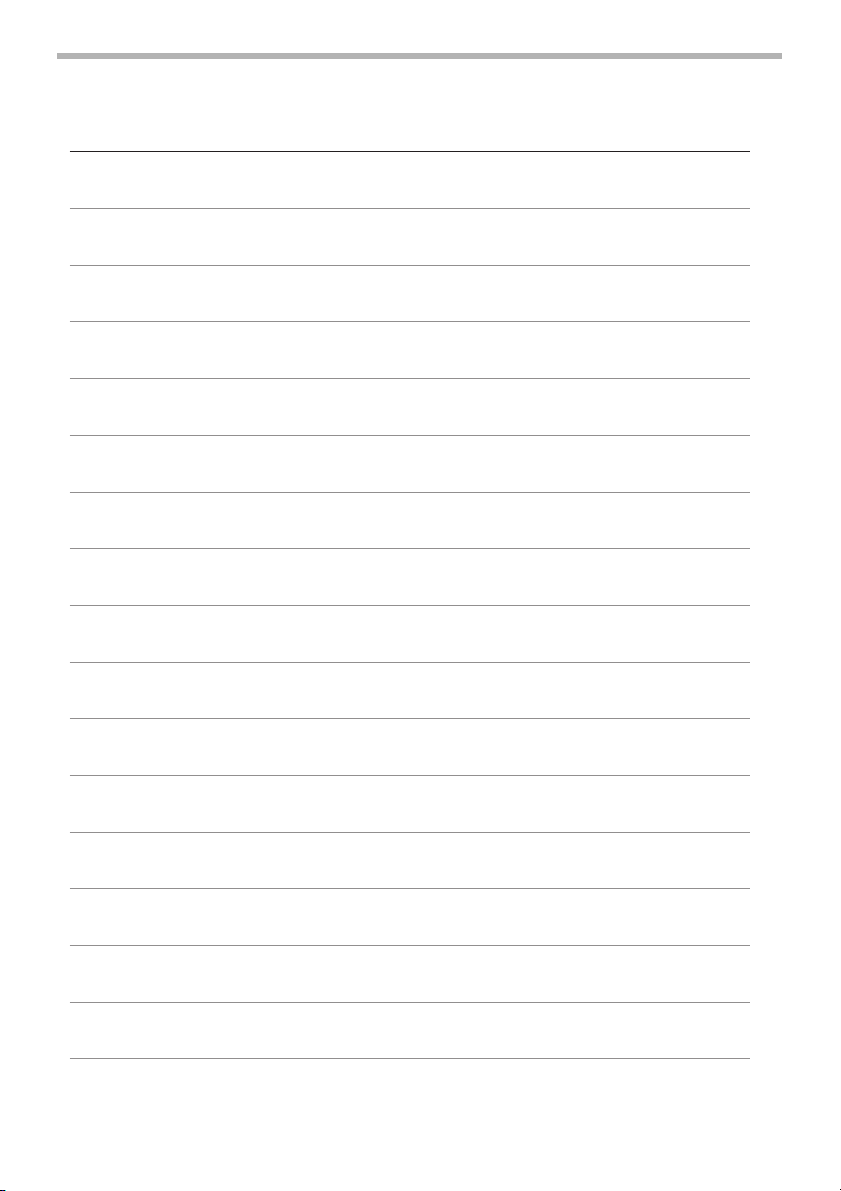

Memo
10

Memo
11

Makita Corporation Anjo, Aichi, Japan
884061B222
