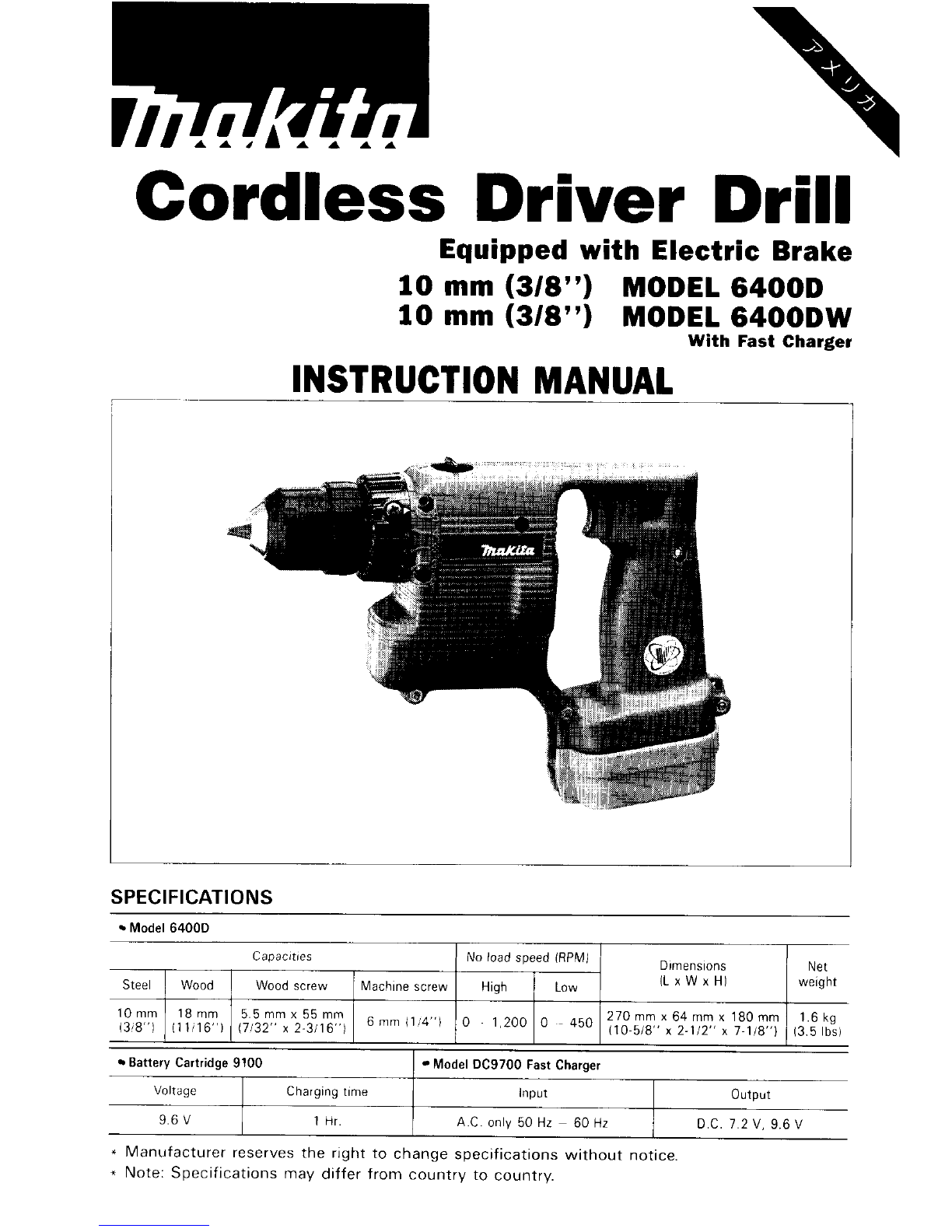

Makita 6400D User manual

Cordless Driver Drill
Capacities
Steel Wood Wood screw Machine screw
10" 18" 55mmx55mm
1388") (11/16"1 (7132"
x 2-3/16") ('""'
Equipped with Electric Brake
10 mm (3/8") MODEL 6400D
10 mm (3/8") MODEL 6400DW
With Fast Charger
Dimensions Net
No load speed
IRPM)
High Low IL x W x HI weight
1,200 ~ 450 270 mm x 64 mm x 180 mm 1 6 kg
110-518" x 2-112" x 7~118")
13.5 lbsi
INSTRUCTION MANUAL
Battery Cartridge 9100
Voltage Charging time
96V 1 Hr
SPEC IF I CAT1 0 N S
Model DC9700 Fast Charger
Input output
A C only 50 Hr ~ 60 Hr
D.C. 7 2 V, 9.6 V
Model 6400D

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRICTOOLS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS
BE FOLLOWEDTO REDUCE
THE RISK
OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don’t use power tools in damp
or wet locations. Keepwork area well
lit. Don’t expose power tools torain.
Don‘t use tool
in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don‘t let visitors contact tool or extension cord.
4. STORE IDLETOOLS. When not in use, tools should be stored in dry, and high
or locked-up place - out of reach of children.
5. DON‘T FORCETOOL. It will dothejob better andsafer atthe rate for which
it was intended.
6. USE RIGHT TOOL. Don’t force small tool or attachmentto do the job of a
heavy-duty tool. Don’t use tool for purpose not intended.
7. DRESS PROPERLY. Don‘t wear looseclothingor jewelry. They can becaught
in moving parts. Rubber gloves and nonskid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON’T ABUSE CORD. Never carry toolby cord or yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It’s safer than using
your hand and
it frees both hands to operate tool.
11. DON’T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttoolcords periodically andifdamaged, have repaired by autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from
oil and grease.
13. DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

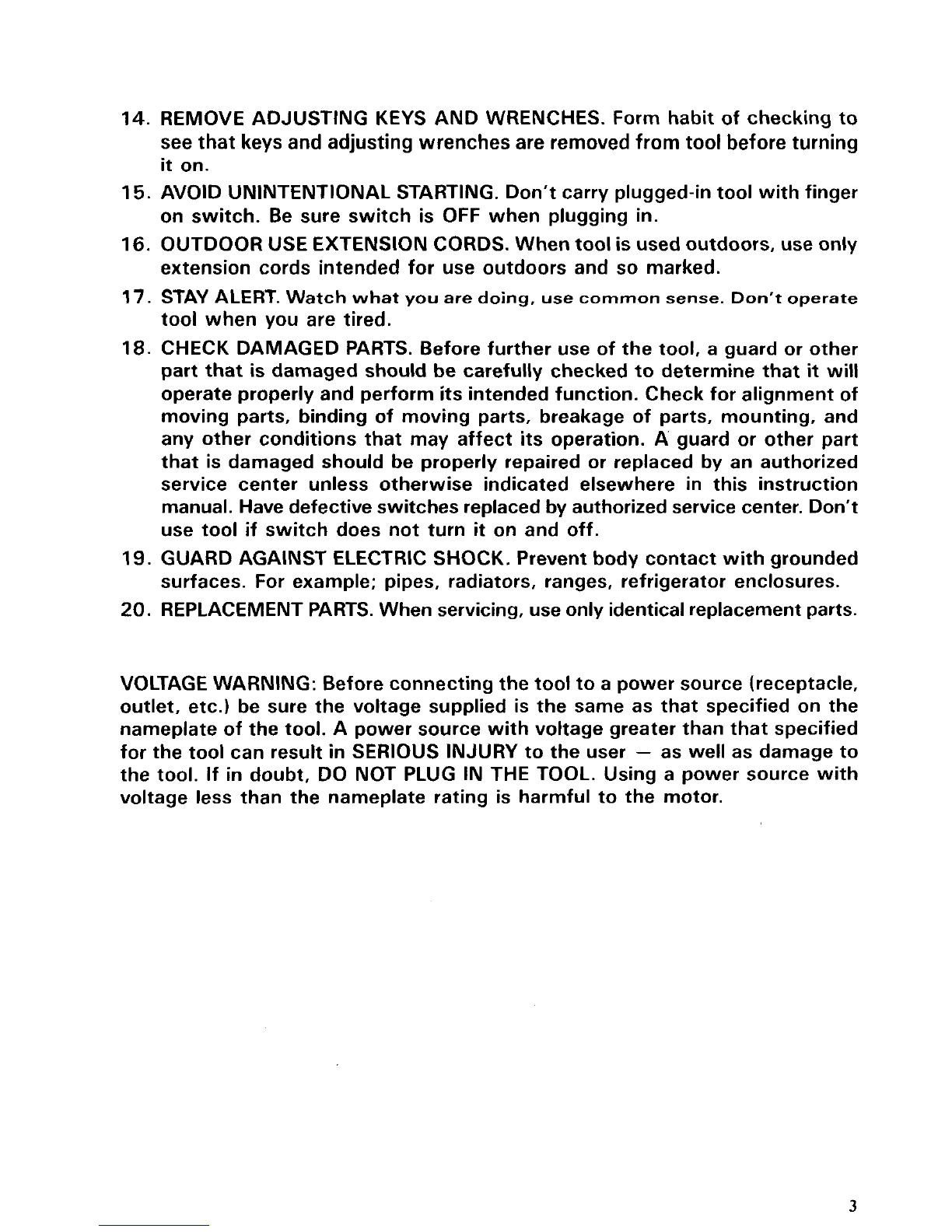

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfromtool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool with finger
on switch. Be sure switch is
OFF when plugging in.
16. OUTDOOR USEEXTENSION CORDS. Whentoolisusedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that
is damaged should be carefully checked to determine that it will
operate properly and perform itsintended function. Check for alignment of
moving parts,
binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replaced by authorized service center. Don‘t
use tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Preventbody contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Beforeconnecting the
tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source
with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet) 25 50
AWG Size of Cord 18 18
1. SAVE THESE INSTRUCTIONS - This manual
100 150
18 16
4

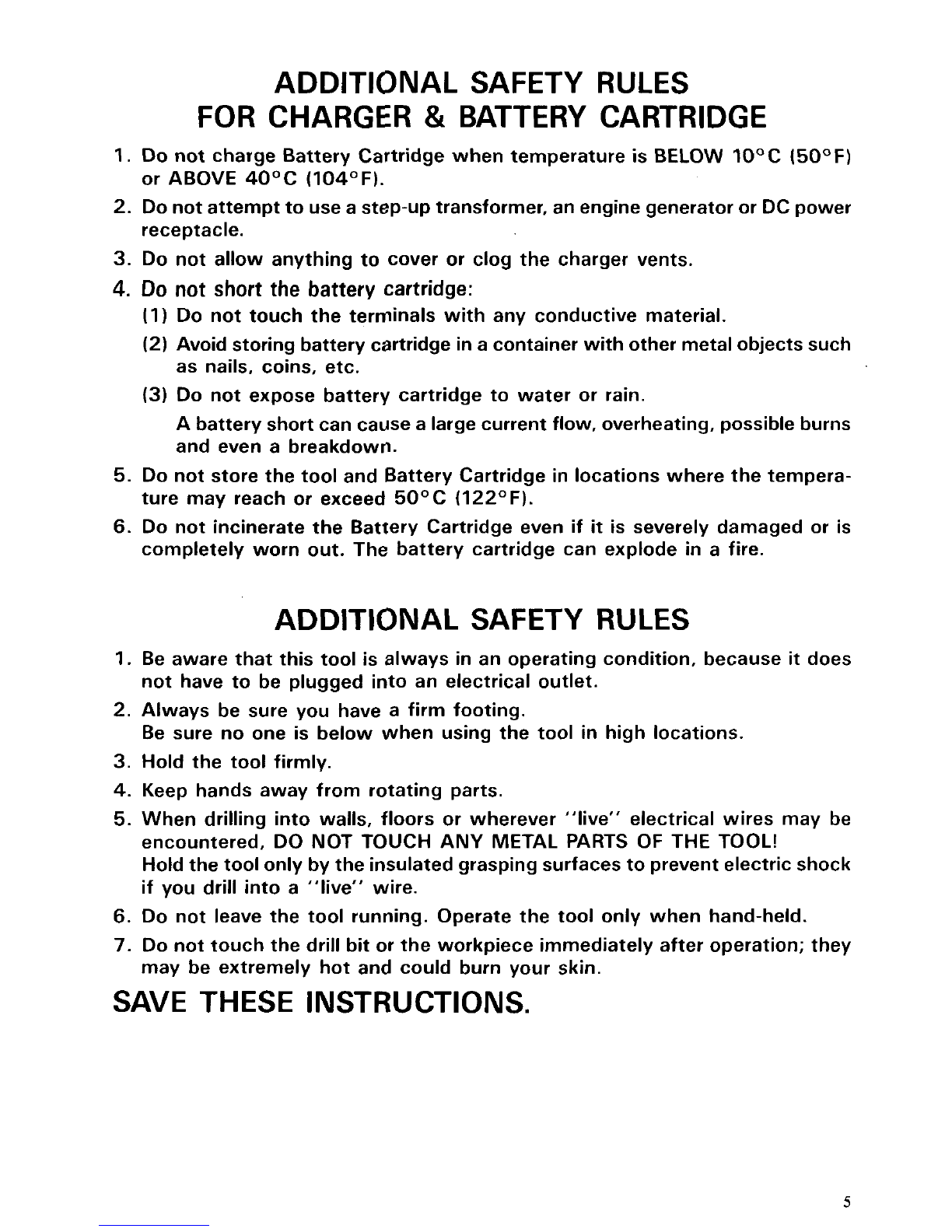

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do notattempt tousea step-uptransformer, anengine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Do not short the battery cartridge:
or ABOVE 4OoC (104OF).
receptacle.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A batteryshort can causea large current flow, overheating, possible burns
and even a breakdown.
5.
Do not store the tool and Battery Cartridge in locations where the tempera-
6. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthe toolonly by the insulatedgrasping surfaces toprevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool
in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bitor the workpiece immediately after operation; they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

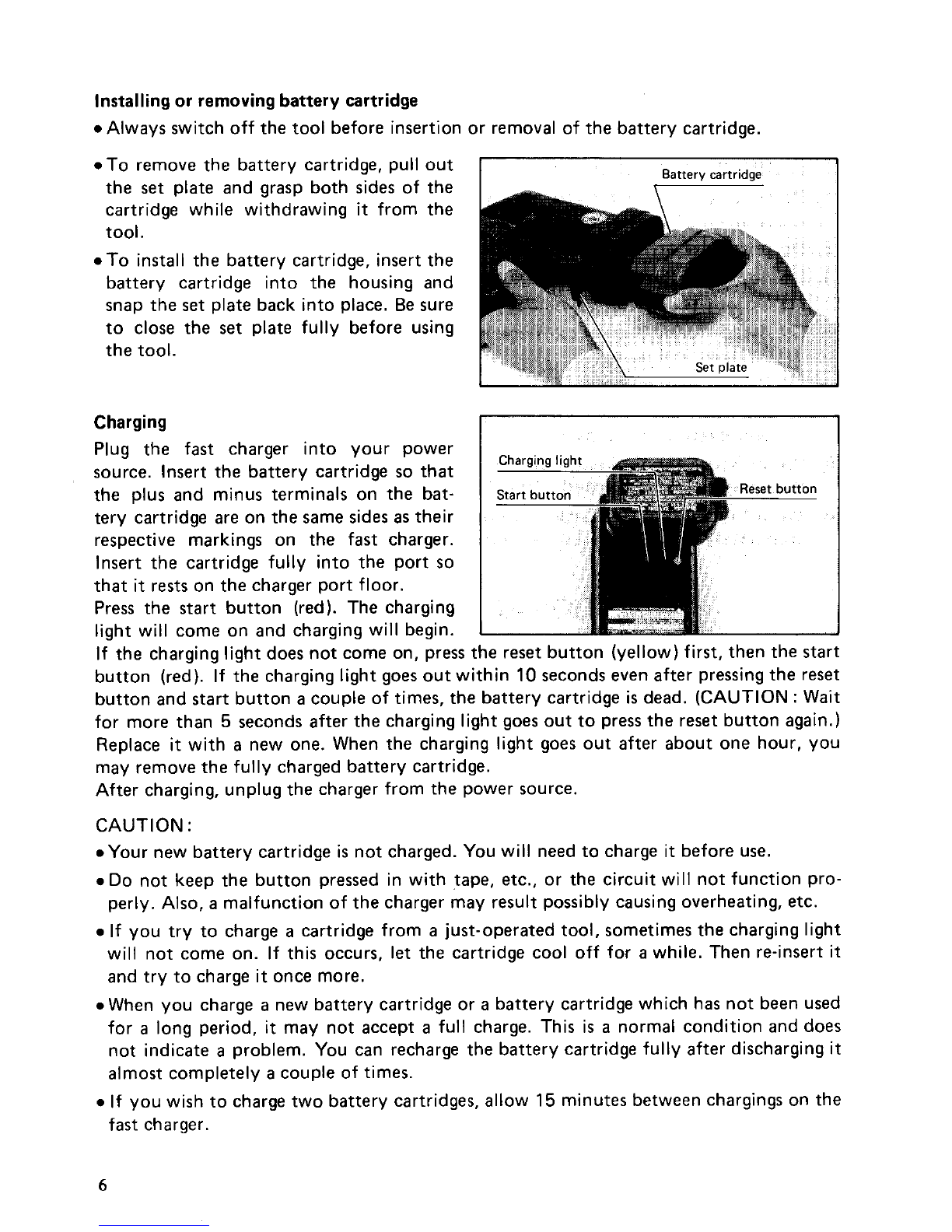

Installingor removing battery cartridge
0 Always switch off the tool before insertion or removal of the battery cartridge.
0 To remove the battery cartridge, pull out
the
set plate and grasp both sides of the
cartridge while withdrawing
it from the
tool.
0 To install the battery cartridge, insert the
battery cartridge into the housing and
snap the
set plate back into place. Be sure
to close the
set plate fully before using
the tool.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger port floor.
Press the start button (red). The charging
liqht will come on and charging will begin.
Battery cartridge
1 Reset button
--
lfthe charginglight does not come on, press the reset button (yellow)first, then the start
button (red). If the charginglight goes outwithin
10 seconds even after pressing the reset
buttonand start button
a couple of times, the battery cartridge is dead. (CAUTION : Wait
for more than 5 seconds after the charginglight goes out to press the reset buttonagain.)
Replace
it with a new one. When the charging light goes out after about one hour, you
may remove the fully charged battery cartridge.
After charging, unplug the charger from the power source.
CAUTION
:
*Your new battery cartridge is not charged. You will need to charge it before use.
0 Do not keep the button pressed in with tape, etc., or the circuit will not function pro-
perly. Also,
a malfunction of the charger may result possibly causingoverheating, etc.
0 If you try to charge a cartridge from a just-operated tool, sometimes the charging light
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert it
and try to charge itonce more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridge fully after discharging it
almost completely a couple of times.
0 If youwish to charge two battery cartridges, allow 15 minutes betweenchargings on the
fast charger.
6

Installing or removing driver bit or drill bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removing the bit.
Hold the ring and turn the
sleeve counter-
clockwise to open the chuck jaws. Place
the
bit in the chuck as far as it will go.
Hold the ring firmly and turn the sleeve
clockwise to tighten the chuck.
To remove the bit, hold the ring and turn
the
sleeve counterclockwise.
Sleeve
7
Switch action
Tool speed is increased by increasing pres-
Trigger switch
CAUTION :
Before inserting the battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returns to the
"OFF" position when released.
Overload protector
The overload protector automatically cuts
out to break the circuit and the button
pops out, whenever heavy work
is pro-
longed.
Wait 20-30 seconds before press-
ing the restart button to resume operation.
Your finger should not be on the trigger
when you press the restart button, how-
ever.

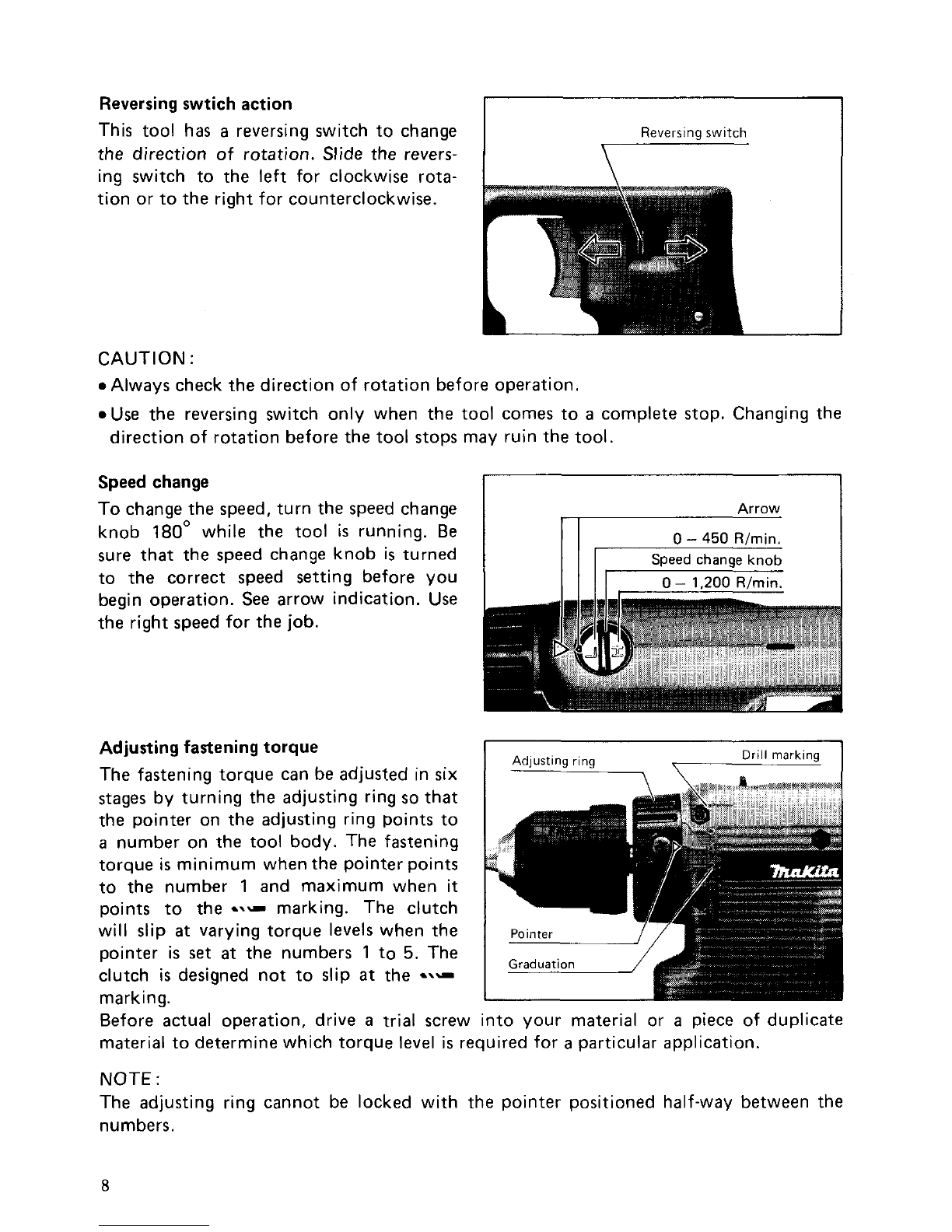

Reversing swtich action
This tool has
a reversing switch to change
the direction of rotation. Slide the revers-
ing switch to the left for clockwise rota-
tion or tothe right for counterclockwise.
Reversing switch
CAUTION :
0 Always check the direction of rotation before operation.
*Use the reversing switch only when the tool comes to
a complete stop. Changing the
direction of rotation before the tool stops may ruin the tool.
Speed change
To change the speed, turn the speed change
knob
180' while the tool is running. Be
sure that the speed change knob
is turned
to the correct speed setting before you
begin operation. See arrow indication. Use
the right speed for the
job.
Adjusting fastening torque
The fastening torque can be adjusted in six
stages by turning the adjusting ring so that
the pointer on the adjusting ring points to
a number on the tool body. The fastening
torque
is minimum whenthe pointer points
to the number
1 and maximum when it
points to the
at- marking. The clutch
will slip
at varying torque levels when the
pointer
is set at the numbers 1 to 5. The
clutch
is designed not to slip at the -\-
marking.
Arrow
0 - 450 Rlmin.
0 - 1,200 R/min.
I
Drill marking
I
Adjusting ring
-
Before actual operation, drive a trial screw into your material or a piece of duplicate
material todetermine which torque level
is required for a particular application.
NOTE
:
The adjusting ring cannot be locked with the pointer positioned half-way between the
numbers.
8

Screwdriving operation
Place the point of the driver bit in the
screw head and apply pressure to the tool.
Start the tool slowly and then increase the
speed gradually.
Release the trigger as soon
as the clutch cuts in.
4 8 13116"l
5 1 113164"l
5 5 (7'32")
NOTE :
Make sure that the driver bit is inserted straight in the screw head, or the screw and/or
bit may be damaged.
When driving wood screws, predrill Pilot
Nominal diameter of Recommended size
holes to make driving easier and to pre- wood 1"' of pilot hole lmmi
vent splitting of the workpiece. See the
chart.
3 111'8'')
3 5 19\64"1 2 5 13/32" ~ 3\32',)
3 8 15/32") 2 5 2.8 13/32" 7/64"]
4 5 111164"1 2 9 ~ 3.2 17/64" 118")
3 1 ~ 3 4 1118'' ~ 9/64"]
3.3 ~ 3.6 1118" ~~ 9/64"]
3 7 ~ 3 9 19/64"
5132")
Drilling operation
Drilling in wood
When drilling in wood, best results are obtained with wood drills equipped with
a guide
screw. The guide screw makes drilling easier by pulling the bit into the workpiece.
Drilling in metal
To prevent the bit from slipping when starting
a hole, make an indentation with a
centerpunch and hammer at the point to be drilled. Place the point of the bit in the
indentation and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
CAUTION
:
*Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure will
only serve to damage the tip of your bit, decrease the tool performance
and shorten the service life of the tool.
.There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
.A stuck bit can be removed simply by setting the reversingswitch to reverse rotation in
order to back out. However,the tool may back out abruptly if
you do not hold itfirmly.
Always secure small workpieces in a vise or similar hold-downdevice.
9

MA1NTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removedbefore
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELlABl LITY, repairs, maintenance or adjustment
should be performed
by Makita Authorized or Factory Service Centers, always using
Makita replacementparts.
10

ACCESSOR I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachmentsshould be used only in the proper and intended manner,
Bits
Rubber pad assembly
Part No. 123001-2
$r C .I
Foam polishing pad
Part No 743023-2
Fast charger
Model
DC9700
12 V Fast charger
Model
DC9012
Battery cartridge 9100
Part No. 192019-4
Wool bonnet 100
Part No. 743401-6
Plastic carrying case
Part
No. 182340.9
11

Dec -17-'90 EN

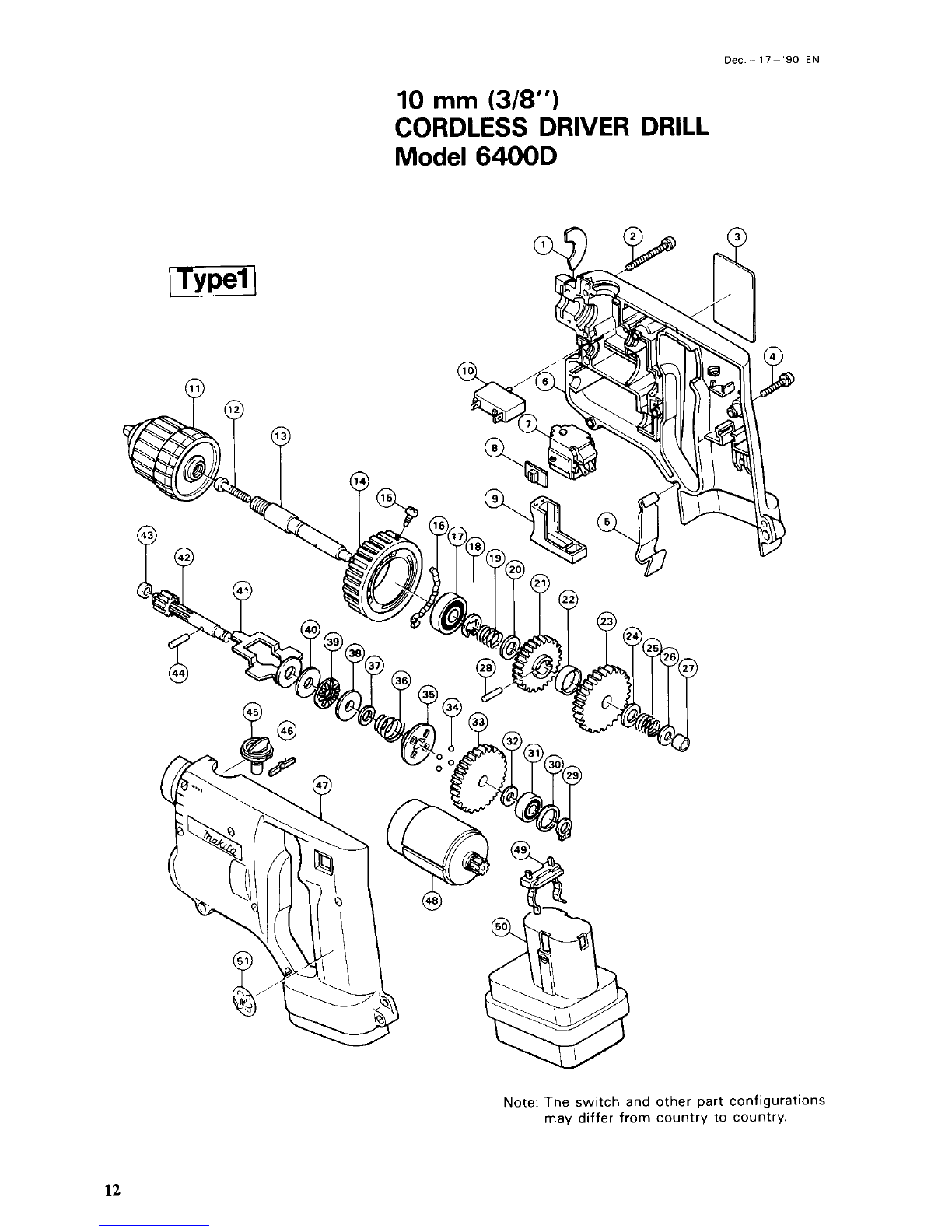

10 mm (318")
CORDLESS DRIVER DRILL
Model 6400D
Note: The switch and other part configuratlons
may differ from country to country.
12

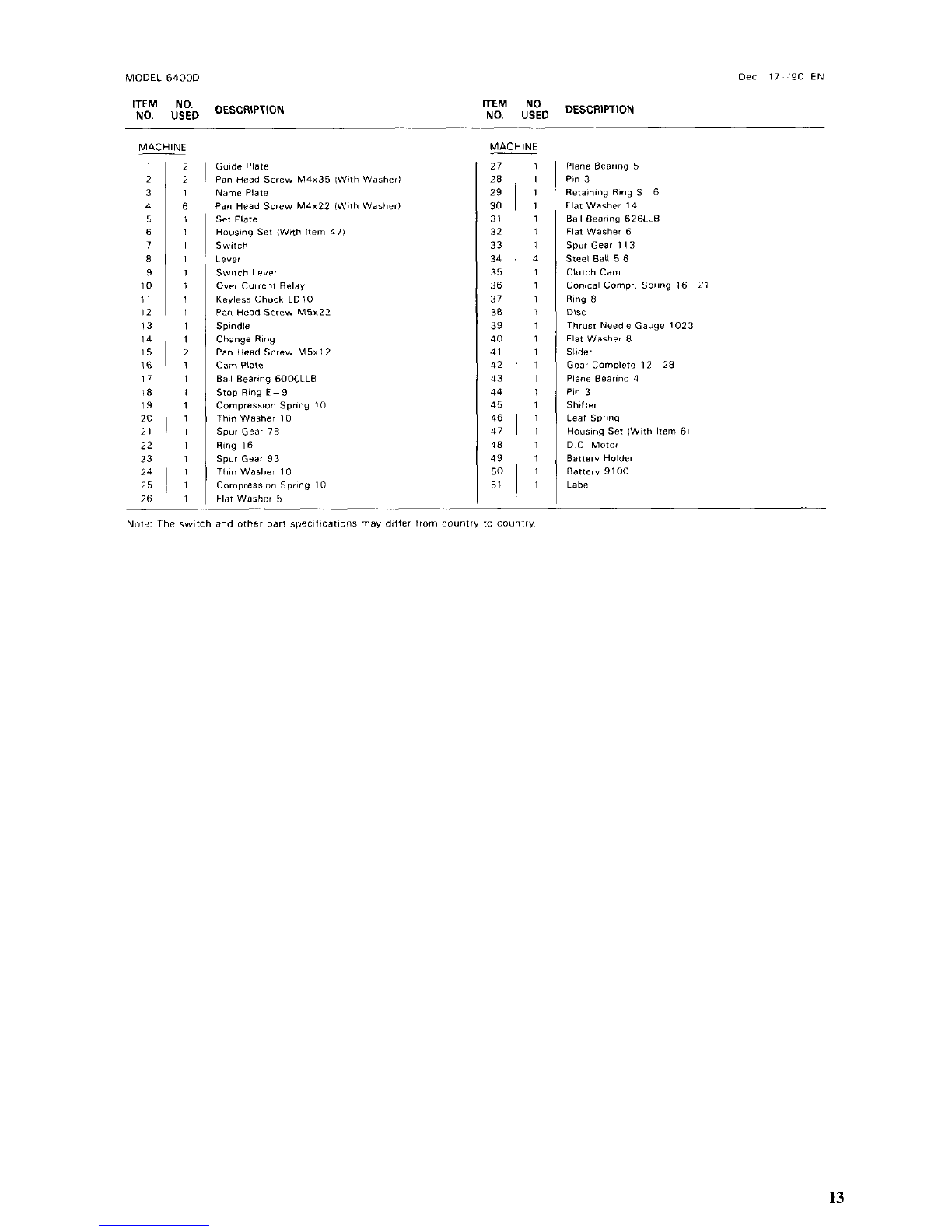

MODEL 6400D
$iD DESCRIPTION
Dec 17 90 EN
,&, DESCRIPTION
MACH I NE
~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2
2
1
6
1
I
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
Guide
Plate
Pan Head Screw M4x35 IWifh Washer1
Name Plate
Dan Head Screw M4x22 iWilh Washer)
Set Plate
Housing
Set [With Item 471
Switch
Lever
Switch Lever
Over Current Relay
Keyless Chuck LDlO
Pan Head
Screw M5x22
Spindle
Change Ring
Pan Head Screw MSxlZ
Cam Plale
Ball Bearing 6000LL8
Stop
Ring E ~ 9
Compresslo" spr,ng 10
Thin Washer
10
Spur Gear 78
Spur Gear 93
Thin Washer
10
Flat Washer 5
Ring 16
compress,on spr,ng 10
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Plane Bearing 5
Pln 3
Retaining Ring S 6
Flar Warher 14
Ball Bearing 626LLB
Flat Washer
6
Spur Gear 11 3
Steel Ball 5 6
Clutch Cam
Conical Compr Spring 16 21
Ring 8
DlSC
Thrusf Needle Gauge 1023
Flat Washer 8
Slider
Gear Complete 12 28
Plane Bearing 4
P," 3
Shifter
Leaf Spring
Housing Set [With Item 61
D C Motor
Battery Holder
Label
Battery 9100
Note
The switch and other part spe~~fications may differ from country to country
13

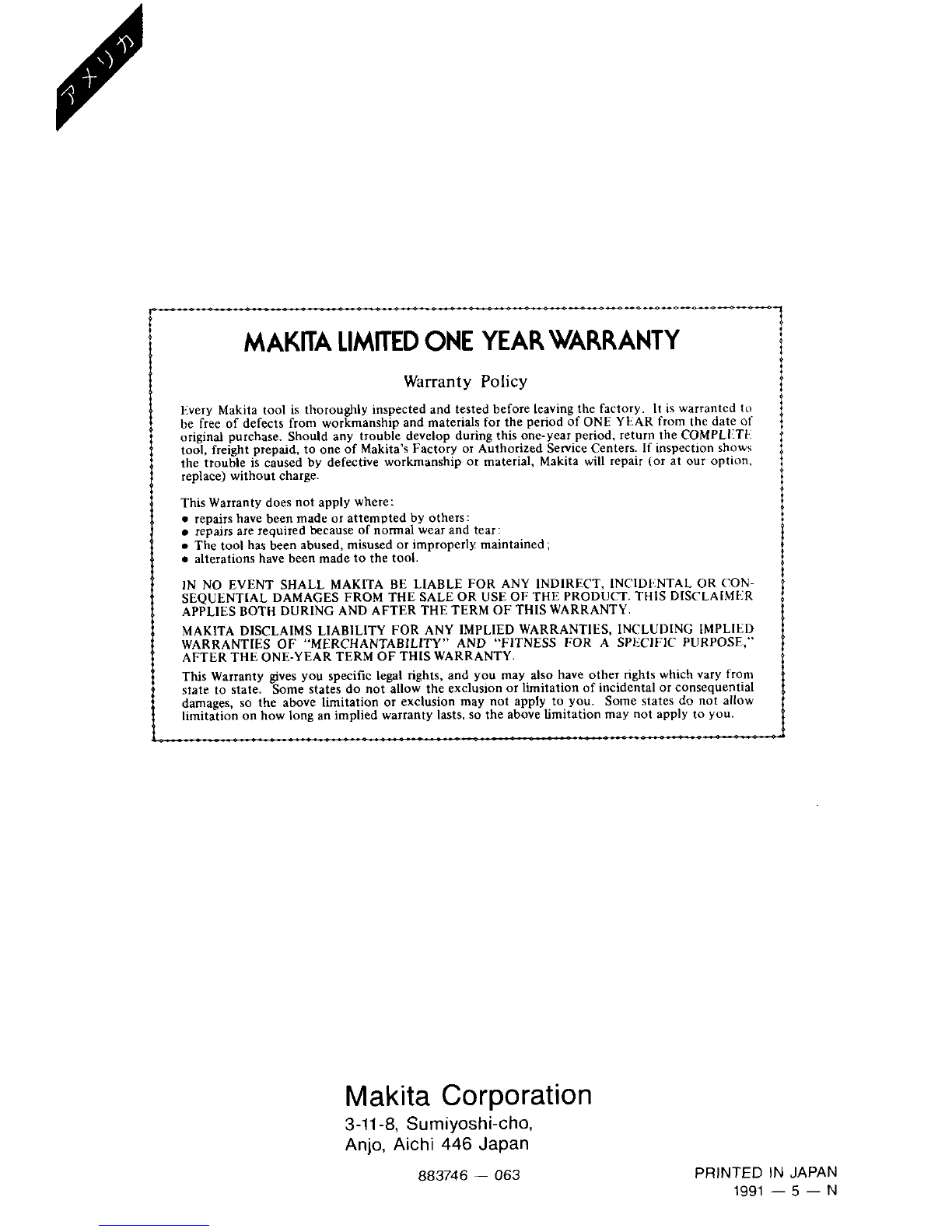

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
txery Makita tool is thoroughly inspected and tested before leaving the factory. It IS warranted to
be free
of defects from workmanship and materials for the period of ONE YtAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLITt.
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection show-
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option.
replace) without charge.
This Warranty does not apply where:
0 repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
0 The tool has been abused, misused or improperly maintained
0 alterations have been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDI NTAL OR
CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT THIS DISCLAIMb R
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLltD
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation
of incidental or consequential
damages.
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts, so the above Limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883746 - 063
PRINTED INJAPAN
1991 - 5 - N
