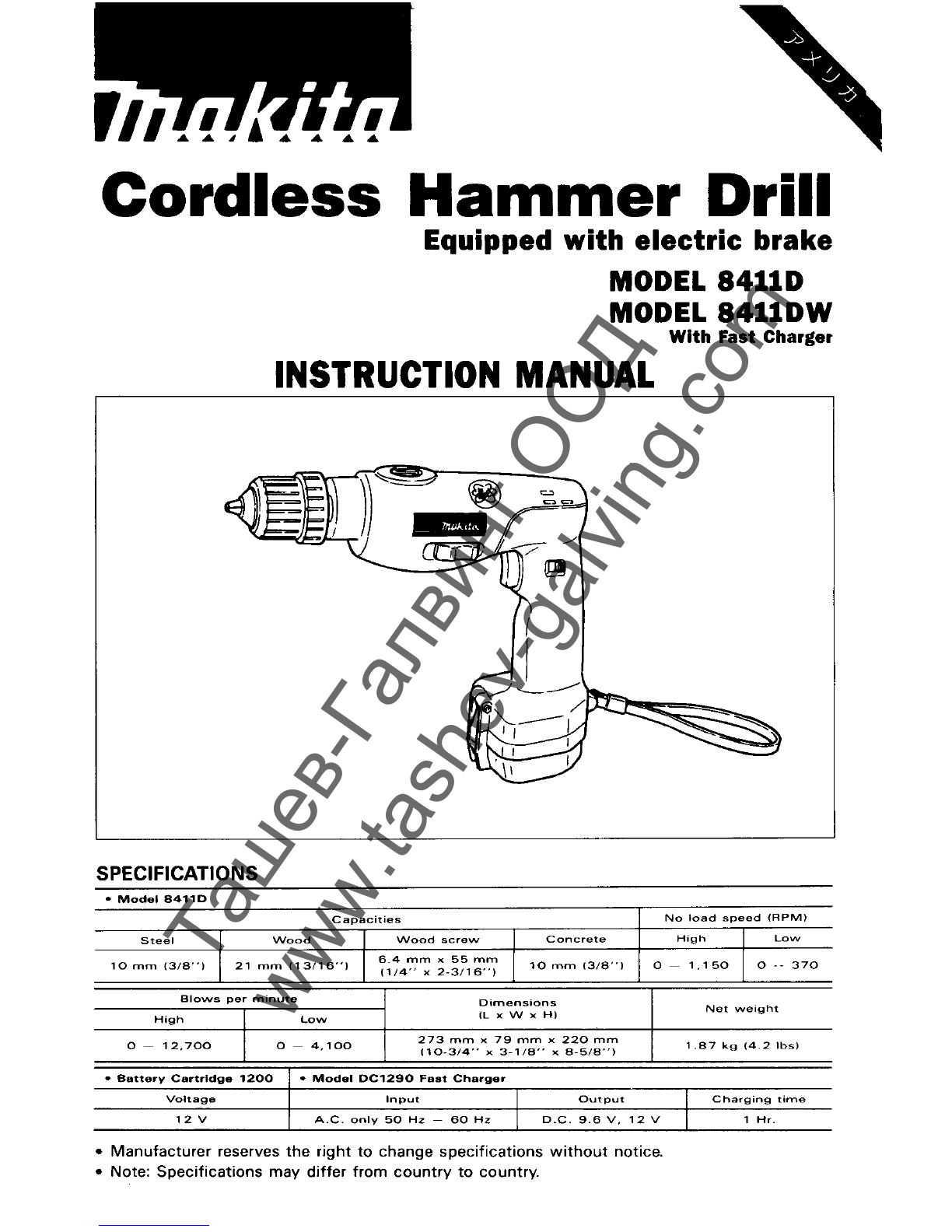

Makita 8411D User manual

Cordless Hammer Drill
Capacities
Steel Wood Wood
screw Concrete
10 mm (3/8”) 21 mm I13/16”) 71;4m: ~~~~1~~ 10 mm (3/8”)
Equipped with electric brake
MODEL 8411D
MODEL 8411DW
With Fast Charger
No load speed (RPM)
High LOW
0 ~ 1,150 0 -- 370
INSTRUCTION MANUAL
0 ~ 12,700 1.87 kg (4 2 Ibs)
273 mm x 79 mm x 220 mm
110-3/4” x 3-1/8” x 8-5/8”)
0 ~ 4,100
Voltage Input output Charging time
Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.
Ташев-Галвинг ООД
www.tashev-galving.com

I M PO RTANT
SAFETY I N STRUCTI 0 N S
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULD ALWAYS
BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations.*Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennotinuse, tools should be stored indry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejobbetter and safer at the rate for which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothing orjewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at
all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttoolcords periodicallyand
if damaged, have repaired by autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECT TOOLS. When not
in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.
Ташев-Галвинг ООД
www.tashev-galving.com

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see thatkeys and adjusting wrenches are removed fromtool beforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool withfinger
on switch. Be sure switch is OFF when plugging
in.
16. OUTDOOR USE EXTENSIONCORDS. When toolis used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you aredoing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Have defective switches replacedby authorizedservicecenter. Don’t
use tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3
Ташев-Галвинг ООД
www.tashev-galving.com

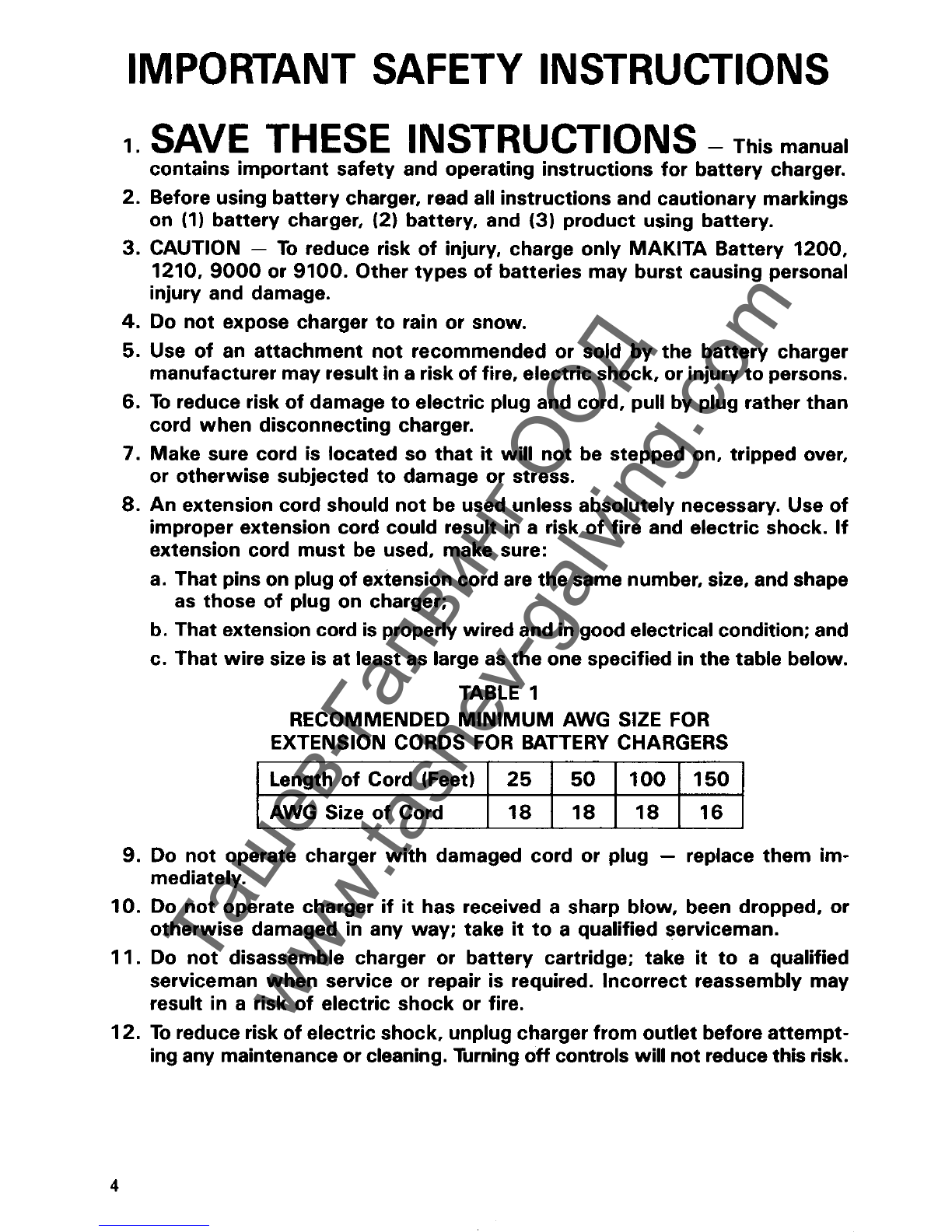

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet)
AWG Size of Cord
I. SAVE THESE INSTRUCTIONS - This manual
25 50 100 150
18 18 18 16
9.
Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged
in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result
in a risk of electric shock or fire.
12. To reduce risk of electric shock, unplugcharger from outlet beforeattempt-
ingany maintenanceor cleaning. Turning
off controls will notreducethisrisk.
4
Ташев-Галвинг ООД
www.tashev-galving.com

ADDITIONAL SAFETY RULES
FOR CHARGER & BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do notattempt touseastep-uptransformer, an engine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
or ABOVE 4OoC (104OF).
receptacle.
cartridge is not used.
and even a breakdown.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge ina container with other metal objects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
not have to be plugged into an electrical outlet.
2. Wear a hard hat (safety helmet), safety glasses and/or face shield. It is also
highly recommended that you wear a dust mask, ear protectors and thickly
padded gloves.
3. Under normaloperation, the tool isdesignedtoproduce vibration. The screws
can come loose easily, causing a breakdown or accident. Check tightness of
screws carefully before operation.
Be sure
no one is below when using the tool in high locations.
4. Always be sure you have a firm footing.
5. Hold the tool firmly.
6. Keep hands away from rotating parts.
7. Do not leave the tool running. Operate the tool only when hand-held.
8. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool by the insulated grasping surfaces to prevent electric shock if
you drill into a "live" wire.
9. Do nottouchthe bitor the workpiece immediately after operation; they may
be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5
Ташев-Галвинг ООД
www.tashev-galving.com

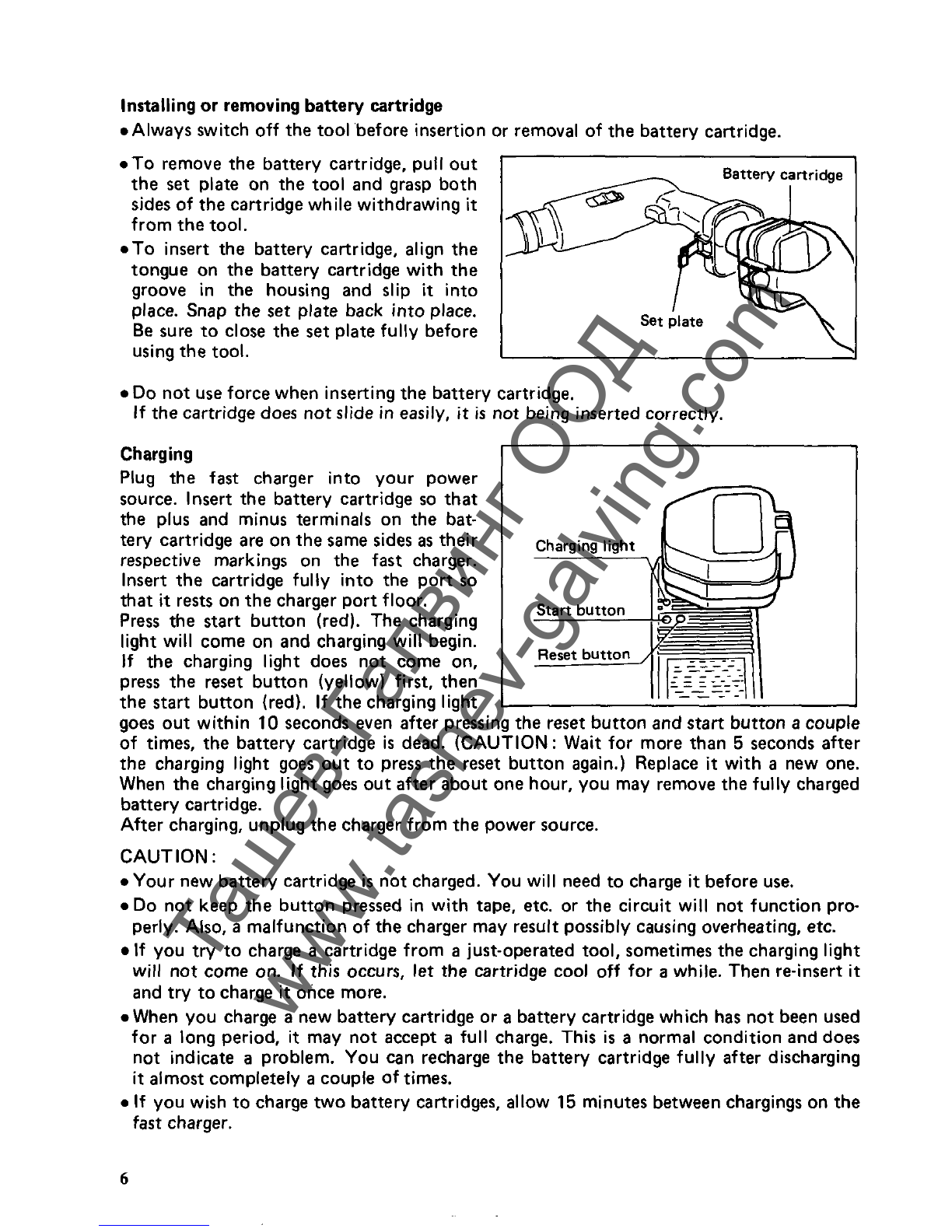

Installingor removingbattery cartridge
.Always switch off the tool before insertionor removal of the battery cartridge.
.To remove the battery cartridge, pull out
the
set plate on the tool and grasp both
sides of the cartridge while withdrawing
it
from the tool.
.To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the
set plate back into place.
Be sure to close the set plate fully before
usingthe tool.
Set plate
0 Do not use force when insertingthe battery cartridge.
Ifthe cartridge does notslide ineasily,
it is not being insertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger port floor.
Press the start button (red). The charging
light will come on and charging will begin.
If the charging light does not come on,
press the reset button (yellow] first, then
the start button (red). If the charginglight
goes out within
10 seconds even ifter pressingthe reset button and start button a couple
of times, the battery cartridge
is dead. (CAUTION: Wait for more than 5 seconds after
the charging light goes out to press the reset button again.) Replace
it with a new one.
When the charginglight goes out after about one hour, you may remove the fully charged
battery cartridge.
After charging, unplugthe charger from the power source.
CAUTION
:
0 Your new battery cartridge is not charged. You will need to charge it before use.
0 Do not keep the button pressed in with tape, etc. or the circuit will not function pro-
perly.
Also, a malfunction of the charger may result possiblycausing overheating, etc.
If you try to charge a cartridge from a just-operated tool, sometimes the charginglight
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert it
and try tocharge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal conditionand does
not indicate
a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If you wish to charge two battery cartridges, allow 15 minutes betweenchargings on the
fast charger.
6
Ташев-Галвинг ООД
www.tashev-galving.com

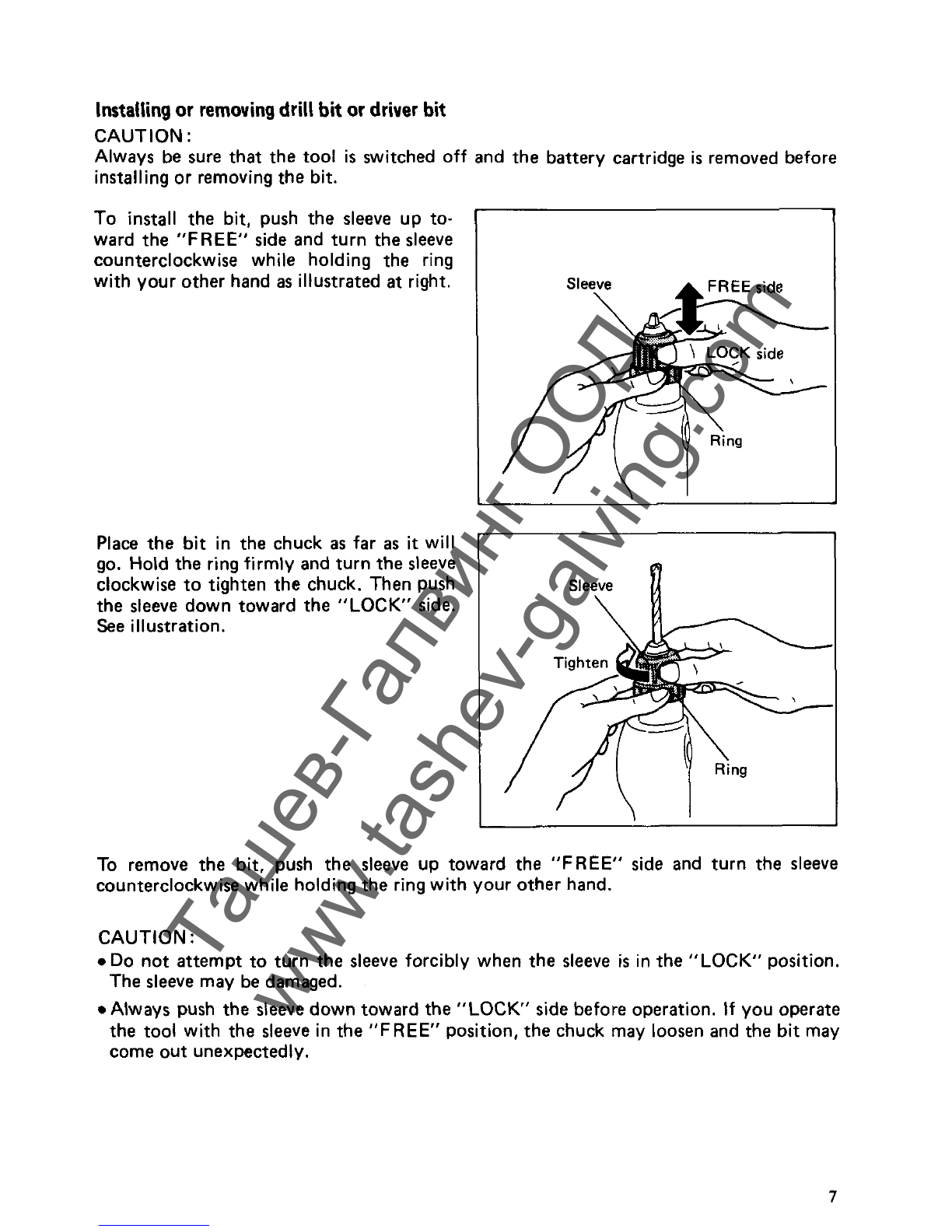

Installing or removingdrillbit or driver bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installingor removingthe bit.
To install the bit, push the
sleeve up to-
ward the "FREE" side and turn the
sleeve
counterclockwise while holding the ring
Place the bit in the chuck as far as it will
go. Hold the ringfirmly and turn the
sleeve
clockwise to tighten the chuck. Then push
the
sleeve down toward the "LOCK" side.
See illustration.
Sleeve PT
s-
To remove the bit, push the sleeve up toward the "FREE" side and turn the sleeve
counterclockwisewhile holdingthe ringwith your other hand.
CAUTION
:
0 Do not attempt to turn the sleeve forcibly when the sleeve is inthe "LOCK" position.
The
sleeve may be damaged.
0 Always push the sleeve downtoward the "LOCK' side before operation. If you operate
the tool with the
sleeve in the "FREE" position, the chuck may loosenand the bit may
come out unexpectedly.
7
Ташев-Галвинг ООД
www.tashev-galving.com

Switch action
Tool speed
is increased by increasing pres-
sure on the trigger. To start the tool,
simply pull the trigger.
Release the trigger
tostop.
I; I
Trigger switch
1
CAUTION :
Before inserting the battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returns tothe
"OFF" positionwhen released.
Reversingswitchaction
This tool has
a reversing switch to change
the direction of rotation. Move the revers-
ingswitchtothe left for clockwise rotation
or tothe right for counterclockwise.
CAUTION
:
*Always check the direction of rotation before operation.
.Move the reversingswitch only after the tool comes to
a complete stop. Changing the
direction of rotation before the tool stops may damage the tool.
Speedchange
To change the speed, slide the speed
change lever tothe
"H" side for high speed
or
"L" side for low speed. To slide the
speed change lever easily, pull the trigger
slightly while pushing the speed change
lever. Be sure that the speed change lever
is
set tothe correct position before operation.
Use the right speed for your job.
i \\
Speed change lever
CAUTION :
Always set the speed change lever fully into the correct position. If youoperatethe tool
with the speed change lever positioned halfway between the
"H" side and "L" side, the
tool may be damaged.
8
Ташев-Галвинг ООД
www.tashev-galving.com

Operation
1) Hammer drilling operation :
When drilling in concrete, granite, tile,
etc., turn the knob so that the a mark
on the knob points tothe mark. Be
sure to use
a tungsten-carbide tipped
bit.
To position a hole accurately, start
the tool slowly and then increase the
speed gradually.
Do not apply more
pressure when the hole becomesclogged
After drilling the hole, use the blow-out
bulb toclean thedust out of the hole.
Knob
-
I
2) Drillingoperation :
When drilling in wood, metal or plastic
materials, turn the knob
so that the
mark on the knob points to the
mark.
9
Ташев-Галвинг ООД
www.tashev-galving.com

0 Drilling inwood
When drilling in wood, best results are obtained with wood drills equipped with
a guide
screw, The guide screw makes drilling easier by pulling the bit intothe workpiece.
To prevent the bitfrom slipping when starting
a hole, makean indentation with a center-
punch and hammer
at the point to be drilled. Place the point of the bit inthe indenta-
tion and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
Drilling in metal
CAUTION
:
0 Pressing excessively on the tool will not speed up the drilling. Infact, this excessive pres-
sure will only serve to damage the tip of your bit, decrease the tool performance and
shorten the service
life of the tool.
.There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
0 A stuck bit can be removed simply by setting the reversingswitch to reverse rotation in
order to back out. However,the tool may back out abruptly if you do not hOle
it firmly.
0 Always secure small workpieces in a vise or similar hold-downdevice.
CAUTION
:
If the tool is operated continuously until the battery cartridge has discharged, allow the
tool to rest for
15 minutes before proceedingwith a fresh battery.
10
Ташев-Галвинг ООД
www.tashev-galving.com

Dust cover
Use the dust cover to prevent dust and dirt from falling over the tool, yourself and on
floor when performing overhead drilling operations. Install the dust cover on the tool’s
collar
as shown inthe figures below. When installing it, push the dust cover firmly enough
to be completely installed on the tool’s collar. An incompletely installed dust cover will
To remove the dust cover, slide it off firmly while turning it back and forth.
11
Ташев-Галвинг ООД
www.tashev-galving.com

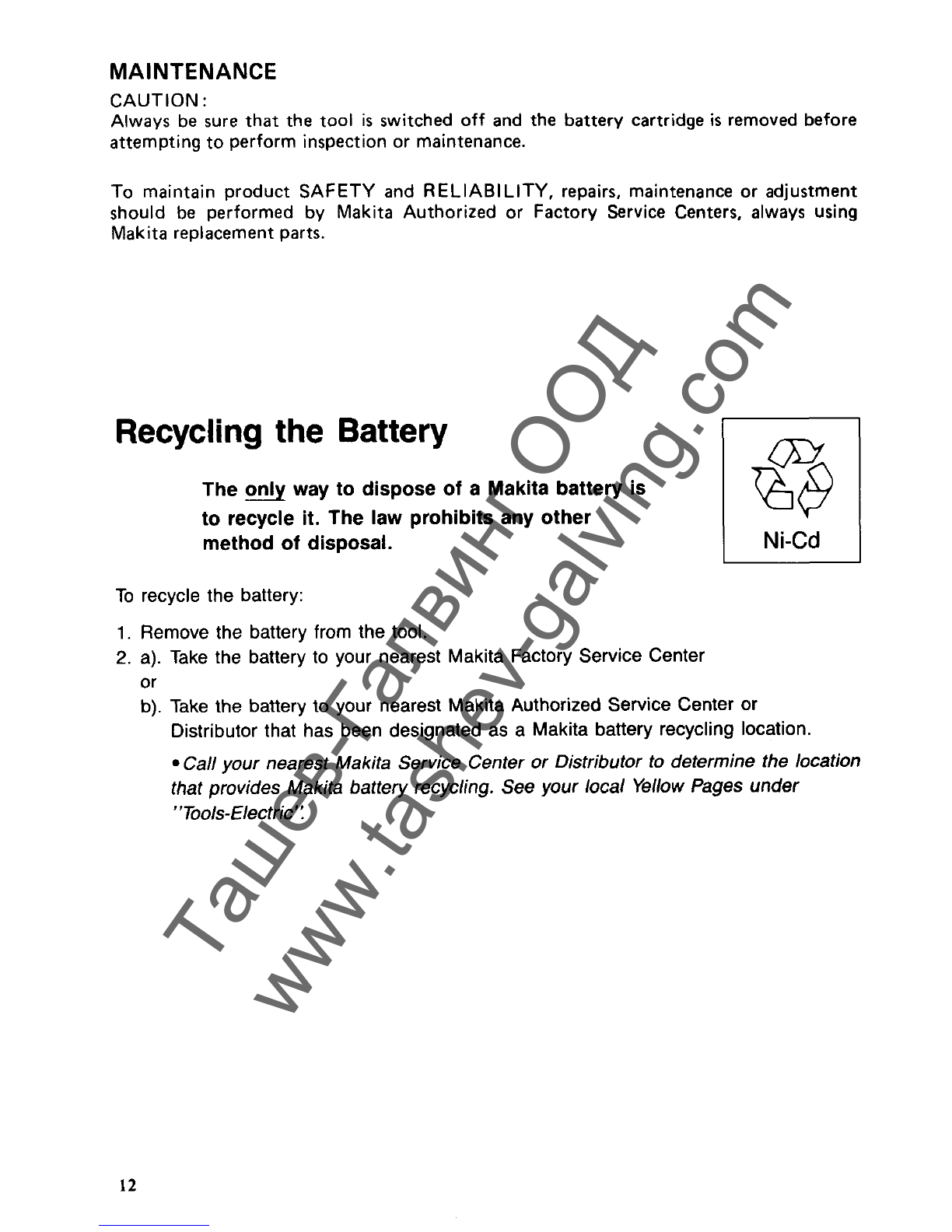

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELlABlLITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
I Ni-Cd
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery
to your nearest Makita Authorized Service Center or
Distributor that has been designatedas a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
"Tools-Electric'
12
Ташев-Галвинг ООД
www.tashev-galving.com

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used only
in the proper and intended manner.
711121-A 114''
711122-A 114''
711123-A 5/16"
711124-A 3/8"
*Heavy duty masonry drill bit
for percusion drill
114'' 4
1 /4" 6'
114'' 6
1 /4" 6
Part No.
I Drill dia. I Shank dia I Overall length
711120-A 13/16'' I 3/16" I 4
Part No,
Drill Shank Flute Overall
dia dia. length length
Drill bit
711018-A
711019-A
711020-A
~ ~
9/32" 9/32" 2-5/16" 4 1/4"
5/16" 5/16" 3-3/16" 4-1/2"
11/32" 11/32" 3-7/16" 4-3/4"
711021-A
I 318" 1 318" 1 3-518'' I 5"
Fast charger
Model
DC1290
Part No. 113119-7
Battery cartridge 1200
Part No. 632268-6
Battery cover
Part
No. 414938-7
Dust cover
Part
No. 41 5165-9
Plastic carrying case
Part
No. 182525-7
13
Ташев-Галвинг ООД
www.tashev-galving.com

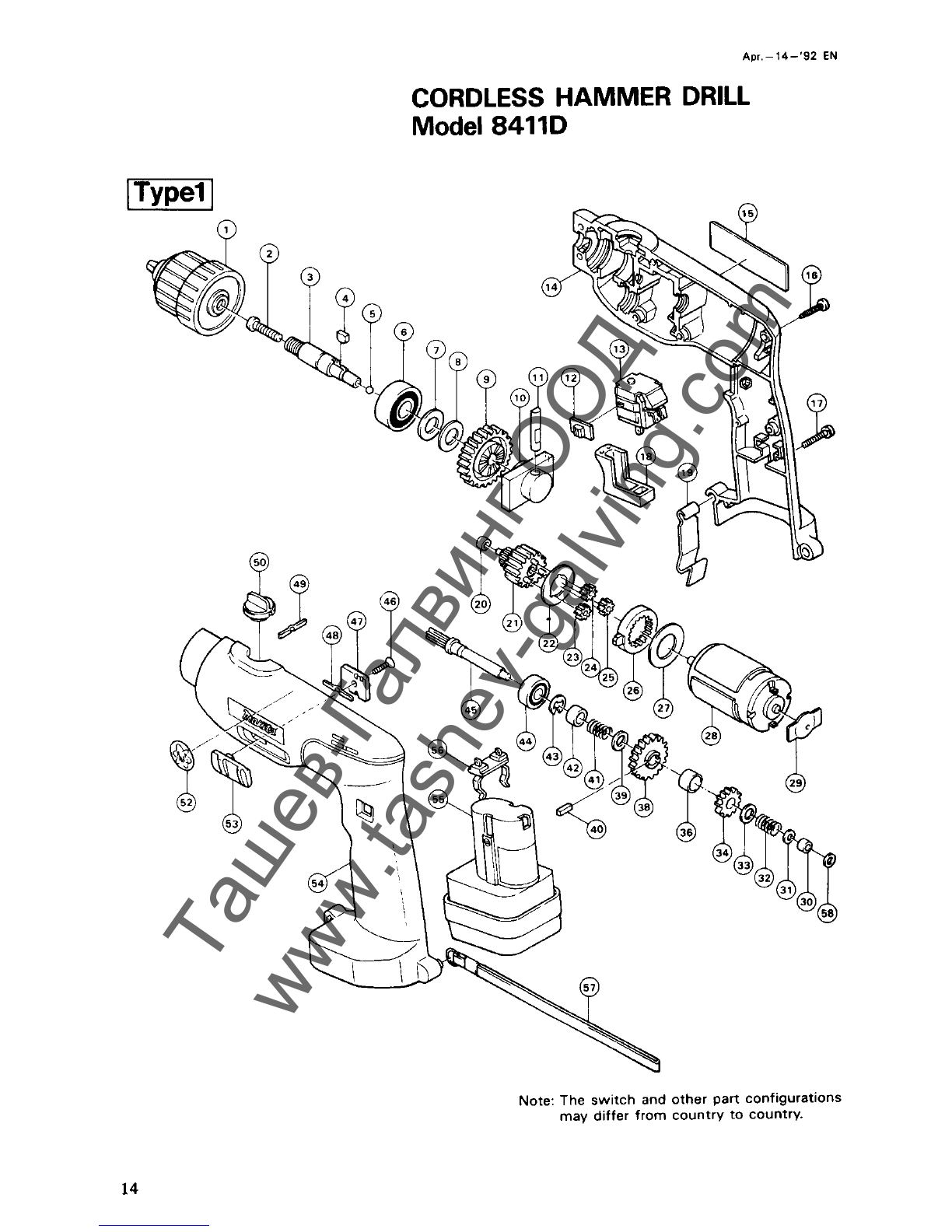

Apr.-l4-'92 EN
CORDLESS HAMMER DRILL
Model
8411D
Note: The switch and other part configurations
may differ from country to country.
14
Ташев-Галвинг ООД
www.tashev-galving.com

Apr-l4--'92 ENMODEL 8411D
';iM DESCRIPTION 'LiM A& DESCRIPTION
MACHINE
~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
1
1
1
1
1
1
1
1
1
1
1
I
1
1
8
1
1
1
1
1
1
1
1
1
1
1
1
-
Keyless Dd Chuck 10
Pan Head
Screw M5x22
Splndle
Woodrut1 Key 4
Steel
Ball 4 8
Ball Bearing 6201DDW
Flat Washer 12
Flat Washer 12
Spur Gear 55
Cam
Shifter
Pm
Lever
Switch
Housing Set IWith
Item 541
Name Plate
Tapping Screw BT4rZO
Pan Head Screw M4x22 IWith Washer1
Switch
Lever
set Plat.
Plane Bear,"&! 4
Gear
Flat Washer 16
Spur Gear 15
Spur Gear 15
Spur
Gear 15
Internal
Gear 48
Flat Washer 18
DC Motor
12 V
MACHINE
~
29
30
31
32
33
34
36
38
39
40
41
42
43
44
45
46
41
48
49
50
52
53
54
55
56
57
58
-
1
1
1
1
1
1
1
1
I
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
Motor Rear Cover
Ball Bearing 694
Flat Washer 4
Compression Spring
8
Thin Washer 8
Spur Gear 25
Ring 12
Spur
Gear 40
Thin Washer 8
Key 3
Compression Spring 8
Sleeve 8
Stop
Ring E - 7
Ball Bearing 608LLB
Spur
Gear 9
Countersunk Head
Screw M4x12
StOpper
Leaf sprtng
Leal sprong
Knob
Label
LWBl
Housing Set IWith Item 141
Battery 1200
Battery Holder
Hand Strap
Flat Washer 4
Note: The switch and
other part speciticatm8 may dotter from country to country.
15
Ташев-Галвинг ООД
www.tashev-galving.com

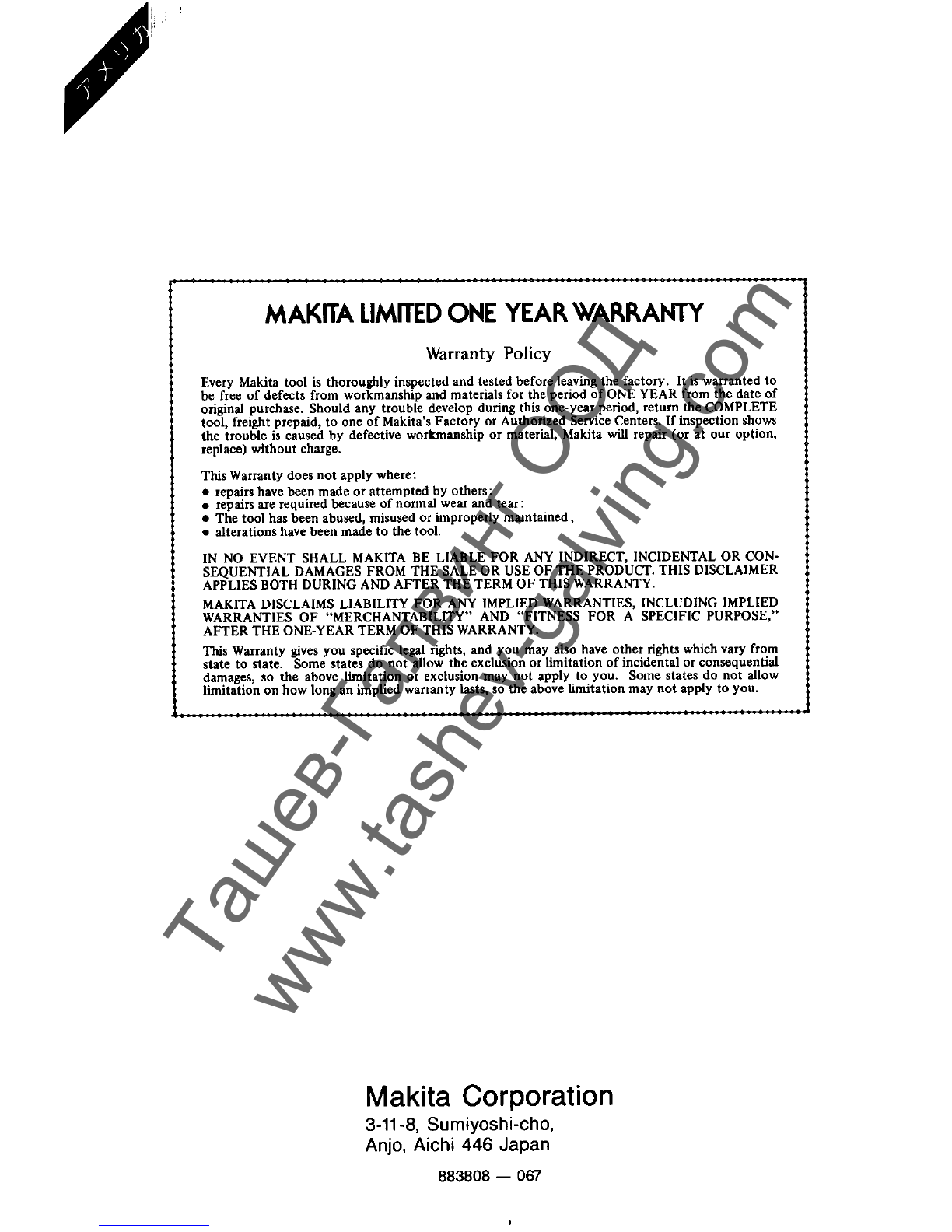

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita’s Factory or Authorized ServiceCenters. If inspectionshows
the trouble
is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
e repairs have been made or attempted by others:
e repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
e alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALEOR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE.”
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty
lasts, so the above Limitationmay not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883808 - 067
Ташев-Галвинг ООД
www.tashev-galving.com
