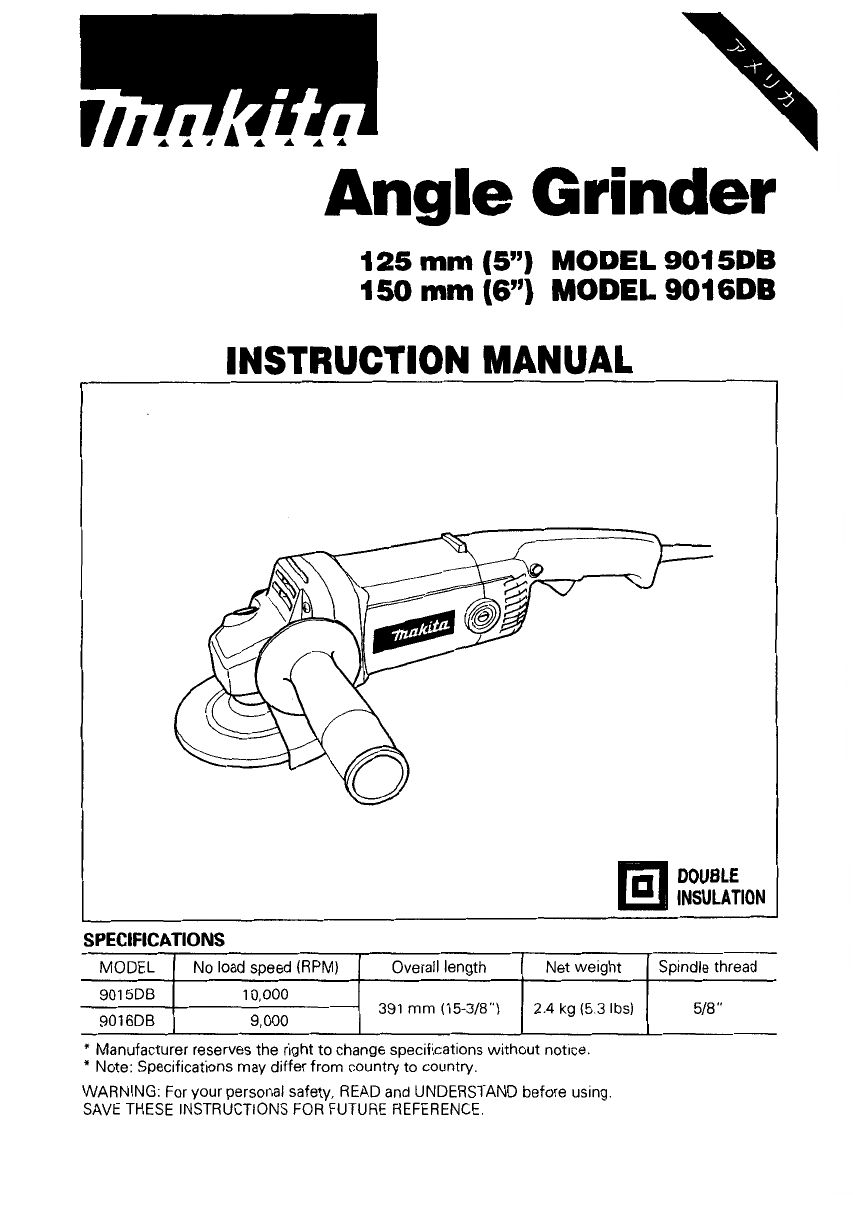

Makita 9015DB User manual

Angle Grinder
MODEL
901 5DB
9016DB
125 mm (5”) MODEL 901 5DB
150 mm (6”) MODEL 9016DB
No load speed (RPM) Overalllength Net weight Spindlethread
10,000
9,000
518 “ 391 mm (15-318”)
2 4 kg (5 3 Ibs)
DOUBLE 1
INSULATION
WARNING: For your personal safety, READ and UNDERSTAND before using
SAVE THESE INSTRUCTIONSFOR FUTURE REFERENCE.

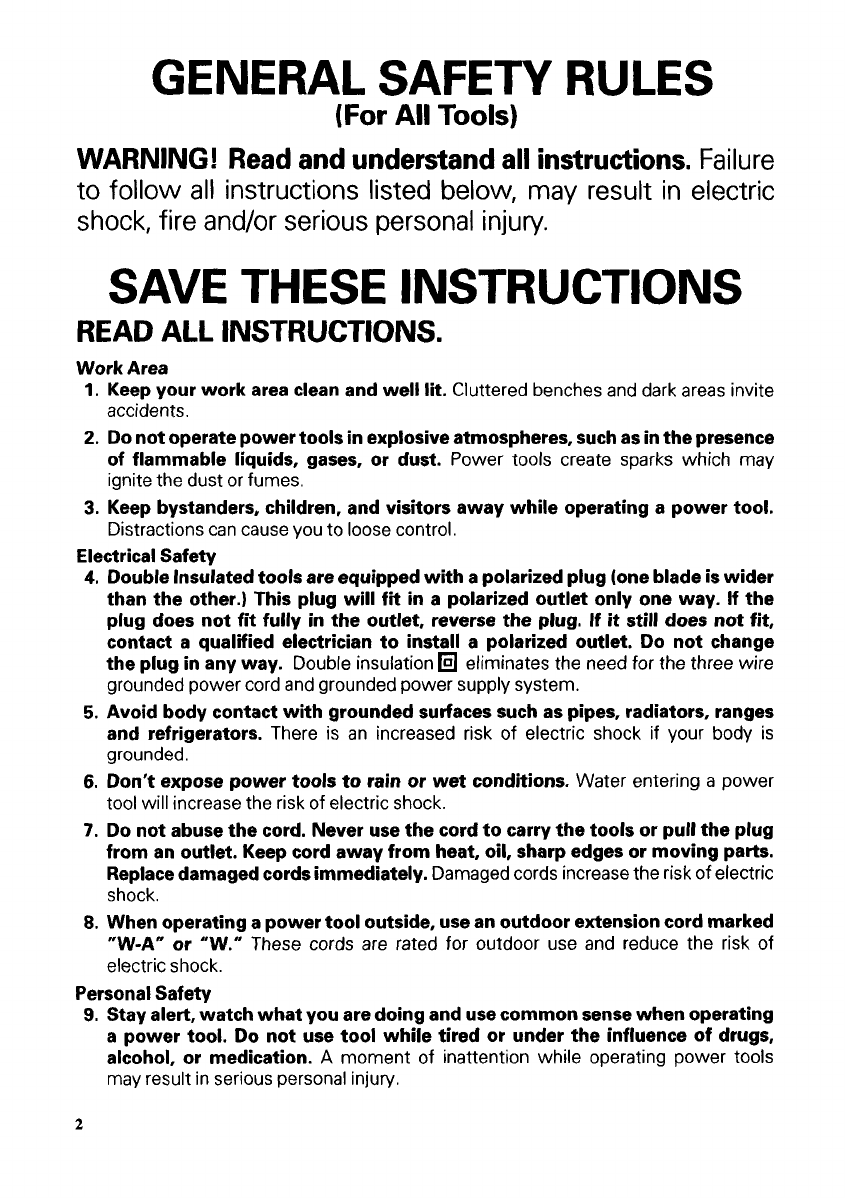

GENERAL SAFETY RULES
(For All Tools)
WARNING! Readandunderstand all instructions. Failure
to follow all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
WorkArea
1. Keepyour work area clean andwell lit. Clutteredbenches and dark areas invite
accidents.
2. Do notoperatepowertools in explosiveatmospheres, suchas in thepresence
of flammable liquids, gases, or dust. Power
tools create sparks which may
ignitethe dustor fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractionscan causeyouto loose control.
ElectricalSafety
4. DoubleInsulatedtoolsareequipped with apolarized plug (onebladeiswider
than the other.) This plug
will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the
plug in any way. Double insulation eliminatesthe needfor the three wire
grounded powercordandgroundedpower supply system.
5. Avoid body contact with groundedsurfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is
grounded.
6. Don't expose power tools torain or wet conditions. Water entering a power
toolwill increasethe risk
of electricshock.
7. Do notabusethecord. Never usethe cordtocarry thetoolsor pull the plug
from an outlet. Keep cord away from heat, oil, sharpedges or movingparts.
Replacedamagedcordsimmediately. Damagedcords increasethe risk
of electric
shock.
8. Whenoperatingapowertooloutside, usean outdoor extension cordmarked
"W-A" or
"W." These cords are rated for outdoor use and reduce the risk of
electricshock.
PersonalSafety
9. Stayalert, watchwhat youaredoingand usecommonsensewhenoperating
a power tool.
Do not use tool while tired or under the influence of drugs,
alcohol,
or medication. A moment of inattention while operating power tools
may resultinserious personalinjury.

10. Dressproperly. Donotwearlooseclothing or jewelry. Containlonghair. Keep
your hair, clothing, andglovesawayfrommovingparts. Looseclothes, jewelry
or longhaircanbecaught inmovingparts.
11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying
tools with your finger on the switch or plugging in tools that have the switch
oninvitesaccidents.
12. Remove adjusting keys
or switches before turning thetool on. A wrench or
akeythat is leftattachedtoarotatingpartof thetool may result inpersonal injury.
13. Donotoverreach. Keepproperfootingandbalanceatalltimes. Properfooting
andbalance enables bettercontrolof thetool inunexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate con-
ditions.
Tool UseandCare
15. Use clamps
or other practical way tosecure and support the workpiece to
a stable platform. Holding the work by hand or against your body is unstable
andmay leadto
loss of control.
16. Do notforce tool. Use the correct tool for your application. The correct tool
will dothejob betterand safer at the ratefor which
it isdesigned.
17. Do not use tool if switch does not
turn it on or off. Any tool that cannot be
controlledwiththeswitch isdangerous and mustberepaired.
18. Disconnectthe plug fromthepower source beforemakingany adjustments,
changing accessories,
or storing the tool. Such preventive safety measures
reducetheriskof startingthetoolaccidentally.
19. Store idle tools out of reach of children and other untrainedpersons. Tools
aredangerous inthe handsof untrainedusers.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and are easier
tocontrol.
21. Checkfor misalignment or binding of movingparts, breakage of parts, and
any other condition that may affect the tools operation. If damaged, have
thetoolservice before using. Many accidents are caused by poorly maintained
tools.
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool, may become hazardous
whenusedonanother tool.
Service
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of
injury.
24. When servicing a tool, use only identicalreplacement parts. Follow instruc-
tions
in the Maintenance section of this manual. Use of unauthorized parts
or failure to follow Maintenance Instructions may create a risk of electric shock
of injury.
3

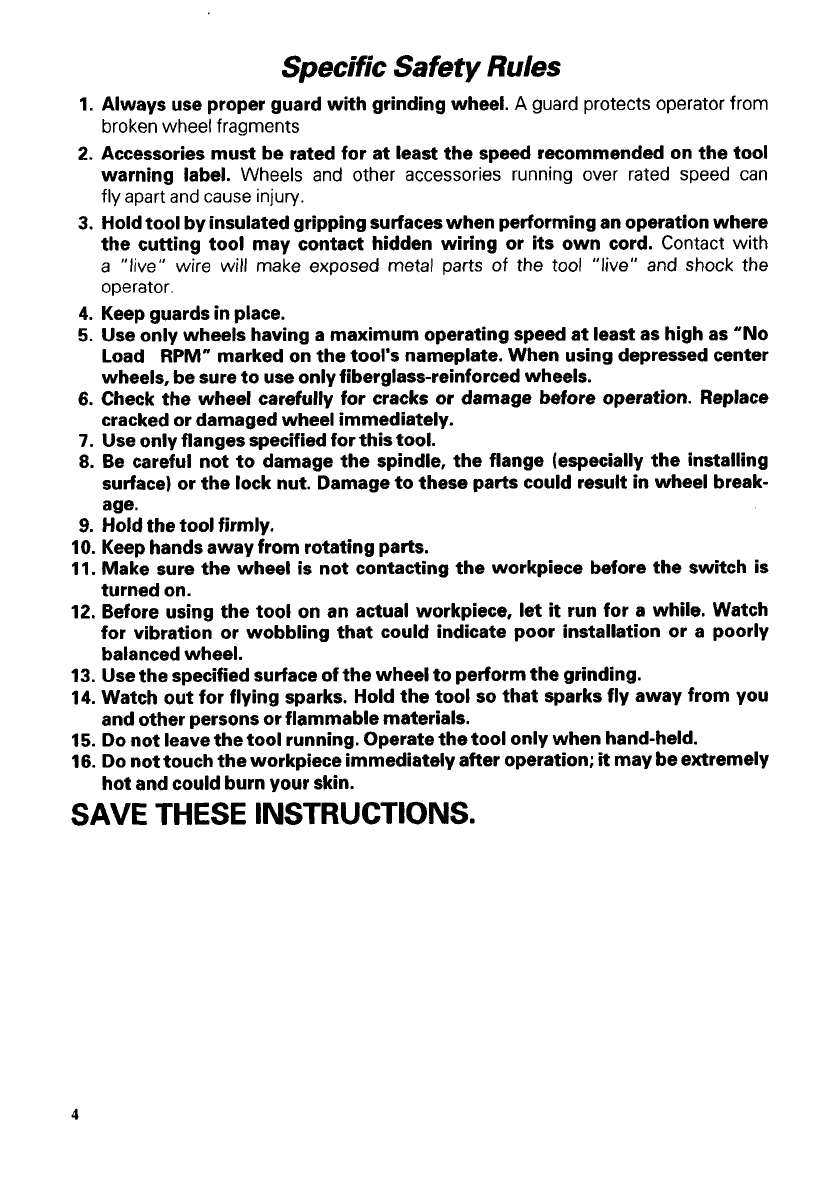

SpecificSafetyRules
1. Always useproper guard with grindingwheel. A guard protectsoperator from
brokenwheelfragments
2. Accessories must be rated for at least the speed recommended on the tool
warning label. Wheels and other accessories running over rated speed can
fly apart and cause injury.
3. Holdtoolbyinsulatedgripping surfaceswhen performinganoperationwhere
the cutting tool may contact hidden wiring or its own cord. Contact with
a "live" wire will make exposed metal parts of the tool "live" and shock the
operator.
4. Keepguards in place.
5. Useonly wheels havingamaximumoperating speed at least as
high as "No
Load RPM" markedonthetool's nameplate. When using depressed center
wheels, besuretouseonlyfiberglass-reinforcedwheels.
6. Check the wheel carefully for cracks or damage before operation. Replace
crackedor damagedwheel immediately.
7. Useonly flangesspecifiedforthistool.
8. Be careful not to damage the spindle, the flange (especiallythe installing
surface)
or the lock nut. Damagetothese partscould result in wheel break-
age.
9. Holdthetoolfirmly.
IO. Keephandsawayfrom rotatingparts.
11. Make sure the wheel is not contacting the workpiece before the switch is
turnedon.
12. Before using the tool on an actual workpiece, let
it run for a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balancedwheel.
13. Usethespecifiedsurfaceofthewheeltoperformthegrinding.
14. Watch out for flying sparks. Holdthe tool
so that sparksfly away from you
15.
Do notleavethetoolrunning. Operatethetoolonly when hand-held.
16. Donottouchtheworkpieceimmediatelyafter operation;
it maybeextremely
andother personsor flammablematerials.
hotandcouldburnyourskin.
SAVE THESE INSTRUCTIONS.
4

The followings show the symbols used for tool
v ................................. volts
A ................................. amperes
HZ ................................. herts
................................. kilograms
kg
h ................................. hours
min
................................. minutes
S ................................. seconds
?J ................................. alternating current
- direct current
--__
.................................
n, ................................. no load speed
__
’
................................. alternating or direct current
Class
II Construction
A ................................. splash-proof construction
A A ................................. watertight construction
... /min
................................ revolutions or reciprocation per minute
e ................................. number of blow
5

Installing wheel guard
CAUTION:
Alwaysbe sure that the tool is switched off
and unplugged before installingor remov-
ingthe wheel guard.
Mountthe wheel guardwith the tab on the
wheel guard band aligned with the notch
on the bearing box. Then rotate the wheel
guard
180 degrees counterclockwise. Be
sure to tighten the screw securely.
Mount the inner flange first on the spindle,
then fit the wheel on over it. Finally, while
keeping the flange side of the lock nut on
the wheel side, screw lock nut onto the
spindle.
Installingside grip (auxiliary handle)
CAUTION:
Always be surethat the tool isswitched off
and unplugged before installingor remov-
ingthe sidegrip.
Screw the side grip on the tool securely.
The side grip can be installedon either side
of the tool, whichever is convenient.
Lock nut
Depressed
center wheel
Innerflange
6

To tighten the lock nut, pressthe shaft lock
firmly
so that the spindle cannot revolve,
then use the lock nut wrench and securely
tighten clockwise.
WARNING:
Only actuate the shaft lock when the spin-
dle is not moving.
To start the tool, simply pull the trigger.
Releasethe trigger to stop.
For continuousoperationwithout havingto
keepyour finger on the trigger,just pull the
trigger and then push in the lock button
withyour thumb.
To stop thetoolfrom lock
position, simply pull the trigger again and
releaseit.
B+
Lock button Switch trigger
Operation
CAUTION:
After use, always switch off and wait for the wheel to come to a complete stop before
placingthe tool down.
Hold the tool firmlv. Turn the tool on and
I
then apply the wheel or disc to the work-
piece.
In general, keep the edge
of the wheel or
disc at an angle of about
15" to the work-
piece surface.
During the break-in period with a new
wheel, do not work the grinder in the B
direction or
it will cut into the workpiece.
Once the edge on the wheel has been
rounded off
by use, the wheel may be
worked inboth
A and B direction.

WARNING:
*It should never be necessaryto force the tool. The weight of the tool applies adequate
pressure. Forcingand excessive pressurecouldcause dangerouswheel breakage.
Continued use of
a worn-out wheel may result in wheel explosion and serious personal
injury. Depressed center wheel should not be used after it has been worn down to
90 mm (3-1/2") indiameter. Useof the wheel after this point is unsafe and it shouldbe
removedfrom serviceandrenderedunusableby intentionaldestruction.

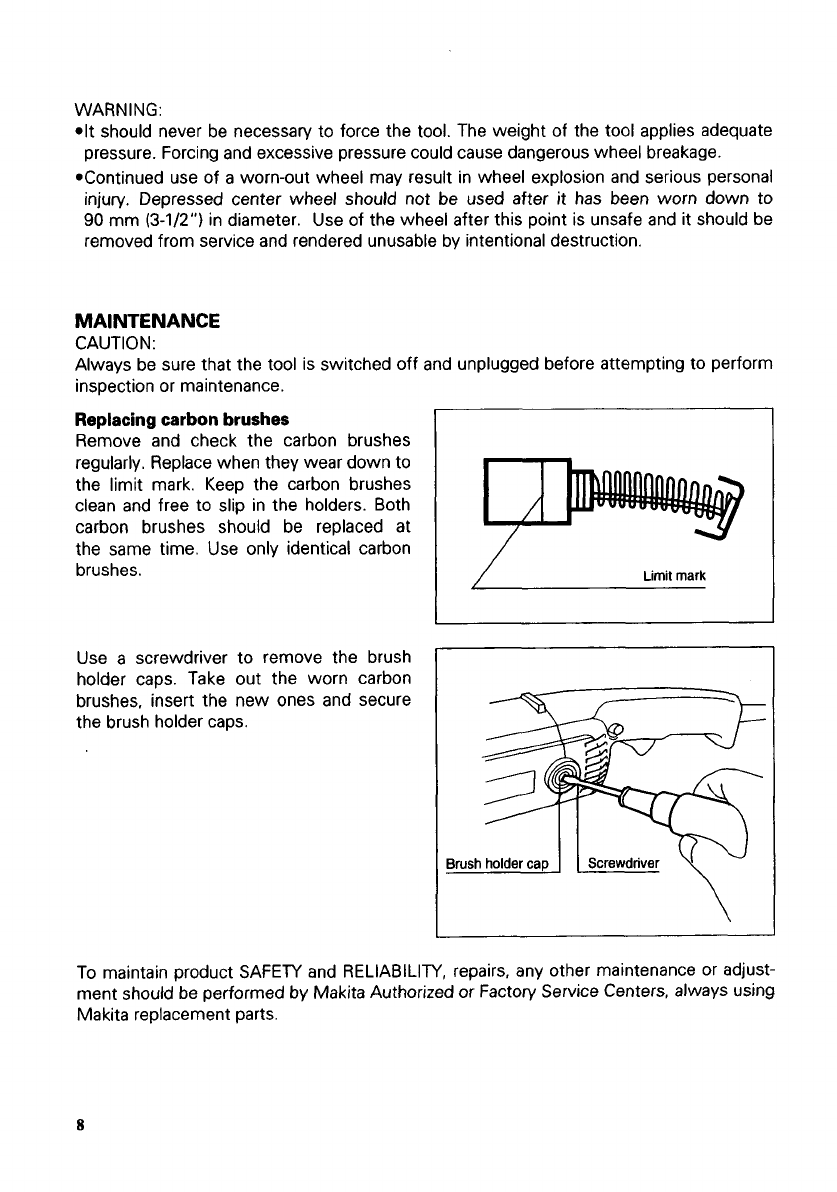

MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspectionor maintenance.
I
Replacing carbon brushes
Remove and check the carbon brushes
regularly.Replacewhen they wear downto
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced at
the same time. Use only identical carbon
brushes.
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brushholder caps.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenanceor adjust-
ment shouldbe performed by MakitaAuthorizedor FactoryService Centers, alwaysusing
Makita replacementparts.
8

ACCESSORIES
CAUTION:
These accessories or attachments are recommendedfor use with your Makitatool specified in this
manual. The use of any other accessories or attachments might present
a risk of injury to persons.
The accessoriesor attachments should
be used only in the proper and intendedmanner.
165055-3
0 Wheelguard
125(5") I 9015DB
Part
No. I Size Imm) I For Model
Part No. I For Model
9015DB
9016DB
224361-6
@ Depressedcenter wheel
(1 per pkg)
Part No. 1 Grit I Size I For Model
741460-4 I 24 I 5" x 1/4" x 7/8" I 9015DB
741448-4
I 24 I 6" x 1/4" x 7/8" I 9016DB
@ Lock nut 518" - 40
(Fordepressedcenterwheel)
Part No. I For Model
9015DB
I 9016DB
224509-0
9

@ Rubberpad
0 Lock nut 48
Part No. I For Model (For abrasive disc) Part No. I For bkdel
Diameter Grit
Discs
per pkg.
24
36
5” 50 5
80
100
24
30
6” 50 10
80
I
743015-1 9015DB
7
For Model
9015DB
9016DB
743016-9
I 9016DB
@ Abrasive discs
Part No.
742072-A-5
~~
742073-A-5
742074-A-5
~
742075-A-5
742076-A-5
742043-3
742044-1
742045-9
742046-7
~~ ~
742047-5
9015DB
224517-1(
Lock nut wrench
Grip
10

Apr.-14-'98 US
ANGLE GRINDER
125 mm (5") Model 9015DB
150
mm (6") Model 9016DB
27
Note: The switch and other part configurations
may differ from country to country.
11

MODEL 9015D.5. 9016D.5 Apr.-14-'98 US
'LLM $Eo DESCRIPTION 'ikM & DESCRIPTION
1 1 PI" Cap 20 2
2 1 CompressionSpring 12 21 2
3 4 Tapping Sosw Flange PT 5x30 22 2
4 1 Gear Housing Complete 24 1
5 1 RetainingRing S-7 25 2
6 1 Spiral Bevel Gear Sel 26 1
27 1
6 1 Sprrel Bevel Gear 11For 9016DB 28 1
7 1 Ball Bearing 6001DDW 29 1
8 1 Gear Housing Cover 30 1
9 1 Fan 70 31 1
10 1 ARMATUREASSEMBLY 32 1
IWith Item 9. 11 & 121 33 1
11 1 Insulated Washer 34 1
13 1 Ballle Plate 36 1
14 4 Tapping Screw 4x18 37 1
15 1 Handle Set IWith Item 291 38 1
16 1 FIELD ASSEMBLY
17 2 Tapping Screw Flangs PT 5x65 38 1
10 1 Motor Housing Complete 39 1.
19 4 Tapping Screw CT 5x16 40 1
12 & 33 IWnh Item 381 For 901 500
12 1 Ball Bearing608DDW 35 1
MAKITA Label
Brush Holder Cap
Carbon Brush
Switch
Tapping Screw 4x18
Strain Rsliel
Cord
Cord Guard
Handle Set IWith Item 151
Lock Nut
Inner Flange
Wheel Cover
Pan Head Screw M5x16
Spindle Complete
Ball Bearing 6201DDW
RetainingRing R-32
Spiral Bevel Gear Set
33 & 12 IWith Item 61 For 9015DB
Sprral Bevel Gear 35 For 901608
Grip 36 Complete
Pin 6
Bearing BOX
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Cvery Makuta tool 8% lhurou
It ts uairanled 10
be free of drfrrtr from wor&hmnnrhtpand miteiUli for the period of ONt YIAR from the dale uf
ongrnd puichw Should any trouble develop dunng lhir one year penod, return the COMPLtTk
1001 frcrPhl orcomd. to one of Mskas'r Faclorv 01 Aulhoilzed Sew,cc Centcrr If mspeclion shows
ly inspected and ICPIed before leavlng the laclo~y
ihⅈle b &wd by defective workmanship or material. Makila will repair (or at our option.
replace) without charge.
This Warranty docs not apply where:
repairs have beenmade or attempted byothers:
repairsare required because of normal we= and tear:
The tool has beenabused. misuwd or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT. INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USEOFTHEPRODUCT. THIS DISCLAIMER
1 APPLIES BOTH DURING AND AFTER THETERM OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY COR ANY IMPLIFD WARRAhTIFS. lNC1 I DING IMP1 WD
WARRANTILS OF "MtRCHANTABILITY" AND "FITNFSS FOR A SPtClFlC PURPOSF."
AFTER THI. ONE-YEAR TERM OFTHIS WARRANTY
This Warranty dves you specific legal rights. and you may,also have olhe! rights which vary fr?m
state 10 state. Some slates do not allow the exclusion or Imitation of incidental or consequential
damages. so the above limitation or exclusion may not apply 10 you. Same slates do not allow
limitation onhow long an impliedwarranty lasts, so the aboveLimitation may no1apply 10 you.
Makita Corporation
3-1 1-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
884158-063 PRINTEDINJAPAN
1998-5 -N
