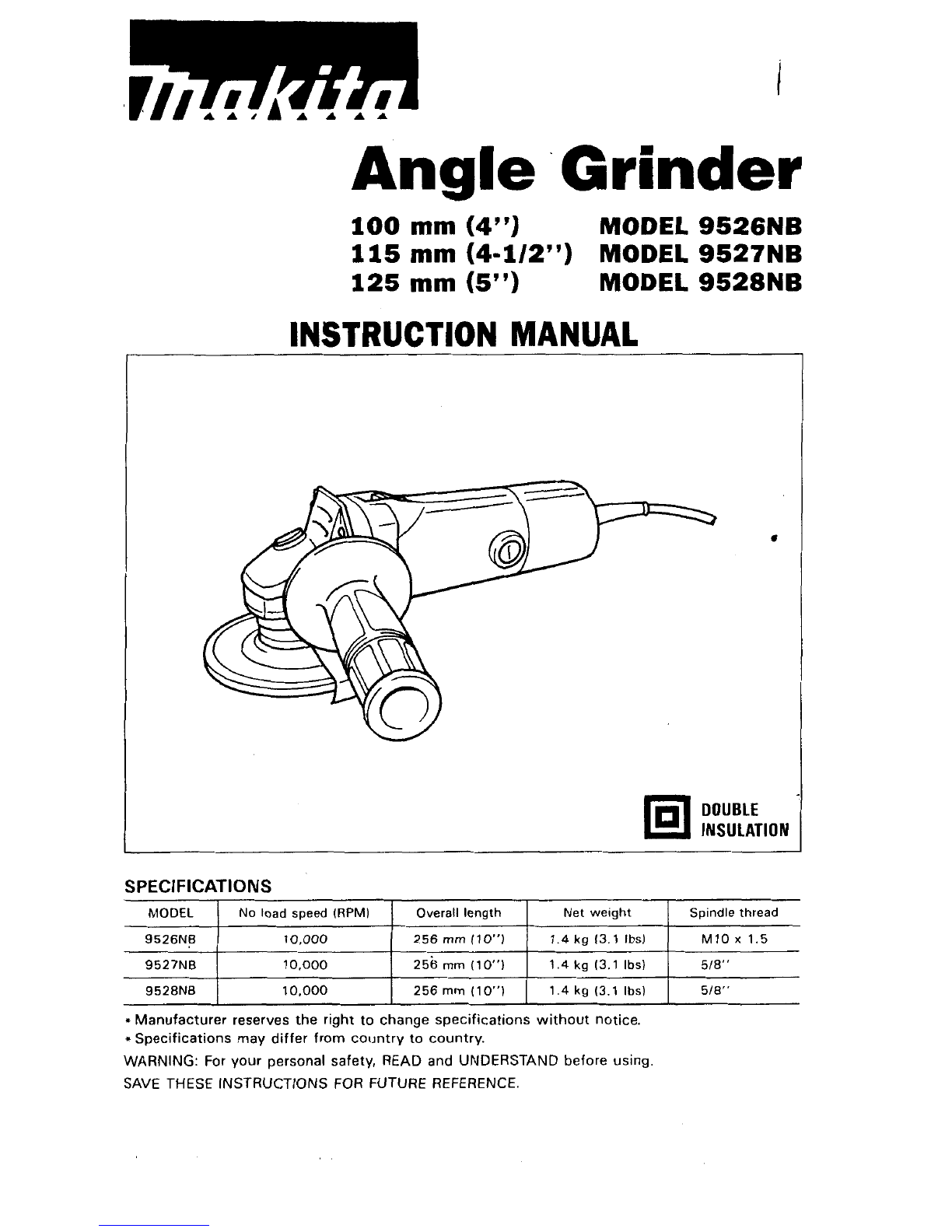

Makita 9526NB User manual

I
Overall length Net weight
MODEL No load speed (RPM)
9526NB 10,000 256 mm (10") 1.4 kg 13.1 Ibs)
9527NB 10,000 256 mm (10") 1.4 kg (3.1 Ibs)
9528NB 10,000 256 mm (10") 1.4 kg (3.1 Ibs)
Angle 'Grinder
Spindle thread
M10x 1.5
5/8"
518"
100 mm (4") MODEL 9526NB
115 mm (4-1/2") MODEL 9527NB
125 mm (5") MODEL 9528NB
INSTRUCTION MANUAL
DOUBLE
INS U 1 AT I 0 N

GENERAL SAFETY RULES
(For All Tools)
WARNING! Read and understand all instructions. Failure
to
follow all instructionslistedbelow, may result in electric
shock, fire
and/or serious personal injury.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
WORK AREA
1. Keep your work area clean andwell lit. Cluttered benches and dark areas invite
accidents.
2. Donot operate power tools in explosiveatmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to loose control.
E LECT R I CA L SAFETY
4. DoubleInsulatedtools are equipped with a polarized plug (oneblade iswider
than the other.) This plug will
fit in a polarized outlet only one way. If the
plug does not
fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug
in any way. Double insulation El eliminates the need for the three
wire grounded power cord and grounded power supply system.
5.rAvoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators.There
is an increased risk of electric shock if your body is
grounded.
6. Don't expose power tools torain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
7. Donot abuse the cord. Never use the cord tocarry the tools or pull the plug
from an outlet. Keepcordaway from heat,
oil, sharp edges or movingparts.
Replace damaged cords immediately. Damaged cords increase the
risk of
electric shock.
8. Whenoperating a power tool outside, useanoutdoor extension cord marked
"W-A' or "W." These cords are rated for outdoor use and reduce the risk
of electric shock.
PERSONAL SAFETY
9. Stay alert, watchwhat you are doing andusecommonsensewhenoperating
a power tool.
Do not use tool while tired or under the influence of drugs,
alcohol, or medication.
A moment of inattention while operating power tools
may result in serious personal injury.
IO. Dressproperly. Donotwear loose clothingorjewelry. Containlonghair. Keep
your hair, clothing, andgloves away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.

11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying
tools
with your finger ontheswitchor plugging in tools that have the switch
on invites accidents.
12. Remove adjusting keys or switches before turning the tool on. A wrench or
a key that is left attached to a rotating part of the tool may result in personal
injury.
13. Donotoverreach. Keep proper footing and balanceatalltimes. Properfooting
and balance enables better control of the tool in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
15. Use clamps or other practical way to secure and support the workpiece to
a stable platform. Holdingthe work by hand or against your body is unstable
and may lead to
loss of control.
16. Donotforce tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
17. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled
with the switch is dangerous and must be repaired.
18. Disconnect the plugfrom the power source beforemakingany adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk
of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintainedtools,
with sharp cutting edges are less likely to bindand are easier
to control.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the
tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained
tools.
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool, may become hazardous
when used on another tool.
S ERVl CE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result
in a risk of
injury.
24. When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the Maintenance section of this manual. Use
of unauthorized parts
or failure tofollow MaintenanceInstructionsmay create a risk of electric shock
or injury.
3

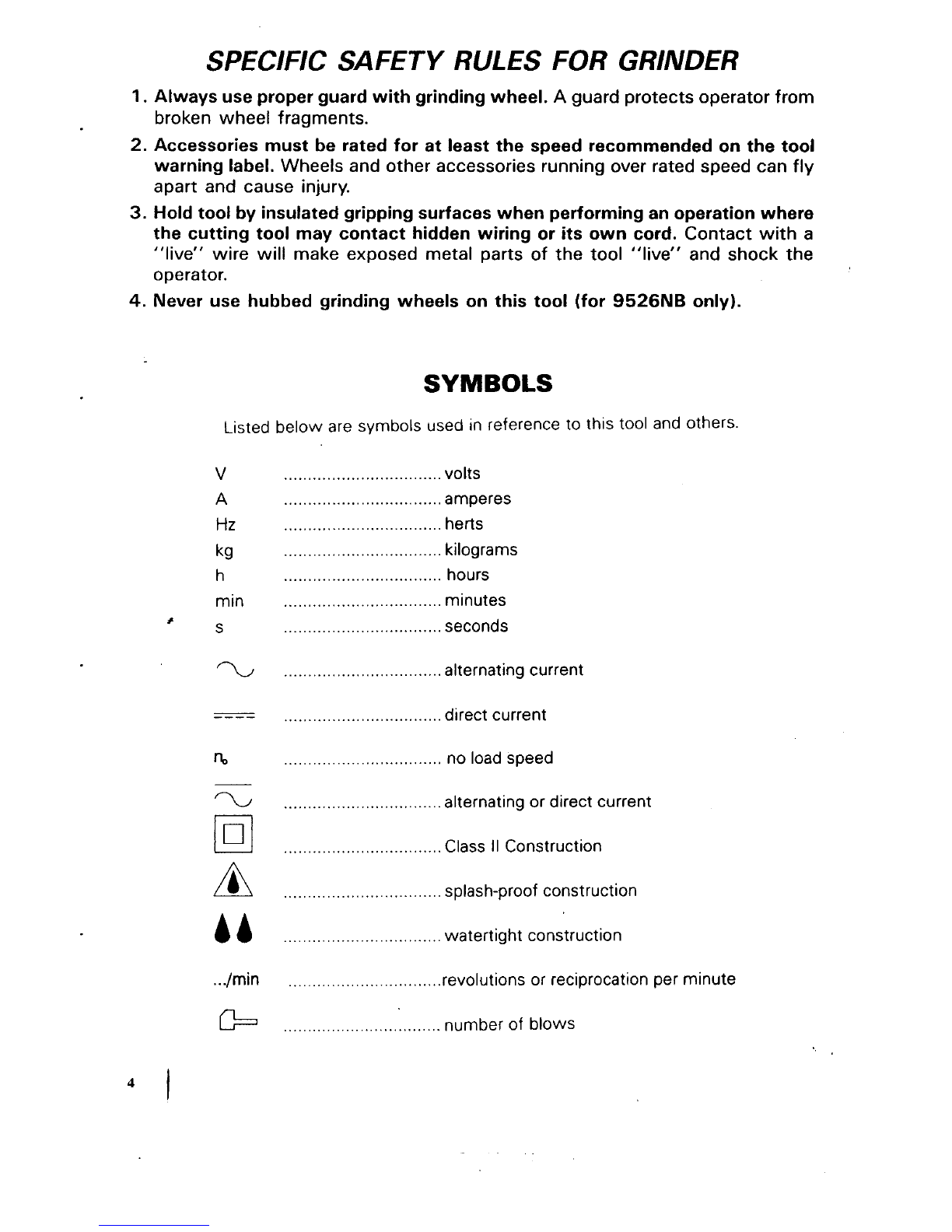

SPECIFIC SAFETY RULES FOR GRINDER
1. Always use proper guard with grinding wheel. A guard protects operator from
broken wheel fragments.
2. Accessories must be rated for at least the speed recommended on the tool
warning label. Wheels and other accessories running over rated speed can fly
apart and cause injury.
3. Holdtool by insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact
with a
"live" wire
will make exposed metal parts of the tool "live" and shock the
operator.
4. Never use hubbed grinding wheels on this tool (for 9526NB only).
SYMBOLS
Listed below are symbols used in referenceto this tool and others
V ................................. volts
A ................................. amperes
Hz ................................. hens
kg
................................. kilograms
h
................................. hours
min
................................. minutes
S ................................. seconds
z
'L ................................. alternatingcurrent
- ____ ................................. direct current
n. ................................. no load speed
%
................................. alternating or direct current
................................. Class II Construction
Ab ................................
. splash-proof construction
watertight construction
... /min
@
................................ revolutionsor reciprocationper minute
........................ 1 ........ number of blows

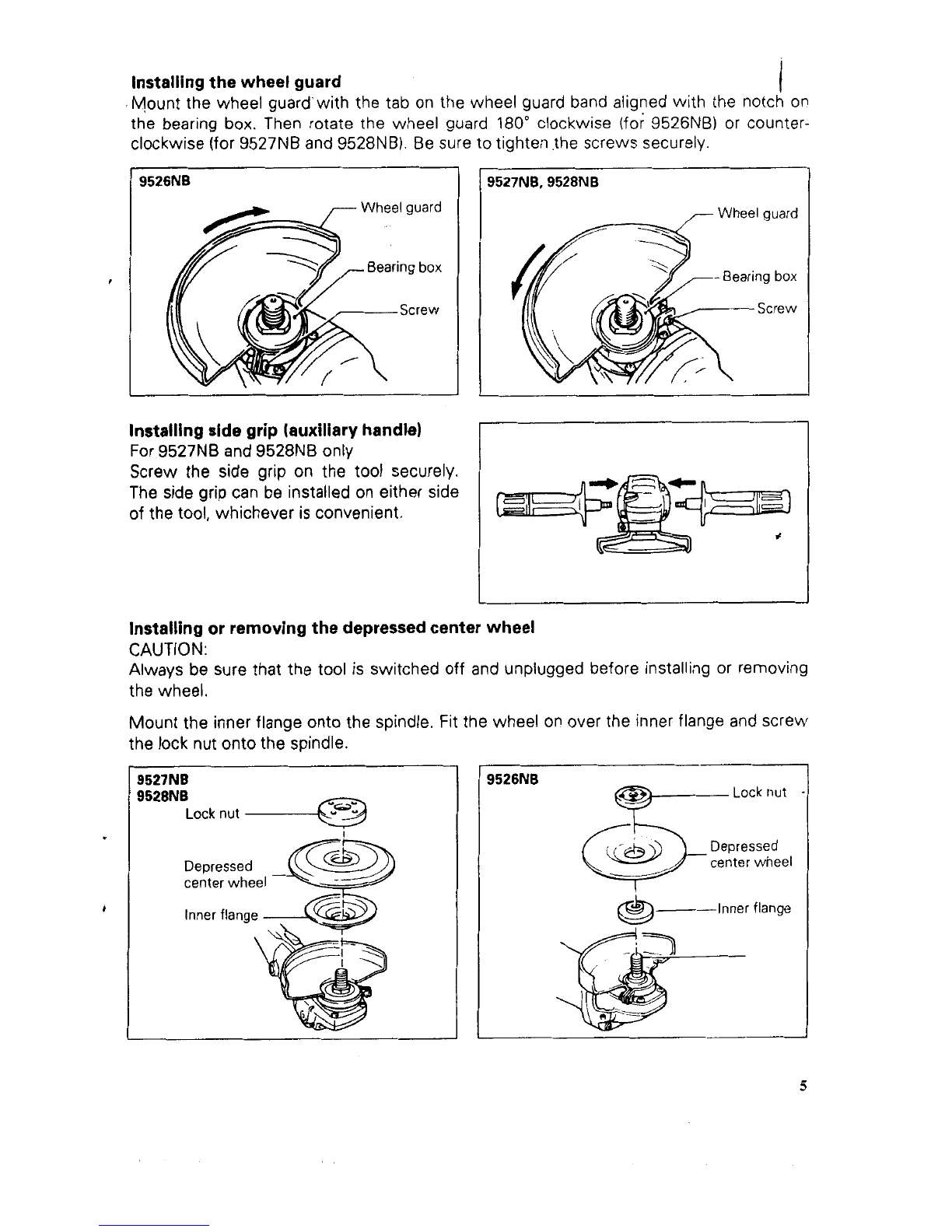

Installingthe wheel guard I
Mount the wheel guard with the tab on the wheel guard band aligned with the notch on
the bearing box. Then rotate the wheel guard
180" clockwise (fo; 9526NB) or counter-
clockwise (for 9527NB and 9528NB).Be sure to tighten the screws securely.
9526NB
I
Installingside grip (auxiliaryhandle)
For 9527NB and 9528NB only
Screw the side grip on the
tool securely.
The side grip can be installed on either side
of the tool, whichever is convenient.
3527NB. 9528NB
,--Wheel guard
I
Installingor removingthe depressed center wheel
CAUTION:
Always be sure that the tool is switched
off and unplugged before installing or removing
the wheel.
Mount the inner flange onto the spindle. Fit the wheel on over the inner flange and screw
the lock nut onto the spindle.
9527NB
9528NB
Lock nut -a
9526NB
?--- Lock nut
Depressed
center
wheel
@-inner flange

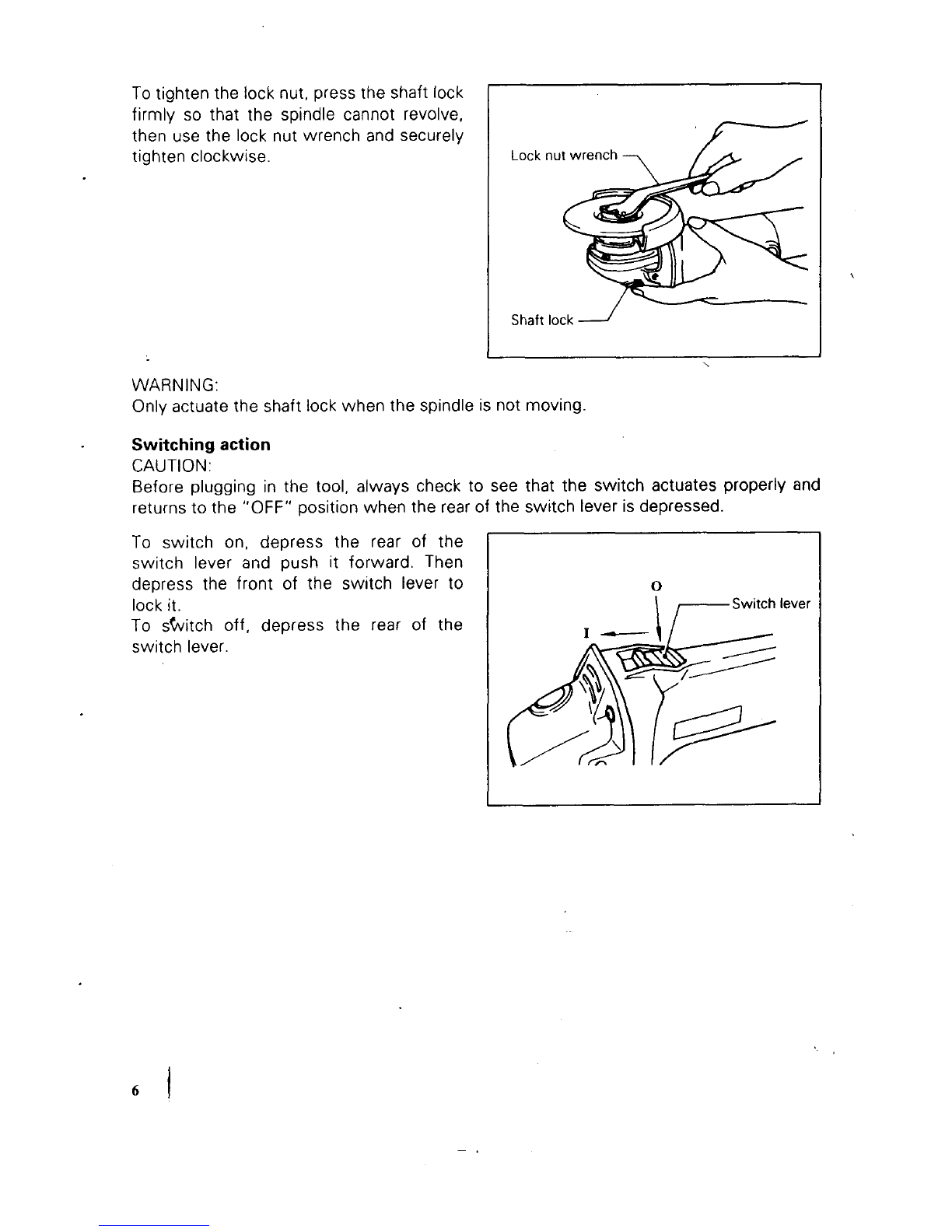

To tighten the lock nut, press the shaft lock
firmly
so that the spindle cannot revolve,
then use the lock nut wrench and securely
tighten clockwise.
Lock nut wrench
\
WARNIN G :
Only actuate the shaft lock when the spindle is not moving.
. Switchingaction
CAUTION:
Before plugging in the tool, always check to see that the switch actuates properly and
returns to the
“OFF” position when the rear of the switch lever is depressed.
To switch on, depress the rear
of the
switch lever and push it forward. Then
depress the front of the switch lever to
lock it.
To shitch off, depress the rear of the
switch lever.
0
\ ,-Switch leve

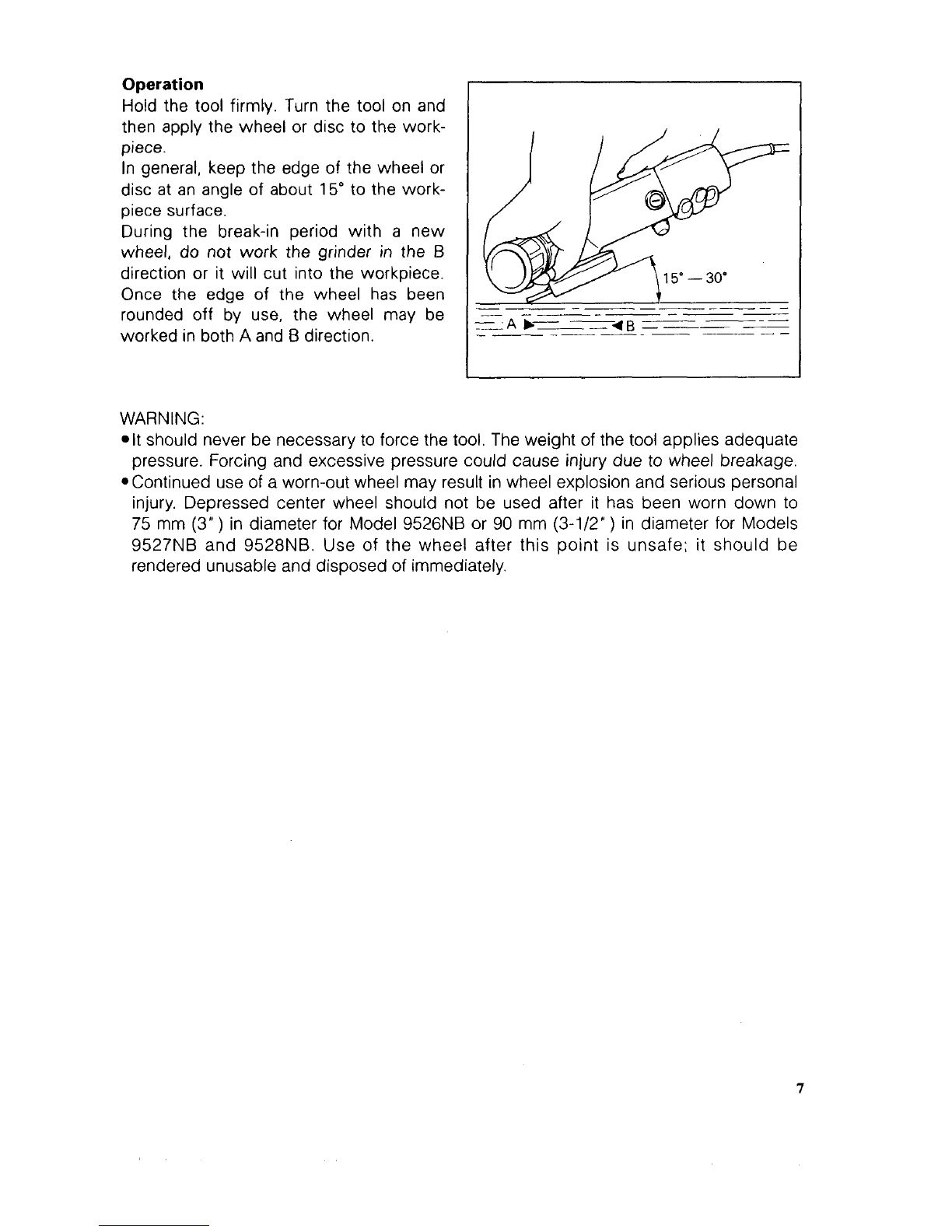

Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to the work-
piece.
In general, keep the edge of the wheel or
disc at an angle
of about 15” to the work-
piece surface.
During the break-in period with
a new
wheel, do
not work the grinder in the B
direction or it will cut into the workpiece.
Once the edge
of the wheel has been
rounded off by use, the wheel may be
worked in both
A and 6 direction.
I
WARN I NG :
It should never be necessaryto force the tool. The weight of the tool applies adequate
pressure. Forcing and excessive pressure could cause injury due
to wheel breakage.
*Continued use
of a worn-out wheel may result inwheel explosion and serious personal
injury. Depressed center wheel should
not be used after it has been worn down to
75 mm (3”) in diameter for Model 9526NB or 90 mm (3-1/2”) in diameter for Models
9527NB and 9528NB. Use of the wheel after this point is unsafe; it should be
rendered unusableand disposed of immediately.

MAINTENANCE
CAUTION:
Always be sure that the tool
is switched off and unpluggedbeforeattempting to perform
inspectionor maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replacewhen they wear down
to
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holdercaps.
Limit mark
---
Brush 5% holder cap
Screwdriver l\
To maintain product SAFETY and RELIABILITY, repairs, any other maintenanceor adjust-
ment should be performedby Makita Authorizedor Factory Service Centers, always using
Makita replacementparts.
8

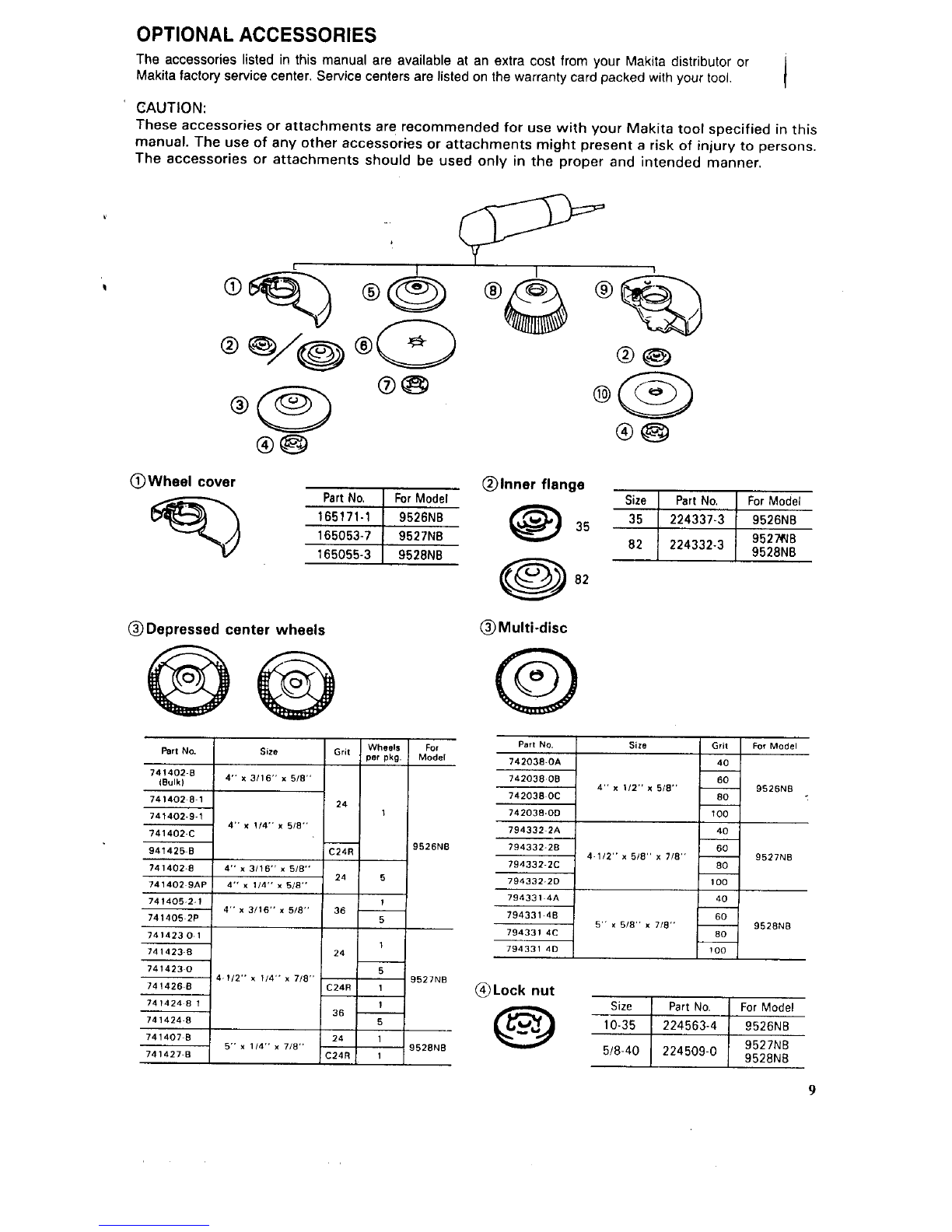

OPTIONALACCESSORIES
The accessories listed in this manual are available at an extra cost from your Makita distributor or
Makita factory service center.Service centers are listedon the warranty cardpackedwith your tool.
CAUTION:
These accessories or attachments are recommended for use withyour Makitatool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should
be used only in the proper and intended manner.
1
Par1 No.
@Wheel cover
G,i, Wheels For
per pkg. Model
Sire
@Depressed center wheels
741402-8
lRii1l.l
4.. 3116.,
741402-9-1
741402-C
941425 8
741402-8
1
4" x 114" x 518''
-
9526NB
C24R
4" x 3/16" x 518''
1-1
741423 0 1
794332 2A
794332 28
794332-2C 4 112"
x 518" x 718"
@inner flange
224337-3
224332-3
99;::;
@Multi-disc
40
60
Rrl
__
9527N8
-
Part No.
742038-OA
742038 08
742038 OC 80
742038-00 100
4" x 112" x 518'' 9526N8
794332-20
794331 4A
794331-48
794331 4C
794331 40
..
-
100
40
60
80
100
-
5" x 518" 718- __ 9528~8
__
741402 SAP
741405 2-1
741405 2P
741423 8
741423 0
7414268 Fi @Lock nut
741424 8 1
741424 8
741407 8 24
741427 8 C24R
4 112" x 114" x 718" 9527N8
36
5" x 114" x 718" 9528N8
~ ~~
24 5
4" x 114" x 518"
4" x 3/16" x 518''
1
5
36
9

5Rubber pad
6,Abrasive discs
or Model
9526NB
@Lock nut 10-30
(For abrasive disc)
(@Wire cup brush
75
@)Wire bevel brush 85
(9) Wheel guard assembly
(For cut-off wheel) For Model 9526NB
Part No. 192476-6

@Cut-off wheel
Part No. Size Grit Wheels per pkg. For use
724104-110 4"
x 3/32" x 5/8"
36 10 For masonry and concrete.
724107-510 4" x 5/64" x 518"
46 10 For steel and cast iron.
For Model
9526N8
Knot-Type
Wire cup brush
Stringer Bead Twist
Wire brush wheel
Part No. I For Model
Part
No. I For Model
Knotted Twist
Wire brush wheel
Lock nut wrench
Full Cable Twist
Wire brush wheel
Part No. I For Model
Grip
Part No. 152487-3
Part No. I For Model

Aup.-19-’98 US
Note: The switch, noise suppressor and other part configurations
may differ from country to country.

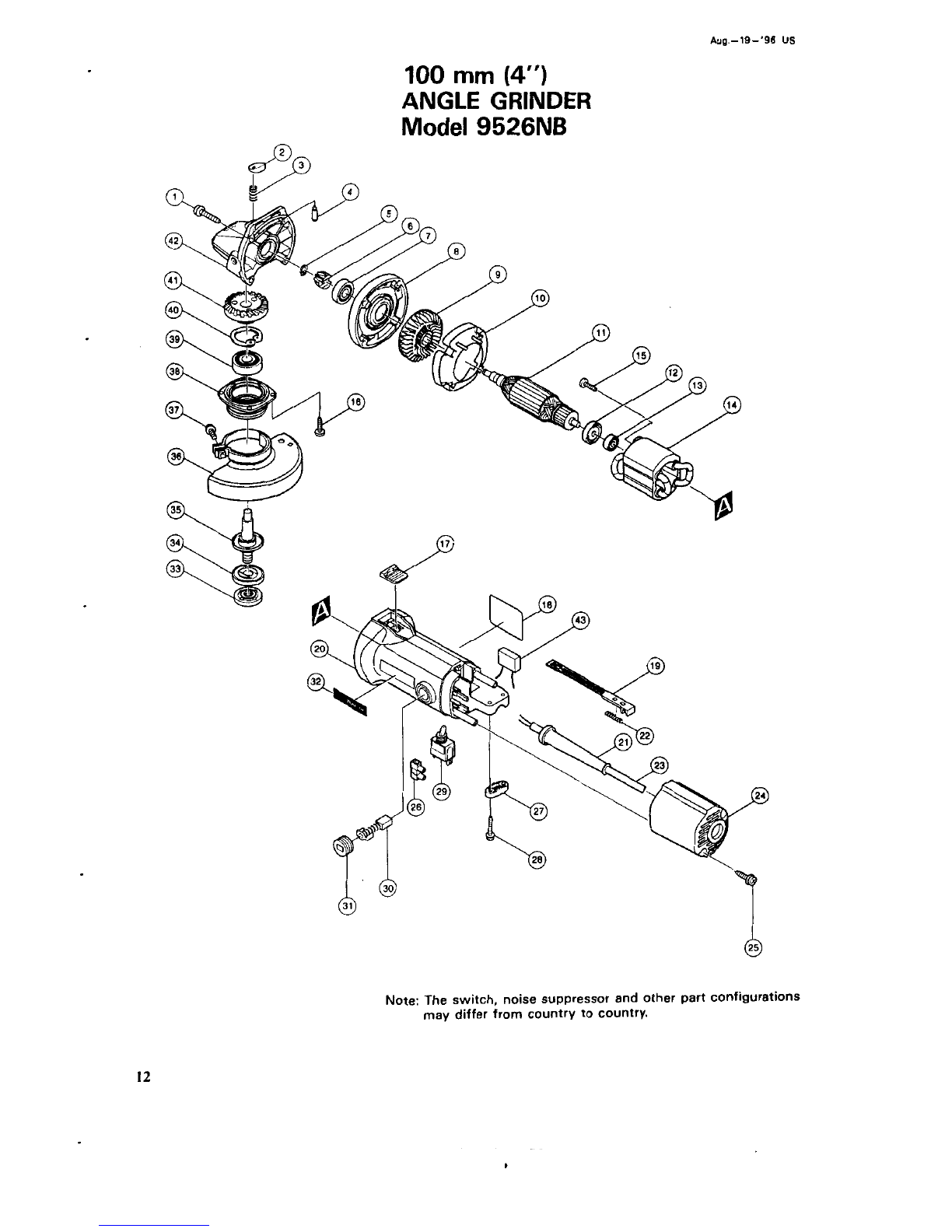

12

MODEL 9526NB Aug-l9--'96 US
DESCRIPTION IFOM ztD DESCAlPTlON
MACHINE MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
-
4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
1
\
1
-
Tapping Screw Flange PF 5x30
P," cap
Comprermon Spring 8
PI" 4
Retaining Ring S-6
Spiral Bevel Gear 10
Bell Bearing 600000W
Gear Housing Cover
Fan 57
Baffle Plate
ARMATURE ARMATURE
IWith Item 9. 12 & 131
Insulation Washer
Ball Bearing 60622
FIELD ASSEMBLY
Tapping Screw Bind PT 3x10
Tapping Screw CT 4x16
Swktch Knob
Name Rate
Switch Lever
~otol nousing Complete
Cord Guard
Comprarrlon Sprmg 4
Cord
Rear Cover
Tappmg Screw Flange PF 4x18
Termma1 Block 1P
Siram Relief
Tapping Screw Flange PF 4x18
Switch
Carbon Brush
Holder Cap
Makita Label
Lock Nul 10-30
Inner Flange 30
Spmdle Complete
Wheel Cover
Pan Head Screw MSxl6
Bell Bearing 62OlODW
Retaining Ring R-32
Spiral Bevel Gear 36
Bearing Box
ear nousmg compiele
Note: The switch and ofher part specifications may differ lrom country 10 country.
13

Aug.-19--'96 US
ANGLE GRINDER
1 15 mm (4-1 /2") Model 9527NB
125 mm (5") Model 9528NB
Note:The switch, noise suppressor and other part configurations
may differ from country to country.
14

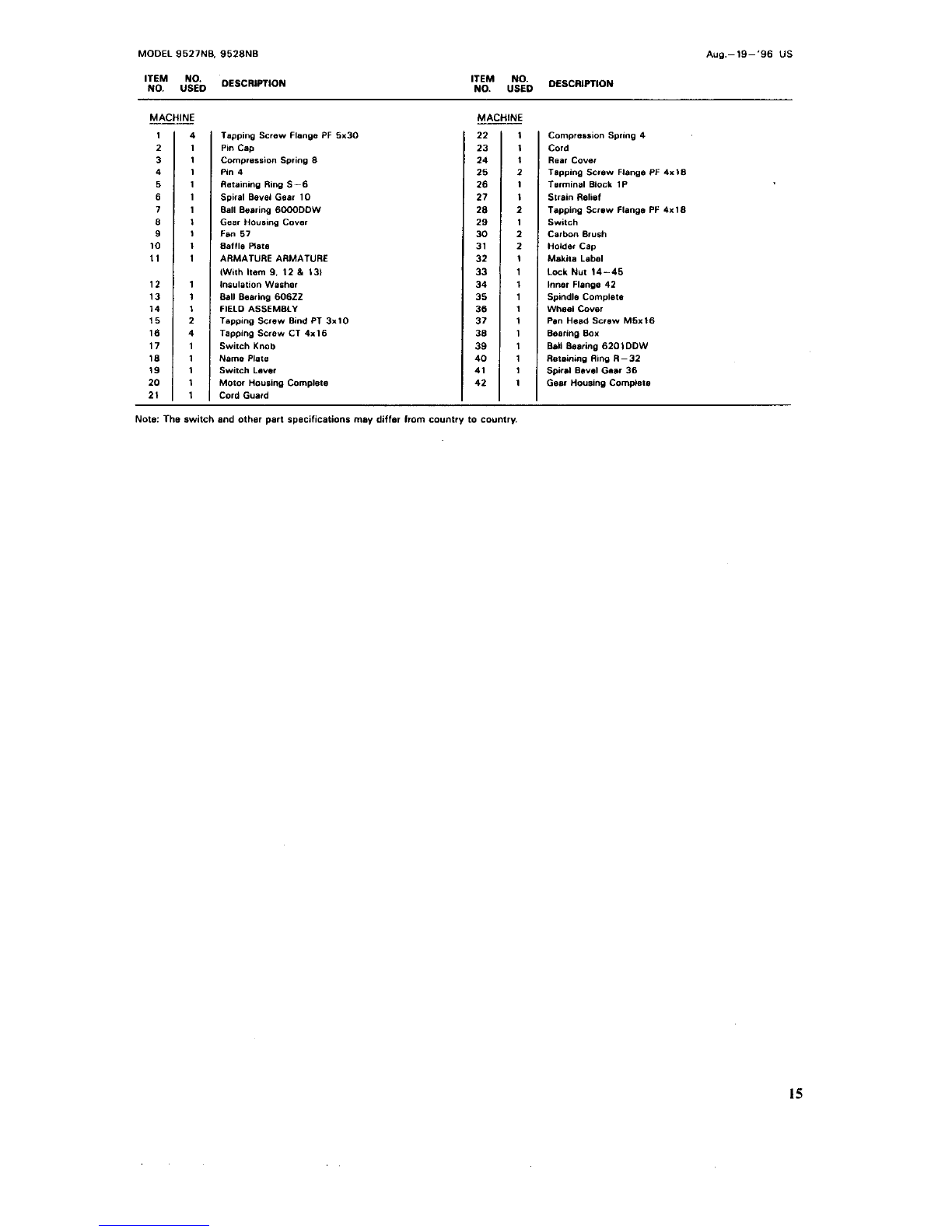

MODEL 9527NB. 9528NB
'i\M G2D DESCRIPTION
1
1
1
2
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
1
1
Aug.-19-'96 US
'EM AtD DESCRIPTION
CompressionSpring 4
Cord
Rear Cover
Tapping
Screw Flange PF 4x18
Terminal Block 1P
Strain Relief
Tapping Screw Flange PF 4x 18
Switch
Carbon Brush
Holder Cap
Mahila Lsbel
Lock
Nut 14-46
Inner Flange 42
Spindle Complete
Wheel Cover
Pan Head Screw MSxl6
Bearing Box
Ball Beanng 620lDDW
Reiammg Ring R-32
Spiral Bevel Gear 36
Gear Housing Complete
MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
1
1
1
-
Tapping Screw Flange PF 5x30
Compression Spring 8
P," 4
Retammg Ring S-6
Spiral Bevel Gear 10
Ball Bearing 6WODDW
Fan 57
Baflle Plate
ARMATURE ARMATURE
IWtth Item 9. 12 & 131
lnsulall~n Washer
Ball Bearing 60622
FIELDASSEMBLY
Tapping
Screw Bind PT 3x10
Tapping Screw CT 4x16
Switch Knob
Name Plats
Switch Laver
Motor nouslng Complete
Cord Guard
PI" Cap
G~~~ nousmg cover
MACHINE
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
-
Note: The switch and other pan specifications may differ from country to country

MAKFALIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thorou ly inspected and tested before leaving the factory. It is warranted to
be free
of defects from workanshipand materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-yearperiod, return the COMPLETE
tool, freight prepaid,
to one of Makita's Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
a repairs have been made or attempted by others:
a repairs are required because of normal wear and tear:
a The tool has been abused, misused or improperly maintained ;
a alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT.THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THETERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR
A SPECIFIC PURPOSE,"
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidentalor consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above Limitation may not apply to you.
AFTER THE ONE-YEAR TERM OFTHISWARRANTY.
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
MCA' 11 -96
884064-062 PRINTED IN USA
1997-01 -4D
