4-1/2" & 5'' INDUSTRIAL
ANGLE GRINDERS
MODELS
9564 (4-1/2'')
9565 (5'') For more info, call 1-800-4MAKITA
makitatools.com
FEATURING MAKITA EXCLUSIVE SJS - SUPER JOINT SYSTEM
SJS Helps Prevent Gear Damage Caused by Accidental Wheel Binding
9.5 AMP Motor for Continuous Operation
All Metal Gear Housing for Added Protection
Protective Zig-Zag Varnish Seals Motor from Contaminants and Reduces Heat
Great for Welders, Fabricators, Installers, Pipe Fitters and many other Applications
Labyrinth construction seals motor
and bearings from contamination by
creating a complex set of channels
HEAVY DUTY
DURABILITY
INNOVATION
Coil Spring
Armature
Shaft
Spiral Bevel Gear
The motor armature and
the spiral bevel gear are
connected by a coil spring.
As the armature starts to
rotate, the coil tightens
around the spiral bevel
gear, which drives the
grinding wheel.
If the grinding wheel
should accidentally catch
or bind,the gears
automatically disengage
from the motor. SJS stops
the wheel and helps
prevent gear damage.
CONTINUOUS OPERATION
SJS - SUPER JOINT SYSTEM
Protective zig-zag varnish seals the
motor from contamination by
forming a barrier under rotation
MODELS
9564 (4-1/2'')
9565 (5'')
FEATURING MAKITA EXCLUSIVE SJS - SUPER JOINT SYSTEM
SJS Helps Prevent Gear Damage Caused by Accidental Wheel Binding
9.5 AMP Motor for Continuous Operation
All Metal Gear Housing for Added Protection
Protective Zig-Zag Varnish Seals Motor from Contaminants and Reduces Heat
Great for Welders, Fabricators, Installers, Pipe Fitters and many other Applications

All specifications subject to change without prior notice. All models and accessories subject to stock on hand.
TGF-0804-5M MA-0444-04 For more information, call 1-800-4MAKITA makitatools.com
Warning: Consult owner/operator manual and adhere to all safety precautions for accessory items. Always use
recommended guards. Failure to do so may result in serious injury or death. Refer to ANSI B7.1 and owner/operator
manual for proper accessory mounting and grinding procedures and always wear ANSI Z87.1 eye protection.
Makita U.S.A., 14930 Northam St., La Mirada, CA 90638

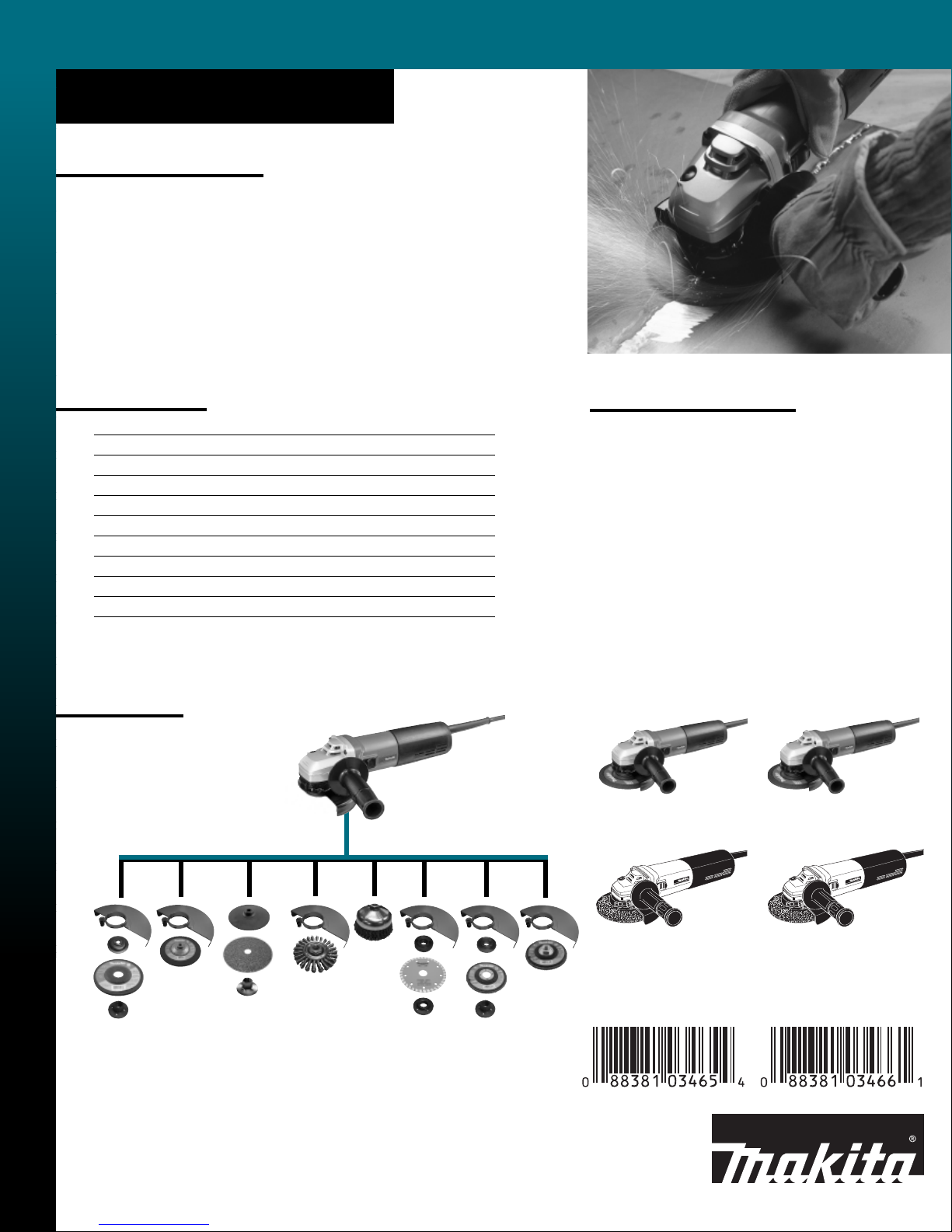

Models 9564/9565
4-1/2" & 5'' INDUSTRIAL ANGLE GRINDERS
Model 9565
Model 9564
Features & Benefits
Features & Benefits
Specifications
Specifications
Accessories
Accessories
nSJS - Super Joint System helps prevent gear damage caused by
accidental wheel binding
n9.5 AMP motor design for high output power in a more compact tool
nAll metal gear housing for added protection
nLarger and improved carbon brush material for longer tool life
nProtective zig-zag varnish seals motor from contaminants and reduces heat
nLabyrinth construction seals and protects the motor and bearings
from dust and debris by creating a complex set of channels
Model 9564 9565
Grinding Wheel 4-1/2'' 5''
Wire Cup Brush 3'' 3-1/2''
Sanding Disc 4-1/2'' 5''
No Load Speed 10,500 RPM 10,500 RPM
AMPS (120V) 9.5 9.5
Spindle Thread 5/8'' - 11 UNC 5/8'' - 11 UNC
Overall Length 11-3/4'' 11-3/4''
Net Weight 4.0 lbs. 4.0 lbs.
Shipping Weight 7.7 lbs. 7.7 lbs.
UPC Code 088381-03465-4 088381-03466-1
Makita offers a wide variety of accessories for the 9564 & 9565 Industrial Angle Grinders. For a
complete listing, please refer to the Makita General Catalog, or visit our website at makitatools.com,
or call 1-800-4MAKITA.
Standard Equipment
Standard Equipment
9564
n4-1/2'' Grinding Wheel (741424-8-1)
nWheel Guard (165053-7)
nLock Nut (193465-4)
nLock Nut Wrench (782412-6)
nSide Handle (152490-4)
nInner Flange (224378-9)
9565
n5'' Grinding Wheel (741407-B)
nWheel Guard (125097-9)
nLock Nut (193465-4)
nLock Nut Wrench (782412-6)
nSide Handle (152490-4)
nInner Flange (224378-9)
Grinding
Wheel Multi-Disc
Diamond Blade
Hubbed
Grinding Wheel
Resin
Fiber Disc
Wire Wheel
Brush
Wire Cup
Brush
Hubbed
Multi-Disc
