Makita DISC GRINDER 9505BH User manual

Disc Grinder
No load speed
iRPMi
10.000
~~~ ..
125 mm (5") MODEL 9505BH
Overall length Net weight Spindle thread
-
260 mtn 110 1 4")
2 1 kg 14.6 Ibs)
5/8"
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC
IF I CAT IONS

lM PORTANT
SAFETY IN STRU CTlO N S
(For All Tools)
WARNING:
WHEN USING ELECTRICTOOLS, BASICSAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power toolstorain.
Don't use tool in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. When not in use, tools should be storedindry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will dothejob better andsafer atthe ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't usetoolfor purpose notintended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESSPROPERLY. Don't wear loose clothingorjewelry. They canbe caught
in moving parts. Rubber gloves and non-skidfootwear are recommended
when working outdoors. Wear protective hair covering tocontain longhair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Never carry toolby cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspecttoolcords periodicallyand if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, before servicing, andwhen chang-
ing accessories, such as blades, bits, cutters.
2
I

14. REMOVEADJUSTING KEYS AND WRENCHES. Form habit of checking to
seethat keys andadjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING.Don't carry tool with finger onswitch.
Be sure switch is
OFF when plugging in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product
will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating. Table 1 showsthe
correctsize touse depending oncord lengthand nameplateampere rating.
If in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1
MINIMUM GAGE FOR CORD SETS
0 - 25
Ampere Rating
More Not More
Than Than
26 - 50 51 - 100 101 - 150
0- 6
6
- 10
10 - 12
12
- 16
18
18
16
14
16 14
16
16 14 12
12
Not Recommended
AWG
17. OUTDOOR USE EXTENSIONCORDS. Whentoolisusedoutdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what youare doing, usecommonsense. Don't operate
tool when you are tired.
19. CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly andperformitsintendedfunction. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions
that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replacedby authorizedservice center. Don't
use tool if switch does not turn it on and off.
20. GUARDAGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
2 1 . REPLACEMENTPARTS.When servicing, useonly identicalreplacementparts.
22. POLARIZEDPLUGS. To reducethe risk of electric shock, this equipmenthas
a polarized plug (one blade is wider than the other). This plug will
fit in a
polarized outlet only one way. If the plug does not
fit fully in the outlet,
reversethe
plug. If it still doesnotfit, contact aqualified electriciantoinstall
the proper outlet.
Do not change the plug in any way.
3

VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool.
A power source withvoltage greater than that specified
for the tool can result
in SERIOUS INJURYtothe user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Usinga power source with
voltage less than the nameplate rating is harmful to the motor.

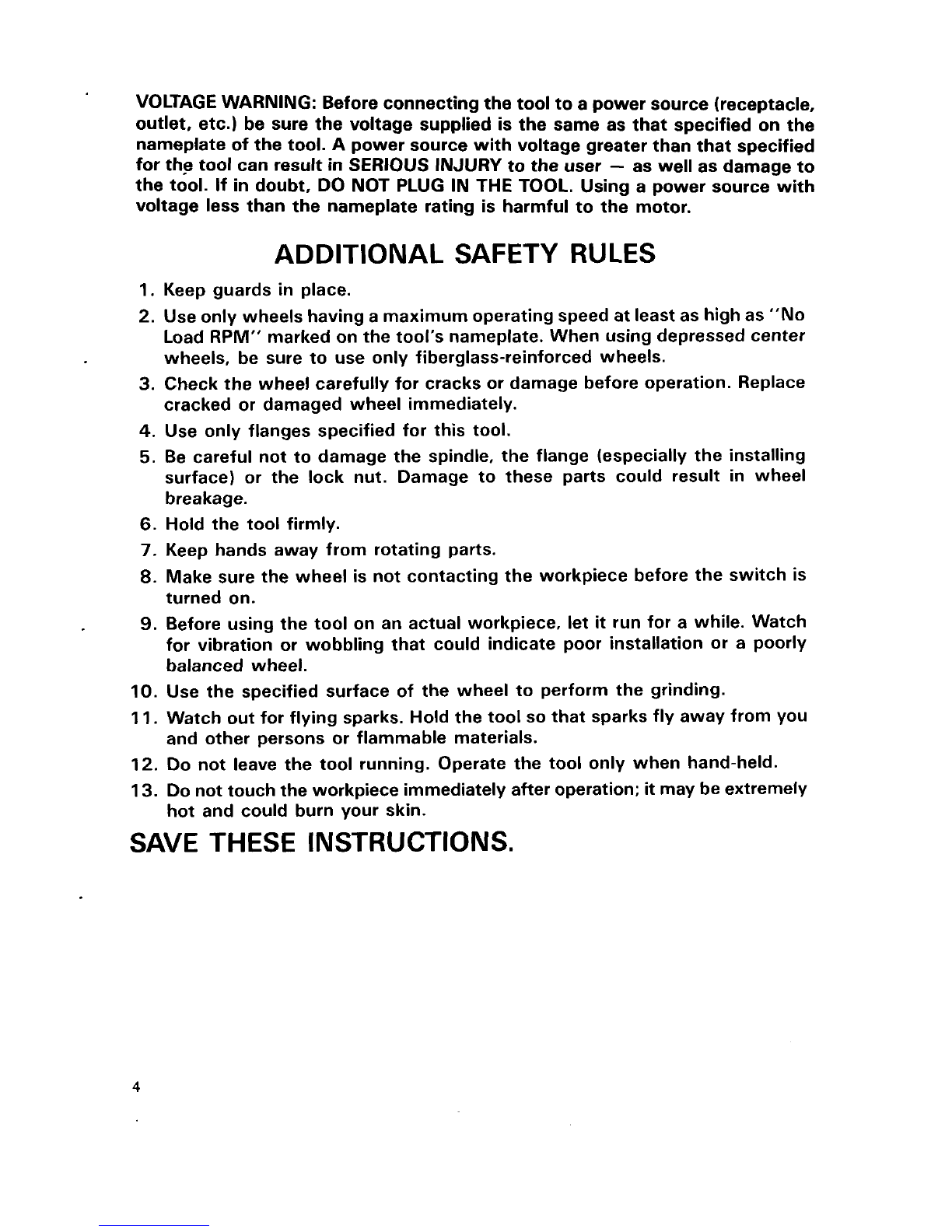

ADDITIONAL SAFETY RULES
1. Keep guards in place.
2. Useonly wheelshavinga maximumoperating speed at least as highas "No
LoadRPM" marked on the tool's nameplate. When using depressed center
wheels, be sure to use only fiberglass-reinforced wheels.
3. Check the wheel carefully for cracks or damage before operation. Replace
cracked or damaged wheel immediately.
4. Use only flanges specified for this tool.
5. Be careful not to damage the spindle, the flange (especially the installing
surface) or the lock nut. Damage to these parts could result in wheel
breakage.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Make sure the wheel is not contacting the workpiece before the switch is
turned on.
9. Before usingthe tool on an actual workpiece, let it runfor a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced wheel.
IO. Use the specified surface of the wheel to perform the grinding.
11. Watch out for flying sparks. Hold the tool so that sparks fly away from you
12. Do not leave the tool running. Operate the tool only when hand-held.
13. Do nottouchthe workpiece immediately after operation; it may beextremely
and other persons or flammable materials.
hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

Installingside grip (auxiliary handle)
I1
Screw the side grip on the tool securely.
The side grip can be installedon either side
of the tool, whichever is convenient.
Installing or removing depressed center wheel
CAUTION :
Always be sure that the tool is switched off and unplugged beforeinstallingor removing
the wheel.
Mount the inner flange onto the spindle.
Fit
the wheel on over the inner flange and
screwthe lock nut
or
I
I DeDressed I
itothe spindle.
I I I
I
I
I
To tighten the lock nut, press the shaft
lock firmly
so that the spindle cannot re-
volve, then use the lock nut wrench and
securely tighten clockwise.
I / Shaft lock
To removethe wheel, follow the installation procedure in reverse.
5

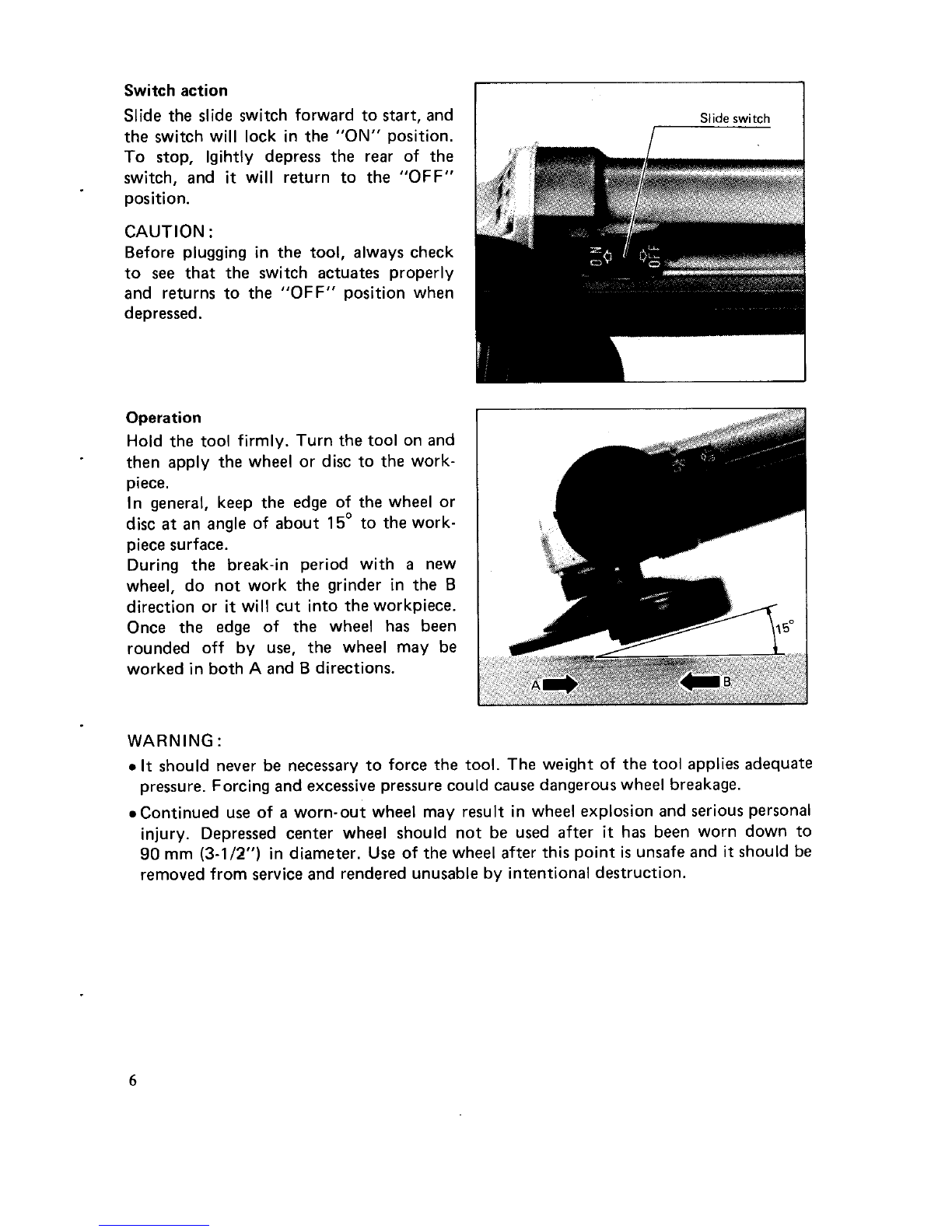

Switchaction
Slide the slide switch forward to start, and
the switch will lock in the "ON" position.
To stop, lgihtly depress the rear of the
switch, and
it will return to the "OFF"
position.
CAUTION
:
Before plugging in the tool, always check
to
see that the switch actuates properly
and returns to the
"OFF" position when
depressed.
Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to the work-
piece.
In general, keep the edge of the wheel or
disc
at an angle of about 15" to the work-
piece surface.
During the break-in period with
a new
wheel, do not work the grinder in the
B
direction or it will cut into theworkpiece.
Once the edge of the wheel has been
rounded off by use, the wheel may be
worked inbothA and
B directions.
Slide switch
WARNING :
0 It should never be necessary to force the tool. The weight of the tool applies adequate
pressure. Forcingand excessive pressure could cause dangerouswheel breakage.
.Continued use of
a worn-out wheel may result in wheel explosion and serious personal
injury. Depressed center wheel should not be used after
it has been worn down to
90 mm (3-1/2") in diameter. Use of the wheel after this point is unsafe and it should be
removedfrom service and renderedunusable by intentional destruction.
6

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbeforeattempting to perform
inspectionor maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limitmark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time.
Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
I I
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
7

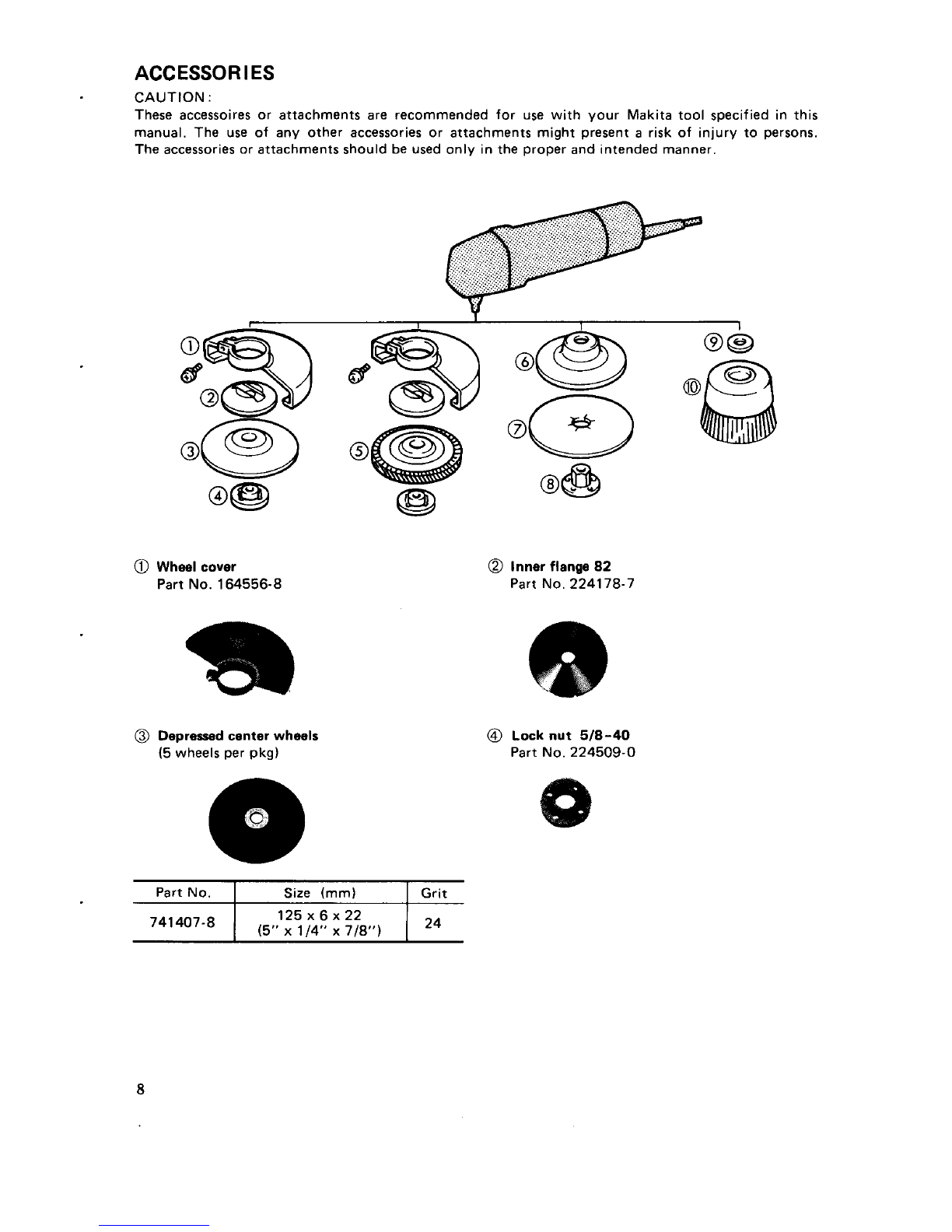

ACCESSORIES
CAUTION :
These accessoires or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present
a risk of injury to persons.
The accessories or attachments should
be used only inthe proper and intended manner.
0 Wheel cover
Part No. 164556-8
@ Depressed center wheels
(5 wheels per pkg)
@ Inner flange 82
Part No. 224178-7
@ Lock nut 5/8-40
Part No. 224509-0
8

0 Multi disc
Part No.
Part No. I Size (mm) I Grit
Grit
794331-4A
794331
-48
794331-4D 100
125
x 17 x 22.2
@ Locknut 5/8-48
(Forabrasive disc)
Part
No. 224517-1
@ Abrasive discs
(5 discs per pkg)
742072-A-5 24
742073-A-5 30
0 Grip 26
Part No. 273485-5
742074-A-5
8 Urethane washer 14
Part No. 261039-0
50
When using wire brush, mounturethane
wahser
14 tothe spindle. It will make it
easier toremove wire brush.
742075-A-5
@ Wire cup brush
Part No. 743205-6
80
0 Steel carrying case
Part No. 181717-5
742076-A-5
0 Lock nutwrench 28
Part No. 782413-4
120
9

Sep 22'87 US

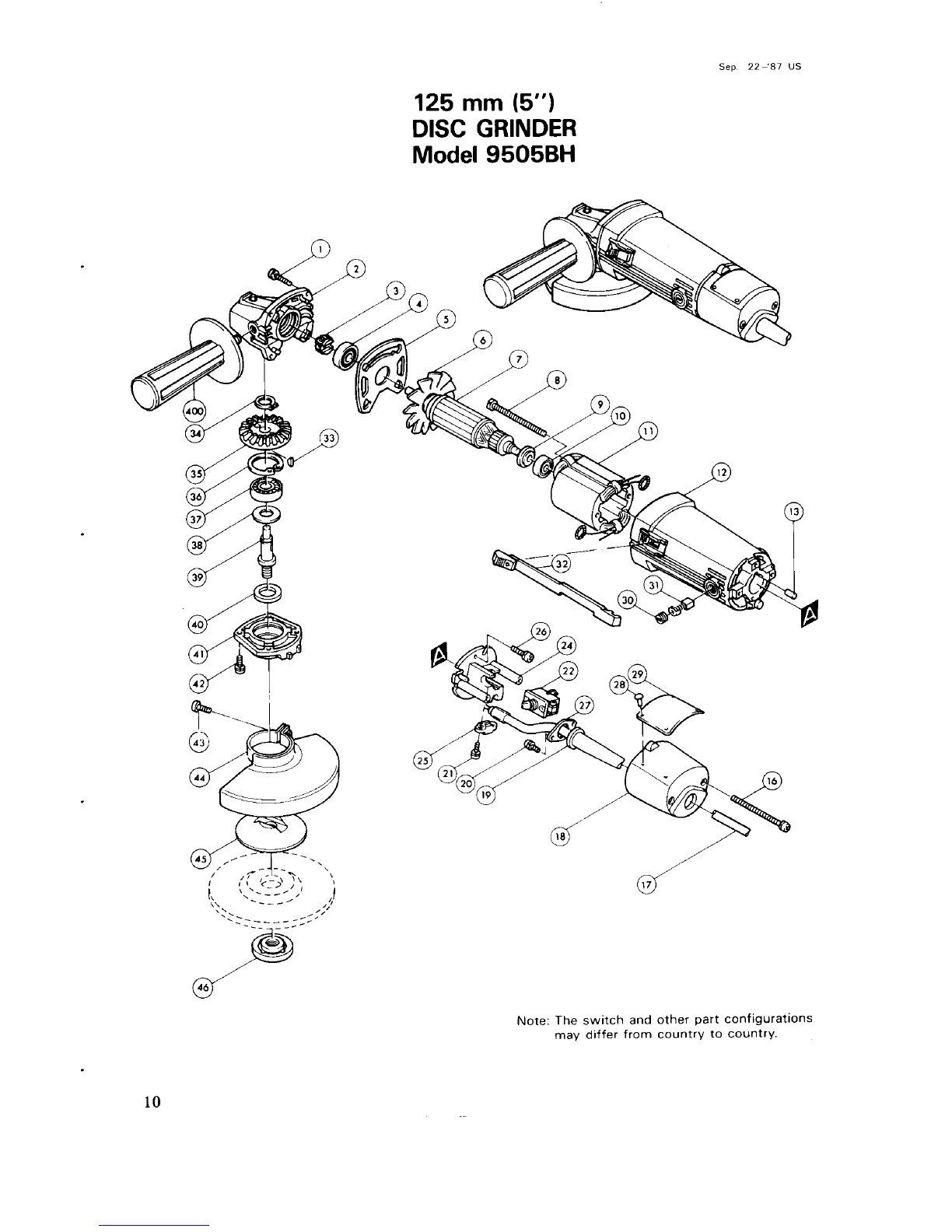

125 mm (5")
DISC GRINDER
Model 9505BH
Note: The switch and other part configurations
may differ from country to country.
10

MODEL 9505EH
ITEM NO
NO
USED
MACHIN!
1
2
3
4
5
6
7
8
9
10
11
12
13
16
17
18
19
20
21
22
24
25
4
1
1
1
1
1
1
2
1
1
1
1
1
2
1
1
1
2
2
1
1
1
-
DESCRIPTION
Sep 22 87 US
I:,'," ,":, DESCRIPTION
Pan Head Srrew M4x20 1With Wa<herl
Gear
Housing
Spiral Bevel Gear 11
Ball Bearing 6000LE
Plate
Fan 60
ARMATURE ASSEMBLY
IWilh
Item 6 7 9 & 101
Hex Bolt M4x70 [With Washer1
Insulation Washer
Ball Bearing 627LB
FIELD ASSEMBLY
Motor Housing
Rubber Pin 4
Pan Head Screw M4x60 lWifh Washer1
Cord
Rear Cover
Cord Guard
Pan Head Screw M4x8 IWifh Washeri
Pan Head
Screw M4x14 lWifhWasher1
Switch
Switch Holder
Strain
Relief
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
100
-
2
1
4
1
2
2
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
-
Pan Head Screw M4x14 IWilti Wdsherl
Set Plate
Rivet 0 5
Name Plate
Brush Holder Cap
Carbon Brush
Switch Lever
Woodruff Key 3
Retaining Ring S 12
Spiral Bevel Gear 36
Retaining Ring R 32
BalPBearing 6201LB
Flat Washer 12
Spindle
Felt
Ring 18
Bearing Box
Pan Head Screw M4x14 IWilh WaSheri
Pan Head Screw M5x14 IWith Washer1
Wheel Cover
Inner Flange 82
Lock Nut 518 40
Grip 26
Note The Switch and other part specificattons may differ from co~nlry Io Country

P
MAKITA LIMITEDONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from worbnanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
e repairs have been made or attempted by others:
e repairs are required because of normal wear and tear:
e The tool has been abused, misused or improperly maintained;
e alterations have been made to the tool.
IN
NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR
A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
- -
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883432C066
PRINTED IN JAPAN
I995 - 4 - N
