Makita GA7020 User manual

1
GB Angle Grinder INSTRUCTION MANUAL
SVinkelslipmaskin BRUKSANVISNING
NVinkelsliper BRUKSANVISNING
FIN Kulmahiomakone KÄYTTÖOHJE
LV Leņķa slīpmašīna LIETOŠANAS INSTRUKCIJA
LT Kampinis šlifuoklis NAUDOJIMO INSTRUKCIJA
EE Nurklihvkäi KASUTUSJUHEND
RUS Угловая шлифмашина
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
GA7020
GA7020S
GA7021
GA9020
GA9020S

2
1
1 006733
1
2
A
B
2 006734 3 006735
1
2
3
4 006736
1
234
5 010644
12
6 010645
1
2
3
4
7 006746
1
2
8 006738
1
2
3
9 010948
AB
15
10 006741
1
11 010950
1
12 010949

3
1
2
3
4
13 010828
1
2
3
4
45
78
78
5
14 010946
1
2
15 006744
1
2
3
16 001146
12
17 006745

4
ENGLISH (Original instructions)

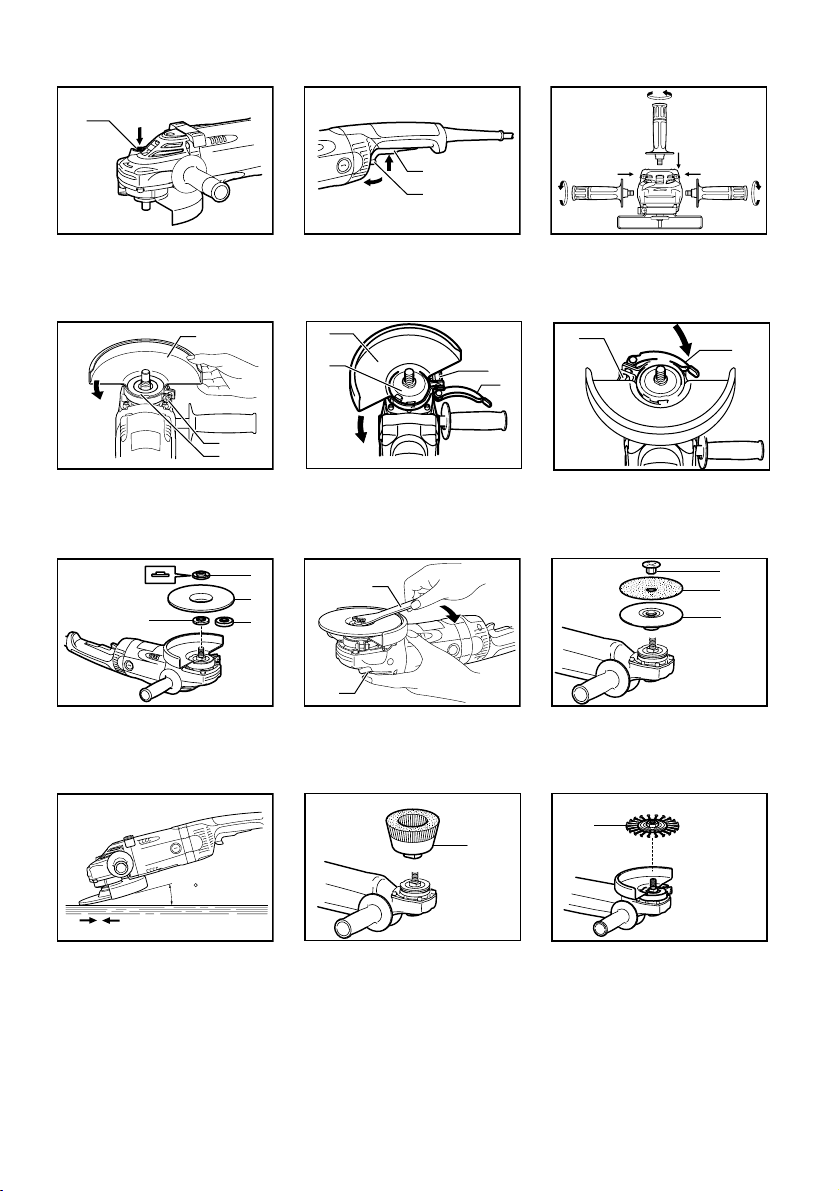

Explanation of general view
1-1. Shaft lock
2-1. Switch trigger
2-2. Lock lever
4-1. Wheel guard
4-2. Screw
4-3. Bearing box
5-1. Wheel guard
5-2. Bearing box
5-3. Nut
5-4. Lever
6-1. Nut
6-2. Lever
7-1. Lock nut
7-2. Depressed center wheel
7-3. Super flange
7-4. Inner flange
8-1. Lock nut wrench
8-2. Shaft lock
9-1. Lock nut
9-2. Abrasive disc
9-3. Rubber pad
11-1. Wire cup brush
12-1. Wire wheel brush
13-1. Lock nut
13-2. Abrasive cut-off wheel/diamond
wheel
13-3. Inner flange
13-4. Wheel guard for abrasive cut-off
wheel/diamond wheel
14-1. Lock nut
14-2. Outer flange 78
14-3. Abrasive cut-off wheel/diamond
wheel
14-4. Inner flange 78
14-5. Wheel guard for abrasive cut-off
wheel/diamond wheel
15-1. Exhaust vent
15-2. Inhalation vent
16-1. Commutator
16-2. Insulating tip
16-3. Carbon brush
17-1. Brush holder cap
17-2. Screwdriver
SPECIFICATIONS
Model GA7020 GA7020S GA7021 GA9020 GA9020S
Depressed center wheel diameter 180 mm 180 mm 230 mm
Max. wheel thickness 6.5 mm 6.5 mm 6.5 mm 6.5 mm 6.5 mm
Spindle thread M14 or 5/8"
(country specific)
M14 or 5/8"
(country specific)
M14 or 5/8"
(country specific)
Rated speed (n) / No load speed (n0)8,500min
-1 6,600 min-1 6,600 min-1
Overall length 473 mm 473 mm 473 mm
Net weight 5.5 kg 5.7 kg 5.5 kg 5.8 kg 5.9 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
ENE048-1
Intended use
The tool is intended for grinding, sanding and cutting of
metal and stone materials without the use of water.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
ENF100-1
For public low-voltage distribution systems of
between 220 V and 250 V.
Switching operations of electric apparatus cause
voltage fluctuations. The operation of this device under
unfavorable mains conditions can have adverse effects
to the operation of other equipment. With a mains
impedance equal or less than 0.27 Ohms it can be
presumed that there will be no negative effects. The
mains socket used for this device must be protected
with a fuse or protective circuit breaker having slow
tripping characteristics.
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN60745:
Sound pressure level (LpA) : 89 dB (A)
Sound power level (LWA) : 100 dB (A)
Uncertainty (K) : 3 dB (A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745:
Model GA7020,GA7020S
Work mode : surface grinding with normal side
grip
Vibration emission (ah,AG) : 8.5 m/s2
Uncertainty (K) : 1.5 m/s2

5
Work mode : surface grinding with anti vibration
side grip
Vibration emission (ah,AG) : 8.0 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode : disc sanding
Vibration emission (ah,DS) : 2.5 m/s2
Uncertainty (K) : 1.5 m/s2
Model GA7021
Work mode : surface grinding with normal side
grip
Vibration emission (ah,AG) : 5.0 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode : surface grinding with anti vibration
side grip
Vibration emission (ah,AG) : 4.5 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode: disc sanding
Vibration emission (ah,DS) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
Model GA9020,GA9020S
Work mode : surface grinding
Vibration emission (ah,AG) : 5.5 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode: disc sanding
Vibration emission (ah,DS) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG902-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
• The declared vibration emission value is used for
main applications of the power tool. However if the
power tool is used for other applications, the
vibration emission value may be different.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH101-17
For European countries only
EC Declaration of Conformity
Makita declares that the following Machine(s):
Designation of Machine:
Angle Grinder
Model No./ Type: GA7020, GA7020S, GA7021, GA9020,
GA9020S
Conforms to the following European Directives:
2006/42/EC
They are manufactured in accordance with the following
standard or standardized documents:
EN60745
The technical file in accordance with 2006/42/EC is
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
31.12.2013
000331
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
GEB033-7
GRINDER SAFETY WARNINGS
Safety Warnings Common for Grinding, Sanding,
Wire Brushing, or Abrasive Cutting-Off Operations:
1.
This power tool is intended to function as a
grinder, sander, wire brush or cut-off tool. Read
all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
2. Operations such as polishing are not
recommended to be performed with this
power tool. Operations for which the power tool
was not designed may create a hazard and cause
personal injury.
3. Do not use accessories which are not
specifically designed and recommended by
the tool manufacturer. Just because the
accessory can be attached to your power tool, it
does not assure safe operation.

6
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and fly apart.
5.
The outside diameter and the thickness of your
accessory must be within the capacity rating of
your power tool.
Incorrectly sized accessories
cannot be adequately guarded or controlled.
6. Threaded mounting of accessories must
match the grinder spindle thread. For
accessories mounted by flanges, the arbour
hole of the accessory must fit the locating
diameter of the flange. Accessories that do not
match the mounting hardware of the power tool
will run out of balance, vibrate excessively and
may cause loss of control.
7. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or
accessory is dropped, inspect for damage or
install an undamaged accessory. After
inspecting and installing an accessory,
position yourself and bystanders away from
the plane of the rotating accessory and run
the power tool at maximum no-load speed for
one minute. Damaged accessories will normally
break apart during this test time.
8. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As
appropriate, wear dust mask, hearing
protectors, gloves and workshop apron
capable of stopping small abrasive or
workpiece fragments. The eye protection must
be capable of stopping flying debris generated by
various operations. The dust mask or respirator
must be capable of filtrating particles generated
by your operation. Prolonged exposure to high
intensity noise may cause hearing loss.
9. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
may fly away and cause injury beyond immediate
area of operation.
10. Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
11. Position the cord clear of the spinning
accessory. If you lose control, the cord may be
cut or snagged and your hand or arm may be
pulled into the spinning accessory.
12. Never lay the power tool down until the
accessory has come to a complete stop. The
spinning accessory may grab the surface and pull
the power tool out of your control.
13. Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
14. Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
15. Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
16. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling of
the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel that is
entering into the pinch point can dig into the surface of
the material causing the wheel to climb out or kick out.
The wheel may either jump toward or away from the
operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels
may also break under these conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
The operator can control torque reactions or
kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating
accessory. Accessory may kickback over your
hand.
c) Do not position your body in the area where
power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite
to the wheel’s movement at the point of snagging.
d) Use special care when working corners,
sharp edges etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving
blade or toothed saw blade. Such blades create
frequent kickback and loss of control.

7
Safety Warnings Specific for Grinding and Abrasive
Cutting-Off Operations:
a) Use only wheel types that are recommended
for your power tool and the specific guard
designed for the selected wheel. Wheels for
which the power tool was not designed cannot be
adequately guarded and are unsafe.
b) The grinding surface of centre depressed
wheels must be mounted below the plane of
the guard lip. An improperly mounted wheel that
projects through the plane of the guard lip cannot
be adequately protected.
c) The guard must be securely attached to the
power tool and positioned for maximum safety, so
the least amount of wheel is exposed towards the
operator.
The guard helps to protect the operator
from broken wheel fragments, accidental contact with
wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended
applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off wheels
are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are
of correct size and shape for your selected wheel.
Proper wheel flanges support the wheel thus reducing
the possibility of wheel breakage. Flanges for cut-off
wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool
is not suitable for the higher speed of a smaller
tool and may burst.
Additional Safety Warnings Specific for Abrasive
Cutting-Off Operations:
a) Do not “jam” the cut-off wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the
possibility of kickback or wheel breakage.
b) Do not position your body in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
body, the possible kickback may propel the
spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a
cut for any reason, switch off the power tool
and hold the power tool motionless until the
wheel comes to a complete stop. Never attempt
to remove the cut-off wheel from the cut while
the wheel is in motion otherwise kickback may
occur.
Investigate and take corrective action to
eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in
the workpiece.
e) Support panels or any oversized workpiece
to minimize the risk of wheel pinching and
kickback. Large workpieces tend to sag under
their own weight. Supports must be placed under
the workpiece near the line of cut and near the
edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a “pocket
cut” into existing walls or other blind areas.
The protruding wheel may cut gas or water pipes,
electrical wiring or objects that can cause kickback.
Safety Warnings Specific for Sanding Operations:
a) Do not use excessively oversized sanding
disc paper. Follow manufacturers
recommendations, when selecting sanding
paper. Larger sanding paper extending beyond
the sanding pad presents a laceration hazard and
may cause snagging, tearing of the disc or
kickback.
Safety Warnings Specific for Wire Brushing
Operations:
a) Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive
load to the brush. The wire bristles can easily
penetrate light clothing and/or skin.
b) If the use of a guard is recommended for
wire brushing, do not allow interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to work load
and centrifugal forces.
Additional safety warnings:
17. When using depressed centre grinding
wheels, be sure to use only fiberglass-
reinforced wheels.
18. NEVER USE Stone Cup type wheels with this
grinder. This grinder is not designed for these
types of wheels and the use of such a product
may result in serious personal injury.
19. Be careful not to damage the spindle, the
flange (especially the installing surface) or the
lock nut. Damage to these parts could result
in wheel breakage.
20. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
21. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
22. Use the specified surface of the wheel to
perform the grinding.
23. Do not leave the tool running. Operate the tool
only when hand-held.
24. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
25. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.

8
26. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
27. Use only flanges specified for this tool.
28. For tools intended to be fitted with threaded
hole wheel, ensure that the thread in the
wheel is long enough to accept the spindle
length.
29. Check that the workpiece is properly
supported.
30. Pay attention that the wheel continues to
rotate after the tool is switched off.
31. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure
operator safety.
32. Do not use the tool on any materials
containing asbestos.
33. When use cut-off wheel, always work with the
dust collecting wheel guard required by
domestic regulation.
34. Cutting discs must not be subjected to any
lateral pressure.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
Shaft lock
Fig.1
CAUTION:
• Never actuate the shaft lock when the spindle is
moving. The tool may be damaged.
Press the shaft lock to prevent spindle rotation when
installing or removing accessories.
Switch action
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
• Switch can be locked in "ON" position for ease of
operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain firm grasp on tool.
Fig.2
For tool with the lock-on switch
(Not available in Europe)
To start the tool, simply pull the switch trigger (in the B
direction). Release the switch trigger to stop. For
continuous operation, pull the switch trigger (in the B
direction) and then push in the lock lever (in the A
direction). To stop the tool from the locked position, pull
the switch trigger fully (in the B direction), then release it.
For tool with the lock-off switch
To prevent the switch trigger from accidentally pulled, a
lock lever is provided.
To start the tool, push in the lock lever (in the A
direction) and then pull the switch trigger (in the B
direction). Release the switch trigger to stop.
For tool with the lock on and lock-off switch
(Not available in Europe)
To prevent the switch trigger from accidentally pulled, a
lock lever is provided.
To start the tool, push in the lock lever (in the A
direction) and then pull the switch trigger (in the B
direction). Release the switch trigger to stop.
For continuous operation, push in the lock lever (in the A
direction), pull the switch trigger (in the B direction) and
then push the lock lever (in the A direction) further in.
To stop the tool from the locked position, pull the switch
trigger fully (in the B direction), then release it.
NOTE:
Models GA7020S, GA9020S, GA7020SF and GA9020SF
begin to run slowly when they are turned on. This soft start
feature assures smoother operation and less operator fatigue.

9
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing side grip (handle)
Fig.3
CAUTION:
• Always be sure that the side grip is installed
securely before operation.
Screw the side grip securely on the position of the tool
as shown in the figure.
Installing or removing wheel guard
(For depressed center wheel , multi disc ,
wire wheel brush / abrasive cut-off wheel ,
diamond wheel)
WARNING:
• When using a depressed center grinding
wheel/Multi-disc, flex wheel or wire wheel brush,
the wheel guard must be fitted on the tool so that
the closed side of the guard always points toward
the operator.
• When using an abrasive cut-off / diamond wheel,
be sure to use only the special wheel guard
designed for use with cut-off wheels. (In some
European countries, when using a diamond wheel,
the ordinary guard can be used. Follow the
regulations in your country.)
For tool with locking screw type wheel guard
Fig.4
Mount the wheel guard with the protrusion on the wheel
guard band aligned with the notch on the bearing box.
Then rotate the wheel guard to such an angle that it can
protect the operator according to work. Be sure to
tighten the screw securely.
To remove wheel guard, follow the installation
procedure in reverse.
For tool with clamp lever type wheel guard
Fig.5
Fig.6
Loosen the lever on the wheel guard. Mount the wheel
guard with the protrusion on the wheel guard band
aligned with the notch on the bearing box. Then rotate
the wheel guard around to the position shown in the
figure. Tighten the lever to fasten the wheel guard. If the
lever is too tight or too loose to fasten the wheel guard,
loosen or tighten the nut by spanner to adjust the
tightening of the wheel guard band.
To remove wheel guard, follow the installation
procedure in reverse.
Installing or removing depressed center
grinding wheel/Multi-disc (accessory)
Fig.7
Mount the inner flange onto the spindle. Fit the
wheel/disc on the inner flange and screw the lock nut
onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
Fig.8
To remove the wheel, follow the installation procedure in
reverse.
Super flange
Models GA7020F,GA7020SF,GA9020F and GA9020SF
are standard-equipped with a super flange. Only 1/3 of
efforts needed to undo lock nut, compared with
conventional type.
NOTE:
• Only for tools with M14 spindle thread.
Installing or removing abrasive disc
(optional accessory)
NOTE:
• Use sander accessories specified in this manual.
These must be purchased separately.
Fig.9
Mount the rubber pad onto the spindle. Fit the disc on
the rubber pad and screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
To remove the disc, follow the installation procedure in
reverse.
OPERATION
WARNING:
• It should never be necessary to force the tool. The
weight of the tool applies adequate pressure.
Forcing and excessive pressure could cause
dangerous wheel breakage.
• ALWAYS replace wheel if tool is dropped while
grinding.
• NEVER bang or hit grinding disc or wheel onto
work.
• Avoid bouncing and snagging the wheel,
especially when working corners, sharp edges etc.
This can cause loss of control and kickback.
• NEVER use tool with wood cutting blades and
other sawblades. Such blades when used on a
grinder frequently kick and cause loss of control
leading to personal injury.

10
CAUTION:
• Never switch on the tool when it is in contact with
the workpiece, it may cause an injury to operator.
• Always wear safety goggles or a face shield during
operation.
• After operation, always switch off the tool and wait
until the wheel has come to a complete stop
before putting the tool down.
Grinding and sanding operation
ALWAYS hold the tool firmly with one hand on rear
handle and the other on the side handle. Turn the tool
on and then apply the wheel or disc to the workpiece.
In general, keep the edge of the wheel or disc at an
angle of about 15 degrees to the workpiece surface.
During the break-in period with a new wheel, do not
work the grinder in the B direction or it will cut into the
workpiece. Once the edge of the wheel has been
rounded off by use, the wheel may be worked in both A
and B direction.
Fig.10
Operation with wire cup brush
(optional accessory)
CAUTION:
• Check operation of brush by running tool with no
load, insuring that no one is in front of or in line
with brush.
• Do not use brush that is damaged, or which is out
of balance. Use of damaged brush could increase
potential for injury from contact with broken brush
wires.
Fig.11
Unplug tool and place it upside down allowing easy
access to spindle. Remove any accessories on spindle.
Mount wire cup brush onto spindle and tighten with
supplied wrench. When using brush, avoid applying too
much pressure which causes over bending of wires,
leading to premature breakage.
Operation with wire wheel brush
(optional accessory)
CAUTION:
• Check operation of wire wheel brush by running
tool with no load, insuring that no one is in front of
or in line with the wire wheel brush.
• Do not use wire wheel brush that is damaged, or
which is out of balance. Use of damaged wire
wheel brush could increase potential for injury
from contact with broken wires.
• ALWAYS use guard with wire wheel brushes,
assuring diameter of wheel fits inside guard.
Wheel can shatter during use and guard helps to
reduce chances of personal injury.
Fig.12
Unplug tool and place it upside down allowing easy
access to spindle. Remove any accessories on spindle.
Thread wire wheel brush onto spindle and tighten with
the wrenches.
When using wire wheel brush, avoid applying too much
pressure which causes over bending of wires, leading to
premature breakage.
Operation with abrasive cut-off / diamond
wheel (optional accessory)
WARNING:
• When using an abrasive cut-off / diamond wheel,
be sure to use only the special wheel guard
designed for use with cut-off wheels. (In some
European countries, when using a diamond wheel,
the ordinary guard can be used. Follow the
regulations in your country.)
• NEVER use cut-off wheel for side grinding.
• Do not "jam" the wheel or apply excessive
pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases
the loading and susceptibility to twisting or binding
of the wheel in the cut and the possibility of
kickback, wheel breakage and overheating of the
motor may occur.
• Do not start the cutting operation in the workpiece.
Let the wheel reach full speed and carefully enter
into the cut moving the tool forward over the
workpiece surface. The wheel may bind, walk up
or kickback if the power tool is started in the
workpiece.
• During cutting operations, never change the angle
of the wheel. Placing side pressure on the cut-off
wheel (as in grinding) will cause the wheel to crack
and break, causing serious personal injury.
• A diamond wheel shall be operated perpendicular
to the material being cut.
Mount the inner flange onto the spindle. Fit the
wheel/disc on the inner flange and screw the lock nut
onto the spindle.
Fig.13
For Australia and New Zealand
Installing or removing abrasive cut-off wheel /
diamond wheel (optional accessory)
Fig.14

11
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
The tool and its air vents have to be kept clean.
Regularly clean the tool's air vents or whenever the
vents start to become obstructed.
Fig.15
Replacing carbon brushes
Fig.16
When the resin insulating tip inside the carbon brush is
exposed to contact the commutator, it will automatically
shut off the motor. When this occurs, both carbon
brushes should be replaced. Keep the carbon brushes
clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only
identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
Fig.17
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.

12
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
5
6
3
8
9
2
5
4
10
1
11
12
13
14
14
7
8
5
6
Side grip
Wheel guard for Depressed center grinding wheel/Multi-disc / Wire wheel brush
Inner flange / Super flange
Depressed center grinding wheel/Multi-disc
Lock nut / Ezynut
Abrasive cut off wheel / Diamond wheel
Outer flange 78 (Australia and New Zealand only)
Rubber pad
Abrasive disc
Wire wheel brush
Wire cup brush
Lock nut wrench
Sanding lock nut
Inner flange 78 (Australia and New Zealand only)
Wheel guard for Abrasive cut off wheel / Diamond wheel
Dust cover attachment
*1
Do not use Super flange and Ezynut together.
*3
Use Inner flange 78 and Outer flange 78 together. (Australia and New Zealand only)
In some European countries, when using a diamond wheel, the ordinary guard can be used instead of the
special guard covering the both side of the wheel. Follow the regulations in your country.
*4
*2
*1*2
*3
*1*2
*4
*4
Only for tools with M14 spindle thread.
013353
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
