Makita 9500N User manual

1
ENGLISH
INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Angle Grinder
9500N
008435

2
ENGLISH
SPECIFICATIONS
Model 9500N
Depressed center wheel diameter 100 mm
Spindle thread M10
No load speed (min-1) 12,000
Overall length 245 mm
Net weight 1.65 kg
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.
END101-1
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･Wear safety glasses.
ENE048-1
Intended use
The tool is intended for grinding, sanding and cutting of
metal and stone materials without the use of water.
ENF002-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
ENA001-2
SAFETY INSTRUCTIONS
WARNING! When using electric tools, basic safety
precautions, including the following, should always
be followed to reduce the risk of fire, electric shock
and personal injury. Read all these instructions
before operating this product and save these
instructions.
For safe operations:
1. Keep work area clean.
Cluttered areas and benches invite injuries.
2. Consider work area environment.
Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work
area well lit. Do not use power tools where there is
risk to cause fire or explosion.
3. Guard against electric shock.
Avoid body contact with earthed or grounded
surfaces (e.g. pipes, radiators, ranges,
refrigerators).
4. Keep children away.
Do not let visitors touch the tool or extension cord.
All visitors should be kept away from work area.
5. Store idle tools.
When not in use, tools should be stored in a dry,
high or locked up place, out of reach of children.
6. Do not force the tool.
It will do the job better and safer at the rate for
which it was intended.
7. Use the right tool.
Do not force small tools or attachments to do the
job of a heavy duty tool. Do not use tools for
purposes not intended; for example, do not use
circular saws to cut tree limbs or logs.
8. Dress properly.
Do not wear loose clothing or jewellery, they can
be caught in moving parts. Rubber gloves and
non-skid footwear are recommended when
working outdoors. Wear protecting hair covering
to contain long hair.
9. Use safety glasses and hearing protection.
Also use face or dust mask if the cutting operation
is dusty.
10. Connect dust extraction equipment.
If devices are provided for the connection of dust
extraction and collection facilities ensure these
are connected and properly used.
11. Do not abuse the cord.
Never carry the tool by the cord or yank it to
disconnect it from the socket. Keep the cord away
from heat, oil and sharp edges.
12. Secure work.
Use clamps or a vice to hold the work. It is safer
than using your hand and it frees both hands to
operate the tool.
13. Do not overreach.
Keep proper footing and balance at all times.
14. Maintain tools with care.
Keep cutting tools sharp and clean for better and
safer performance. Follow instructions for
lubrication and changing accessories. Inspect tool
cord periodically and if damaged have it repaired
by an authorized service facility. Inspect extension
cords periodically and replace, if damaged. Keep

3
handles dry, clean and free from oil and grease.
15. Disconnect tools.
When not in use, before servicing and when
changing accessories such as blades, bits and
cutters.
16. Remove adjusting keys and wrenches.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool
before turning it on.
17. Avoid unintentional starting.
Do not carry a plugged-in tool with a finger on the
switch. Ensure switch is off when plugging in.
18. Use outdoor extension leads.
When tool is used outdoors, use only extension
cords intended for outdoor use.
19. Stay alert.
Watch what you are doing. Use common sense.
Do not operate tool when you are tired.
20. Check damaged parts.
Before further use of the tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operate properly and perform
its intended function. Check for alignment of
moving parts, free running of moving parts,
breakage of parts, mounting and any other
conditions that may affect its operation. A guard or
other part that is damaged should be properly
repaired or replaced by an authorized service
center unless otherwise indicated in this
instruction manual. Have defective switches
replaced by an authorized service facility. Do not
use the tool if the switch does not turn it on and
off.
21. Warning.
The use of any accessory or attachment, other
than those recommended in this instruction
manual or the catalog, may present a risk of
personal injury.
22. Have your tool repaired by a qualified person.
This electric tool is in accordance with the relevant
safety requirements. Repairs should only be
carried out by qualified persons using original
spare parts, otherwise this may result in
considerable danger to the user.
ENB031-6
ADDITIONAL SAFETY RULES
1. Always use eye and ear protection. Other
personal protective equipment such as dust
mask, gloves, helmet and apron should be
worn.
2. Always be sure that the tool is switched off
and unplugged before carrying out any work
on the tool.
3. Keep guards in place.
4. Use only wheels with correct size and wheels
having a maximum operating speed at least as
high as the highest No Load Speed marked on
the tool's nameplate. When using depressed
center wheels, be sure to use only
fiberglass-reinforced wheels.
5. Check the wheel carefully for cracks or
damage before operation. Replace cracked or
damaged wheel immediately.
6. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.
7. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
8. Use only flanges specified for this tool.
9. Do not damage the spindle, the flange
(especially the installing surface) or the lock
nut. Damage to these parts could result in
wheel breakage.
10. For tools intended to be fitted with threaded
hole wheel, ensure that the thread in the wheel
is long enough to accept the spindle length.
11. Before using the tool on an actual workpiece,
test run the tool at the highest no load speed
for at least 30 seconds in a safe position. Stop
immediately if there is any vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel. Check the tool to
determine the cause.
12. Check that the workpiece is properly
supported.
13. Hold the tool firmly.
14. Keep hands away from rotating parts.
15. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
16. Use the specified surface of the wheel to
perform the grinding.
17. Do not use cutting off wheel for side grinding.
18. Watch out for flying sparks. Hold the tool so
that sparks fly away from you and other
persons or flammable materials.
19. Pay attention that the wheel continues to
rotate after the tool is switched off.
20. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
21. Position the tool so that the power cord
always stays behind the machine during
operation.
22. If working place is extremely hot and humid, or
badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure
operator safety.
23. Do not use the tool on any materials
containing asbestos.

4
24. Do not use water or grinding lubricant.
25. Ensure that ventilation openings are kept clear
when working in dusty conditions. If it should
become necessary to clear dust, first
disconnect the tool from the mains supply
( use non metallic objects ) and avoid
damaging internal parts.
26. When use cut-off wheel, always work with the
dust collecting wheel guard required by
domestic regulation.
27. Cutting discs must not be subjected to any
lateral pressure.
SAVE THESE INSTRUCTIONS.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.

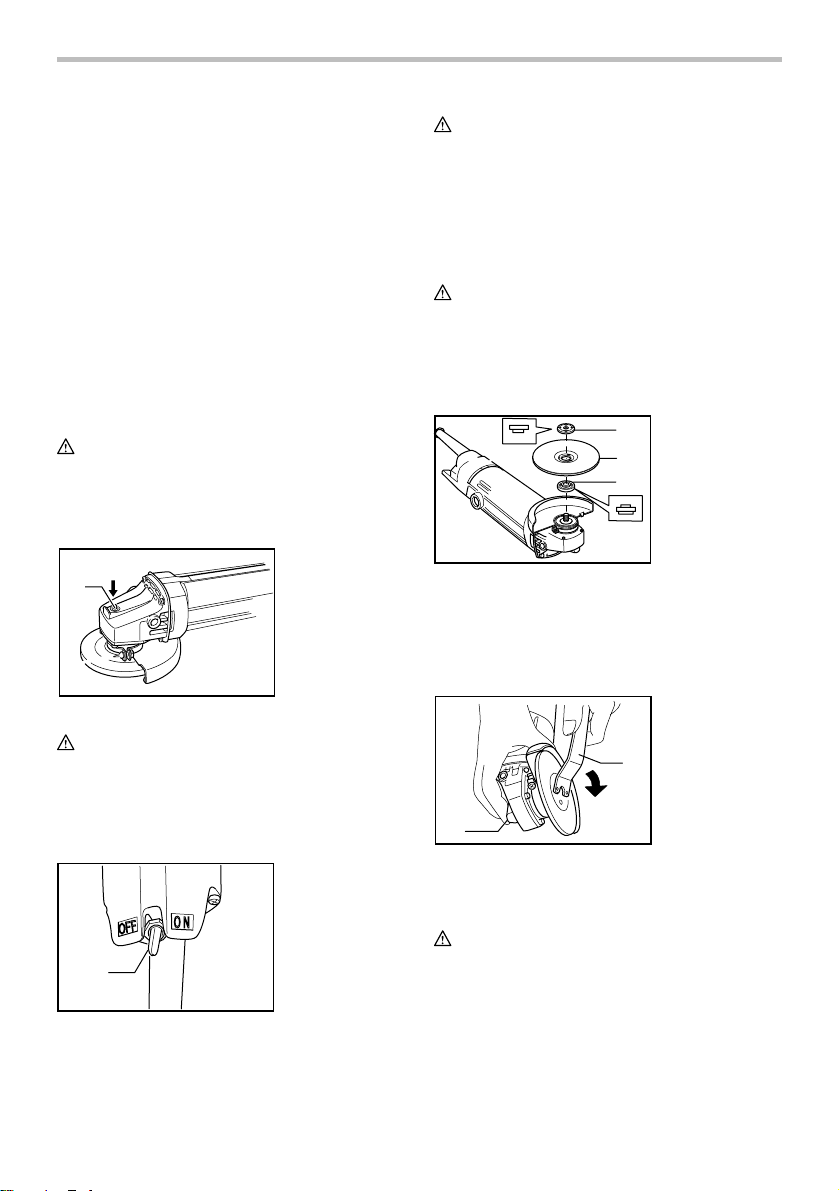

Shaft lock
1
008446
CAUTION:
• Never actuate the shaft lock when the spindle is
moving. The tool may be damaged.
Press the shaft lock to prevent spindle rotation when
installing or removing accessories.
Switch action
1
008438
CAUTION:
• Before plugging in the tool, always check to see
that the tool is switched off.
To start the tool, move the switch lever to the (ON)
position. To stop the tool, move the switch lever to the
(OFF) position.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing or removing depressed center
wheel
1
2
3
008436
Screw the inner flange onto the spindle. Fit the wheel on
the inner flange and screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
1
2
008437
To remove the wheel, follow the installation procedure in
reverse.
WARNING:
Only actuate the shaft lock when the spindle is not
moving.
1. Lock nut wrench
2. Shaft lock
1. Lock nut
2. Depressed
center wheel
3. Inner flange
1. Switch lever
1. Shaft lock

5
OPERATION
WARNING:
• It should never be necessary to force the tool. The
weight of the tool applies adequate pressure.
Forcing and excessive pressure could cause
dangerous wheel breakage.
• Continued use of a worn-out wheel may result in
wheel explosion and serious personal injury.
Depressed center wheel should not be used after it
has been worn down to 75 mm in diameter. Use of
the wheel after this point is unsafe and it should be
removed from service and rendered unusable by
intentional destruction.
AB
15
008439
ALWAYS hold the tool firmly with one hand on rear
handle and the other on the side handle. Turn the tool on
and then apply the wheel or disc to the workpiece. In
general, keep the edge of the wheel or disc at an angle
of about 15 degrees to the workpiece surface. During
the break-in period with a new wheel, do not work the
grinder in the B direction or it will cut into the workpiece.
Once the edge of the wheel has been rounded off by use,
the wheel may be worked in both A and B direction.
Installing or removing diamond wheel
(optional accessory)
CAUTION:
• Make sure that the arrow on the tool should point in
the same direction as the arrow on the diamond
wheel.
1
2
3
008445
Screw the inner flange onto the spindle. Fit the diamond
wheel on over the inner flange and screw the lock nut
onto the spindle. Notice that flat side of the lock nut
should face the diamond wheel in case the diamond
wheel is used.
WARNING:
Only actuate the shaft lock when the spindle is not
moving.
Base (optional accessory)
When you wish to use a diamond wheel, install the base
on the tool. Loosen the screw on the wheel cover with a
screwdriver. Move the wheel cover to a convenient
position and secure it by tightening the screw.
1
008440
Install the base on the wheel cover using the hole in the
wheel cover.
1
2
3
4
5
6
008441
Secure the base in place by tightening the wing nut.
008442
1. Wing nut
2. Spring washer
3. Plain washer
4. Base
5. Bolt
6. Wheel guard
1. Screwdriver
1. Lock nut
2. Diamond wheel
3. Inner flange

6
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.

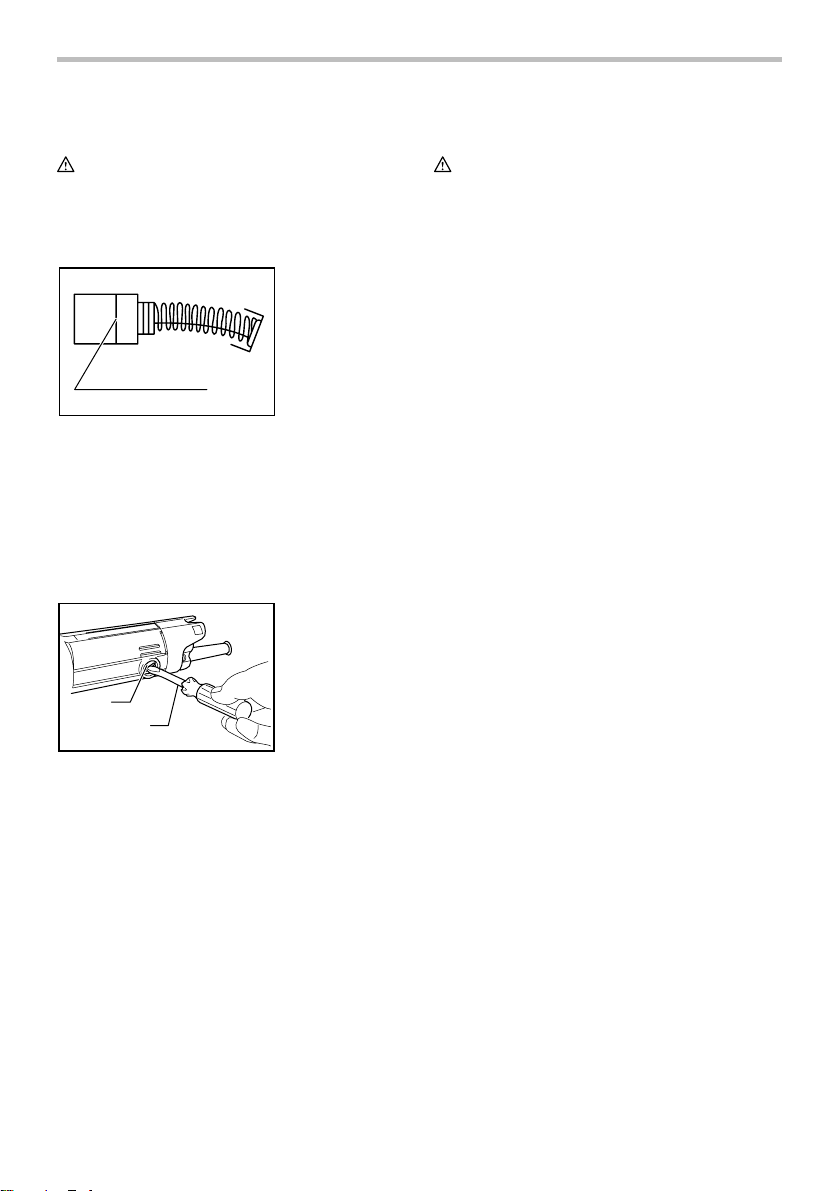

Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1
2
008444
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Wheel guard (Wheel cover)
• Inner flange
• Depressed center wheels
• Lock nut (For depressed center wheel)
• Rubber pad
• Abrasive discs
• Lock nut (For abrasive disc)
• Lock nut wrench
• Wire cup brush
• Wire bevel brush 85
• Side grip
• Diamond wheel
1. Brush holder
cap
2. Screwdriver
1. Limit mark

7

8
Makita Corporation
883115F6
